Industrial Panel PC

Operations Manual

PC1000 Series

Your Industrial Control Solutions Source

_____________________

www.maplesystems.com

Maple Systems, Inc. | 808 134th St. SW, Suite 120, Everett, WA 98204 | 425.745.3229

For use with the following:

•PC1200 Series Panel PC

•PC1300 Series Panel PC

Panel PC Operations Manual: PC1000 Series 2

Panel PC Operations Manual: PC1000 Series 2
TABLE OF CONTENTS





TABLE OF CONTENTS.......................................................................................2
COPYRIGHT NOTICE ........................................................................................3
WARRANTY ....................................................................................................3
TECHNICAL SUPPORT......................................................................................3
UNPACKING THE UNIT ....................................................................................3
SAFETY PRECAUTIONS ....................................................................................4
OVERVIEW OF PC1000 SERIES ..........................................................................5
PANEL PC MOUNTING OPTIONS......................................................................6
PANEL MOUNTING ........................................................................................6
VESA MOUNTING ..........................................................................................6
SPECIFICATIONS AND DIMENSIONS –PC1200 SERIES......................................7
SPECIFICATIONS AND DIMENSIONS –PC1300 SERIES....................................12
I/O PORTS.....................................................................................................17
HDMI®..........................................................................................................17
DISPLAYPORT ..............................................................................................17
USB 3.0........................................................................................................17
USB 2.0........................................................................................................17
LAN1 AND LAN2:..........................................................................................18
AUDIO-OUT .................................................................................................18
AUDIO-IN.....................................................................................................18
COM1-COM4: ..............................................................................................18
BIOS CONFIGURATION OPTIONS...................................................................19
SETTING COM1 FUNCTION...........................................................................20
AUTOMATICALLY STARTUP WHEN POWER IS APPLIED (PC1300 SERIES) ......21
INSTALLATION OF DRIVERS...........................................................................22
OPERATING SYSTEM OPTIONS......................................................................23
WONDERWARE / INDUSOFT WEBSTUDIO.....................................................23



Panel PC Operations Manual: PC1000 Series 3

This manual is a publication of Maple Systems, Inc., and is provided for use by its customers only.

The contents of the manual are copyrighted by Maple Systems, Inc.; reproduction in whole or in part,

for use other than in support of Maple Systems equipment is prohibited without the specific written

permission of Maple Systems.

WARRANTY

Warranty Statements are included with each unit at the time of purchase and are available at

www.maplesystems.com.

TECHNICAL SUPPORT

This manual is designed to provide the necessary information for trouble-free installation and

operation of your Panel PC. However, if you need assistance, please contact Maple Systems:

•Phone: 425-745-3229

•Email: support@maplesystems.com

•Web: www.maplesystems.com

UNPACKING THE UNIT

Carefully unpack the Panel PC. Check all material in the container against the packing list. Maple

Systems will not accept responsibility for shortages against the packing list unless notified within 30

days. The equipment and accessories were inspected and tested by Maple Systems before shipment.

Examine the equipment carefully; if any shipping damage is evident, notify the carrier immediately.

Maple Systems is not responsible for claim negotiations with the carrier.

Save the shipping container and packing material in case the equipment needs to be stored, returned

to Maple Systems, or transported for any reason.

Packing List

PC1000 Series Panel PC unit

Power Cable (for use with existing DC Power Supply)

M4x5mm VESA Mounting Screws (Set of 4)

Mounting Clips (Set of 4,8, or 10 depending on PC screen size)

Support DVD

Windows Recovery DVD (for non-embedded operating systems only)

Panel PC Operations Manual: PC1000 Series 4

SAFETY PRECAUTIONS

Please observe the following precautions when installing the PC1000 Series. Failure to comply with

these restrictions could result in loss of life, serious personal injury, or equipment damage.

Warning: Disconnect this equipment from any power before cleaning. Do not use

liquid or spray detergents for cleaning. Use a damp cloth.

Warning: Keep this equipment away from humidity.

Warning: Before applying power the unit make sure the voltage of the power source

is within the input voltage rating of the unit.

Warning: Never open the equipment and do not operate equipment with its heatsink

cover removed- there are dangerous high voltages present inside. For safety reasons,

the equipment should be opened only by a qualified service technician.

Warning: This equipment generates, uses and can radiate radio frequency energy

and if not installed and used in accordance with the instructions manual, it may cause

interference to radio communications. It has been tested and found to comply with the

limits for a Class A computing device pursuant to FCC Rules, which are designed to

provide reasonable protection against such interference when operated in a

commercial environment. Operation of this equipment in a residential area is likely to

cause interference in which case the user at his own expense will be required to take

whatever measures may be required to correct the interference.

Warning: If any of the following situations arise, get the equipment checked by

qualified service personnel.

1. The power cord or plug is damaged.

2. Liquid has penetrated into the equipment.

3. The equipment has been exposed to moisture.

4. The equipment does not work well, or you cannot get it to work according to

this operations manual.

5. The equipment has been dropped and damaged.

6. The equipment has obvious signs of breakage.

Warning: Risk of explosion if the battery is replaced with an incorrect type.

Batteries should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

Warning: Do not leave this equipment in an uncontrolled environment where the

storage temperature is below -30°C (-22°F) or above 80°C (175°F). It may damage

the equipment.

Panel PC Operations Manual: PC1000 Series 5

OVERVIEW OF PC1000 SERIES

PC1000 Series Panel PC units are industrial, heavy duty fanless PCs available in two sub-categories:

PC1200 Series and PC1300 Series. Display sizes range from 10.4 ~ 21.5”. All PC1000 Panel PCs

feature Projected Capacitive Touch Screens, which allow for a more natural, intuitive user touch

experience compared to traditional analog-resistive touch screen terminals. All PC1000 units feature

dual Gigabit Ethernet Ports, allowing for simultaneous connection to multiple networks. Each PC1000

unit comes with Microsoft Windows®10 IOT 2019 LTSC 64-bit pre-installed.

PC1000 Series Panel PCs are NEMA4 rated and carry a rugged IP65 certification (when panel

mounted). PC1000 Series units can be equipped with a Wi-Fi antenna, enabling access to existing

802.11 b/g/n wireless networks.

PC1200

The PC1200 Series is powered by the Intel® Pentium™N4200 1.1GHz quad-core processor. Memory

options include 4GB or 8GB of DDR3L RAM. Solid State Drive options include sizes from 32GB to

512GB (Other options may be available; contact Maple Systems for details).

PC1200 Series units have 4 x USB 3.0 ports, 2 x USB 2.0 ports, 1 x HDMI, 1 x Line-out, 1 x Mic-in,

and 3 x DE-9P serial ports.

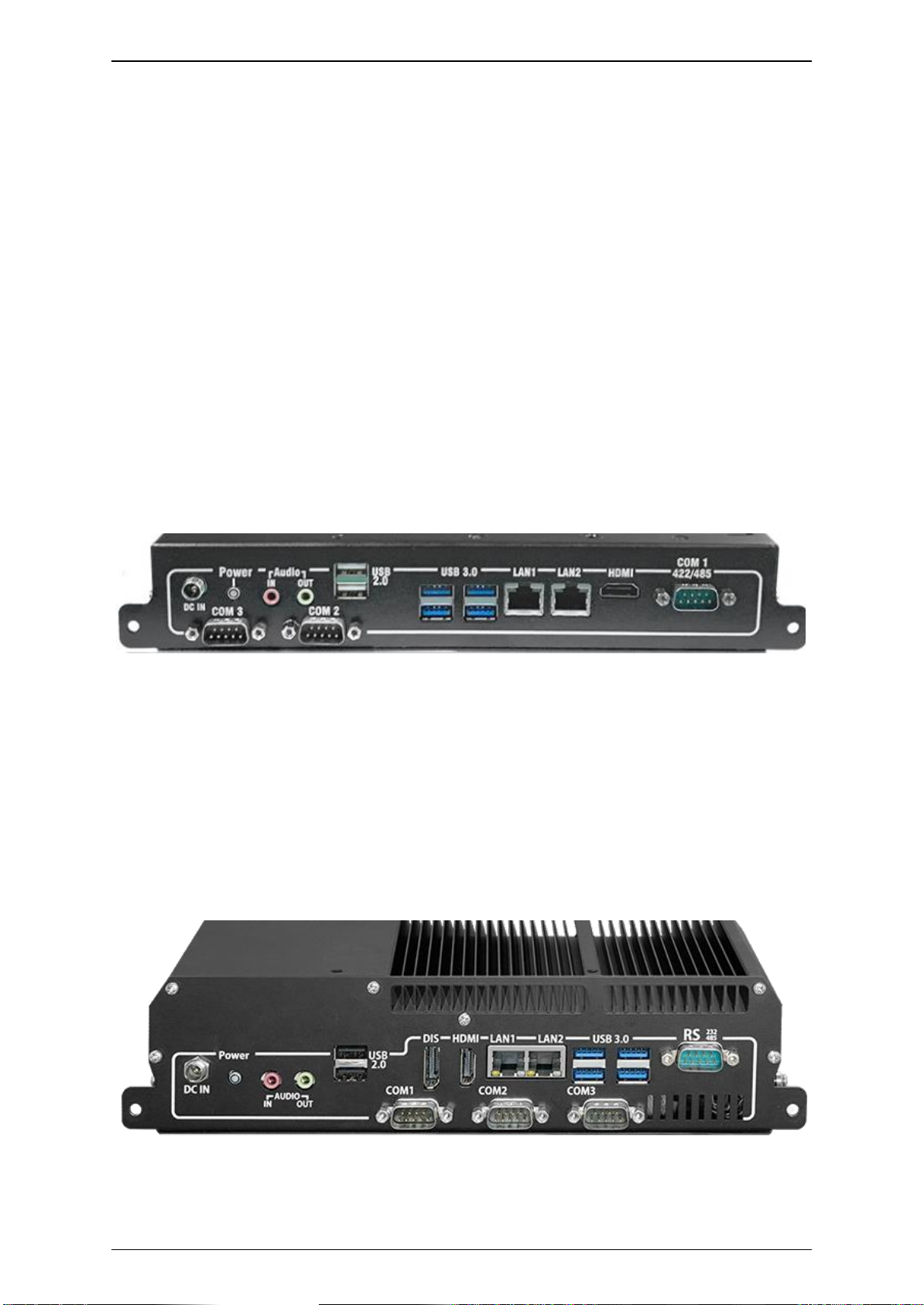

PC1200 Series I/Os (View from Bottom of unit)

PC1300

The PC1300 Series units boast a 7th Generation Intel®Kaby Lake Core™i-Series Processors

(i3-7100U –2.4GHz, i5-7300U –2.6GHZ, i7-7600U –2.8GHz) with up to 32GB of DDR4 RAM. Solid

State Drive options include sizes from 64GB to 512GB (Other options may be available; contact Maple

Systems for details).

PC1300 Series units have 4 x USB 3.0 ports, 2 x USB 2.0 ports, 1 x HDMI, 1 x DisplayPort, 1 x Line-

Out, 1 x Mic-In, and 4 x DE-9P serial ports.

PC1300 Series I/Os (View from Bottom of unit)

Panel PC Operations Manual: PC1000 Series 6

PANEL PC MOUNTING OPTIONS

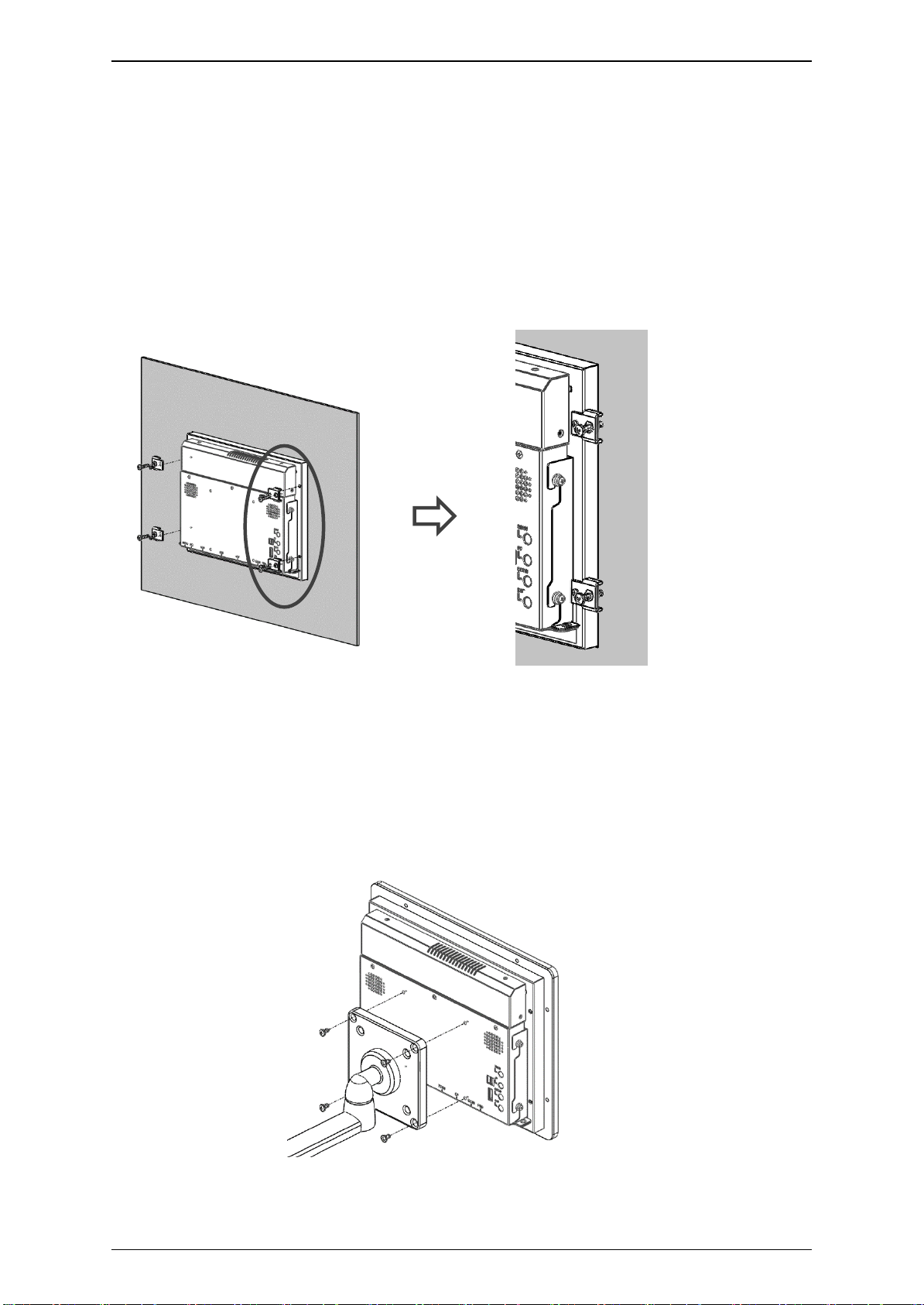

PANEL MOUNTING

PC1000 units can be panel mounted using the mounting holes located on the rear of the unit. Use the

included clamps to fasten the unit to the panel, cut out to the proper dimensions on the datasheet

corresponding to your display size. Tighten the bolts no more than 5.1 in./lbs. to ensure an adequate

seal. Over torqueing the bolts may possibly negate NEMA or IP65 rating, or cause damage to the unit

or panel.

Maple Systems is not responsible for damage to unit, mounting surface or any other components

caused by improper mounting.

Note: 10.4” Monitor Panel Mounting example shown. Actual Product differs from picture.

VESA MOUNTING

In addition to panel mounting, the PC1000 Series Panel PCs offer VESA 100 mounting as an option.

VESA 100 x 100 mm threaded inserts are located on the rear of the unit. Use M4 threaded mounting

screws to attach your VESA mounting bracket (not provided by Maple Systems) to the Panel PC.

Your PC comes with M4x5mm mounting screws, but your VESA bracket may require screws of a

different length. Use VESA mounting brackets sufficient for the application. Maple Systems is not

responsible for damage to unit, mounting surface or any other components caused by improper

mounting.

Note: VESA Mounting example shown. Actual Product differs from picture. VESA Mount not provided by Maple Systems.

Panel PC Operations Manual: PC1000 Series 7

SPECIFICATIONS AND DIMENSIONS –PC1200 SERIES

The following section contains the Specifications and Dimensional Drawings for the PC1200 Series

Panel PC Configurations.

PC1200 SERIES SPECIFICATIONS

System

CPU

Intel®Pentium™ Apollo Lake™N4200 Quad-Core™1.1 GHz CPU

System Memory

Options

1 x DDR3-L 204-pin SO-DIMM RAM (4, 8 GB)

I/O Ports

USB

2 x USB 2.0 type A

4 x USB 3.0 type A

Serial

1 x RS-232/422/485 DE-9P, COM1 (default RS-232)

2 x RS-232 DE-9P, COM2/COM3

Audio

1 x 3.5 mm Line-out

LAN

2 x GbE RJ-45

Power

DC power input jack, thumbscrew secured.

Power Switch

1 x Momentary Pushbutton with Integrated LED

External Display

Connector

1 x HDMI®1.4a

Storage

Solid State Drive

Options*

1 x 2.5” SATA 2, MLC (32, 64, 128, 256, 512 GB SSD)

SD Card Slot

N/A

Expansion

Expansion Slot

Optional Wi-Fi kit (Wi-Fi card and antenna)

Touch Screen

Type

Projected Capacitive Touch

Interface

USB

Display

Display Type

10.4”

TFT XVGA LCD

12.1”

TFT XVGA LCD

15”

TFT XVGA LCD

21.5”

TFT XVGA LCD

Max. Resolution

1024 x 768

1920 x 1080

Max. Color

16.2 M

Luminance (cd/m²)

350

450

300

250

View Angle (H°/V°)

170/170

170/160

Contrast Ratio

1000:1

1500:1

2000:1

1000:1

Backlight Lifetime

(hours)

50,000+

Electrical

Input Voltage

12~24 VDC

Input Current

0.88~1.75 A

0.94~1.89 A

1.0~2.0 A

1.46~2.92 A

Input Power

21 W

22.5 W

24 W

35 W

Mechanical

Dimension

(W x H x D)

11.57 x 8.90 x 2.82”

[294 x 226 x 71.6 mm]

12.48 x 9.65 x 2.82”

[317 x 245 x 71.6 mm]

13.97 x 11.40 x 2.82”

[354.9 x 289.5 x 71.6 mm]

20.63 x 13.00 x 2.82”

[524 x 330.2 x 71.6 mm]

Net Weight

8.38 lbs [3.8 kg]

9.04 lbs [4.1 kg]

11.1 lbs [5.03 kg]

15.65 lbs [7.1 kg]

Panel Cutout

Dimensions (W x H)

10.63 x 7.95”

[270 x 202 mm]

11.54 x 8.70”

[293 x 221 mm]

13.03 x 10.47”

[331 x 266 mm]

19.69 x 12.09”

[500 x 307 mm]

Mounting

Panel mounting, VESA 100 x 100

Construction

Black Steel Chassis, Aluminum Heatsink

Rating

IP65 front panel / NEMA4

Environmental

Operating

Temperature

32~140°F [0~60°C]

Storage

Temperature

-22~175°F [-30~80°C]

Storage Humidity

10 to 90% @ 40°C, non-condensing

Certifications

CE / FCC Class B / RoHS

Operating

System

Microsoft Windows

Options

Microsoft Windows© 10 IoT Enterprise Embedded 2019 LTSC 64-bit (EPKEA)

Microsoft Windows© 10 IoT Enterprise 2019 LTSC 64-bit (PKEA)

Notes

Specifications subject to change without notice.

* Additional SSD options available; contact Maple Systems for details

Panel PC Operations Manual: PC1000 Series 8

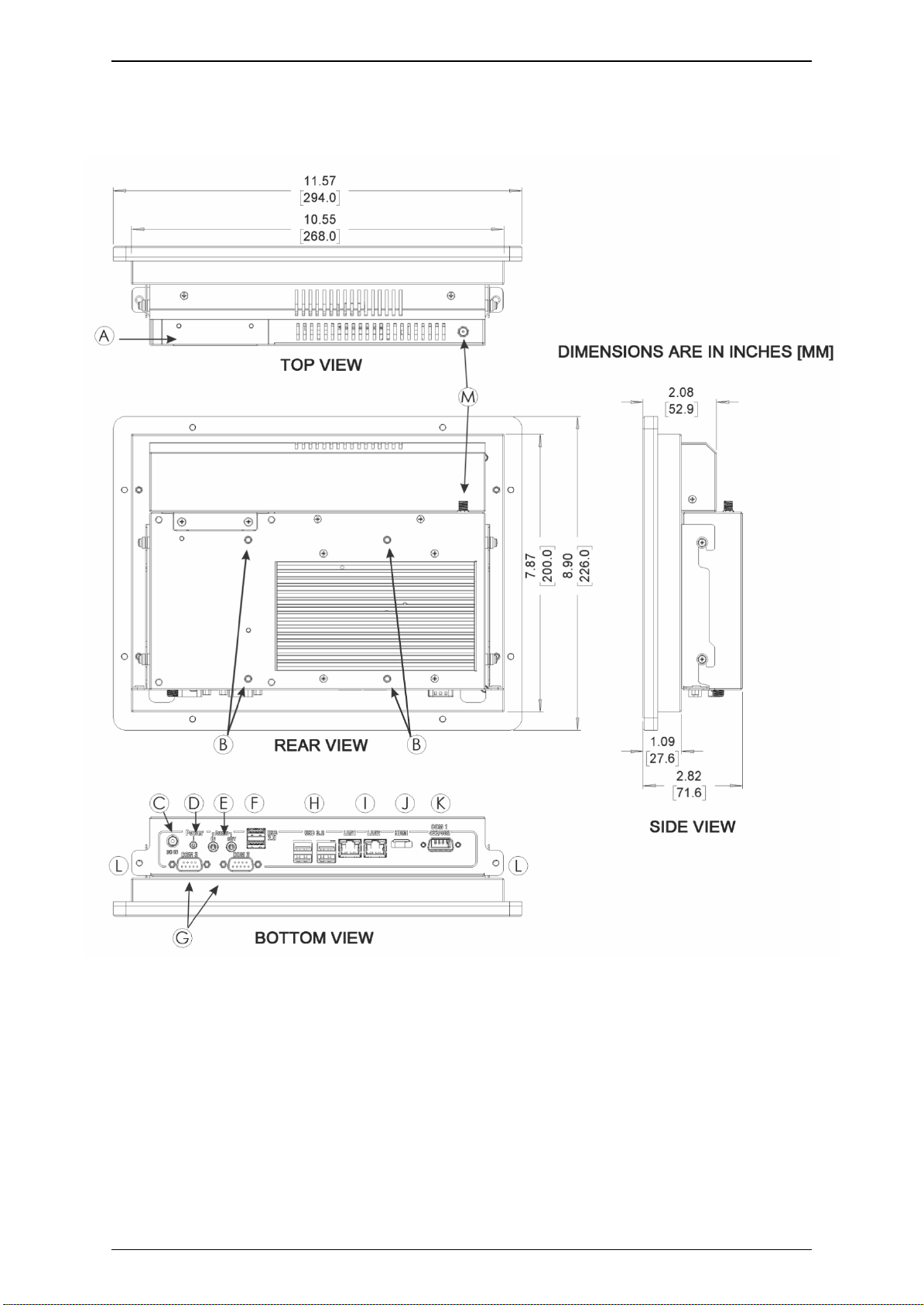

PC1210 DIMENSIONS

Solid State Drive Bay

USB 3.0 Host Ports

VESA 100 x 100 mounting

Gigabit Ethernet Ports

DC Input Power Connector

HDMI

Output

Illuminated Power Button

COM Port DE9P (RS232/RS422/RS485 Configurable)

3.5mm Audio Ports (Mic-In / Line Out)

Thumb-Screw Mounting

USB 2.0 Host Ports

Wi-Fi Antenna Connector

(Nonfunctional unless Wi-Fi Option Purchased)

COM Ports DE9P (RS232)

Panel PC Operations Manual: PC1000 Series 9

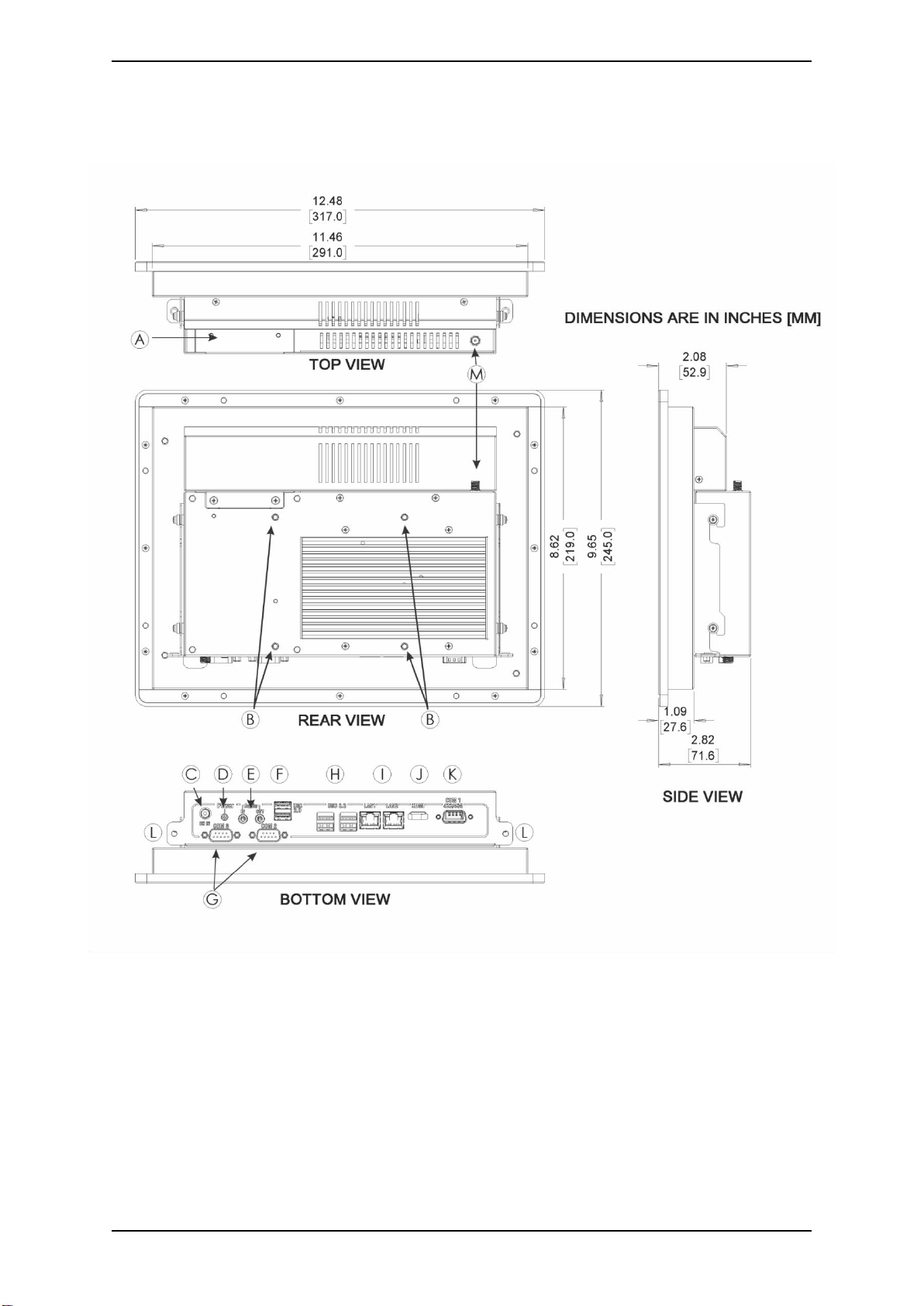

PC1212 DIMENSIONS

Solid State Drive Bay

USB 3.0 Host Ports

VESA 100 x 100 mounting

Gigabit Ethernet Ports

DC Input Power Connector

HDMI

Output

Illuminated Power Button

COM Port DE9P (RS232/RS422/RS485 Configurable)

3.5mm Audio Ports (Mic-In / Line Out)

Thumb-Screw Mounting

USB 2.0 Host Ports

Wi-Fi Antenna Connector

(Nonfunctional unless Wi-Fi Option Purchased)

COM Ports DE9P (RS232)

Panel PC Operations Manual: PC1000 Series 10

PC1215 DIMENSIONS

Solid State Drive Bay

USB 3.0 Host Ports

VESA 100 x 100 mounting

Gigabit Ethernet Ports

DC Input Power Connector

HDMI

Output

Illuminated Power Button

COM Port DE9P (RS232/RS422/RS485 Configurable)

3.5mm Audio Ports (Mic-In / Line Out)

Thumb-Screw Mounting

USB 2.0 Host Ports

Wi-Fi Antenna Connector

(Nonfunctional unless Wi-Fi Option Purchased)

COM Ports DE9P (RS232)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Maple Systems PC industriale

Maple Systems

Maple Systems OMI6800B Series Manuale utente

Maple Systems

Maple Systems OMI6700 Series Manuale utente

Manuali PC industriale popolari di altre marche

Chipsee

Chipsee PPC-A72-101 Manuale utente

Advantech

Advantech UNO-2184G Manuale utente

MSI

MSI MS-9A76 Manuale utente

Stackrack

Stackrack THOR200 Manuale utente

Moxa Technologies

Moxa Technologies DA-682C Series Manuale utente

Nodka

Nodka eBOX-3000-ETC Manuale utente

Siemens

Siemens SIMATIC IPC627E Manuale utente

MSI

MSI MS-9A89 Manuale utente

Artila

Artila Matrix-516 Manuale utente

Siemens

Siemens SIMATIC Rack PC 840 V2 Manuale utente

Advantech

Advantech IPPC-6152A Manuale utente

Beckhoff

Beckhoff CX9020 Manuale utente

Dell

Dell Embedded Box PC 5000 Manuale utente

IBASE Technology

IBASE Technology ASB200-918 Series Manuale utente

Lenovo

Lenovo ThinkCentre M90q Manuale del proprietario

IXXAT

IXXAT Econ 100 Manuale utente

Kontron

Kontron KBox A-151-TGL Manuale utente

AXIOMTEK

AXIOMTEK ICO500-518 Series Manuale utente
