Precision Spotlight Instructions Precision Spotlight Instructions

For more information and installation guides,visit

our website: www.marinco.com

For a FREE catalog of Marinco Recreational

Group products, contact your local dealer or visit

Marinco.com.

marinco.com

ZX447

MAR_TL_029_1011

LIMITED WARRANTY

For ﬁve (5) years from the date of purchase, Marinco will, at its discretion, repair or replace

for the original consumer, free of charge, any part or parts found upon examination by

Marinco to be defective in material or workmanship or both. All transportation charges under

this warranty must be borne by the consumer.

Proof of purchase is required. Proof of purchase must be a computerized receipt.

Handwritten receipts are not accepted.

THERE IS NO OTHER EXPRESSED WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO

ONE YEAR FROM THE DATE OF PURCHASE. THIS IS THE EXCLUSIVE REMEDY AND

CONSEQUENTIAL DAMAGES ARE EXCLUDED WHERE PERMITTED BY LAW.

FCC

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUB-

JECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE

HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFER-

ENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED

OPERATION.

502-2 & 503-2 instructions

Instructions

marinco.com

Installing and Using the

Precision Spotlight

IMPORTANT!

READ THESE INSTRUCTIONS BEFORE INSTALLING AND USING THIS PRODUCT.

INTRODUCTION

The Marinco Precision spotlight uses a super bright 100 Watt, replaceable H3 Halogen bulb

that produces a rich yet intense beam that can illuminate objects up to 1,000ft away. It is

IP56 Weatherproof rated with a double o-ring sealed base, UV weather resistant housing

and fully enclosed tilt function driven by quiet motors that can withstand extreme tempera-

tures (5°F to 113°F or -15°C to 45°C). It has been designed and tested to withstand the

harsh marine environments including high humidity, salt water spray, shock, and vibration.

Innovative construction allows for upside down mounting and reverse motion programming.

Precision circuitry allows for remarkable aiming and tracking with two speed choices.

The Precision remotes have glow in the dark buttons and include one touch Automatic

Sweep and SOS options. The wireless remotes transmit a signal up too 200ft (60m). While

the spotlight comes with a wireless bridge remote there are two more optional remotes:

a wireless handheld remote w/lanyard (SPRL-1) and a hard wired bridge mount remote

(SPRL-3).

PACKAGE INCLUDES:

• Spotlightwith12Voltbulbinstalled

• Additional24Voltbulb**

• Mountingkit(nofastenersincluded)

• WirelessBridgeRemote

• Instructionmanual

 **(modelsSPL-12W,SPL-12B,SPL-12Conly)

MODELS: SPL-12W, SPL-12B, SPL-12C

MAR_TL_029_1011_Precision_Spotlight_ Manual_6x9_Ins.indd 1-2 11/3/11 11:15 AM

Precision Spotlight Instructions Precision Spotlight Instructions

Required for Installation:

• Four(4)No.10stainlesssteelpanheadscrewsforspotlightbracket(Length and type of

screws to be determined by mounting surface)

• Two(2)No.6stainlesssteelpanheadscrews(Length and type of screws to be

determined by mounting surface)

• Two(2)#16AWGbuttwireconnectors

WARNING: IF THE APPLICATION IS 24 VOLTS. THE 12 VOLT BULB WILL NEED TO BE

REPLACED WITH THE 24 VOLT BULB.TO REPLACE THE BULB REFER TO THE BULB

REPLACEMENT SECTION. (PAGES 4-5).

Failure to use the appropriate bulb wattage will damage the spotlight.

WARNING: BEFORE OPERATION REMOVE BLUE FILM FROM LENS. FAILURE TO

REMOVE FILM WILL DAMAGE THE SPOTLIGHT.

Mounting and wiring of the Precision Spotlight

1. Select a ﬂat surface to mount the spotlight. Make sure there are no obstructions around

the spotlight that could interfere with the rotation. (template included with light). Be sure you

will have wiring access to the underside of the chosen location and that drilling holes will

not damage existing wiring or structures. Avoid locations where lines, anchors and sails

might entangle or damage the light.

2. Refer to the template for mounting and wire hole location.

3. While installing the mounting bracket make sure that the securing screw is opposite the

direction that the light will be facing. Mark the mounting holes and center wire hole.

Be sure that there is at least a 6"(145mm) radius of clearance from the center hole.

See dotted line on ﬁgure 1.

4. Drill hole sizes appropriate for the type of screws or bolts being used. Note: the maximum

bracket whole sizes are No. 10 screws.

5. Drill the appropriate hole size to accommodate the wires. This will depend on the type of

wire being used.

6. The spotlight requires 12 or 24 volt power supplied through appropriate gauge wire.

(Note: If the wired bridge remote version is used than 2 additional wires will need to

be routed from the remote to the spotlight.)

WARNING: CORRECT WIRE SIZE FOR THE RUN AND CIRCUIT BREAKER PROTECTION

NEEDS TO BE SELECTED BASED ON ABYC STANDARDS. FAILURE TO FOLLOW ABYC

STANDARDS MIGHT LEAD TO SEVERE INJURY, DEATH OR DAMAGE TO VESSEL.

7. Mount the bracket. But ﬁrst apply a small amount of non silicone sealant to where the

screws or bolts penetrate the mounting surface. (Note: mounting bracket screw

heads should not protrude more than .2” (5mm) above mounting bracket.)

8. Connect wires to spotlight using butt connectors. Red wire is positive,

Black wire is negative.

WARNING: POLARITY OF THE WIRES NEEDS TO BE CORRECT TO OPERATE THE

SPOTLIGHT! FAILURE TO WIRE CORRECTLY WILL DAMAGE THE SPOTLIGHT

SYSTEM!

9. Slide spotlight over mounting plate making sure the wires are not pinched and the two

holding tabs engage the light in the proper location. Align the external screw hole with

the screw threads on the mounting plate. This will require a degree of pressure and effort

as the mounting seal must be suitably compressed during this process. Insert securing

screw and ensure that it is fully engaged and secure.

FIGURE 1

MAR_TL_029_1011_Precision_Spotlight_ Manual_6x9_Ins.indd 3-4 11/3/11 11:15 AM

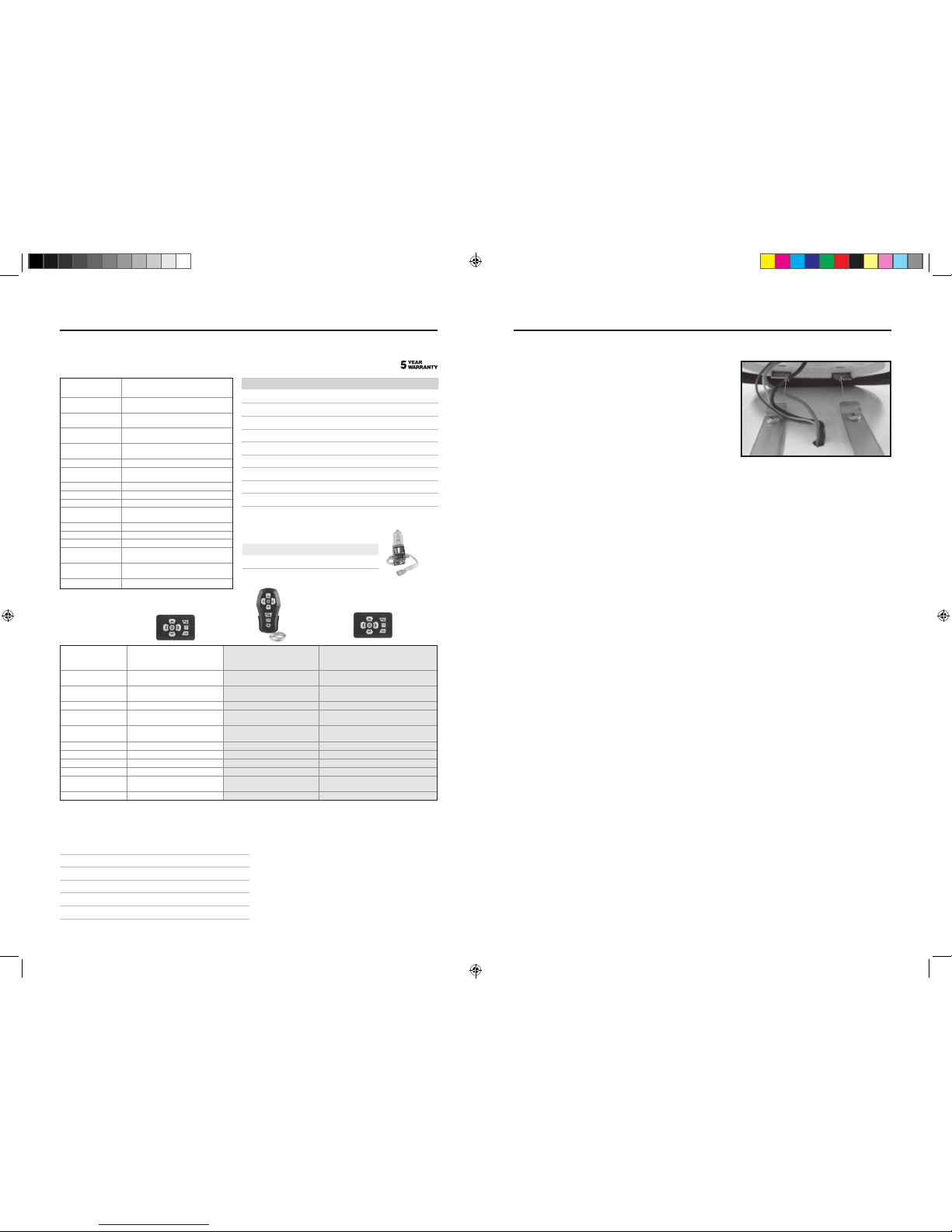

Precision Spotlight Instructions Precision Spotlight Instructions

Remote Speciﬁcations

Included *

Wireless Bridge Remote

(SPLR-2)

(Optional) †

Hand Held Bridge Remote

(SPLR-1)

(Optional) s

Wired Bridge Remote

(SPLR-3)

Power 12 or 24 Volt

(hard wired to power)

CR2540 button

cell battery

12 or 24 Volt

(hard wired to spotlight)

Current draw

(idle / in use) negligible negligible negligible

Wireless range 200 ft (65m) 200 ft (65m) —

Estimated

battery life — > 40 hours

(continuous use) —

Dimensions 3.5"W x 2.25"H x .75"D

88mm x 57mm x 19mm

2.0"W x 3.78"H x 1"D

51mm x 96mm x 25mm

3.5"W x 2.25"H x .75"D

88mm x 57mm x 19mm

Weight 2.12 oz. (60g) 2.82 oz. (80g) 2.12 oz. (60g)

Housing material UV resistant PC/ASA UV resistant PC/ASA UV resistant PC/ASA

Button material Silicone (glow in the dark) Silicone (glow in the dark) Silicone (glow in the dark)

Wire 16AWG — 24AWG

Operating

temp range 5°F to 113°F (-15°C to 45°C) 5°F to 113°F (-15°C to 45°C) 5°F to 113°F (-15°C to 45°C)

IP Rating IP54 IP56 IP54

Caution: you must feel the screw reach a twist-

ing torque to know that it is properly engaged

Note: In the photograph, the purple and yellow

control wires are shown for the wired-remote. If a

wireless bridge remote is used, then the purple

and yellow leads are not necessary and can be

tucked away within the spotlight base

Mounting the wired and wireless remote

1. The remotes are all IP54 weather resistant.

2. Please choose a mounting location based on the gasket supplied with the remote

(large hole should be towards top)

3. Drill holes the correct size for the mounting screws. The holes through the remotes are

sized for a No. 6 pan head screw. The length and thread type will need to be determined

by the application. Set aside the 2 screw covers.

4. Drill hole for the wiring. Note that the hole needs to be 5/8" to allow the unit to sit ﬂat.

5. If mounting the wireless bridge remote it will require a 12 V or 24 V power source.

If mounting the hard wired bridge remote then it does not need a local power source and

instead uses the 2 wires connecting from the spotlight to the remote. These two

wires will supply the remote with power and control the spotlight. The terminals on the

remote can handle a 16 awg to 26 awg wire. Maximum torque on the terminals is

2.21in lbs (.25 nm)

6. Feed wires through drilled surface hole and gasket from below

7. For the wireless bridge remote attach the power source wires to the remote (+) positive

and (-) negative terminals.

For the hard wired bridge remote attach the 2 wires from the spotlight. The yellow wire

needs to connect to the (+) positive and the purple wire needs to connect to the (–)

negative. Maximum Torque on the terminals is 2.21in lbs( .25 nm)

8. Place remote in location align holes and tighten down.

9. Apply screw caps to remote to hide screws.

PAIRING OF MOUNTED AND HAND HELD WIRELESS REMOTE TO SPOTLIGHT

1. Turn off all power to the spotlight.

2. Apply power to mounted remote. Press and hold the power button on the wireless remote.

3. While pressing the power button apply power to the spotlight.

4. After a few seconds you will hear the relay click and the light will turn on.

5. When the light turns on the paring is complete, release power button.

PROGRAMMING THE REMOTE WHEN MOUNTING THE SPOTLIGHT UP-SIDE-DOWN

NOTE: This procedure reverses the directional buttons on the remote.

1. Pairing of the remote described above must be completed ﬁrst.

2. Remove all power to the spotlight.

3. Hold down the tilt UP and DOWN buttons on the remote.

4. While pressing the 2 buttons apply power to the spotlight and continue to hold down the

buttons for 3 seconds until the spotlight tilts up or down.

5. The spotlight is now conﬁgured for inverted mode. Release buttons.

6. To return the spotlight to the standard conﬁguration repeat steps above.

WARNING: BEFORE OPERATION REMOVE BLUE FILM FROM LENS

SPECIFICATIONS

Description Color Item # OEM #

12/24 Volt, 100 Watt white SPL-12W —

12/24 Volt, 100 Watt black SPL-12B —

12/24 Volt, 100 Watt chrome SPL-12C —

12 Volt, 100 Watt white — SPL-12W.OEM

12 Volt, 100 Watt black — SPL-12B.OEM

12 Volt, 100 Watt chrome — SPL-12C.OEM

24 Volt, 100 Watt white — SPL-24W.OEM

24 Volt, 100 Watt black — SPL-24B.OEM

24 Volt, 100 Watt chrome — SPL-24C.OEM

Replacement Bulbs

Description Item #

12 Volt, H3 Halogen 202319

Replacement Parts

Part# Description

202319 12V, H3 halogen replacement bulb

202320 24V, H3 halogen replacement bulb

SPLR-1 Spotlight remote, wireless hand-held

SPLR-2 Spotlight remote, wireless bridge mount

SPLR-3 Spotlight remote, wired bridge mount

* There is no wiring required from the spotlight to the

bridge remote. The spotlight and the bridge remote must

be wired locally to power.

† The hand held bridge remote includes a wrist lanyard

and a surface mount cradle.

s The wired bridge remote requires hard wiring of 2 leads

from the spotlight to the bridge.

Bulb 100 Watt, H3 Halogen (replaceable)

(12 volt installed / 24 Volt included)

Power

(Input voltage)

12 volt or 24 Volt

(note: must match bulb with voltage)

Current draw

(idle / in use) 0.03 Amps / 7.0 Amps

Peak beam

intensity 210,000 candella

Peak beam

distance 917 ft (280 m)

Lux @ 66' (20m) 525 Lux

Coverage at 66'

(20 m)

132 sq Ft

(12 sq m)

Rotatation 370° (built in limit stops)

Tilt 120° Tilt (75°up and 45° down)

Wireless range 200 ft (65m)

Dimensions 7.5"W x 7.5"H x 9.25"D

(19cm x19cm x 23.5cm)

Weight 3.30 lbs (1.5 kg)

Housing material UV resistant PC/ASA

Lens material UV resistant Lexan®

Wire type 16 AWG power

24 AWG control

Operating

temp range 5°F to 113°F (-15°C to 45°C)

IP Rating IP56

Tested in accordance with ANSI/NEMA standard FL1

MAR_TL_029_1011_Precision_Spotlight_ Manual_6x9_Ins.indd 5-6 11/3/11 11:16 AM

Precision Spotlight Instructions Precision Spotlight Instructions

OPERATION

BULB REPLACEMENT CAUTION! AVOID TOUCHING THE GLASS SURFACE OF THE

NEW BULB. (TOOLS REQUIRED: MEDIUM PHILLIPS SCREWDRIVER)

1. Remove 2 screws on bottom of lens bezel

and remove bezel.

2. Remove 6 screws from around the lens.

3. Remove lens and reﬂector as an assembly.

SOS

(· · · — — — · · ·)

Pressing this button the light will begin to signal the

Morse code distress signal. Press again to turn off

Power on/off

Speed Control

Pressing this button will

allow you to change speed

of the light, SOS, and Sweep

Angle function

Auto Sweep

When this button is pressed

the light will begin to sweep left

and right at 90° for slow speed

and 70° for high speed. Press

the button again or a directional

button to stop the sweep

1. Remove the screw holding the

metal grounding bar behind

the reﬂector. Remove the bulb

assembly by pushing on the

bulb so it exits the back of the

reﬂector.

2. Unplug bulb and replace with

new bulb. (or 24 volt bulb if

installation requires)

CAUTION! AVOID TOUCHING THE GLASS SURFACE OF THE NEW BULB.

MAR_TL_029_1011_Precision_Spotlight_ Manual_6x9_Ins.indd 7-8 11/3/11 11:16 AM

Altri manuali per SPL-12W

Questo manuale è adatto per i seguenti modelli

Altri manuali marinco Riflettore

marinco

marinco SPL-12W Manuale utente

Manuali Riflettore popolari di altre marche

Guangzhou Yinhe Lighting&Sound Equipment Factory

Guangzhou Yinhe Lighting&Sound Equipment Factory NE-204 Manuale utente

LIVARNO home

LIVARNO home 375304 2101 Istruzioni originali

Cameo

Cameo CLQS40WW Manuale utente

Leviton

Leviton Ellipsoid 5/50 Manuale utente

Monacor

Monacor img Stage Line PARL-56PDX/CR Manuale utente

Vector

Vector SL3AKV Manuale utente

Quantum

Quantum Q262 Manuale operativo

Philips

Philips Vari-lite VL3015LT Manuale utente

EUROSPOT

EUROSPOT C51 Manuale utente

DTS

DTS MINI BRICK ARC Manuale utente

Federal Signal Corporation

Federal Signal Corporation VISIBEAM II Manuale

ACME

ACME LED-MS350B Manuale utente

EuroLite

EuroLite Akku flat light 1 Manuale utente

Commercial Electric

Commercial Electric SPTM-1401 Manuale utente

Vision & Control

Vision & Control SLB-500-W5K7-P-SL Manuale utente

Teknik

Teknik FLEXI Manuale utente

Craftsman

Craftsman CMXLSB10 Manuale utente

EuroLite

EuroLite LED SLS-144 UV Floor Spot Manuale utente

marinco SPL-12W Guida

Manuali Riflettore popolari di altre marche
