IPRobocam 541 / 641 1

ENGLISH

SAFETY WARNINGS

o To prevent short circuits, this product should only be used inside and only in dry

spaces.

Do not expose the components to rain or moisture. Do not use the product close to a

bath, swimming pool etc.

o Do not expose the components of your systems to extremely high temperatures or

bright light sources.

o In case of improper usage or if you have altered and repaired the product yourself,

all guarantees expire. Marmitek does not accept responsibility in the case of improper

usage of the product or when the product is used for purposes other than specified.

Marmitek does not accept responsibility for additional damage other than covered by

the legal product responsibility.

o This product is not a toy. Keep out of reach of children.

o Do not open the product: the device may contain live parts. The product should only

be repaired or serviced by a qualified expert.

o Only connect the adapter to the mains after checking whether the mains voltage is

the same as the values on the identification tags. Never connect an adapter when it is

damaged. In that case, contact your supplier.

©MARMITEK

01 Getting Started

Package Contents

Check the items contained in the package carefully. You should

have the following items. Once any item contained is damaged or

missing, contact the authorized dealer of your locale.

5One IPRobocam 541 or 641 H.264/MPEG4/MJPEG Pan-Tilt

Megapixel Network Camera

5One AC Power Adapter

5One Wall Mount Kit

5One External Antenna

5One Ethernet Cable (RJ-45 type)

5One GPIO Connector

5One Installation CD-ROM

5One Quick Installation Guide

System Requirement

Networking

LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet.

WLAN: IEEE 802.11b/g/n (for wireless model).

Accessing the Camera using Web Browser

Platform: Microsoft® Windows® XP/Vista/WIN 7/8

CPU: Intel Pentium III 800MHz or above

RAM: 512MB

Resolution: 800x600 or above

User Interface: Microsoft® Internet Explorer 6.0 or above;

Apple Safari 2 or above;

Mozilla Firefox 2.00 or above

ENGLISH

IPRobocam 541 / 641 3

12 Setting Up the Camera

Installing the Wall Mount Kit

The camera comes with a Wall Mount Kit, which allows you to

place your camera anywhere by mounting the camera through the

three screw holes located in the base of the Wall Mount Kit.

Screw

Wall Mount Kit

Screw Screw

Connecting the Camera to LAN

Use the provided Ethernet cable to connect the camera to your

local area network (LAN).

When you connect the AC power adapter, the camera is powered

on automatically. You can verify the power status from the Power

LED on the front panel of the camera.

Once connected, the Link LED starts flashing green light and the

camera is on standby and ready for use now.

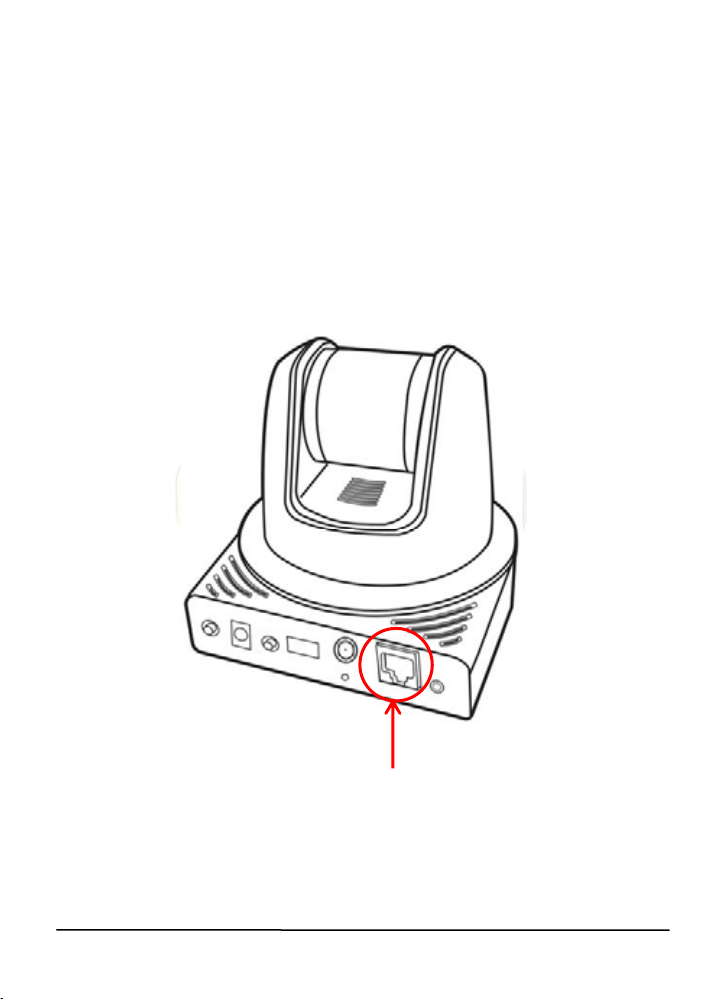

Connecting the Ethernet cable

©MARMITEK

ENGLISH

IPRobocam 541 / 641 5

Connecting the Camera to WLAN

If you use a wireless network in your application environment, you

need to attach the included external antenna to the camera.

When the camera is powered on, the camera will automatically

search any access point with “default” SSID.

ttaching the external antenna

NOTE If the camera cannot to your wireless network, you need

to install the camera in LAN and proceed with WLAN

settings.

23 Accessing the Camera

Using IPFinder

1. Insert the Installation CD-ROM into your computer’s CD-ROM

drive to initiate the Auto-Run program.

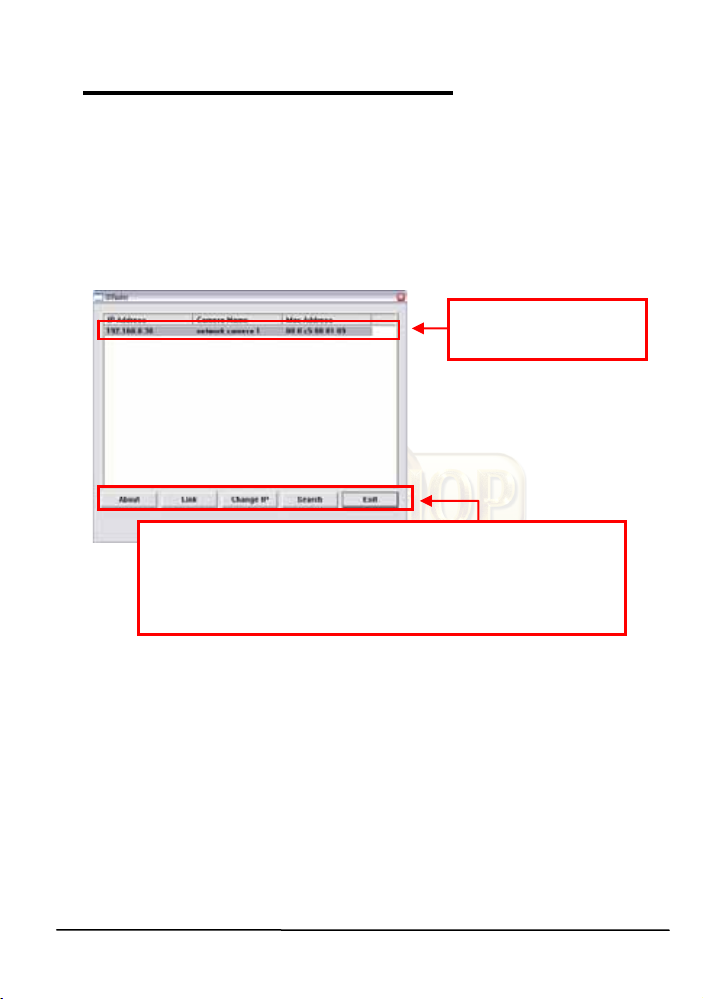

2. Click the IPFinder item to launch the utility. The control panel

will appear as below.

Display the connected

camera(s). Double click

to link the Camera.

Click About to get the Version information of IPFinder.

Click Link to connect the selected camera.

Click Change IP to modify the IP address of the selected camera.

Click Search to find the IP address of the connected camera(s).

Click Exit to close the utility.

3. Once you get the IP address of the camera, launch the Web

browser or UltraView Pro to access your camera.

TIP The Installation CD-ROM provides a setup program that

allows you to install IPFinder on your computer. To install

IPFinder, click Install Software then select IPFinder on the

Auto-Run screen.

©MARMITEK

ENGLISH

IPRobocam 541 / 641 7

Accessing to the Camera

1. Since the default configuration of the camera is DHCP mode

enabled, you are recommended to launch IPFinder to search

the IP address that is assigned to the camera by the DHCP

server, and then click Link to access the camera via the Web

browser.

2. If Network Camera can't get IP Address under DHCP mode,

the default IP Address will be 192.168.0.30.

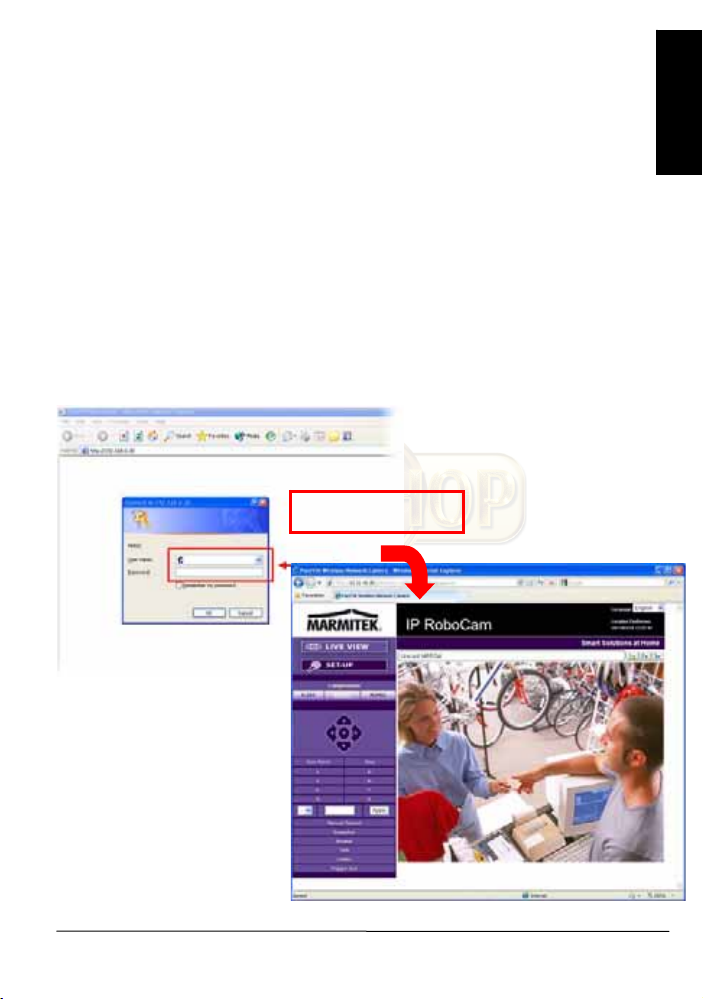

3. When the login window appears, enter the default User name

(admin) and password (admin) and press OK to access to the

main screen of the camera’s Web Configuration.

Enter the User name

and Password.

4. Click Setup and then Smart Wizard to set up your camera

quickly. The Smart Wizard will guide you through the

necessary settings with detailed instructions on each step.

©MARMITEK
