Master 100000 BTU/Hr Manuale utente

Heater Sizes: 70,000 100,000 150,000 BTU/Hr

IMPORTANT

Read and understand this manual before assembling, starting or servicing

heater. Improper use of heater can cause serious injury. Keep this manual

for future reference.

100 SIDE PV 002

PORTABLE

FORCED

AIR HEATERS

OWNER’S MANUAL

150 SIDE HANDLE PFA/PV 005

101585

Safety Information.........................................................................3

Product Identiﬁcation .................................................................... 4

Unpacking......................................................................................5

Assembly .......................................................................................5

Theory of Operation ...................................................................... 6

Fuels ..............................................................................................6

Ventilation .....................................................................................7

Operation .......................................................................................7

Storage ........................................................................................... 8

Preventative Maintenance Schedule..............................................8

Troubleshooting.............................................................................9

Service Procedures ........................................................................10

Upper Shell Removal ..............................................................10

Fuel Filter (70,000 BTU/Hr Model) .......................................10

Fuel Filter (100/150,000 BTU/Hr Models).............................11

Spark Plug ............................................................................... 11

Air Output, Air Intake, and Lint Filters .................................. 12

Pump Pressure Adjustment ..................................................... 12

Nozzle .....................................................................................13

Pump Rotor .............................................................................14

Fan........................................................................................... 15

Speciﬁcations................................................................................. 15

Illustrated Parts Breakdown and Parts List ...................................16

70,000 BTU/Hr Model............................................................16

100,000 BTU/Hr Model..........................................................18

150,000 BTU/Hr Model..........................................................20

Wheels and Handles (100/150,000 BTU/Hr Models).............22

Wiring Diagram.............................................................................23

Accessories ....................................................................................23

Warranty and Repair Service.........................................................Back Cover

CONTENTS SECTION PAGE

101585

SAFETY

INFORMATION

DANGER

Carbon monoxide poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning

resembletheﬂu,withheadaches,dizziness,or nausea. If you have these signs, the

heater may not be working properly. Getfresh airatonce!Have heater serviced.

Some people are more affected by carbon monoxide than others. These include

pregnant women, persons with heart or lung disease or anemia, those under the

influence of alcohol, and those at high altitudes.

Make certain you read and understand all warnings. Keep this manual for

reference. It is your guide to safe and proper operation of this heater.

•Use only kerosene or No. 1 fuel oil to avoid risk of ﬁre or explosion. Never

use gasoline, naphtha, paint thinners, alcohol, or other highly ﬂammable

fuels.

•Never use heater where gasoline, paint thinner, or other highly ﬂammable

vapors are present.

•Follow all local ordinances and codes when using heater.

•Use only in well-vented areas. Provide at least a three-square-foot (2800

square cm) opening of fresh, outside air for each 100,000 BTU/Hr of rating.

•Use only in places free of ﬂammable vapors or high dust content.

•Use only with the electrical voltage and frequency speciﬁed on model plate.

•Use only a three-wire, grounded (earthed) extension cord.

•Minimum heater clearances from combustibles:

Outlet: 8 Ft. (250 cm) Sides, Top, and Rear: 4 Ft. (125 cm)

•Locate heater on a stable and level surface while hot or running or a ﬁre may

occur.

•When moving or storing heater, keep heater in a level position or fuel

spillage may occur.

•Keep children and animals away from heater.

•Unplug heater when not in use.

•When used with thermostat, heater may start anytime.

•Never use heater in living or sleeping areas.

•Never block air inlet (rear) or air outlet (front) of heater.

•Never move, handle, refuel, or service a hot, operating, or plugged-in heater.

•Never attach duct work to front or rear of heater.

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely

before trying to assemble, operate, or service this heater. Improper

use of this heater can cause serious injury or death from burns, ﬁre,

explosion, electrical shock, and carbon monoxide poisoning.

101585

Upper Shell

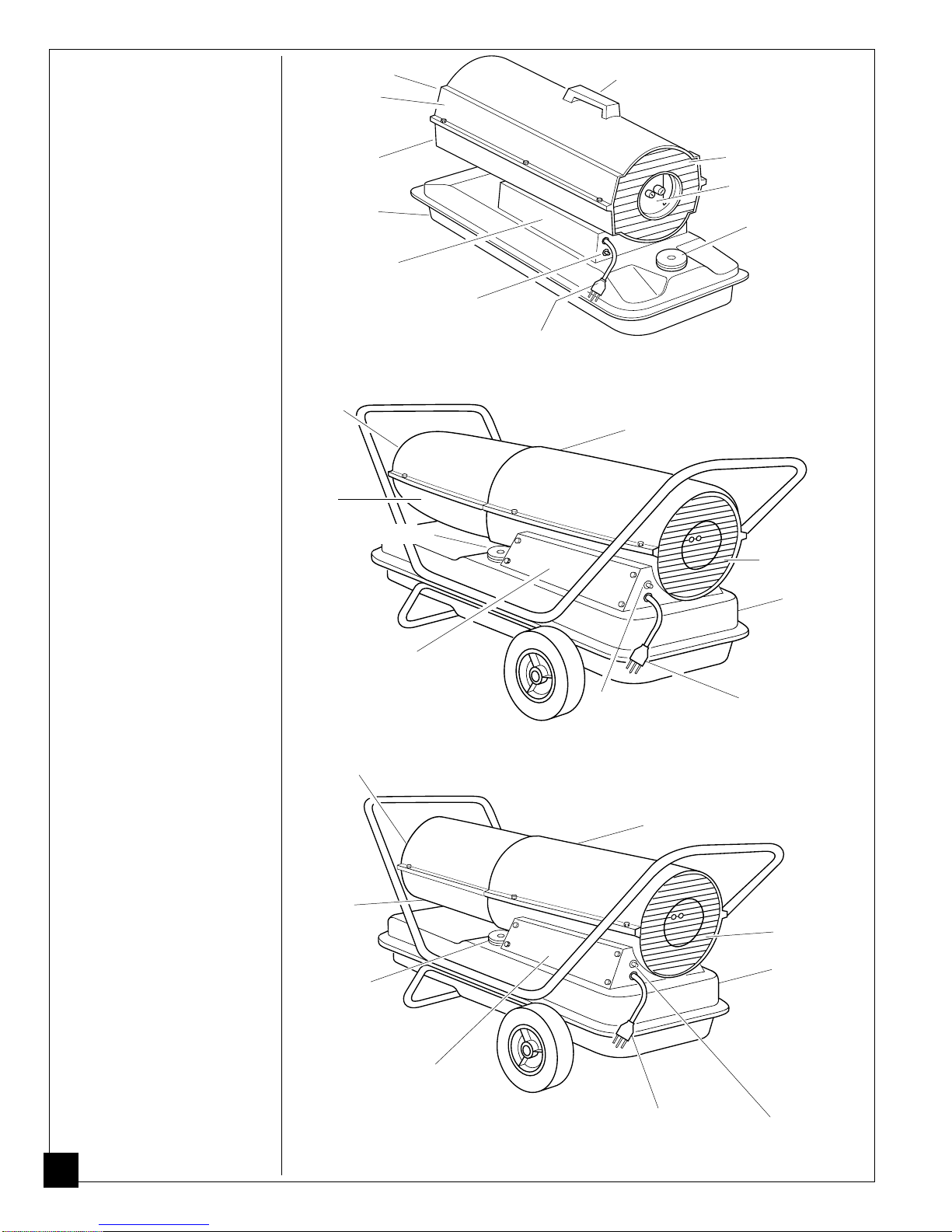

Figure 3 - 150,000 BTU/Hr Model

35/50/70,000 BTU/HR DOMESTIC PFA/PV 042

Handle

Fuel Cap

Lower Shell

Side Cover

Fuel Tank

Figure 1 - 70,000 BTU/Hr Model

Side Cover

Fuel Tank

Lower

Shell

Fuel Cap

Fan Guard

Power Cord

Upper Shell

PRODUCT

IDENTIFICATION Upper Shell

Hot Air Outlet

Hot Air

Outlet

Air Filter

End Cover

Fan Guard

Power Cord

Figure 2 - 100,000 BTU/Hr Model

Flame-Out

Control Reset

Button

Flame-Out Control

Reset Button

Hot Air

Outlet

Slide Cover

Fuel

Tank

Fan Guard

Fuel Cap

Lower

Shell

Flame-Out

Control Reset

Button

Power Cord

101585

UNPACKING 1. Remove all packing items applied to heater for shipment.

2. Remove all items from carton.

3. Check items for any shipping damage. If heater is damaged, promptly inform

dealer where you bought heater.

ASSEMBLY

(For 100,000 and 150,000

BTU/Hr Models Only)

These models are furnished with wheels and handles. Wheels, handles, and the

mounting hardware are found in the shipping carton.

Tools Needed

•Medium Phillips Screwdriver

•3/8" Open or Adjustable Wrench

•Hammer

1. Slide axle through wheel support frame. Install wheels on axle.

IMPORTANT:

When installing wheels, point extended hub of wheels toward

wheel support frame (see Figure 4).

2. Place cap nuts on axle ends. Gently tap with hammer to secure.

3. Place heater on wheel support frame. Make sure air inlet end (rear) of heater is

over wheels. Line up holes on fuel tank ﬂange with holes on wheel support

frame.

4. Place front handle and rear handle on top of fuel tank ﬂange. Insert screws

through handles, fuel tank ﬂange, and wheel support frame. Attach nut ﬁnger

tight after each screw is inserted.

5. After all screws are inserted, tighten nuts ﬁrmly.

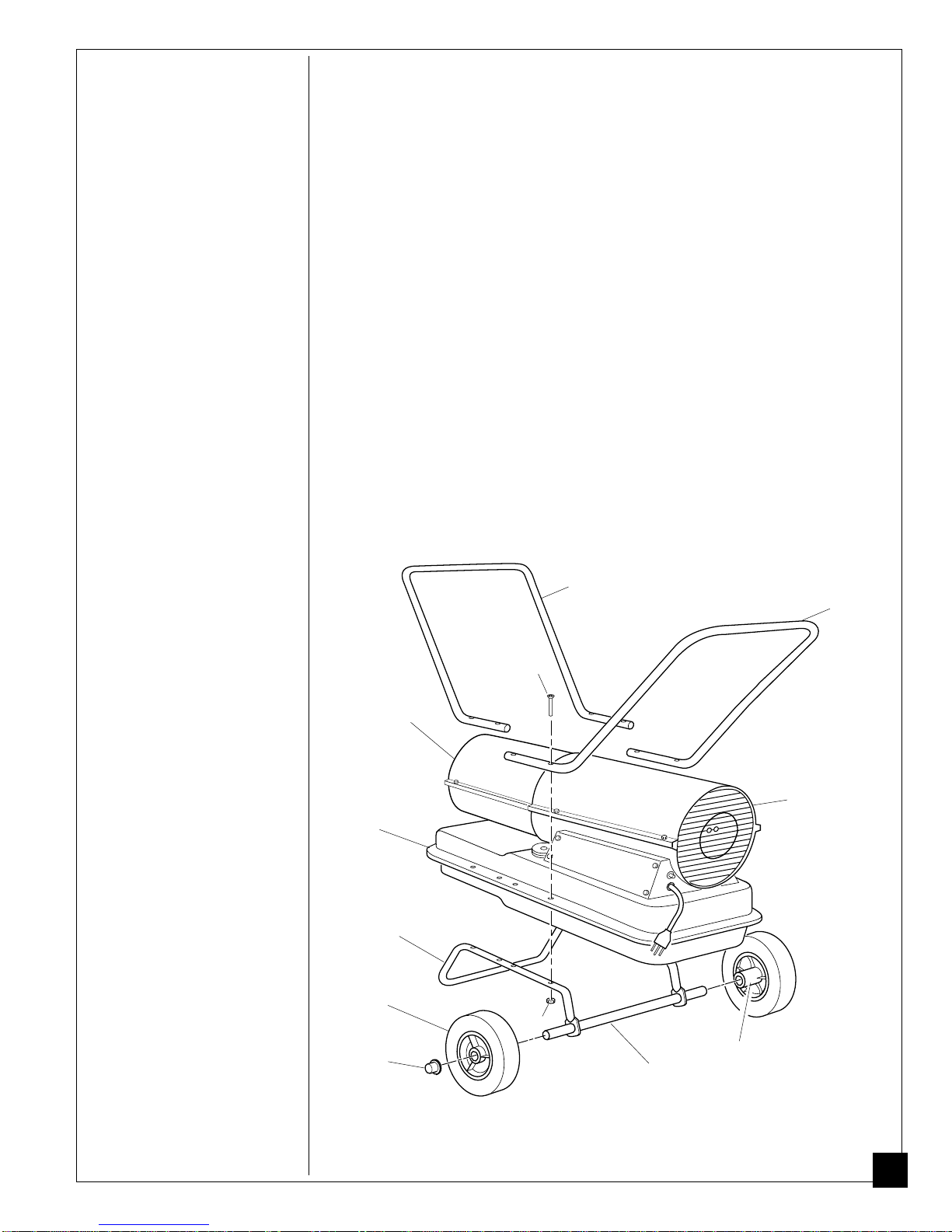

Figure 4 - Wheel and Handle Assembly,100/150,000 BTU/Hr Models Only

Wheel

Support

Frame

Wheel

Cap Nut Axle Extended

Hub

Hot Air

Outlet

Fuel

Tank

Flange

Screw

Front

Handle Rear

Handle

Air

Inlet

Nut

101585

THEORY OF

OPERATION The Fuel System: The air pump forces air through the air line. The air is then

pushed through the burner head nozzle. This air causes fuel to lift from the tank. A

ﬁne mist of fuel is sprayed into the combustion chamber.

The Air System: The motor turns the fan. The fan pushes air into and around

the combustion chamber. This air is heated and provides a stream of clean, hot air.

The Ignition System: The electronic ignitor sends voltage to the spark plug.

The spark plug ignites the fuel and air mixture.

The Flame-Out Control System: This system causes the heater to shut down

if the ﬂame goes out.

THEORY CUTAWAY PFA/OV 003

Fan

Fuel

Filter

Air For Fuel

System Air For Combustion

And Heating Fuel

Spark

Plug

Combustion

Chamber Intake

Air

Filter

Motor Air Pump

Air line

To Burner Electronic

Ignitor

Burner

Head

Clean

Heated

Air Out

Cool

Air

Output

Air

Filter

Nozzle

Fuel

Tank

FUELS

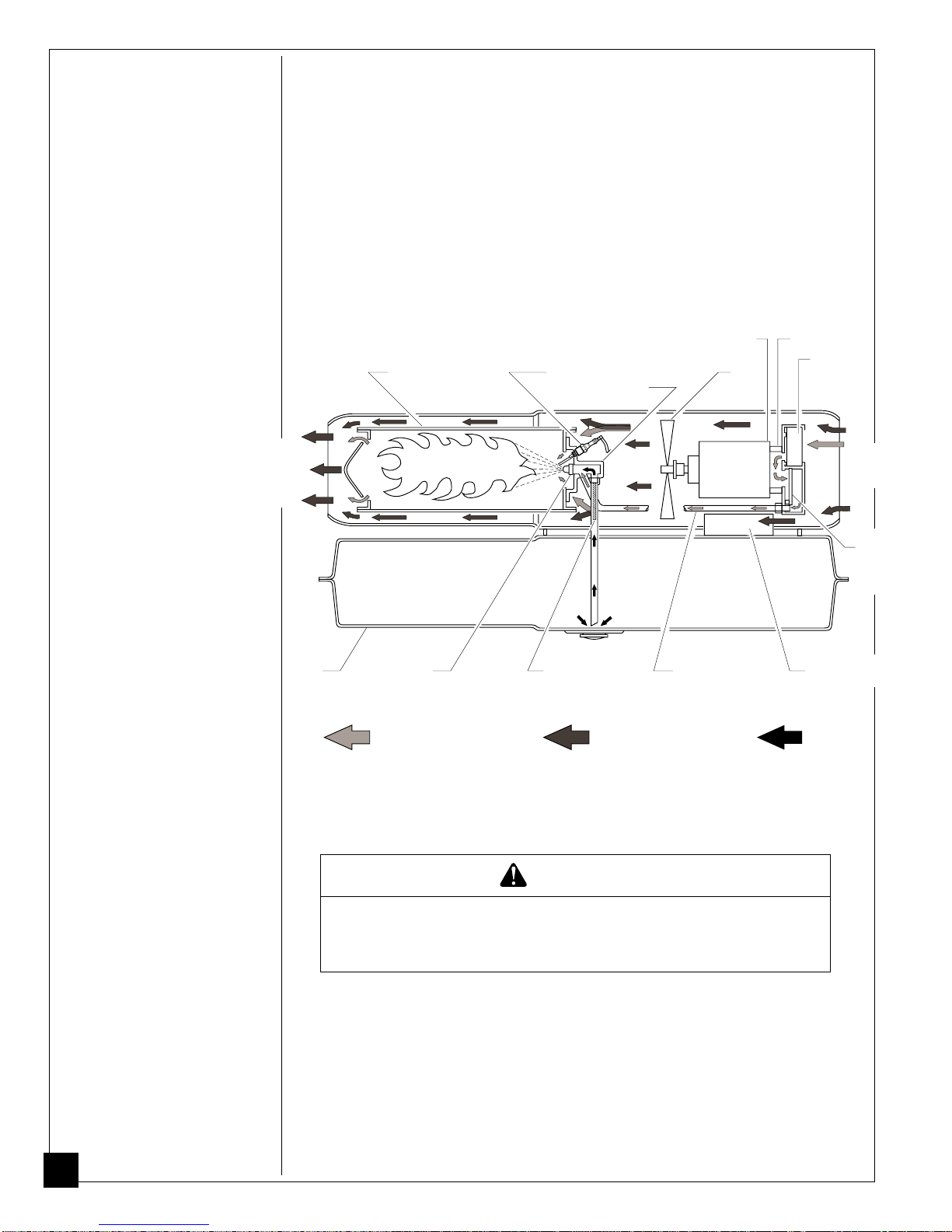

Figure 5 - Cross Section Operational View

WARNING

Use only kerosene or No. 1 fuel oil to avoid risk of ﬁre or

explosion. Never use gasoline, naphtha, paint thinners,

alcohol or other highly ﬂammable fuels.

Do not use heavy fuels such as No. 2 fuel oil or No. 2 Diesel. Using heavy fuels

will result in:

•clogged fuel ﬁlter and nozzle

•carbon build up on spark plug

•use of non-toxic anti-icer in fuel during very cold weather

IMPORTANT:

Use a KEROSENE ONLY container. Be sure storage container is

clean. Foreign matter such as rust, dirt, or water will cause the flame-out control to

shut down heater. Foreign matter may also require you to clean fuel system often.

101585

VENTILATION

OPERATION

Continued

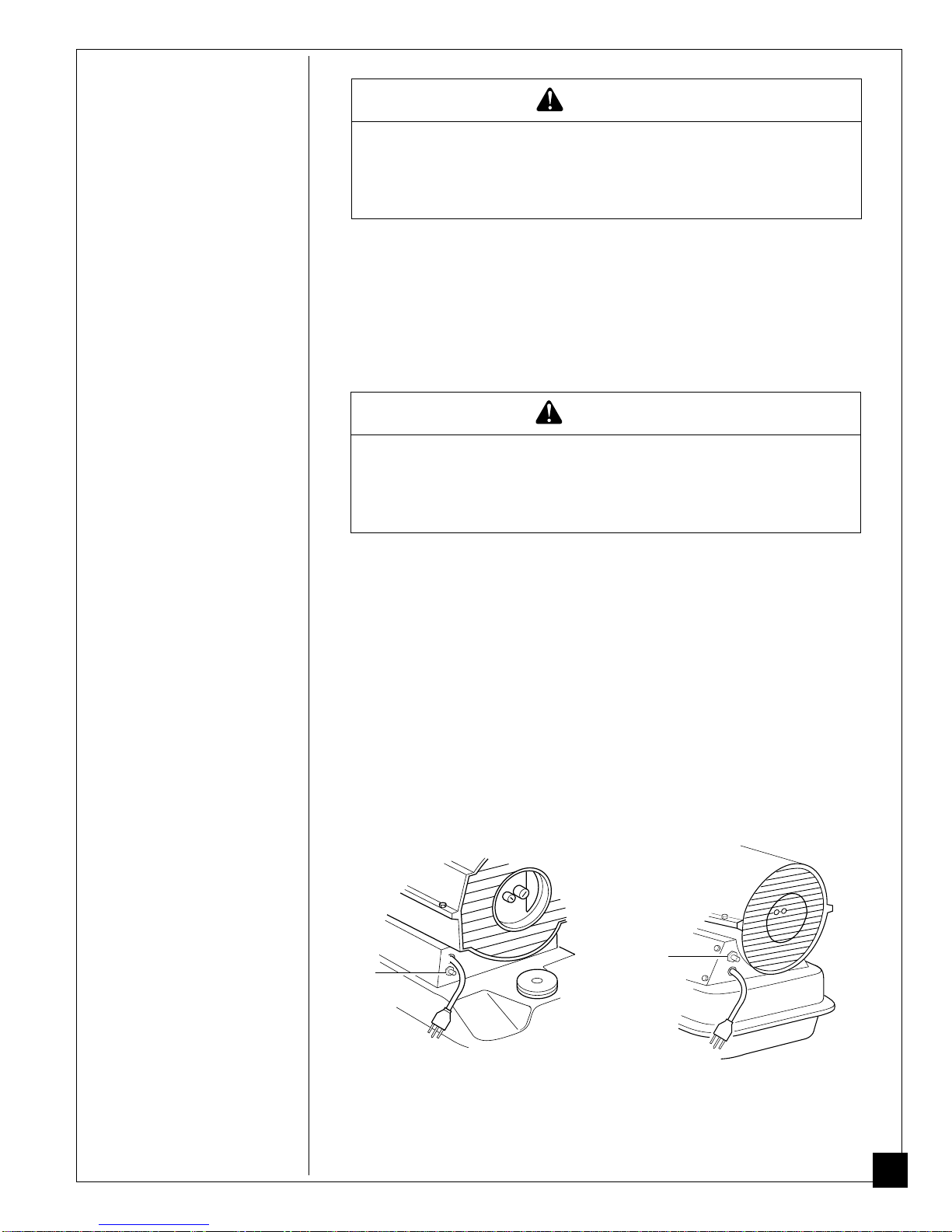

Figure 6 - Flame-Out Control Reset

Button, 70,000 BTU/Hr Model Figure 7 - Flame-Out Control Reset

Button, 100/150,000 BTU/Hr Models

WARNING

Follow the minimum fresh, outside air ventilation

requirements. If proper fresh, outside air ventilation is not

provided, carbon monoxide poisoning can occur. Provide

proper fresh, outside air ventilation before running heater.

Flame-Out

Control

Reset

Button

Flame-

Out

Control

Reset

Button

Provide a fresh air opening of at least three square feet (2800 square cm) for each

100,000 BTU/Hr rating. Provide extra fresh air if more heaters are being used.

Example:

A 150,000 BTU/Hr heater requires one of the following:

•a two-car garage door raised six inches (15.24 cm)

•a single-car garage door raised nine inches (22.86 cm)

•two, thirty-inch (76.20 cm) windows raised twelve inches (30.48 cm)

WARNING

Review and understand the warnings in the

Safety

Information Section

, page 3. They are needed to safely

operate this heater. Follow all local codes when using this

heater.

To Start Heater

1. Follow all ventilation and safety information.

2. Fill fuel tank with kerosene or No. 1 fuel oil.

3. Attach fuel cap.

4. Plug power cord of heater into standard 230 volt/50 hertz, grounded (earthed)

outlet. Use an extension cord if needed. Use only a three-wire, grounded

(earthed) extension cord.

Extension Cord Wire Size Requirements

Up to 100 feet (30.5 meters) long, use 16 AWG (1.0 mm2) conductor

101 to 200 feet (30.6 to 61 meters) long, use 14 AWG (1.5 mm2) conductor

Heater will start when power cord is plugged into outlet. If not, push in flame-

out control reset button (see Figures 6 and 7).

101585

OPERATION

Continued

To Stop Heater

1. Unplug power cord from outlet.

To Restart Heater

1. Wait 2 minutes after stopping heater.

2. Repeat steps under To Start Heater, page 7.

1. Drain fuel tank.

Note:

Some models have drain plug on underside of fuel tank. If so, remove

drain plug to drain all fuel. If heater does not have drain plug, drain fuel through

fuel cap opening. Be sure all fuel is removed.

2. Replace drain plug if used.

3. Add one gallon (4 liters) of clean kerosene to fuel tank.

4. Attach fuel cap.

5. Move heater forwards and backwards to stir fuel.

6. Remove fuel cap or drain plug and drain fuel tank. Be sure all fuel is removed.

7. Replace fuel cap or drain plug. Properly dispose of old and dirty fuel.

8. Store heater in dry place. Make sure storage place is free of dust and corrosive

fumes.

IMPORTANT:

Do not store kerosene over summer months for use during next

heating season. Using old fuel could damage heater.

STORAGE

PREVENTATIVE

MAINTENANCE

SCHEDULE

Item How Often How To

Fuel tank Flush every 150-200 hours See Storage above.

of operation or as needed.

Air output and Replace every 500 hours of See Air Output, Air Intake,

lint ﬁlters operation or once and Lint Filters, page 12.

a year.

Air intake Wash and dry with soap and See Air Output, Air Intake,

ﬁlter water every 500 hours of and Lint Filters, page 12.

operation or as needed.

Fuel ﬁlter Clean twice a heating season See Fuel Filter, pages 10

or as needed. and 11.

Spark plug Clean and regap every 600 See Spark Plug, page 11.

hours operation or replace

as needed.

Fan blades Clean every season or as needed. See Fan, page 15.

Motor Not required/permanently

lubricated

WARNING

Never service heater while it is plugged in, operating, or

hot. Severe burns and electrical shock can occur.

101585

TROUBLE-

SHOOTING

OBSERVED FAULT POSSIBLE CAUSE REMEDY

Wrong pump pressure

Dirty air output, air intake,

and lint ﬁlters

Dirty fuel ﬁlter

Dirt in nozzle

Dirty photocell lens

Bad flame-out control

Heater ignites, but

flame-out control

shuts off heater after

a short period of time

See Pump Pressure

Adjustment, page 12.

See Air Output, Air Intake

and Lint Filters, page 12.

See Fuel Filter, pages 10

and 11.

See Nozzle, page 13.

Clean photocell lens.

Replace flame-out control.

Heater will not

ignite, but motor runs

for a short period of

time.

Wrong pump pressure

Carbon deposits on spark

plug and/or improper gap

Dirty fuel ﬁlter

Dirt in nozzle

Water in fuel tank

Electronic ignitor not

grounded (earthed)

Bad electronic ignitor

See Pump Pressure

Adjustment, page 12.

See Spark Plug, page 11.

See Fuel Filter, pages 10

and 11.

See Nozzle, page 13.

Drain and ﬂush fuel tank

with clean kerosene. See

Storage, page 8.

Make sure electronic

ignitor mounting is tight.

Replace electronic

ignitor.

Motor does not start

when heater is

plugged in, fan

rotates slowly or

does not turn.

Flame-out control not reset

Binding pump rotor

Reset flame-out control

button, see Figures 6 and

7, page 7.

If fan is hard to turn, see

Pump Rotor, page 14.

WARNING

Never service heater while it is plugged in, operating, or hot.

Severe burns and electrical shock can occur.

WARNING: High voltage!

101585

SERVICE

PROCEDURES

Upper Shell Removal

1. Remove screws along each

side of heater using 5/16"

nut-driver. These screws

attach upper and lower

shells together.

2. Lift upper shell off.

3. Remove fan guard.

Figure 10 - Fuel Filter Removal, 70,000 BTU/Hr Model

Fuel Filter

Side Cover

Fuel Line

Fuel Filter

(70,000 BTU/Hr Model)

1. Remove side cover screws

using 5/16" nut-driver.

2. Remove side cover.

3. Pull rubber fuel line off

fuel ﬁlter neck.

4. Carefully pry bushing and

fuel ﬁlter out of fuel tank.

5. Wash fuel ﬁlter with clean

fuel and replace in tank.

6. Attach rubber fuel line to

fuel ﬁlter neck.

7. Replace side cover.

Upper

Shell

Fan

Guard

Upper

Shell

Fan

Guard

Figure 8 - Upper Shell Removal, 70,000 BTU/Hr Model

WARNING

Never service heater while it is plugged in, operating, or

hot. Severe burns and electrical shock can occur.

Figure 9 - Upper Shell Removal, 100/150,000 BTU/Hr Models

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Master Stufa

Master

Master HALL 1500 Manuale utente

Master

Master BV 69 Manuale utente

Master

Master B 2 PTC Manuale

Master

Master B 9 ECA Manuale utente

Master

Master TS 3 AI Manuale utente

Master

Master B 2 EPB Manuale

Master

Master B35CED Manuale utente

Master

Master B-100EKD Manuale

Master

Master H.S.I. Series Manuale utente

Master

Master TB116 Manuale utente

Master

Master TENTEvent125 TB116A Manuale utente

Master

Master MH-18-PNCH-A Manuale di formazione

Master

Master SilentDrive MH-220T-SDR Manuale di formazione

Master

Master CT 50 P Manuale utente

Master

Master MH-80TBOA-OFR Manuale di formazione

Master

Master B 2 EPB Manuale

Master

Master BV 110 E Manuale utente

Master

Master MH-80TBOA-KFA Manuale utente

Master

Master MH-60VBOA-GFA Manuale di formazione

Master

Master BY100CEB Manuale utente

Master

Master XL 61 Manuale

Master

Master 140TMHD-KFA Manuale di formazione

Master

Master TR 3C Manuale

Master

Master B35CEL Manuale

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

Clarke

Clarke GRH15 Manuale di istruzioni

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente
