Page 5 Page 6
NECESSARY TOOLS REQUIRED
FOR ASSEMBLY
• 10 mm socket
• Extension ratchet
• Phillips screwdriver

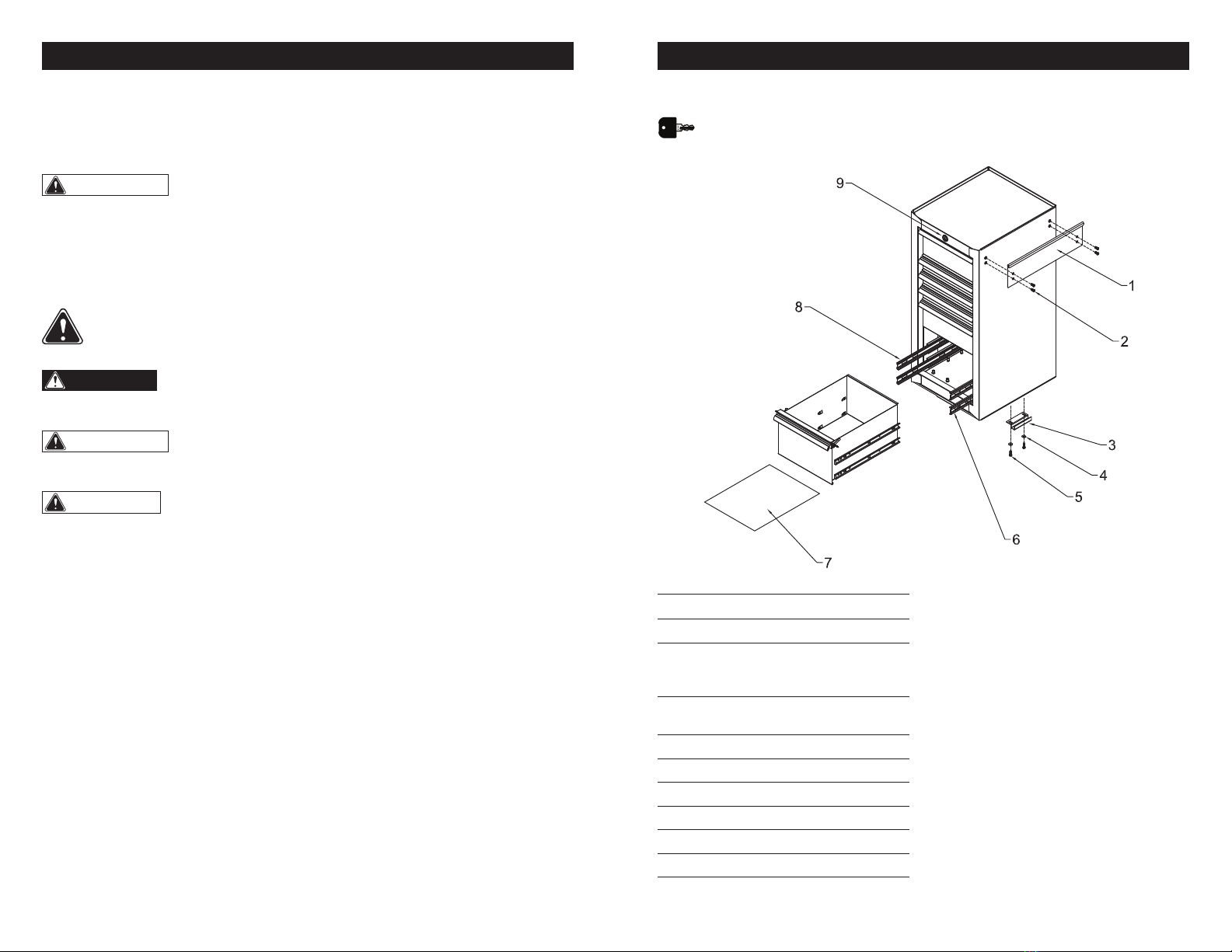

INSTALL THE HANGER
NOTE: The universal mounting system
on this side cabinet fits most rolling tool
cabinets. The top lid of the cabinet must be
more than 1/2" high and at least 18" deep.
The hanger will mount on either side of this
cabinet. The side cabinet will also accept
the side handle of your rolling cabinet.
To install the hanger, position it over
the holes in the side cabinet and attach
with the 4 (four) M6x16 countersink head
screws. Tighten securely.
HANG THE
SIDE CABINET
Hang the side cabinet on the top lip of your
rolling cabinet.
CONNECT
THE CABINETS
Make sure the drawers of both cabinets are
empty, then place the two cabinets on their
backs on a protective surface. Position
the connecting channel on the bottom of
the cabinets, with its lip over the edge of
the rolling cabinet. Attach the connecting
channel to the side cabinet with 2 (two)
washers and 2 (two) M6x20 hex bolts.
ASSEMBLY AND OPERATION ASSEMBLY AND OPERATION
RAISE AND RELEASE
DRAWER FRONTS
These units are equipped with the raise
and release drawer front system.
To open, lift up on the drawer front while
pulling out towards you.
To close, shut the drawer firmly until the
latch engages.
If the drawer does not stay closed, the
drawer contents may be the obstruction,
or the hook may be slightly bent or it may
be rubbing up against the drawer slides. To
resolve this problem, lightly bend the hook
until the drawer engages in the slide.
TO REMOVE DRAWERS
Pull the drawer out so it is almost fully
extended. PUSH UP ON THE RIGHT hand
black release lever, while PULLING DOWN
ON THE LEFT hand black release lever.
While holding the levers in the positions as
instructed above, pull the drawer outward
until it is released from the drawer slide.
PUSH UP (RIGHT HAND SIDE)
PULL DOWN (LEFT HAND SIDE)
TO REPLACE DRAWERS
Extend the drawer slides from the tool
cabinet. Insert the brackets on each
side of the drawer into the slots in the
cabinet slides, being careful that they
are positioned properly. Once properly
inserted, completely close the drawer to
set the slides in their proper positions.
