Maxell LP-EU5002 Manuale utente

LCD Projector

LP-EU5002

User's Manual (detailed)

Operating Guide – Technical

Supported signals for COMPUTER IN

Resolution (H x V) Signal mode H. frequency

(kHz)

V. frequency

(Hz)

Rating

720 x 400 TEXT 37.9 85 VESA

640 x 480 VGA (60Hz) 31.5 59.9 VESA

VGA (72Hz) 37.9 72.8 VESA

VGA (75Hz) 37.5 75 VESA

VGA (85Hz) 43.3 85 VESA

800 x 600 SVGA (56Hz) 35.2 56.3 VESA

SVGA (60Hz) 37.9 60.3 VESA

SVGA (72Hz) 48.1 72.2 VESA

SVGA (75Hz) 46.9 75 VESA

SVGA (85Hz) 53.7 85.1 VESA

832 x 624 Mac 16” mode 49.7 74.5

1024 x 768 XGA (60Hz) 48.4 60 VESA

XGA (70Hz) 56.5 70.1 VESA

XGA (75Hz) 60 75 VESA

XGA (85Hz) 68.7 85 VESA

1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA

1280 x 768 W-XGA (60Hz) 47.7 60 VESA

1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA

1280 x 1024 SXGA (60Hz) 64 60 VESA

SXGA (75Hz) 80 75 VESA

SXGA (85Hz) 91.1 85 VESA

1366 x 768 WXGA (60Hz) 47.7 59.8 VESA

1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA

1600 x 900 WXGA++ (60Hz) 60 60 VESA

1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA

1600 x 1200 UXGA (60Hz) 75 60 VESA

1920 x 1080 Full HD (60Hz) 67.5 60 VESA

1920 x 1200 W-UXGA (60Hz)

Reduced Blanking

74 60 VESA

Supported signals for HDMI

Resolution (H x V) Signal mode H. frequency

(kHz)

V. frequency

(Hz)

Rating

720 x 400 TEXT 37.9 85 VESA

640 x 480 VGA (60Hz) 31.5 59.9 VESA

VGA (72Hz) 37.9 72.8 VESA

VGA (75Hz) 37.5 75 VESA

VGA (85Hz) 43.3 85 VESA

800 x 600 SVGA (56Hz) 35.2 56.3 VESA

SVGA (60Hz) 37.9 60.3 VESA

SVGA (72Hz) 48.1 72.2 VESA

SVGA (75Hz) 46.9 75 VESA

SVGA (85Hz) 53.7 85.1 VESA

832 x 624 Mac 16” mode 49.7 74.5

1024 x 768 XGA (60Hz) 48.4 60 VESA

XGA (70Hz) 56.5 70.1 VESA

XGA (75Hz) 60 75 VESA

XGA (85Hz) 68.7 85 VESA

1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA

1280 x 768 W-XGA (60Hz) 47.7 60 VESA

1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA

1280 x 1024 SXGA (60Hz) 64 60 VESA

SXGA (75Hz) 80 75 VESA

SXGA (85Hz) 91.1 85 VESA

1366 x 768 WXGA (60Hz) 47.7 59.8 VESA

1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA

1600 x 900 WXGA++ (60Hz) 60 60 VESA

1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA

1600 x 1200 UXGA (60Hz) 75 60 VESA

1920 x 1200 W-UXGA (60Hz)

Reduced Blanking

74 60 VESA

720(1440) x 480i 480i 15.7 60 CEA

720(1440) x 576i 576i 15.6 50 CEA

720 x 480p 480p 31.5 60 CEA

720 x 576p 576p 31.3 50 CEA

1280 x 720p 720p (50Hz) 37.5 50 CEA

720p (60Hz) 45 60 CEA

1920 x 1080i 1080i (50Hz) 28.1 50 CEA

1080i (60Hz) 33.8 60 CEA

1920 x 1080p 1080p (50Hz) 56.3 50 CEA

1080p (60Hz) 67.5 60 CEA

Supported signals

NOTE • Be sure to check jack type, signal level, timing and resolution

before connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these

modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• The signal will be converted to the projector’s panel resolution before being

displayed. The best display performance will be achieved if the resolutions of

the input signal and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

• The illustrations in this manual are for illustrative purposes. They may differ

slightly from your projector.

Supported signals for MHL

Resolution (H x V) Signal mode H. frequency

(kHz)

V. frequency

(Hz)

Rating

640 x 480 VGA (60Hz) 31.5 59.9 VESA

720(1440) x 480i 480i 15.7 60 CEA

720(1440) x 576i 576i 15.6 50 CEA

720 x 480p 480p 31.5 60 CEA

720 x 576p 576p 31.3 50 CEA

1280 x 720p 720p (50Hz) 37.5 50 CEA

720p (60Hz) 45 60 CEA

1920 x 1080i 1080i (50Hz) 28.1 50 CEA

1080i (60Hz) 33.8 60 CEA

1920 x 1080p 1080p (50Hz) 56.3 50 CEA

1080p (60Hz) 67.5 60 CEA

Connection to the ports

NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the

input ports of the projector are recessed.

►Only the signal that is input from the COMPUTER IN1 can be output from

the COMPUTER IN2/MONITOR OUT port. The way is available only when

the MONITOR OUT is selected for the COMPUTER IN2. (&INPUT menu -

COMPUTER IN in the Operating Guide)

ACOMPUTER IN1, BCOMPUTER IN2/MONITOR OUT

D-sub 15pin mini shrink jack

(1) for PC signal

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. Signal: TTL level (positive/negative)

• Composite sync. Signal: TTL level

Pin Signal Pin Signal

1Video Red 10 Ground

2 Video Green 11 (No connection)

3 Video Blue 12 A

: SDA (DDC data)

: (No connection)

4 (No connection)

5 Ground 13 H. sync / Composite sync.

6 Ground Red 14 V. sync.

7 Ground Green 15 A

: SCL (DDC clock)

: (No connection)

8 Ground Blue

9 (No connection) - -

 

 

   

(2) for Component signal

• Y : Component video Y with composite sync, 1.0±0.1 Vp-p, 75 Ω terminator

• Cr/Pr : Component video Cr/Pr, 0.7±0.1 Vp-p, 75 Ω terminator

• Cb/Pb : Component video Cb/Pb, 0.7±0.1 Vp-p, 75 Ω terminator

System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60

Pin Signal Pin Signal

1Cr/Pr 9 (No connection)

2Y10 Ground

3 Cb/Pb 11 (No connection)

4 (No connection) 12 (No connection)

5 Ground 13 (No connection)

6 Ground Cr/Pr 14 (No connection)

7 Ground Y15 (No connection)

8 Ground Cb/Pb - -

Connection to the ports (continued)

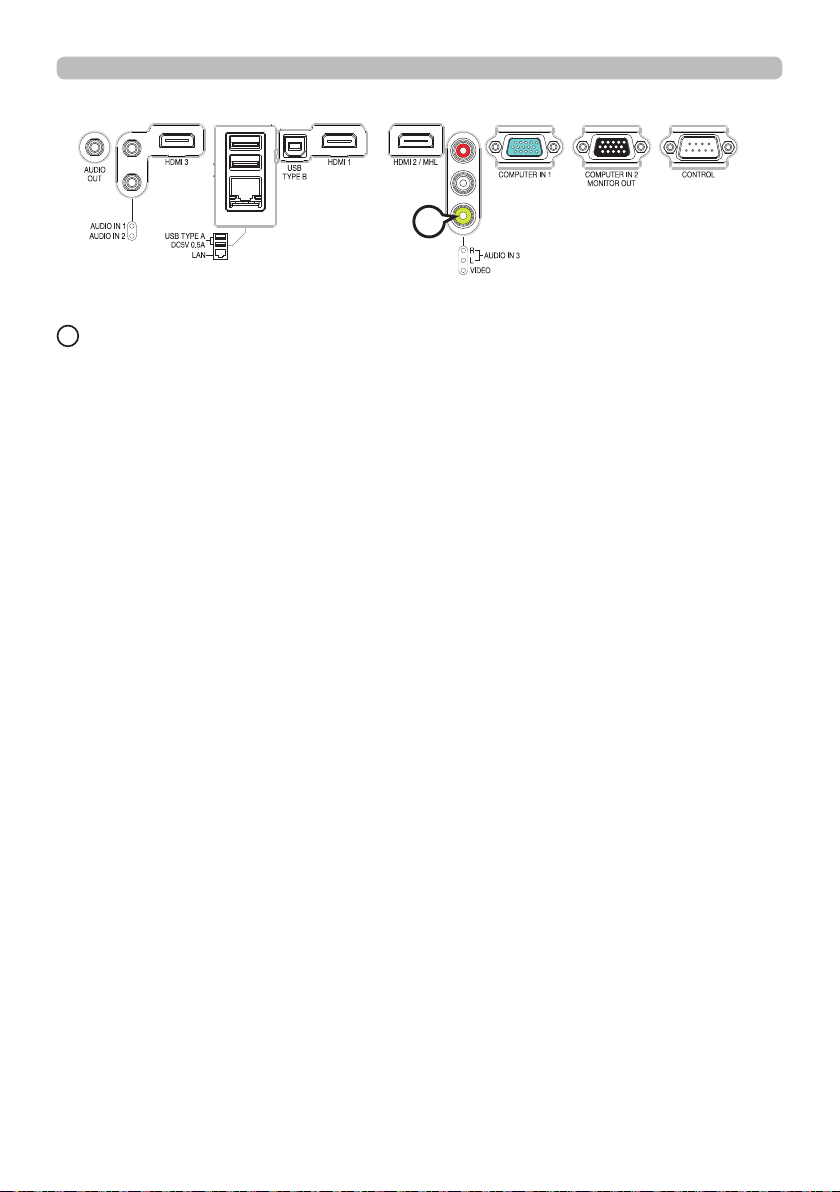

CVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

• 1.0±0.1Vp-p, 75Ω terminator

Connection to the ports (continued)

GAUDIO IN1

AUDIO IN2

Ø3.5 stereo mini jack

• 47kΩ terminator

AUDIO IN3

RCA jack x2

• 47kΩ terminator

AUDIO OUT

Ø3.5 stereo mini jack

• 1kΩ output impedance

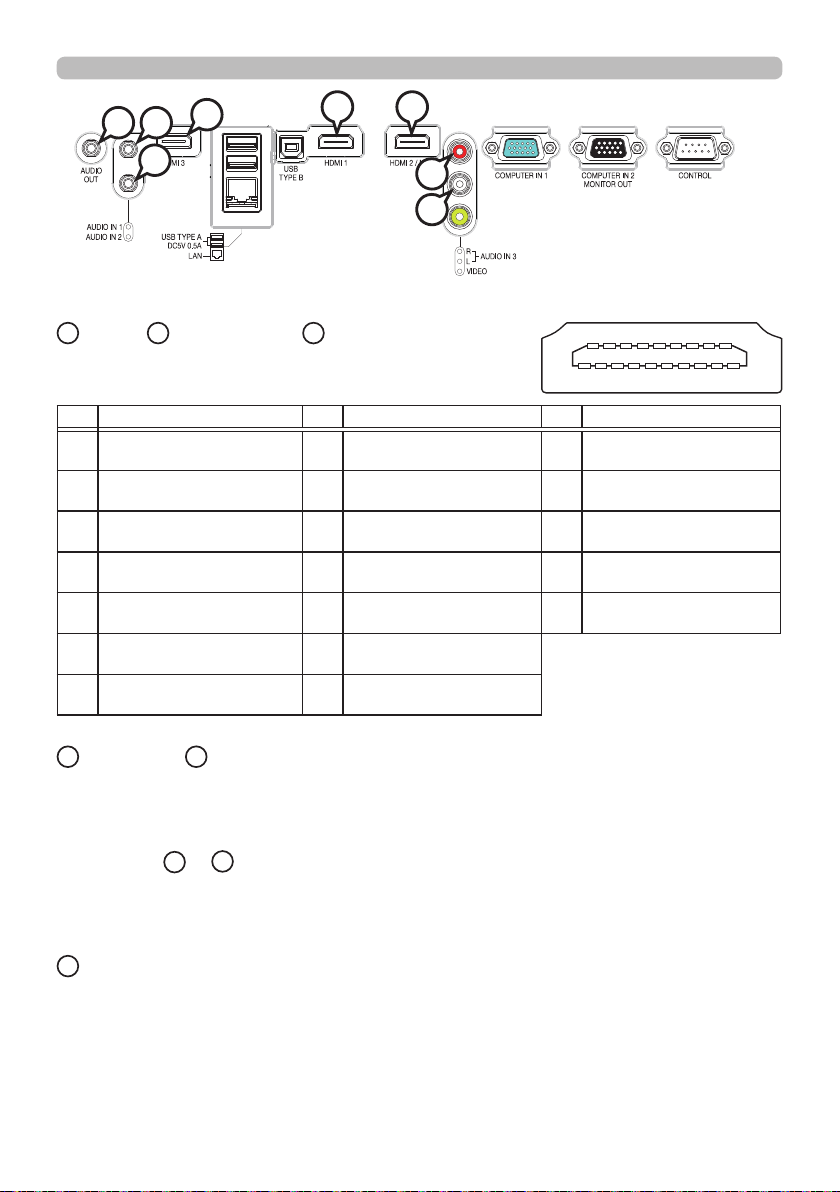

DHDMI1 EHDMI2 / MHL FHDMI3

• Type :Digital audio/video connector

• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

Pin Signal Pin Signal Pin Signal

1T.M.D.S. Data2

+N.C. 8T.M.D.S. Data0 Shield

MHL_Shield 15 SCL

CD_PULLUP

2T.M.D.S. Data2 Shield

CD_SENSE 9T.M.D.S. Data0 -

MHL- 16 SDA

N.C.

3T.M.D.S. Data2 -

N.C. 10 T.M.D.S. Clock +

N.C. 17 DDC/CEC Ground

VBUS_CBUS_GND

4T.M.D.S. Data1 +

N.C. 11 T.M.D.S. Clock Shield

TMDS_GND

+5V Power

VBUS

5T.M.D.S. Data1 Shield

TMDS_GND 12 T.M.D.S. Clock -

N.C. 19 Hot Plug Detect

CBUS

6T.M.D.S. Data1 -

N.C. 13 CEC

N.C.

7T.M.D.S. Data0 +

MHL+ 14 Reserved(N.C. on device)

N.C.

10 12 14 16 182468

911131517191357

Connection to the ports (continued)

USB

TYPE B

USB B type jack

Pin Signal

1 +5V

2 - Data

3+ Data

4Ground

CONTROL

D-sub 9pin plug

• About the details of RS-232C communication,

please refer to the section "RS-232C Communication".

Pin Signal Pin Signal Pin Signal

1 (No connection) 4 (No connection) 7 RTS

2 RD 5 Ground 8 CTS

3 TD 6 (No connection) 9 (No connection)

LAN

RJ-45 jack 87654

Pin Signal Pin Signal Pin Signal

1 TX+ 4 - 7 -

2 TX- 5 - 8 -

3RX+ 6 RX-

LUSB TYPE A

USB A type jack 432 1

Pin Signal

1 +5V

2 - Data

3+ Data

4Ground

5 4 3 2 1

L M

Connection to the ports (continued)

To input component video signal to COMPUTER IN ports

ex.

To input component video signal to the COMPUTER IN1 or IN2 port of the

projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the

descriptions about COMPUTER IN1 and IN2 port (&4).

Y CB/PBCR/PR

COMPONENT VIDEO OUT

RCA plugs

D-sub plug

VCR/DVD/Blu-ray

Disc player

RCA

connectors

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the

projector can be controlled with RS-232C commands from the computer.

For details of RS-232C commands, refer to RS-232C Communication / Network

command table (&18).

Connection

1. Turn off the projector and the computer.

2. Connect the projector's CONTROL port and the computer's RS-232C port

with a RS-232C cable (cross). Use the cable that ful lls the speci cation

shown in  gure

3. Turn the computer on, and after the computer has started up turn the projector

on.

4. Set the COMMUNICATION TYPE to OFF. (&OPTION menu - SERVICE -

COMMUNICATION in the Operating Guide)

(cross)

RS-232C Cable

RS-232C CONTROL

CD (1) (1) −

RD(2) (2) RD

TD (3) (3) TD

DTR (4) (4) −

GND (5) (5) GND

DSR (6) (6) −

RTS (7) (7) RTS

CTS (8) (8) CTS

RI (9) (9) −

CONTROL port

of the projector

RS-232C port

of the computer

5 4 3 2 1



7 6

RS-232C Communication (continued)

Communication settings

1. Protocol

19200bps,8N1

2. Command format ("h" shows hexadecimal)

Byte Number 0 1 2 3 4 5 6 7 8 9 10 11 12

Command

Action

Header Data

Header

code

Packet

Data

size

CRC

ag Action Type Setting

code

L H L H L H L H L H L H

<SET>

Change setting to

desired value [(cL)(cH)]

by [(bL)(bH)].

BEh EFh 03h 06h 00h

(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)

<GET>

Read projector

internal setup value [(bL)

(bH)] .

(aL) (aH) 02h 00h (bL) (bH) 00h 00h

Increment setup value

[(bL)(bH)] by 1.

(aL) (aH) 04h 00h (bL) (bH) 00h 00h

Decrement setup value

[(bL)(bH)] by 1.

(aL) (aH) 05h 00h (bL) (bH) 00h 00h

<EXECUTE> Run a

command [(bL)(bH)].

(aL) (aH) 06h 00h (bL) (bH) 00h 00h

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0

[CRC ag]

For byte number

5, 6,

refer to

RS-232C Communication / Network command

table

(&18).

[Action]

Set functional code to byte number 7, 8.

<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> = [04h, 00h]

<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]

Refer to the Communication command table (&above).

[Type] [Setting code]

For byte number

～

, refer to

RS-232C Communication / Network command

table

(&18).

Indice

Altri manuali Maxell Proiettore

Maxell

Maxell MP-TW4011 Manuale utente

Maxell

Maxell MC-EX5001 Manuale utente

Maxell

Maxell CP-AW3506 Manuale utente

Maxell

Maxell MC-EX403E Manuale operativo e di manutenzione

Maxell

Maxell MC-TW3506 Manuale utente

Maxell

Maxell MP-WU8801W Documento tecnico

Maxell

Maxell PJLink MC-WU8460 Manuale utente

Maxell

Maxell MC-TW3506 Manuale utente

Maxell

Maxell MC-WU8451 Manuale utente

Maxell

Maxell MC-WU5506M Manuale utente

Maxell

Maxell MP-WU8101W Manuale utente

Maxell

Maxell MP-WU5603 Manuale utente

Maxell

Maxell MP-TW4001 Documento tecnico

Maxell

Maxell MP-TW3001 Manuale utente

Maxell

Maxell MP-WU8801W Manuale utente

Maxell

Maxell MP-JW351E Manuale utente

Maxell

Maxell MC-EX353E Manuale utente

Maxell

Maxell MC-WU8461 Manuale utente

Maxell

Maxell MC-EU5001 Manuale utente

Maxell

Maxell MC-EX353E Manuale utente

Maxell

Maxell MC-EU5001 Manuale utente

Maxell

Maxell MC-AW3506 Documento tecnico

Maxell

Maxell MC-AW3506 Manuale utente

Maxell

Maxell MC-WU5506M Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
