PTZ (Pan-tilt-zoom) Camera UC P20
User Manual
Thank you for choosing MAXHUB product.
Please read carefully and thoroughly this document before using the product. Should you
have any questions, please contact technical support.
Safety Warnings
Placement
(1) Please do NOT expose the product to direct sunlight or any other heat source.
(2) Please do NOT place the product in a humid environment for it is NOT water-proof. Keep
it from water splashes to avoid internal circuit failure.
(3) The operating temperature of the product is 0°C-40°C, the operating humidity is
0%-90%RH.
Children’s Safety
The product and its accessories contain small components. Please keep them from children.
Power
Please use the standard adapter for the product.
Maintenance
(1) Please contact authorized reseller or seek technical support for maintenance.
(2) Please do NOT insert any sharp objects into the product.
(3) Please do NOT drop or hit the product to avoid damages.
I. Appearance
NET RS232 INRESTORE RS485 HDMI 3G-SDI USB 3.0 DC 12V OFF
ON
LINE IN

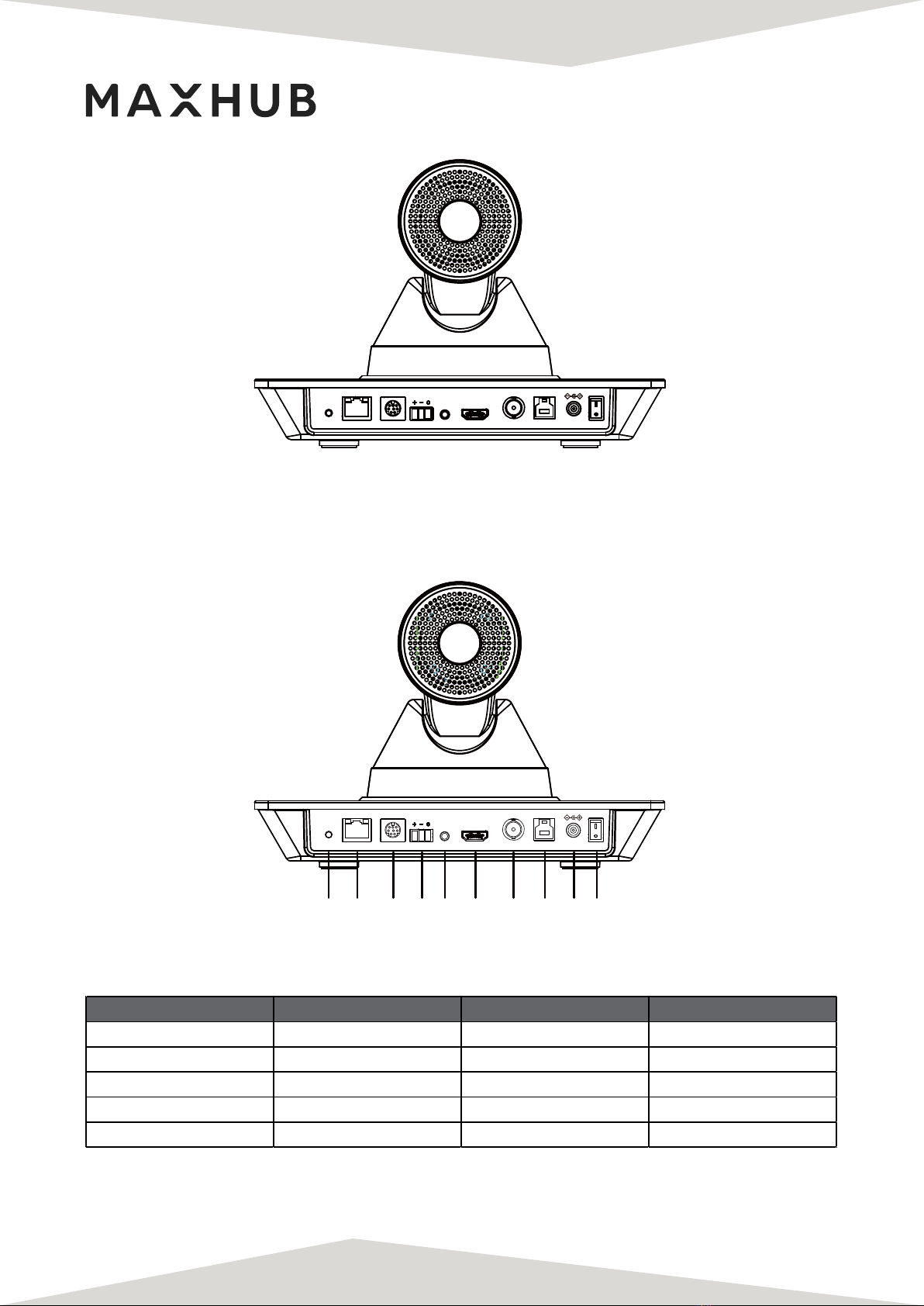

II. Connection Ports
NET RS232 INRESTORE RS485 HDMI 3G-SDI USB 3.0 DC 12V OFF
ON
LINE IN
1 2 3 4 5 6 7 8 9 10
Item Name Item Name
1 Restore Button 6 HDMI Out
2 RJ45 7 3G-SDI Out
3 RS232 8 USB 3.0
4 RS485 9 Power
5 Line IN 10 Rocker Switch
III. Packing List
IV. Product Features
4K UHD: A 1/2.5-inch sensor delivers up to 8.51MP, achieving uncompromising image
quality.
AVT Port: Supports RJ45 over twisted pair and BNC coaxial connector.
Built-in Gravity Sensor: Enables automatic image rotation that make convenient the
installation.
Built-in OLED Screen: For displaying frame rate and resolution for HDMI and SDI input
signal and IP address.
Remote Control: Built-in RS232 and RS485 that allows controlling the camera from afar
Low Power Consumption during Standby: Standby power consumption is less than 400mW.
71-degree Wide-angle Lens & 12 Times Optical Zoom: Horizontal field of view reaches 71
degrees in the UHD camera. It supports 12 times optical zoom, providing crystal clear
images near and far alike.
Broad Connectivity Supported: Supports AVT export, as well as HDMI 2.0×1, RJ45×1. The
three ports could export high definition contents simultaneously, satisfying needs in
various scenarios.
Name Quantity
Camera 1
Remote Control 1
Power Adapter 1
USB 3.0 Cable 1
3P Phoenix Head 1
Wall Mount 1
Screw Pack 1
User Manual 1

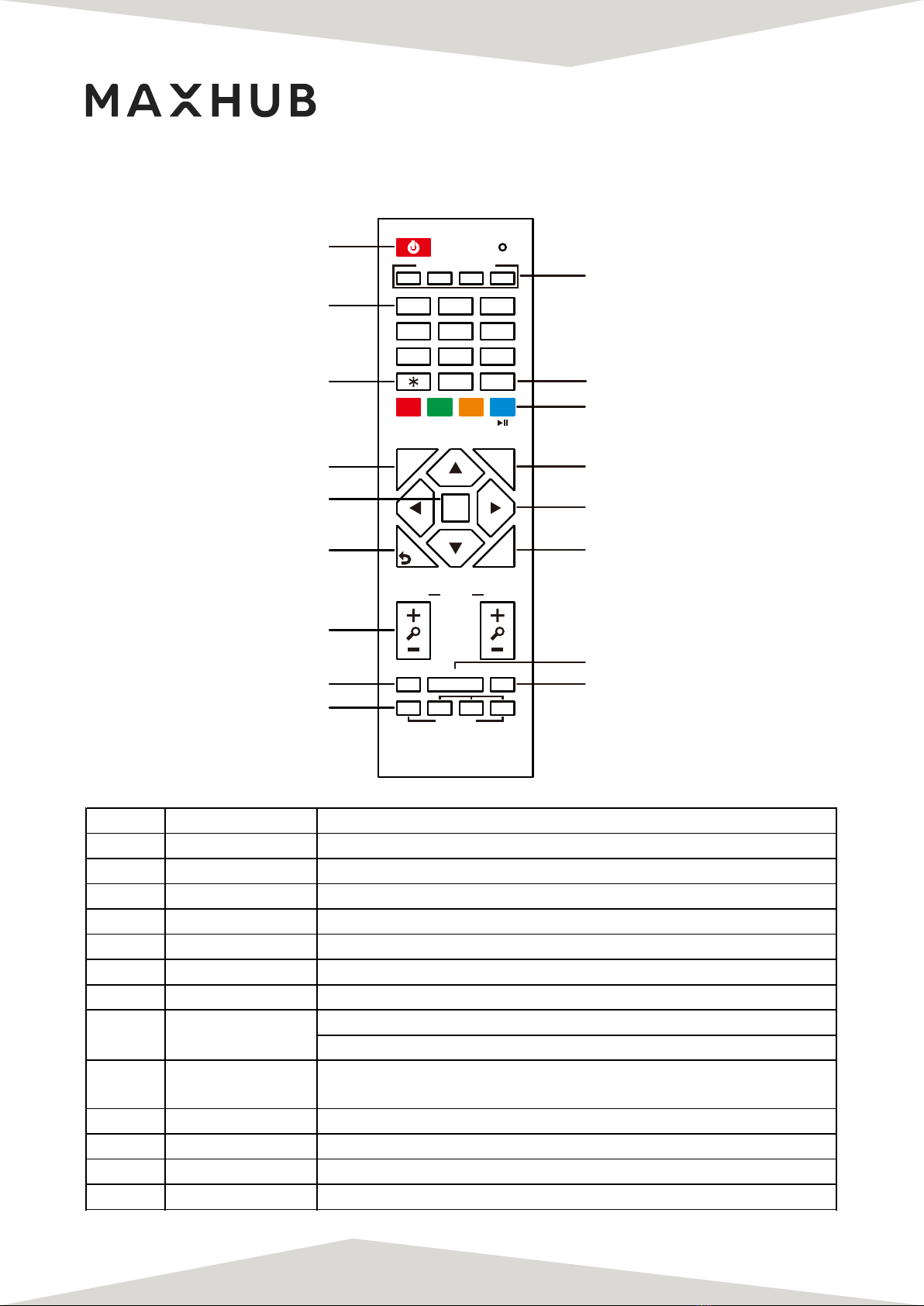

V. Remote Control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
0
987
6
5
4
3
21
#
1 2 4
3
F1 F2 F3 F4
HOME
P R E S E T
C AM E R A SE L E C T
S T D R E V
R E S E T
M E N U
SLOW
L/R S E T
BAC K LIGHT P/T R S T
M A N UA L
NE A R
FA R
AU TO
FOCUS
ZOOM FAST
No. Name Description
1 Power Press to enter standby mode
2 Number Configure Presets or edit Presets
3 Asterisk Used for certain functions
4 Preset Configure presets with number keys
5 Home
Press to confirm menu or return the PTZ camera to its default position
6 Return Return to the previous tier of menu
7 Zoom Switch between tele-lens mode and wide-angle mode
Standard: Press this button with numeral "1" key
Reverse: Press this button with numeral "2" key
9 Focus
Switch amongst "Auto-focus", "Manual Focus", "Focus to the far", "Focus
to the near
10 Camera Selection Select the camera to configure
11 Hash Used for certain functions
12
IR Remote Control Key
[*+＃+F1/F2/F3/F4]: NO.1/2/3/4 address
13 Reset Press this key with number key to delete preset set with the numeral
8 Left/Right/Set
14 PTZ Control Control the PTZ camera with direction key
15 Menu Press to enter/quit OSD menu
16 Backlight Turn on/offthe backlight
17 PTZ Reset Press to start self-check the PTZ Camera
VI. Installation Dimensions
70.71
Ø5.2
70.71
4-M3.0
VII. Statement
Size and weight may vary by configuration and manufacturing process. Please refer to the
actual product.
The product images are for illustrative purposes only and may slightly differ in appearance,
color, size, etc. from the actual product.
The description, illustrations, etc. in the document may subject to change in accordance
with the latest product specification and performance.
Should the change as mentioned above in the document become necessary, the document
may be updated without written notice.
NOTICE: The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States
and other countries.
