MAXHUB PTZ Camera UCP10
Quick Start
1Appearance and Connection
2Packing List
3Remote Control
No.
Name
Function Description
1
Standby Key
Enter into standby mode by pressed it
2
Number Key
Preset setting or transfer preset
3
*Key
Equipped with other keys for using
4
Preset Key
Preset: Setting Preset + Number key (0-9)
5
HOME Key
Confirm menu or the PTZ will back to the
middle position after pressed it
6
Return Key
Return back the last level menu
7
Zoom Button
Making the lens wide angle/narrow angle
slowly or quickly
8
Left/Right
Setting Key
Standard: Simultaneously press
Left/Right setting key + 1 (horizontal)
Reverse: Simultaneously press
Left/Right setting key + 2 (horizontal)
9
Focus Key
auto/manual/far-end/near-end focus
10
Selection Key
Select the camera need to control
11
#Key
Need to equipped with other key
12
IR Remote
Control Key
[*+＃+F1/F2/F3/F4]: NO.1/2/3/4 address
13
Reset Key
Delete preset (reset key + corresponding
preset number key)
14
PTZ Control key
PTZ moved according to the arrow indicates
15
Menu Key
Enter or exit OSD Menu after pressed it
16
Backlight Key
Turn on/off backlight consumption (loop)
17
PTZ Reset Key
PTZ starts to self-test after pressed it

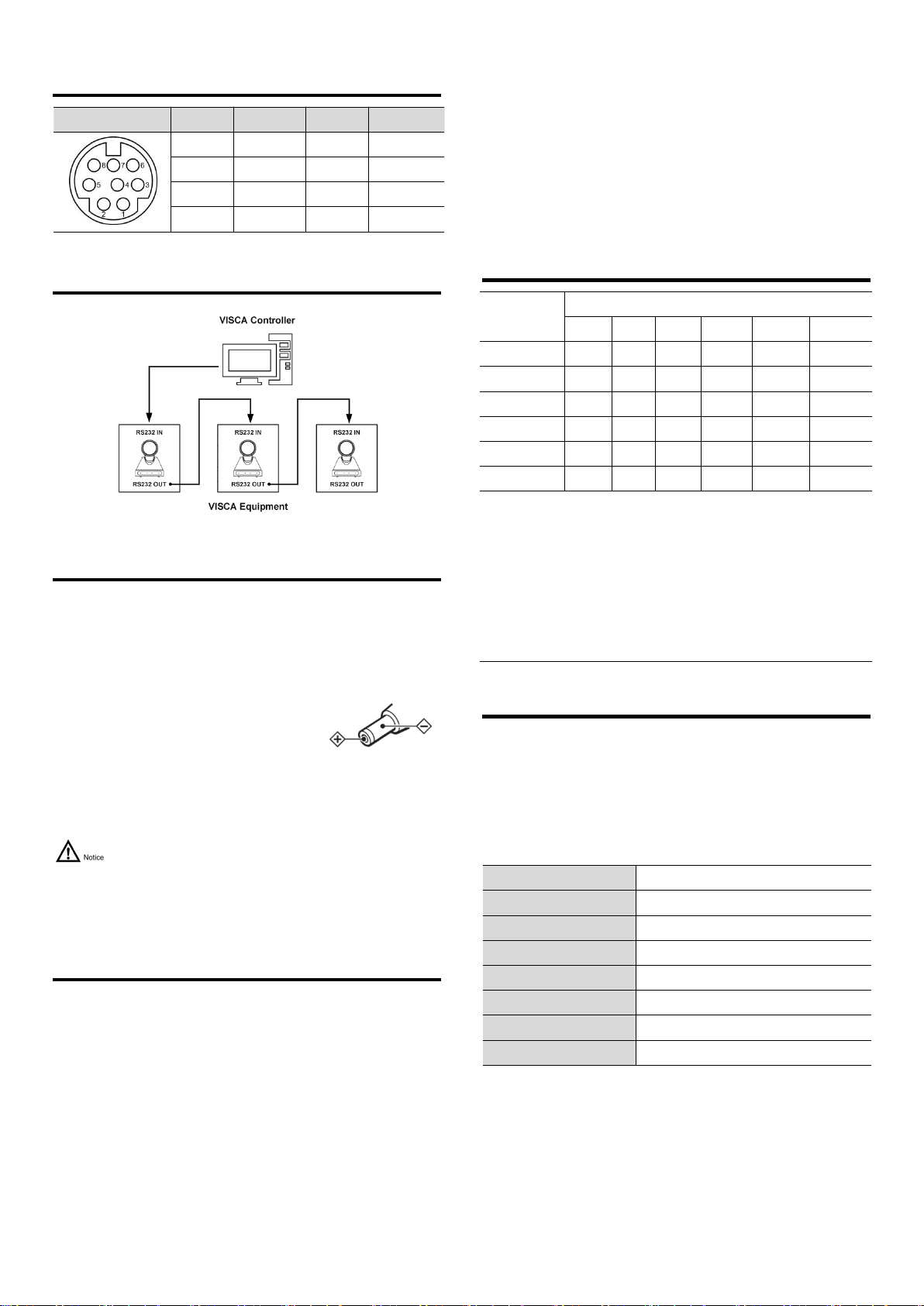

4RS232 Interface
Interface diagram
No.
Function
No.
Function
1
DTR
5
RXD
2
DSR
6
GND
3
TXD
7
IR OUT
4
GND
8
NC
5VISCA Network
6Safety precautions
Electrical safety
The installation and use of this product must strictly comply with local
electrical safety standards.
Power polarity
This product uses DC +12V power supply, the maximum current 2A,
please pay attention to the polarity of power supply.
Careful installation
Do not grab the camera head to move the camera.
Do not rotate head of camera by hand, it may cause mechanical problems.
Do not unauthorized disassemble
This product has no parts which can be repaired by the user. The damage
caused by the user's own disassembly is not covered by warranty.
Electromagnetic fields at specific frequencies may affect the image of
the machine.
Do not hot-plug the power supply during the use of the IP Camera.
7Troubleshooting
The monitor shows no image
1) Check that the camera power supply is connected, the voltage is normal,
and the power indicator light is always on.
2) Turn off the power switch to check whether the camera is self-testing.
3) Check the cable of video platform and TV whether correct connection.
Sometimes without the image
Check the cable of video platform and TV whether correct connection.
Image have jitter when the camera lens at max multiple.
1) Check whether the camera installed position be stabled.
2) Check whether have vibrating machinery or object near the camera.
Control
Remote control can not control
1) Check and replace the new battery for the remote controller.
2) Check whether the camera working mode is correct.
3) Check whether the address of remote control can match the camera.
Series port can not control
1) Check whether the camera protocol, address such is the same.
2) Check whether the control line is connected well.
8Toxic and harmful substances
Part Name
Toxic or harmful substances or elements
(Pb)
(Hg)
(Cd)
(CrVI)
(PBB)
(PBDE)
Metal
x
Ο
Ο
Ο
Ο
Ο
Plastic
Ο
Ο
Ο
Ο
Ο
Ο
Glass
x
Ο
Ο
Ο
Ο
Ο
Circuit board
x
Ο
Ο
Ο
Ο
Ο
Power
x
Ο
Ο
Ο
Ο
Ο
Attached
x
Ο
Ο
Ο
Ο
Ο
This form is compiled in accordance with SJ/T 11364.
Ο: Indicates that the content of the hazardous substance in all
homogenized materials of the component is subject to the limit specified
in GB/T 26572.
x: Said the hazardous substance in at least one of the components
homogenized material content in excess of the GB/T 26572 limit
requirements, and there are no mature alternatives.
9Warranty Card
If failure caused by non-human causes occurs within one year from the date
of purchase of the machine, you may enjoy the warranty service of the
product. Any of the following circumstances is not covered by the warranty:
Without disassemble, modification such as fault causes.
Use of an environment does not conform to requirements of the product.
Irresistible factors, such as fire, earthquake, lightning strike, etc.
Warranty card does not match the product number or it is altered.
User Name
User Address/Post Code
Contact Number
Product Model
Product Series
Purchasing Date
Invoice No.
Sales Department
User save, lost or not compensated
Sales Department: (seal)
079.79.1100124_V1.6
