Maxplus Industries HTS 2100S+ Manuale utente

E109000257A

USER’S MANUAL

Digital Satellite Receiver

HTS 2100S+

1. Introduction 2

1.1 Overview

1.2 Main Features

2. Safety/Precautions 3

2.1 Safety

2.2 Precautions

3. Points to Check before Use 5

3.1 Accessories

4. Controls/Functions 6

4.1 Front Panel

4.2 Rear Panel

4.3 Remote controller

5. How to Connect 10

6. Operation 11

6.1 Getting Started

6.2 System Setting

6.3 Channels

6.4 Electronic Program Guide

6.5 Games

6.6 System Information

6.7 Common Interface

7. Troubleshooting 37

8. Specifications 38

Contents

2 3

This satellite receiver is designed for the reception of free-to-air and encrypted channels.

Depending on your location, enjoy the rich choice of up to 5,000 different channels

broadcasting a large range of programs: culture, sports, cinema, news, events, etc. This

receiver is assembled with highly qualified electronic parts.

Introduction

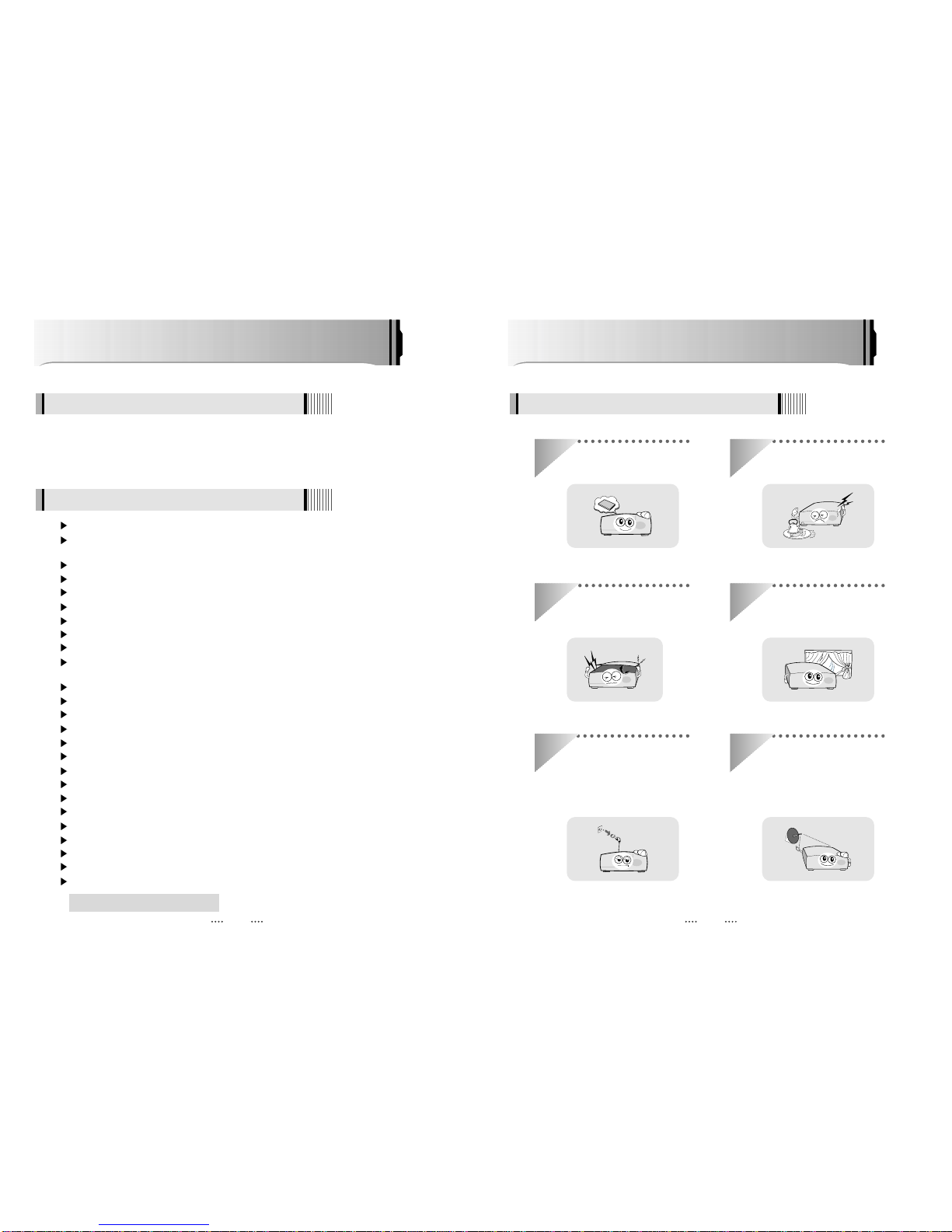

1.1 Overview

MPEG-II Digital & fully DVB compliant.

Supports 1 CAM of DVB Common Interface standard (Conax, Cryptoworks, Irdeto, NagraVision,

SECA, Viaccess, BetaCrypt and etc)

On-screen display with 256 color resolution.

DiSEqC control Version 1.0, 1.1, 1.2 and USALS compatible.

Renameable 8 favorite channel groups.

Fast channel change less than 1 second.

Advanced Blind search function.

Powerful channel control by Favorites, Lock, Skip, Move and Delete.

Channel sorting by Alphabet, Transponder and Scrambled.

Multilingual language OSD & menu: English, Italian, Turkish, Arabic, Parsi, German, French,

Russian, Spanish, Portuguese, Dutch.

Extended EPG and program reservation through EPG.

Teletext by OSD/ VBI

Supports multilingual subtitle

Supports multilingual audio language

Last channel memory function.

Total 5,000 channels programmable.

Advanced channel list menu

Multi satellite search

Games with stereo sounds

Software & channel database upgrade via RS-232C: PC to STB/ STB to STB

Parental lock/ Installation Lock / Receiver Lock / Channel Lock / Lock Channel Confirm.

Digital audio output [S/PDIF]

Multi picture display

Zoom function.

Color adjustment function

1.2 Main Features

Be sure to read this user's manual before

starting the operation of the unit. Do not touch the power cord with wet

hands as it may cause electric shock.

Never open the cover. It is very

dangerous to touch the inside of the

unit due to possible electric shock.

Place the unit in a well ventilated and

no-heat environment.

When you do not use this unit for a

long time, make sure that power cord

is pulled out from the outlet. Also do

not use a damaged power cord as it

may cause fire or electric shock.

A professional installation is required.

If reception is interrupted, contact your

local service centre.

Safety/Precautions

2.1 Safety

DiSEqC is a trademark of EUTELSAT

4 5

When installing the unit

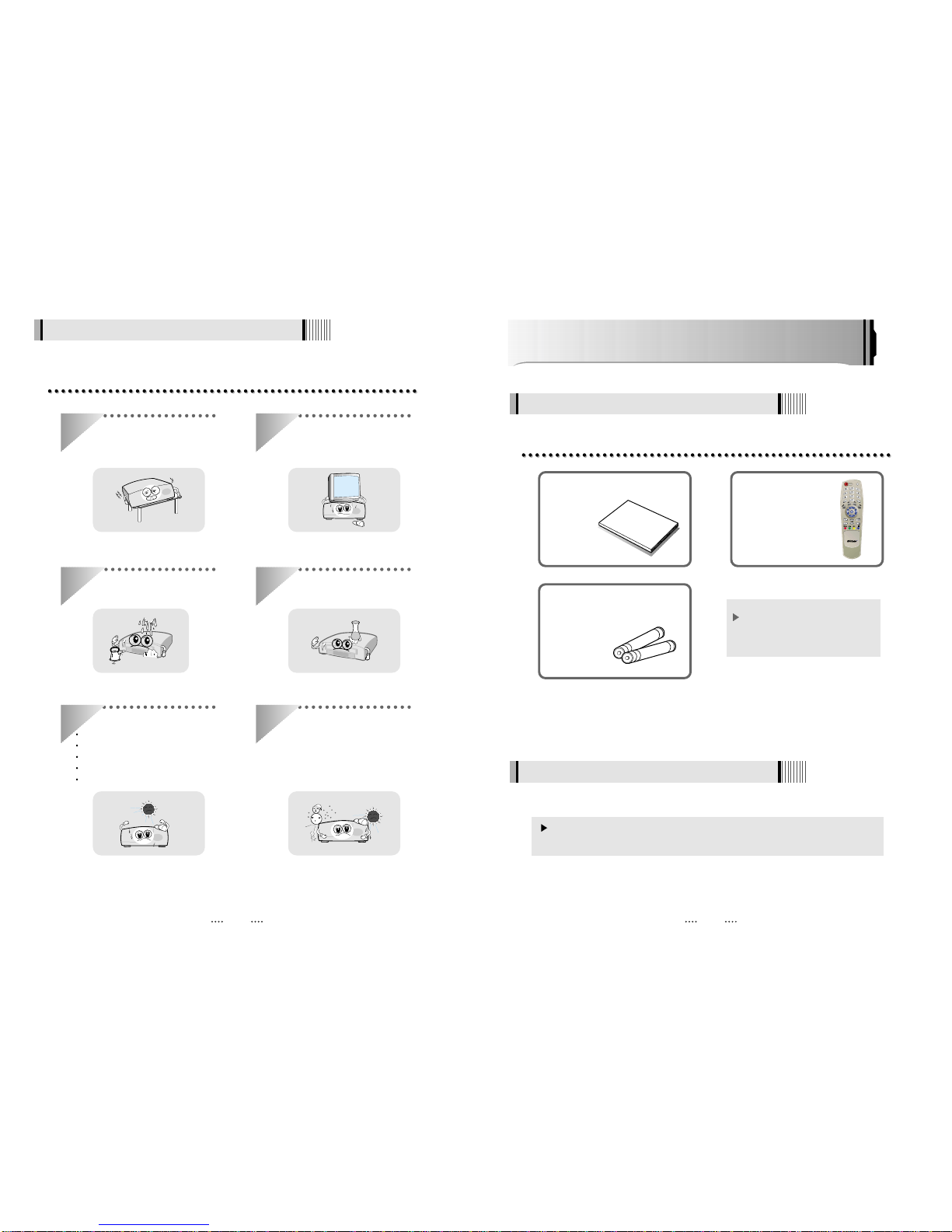

2.2 Precautions

Install the unit horizontally. An uneven

installation may cause the unit to be

damaged.

Do not put heavy items such as a TV

set on the unit. That may damage the

unit.

Do not leave the unit where the water

drops or splashes. Do not put water holding items such as

vases on the unit.

Do not install the unit:

Where it is subject to vibrations

Where it is exposed to direct sunlight

Where there is humidity

Where the temperature is too high or too low.

Where there is no ventilation

Moving the unit to a hot area from a

cold one will cause condensation.

Do not operate the unit for one or two

hours or until it has dried completely.

User's manual : 1

User's manual

Remote control : 1

Batteries (AAA type) : 2

If any of the above-listed

accessories is missing, contact

your sales representative.

The accessories below are included with this receiver:

Points to Check before Use

3.1 Accessories

Your dish should be properly installed and azimuth and elevation must be precisely set up.

This unit supports DiSEqC 1.2 and can work with a compatible antenna positioner.

Ask your dealer for information.

3.2 The Satellite dish

6 7

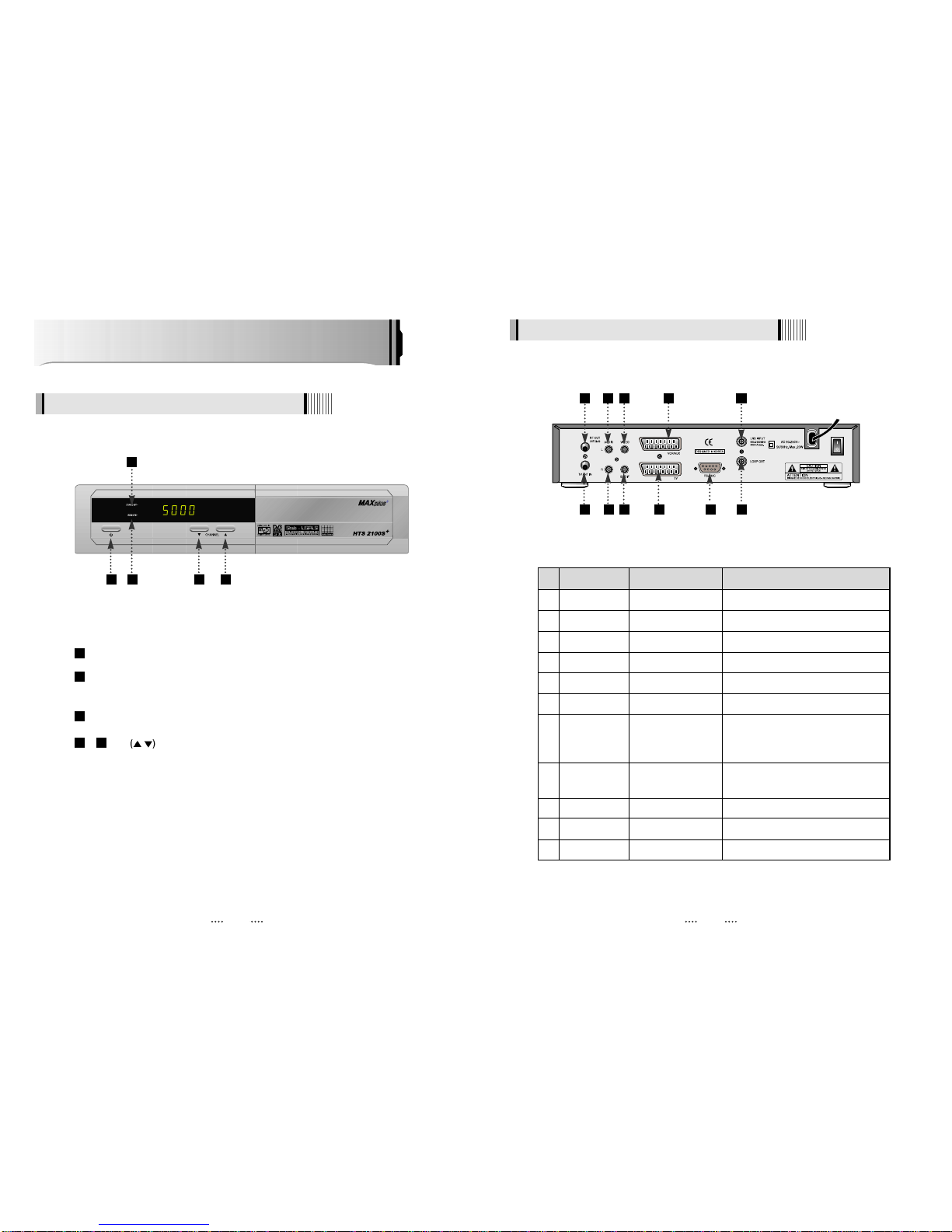

Controls/Functions

4.1 Front Panel

4.2 Rear Panel

Power : Switches the receiver between ‘Standby’ and ‘Power ON’ modes.

Standby/Power on Indications Lamp : Flashes red light in ‘Standby’ mode and

shows no light in ‘Power ON’ mode.

Indication Light : Flashes when a key on the Remote Control Unit (RCU) is pressed.

- CH. /: To switch channels or change the cursor position on the

application screen.

1 3 4 5

1 3 5 7

2 4 6 8

No. Name Connector Function

1 RF OUT UHF 21-69 IEC 169-2 male Output to TV

2 TV ANT IN IEC 169-2 female Input from terrestrial antenna

3 AUDIO L RCA cinch Left audio output

4 AUDIO R RCA cinch Right audio output

5 VIDEO RCA cinch Composite video output

6 S/PDIF RCA cinch Digital audio output

7 VCR/AUX SCART SCART CVBS Video Output

CVBS, RGB Video Input

Audio Output

8 TV SCART SCART CVBS, RGB Video Output

Audio Output

9 RS-232C DB-9 Low speed serial port

10 LNB INPUT IEC 169-24 female IF input from LNB to digital tuner

11 LOOP OUT IEC 169-24 female IF loop-through output from digital tuner

8 9

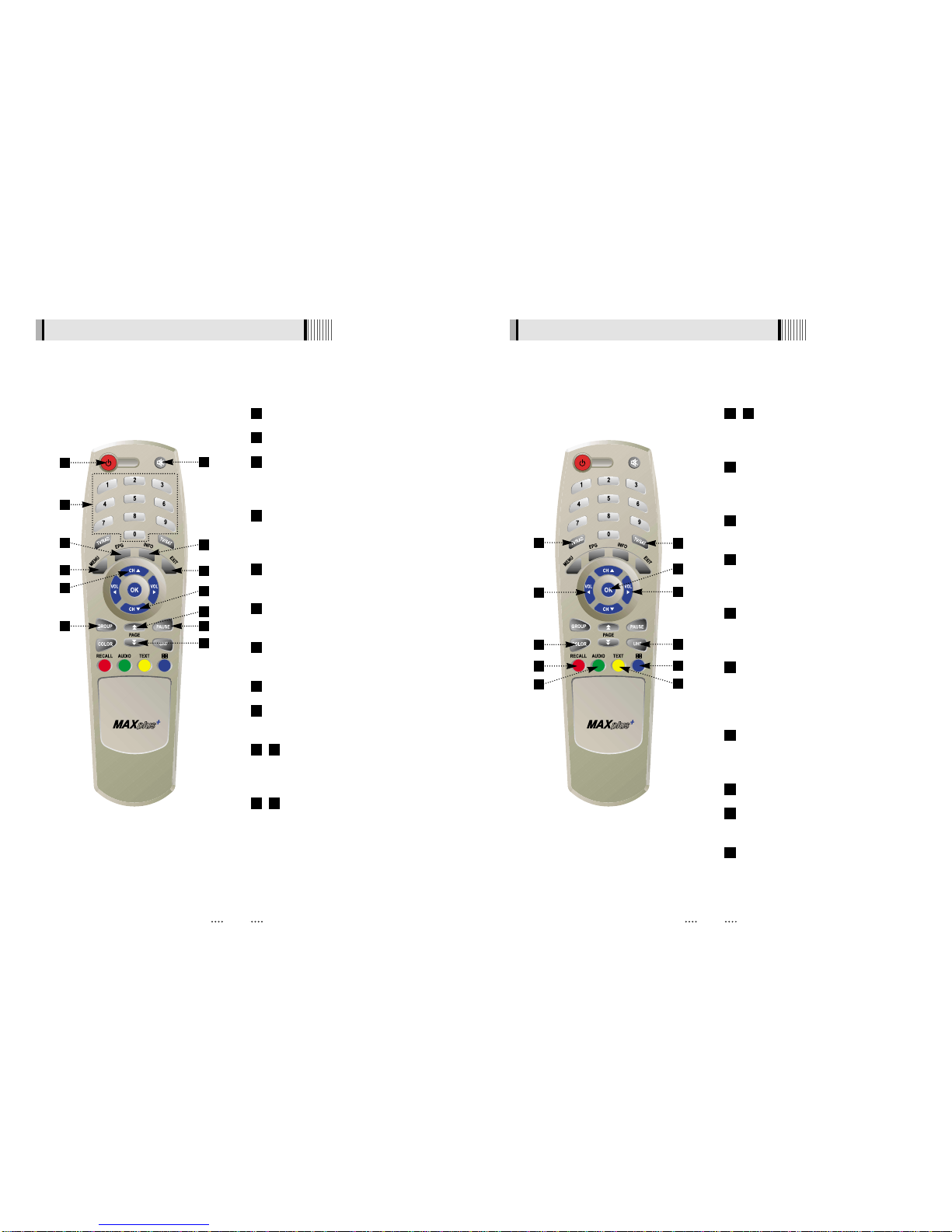

4.3 Remote controller 4.3 Remote controller

POWER :To turn the receiver On/Off.

MUTE : To turn the sound On/Off.

Numeric Keys (0-9) : To enter numerical

settings (such as channel numbers)

directly.

INFO : To show information about the

current program. Press twice to show

detail.

PAUSE : To pause the video. Press again

to resume the video.

EPG : To show the TV/Radio program

guide.

GROUP :To change the channel

groups(Satellites or favorite groups).

MENU : To enter or exit the main menu.

EXIT :To exit from the present menu and

move to the previous menu.

-Double arrow UP/DOWN : To move

to the next or previous page when

many pages are available.

-Up & Down : To switch channels in

non-menu mode and move the

cursor up/down in menu mode.

1312

1110

-Left & Right : To change the volume

level in non-menu mode and modify a

setting in menu mode.

OK : To show the Channel List in non-

menu mode and select an item or

confirm in menu mode.

TV/RADIO :To switch between TV and

Radio.

TV/SAT :To switch the TV output source

between the satellite input and the

UHF/VHF antenna input.

RECALL(RED):To move to the previous

channel. Used for special functions in

menu mode.

AUDIO(GREEN): To show the Multi-

language audio track, the stereo-mono

mode and subtitle information. Used for

special functions in menu mode.

TEXT(YELLOW): To show the teletext

contents if teletext is transmitted. Used for

special functions in menu mode.

BLUE : To display multiple pictures.

COLOR : To control the brightness,

contrast and color of a picture.

UHF : To adjust UHF channel.

1514

12 13 15

10 11

Operation

6.1 Getting Started

Turn on your TV and receiver.

The pop-up menu for language selection will appear.<Figure 6-1>

Select one language and press to proceed.

After your receiver is powered on, proceed with installation as follows :

1) Menu Language Setting

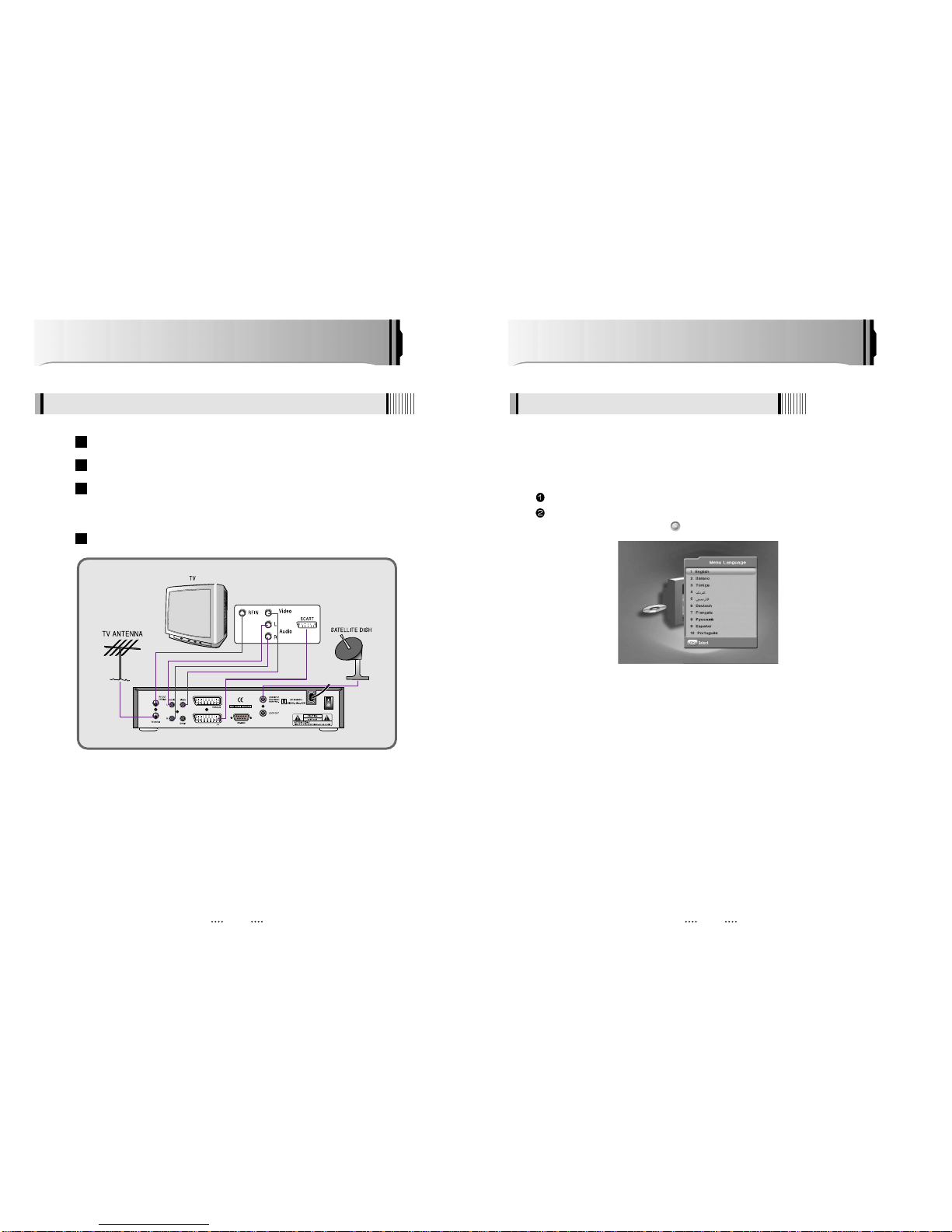

How to Connect

When Connecting the Receiver to a TV with RF connectors

Connect the TV antenna to TV ANT IN

Connect the RF-IN of the TV to RF-OUT

Connect the Video and Audio of the TV to Video and Audio: connect the red

and white connectors to Audio R and Audio L, and the yellow connector to

Video

Connect your satellite dish

1312

6.1 Getting Started 6.1 Getting Started

Select the item that you want to edit, and set its parameters as desired. <Dish Setting>

- LNB Power : Select among ON/OFF/13V/18V.

- LNB Type : Select among Single/Universal/OCS.

- LNB Freq : Set the frequency of the LNB oscillator.

- 22KHz : When not AUTO, set the signal path from LNB or switch by selecting a control signal

among 0/22KHz.

- DiSEqC switch : Select DiSEqC protocol among OFF/1.0/1.1 as appropriate for your

configuration.

- Committed/Uncommitted : Select the DiSEqC port.

Select the item that you want to edit and set its parameters as desired. <Motorized Setting>

- Frequency : If the default TP frequency is not appropriate, you can select another TP

frequency at which to check for signal.

- DiSEqC Motor : Select DiSEqC protocol among OFF/1.2/USALS as appropriate for your

Motor.

(When the DiSEqC Motor parameter is set as 1.2)

- Move : You can move the dish to the West/East.

- Limit : If you want to set limits, press .

- Disable Limit : You can disable the East and West limits.

- Goto Center : Move the dish to the initial 0 position.

- Set East / West Limit : Move the dish East or West using / .

Press to set East or West limit.

(When the DiSEqC Motor parameter is set as USALS)

- Sat Degree : Satellite location.

- Antenna Position : Press .

- Goto Reference : Move the dish to the reference 0 position.

- Antenna Longitude : Your longitude at present.

- Antenna Latitude : Your latitude at present.

Note : You need to know what LNB you are using to correctly set the L.O. (local

oscillator) frequency.

Note : You need to understand how your receiver is connected to properly set the

22KHz and DiSEqC.

When you are done, press the EXIT button.

VOL

Press the MENU button to display the main menu.

Use / and / to move in the menu.

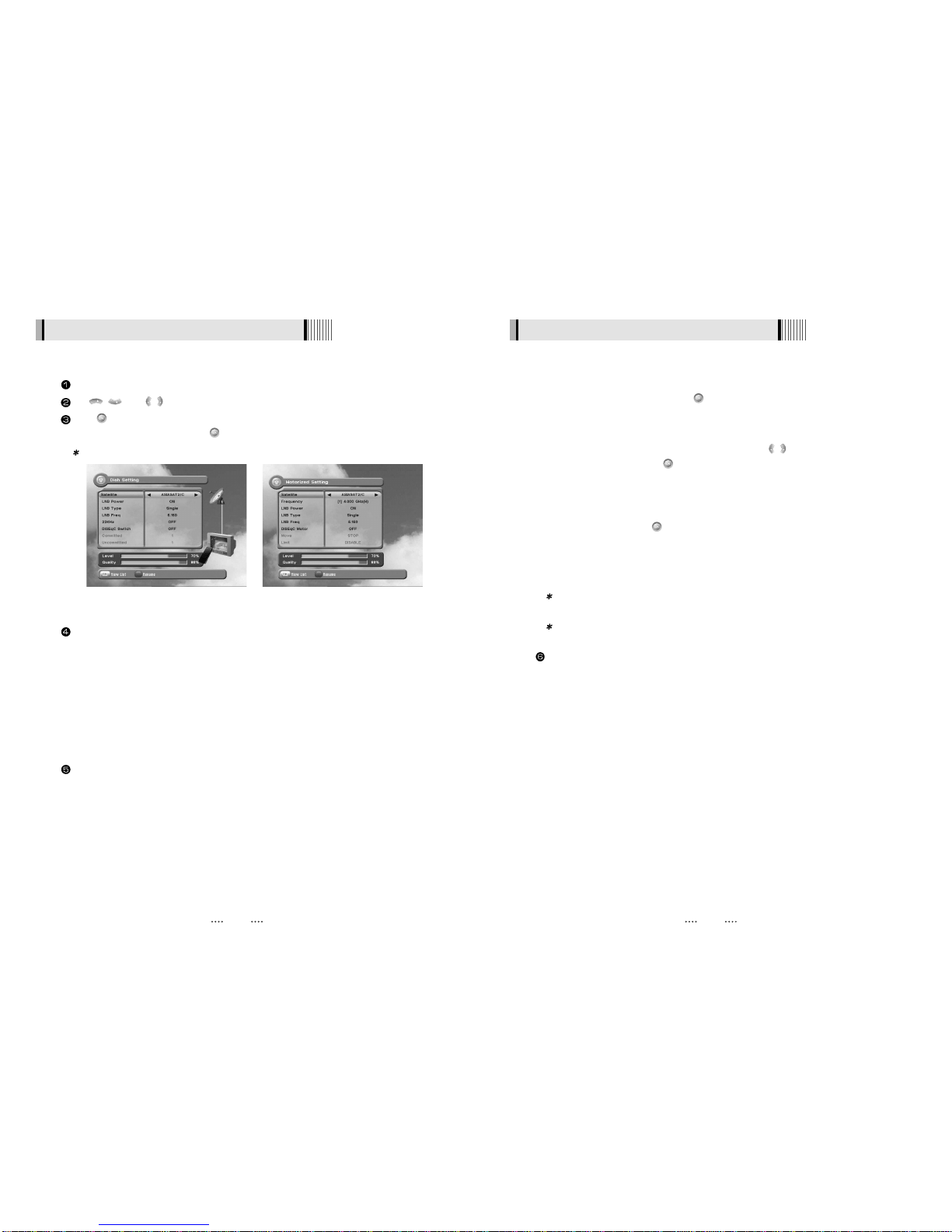

Press on ‘Dish Setting’. The following window will appear. <Figure 6-2>

If you have a motorized dish, press on ‘Motorized Setting’. < Figure 6-3>

Note : Enter a 4-Digit password if need arise. The default password is ‘0000’.

VOL

2) Antenna Setup

1514

6.1 Getting Started

Through this function, the receiver searches for all the available channels and saves them in

memory.

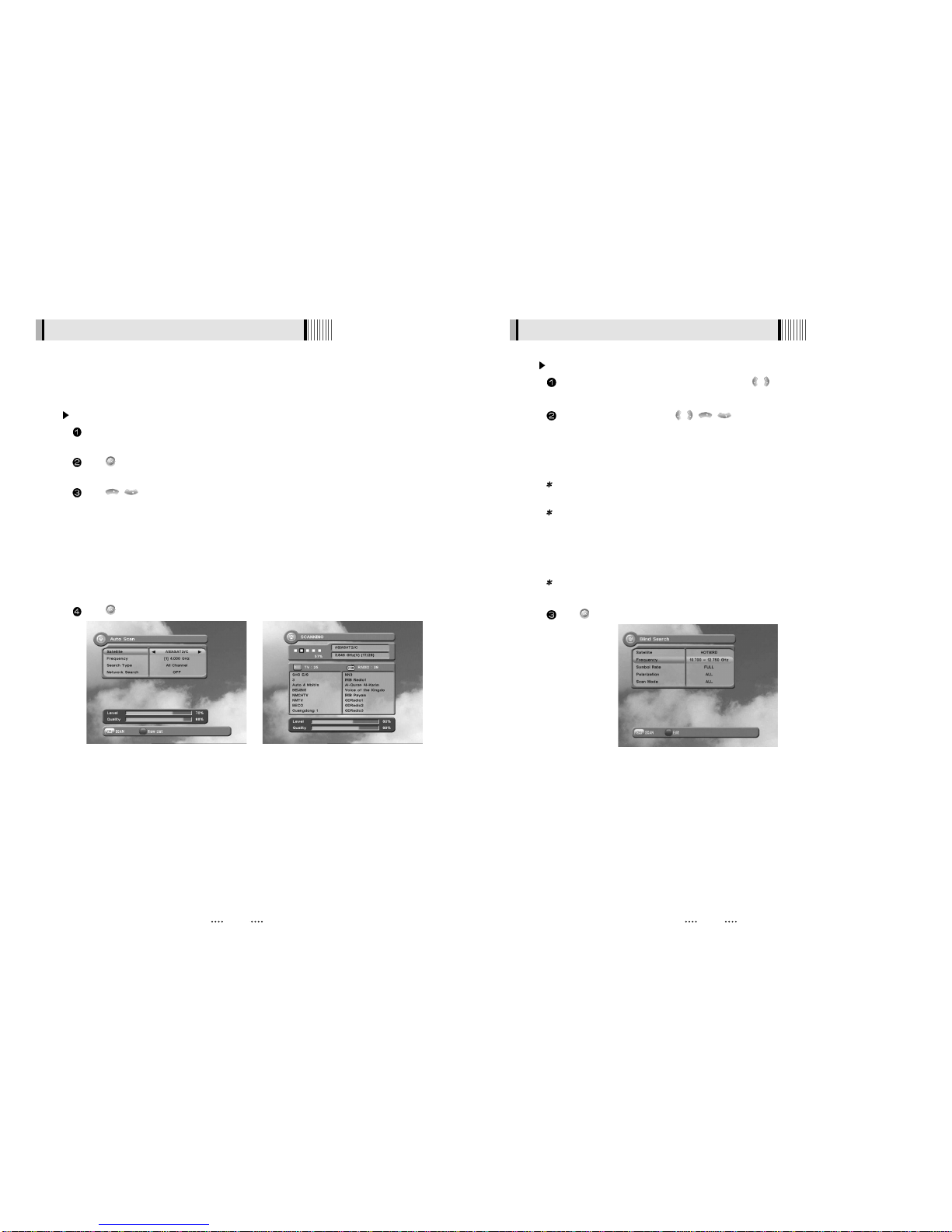

Auto Scan <Figure 6-4>

To select more than one satellite, press the RED button when the selection bar is

positioned on the satellite.

Press on the names of the satellites that you want to scan under 'Satellite List'.

Press the EXIT button to close the 'Satellite List'.

Press / and set the ‘Search Type’ and ‘Network Search’ parameters.

- Search Type : Decide for which channels to search (All channels/ Free channels only/ TV

channels only).

- Network Search : Set ON to find more transponders (frequencies) through a Network

Information Table (NIT) scan. That is, when the broadcaster is sending

a NIT through a given transponder, the receiver will also scan for

transponders listed in the NIT and not otherwise recognized. (this can

happen when a transponder is new)

Press under ‘SCAN’ to scan the selected satellites. <Figure 6-5>

3) Satellite Scan

Blind Search <Figure 6-6>

Select the satellite you want to search by pressing / buttons on the remote.

You can select more satellites by pressing RED button on the remote.

Select the options by pressing / / / buttons on the remote.

- Symbol Rate : Select FULL / 7.5M Over / 7.5M Under / 3.7M Under / DETAIL

- Polarization : Select ALL / Vertical / Horizontal

- Scan Mode : Select ALL / FREE / TV

Note : ‘FULL’ is meaning of full range of S/R. It performs blind search in full range of

SR. It searches all range of SR.

Note : ‘DETAIL’ performs blind search in full range of SR with enhanced way, it

searches all the SR in double especially for the low SR such as 3Mhz below.

Detail option performs blind search by 2 pass way, therefore it is able to

detect more channels by this option. Detail blind search takes more time than

other options because of the above reason.

Note : If users do not mind that it takes more time on ‘detail’ option, we recommend

that users should use detail blind search especially on low SR.

Press button on the remote to begin blind scan of all of the satellite in the satellite list.

VOL

6.1 Getting Started

1716

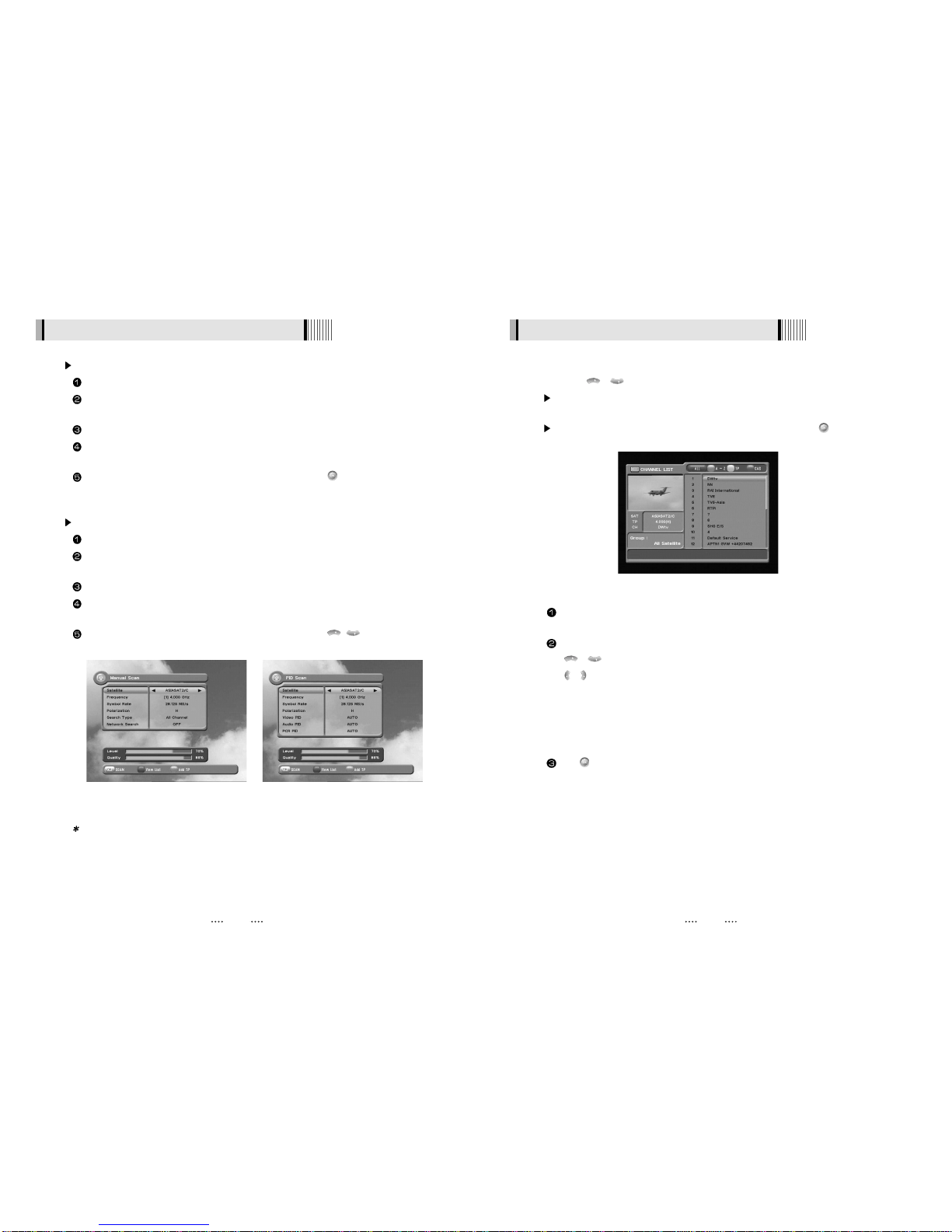

Manual Scan <Figure 6-7>

Select a transponder.

To change a transponder’s information (Frequency, Symbol Rate), use the NUMERIC

buttons.

To add a new transponder, press the GREEN button.

To delete a transponder, press the YELLOW button with the cursor next to the Frequency

parameter.

To search a transponder, set its different parameters and press .

6.1 Getting Started

Package Identifier (PID) Scan <Figure 6-8>

Select a transponder.

To change a transponder’s information (Frequency, Symbol Rate), use the NUMERIC

buttons.

To add a new transponder, press the GREEN button.

To delete a transponder, press the YELLOW button with the cursor next to the Frequency

parameter.

To search a transponder, set its different parameters and press / . You can search

a specific channel of the transponder by setting its PID data (Video, Audio and PCR).

Note : If you cannot access programs after correctly completing a scan procedure,

please contact your seller or your installer.

You can use / to navigate between channels until you find the channel you want.

If you know the channel number, you can enter it with the NUMERIC buttons and wait 2

seconds until the channel is changed.

If you know the channel name or transponder or CAS, you can press to display the

channel list <Figure 6-9>

4) Channel Selection

In the left side of screen, detailed information about the selected channel will be

displayed. (Satellite Name, Frequency(Polar) and Channel Name)

You can use the following buttons to navigate between channels:

- / :Moves one channel up/ down.

-/ :Moves one page up / one page down.

- RED : Shows all channels in the current group.

- GREEN : Shows all channels sorted alphabetically.

- YELLOW : Shows all channels sorted by Transponder.

- BLUE : Shows all channels sorted by CAS system.

Press when the selection bar is positioned on the desired channel.

VOL

6.1 Getting Started

Indice

Altri manuali Maxplus Industries Ricevitore

Maxplus Industries

Maxplus Industries HTS 9300 Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
