Maxx Cold MCR-23FD Istruzioni operative

Installation and Operation Guide

For

MCR-23FD, MCR-49FD, MCF-23FD, MCF-49FD, MCR-72FD, MCF-72FD

MCR-23FDRE, MCR-49FDRE, MCF-23FDRE, MCF-49FDRE

MCR-72FDRE, MCF-72FDRE, MCR-23GD, MCR-49GD

MCR-23FD/FDRE

MCF-23FD/FDRE

MCR-49FD/FDRE

MCF-49FD/FDRE

MCR-72FD/FDRE

MCF-72FD/FDRE

MCR-23GD MCR-49GD

CONTENTS

SERIAL NUMBER

1. SPECIFICATIONS

2. SERIAL NUMBER

3. INSTALLATION

4. CLEANING

5. CAUTION

6. BASIC OPERATION

6-1. REFRIGERATOR

6-2. FREEZER

7. TROUBLE SHOOTING GUIDE

The serial number is located on the rating label which is on the left interior wall.

Please retain the unit's serial number for service purposes.

5 - 6

7 - 8

SPECIFICATIONS

Solid Door Refrigerators

MODEL COMP. H.P REFRIGERANT AMPS WEIGHT

MCR-23FD, MCR-23FDRE

1/3 R-134a 6.0 A 271 LBS

MCR-49FD, MCR-49FDRE

1/3 R-134a 7.0 A 370 LBS

MCR-72FD, MCR-72FDRE

3/4 R-134a 10.3 A 507 LBS

Solid Door Freezers

MODEL COMP. H.P REFRIGERANT AMPS WEIGHT

MCF-23FD, MCF-23FDRE

1/3 R-134a 7.0 A 284 LBS

MCF-49FD, MCF-49FDRE

3/4 R-404A 11.8 A 403 LBS

MCF-72FD, MCF-72FDRE

1/2 R-404A 9.2 A 560 LBS

Glass Door Refrigerators

MODEL COMP. H.P REFRIGERANT AMPS POUNDS

MCR-23GD 1/3 R-134a 6.5 A 295 LBS

MCR-49GD 3/4 R-134a 11.5 A 460 LBS

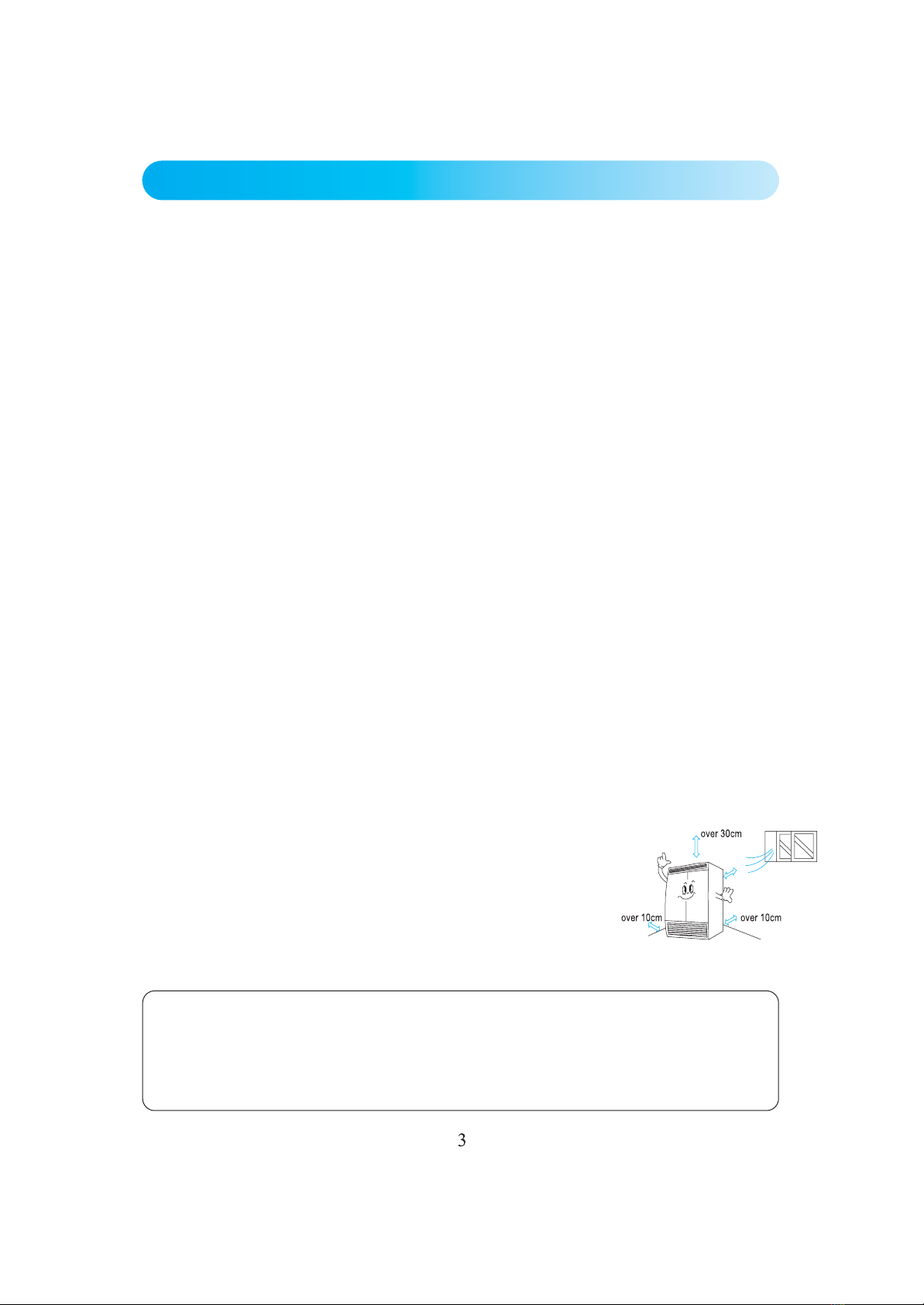

INSTALLATION

1. GOOD AIR CIRCULATION

- Be sure to avoid any object which will restrict exhausted air flow.

- Be sure that there is ample space so that air can flow through the rear of the unit.

- The back of the unit should be located no less than 5 inches from the wall.

2. PLACE ON STRONG GROUND

- Be sure the location chosen has a floor strong enough to support the total weight of the

cabinet and contents.

3. DO NOT PLACE NEAR HEAT SOURCE

- Be sure to avoid hot corner or location near stove, oven, or other heat source.

- High ambient temperature will make cooling efficiency lower.

4. INDOOR USAGE ONLY

- This equipment is intended for indoor use only.

5. STABILIZING

- Make sure the unit is installed in a stable condition with the front wheels locked while in

use.

6. LEVELING

- Be sure that the unit is level from front to back and side to side.

7. Unit should be on dedicated electrical circuit.

- Do not use extension cords

- Isolate the unit on an electrical circuit of proper size.

8. Place black plastic condensate pan thru back or front.

Make sure pads are installed upwards and drain hose is in pan.

9. Install the unit where the air circulation is good.

- Maintain enough spaces around the unit since air

circulation is very important for the unit cooling

performance.

- If air circulation is obstructed, then cooling

performance will drop, consuming more electricity as

a result.

ᵀReference

⍥If a door for left hand is necessary, please contact the sales

representative in your area.

⍥A set of door & Door hinge can be purchased separately to

convertible between Right Hand and Left Hand side.

CLEANING

CAUTION

1. CLEANING THE INTERIOR AND EXTERIOR

- The interior and exterior of the unit can be cleaned using warm water with soap.

- Do not use an abrasive cleaner because it will scratch the surface.

2. CLEANING THE CONDENSER FINS

- To maintain proper refrigeration performance, the Condenser coil must be free of dust,

dirt, and grease.

It will require to clean it periodically. Condenser fins should be cleaned, at least every

three months (90 days) or as needed.

3. CLEAN THE GASKET

- The door gasket should be cleaned frequently to maintain proper sealing. Use warm

water and a mild soap.

4. CHECK AFTER CLEANING

- Check the unit again for safety.

- Check that the unit is operating properly.

1. POWER CORD

- Be sure the power cord is connected to the proper voltage.

- Compressor warranties are void if compressor burns out due to improper voltage.

- A protected circuit of the correct voltage and amperage must be run for connection of the

line cord.

- Turn ‘ off ’ the power switch before disconnecting the power cord whenever performing

maintenance functions or cleaning the refrigerated cabinet.

- If the power cord of Refrigerator (Freezer) is damaged, it must be replaced by the

manufacturer or service agent or a similarly qualified person in order to avoid a hazard.

2. RE-STARTING

- If disconnected, wait 5 minutes before re-starting.

BASIC OPERATION

1. Plug in and turn on the power switch located on the bottom of the top grill.

The Display panel will be lighted. The compressor will begin to run.

2. The default temperature setting is 35ᵻ(+2ᴱ)

3. The compressor is automatically cycled by the electronic controller (PCB).

4. Temp. Control range 39ᵻ@28ᵻ( +4ᴱ@-2ᴱ)

5. The interior light is activated by the door switch when the door is opened.

6. Evaporator fan motor(s) will run after all doors are completely closed.

MCR-23FD, MCR-23FDRE

MCR-49FD, MCR-49FDRE

MCR-23GD, MCR-49GD

MCR-72FD, MCR-72FDRE

REFRIGERATOR

ENERGY STAR

This Energy star labeled product may save you money on your energy costs.

ENERGY STAR⊇OPTION AVAILABLE ENERGY STAR qualified

models feature highly efficient compressors, generously sized

condensers and evaporators and EC evaporator motors. These

models may also qualify for energy rebate programs.

An ENERGY STAR⊇product uses energy more efficiently, saves you money on

utility bills and helps protect the environment. Please refer to the ENERGY STAR⊇

related information in www.energystar.gov for more details.

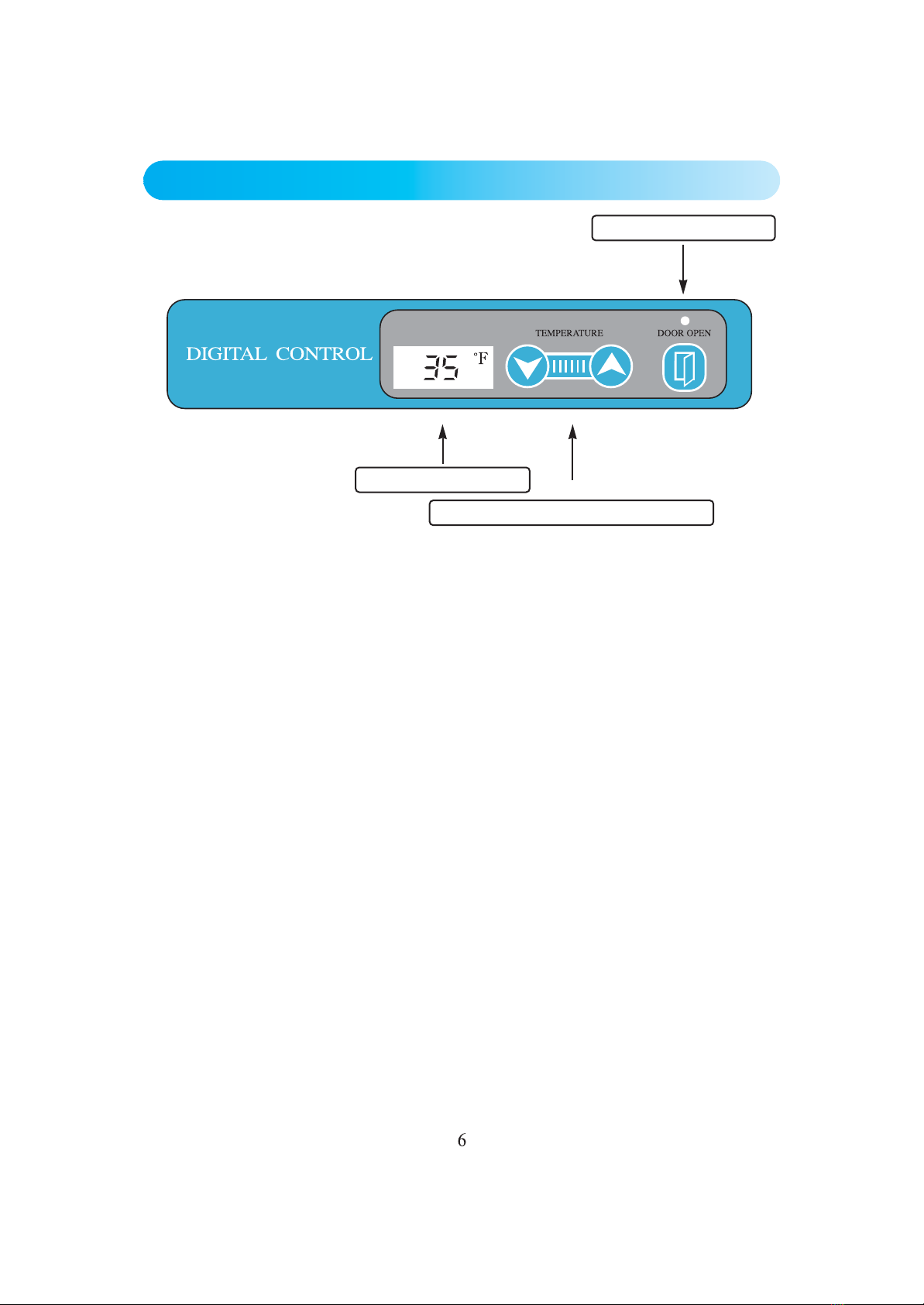

DISPLAY PANEL

1. UP / DOWN BUTTON (Temperature control button)

- By pushing the up/down button, you can set the inside temperature.

2. DOOR OPENING INDICATOR

- If door is opened, door opening indicator will be turned on.

- If the door is left open for 3 minutes an alarm will sound continuously.

- The alarm will stop immediately upon closing the door.

INSIDE TEMP.

TEMP. CONTROL BUTTON

DOOR OPENING

BASIC OPERATION

1. Plug in and turn on the power switch located on the bottom of the top grill.

The Display panel will be lighted. The compressor will begin to run.

2. The default temperature setting is -2ᵻ(-19ᴱ)

3. The compressor is automatically cycled by the electronic controller (PCB,

D-sensor).

4. The Defrost cycle is automatically controlled by the D-sensor and the PCB.

5. Temp. Control range 5ᵻ@-9ᵻ(-15ᴱ@-23ᴱ)

6. The interior light is activated by the door switch at the bottom of the grill when the

door is opened.

7. Evaporator fan motor(s) will run after all doors are completely closed.

MCF-23FD, MCF-23FDRE

MCF-49FD, MCF-49FDRE

MCF-72FD, MCF-72FDRE

FREEZER

DISPLAY PANEL

1. UP / DOWN BUTTON (Temperature control button)

- By pushing the up/down button, you can set the inside temperature.

2. DEFROST

- The electronic defrost controller is set at the factory to provide a defrost cycle every

8 hours.

- Once all frost is eliminated, the defrost control is changed to the freezer mode.

- The panel displays " " during the defrost.

3. DOOR OPENING INDICATOR

- If door is opened, door opening indicator will be turned on.

- If the door is left open for 3 minutes an alarm will sound continuously.

- The alarm will stop immediately upon closing the door.

INSIDE TEMP.

TEMP. CONTROL BUTTON

DOOR OPENING

TROUBLE SHOOTING GUIDE

SYMPTOMS CAUSES SOLUTIONS

Refrigerator/Freezer is

freezing (thawing) food.

The Temp. is set too low (high)

to maintain food freshness.

Push the button to a warmer

(colder) position.

The unit does not

refrigerate at all.

There is a power

connection failure problem.

Check the power cord to

make sure the unit is plugged

in correctly.

There is a loud noise.

The floor is too weak or the

unit is not level.

The back-side of the unit

is too close to the wall.

The tray is not in the correct

position.

Check the installation and

adjust the tray position.

There is condensation

in the unit exterior.

High-moisture air can produce

dew-drops during high

condensation humidity.

Wipe with a dry cloth.

There is condensation

the unit interior.

The door is opened too

frequently or left open too long.

Damp food is stored.

Keep the door closed to

remove condensation.

The door does not close

tightly.

The door is bent.

The door gasket has come

out.

The unit is not level.

Reposition the gasket.

Level the unit again.

The unit does not

refrigerate well.

The unit is in sunlight or

near a heating device.

The unit contains hot food

or too much food.

The unit door is opened too

frequently or left open too long.

The temp. Is not set on the

correct position.

The condenser is clogged.

Check the installation place.

Check the condition of

stored food.

Check the position of the

temperature setted.

Clean condenser.
