TOP AND CONSOLE PARTS

For Models: MGDE900VW0, MGDE900VJ0

(White) (Oxide)

10−09 Printed in U.S.A. (MP)(bay) Part No. W10245881 Rev. A

29" GAS DRYER

TOP AND CONSOLE PARTS

For Models: MGDE900VW0, MGDE900VJ0

(White) (Oxide)

W10245881

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10057354

Use & Care Guide

W10057357

Guide,

Quick Start

W10057361

Tech Sheet

W10165147

Sheet, Tip

Steam

2 Top

3980634 White

W10164743

Oxide

W10111015

Harness, Main

4 Console Assembly

W10164454

White

W10164456

Oxide

5 3394427 Clip, Harness

W10215656

Bracket, Console

(Includes No. 16)

7 353424 Connector, Sensor

8 94614 Terminal

9 3936144 Plug, Terminal

10 94613 Terminal

11 98139 Screw, 8−18 x 1/2

12 8572039 Seal,

User Interface

W10177245

Medallion

14 3936150 Connector,

7−Circuit

15 3395683 Connector,

(Motor)

W10112267

Foam, Seal

Control Bracket

17 2203186 Connector,

5−Circuit

18 3403498 Connector,

3−Position

(Gas Valve)

19 3403499 Connector,

2−Position

(Gas Valve)

W10164576

Knob

W10164611

User−Interface

W10171504

Foil−Display

W10185548

Harness,

User Interface

24 8540282 Screw

25 8540513 Screw

W10170295

Frame−Light Guide

W10170293

Guide, Light

Cylcle Internal

W10164567

Cycle, Light Guide

W10172298

Bushing, Knob

W10185550

Power Cable

User Interface

W10164578

Guide, Light

(3−Way Digital)

W10171502

Frame−Light

(Guide Display)

W10215674

Shield,

Console Bracket

W10216201

Plug−Hole 1/4"(2)

W10216202

Plug−Hole 5/16"(1)

CABINET PARTS

For Models: MGDE900VW0, MGDE900VJ0

(White) (Oxide)

W10245881

CABINET PARTS

For Models: MGDE900VW0, MGDE900VJ0

(White) (Oxide)

W10245881

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8317340 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 8533974 Screw, 10−32 x 5/8

(Ground)

4 Panel, Side (R.H.)

W10192446

White

W10193959

Oxide

5 3394881 Switch, Broken

Belt

6 Panel, Side (L.H.)

W10192435

White

W10193956

Oxide

7 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

W10121316

Clamp, Motor (2)

9 3387374 Spring, Idler

10 3389420 Retainer, Idler

11 Plug, Multivent

697750 White

W10151499

Midnight Grey

12 3388672 Pulley Assembly

13 3978776 Bracket,

Gas Pipe

14 8066120 Lever, Snap

Switch

W10167612

Wire, Belt Switch

W10128772

Sound Panel

W10121334

Washer, Flat

Plastic

W10128087

Assembly,

Door Switch

19 690997 Tri Ring

20 8066115 Cover−Plate

21 8529053 Ramp, Door

23 8541503 Kit,

Stack Assembly

24 8538263 Motor Assembly

60 HZ.

25 3398948 Wire, Jumper

(Broken Belt

Switch)

26 8578220 Pulley 60 HZ.

W10112954

Belt, Drive

28 8529757 Bracket, Burner

29 3387118 Bracket, Motor

30 3401401 Cord, Power

31 49026 4" − 90 Elbow

32 693995 Screw, 8−18 x 3/8

33 8563747 Exhaust Pipe

& Bracket

34 8563750 Exhaust Pipe

(Short)

35 8563749 Exhaust Pipe

(Long)

36 3388674 Idler Bracket

37 62825 Clip, S−Type (3)

38 Trim−Ring

Assembly

(Includes:

Item 48)

W10164746

White

W10164751

Oxide

39 98129 Screw,

6−20 x 1 1/16

40 3390647 Screw, 8−18 x 1/2

41 3387242 Seal, Front Panel

42 98139 Screw, 10−16 x 1/2

43 8519459 Clip, Toe Panel

W10129065

Trim−Clip Metal

W10239098

Base, Cabinet

46 Front Panel

(Includes Illus. 44)

W10153275

White

W10164915

Oxide

47 696144 Strike, Door (2)

48 90767 Screw, 8−18 x 3/8

49 3357011 Screw, 10−16 x 1/2

W10181464

Harness,

Digital Interface

51 8563727 Bracket, Control

W10174746

Control Board

54 Toe Panel

W10116271

White

W10164730

Oxide

W10116475

Panel, Rear

56 343641 Screw, 10−16 x 1/2

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

57 279818 White

W10186596

Midnight Grey

BULKHEAD PARTS

For Models: MGDE900VW0, MGDE900VJ0

(White) (Oxide)

W10245881

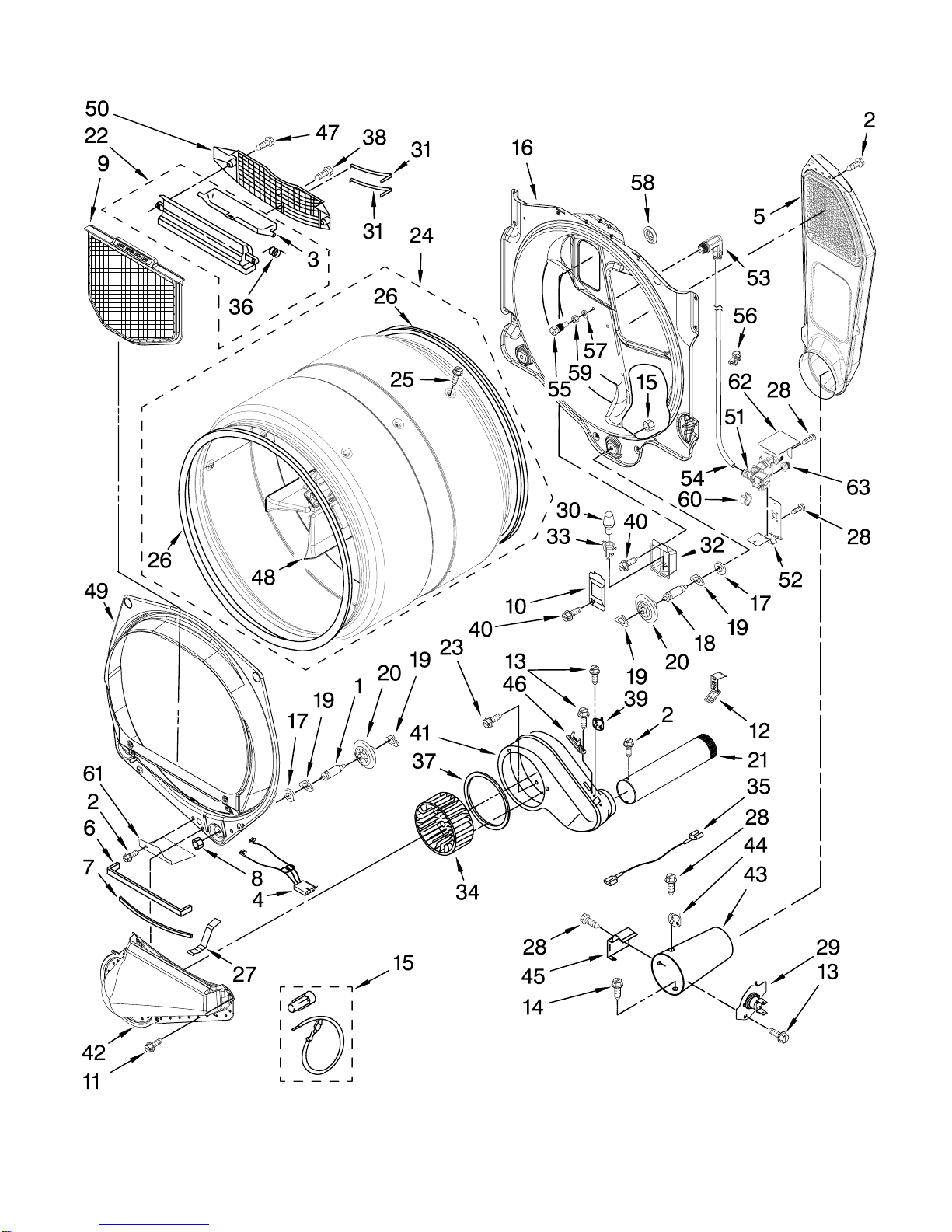

BULKHEAD PARTS

For Models: MGDE900VW0, MGDE900VJ0

(White) (Oxide)

W10245881

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

W10153413

Door, Lint

Screen

4 3406653 Harness, Sensor

5 3394346 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

W10049370

Lint, Screen

10 3402841 Lens,

Drum Light

11 359625 Screw, 8−18 x 1/2

12 8572105 Clip, Exhaust

Pipe

13 8533971 Screw, 8−18 x 5/16

14 693995 Screw, 8−18 x 3/8

W10001120

Nut, 3/8−16 (L.H.)

W10124071

Bulkhead, Rear

17 3387459 Washer, Support

18 8575325 Shaft, L.H. Thread

19 690997 Ring, Tri

20 8536973 Roller, Support

21 8066224 Exhaust Pipe

W10153423

Housing, Outlet

23 489463 Screw, 8−18 x 5/8

W10181467

Complete Drum

Assembly

W10219342

Screw, 8−16 x 1/2

W10166807

Seal, Drum

27 8066208 Clip−Spring

28 90767 Screw, 8−18 x 3/8

29 8573713 Thermal−Cutoff

30 3406124 Bulb, Light

31 3387223 Electrode, Sensor

32 8578825 Bracket,

Drum Light

W10136369

Socket Assembly

34 697772 Wheel, Blower

35 3401710 Jumper−Tco

Hi−Limit

36 3394986 Spring, Lint

Screen Door

37 697770 Seal, Cover Plate

38 695240 Screw, 8−18 x 1/2

39 8577274 Thermistor

40 487909 Screw, 8−15 x 1/2

41 8544362 Housing, Blower

42 8066168 Lint Duct Assembly

43 8573824 Funnel, Burner

44 3391912 Thermostat

Hi Limit

45 338906 Sensor, Radiant

46 3392519 Thermal−Fuse

(91C)

47 3387230 Screw, 10−16 x 1

48 697693 Baffle, Drum

49 8519245 Bulkhead, Front

W10153412

Grille, Outlet

W10044596

Valve, Water Inlet

(Includes Illus,

52 & 62 )

W10044597

Bracket, Valve

W10044606

Nozzle & Hose

Assembly

(Includes Illus,

28,55,56,57,59)

W10044598

Hose

(Not Servicable

included with

illus. 53 )

W10044629

Nozzle & Screen

Assembly

56 3391018 Tie Cable

W10044579

Washer, Nozzle

58 8529007 Plug, Hole

W10044628

Brass Nut

W10044615

Clip,

Push−To−Connect

W10128629

Shield, Blower

Housing

(Includes,

Illus. 2 )

W10184825

Cover, Inlet

Valve

W10044605

Coupling, Hose

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

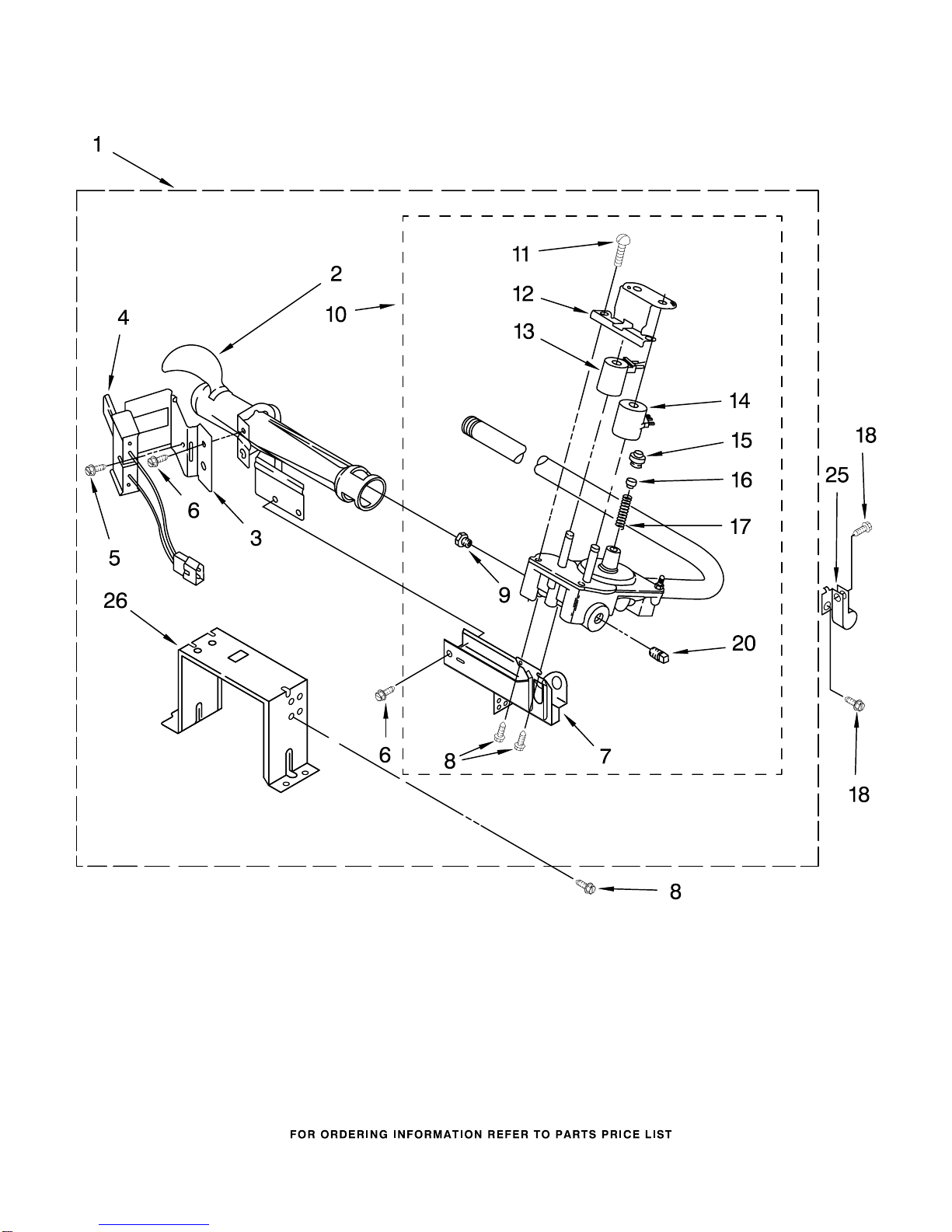

8576353 BURNER ASSEMBLY

BA−153

For Models: MGDE900VW0, MGDE900VJ0

(White) (Oxide)

W10245881

Illus. Part

No. No. DESCRIPTION

BA−153

8576353 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

1 8576353 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 7/8)

6 343641 Screw, 10−16 x 1/2

7 3389871 Base, Burner

8 3387057 Screw,

8−18 x 3/8

9 Orifice, Burner

15418 Type 1

15422 Type 4 (Butane)

234867 Type 4 (Propane)

10 8281914 Valve, Gas

60 Hz. (Complete)

(Includes Pipe &

Illus. #7).

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak, Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

18 3390647 Screw, 8−18 x 1/2

20 239822 Plug, Pipe

25 3387561 Clamp, Pipe

26 3389889 Bracket, Support

Following Parts Not Illustrated

8576846 Conversion Kit

(Type (1)

to Type (4) LPG).

For Models: MGDE900VW0, MGDE900VJ0

(White) (Oxide)

W10245881

DOOR PARTS

For Models: MGDE900VW0, MGDE900VJ0

(White) (Oxide)

W10245881

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10085210

Label, Hinge Hole

W10139920

Door Hinge

Assembly

W10180119

Cover,

Door Hinge

4 9742177 Screw, 8−18 x 5/8

5 8519356 Retainer−Window

(Upper)

6 8519354 Retainer−Window

(Lower)

W10193522

Handle Ring

W10159996

Screw,

10−24 x 5/16

W10048910

Screw−Plug

10 8577819 Door Assembly

(Inner)

(Includes

Illus. 14)

11 355515 Screw,

8−18 x 11/16

W10193530

Door, Outer

W10180117

Door Mask

Assembly

15 8566254 Window

16 8579662 Seal, Window

17 3393258 Screw,

10−16 x 3/64

W10139457

Seal, Door

W10180118

Door, Intermediate

W10180120

Shield, Door

W10153281

Pad−Foam Frame

22 690081 Door Catch

Assembly (2)

W10171571

Screen, Door

OPTIONAL PARTS (NOT INCLUDED)

For Models: MGDE900VW0, MGDE900VJ0

(White) (Oxide)

W10245881

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

8529894 Hold Down Kit

8522199 Kit, Dryer

Vent Testing

80047 Kit,

Dryer Repair

8579666A Kit,

Door Reversing

Miscellaneous Parts Bag

W10206708

Bag Assembly

(Contains,

The Following )

76314 Hose Inlet,

6’Hose With Elbow

W10044603

Hose Inlet,

1’Hose

W10242307

Washer

W10044604

Connector,

Hose "Y"

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Maytag Asciugatrice

Maytag

Maytag YMED8100DC0 Manuale utente

Maytag

Maytag MDE 9901 Manuale utente

Maytag

Maytag LD9806 Manuale utente

Maytag

Maytag MGDE500VW - Performance Series Front Load Steam Gas... Manuale utente

Maytag

Maytag MLE24PRAZW0 Manuale utente

Maytag

Maytag MEDE300VF0 Manuale utente

Maytag

Maytag MEDC500VW - Centennial Series 29 Inch Electric... Manuale utente

Maytag

Maytag BRAVOS W10201176C Manuale utente

Maytag

Maytag SD-7 Manuale utente

Maytag

Maytag EPIC Z MGD9800TK0 Manuale utente

Maytag

Maytag Neptune MDE5500AYQ Manuale utente

Maytag

Maytag MEDB700BW Manuale utente

Maytag

Maytag MEDE301YG0 Manuale utente

Maytag

Maytag SDE405DAYW Manuale utente

Maytag

Maytag MLG24PDAGW Manuale utente

Maytag

Maytag PERFORMANCE W10260034A Manuale utente

Maytag

Maytag MDE6700A Series Manuale

Maytag

Maytag W10160251A Manuale utente

Maytag

Maytag MDE2400AZW Manuale utente

Maytag

Maytag W10057349A Manuale utente

Maytag

Maytag MGD3000BW Manuale utente

Maytag

Maytag MGDC200X Manuale utente

Maytag

Maytag MLG31PCA Manuale utente

Maytag

Maytag MDG-75 Guida per l'amministratore

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente
