Maytag MES5875BAN - 30" Electric Range Manuale

Repair

Parts

List

MODEL NUMBER

MES5875BAN

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

RANGE

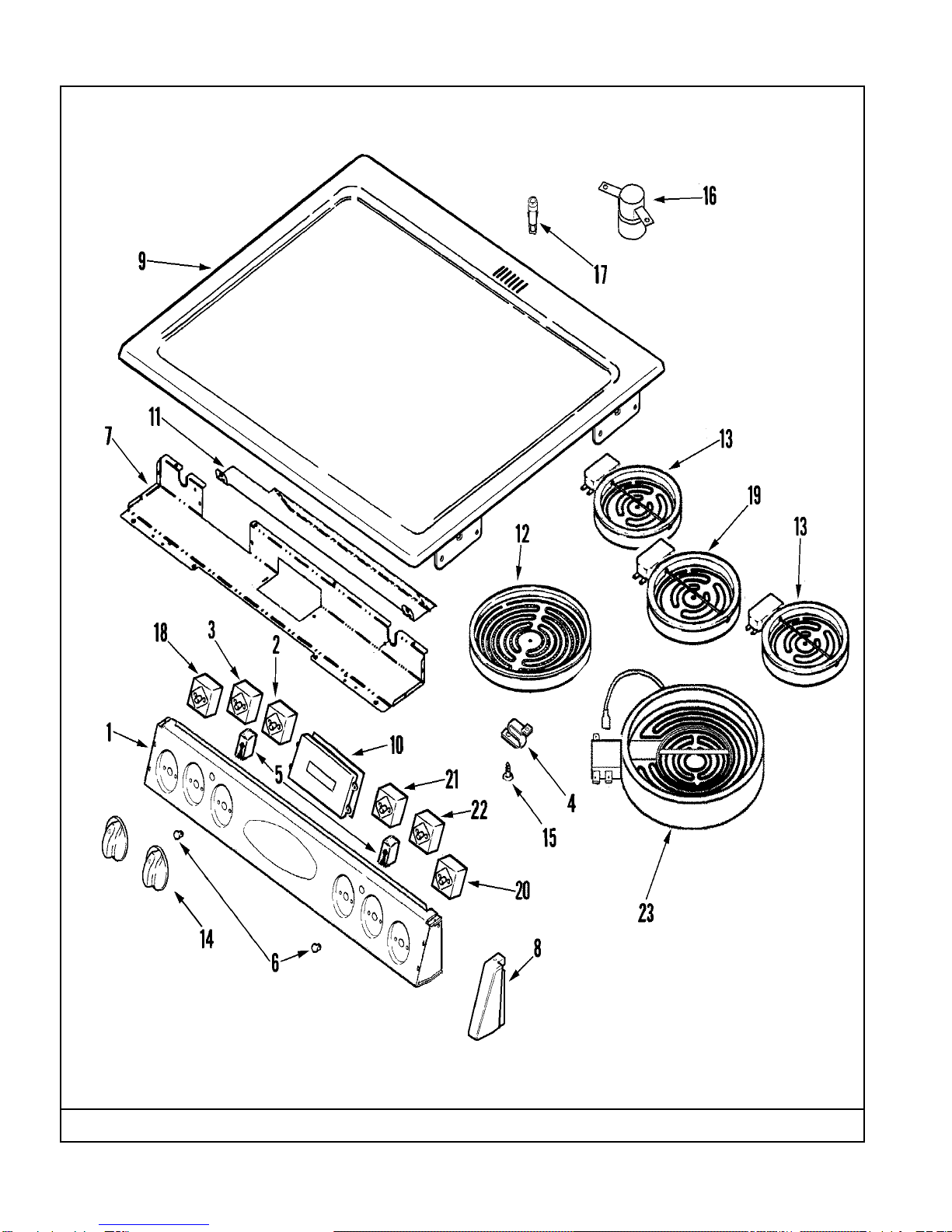

Section: CONTROL PANEL/TOP ASY

C10-684

Model: MES5875BAN

CONTROL PANEL/TOP ASY

No. Part No. Description

Section:

Series Qty

1 74011077 PANEL, CONTROL (BSQ) 10 1

2 7403P238-60 SWITCH, INFINITE (SML ELEMENT) Note: (LR) 10 1

3 74010824 SWITCH, ELEMENT (LRG) Note: (LF) 10 1

4 74007845 SUPPORT, ELEMENT 10 12

5 74004153 LIGHT, INDICATOR 10 2

6 7730P011-60 LENS, INDICATOR LIGHT 10 2

7 74010826 SUPPORT, CONTROL PANEL 10 1

8 74005085 CAP, END (BSQ-RT) 10 1

8 74005086 CAP, END (BSQ-LT) 10 1

9 74010665 TOP ASSEMBLY (BSQ) 10 1

10 74010680 CLOCK/OVERLAY (BSQ) 10 1

11 74010846 SHIELD, CONTROL 10 1

12 74008897 ELEMENT, DUAL (2400W) Note: (RF) 10 1

13 74008568 ELEMENT (1200W) Note: (LR/RR) 10 2

14 74008949 KNOB (BSQ/CHR) 10 6

15 74003357 SCREW (6ABX.25-ZN) 10 24

16 74005759 TUBE, VENT (UPR) 10 1

17 74011799 LIGHT, INDICATOR 10 1

18 74010825 SWITCH, ELEMENT (WARM ZONE) Note: (CTR) 10 1

19 74008898 ELEMENT, WARMING Note: (CTR) 10 1

20 74002929 SWITCH, SELECTOR 10 1

21 74008940 SWITCH, INFINITE (FLEX) Note: (RR) 10 1

22 74011070 SWITCH, INFINITE Note: (RF) 10 1

23 74011093 ELEMENT (TRIPLE) Note: (RF) 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: BODY

C14-916

Model: MES5875BAN

BODY

No. Part No. Description

Section:

Series Qty

1 74010949 BACK, MAIN 10 1

2 74010813 INSULATION, WRAPPER 10 1

3 74010815 EXTENSION, MAIN BACK 10 1

4 74005725 HINGE, DOOR 10 2

5 74010816 TUBE, VENT 10 1

- 74010817 HOLDER, VENT TUBE 10 1

6 74010818 SWITCH, HI-LIMIT 10 1

7 74008263 SWITCH, DOOR LOCK 10 1

8 74001632 BRACKET, SWITCH ACTUATOR 10 1

9 22002368 SCREW----NA 10 2

10 74001629 SPRING, DOOR SWITCH 10 1

11 74003562 ROD, DOOR LIGHT SWITCH 10 1

12 74001631 BUMPER, ROD 10 1

13 74008264 INSULATOR 10 1

14 74010819 LATCH ASY 10 1

15 74010820 EXTENSION, HEAT SHEILD 10 2

16 74010821 PANEL, SHIELD (LT) 10 1

16 74010822 PANEL, SHIELD (RT) 10 1

17 74010823 FAN, COOLING 10 1

18 74010845 COVER, DOOR LATCH 10 1

19 74004180 BRACKET, POWER SUPPLY 10 1

20 74006364 INSULATOR, POWER CORD 10 1

21 74010833 TRIM, SIDE (BSQ) 10 2

22 74006096 COVER, WIRE (REAR) 10 1

23 74005264 COVER, TERMINAL BLOCK 10 1

24 7101P112-60 SCREW 10 4

25 74003976 SCREW, SHOULDER 10 4

26 7401P039-60 BLOCK, TERMINAL 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

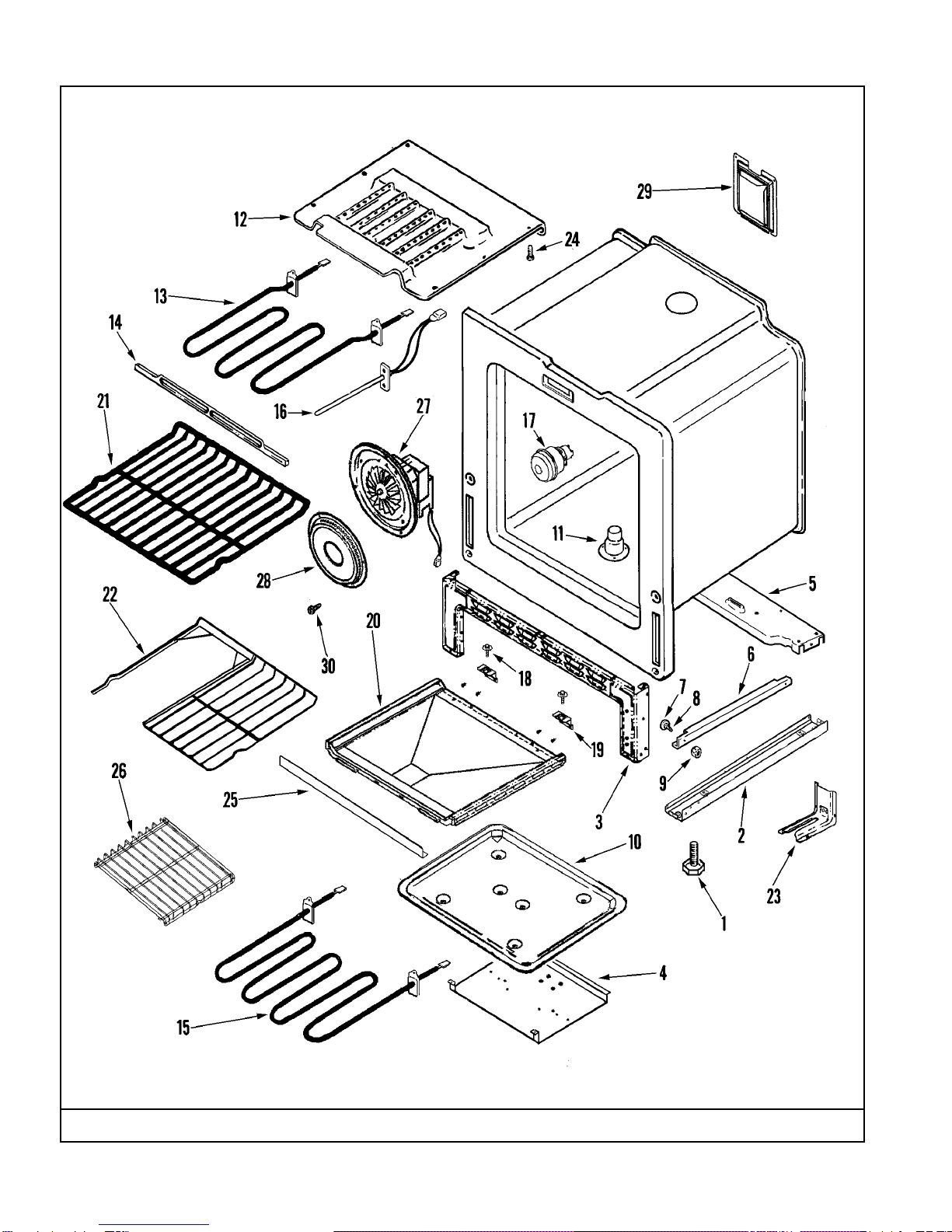

Section: OVEN/BASE

C12-541

Model: MES5875BAN

OVEN/BASE

No. Part No. Description

Section:

Series Qty

1 74010805 SCREW, LEVELING LEG 10 4

2 74010899 BOTTOM, PEDESTAL 10 2

3 74010882 PEDESTAL, FRONT 10 2

4 74006591 SHIELD, WARMING DRAWER 10 1

5 74007129 SUPPORT, VALVE REGULATOR 10 1

6 74003565 RUNNER, DRAWER 10 2

7 74004078 ROLLER, DRAWER 10 2

8 74005231 SHAFT, STORAGE DRAWER ROLLER 10 2

9 74005230 NUT, LOCK (8-32) 10 2

10 74010806 PAN, BAKE 10 1

11 74010808 TUBE, VENT (LWR) 10 1

- 74010809 PLATE, VENT COVER 10 1

12 74010810 BAFFLE, BROIL 10 1

13 74011479 ELEMENT, BROIL 10 1

14 74003563 SUPPORT, BROIL ELEMENT 10 1

15 74010811 ELEMENT, BAKE 10 1

16 74004943 SENSOR, OVEN (LONG) 10 1

17 74010885 LAMP ASSEMBLY 10 1

18 74003976 SCREW, SHOULDER 10 2

19 74010812 SUPPORT, OVEN BOTTOM 10 2

20 74010853 BOTTOM, OVEN 10 1

21 74001757 RACK, OVEN 10 2

22 74009589 RACK, CREATE A SPACE HALF 30" 10 1

23 74005564 BRACKET, ANTI-TIP 10 1

- 7101P352-60 SCREW 10 2

24 74010505 SCREW, 3/4" HEX HEAD 10 6

25 74010807 COVER, FRONT 10 1

26 74009587 INSERT, HALF RACK 30" 10 1

27 74011094 FAN ASSEMBLY, CONVECTION 10 1

28 74008315 COVER, CONVECT FAN 10 1

29 74010814 RETAINER, CONV INSULATION 10 1

30 7101P124-60 SCREW W/WASHER 10 6

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

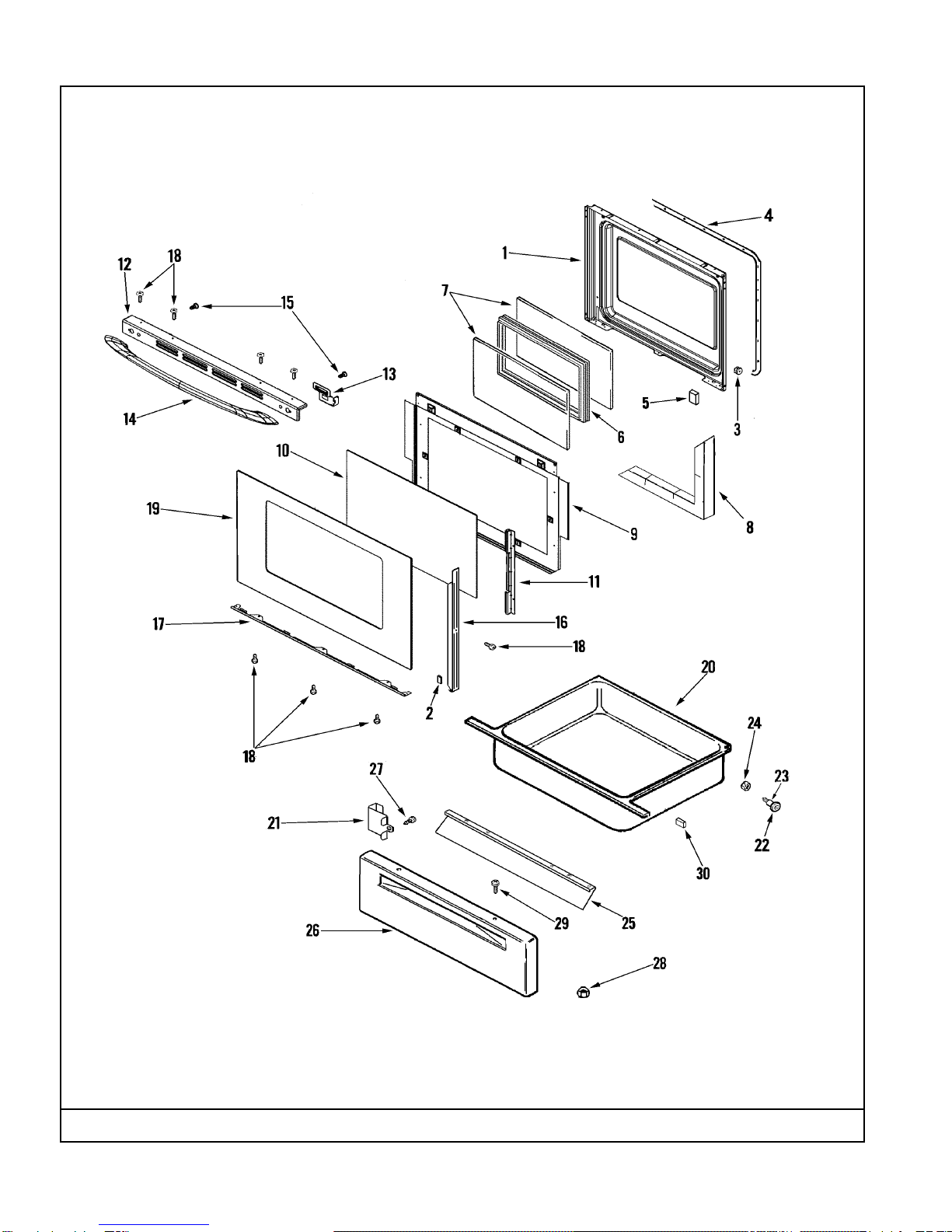

Section: DOOR/DRAWER

C11-871

Model: MES5875BAN

DOOR/DRAWER

No. Part No. Description

Section:

Series Qty

1 74003642 LINING, DOOR 10 1

2 74004224 TAPE, SINGLE SIDED (WHT) 10 2

3 74001574 NUT, SNAP (ROUND-BLK) 10 4

4 7201P046-60 GASKET, DOOR 10 1

5 74005546 SPACER, RUBBER 10 2

6 74003644 FRAME, GLASS 10 1

7 74003645 GLASS, INNER 10 2

8 74003647 INSULATION, OVEN DOOR 10 2

9 74009502 BAFFLE, OVEN DOOR 10 1

10 74004857 GLASS W/TAPE ASSY 10 1

11 74003650 RETAINER, GLASS 10 2

12 74009691 TRIM, DOOR TOP (BSQ) 10 1

13 74009698 BRACKET, DOOR HANDLE (RT) 10 1

13 74009699 BRACKET, DOOR HANDLE (LT) 10 1

14 74011110 HANDLE, DOOR (BSQ) 10 1

15 74006635 SCREW W/WASHER (HANDLE MTG) 10 2

16 12002360 KIT, DOOR TRIM (BSQ) 10 1

17 74009688 SUPPORT, GLASS (BSQ) 10 1

18 74009541 SCREW (BSQ) 10 9

19 12002397 KIT, DOOR GLASS (BSQ) 10 1

20 74008333 DRAWER, STORAGE 10 1

21 74010896 BRACKET, DRAWER 10 2

22 74004078 ROLLER, DRAWER 10 2

23 74005231 SHAFT, STORAGE DRAWER ROLLER 10 2

24 7103P082-60 NUT 10 2

25 2404F030-51 LINING, DRAWER PANEL 10 1

26 74004966 PANEL, DRAWER (BSQ) 10 1

27 74004310 SCREW, PANEL 10 2

28 74005230 NUT, LOCK (8-32) 10 2

29 74009541 SCREW (BSQ) 10 2

30 74005546 SPACER, RUBBER 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

SUPPLEMENTAL INFORMATION

No. Part No. Description

Section:

Series Qty

- 8113P561-60 MANUAL, USE & CARE 11 1

- 8113P500-60 MANUAL, USE & CARE 10 1

- 74011084 HARNESS, MAIN 10 1

- 74011090 HARNESS, SWITCH (RT) 10 1

- 74010849 HARNESS, SENSOR/LATCH 10 1

- 74010851 HARNESS, SWITCH (LT) 10 1

- 74011092 HARNESS, TOP 10 1

- 20000001 COOKTOP CLEANING CREME 10 1

- 74006500 SCRAPER, RAZOR (METAL) 10 1

- K71FILLQ KIT, EXTRUSION FILLER (BSQ) 10 1

- W10124350 NOT REQUIRED PART OR SEE NOTE Note: ACCESSORY FILLER KITS 10 0

- W10124350 NOT REQUIRED PART OR SEE NOTE Note: ACCESSORY SIDE PANEL KITS 10 0

- UXA1100AAQ KIT, SIDE PANEL (BSQ) 10 1

- W10124350 NOT REQUIRED PART OR SEE NOTE Note: ACCESSORY SIDE TRIM PLUGS 10 0

- 74011436 PLUG, SIDE TRIM (BSQ) 10 8

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
