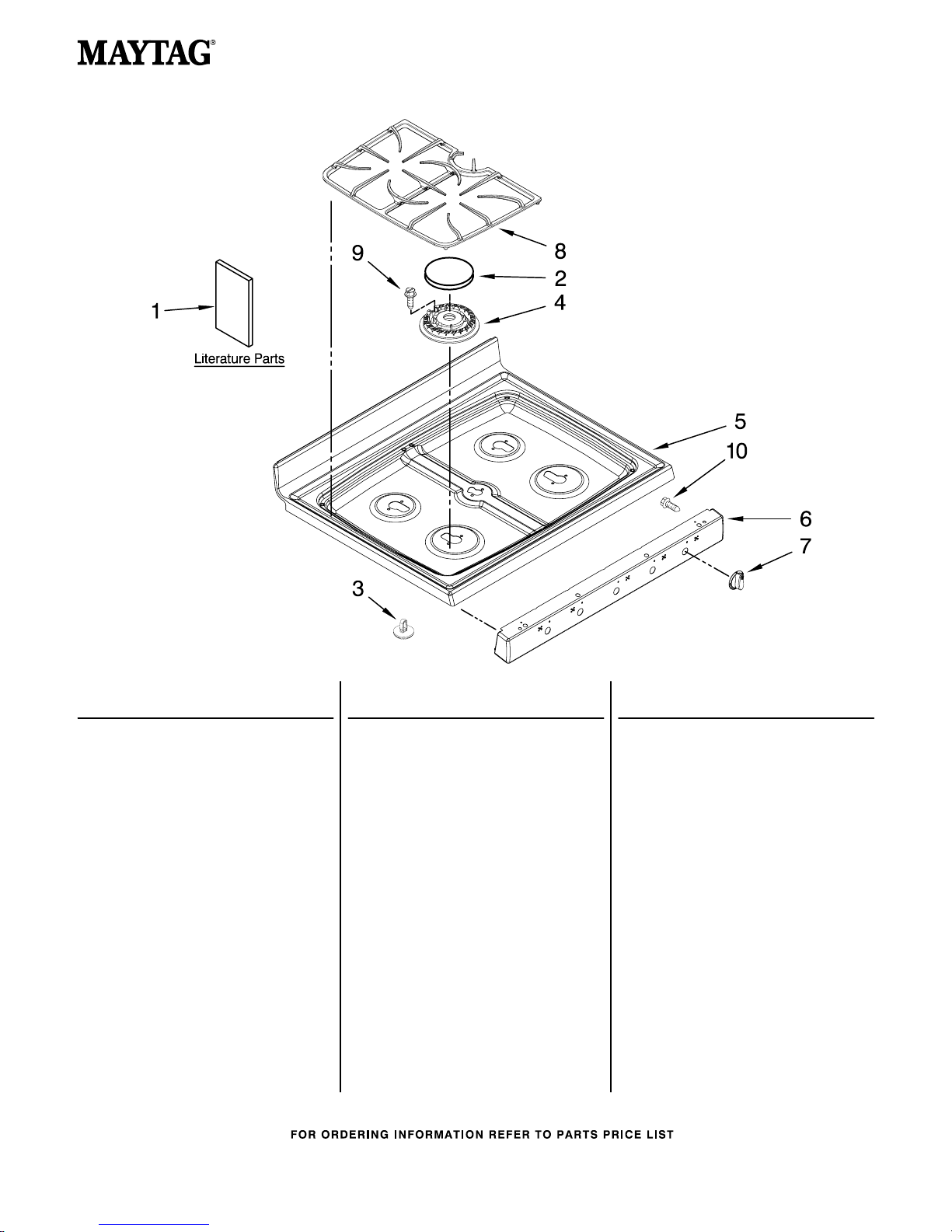

COOKTOP PARTS

For Models: MGR5775QDW1, MGR5775QDQ1, MGR5775QDB1, MGR5775QDS1

(White) (Bisque) (Black) (Stainless Steel)

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

CONVECTION

12−09 Litho In U.S.A. (ll) (psw) Part No. W10282172 Rev C

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8101P571−60

Installation

Instructions

8113P735−60

Owners Manual

8119P328−60

Wiring Diagram

9762761 Tips, Safe Cooking

2 Cap, Burner

(RF)

7504P137−60

Black

7504P140−60

Gray

7504P143−60

Taupe

Center

7504P136−60

Black

7504P139−60

Gray

7504P142−60

Taupe

(RR & LR)

7504P138−60

Black

7504P141−60

Gray

7504P144−60

Taupe

(LF)

7504P219−60

Black

7504P205−60

Grey

7504P206−60

Taupe

8010P149−60

Spacer, Snap−In

4 Burner

8286183 (RF)

8286181 Center

7540P043−60

(RR & LR)

8286182 (LF)

5 Cooktop

2001F287−09

Black

2001F287−81

White

2001F287−88

Bisque

6 Panel, Manifold

2616N381−09

Black

2616N381−81

White

2616N381−88

Bisque

2616N382−50

Stainless

7 Knob, Control (4)

7733P416−60

Black

7733P417−60

White

7733P418−60

Bisque

8 Grate, Burner (2)

7518P187−60

Black

7518P189−60

Grey

7518P188−60

Taupe

7101P685−60

Screw (8)

7101P388−60

Screw

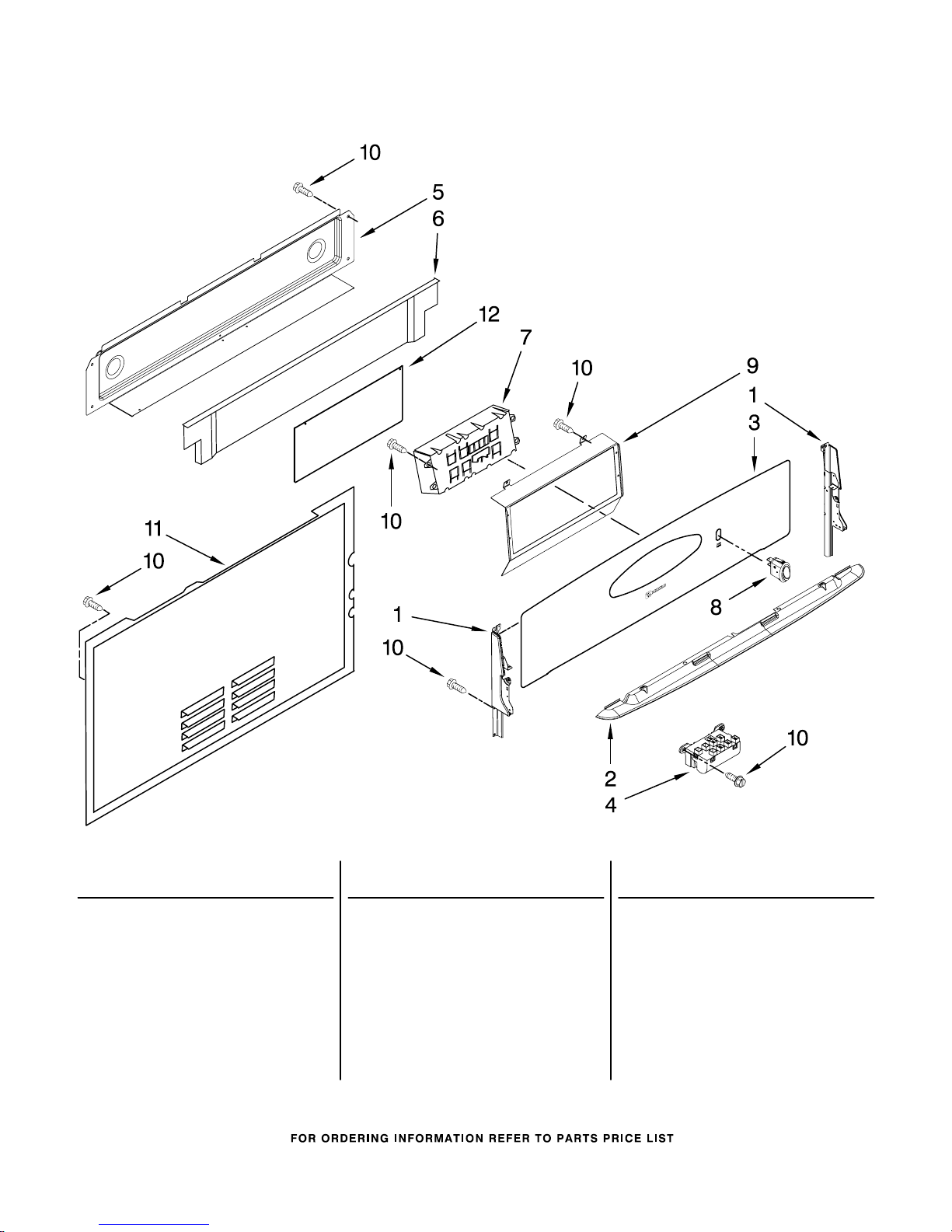

CONTROL PANEL PARTS

For Models: MGR5775QDW1, MGR5775QDQ1, MGR5775QDB1, MGR5775QDS1

(White) (Bisque) (Black) (Stainless Steel)

W10282172

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap, Left Hand

3807F703−70

Black

3807F703−71

White

3807F703−78

Bisque

Endcap, Right Hand

3807F702−70

Black

3807F702−71

White

3807F702−78

Bisque

2 Heat Shield,Visor

3604F382−09

Black

3604F382−81

White

3604F382−88

Bisque

3 Panel, Control

5701M721−60

Black

5701M710−60

White

5701M709−60

Bisque

7431P053−60

Module, Spark

4005F803−51

Cover, Upper

3604F381−19

Shield, Vent

7 Control

(Includes Overlay)

74009227 Black

74009152 White

74009151 Bisque

7403P757−60

Switch, Rocker

3801F844−51

Bracket, Control

10 3196178 Screw

4005F748−51

Cover, Main Wire

3604P372−51

Extension, Shield

CHASSIS PARTS

For Models: MGR5775QDW1, MGR5775QDQ1, MGR5775QDB1, MGR5775QDS1

(White) (Bisque) (Black) (Stainless Steel)

W10282172

CHASSIS PARTS

For Models: MGR5775QDW1, MGR5775QDQ1, MGR5775QDB1, MGR5775QDS1

(White) (Bisque) (Black) (Stainless Steel)

W10282172

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

8026P080−60

Vent, Oven

8010P148−60

Spacer, Side Panel

3807P680−45

Support, Oven

Bottom

4 Panel, Side (2)

2618F172−69

Black

2618F172−58

White

2618F172−57

Bisque

3604P409−51

Shield, Heat

6 3196178 Screw

3801F656−51

Bracket, Anti−Tip

8 Frame, Front

(Not Serviced)

7106P125−60

Hinge, Receiver

7101P507−60

Foot, Leveler (4)

2205F053−19

Bottom, Oven

7430P041−60

Sensor, Oven

3601P356−45

Baffle, Burner

14 3196178 Screw

3605P146−51

Plate, Conduit

4005P704−51

Panel, Access

17 3196160 Screw (2)

4005F753−45

Cover, Broil

4005P703−51

Cover, Lower Wire

4002F347−51

Back, Main

W10162385

Seal, Oven

7101P336−60

Screw

7112P158−60

Clip (4)

3801P798−51

Bracket, Oven

Bottom

3401F082−45

Pan, Bake

7407P181−60

Light Assembly

7407P103−60

Bulb, Oven Light

8002P104−60

Latch, Door Lock

3804F316−51

Retainer,

Insulation

7101P500−60

Screw (2)

3801P822−45

Bracket, Oven

35 3196560 Screw

7002P494−60

Insulation

7101P388−60

Screw

7101P282−60

Screw (4)

7101P618−60

Screw

7101P385−60

Screw

INSULATION

7002P424−60

Insulation, Wrap

7002P492−60

Insulation, Back

4820F015−59

Strap, Insulation

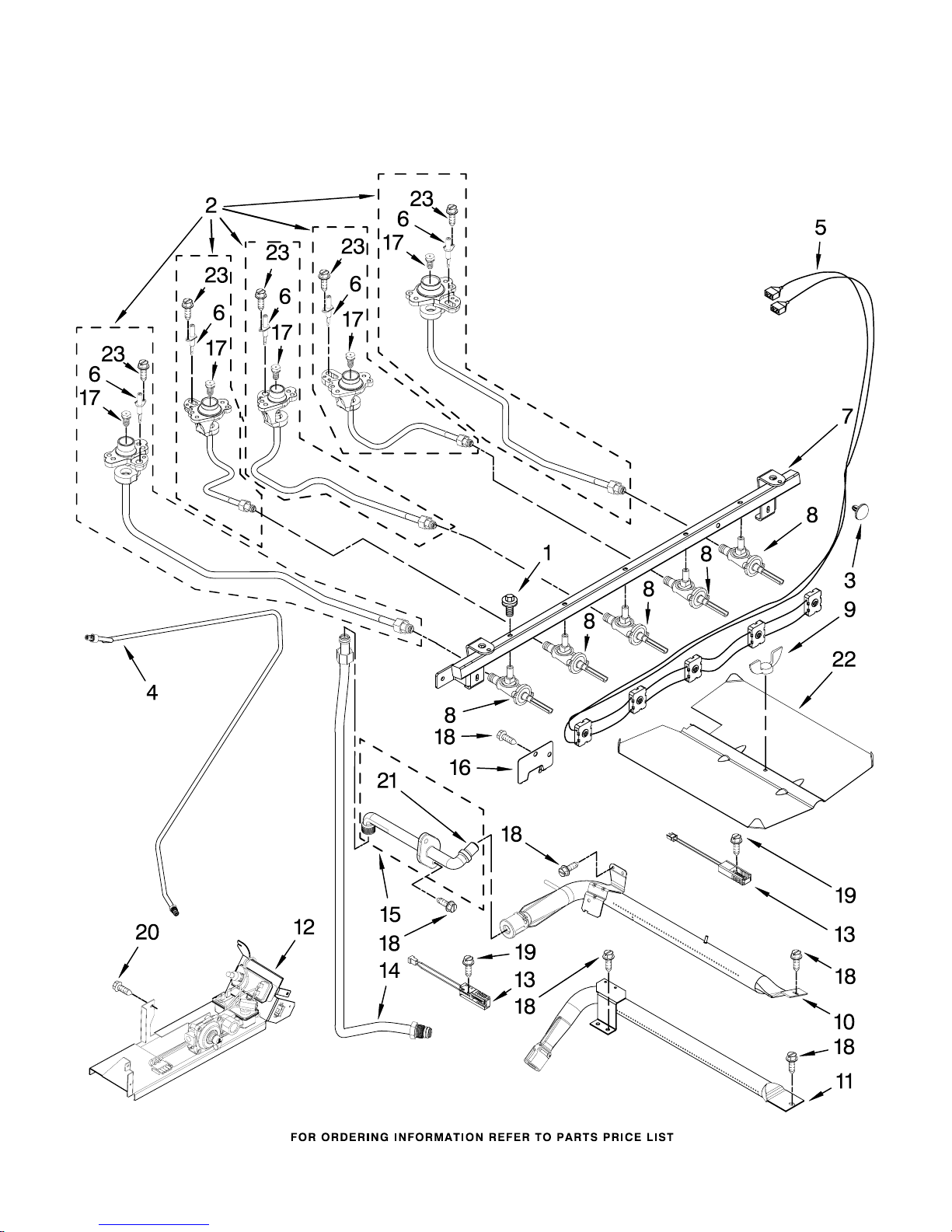

MANIFOLD PARTS

For Models: MGR5775QDW1, MGR5775QDQ1, MGR5775QDB1, MGR5775QDS1

(White) (Bisque) (Black) (Stainless Steel)

W10282172

MANIFOLD PARTS

For Models: MGR5775QDW1, MGR5775QDQ1, MGR5775QDB1, MGR5775QDS1

(White) (Bisque) (Black) (Stainless Steel)

W10282172

Illus. Part

No. No. DESCRIPTION

7101P681−60

Screw, Valve

2 Holder, Orifice

7527P095−60

(RF)

7527P124−60

(RR)

7527P125−60

(LR)

7527P101−60

(LF)

7527P097−60

Center

8010P149−60

Spacer, Snap−In

7506P361−60

Tubing,

Main Supply

5 Harness, Igniter

Includes Switches

6 82000311 Ignitor, Top

Burner (5)

7513P524−60

Pipe, Manifold

8 Valve

7502P501−60

(RF)

7502P500−60

(LR/LF/RR)

7502P499−60

Center

7103P030−60

Nut

W10160904

Burner, Broiler

7505P331−60

Burner, Bake

7501P233−60

Valve/Regulator

13 Igniter

7432P106−60

Broil

7432P136−60

Bake

7506P368−60

Tubing (Broiler

Fitting To Valve)

7507P357−60

Fitting, Broiler

4005F421−45

Cover, Igniter

17 Orifice, Burner

7509P123−60

Left Front

7509P124−60

Right Front

7509P122−60

(LR/RR)

7509P120−60

Center

18 3196178 Screw

19 3196385 Screw

7101P027−60

Screw

7507P366−60

Orifice

3601P336−45

Baffle,

Broil Burner

23 3196154 Screw

Following Parts Not Illustrated

7509P115−60

Spuds, LP Gas

(Kit of 5)

7403P983−60

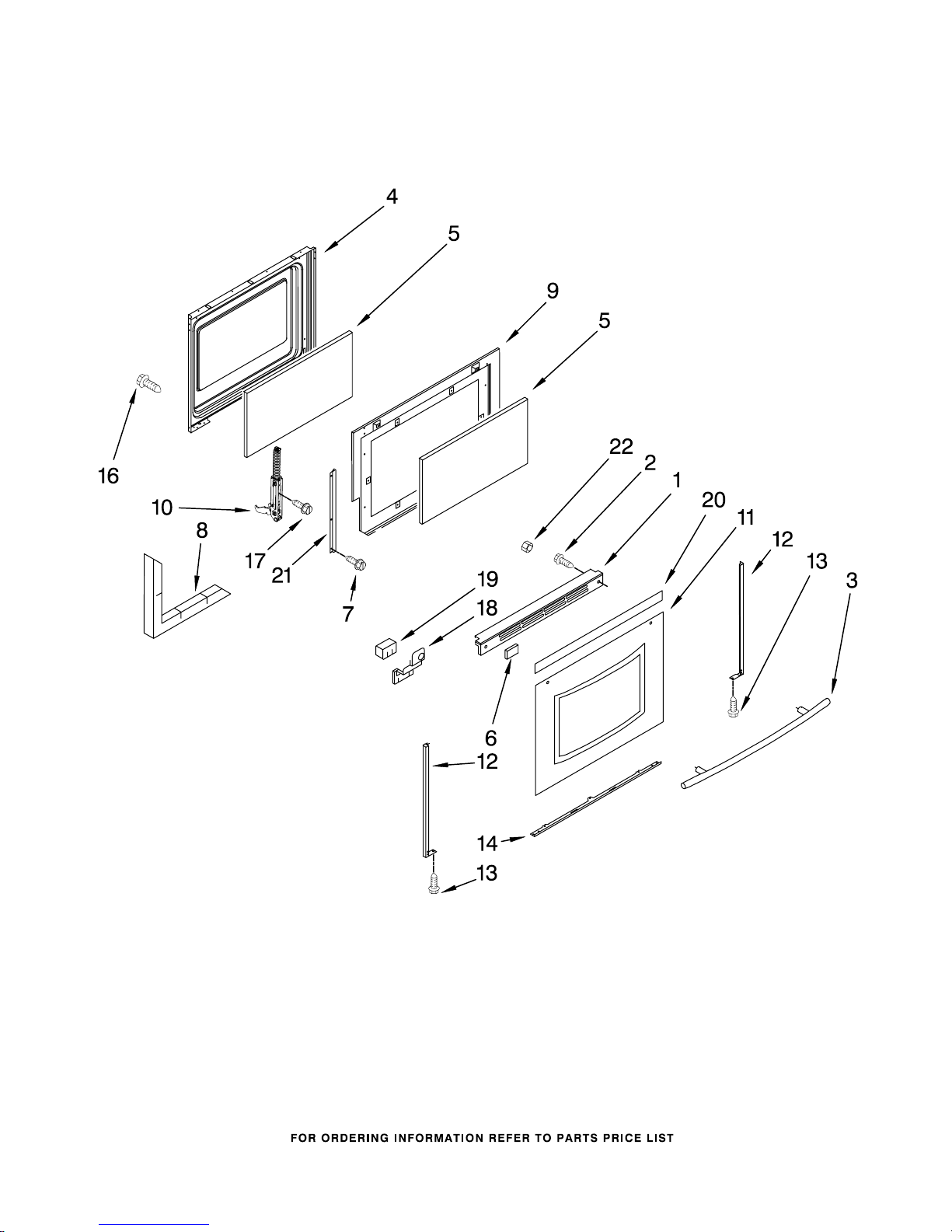

DOOR PARTS

For Models: MGR5775QDW1, MGR5775QDQ1, MGR5775QDB1, MGR5775QDS1

(White) (Bisque) (Black) (Stainless Steel)

W10282172

DOOR PARTS

For Models: MGR5775QDW1, MGR5775QDQ1, MGR5775QDB1, MGR5775QDS1

(White) (Bisque) (Black) (Stainless Steel)

W10282172

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

3608F140−70

Black

3608F140−71

White

3608F140−78

Bisque

2 Screw

3196557 Black

3196166 White

8281194 Bisque

3 Handle, Door

7701P516−60

Black

7701P517−60

White

7701P518−60

Bisque

2402W297−19

Liner, Door

7902P436−60

Glass, Inner (2)

6 74004224 Tape (White)

7101P388−60

Screw

7002P246−60

Insulation, Door

3601F380−51

Retainer,

Insulation

7106P124−60

Hinge, Door

11 Glass, Outer Door

7902P791−60

Black

7902P781−60

White

7902P782−60

Bisque

7902P803−60

Stainless

12 Trim, Door Side

3608F126−70

Black

3608F126−71

White

3608F126−78

Bisque

7101P633−60

Screw

14 Trim, Lower Door

3608F092−70

Black

3608F092−71

White

3608F092−78

Bisque

7101P427−60

Screw

7101P282−60

Screw

18 Bracket, Handle

3801P857−45

Right

3801P858−45

Left

7002P484−60

Insulation, Corner

W10208311

Tape, Foil (3")

3801F886−51

Bracket, Window(2)

7103P190−60

Nut

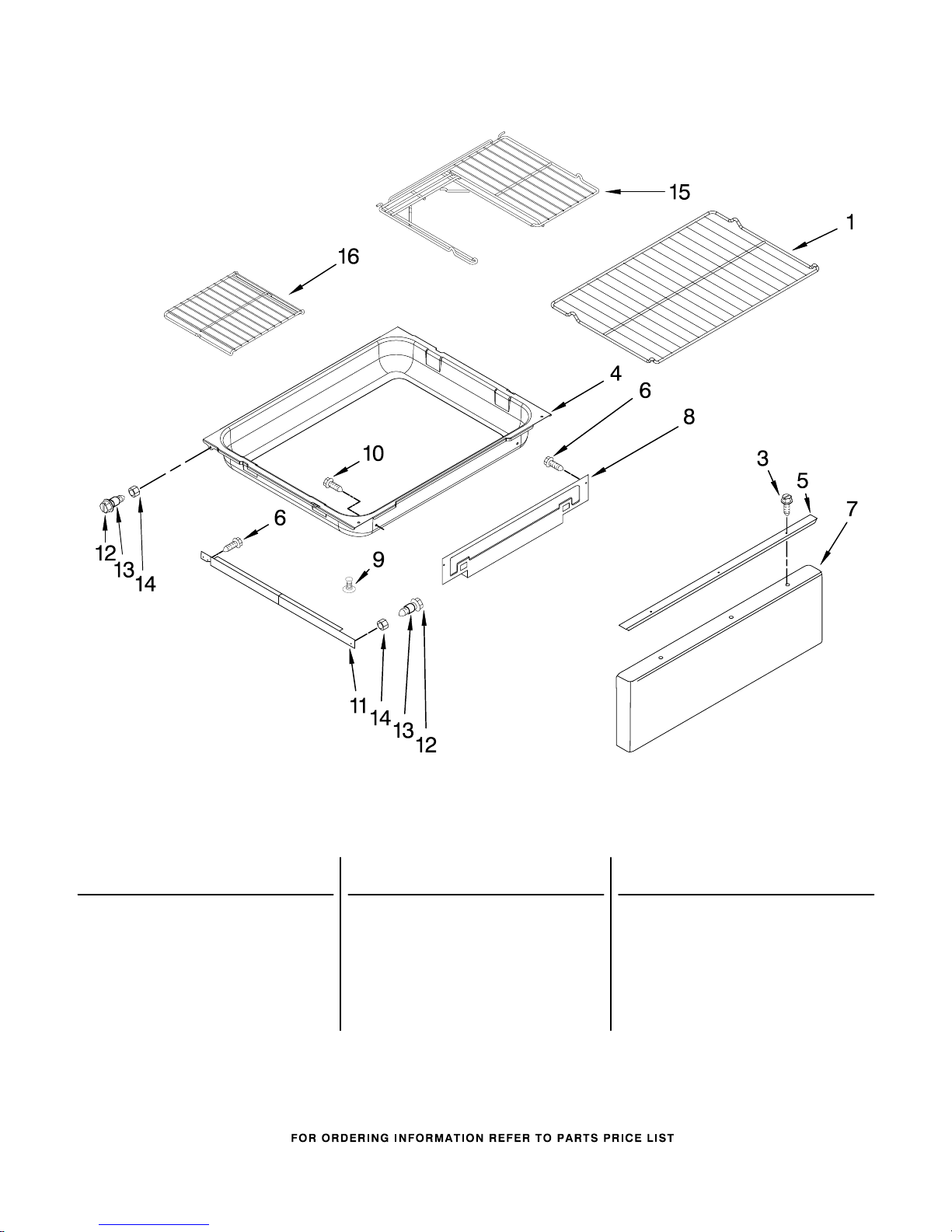

DRAWER AND RACK PARTS

For Models: MGR5775QDW1, MGR5775QDQ1, MGR5775QDB1, MGR5775QDS1

(White) (Bisque) (Black) (Stainless Steel)

W10282172

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10179196

Rack, Oven

3 74009268 Screw

3405F037−80

Drawer

7701P547−60

Handle, SS Model

7101P388−60

Screw

7 Panel, Drawer Frnt

2416F104−70

Black

2416F104−71

White

2416F104−78

Bisque

7760P228−60

Stainless

3605P337−51

Panel, Inner

8038P037−60

Drawer, Stop

7101P072−60

Screw

3406P034−51

Rail, Drawer

7118P032−60

Shaft, Storage

Drawer Roller

W10272883

Roller, Drawer

7103P082−60

Nut

7801P139−60

Rack, Half

W10275560

Insert, Half Rack

OPTIONAL PARTS (NOT INCLUDED)

For Models: MGR5775QDW1, MGR5775QDQ1, MGR5775QDB1, MGR5775QDS1

(White) (Bisque) (Black) (Stainless Steel)

W10282172

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

72032 Black

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

350939 Black

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

799340 Black (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

5789A598−60

Kit, LP Convert

Oven (18" x 25’)

WIRING HARNESS PARTS

5171P727−60

Harness, Gas

8019P026−60

Clip, Harness

7101P027−60

Screw, Ground

8019P013−60

Clip, Wire

7111P009−60

Clamp, Harness
