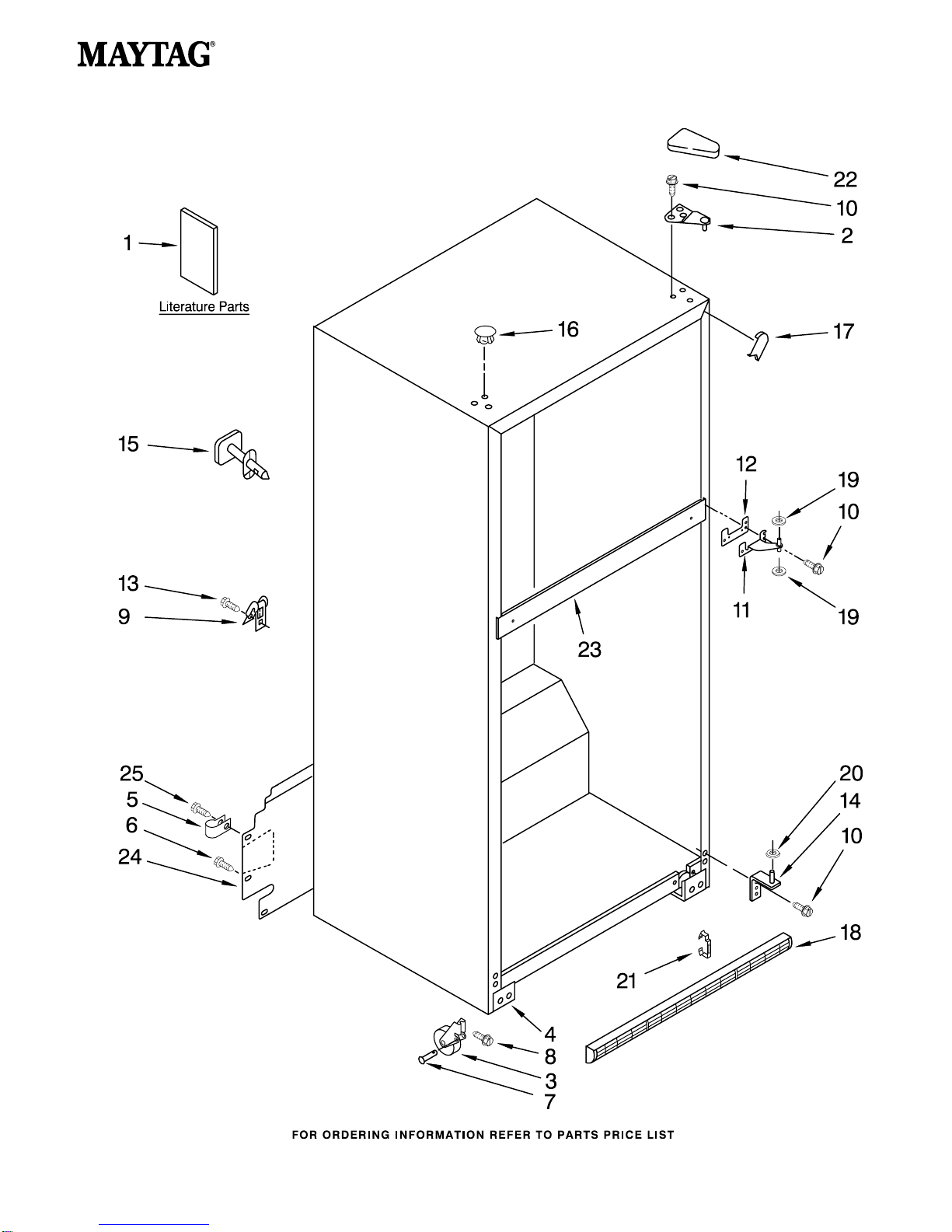

CABINET PARTS

For Models: M1TXEMMWW00, M1TXEMMWB00, M1TXEMMWQ00, M1TXEMMWS00

(White) (Black) (Stainless Steel) (Biscuit)

12−09 Litho In U.S.A. (mjb)(bay) Part No. W10245771 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: M1TXEMMWW00, M1TXEMMWB00, M1TXEMMWQ00, M1TXEMMWS00

(White) (Black) (Stainless Steel) (Biscuit)

W10245771

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10142143

Service &

Wiring Sheet

W10233127

Energy Label

Use & Care Guide

W10208846

Bilingual

W10208845

Trilingual

2225623 Modular Icemaker

Service Sheet

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual Ref./Frz.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

4 Cabinet (Not a

Serviceable Part)

5 489385 Clamp, Tube

(Water Supply Line)

6 489442 Screw

7 2179826 Rivet

8 3400504 Screw

9 549193 Clamp, Cord

10 489497 Screw

11 2254618 Hinge, Center

12 2183852 Shim, Hinge

Center

13 8281265 Screw

14 2254473 Hinge Butt

15 Fitting, Water Tube

(Not Serviced)

16 Hole Plug (6)

2201012 White

2183998 Black

2200924 Biscuit

17 Corner Filler (2)

2201014 White

2201017 Black

2200926 Biscuit

18 Grille

(Includes

Illus. 21)

2254313 White

2254315 Black

2254316 Biscuit

19 489341 Washer

20 487576 Washer

21 2189356 Clip, Grille (2)

22 Cover, Hinge

2213360 White

2213363 Black

2213364 Biscuit

23 Rail, Center

(Not Serviced)

24 2254576 Cover, Unit

25 489427 Screw

DOOR PARTS

For Models: M1TXEMMWW00, M1TXEMMWB00, M1TXEMMWQ00, M1TXEMMWS00

(White) (Black) (Stainless Steel) (Biscuit)

W10245771

DOOR PARTS

For Models: M1TXEMMWW00, M1TXEMMWB00, M1TXEMMWQ00, M1TXEMMWS00

(White) (Black) (Stainless Steel) (Biscuit)

W10245771

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 6 & 14)

2183920 White

2200714 Black

2225437 Stainless Steel

2205284 Biscuit

2 Handle, Trim

2193143W White

2193143B Black

2193143T Biscuit

3 Handle,

Refrigerator

2254533W White

2254533B Black

2254533T Biscuit

4 489357 Screw

5 8281146 Screw

6 Door Gasket,

Magnetic

2202875 Mist Beige

2202882 Black

7 2159292 Trivet

W10170766

Nameplate

9 2195378 Trim, Door Shelf

10 8281206 Screw

11 Freezer Door

(Includes

Illus. 14 & 15)

2182489 White

2200711 Black

2225438 Stainless Steel

2204686 Biscuit

12 Hole Plug,

Handle

2189000 White

2189009 Black

2200936 Biscuit

13 2188236 Shelf, Flip−Up

14 2314293 Thimble

15 Door Gasket,

Magnetic

2214967 Mist Beige

2214969 Black

16 2204812 Bin, Door Shelf

17 2189202 Bracket,

Door Stop (2)

18 488921 Screw

19 Hole Plug

2212648 White

2212651 Black

2212649 Biscuit

20 2156007 Plug, Trim

21 2156006 Plug, Trim

22 2218118 Compartment Door

23 Handle,

Freezer

2320412W White

2320412B Black

2320412T Biscuit

24 2195948 Trim, Door

LINER PARTS

For Models: M1TXEMMWW00, M1TXEMMWB00, M1TXEMMWQ00, M1TXEMMWS00

(White) (Black) (Stainless Steel) (Biscuit)

W10245771

LINER PARTS

For Models: M1TXEMMWW00, M1TXEMMWB00, M1TXEMMWQ00, M1TXEMMWS00

(White) (Black) (Stainless Steel) (Biscuit)

W10245771

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254360 Gasket, Evaporator

Cover (2)

4 2304099 Defrost Timer

5 2212485 Thermostat Tube

Barrier

6 488208 Screw

7 2310057 Wire Assembly,

Control Box

8 2162085 Socket, Light

9 2179858 Damper, Air

10 2315539 Fan Motor

11 2163777 Fan Blade

12 2212982 Control Box

13 2200859 Thermostat Assy.

(Includes

Illus. 5 & 18)

14 8534009 Screw

15 2304099 Screw

16 2320194 Cover, Evaporator

17 527949 Light Bulb (2)

18 2200831 Weight, Thermal

19 1118894 Switch, Rocker Arm

20 2179859 Post, Damper

21 2176281 Cover, Air

Diffuser

22 2200863 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

25 2321800 Defrost, BI−Metal

26 2212439 Air Separator

Assembly

27 2254453 Bracket,

Fan Motor

28 2320183 Retainer−Screw

29 2204639 Shield, Heat

30 2254454 Bracket

Evap. Fan, Rear

31 2302536 Knob, Damper

32 2163810 Bracket,

Damper Knob

33 2205079 Seal, Rear

Thermostat

34 2210509 Valve−Tube, Body

W10129795

Wire Assembly,

Freezer Compartment

(Includes

Illus. 25)

UNIT PARTS

For Models: M1TXEMMWW00, M1TXEMMWB00, M1TXEMMWQ00, M1TXEMMWS00

(White) (Black) (Stainless Steel) (Biscuit)

W10245771

UNIT PARTS

For Models: M1TXEMMWW00, M1TXEMMWB00, M1TXEMMWQ00, M1TXEMMWS00

(White) (Black) (Stainless Steel) (Biscuit)

W10245771

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2320187 Plate, Unit

Mounting

W10159808

Condenser

4 2314157 Heater, Defrost

5 2254249 Evaporator Assy.

6 8533961 Screw

7 2254295 Drain Pan

8 2319835 Grommet−Cond−(4)

9 2176301 Bracket, Heater

10 2300638 Extension, Air

Baffle

W10174384

Strap

14 Grommet (4)

1100826 Production

4387558 Service

W10194431

Start−Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

16 2201185 Support Block

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

20 489373 Screw

21 3400518 Screw

22 488500 Screw

W10164016

Compressor

(Includes

Illus. 14,25,27)

(Also Order 482801

Installation Kit

& 876765 Tube Kit)

25 Drier

W10177049

Service

26 2155774 Clamp

27 Capacitor

2264017 Production

1118576 Service

29 2315541 Air Baffle

30 2188874 Motor, Condenser

31 2187382 Wire Assembly,

Unit

32 2225834 Fan Blade

W10189806

Tube, Suction

W10171238

Tube, Process

36 2254574 Tray, Evaporator

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.00 Ozs.

(R134A)

ICEMAKER PARTS

For Models: M1TXEMMWW00, M1TXEMMWB00, M1TXEMMWQ00, M1TXEMMWS00

(White) (Black) (Stainless Steel) (Biscuit)

W10245771

ICEMAKER PARTS

For Models: M1TXEMMWW00, M1TXEMMWB00, M1TXEMMWQ00, M1TXEMMWS00

(White) (Black) (Stainless Steel) (Biscuit)

W10245771

Illus. Part

No. No. DESCRIPTION

1 488878 Clamp, Tube

3 2210495 Clip, Water Valve

4 2181939 Insert, Tube

5 628379 Clip, Fuse

6 2181943 Tube Water

7 2315576 Valve Solenoid

8 79191001 Cover

9 8281265 Screw

W10122527

Mold & Heater

Assembly (Also

Order 542638

Silicone Grease)

11 628515 Cup, Water Fill

12 627843 Ejector

W10122563

Ice Striper

14 2194712 Support

15 2315522 Retainer

Thermostat

16 628397 Thermostat (Also

Order 542369

Cement

Alumilastic)

17 8533917 Screw

18 489276 Screw

19 627792 Shut Off Arm

20 2187464 Harness, Wiring

21 628320 Bracket

W10223929

Module Assembly

(Includes Item 24)

23 489478 Screw

24 489136 Screw,

3−24 x 23/64

25 488208 Screw

26 488886 Screw, 8−18 x 1/2

100

W10190952

Icemaker,Complete

Assembly
