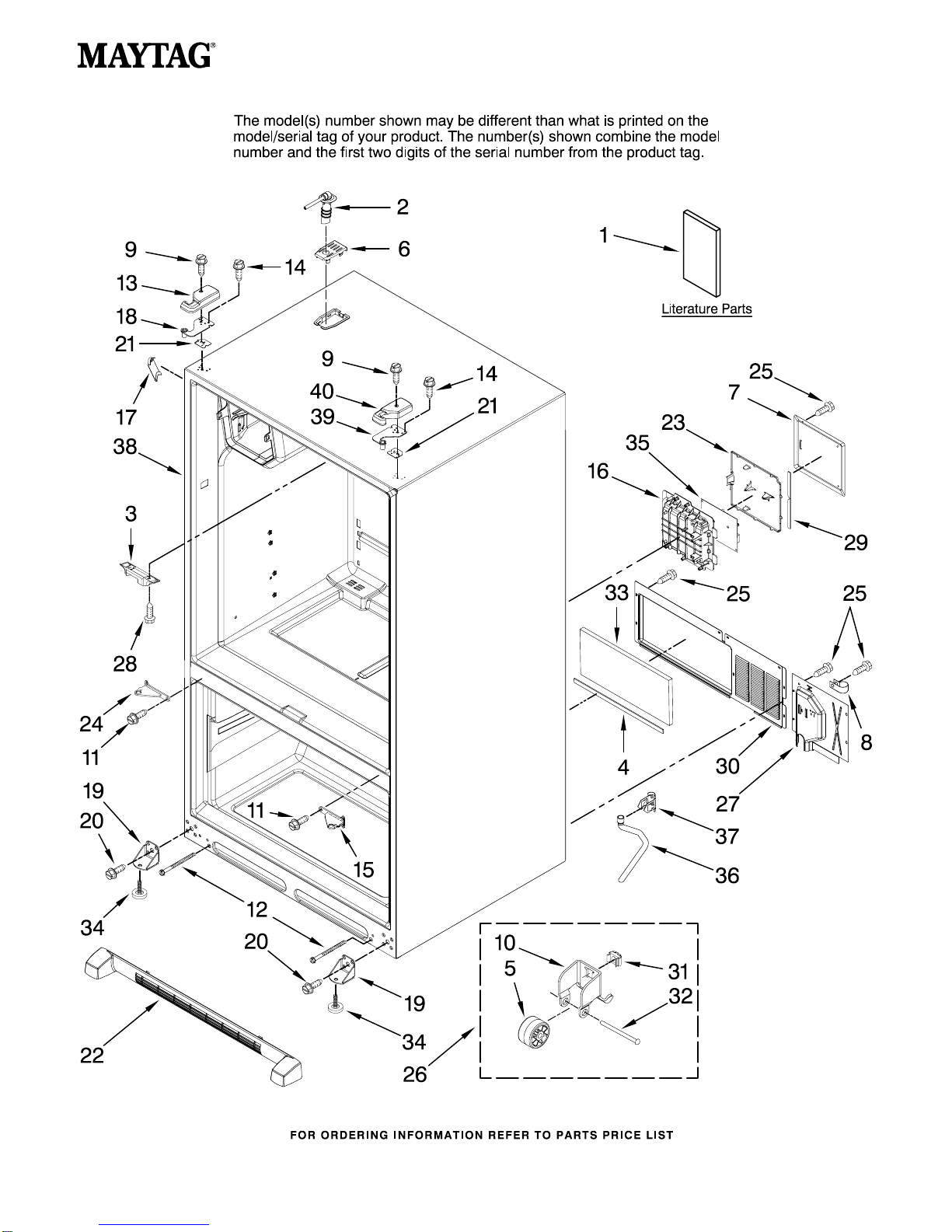

CABINET PARTS

For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11

(White) (Black) (Bisque) (Stainless) (Ultra Silver)

10−08 Litho In U.S.A. (mat) (psw) Part No. W10239572 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11

(White) (Black) (Bisque) (Stainless) (Ultra Silver)

W10239572

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

12827970 Tech Sheet

W10175444

Use & Care Guide

W10202393

Tag, Energy

W10165840

Tube W/Waterline,

Fill−IM

3 67003405 Block, Pivot

4 B5759649 Gasket, MC Back

5 67005127 Roller

6 Cover, Fill Tube

67006320 Black

67006321 White

7 67006427 Cover, Control Box

8 M0108105 Clamp, Tube

9 67006521 Screw, Hinge Cover

10 12456801 Bracket, Roller

11 67006380 Screw, Center

Hinge

12 67006611 Bolt, Roller Adj.

13 Cover, Top Hinge

(Left)

67005951 Black

67005952 Bisque

67005953 White

14 67006303 Screw, Top Hinge

15 Hinge, Center (RT)

67006379 White

67006443 Black

16 67006390 Box, HV Control

17 Cover, Corner (2)

67003484 White

67003485 Black

67003486 Bisque

12963204ED

Hinge, Top Left

W10208641

Bracket, Foot

Cabinet (2)

20 67006564 Screw (8)

21 Shim, Top Hinge

67006308 Left

67006309 Right

22 Grille, Toe

67006954 Black

67006791 Bisque

67007004 White

23 67006428 Lid, HV Control

24 Hinge, Center (LT)

67006277 White

67006442 Black

25 67006425 Screw, Cover

26 12580304 Roller Assy. (2)

27 12701909 Cover, Water Valve

28 67006626 Screw, Block

29 67006429 Gasket, HV Control

12575101WD

Back, Mach Comp

31 M0286708 Nut, Speed

32 M1205302 Rivet

33 67003796 Fiber, Acoustic

34 67003868 Brake, Foot

W10191108

Board, HV Control

W10164397

Tube, Drain

W10157973

Clip, Drain Tube

38 Cabinet (Not a

Servicable Part)

12963205ED

Hinge, Top Right

40 Cover, Top Hinge

(Right)

67005956 Black

67005957 Bisque

67005958 White

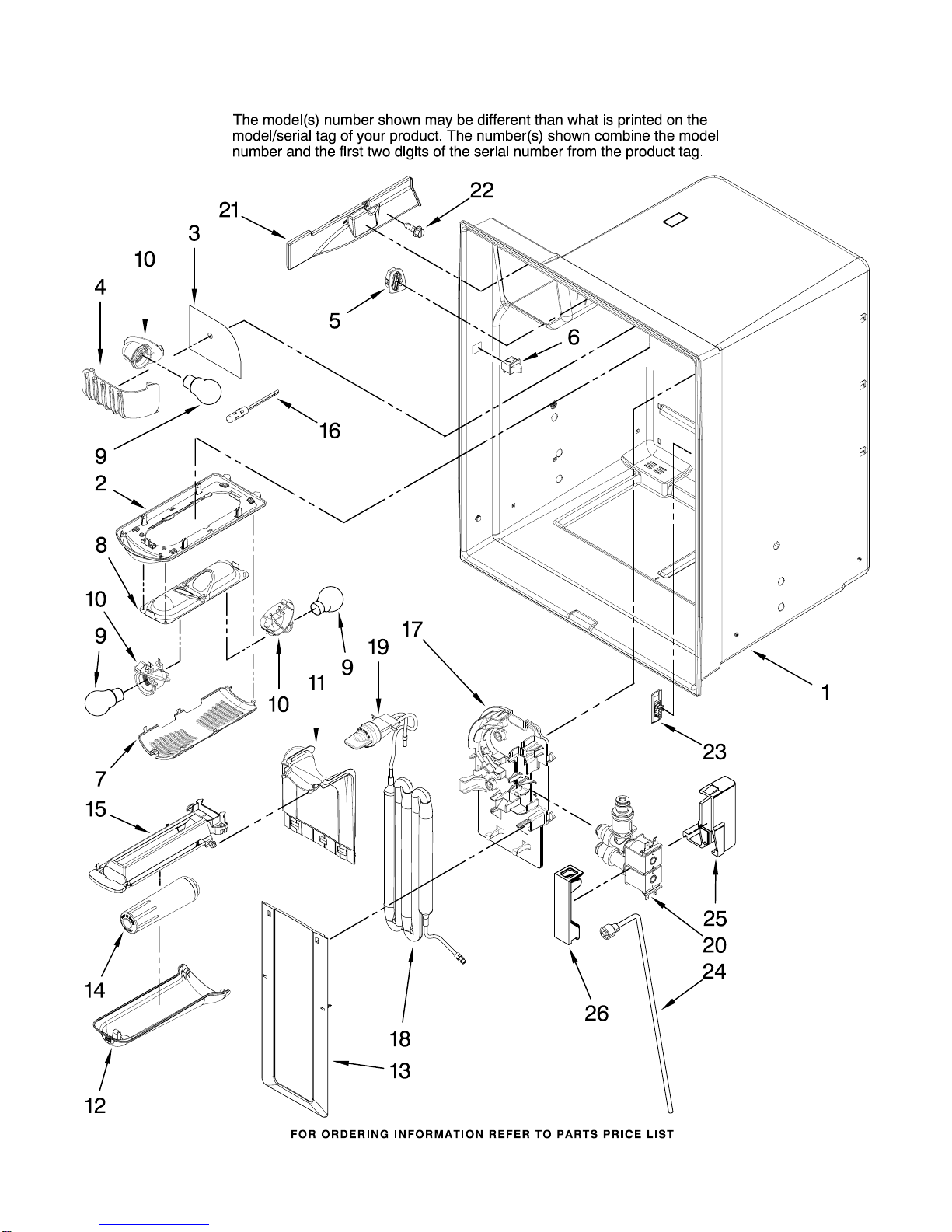

REFRIGERATOR LINER PARTS

For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11

(White) (Black) (Bisque) (Stainless) (Ultra Silver)

W10239572

REFRIGERATOR LINER PARTS

For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11

(White) (Black) (Bisque) (Stainless) (Ultra Silver)

W10239572

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67006328 Module, Light

3 67006326 Foil, Light

4 67006327 Cover, Light

5 67006316 Grille, Air

6 12466103 Switch, Light (2)

7 67006318 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light

Y12570701

Socket, Light

11 67006330 Cover, Water Tank

(Upper)

12 67006331 Lid, Water Filter

13 67006329 Cover, Water Tank

(Lower)

UKF8001AXX

Filter, Water

15 67006325 Bracket, Filter

Base

16 12002355 Thermistor

17 67006324 Bracket, Water

Tank & Valve

18 12956202 Water Tank &

Head Assembly

19 12664501 Plug, Bypass

20 67006322 Valve, Water Inlet

W10165861

Cover, Ice Box

Harness

22 M0238642 Screw

23 67006319 Cover, Chiller

Vent

W10165864

Waterline, Cabinet

(W/Nut)

W10118193

Enclosure, Water

Valve Connector

W10118194

Lid, Enclosure

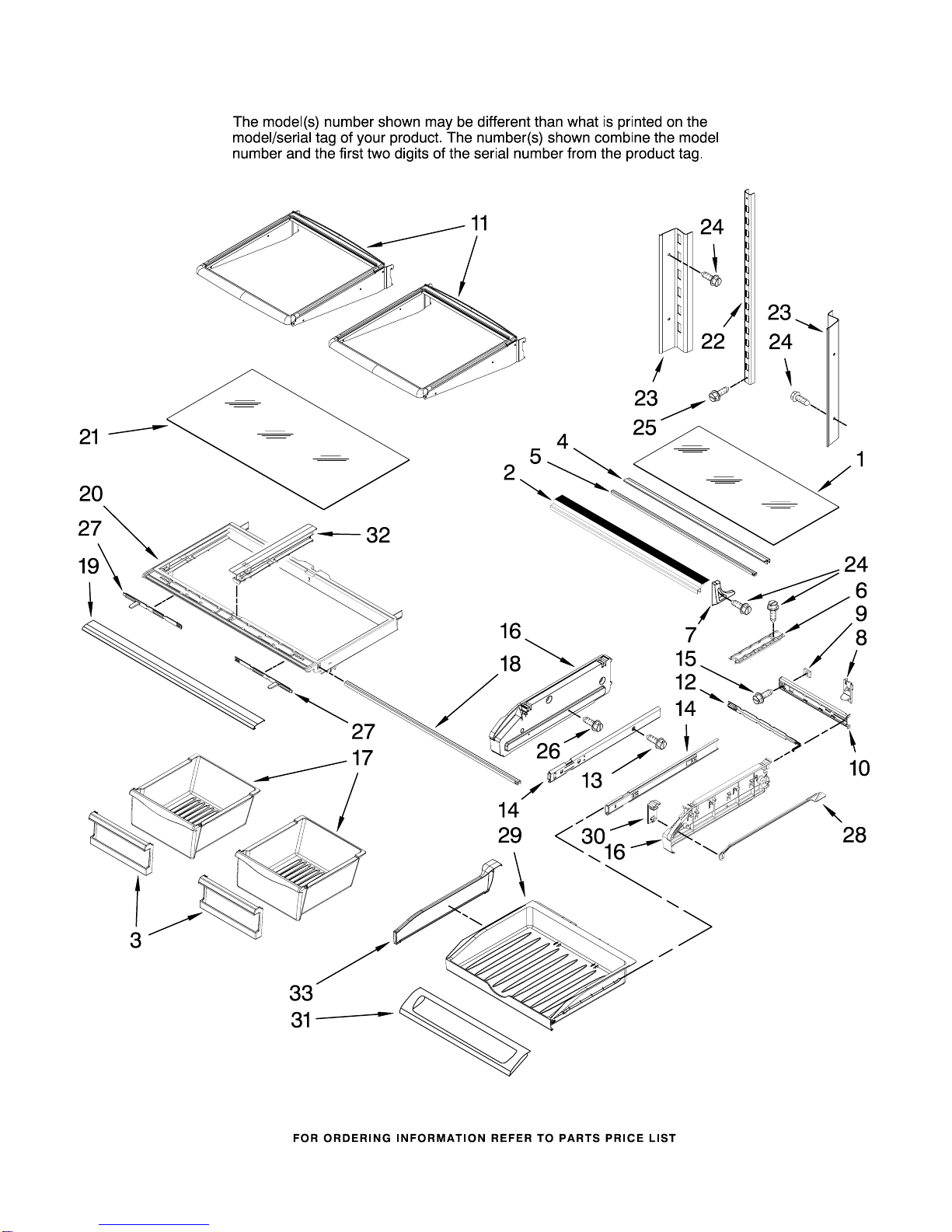

SHELF PARTS

For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11

(White) (Black) (Bisque) (Stainless) (Ultra Silver)

W10239572

SHELF PARTS

For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11

(White) (Black) (Bisque) (Stainless) (Ultra Silver)

W10239572

Illus. Part

No. No. DESCRIPTION

W10165870

Glass, Pantry

W10165872

Extr, Glass

Support

3 67005920 Front, Crisper Pan

W10166785

Extr, Glass

Support (1)

12227301WD

Brace, Pantry (2)

6 67001719 Track, Pantry

7 Support, Pantry

67001721 Left

67001722 Right

8 Hook, Ladder

W10166660

Left

W10166668

Right

W10165873

Gasket, Pantry

W10165876

Housing, Control

W10165880

Shelf, Glide (3)

W10165882

Slide, Temperature

13 67006287 Screw

14 67007026 Glide, Drawer (2)

15 67006400 Screw

16 Endcap, Pantry

W10165883

Left

W10166677

Right

17 67002633 Pan, Crisper

18 67001059 Brace, Crisper

Cover

19 67004369 Trim, Crisper

20 67001056 Frame, Crisper

21 67006878 Glass, Crisper

Cover

22 67006358 Ladder, Center

23 Ladder, Side

W10165968

Left

W10165909

Right

24 67006400 Screw

25 67006360 Screw (2)

26 67006415 Screw

27 67005864 Slide, Humidity

Control

W10165910

Rod, Temperature

Control

W10165911

Drawer, Pantry

30 67003791 Knob, Temperature

Control

W10165964

Door,

Pantry Drawer

32 67001057 Rail, Center

Crisper Frame

W10165967

Divider,

Pantry Drawer

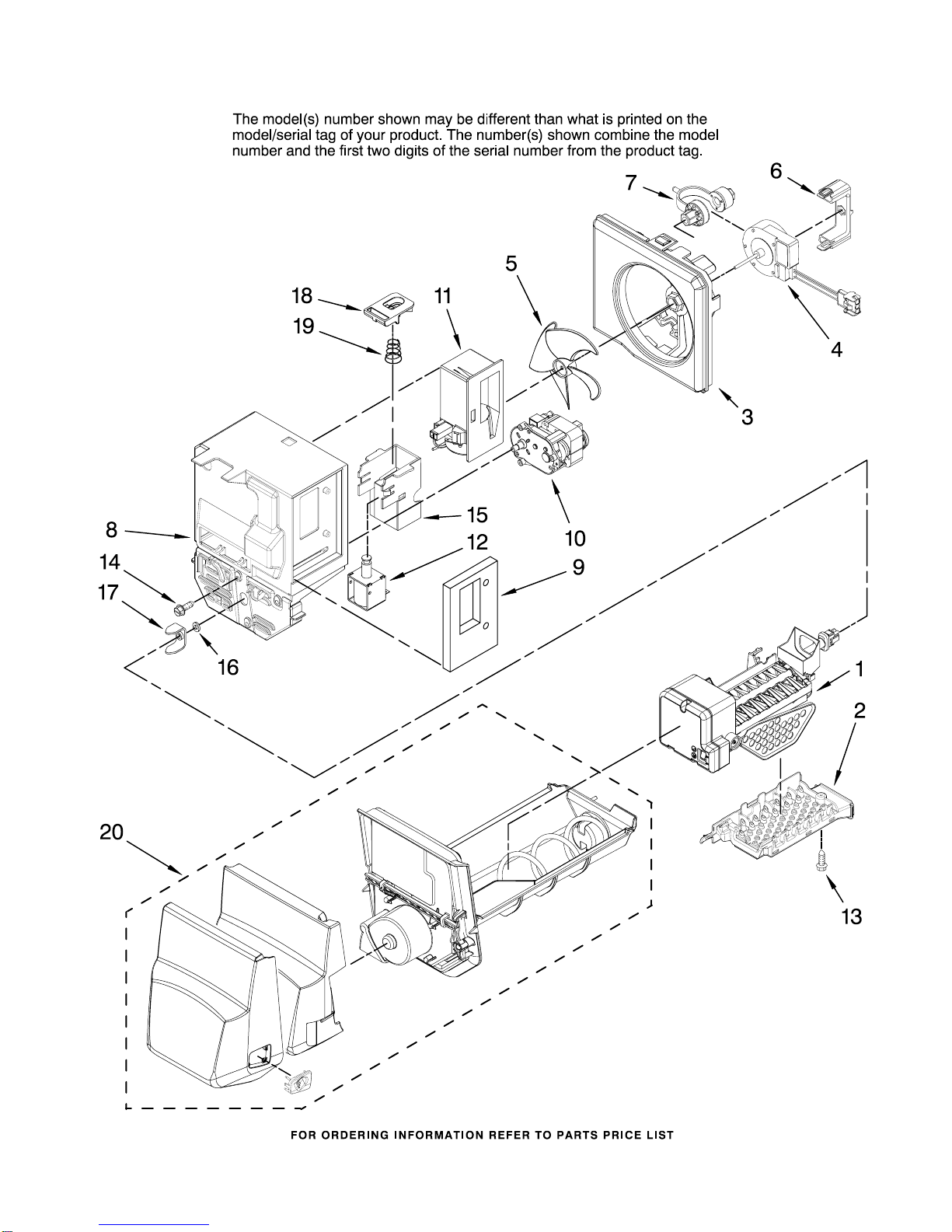

MOTOR AND ICE CONTAINER PARTS

For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11

(White) (Black) (Bisque) (Stainless) (Ultra Silver)

W10239572

MOTOR AND ICE CONTAINER PARTS

For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11

(White) (Black) (Bisque) (Stainless) (Ultra Silver)

W10239572

Illus. Part

No. No. DESCRIPTION

D7824706Q

Icemaker (Includes

Fill Tube Cup,

Wire Harness &

Sensor Arm

W10121269

Impinger Assembly

3 67006424 Shroud, Ice

Box Fan

W10162697

Motor, Fan

5 67006337 Blade, Fan

W10165970

Clip, Fan Motor

7 67006339 Grommet, Fan Motor

8 12958408 Divider, Ice Box

9 67006341 Gasket, Damper

10 12955405 Motor, Auger

W10127427

Damper, Control

12 67006344 Solenoid

13 67007110 Screw, Impinger

14 67006425 Screw (3)

15 67007111 Bracket, Solenoid

16 67006346 Washer

17 63052−1 Yoke, Ice

Dispenser

18 67006347 Yoke, Solenoid

19 67006348 Spring, Solenoid

W10165971

Ice Bin Assembly

(Includes Auger)

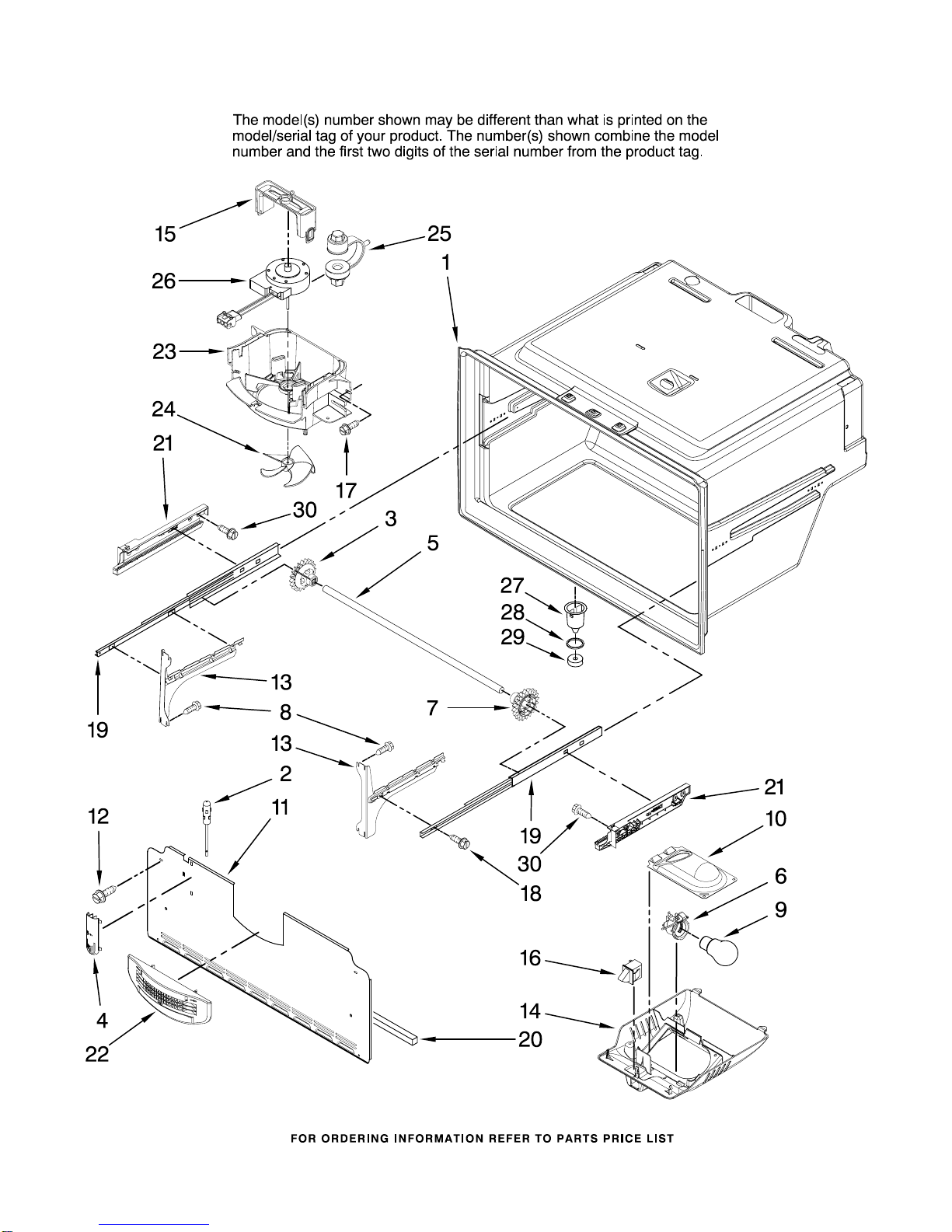

FREEZER LINER PARTS

For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11

(White) (Black) (Bisque) (Stainless) (Ultra Silver)

W10239572

FREEZER LINER PARTS

For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11

(White) (Black) (Bisque) (Stainless) (Ultra Silver)

W10239572

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 12002355 Thermistor Kit

3 12002497 Gear (Left)

(Incl. #7)

4 67003924 Cover, Thermistor

5 67004261 Shaft, Rack

Y12570701

Socket, Light

7 12002497 Gear, (Right)

(Incl. #3)

8 67006473 Screw, Bracket

9 A0282812 Bulb, Light

10 67001035 Housing, Light

W10165973

Cover, Evap

12 67006425 Screw

13 Bracket, Door

Slide

W10122147

Left

W10122148

Right

14 67006423 Module, Freezer

Light

15 67006338 Clip, Fan Motor

16 67006422 Switch, Rocker

17 67006287 Screw, Fan Shroud

18 67006769 Screw, Slide

To Basket

W10120018

Slide, Drawer (2)

20 67003731 Gasket, Foam

21 Adapter

W10159938

Left

W10159939

Right

22 67006382 Grille, Air

23 67006424 Shroud, Evap Fan

24 67006337 Blade, Fan

(Evaporator)

25 67006339 Grommet, Fan

Motor (2)

W10162809

Motor, Evaporator

Fan

27 D7753903 Funnel, Drain

28 M0500703 Seal, O Ring

29 B8381501 Gasket,

Drain Tube

30 67006406 Screw, Adapter
