CABINET PARTS

For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00

(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)

12−09 Litho In U.S.A. (wam) (psw) Part No. W10251527 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00

(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)

W10251527

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10214488

Use & Care Guide

W10235230

Service & Wiring

Sheet

W10180071

Energy Label

W10180407

Instruction Sheet,

Door Removal

628370 Modular Icemaker

Service Sheet

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 2304249 Screw Plate (2)

W10121138

Housing, Water

Filter

9 2209697 Shim (2)

10 489500 Screw (2)

11 4396841 Water Filter

12 2203770 Hinge Top (FC)

13 2203771 Hinge, Top (RC)

14 488500 Screw

15 Hinge Cover

W10138581

White

W10138583

Biscuit

W10138582

Black

W10138584

Apollo Grey

16 2217075 Hinge Bottom (2)

17 Cap, Water

Filter

2260502W White

2260502T Biscuit

2260502B Black

2260502MG

Midnight Grey

18 3400113 Screw (4)

19 2260519 Block, Housing

Support

20 3400858 Screw

21 Filler, Wrapper

2201014 White

2200926 Biscuit

2201017 Black

2254507 Apollo Grey

22 Grille

W10197249

White

W10197251

Biscuit

W10197250

Black

W10202905

Midnight Grey

23 489497 Screw

24 Button, Water

Filter

2260503W White

2260503T Biscuit

2260503B Black

2260503MG

Midnight Grey

25 3400103 Screw (2)

26 489290 Screw

27 489464 Screw

28 2319867 Tube, Filter

Inlet

29 2255012 Tube, Filter

Outlet

30 2304888 Drain Fitting

W10153550

Extension Tube

32 2188734 Cover, Unit

33 Cabinet (Not A

Serviceable Part)

34 Hinge Cover

W10138576

White

W10138578

Biscuit

W10138577

Black

W10138579

Apollo Grey

35 8281227 Screw

36 549193 Clamp, Service

Cord

37 489084 Screw

38 2155311 Door Closer,

Lower Cam (2)

39 489483 Screw (2)

40 2323833 Hinge Bottom FC

41 2223751 Door Closer

Lower Cam (FC)

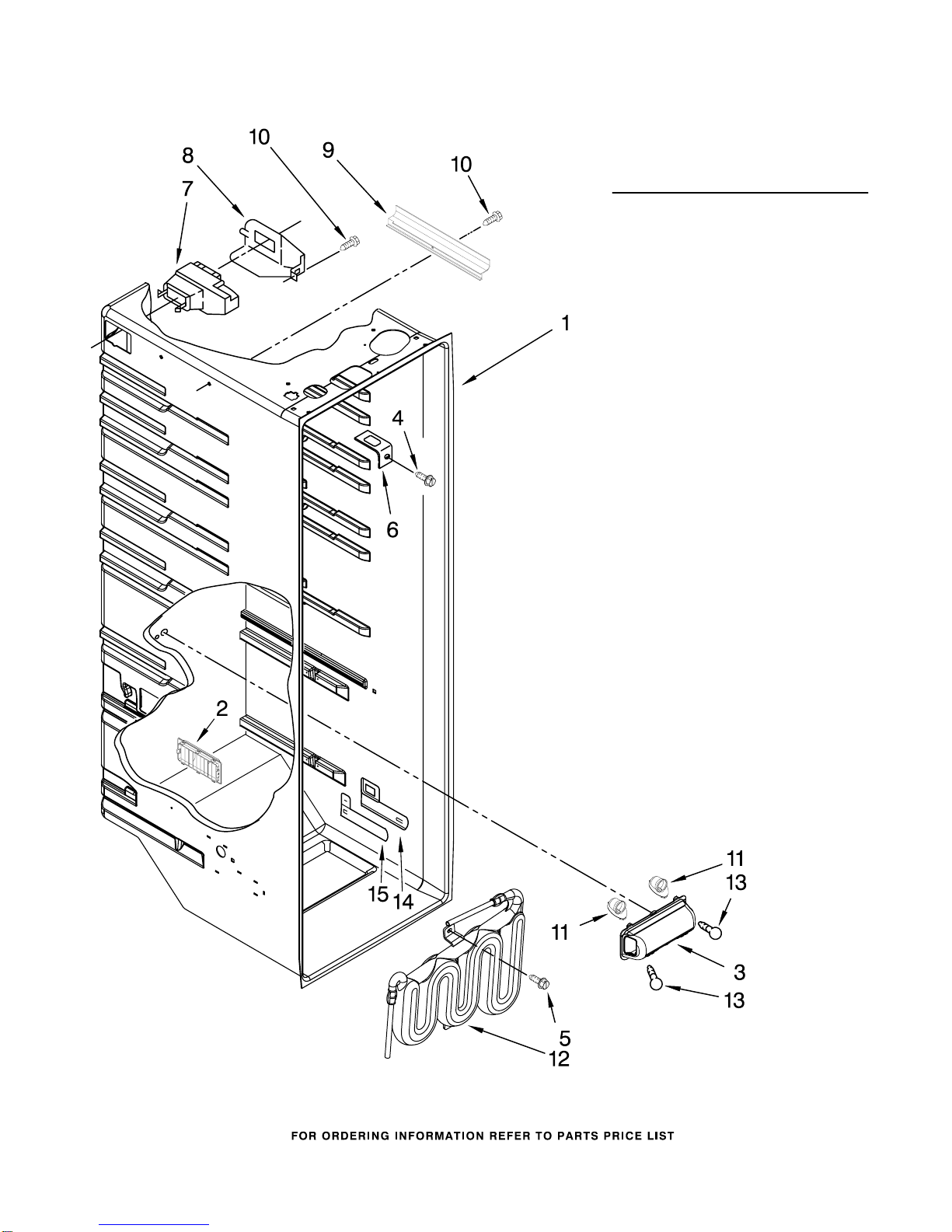

REFRIGERATOR LINER PARTS

For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00

(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)

W10251527

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2257741 Louver

W10166019

Bracket, Dual

Crisper Light

4 489084 Screw

5 488280 Screw

6 2256085 Clip, Control

Box (2)

W10151374

Air Diffuser

Assembly

8 2152019 Air Diffuser

Cover

9 2150331 Cover, Conduit

10 486298 Screw

11 2162085 Socket

W10204356

Reservoir

13 527949 Light Bulb

W10175967

Escutcheon, Meat

Pan Control

15 2182757 Slide, Meat

Pan Control

REFRIGERATOR SHELF PARTS

For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00

(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)

W10251527

Illus. Part

No. No. DESCRIPTION

1 2209698 Cover, Crisper

2 2255593 Trim, Pan

3 2179259 Glass, Cover

4 2255592 Trim, Meat Pan

5 2179342 Slide, Humidity

Control

6 2188652 Crisper Pan

7 2188654 Meat Pan

8 2196485 Stud Assembly

9 3400894 Screw

10 2179343 Housing, Humidity

Control

11 2196483 Stud Assembly

12 8281158 Screw

13 2309524 Shelf Assembly,

Spillguard

14 2309560 Shelf, Snack Pan

15 2309518 Snack Pan

16 2309519 Trim, Handle

FREEZER LINER PARTS

For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00

(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)

W10251527

FREEZER LINER PARTS

For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00

(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)

W10251527

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

W10130299

Cup, Shelf

Mounting (12)

3 2309633 Shelf, Wire

4 842534 Clip, Air Duct (2)

5 2196206 Support, Stud (4)

6 2309758 Freezer Bin

7 1115373 Switch, Rocker Arm

8 8281158 Screw

9 2196483 Stud Assembly

10 2309632 Shelf, Wire

11 Slide, Container

1119237 Left Side

1119293 Right Side

12 489100 Screw (4)

13 3400893 Screw

14 2309634 Shelf, Wire

MOTOR AND ICE CONTAINER PARTS

For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00

(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)

W10251527

MOTOR AND ICE CONTAINER PARTS

For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00

(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)

W10251527

Illus. Part

No. No. DESCRIPTION

1 2254588 Bracket, Motor

W10181208

Motor, Dispenser

3 2152713 Soleniod Assembly

4 2149100 Guide, Solenoid

5 2325303 Wiring Assembly,

Ice Dispenser

6 489399 Screw (6)

W10169511

Coupling, Motor

8 489478 Screw

9 2162085 Socket, Light

W10138193

Ice Container

W10189661

Spacer, Step (3)

W10189658

Spacer, Flat (2)

13 2257022 Blade, Rotary

14 2257023 Blade, Rotary

15 2257024 Blade, Rotary

W10189660

Washer, Plain

W10181990

Blade, Fixed (2)

W10189708

Block, Blade

19 489229 Roll Pin

20 2196295 Auger

21 2305377 Drum

22 2171682 Floating Baffle

23 1119018 Nut, Bearing

24 2155231 Control Arm

25 1119020 Spring, Return

26 1119021 Retainer Clip, Rod

27 488886 Screw

W10185018

Housing, Crusher

29 1119017 Deflector, Ice

30 489234 Washer, Plain

31 489236 Retainer Ring

W10189274

Front Cover,

Ice Container

W10189277

Ice Door

34 527949 Light Bulb

35 2171706 Light Lens,

Dispenser

W10138206

Spacer − Crusher

Housing

100

W10138196

Ice Container

(Complete)

REFRIGERATOR DOOR PARTS

For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00

(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)

W10251527

REFRIGERATOR DOOR PARTS

For Models: MSD2274VEW00, MSD2274VEQ00, MSD2274VEB00, MSD2274VEM00, MSD2274VEA00

(White) (Biscuit) (Black) (Monochromatic Stainless) (Monochromatic Satina)

W10251527

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item 6)

W10202773

White

W10202775

Biscuit

W10202774

Black

W10202777

Stainless

W10202776

Satina

2 2256101 Door, Compartment

W10184500

Screw

4 2304235 Door Bin (3)

5 2255411 Clip

6 Door Gasket,

Magnetic

2309600 Mist Beige

2309653 Black

2327161 Apollo Grey

7 Handle

W10170745

White

W10170748

Biscuit

W10170746

Black

W10170739

Stainless & Satina

8 2308091 Thimble−Top

9 2182178 Door Closer,

Upper Cam

10 489420 Screw

11 Bracket, Door Stop

2206629 Chrome

2206629B Black

W10170766

Nameplate

13 2309941 Trivet, Shelf

14 3400012 Screw

W10129563

Screw
