Your refrigerator was packed carefully for shipment.

Remove and discard shelf packaging and tape. Do not

remove the serial plate.

Do not install refrigerator near oven, radiator or other

heat source. Wfnot possible, shield refrigerator with

cabinet material.

Do not install where temperature falls below 55° F

(13° C} or rises above 110° F (43° C}. Malfunction

may occur at this temperature.

Refrigerator is designed for indoor household

application onlyo

Measuring the Opening

When installing your refrigerator, measure carefully.

Allow Y2 space at top and '/2"space behind the

machine compartment cover (located in the rea0 for

proper air circulation.

Subfiooring or floor coverings (i.e. carpet, tile, wood

floors, rugs} may make your opening smaller than

anticipate&

Some clearance may be gained by using the leveling

procedure under Leveling.

UMPORTANT: If refrigerator is to be installed into a

recess where the top of the refrigerator is completely

covered, use dimensions from floor to top of hinge cap

to verify proper clearance.

Transporting Your Refrigerator

NEVER transport refrigerator on its side. If an

upright position is not possible, lay refrigerator on its

back. Allow refrigerator to sit upright for

approximately 30 minutes before plugging it in to

assure oil returns to the compresson Plugging the

refrigerator in immediately may cause damage to

internal parts.

Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back-NEVER from its front.

Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not overtighten. Overtightening

restraints may dent or damage outside finish.

To enhance the appearance and maintain performance

the refrigerator should be level

Note

Complete any required door reversal, panel

installation and/or a water supply connection,

before leveling.

Materials Needed:

3/8"hex head driver

Carpenter's level

1. Remove toe grille.

Grasp firmly and pull outward

to unclip.

2. Remove bottom bracket cover(s}.

Place the eraser end of a pencil or similar blunt

tool in the cover notch.

, Use slight pressure to pry the

cover loose.

Continue to maintain

downward pressure to the

notched side of the cover while

swinging it oft

3.Usinghexheaddriver,turnthefrontadjustment

screws(A}oneachsideto raiseorlowerthefront

oftherefrigerator.

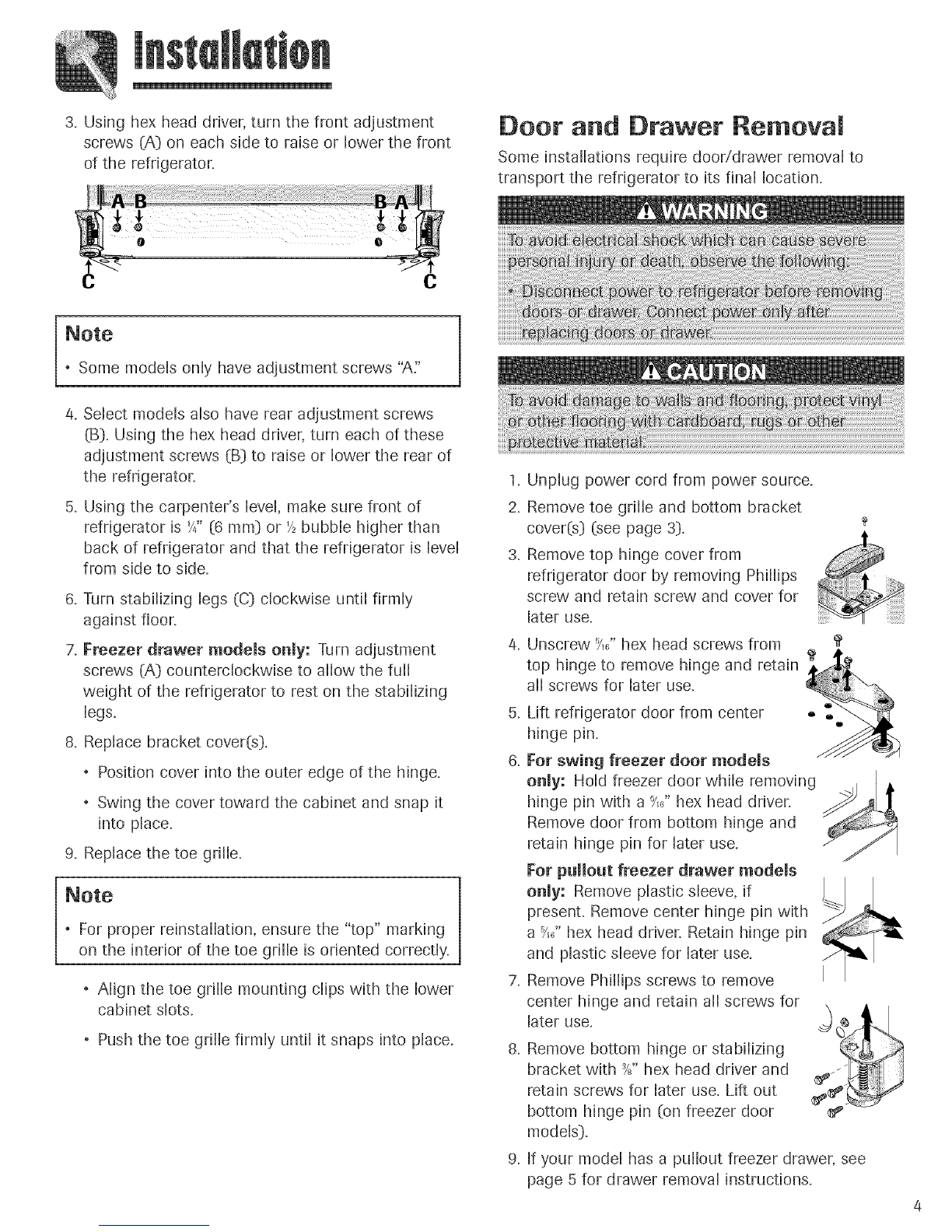

Door and Drawer Removam

Some installations require door/drawer removal to

transport the refrigerator to its final location.

,Some models only have adjustment screws "A."

4. Select models also have rear adjustment screws

(B}. Using the hex head driver, turn each of these

adjustment screws (B} to raise or lower the rear of

the refrigerator.

5. Using the carpenter's level, make sure front of

refrigerator is '/4"(6 ram} or '/_bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

& Turn stabilizing legs (C} clockwise until firmly

against floor,

7, Freezer drawer models only: Turn adjustment

screws (A} counterclockwise to allow the full

weight of the refrigerator to rest on the stabilizing

legs.

8. Replace bracket cover(s}.

,Position cover into the outer edge of the hinge.

,Swing the cover toward the cabinet and snap it

into place.

9. Replace the toe grille.

, For proper reinstallation, ensure the "top" marking

on the interior of the toe grille is oriented correctly.

,Align the toe grille mounting dips with the lower

cabinet slots.

,Push the toe grille firmly until it snaps into place.

Unplug power cord from power source.

Remove toe grille and bottom bracket

cover(s} (see page 3}. t

Remove top hinge cover from

refrigerator door by removing Phillips

screw and retain screw and cover for

later use.

Unscrew ?,}' hex head screws from

top hinge to remove hinge and retain

all screws for later use.

Lift refrigerator door from center

hinge pin.

For swing freezer door modems

onmy: Hold freezer door while removing

hinge pin with a _,}' hex head driver,

Remove door from bottom hinge and

retain hinge pin for later use.

For pullout freezer drawer models

onmy: Remove plastic sleeve, if

present. Remove center hinge pin with

a t,}' hex head driver, Retain hinge pin

and plastic sleeve for later use.

Remove Phillips screws to remove

center hinge and retain all screws for

later use.

8.Remove bottom hinge or stabilizing

bracket with _" hex head driver and

retain screws for later use. Lift out

bottom hinge pin (on freezer door

models}.

9. If your model has a pullout freezer drawer, see

page 5 for drawer removal instructions.

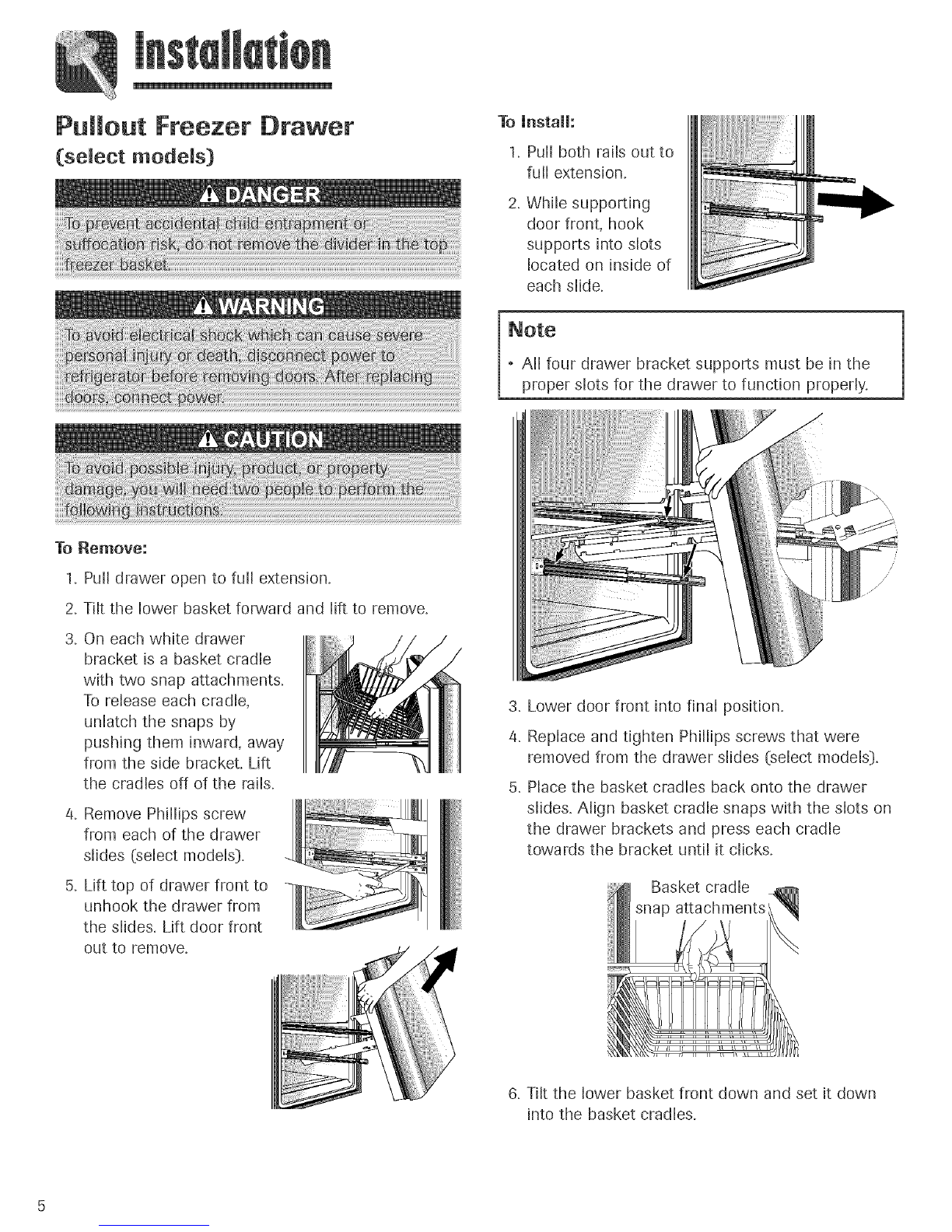

Pullout Freezer Drawer

(select modds)

To [nstall:

1, Pull both rails out to

full extension.

2. While supporting

door front, hook

supports into slots

located on inside of

each slide.

,All four drawer bracket supports must be in the

proper slots for the drawer to function properly.

To Remove:

1. Pu[[ drawer open to fuji extension.

2. Tilt the lower basket forward and lift to remove.

3. On each white drawer

bracket is a basket cradle

with two snap attachments.

To release each cradle,

unlatch the snaps by

pushing them inward, away

from the side bracket. Lift

the cradles off of the rails.

4, Remove Phillips screw

from each of the drawer

slides (select models[},

5, Lift top of drawer front to

unhook the drawer from

the slides, Lift door front

out to remove,

Lower door front into final position.

Replace and tighten Phillips screws that were

removed from the drawer slides (select models),

Place the basket cradles back onto the drawer

slides. Align basket cradle snaps with the slots on

the drawer brackets and press each cradle

towards the bracket until it clicks.

Basket cradle

6,Tilt the lower basket front down and set it down

into the basket cradles.

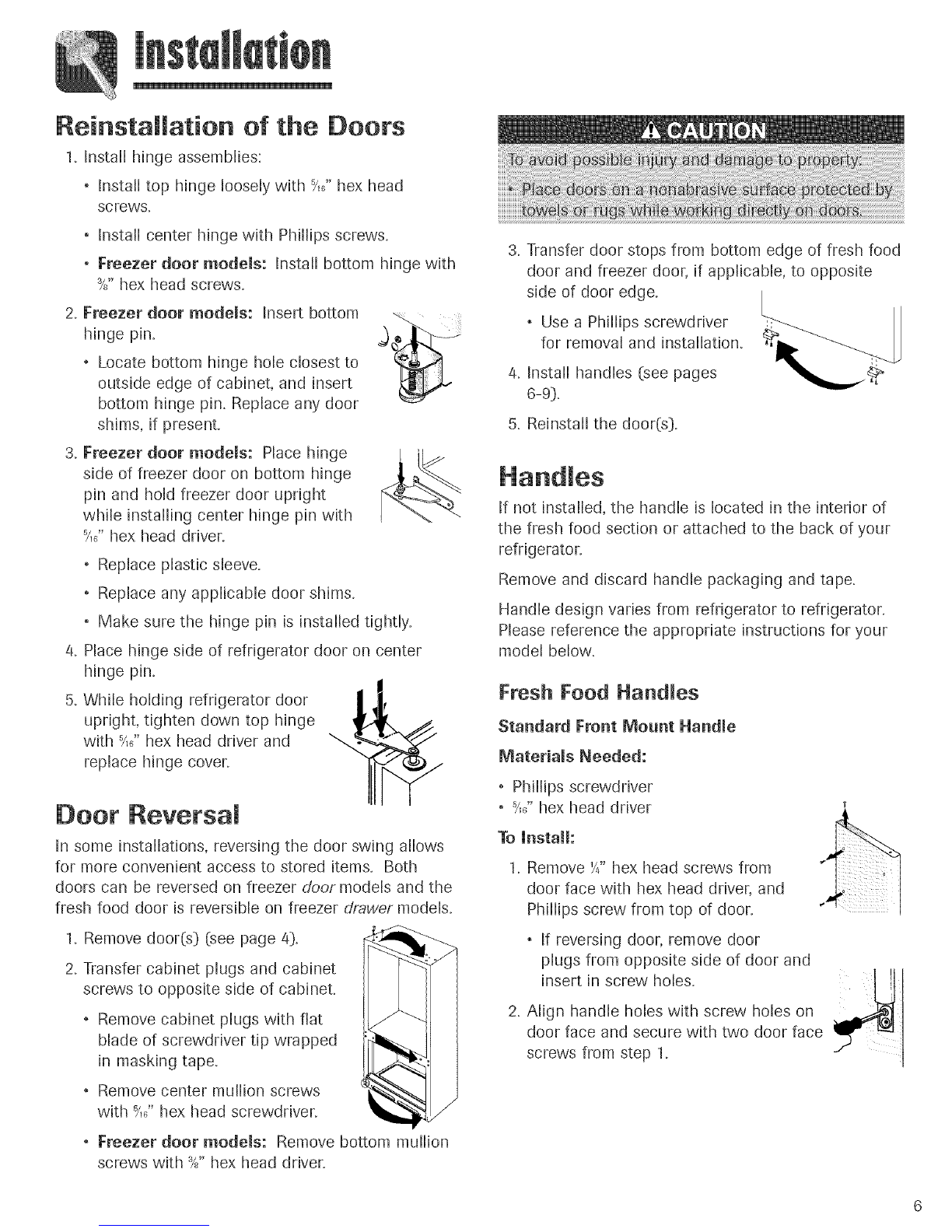

ReinstaHation of the Doors

1, Install hinge assemblies:

.Install top hinge loosely with _/,6"hex head

screws.

Install center hinge with Phillips screws.

Freezer door modems: Install bottom hinge with

_" hex head screws.

2. Freezerhingepin.d°°r modems: Insert bottom __.j

Locate bottom hinge hole closest to

outside edge of cabinet, and insert

bottom hinge pin. Replace any door

shims, if present.

3. Freezer door modems: Place hinge

side of freezer door on bottom hinge

pin and hold freezer door upright

while installing center hinge pin with

_/,_,"hex head driver.

Replace plastic sleeve.

Replace any applicable door shims.

,Make sure the hinge pin is installed tightly.

4. Place hinge side of refrigerator door on center

hinge pin.

5. While holding refrigerator door

upright, tighten down top hinge

with -?X' hex head driver and

replace hinge coven

Door Revetsam

Insome installations, reversing the door swing allows

for more convenient access to stored items. Both

doors can be reversed on freezer door models and the

fresh food door is reversible on freezer drawer models.

I,Remove door(s} (see page 4},

2. Transfer cabinet plugs and cabinet

screws to opposite side of cabinet.

,Remove cabinet plugs with flat

blade of screwdriver tip wrapped

in masking tape.

,Remove center mullion screws

with _/,_,"hex head screwdriver.

,Freezer door models: Remove bottom mullion

screws with Ys"hex head driver.

3. Transfer door stops from bottom edge of fresh food

door and freezer door, if applicable, to opposite

side of door edge.

Use a Phillips screwdriver

for removal and installation.

4. Installhandles (see pages

6-9].

5,Reinstall the door(s}.

If not installed, the handle is located in the interior of

the fresh food section or attached to the back of your

refrigerator.

Remove and discard handle packaging and tape.

Handle design varies from refrigerator to refrigerator.

Please reference the appropriate instructions for your

model below.

Fresh Food Handles

Standard Front Mount Handle

Materiams Needed:

.Phillips screwdriver

.-_/,_"hex head driver

To Unstall:

1. Remove h" hex head screws from

door face with hex head driver, and

Phillips screw from top of door.

.If reversing door, remove door

plugs from opposite side of door and

insert in screw holes.

2. Align handle holes with screw holes on

door face and secure with two door face

screws from step 1.

Locate handle trim in literature pack and

install over top and bottom of handle, as

illustrated.

, Secure top handle trim with remaining

screw removed in step 1.

Snap bottom trim over bottom portion

of handle.

Remove:

Remove top handle trim by removing top

handle screw.

Retain trim and screw for later

replacement.

2. Pry bottom handle trim from handle with _t

screwdriver flat blade wrapped in

masking tape.

Retain trim for later replacement.

3. Remove two hex head screws.

Retain screws for later replacement.

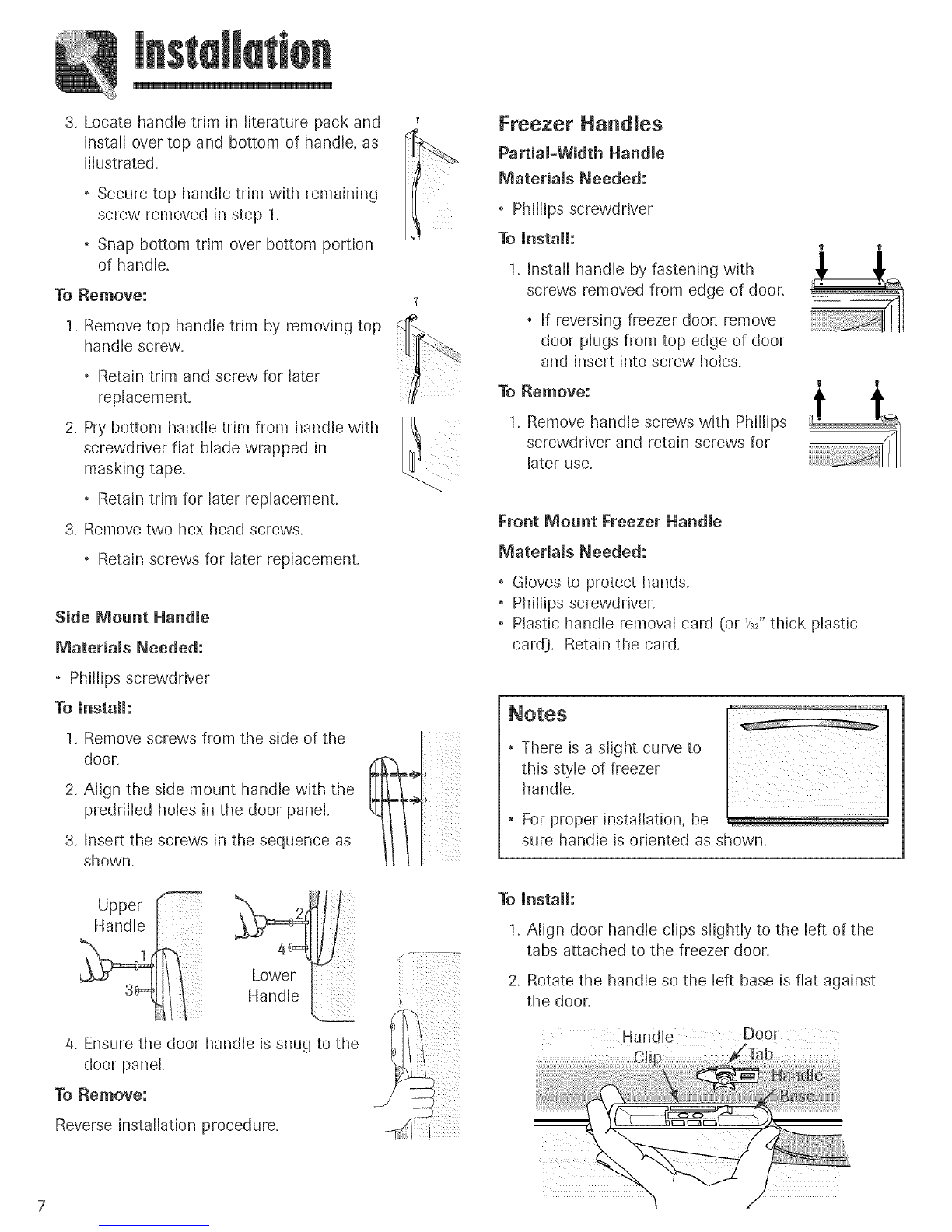

Side Mount Handle

Materials Needed:

Phillips screwdriver

To Unstall:

1. Remove screws from the side of the

door.

2. Align the side mount handle with the

predrflled holes in the door panel.

3. Insert the screws in the sequence as

shown.

Freezer Nandles

Partiam_Width Nandme

Materiams Needed:

,Phillips screwdriver

To UnstaH:

1. Install handle by fastening with

screws removed from edge of door.

If reversing freezer door, remove

door plugs from top edge of door

and insert into screw holes.

To Remove:

1. Remove handle screws with Phillips

screwdriver and retain screws for

later use.

Front Mount Freezer Nandle

Materiams Needed:

Gloves to protect hands.

Phillips screwdriver.

Plastic handle removal card (or h2" thick plastic

card). Retain the card.

, There is a slight curve to

this style of freezer

handle.

" For proper installation, be

sure handle is oriented as shown.

Upper

Handle

.... Lower

,andrei

4. Ensure the door handle is snug to the

door panel.

To Remove:

Reverse installation procedure.

To UnstaH:

1. Align door handle clips slightly to the left of the

tabs attached to the freezer door.

2. Rotate the handle so the left base is flat against

the door.

Handle Door

3. Push the left handle

base against the left

door tab and slightly

to the right, just

enough to allow it to

hang unsupported.

4. While firmly supporting the left handle base against

the door, align the right base of the handle with the

right tabs that are attached to the door.

5. Now, while firmly holding the handle at the left and

right bases, gently slide the handle towards the

right until the right base settles in. The handle

should now be flat against the face of the freezer

door at both the left and right bases.

6,With hands still firmly keeping the handle flat

against the freezer door, you may have to reverse

directions momentarily to assure clip/tab

engagement. Then firmly slide the handle to the

right until it clicks. The audible "click" indicates

that the fastening clips are securely interlocked.

To Remove:

1. At the right end, flex the handle base away from

the surface of the freezer drawer. Simultaneously

slide the door handle removal card that came with

your refrigerator under the right side base of the

handle. Slide the card to the line indication or until

it stops, which will be approximately 1't/'.

2. With both hands, firmly grasp the handle towards

the right base.

3. Slide towards the left, lift and remove from the

surface.

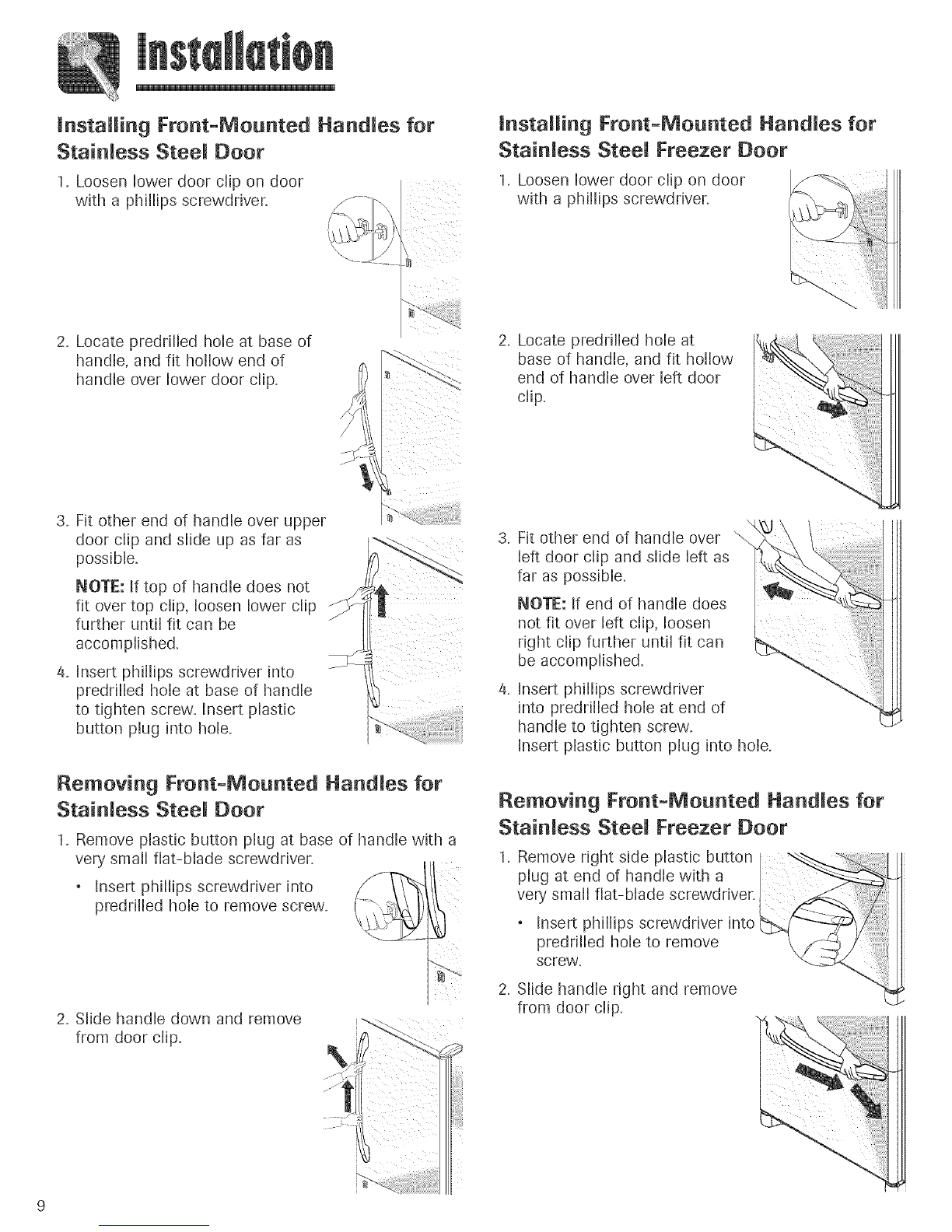

installing Front-Mounted Handles for

Stainless Steel Door

1. Loosen lower door clip on door

with a phillips screwdriver.

installing Front-Mounted Handles for

Stainless Steel Freezer Door

1. Loosen lower door clip on door

with a phillips screwdriver.

2. Locate preddlled hole at base of

handle, and fit hollow end of

handle over lower door clip.

3. Fit other end of handle over upper

door clip and slide up as far as

possible.

NOTE: If top of handle does not

fit over top clip, loosen lower clip

further until fit can be

accomplished.

/4. Insert pNllips screwdriver into

predrilled hole at base of handle

to tighten screw. Insert plastic

button plug into hole.

Removing Front-Mounted Handles for

Stainless Steel Door

1. Remove plastic button plug at base of handle with a

very small flat-blade screwdriver.

,Insert phillips screwdriver into /f/-_ 1

predrilled hole to remove screw.

2. Slide handle down and remove

from door clip.

2. Locate predrilled hole at

base of handle, and fit hollow

end of handle over left door

clip.

Fit other end of handle over \

left door clip and slide left as

far as possible.

NOTE: If end of handle does

not fit over left clip, loosen

right clip further until fit can

be accomplished.

Insert phillips screwdriver

into predrilled hole at end of

handle to tighten screw.

Insert plastic button plug into hole.

Removing Front-Mounted Handles for

Stainless Steel Freezer Door

1. Remove right side plastic button

plug at end of handle with a ....

very small flat-blade screwdriver.

, Insert phillips screwdriver into

predrilled hole to remove

screw.

2. Slide handle right and remove

from door clip.

Connecting the Water Supply

(select models)

Materials Needed:

*'4" outer diameter flexible copper tubing

*Shut-off valve (requires a h" hole to be drilled into

water supply line before valve attachmenO

* Adjustable wrench

* '4" hex nut driver

*Add 8' to tubing length needed to reach water

supply for creation of service loop.

Create service loop with copper

tubing (minimum 2' diameteO.

Avoid kinks in the copper tubing

when bending it into a service

bop,

2' diameter

Remove plastic cap from water valve inlet

port.

Place brass nut (A} and sleeve (B} on

copper tube end as illustrated,

Reminder: Do not use an old

sleeve.

Place end of copper tubing into

water valve inlet port. Shape tubing

slightly, Do not kink - so that tubing feeds

straight into inlet port.

5. Slide brass nut over sleeve and screw nut

into inlet port. Tighten nut with wrench.

UMPORTANT: Do not overtighten. Cross

threading may occur.

Pull on tubing to confirm connection is

secure. Connect tubing to frame with

water tubing clamp (C) and turn on

water supply, Check for leaks and

correct if necessary. Continue to

observe the water supply connection

for two to three hours prior to moving

the refrigerator to its permanent

location.

7. Monitor water connection for 2/4 hours. Correct

leaks, if necessary.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Maytag Frigorifero

Maytag

Maytag M1TXEMMWS - 21.0 cu. Ft. Refrigerator Istruzioni per il montaggio

Maytag

Maytag Refrigerator Manuale utente

Maytag

Maytag MBF2262HEW - 22 cu. Ft. Bottom Freezer... Manuale

Maytag

Maytag MBL1957VES2 Manuale utente

Maytag

Maytag M1TXEGMY Manuale utente

Maytag

Maytag MFD2562VEW - 25 cu. Ft. Bottom Mount... Manuale utente

Maytag

Maytag MFB2055YEW02 Manuale utente

Maytag

Maytag W10216883A Manuale utente

Maytag

Maytag MSD2273VE Manuale

Maytag

Maytag Refrigerator Manuale utente

Maytag

Maytag MBF2556KEQ - 25.1 cu. Ft. Bottom-Freezer... Manuale

Maytag

Maytag MSD2559XEM Manuale tecnico

Maytag

Maytag MTF2455DRB User's guide Manuale utente

Maytag

Maytag MFI2067AEQ - 20.0 cu. Ft Manuale

Maytag

Maytag GB1924PEKS Manuale utente

Maytag

Maytag SIDE-BY-SIDE REFRIGERATOR Manuale utente

Maytag

Maytag MSD2272VEW - 22 cu. Ft. Refrigerator Manuale utente

Maytag

Maytag M9BXXGMYB Istruzioni per il montaggio

Maytag

Maytag MSD2578VEB - 25.4 cu. Ft. Refrigerator Istruzioni per il montaggio

Maytag

Maytag MFI226AE Series Istruzioni generali

Maytag

Maytag W10366207A Manuale utente

Maytag

Maytag MFI2067AEB12 Manuale utente

Maytag

Maytag MFI2269DRE00 Manuale utente

Maytag

Maytag MFI2269VEB - 22.0 cu. Ft. Refrigerator Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
