MB QUART JT Manuale utente

Page 1 of 5

Assembly Instructions

Model: JT (Gladiator)

Description: Subwoofer Install

Part Number: MBQJT-SUBA-1 & MBQJT-SUB-1

Assembly Time: 120 Minutes (2 Hours)

1 10mm Socket

2 Rachet

3T20 Torx Bit

MBQJT-SUB-1 Parts List

No. Component Name Qty

1 Subwoofer Enclosure 1

2 Subwoofer 2

3 Extension Harness 2

MBQJT-SUBA-1 Parts List

No. Component Name Qty

1 Subwoofer Enclosure 1

2 Subwoofer 2

3 Extension Harness 2

4 NA2-400.1 1

Before you beign, read thought these instructions and check that

all parts are present. Please note that MB Quart cannot assume any

responsibility for damage resulting from incorrect installation.

Page 2 of 5

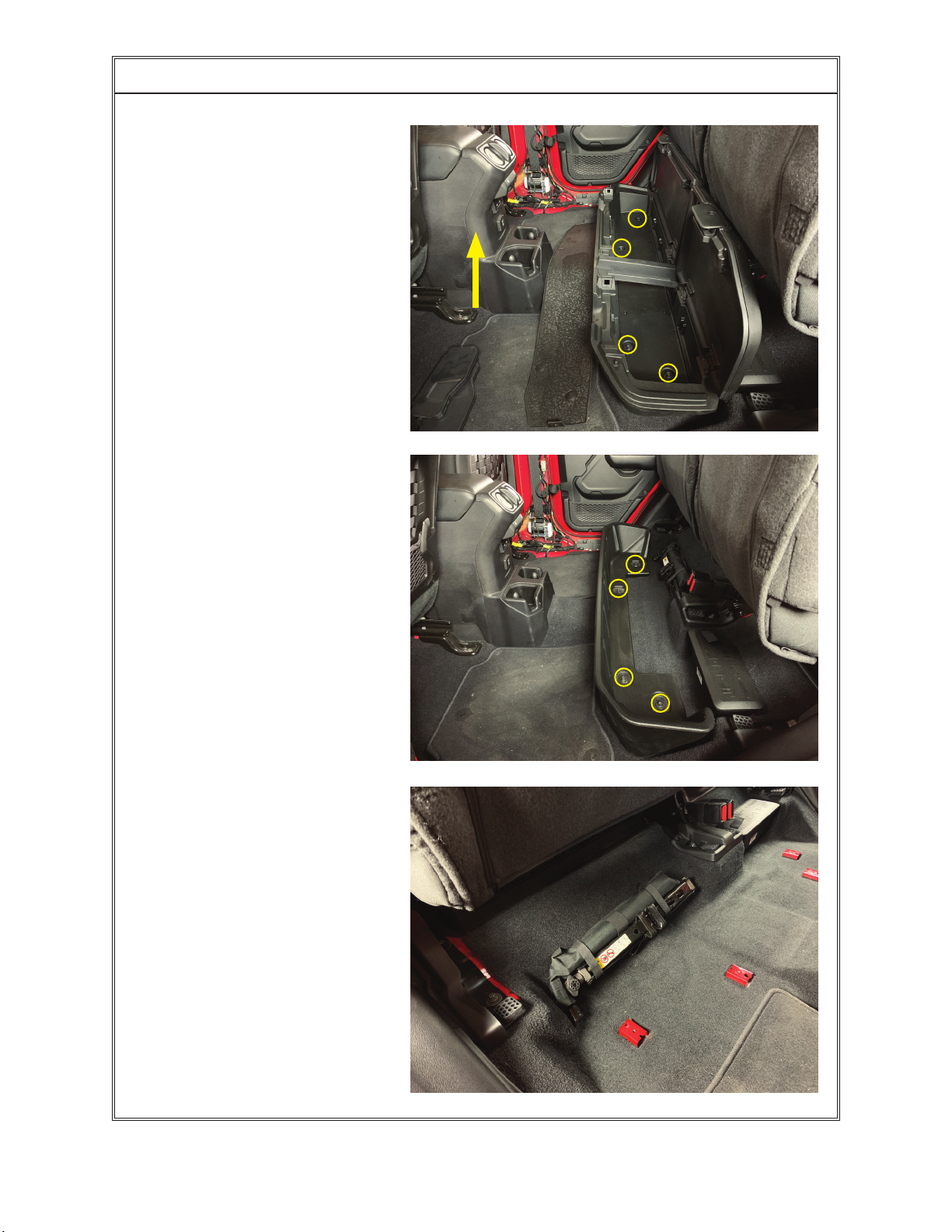

Disassembly

● Remove (4)10mm bolts

securing the under seat storage

compartment

May need to remove rubber

insert to gain access to bolts

● Remove jack

Page 3 of 5

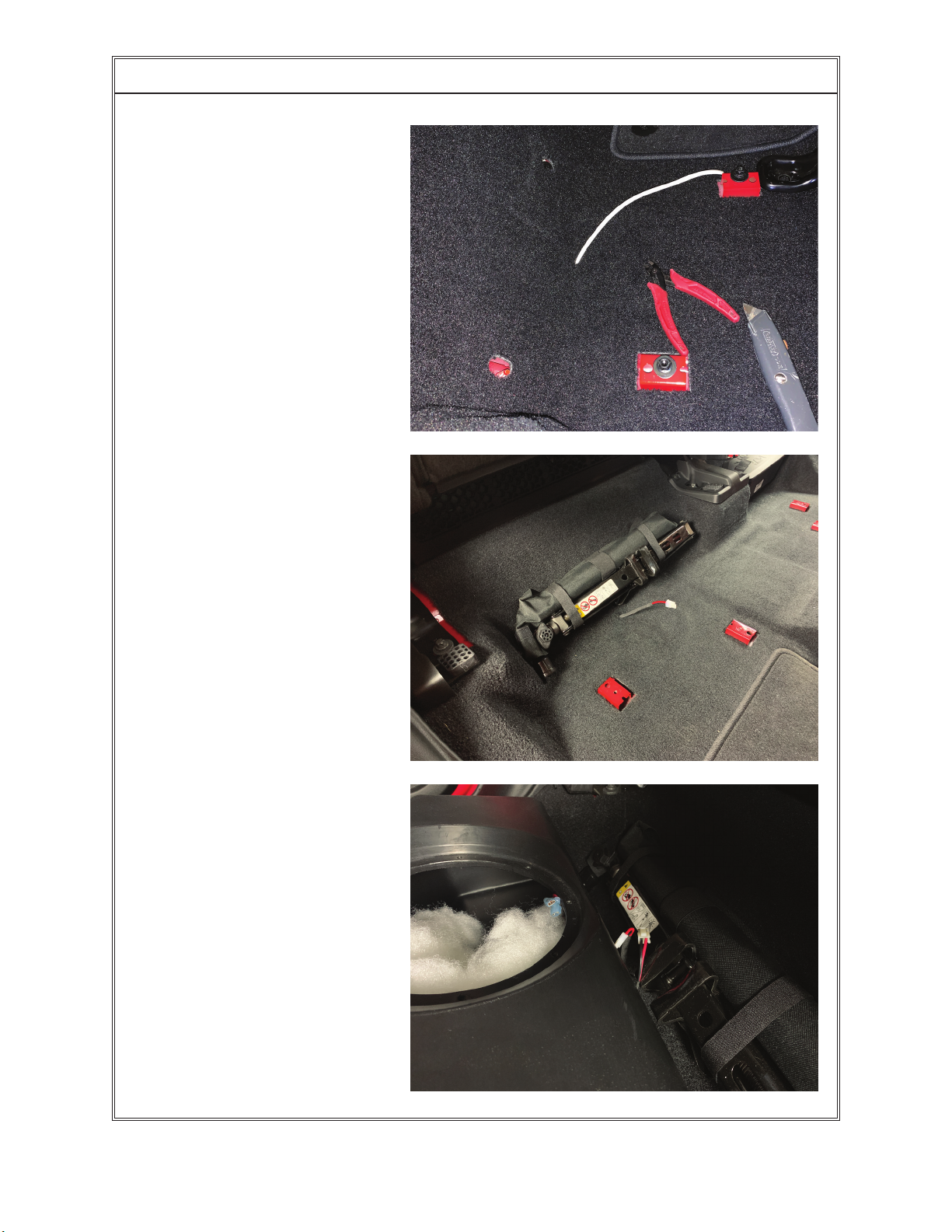

Subwoofer Installation

● Cut a small hole in the carpet (as

pictured) to pass the subwoofer

extension harness through going

toward the outside of vehicle

along door seal toward the

passenger seat area.

● Install jack

● Connect subwoofer enclosure

wiring to subwoofer extension

harness.

Page 4 of 5

Subwoofer Installation

● Reusing the (4) 10 mm bolts

holding the storage compartment,

secure the subwoofer enclosure

● Connect the subwoofer speaker

wires to the subwoofer and repeat

the process for other subwoofer

● Secure the subwoofer to the

enclosure with (8) High-Low

screws using a T-20 Torx bit

Page 5 of 5

MBQJT-SUBA-1 / MBQJT-SUB-1 REV

FCC Notication

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a mobile installation. This equipment generates uses and can radiate

radio frequency energy. If not installed and used in accordance with the instructions, this equipment

may cause harmful interference to radio communications. There is no guarantee that interference

will not occur in a particular installation.

WARNING: Changes or modications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This equipment complied with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20cm

between the radiator and your body.
