McCulloch Edition 1 Manuale del proprietario

www.mcculloch.biz

REPAIR PARTS MANUAL

MODEL NO. EDITION 1

MFG. ID. NO. 96141011700

Rotary Lawn Mower

532 40 27-08 Rev. 2 07.06.06 BY Printed in U.S.A.

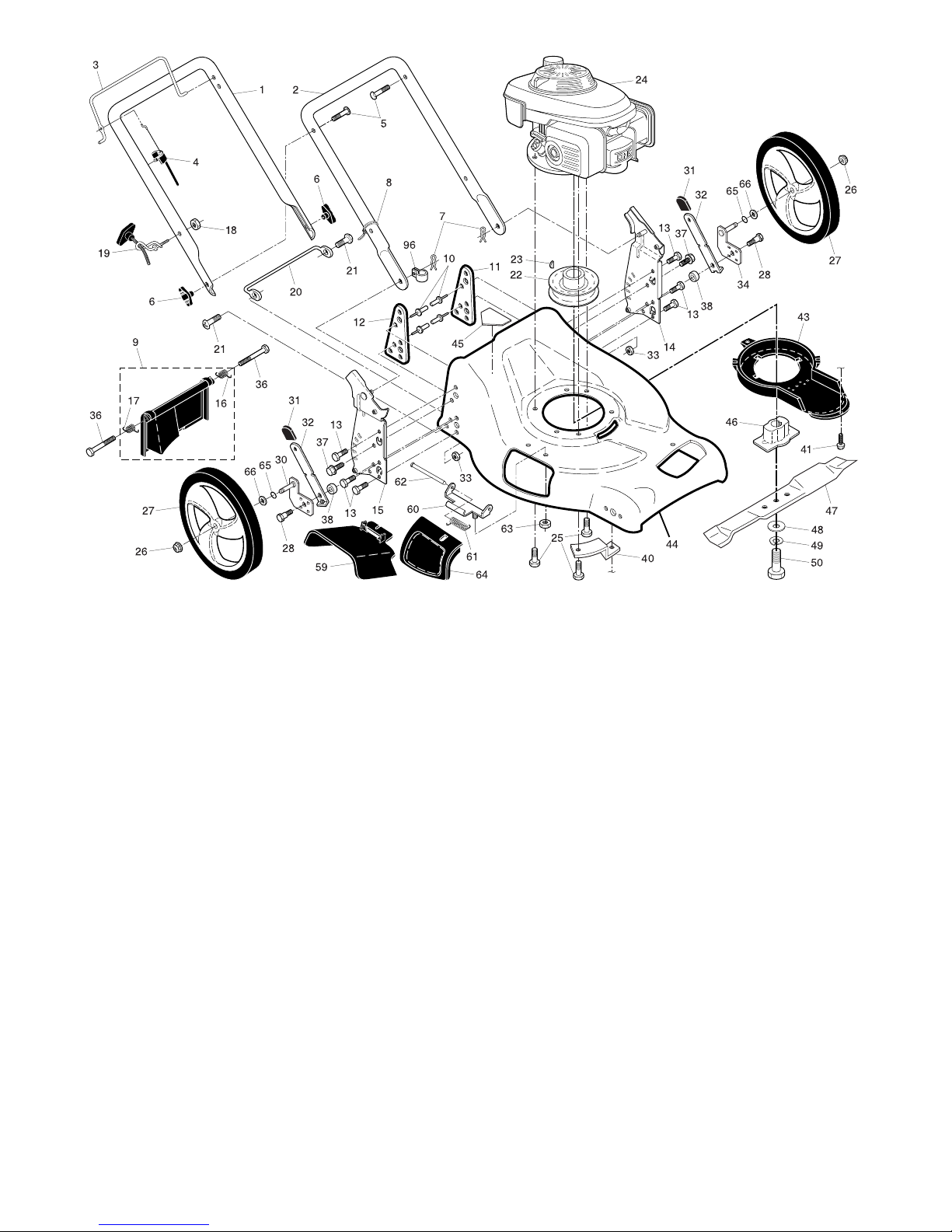

ROTARY LAWN MOWER - - MODEL NO. EDITION 1 (96141011700) - PRODUCT NO. 961 41 01-17

SERVICE NOTES

1 532 19 25-17 Upper Handle

2 532 15 36-05 Lower Handle

3 532 14 67-71 Control Bar

4 532 18 35-67 Cable, Engine Zone Control

5 532 19 15-74 Handle Bolt

6 532 19 19-38 Handle Knob

7 532 05 17-93 Hairpin Cotter

8 532 06 64-26 Wire Tie

9 532 18 04-79 Rear Door Kit (Includes Key Numbers 16 & 17)

10 532 12 84-15 Pop Rivet

11 532 18 25-38 Support Bracket, LH

12 532 18 25-39 Support Bracket, RH

13 817 06 04-10 Screw 1/4-20 x 5/8

14 532 18 25-43 Handle Bracket Assembly, LH

15 532 18 25-45 Handle Bracket Assembly, RH

16 532 18 00-71 Spring, Rear Door, LH

17 532 18 00-72 Spring, Rear Door, RH

18 532 13 20-04 Locknut, Hex, Keps 1/4-20

19 532 19 47-88 Rope Guide

20 532 17 92-05 Foot Guard, C.E.

21 532 05 45-83 Screw, Tapping 1/4-20 x 1/2

22 532 18 49-41 Engine Pulley

23 532 18 77-23 Hi-Pro Key

24 - - - Engine, Honda, Model Number GCV160

(order parts from engine manufacturer)

25 532 15 04-06 Screw, Hex Head, Rolled 3/8-16 x 1-1/8

26 532 14 52-12 Nut, Hex, Flanged

27 532 40 25-95 Wheel & Tire Assembly, Rear 12"

28 532 16 08-28 Shoulder Bolt 5/16-18 x .33

30 532 40 25-71 Axle Arm Assembly, Rear, RH

31 532 70 10-37 Selector Knob

KEY PART

NO. NO. DESCRIPTION

32 532 19 01-57 Selector Spring

33 873 80 05-00 Locknut, Hex

34 532 40 25-72 Axle Arm Assembly, Rear, LH

36 532 18 41-93 Bolt

37 532 15 00-78 Thread Cutting Screw w/Sems 5/16-18 x 3/4

38 819 11 22-06 Spacer

40 532 19 09-39 Mounting Bracket, Debris Shield

41 532 19 23-25 Screw, Hex Washer Head

43 532 18 87-84 Debris Shield

44 532 40 07-51 Kit, Lawn Mower Housing

(Includes Key Numbers 10, 11, 12 and 45)

45 532 18 21-66 Danger Decal

46 532 18 46-32 Blade Adapter

47 532 19 93-77 Blade, 21"

48 532 85 10-74 Hardened Washer

49 532 85 02-63 Helical Washer 3/8-24 x 1-3/8 Grade 8

50 532 85 10-84 Machine Screw, Hex 3/8-24 x 1-3/8 Grade 8

59 532 17 50-71 Discharge Deﬂector

60 532 17 57-35 Hinge Bracket

61 532 19 30-00 Spring, Hinge

62 532 17 56-50 Rod, Hinge

63 873 80 04-00 Nut, Hex

64 532 17 50-66 Mulcher Door

65 532 19 74-80 O-Ring

66 532 08 83-48 Washer, Flat 3/8

96 532 19 79-91 Clip, Cable

- - 532 18 21-34 Decal, Self-Propelled, Internal (not shown)

- - 532 40 27-11 Operator’s Manual, European

- - 532 40 27-09 Operator’s Manual, Scandinavian

- - 532 40 27-12 Operator’s Manual, East Bloc

- - 532 40 27-10 Operator's Manual, Baltic

- - 532 40 27-08 Repair Parts Manual, English

KEY PART

NO. NO. DESCRIPTION

ROTARY LAWN MOWER - - MODEL NO. EDITION 1 (96141011700) - PRODUCT NO. 961 41 01-17

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

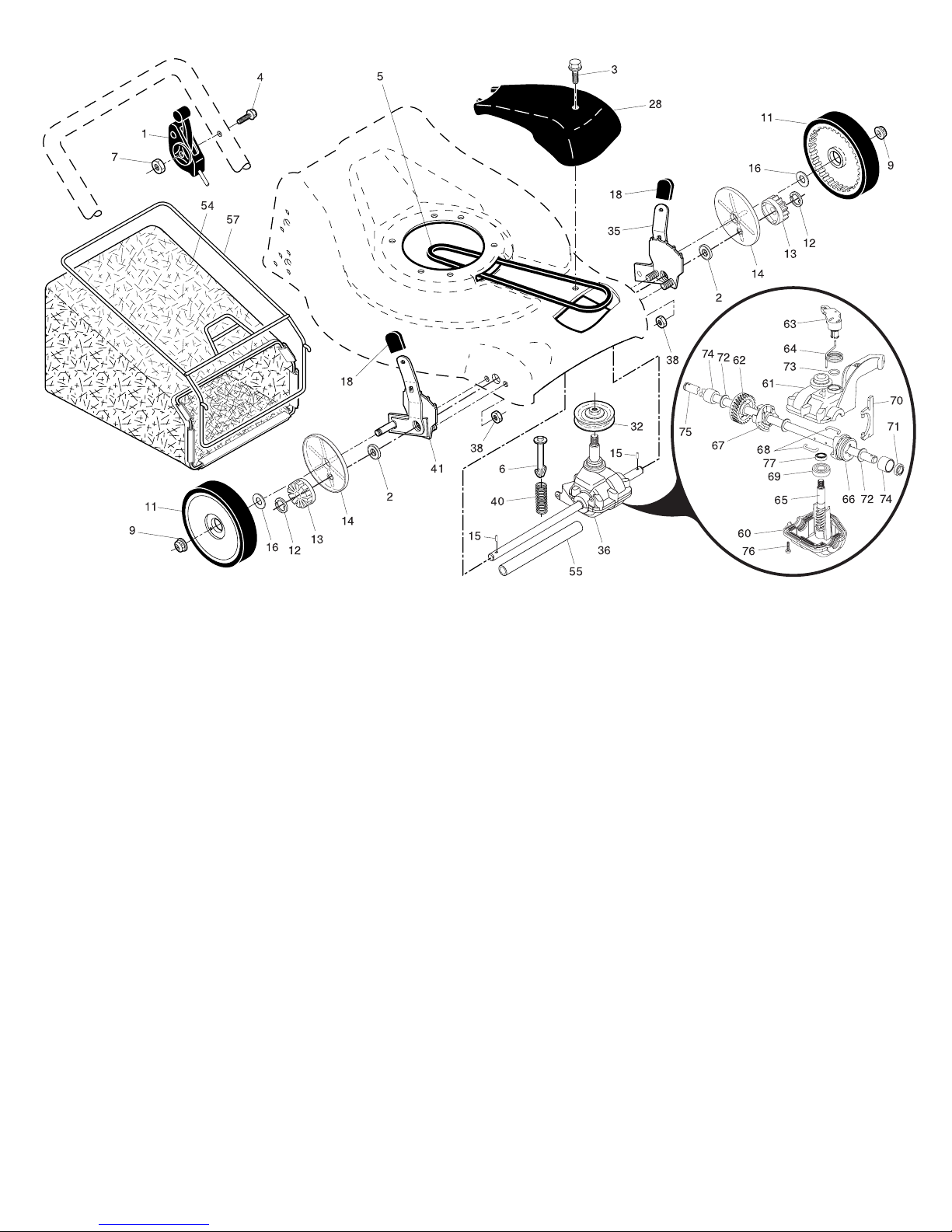

ROTARY LAWN MOWER - - MODEL NO. EDITION 1 (96141011700) - PRODUCT NO. 961 41 01-17

1 532 18 45-88 Cable Assembly, Drive Control

2 532 19 10-39 Bearing, Wheel Adjuster

3 532 17 52-62 Pan Head Tapping Screw #10-24 x 2-3/4

4 532 15 87-55 Hex Washer Head Screw 1/4-20 x 2.12

5 532 17 54-36 V-Belt

6 532 15 04-95 Spring Retainer

7 532 19 17-30 Nut, Hex, Flanged 1/4-20

9 532 08 39-23 Locknut, Hex

11 532 40 25-67 Wheel & Tire Assembly, Front 8"

12 812 00 00-58 E-Ring

13 532 75 00-03 Pinion

14 532 18 94-03 Dust Cover

15 532 19 10-17 Pawl, Drive

16 532 06 77-25 Washer 1/2 x 1-1/2 x .134

18 532 70 10-37 Selector Knob

28 532 18 14-67 Drive Cover

32 532 19 41-26 Drive Pulley

35 532 19 51-10 Kit, Wheel Adjuster, LH

(Includes Knob and Bearing)

36 532 19 49-35 Gear Case Assembly (See Breakdown)

38 873 80 04-00 Locknut, Hex 1/4-20

40 532 13 70-90 Spring

41 532 19 51-07 Kit, Wheel Adjuster, RH

(Includes Knob and Bearing)

KEY PART

NO. NO. DESCRIPTION

54 532 19 54-51 Grassbag Assembly

55 532 17 57-39 Driveshaft Cover

57 532 19 46-43 Frame, Grassbag

60 532 18 34-97 Case, Lower

61 532 18 34-98 Case, Upper

62 532 18 34-99 Gear, 27 Teeth

63 532 18 35-00 Lever, Clutch

64 532 18 35-01 Spring, Return

65 532 18 35-02 Shaft, Input

66 532 18 35-03 Dog, Movable

67 532 18 35-04 Dog, Fixed

68 532 18 35-05 Wire, Formed

69 532 18 35-06 Bearing, Ball

70 532 18 35-07 Fork, Shift

71 532 18 35-08 Seal, Output Shaft

72 532 18 35-09 Washer

73 532 18 35-10 Seal, Case

74 532 18 35-11 Bushing

75 532 19 66-13 Shaft, Output

76 532 18 35-13 Screw

77 532 18 35-14 Seal, Input Shaft

NOTE: Use Dow Corning #709 to reseal Gear Case Halves.

KEY PART

NO. NO. DESCRIPTION

ROTARY LAWN MOWER - - MODEL NO. EDITION 1 (96141011700) - PRODUCT NO. 961 41 01-17

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
