Measurement Computing PC-CARD-D24/CTR3 Manuale utente

PC-CARD-D24/CTR3

Digital I/O and Counter Board

User’s Guide

Document Revision 6, April, 2007

HM PC-CARD-D24_CTR3.doc

Your new Measurement Computing product comes with a fantastic extra —

Management committed to your satisfaction!

Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy

the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our mission:

To provide data acquisition hardware and software that will save time and save money.

Simple installations minimize the time between setting up your system and actually making measurements. We offer quick and

simple access to outstanding live FREE technical support to help integrate MCC products into a DAQ system.

Limited Lifetime Warranty: Most MCC products are covered by a limited lifetime warranty against defects in materials or

workmanship for the life of the product, to the original purchaser, unless otherwise noted. Any products found to be defective in

material or workmanship will be repaired, replaced with same or similar device, or refunded at MCC’s discretion. For specific

information, please refer to the terms and conditions of sale.

Harsh Environment Program: Any Measurement Computing product that is damaged due to misuse, or any reason, may be

eligible for replacement with the same or similar device for 50% of the current list price. I/O boards face some harsh

environments, some harsher than the boards are designed to withstand. Contact MCC to determine your product’s eligibility for

this program.

30 Day Money-Back Guarantee: Any Measurement Computing Corporation product may be returned within 30 days of

purchase for a full refund of the price paid for the product being returned. If you are not satisfied, or chose the wrong product by

mistake, you do not have to keep it.

These warranties are in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or

fitness for a particular application. The remedies provided herein are the buyer’s sole and exclusive remedies. Neither

Measurement Computing Corporation, nor its employees shall be liable for any direct or indirect, special, incidental or

consequential damage arising from the use of its products, even if Measurement Computing Corporation has been notified in

advance of the possibility of such damages.

Trademark and Copyright Information

Measurement Computing Corporation, InstaCal, Universal Library, and the Measurement Computing logo are either trademarks

or registered trademarks of Measurement Computing Corporation. Refer to the Copyrights & Trademarks section on

mccdaq.com/legal for more information about Measurement Computing trademarks. Other product and company names

mentioned herein are trademarks or trade names of their respective companies.

retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise

without the prior written permission of Measurement Computing Corporation.

Notice

Measurement Computing Corporation does not authorize any Measurement Computing Corporation product for use

in life support systems and/or devices without prior written consent from Measurement Computing Corporation.

Life support devices/systems are devices or systems that, a) are intended for surgical implantation into the body, or

b) support or sustain life and whose failure to perform can be reasonably expected to result in injury. Measurement

Computing Corporation products are not designed with the components required, and are not subject to the testing

required to ensure a level of reliability suitable for the treatment and diagnosis of people.

Table of Contents

Preface

About this User's Guide .......................................................................................................................6

What you will learn from this user's guide.........................................................................................................6

Conventions in this user's guide.........................................................................................................................6

Where to find more information.........................................................................................................................6

Chapter 1

Introducing the PC-CARD-D24/CTR3..................................................................................................7

Overview: PC-CARD-D24/CTR3 features ........................................................................................................7

PC-CARD-D24/CTR3 block diagram .............................................................................................................................. 7

Software features................................................................................................................................................7

Chapter 2

Installing the PC-CARD-D24/CTR3......................................................................................................8

What comes with your PC-CARD-D24/CTR3 shipment?.................................................................................8

Hardware .......................................................................................................................................................................... 8

Additional documentation................................................................................................................................................. 8

Optional components........................................................................................................................................................ 8

Unpacking the PC-CARD-D24/CTR3 ...............................................................................................................9

Installing the software ........................................................................................................................................9

Installing the PC-CARD-D24/CTR3..................................................................................................................9

If your PCMCIA card is not detected ............................................................................................................................... 9

Connecting the board for I/O operations..........................................................................................................10

Connectors, cables – main I/O connector ........................................................................................................................10

Pin out – main I/O connector...........................................................................................................................................10

Field wiring and signal termination.................................................................................................................................14

Calibrating the PC-CARD-D24/CTR3.............................................................................................................14

Chapter 3

Programming and Developing Applications....................................................................................15

Programming languages...................................................................................................................................15

Packaged applications programs ......................................................................................................................15

Counter operational modes...............................................................................................................................15

Register-level programming.............................................................................................................................15

Chapter 4

Specifications......................................................................................................................................16

Digital input/output ..........................................................................................................................................16

Counter.............................................................................................................................................................16

Power consumption..........................................................................................................................................17

Miscellaneous...................................................................................................................................................17

Environmental ..................................................................................................................................................17

Connector and pin out ......................................................................................................................................17

Preface

About this User’s Guide

What you will learn from this user's guide

This user's guide describes the Measurement Computing PC-CARD-D24/CTR3 data acquisition

board and lists hardware specifications.

Conventions in this user's guide

For more information

Text presented in a box signifies additional information related to the subject matter.

Caution! Shaded caution statements present information to help you avoid injuring yourself and others,

damaging your hardware, or losing your data.

bold text Bold text is used for the names of objects on a screen, such as buttons, text boxes, and check boxes.

italic text Italic text is used for the names of manuals and help topic titles, and to emphasize a word or phrase.

Where to find more information

Additional information about PC-CARD-D24/CTR3 hardware is available on our website at

www.mccdaq.com.You can also contact Measurement Computing Corporation with specific questions.

Knowledgebase: kb.mccdaq.com

Tech support form: www.mccdaq.com/support/support_form.aspx

Email: techsupport@mccdaq.com

Phone: 508-946-5100 and follow the instructions for reaching Tech Support

For international customers, contact your local distributor. Refer to the International Distributors section on our

website at www.mccdaq.com/International.

Chapter 1

Introducing the PC-CARD-D24/CTR3

Overview: PC-CARD-D24/CTR3 features

The PC-CARD-D24/CTR3 is a data acquisition and control board for IBM PC compatible computers with

PCMCIA/PC-CARD type slots. The primary functional elements consist of the following:

An 82C55 chip using TTL logic for 24 bi-directional digital I/O channels.

An 82C54 counter/timer chip that has three, 16-bit down-counters.

Under software control, the counters can be clocked internally from a 10 or 1 MHz crystal oscillator,

clocked externally, or chained to yield a 32- or 48-bit counter. Each counter can be gated (disabled) with

an external gate signal

The 24 digital I/O channels are divided into three ports — A, B, and C. Each port has eight I/O channels. At

power-on or reset, the digital lines are set as inputs. The board provides three independently programmable and

functioning 16-bit down-counters. You can access the clock input, gate, and output for each counter.

PC-CARD-D24/CTR3 block diagram

PC-CARD-D24/CTR3 functions are illustrated in the block diagram shown here.

Controller

FPGA

Attribute

Memory

Address Bus

Data Bus

1 MHz

Divide

by 10

10 MHz

Oscillator

Host Bus Adapter

PCMCIA Bus Connector P1 (68-pin)

Digital I/O

Port

8-bits

Control

Digital I/O

Port

8-bits

Digital I/O

Port

8-bits

Digital I/O

Port

8-bits

Control

Digital I/O

Port

8-bits

Digital I/O

Port

8-bits

Digital I/O

Port

8-bits

Control

Digital I/O

Port

8-bits

Counter

Control

Counter

P2 Connector (50-pin)

A0 (7:0)

B0 (7:0)

C0 (7:0)

CTR3 GATE

CTR3 CLK

CTR3 OUT

CTR2 GATE

CTR2 CLK

CTR2 OUT

CTR1 CLK

CTR1 OUT

CTR1 GATE

INT ENABLE

EXT INT

1 MHz OUT

Figure 1. PC-CARD-D24/CTR3 functional block diagram

Software features

For information on the features of InstaCal and the other software included with your PC-CARD-D24/CTR3,

refer to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at

www.mccdaq.com/PDFs/manuals/DAQ-Software-Quick-Start.pdf.

Check www.mccdaq.com/download.htm for the latest software version.

Chapter 2

Installing the PC-CARD-D24/CTR3

What comes with your PC-CARD-D24/CTR3 shipment?

The following items are shipped with the PC-CARD-D24/CTR3.

Hardware

PC-CARD-D24/CTR3

Additional documentation

In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at

www.mccdaq.com/PDFs/manuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description

of the software you received with your PC-CARD-D24/CTR3 and information regarding installation of that

software. Please read this booklet completely before installing any software or hardware.

Optional components

Cables

CPCC-50F-39 CPCC-50M-4 C50FF-x

Signal termination and conditioning accessories

MCC provides signal conditioning and termination products for use with the PC-CARD-D24/CTR3. Refer

to Field wiring and signal termination on page 11 for a complete list of compatible accessory products.

PC-CARD-D24/CTR3 User's Guide Installing the PC-CARD-D24/CTR3

Unpacking the PC-CARD-D24/CTR3

As with any electronic device, you should take care while handling to avoid damage from static

electricity. Before removing the PC-CARD-D24/CTR3 from its packaging, ground yourself using a wrist strap

or by simply touching the computer chassis or other grounded object to eliminate any stored static charge.

If any components are missing or damaged, notify Measurement Computing Corporation immediately by

phone, fax, or e-mail:

Phone: 508-946-5100 and follow the instructions for reaching Tech Support.

Fax: 508-946-9500 to the attention of Tech Support

Email: techsupport@mccdaq.com

Installing the software

Refer to the Quick Start Guide for instructions on installing the software on the Measurement Computing Data

Acquisition Software CD. This booklet is available in PDF at www.mccdaq.com/PDFs/manuals/DAQ-

Software-Quick-Start.pdf.

Installing the PC-CARD-D24/CTR3

The PC-CARD-D24/CTR3 board is completely plug-and-play. There are no switches or jumpers to set. To

install your board, follow the steps below.

Install the MCC DAQ software before you install your board

The driver needed to run your board is installed with the MCC DAQ software. Therefore, you need to install

the MCC DAQ software before you install your board. Refer to the Quick Start Guide for instructions on

installing the software.

To install your PC-Card, do the following:

Insert the card into a free PC Card/PCMCIA type II or III slot. The key helps to insure that the cable is

inserted in the correct orientation.

You do not have to turn the computer off. The system is designed for power-on installation. You should

hear an insertion beep when you insert the card.

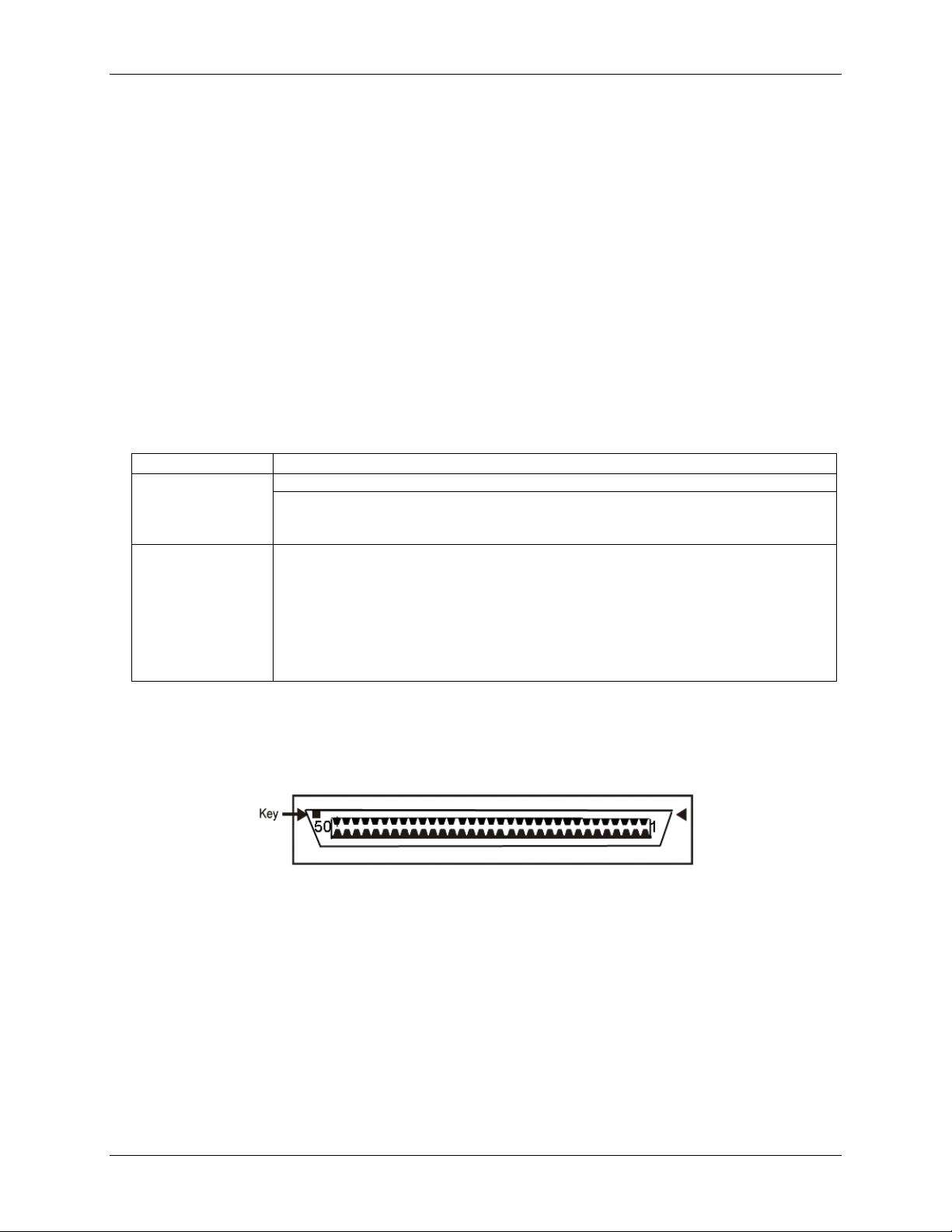

Figure 2. End view of the 50-pin PC-CARD connector showing proper orientation

Windows automatically detects, recognizes, and configures the PC-CARD. You should hear an insertion beep

when you insert the card into the slot. To verify that the card is recognized, go to Control Panel\System\Device

Manager and the card should now appear under "DAS Component."

If your PCMCIA card is not detected

If the card is not detected by Windows, and you are not prompted for a driver after inserting the card, check

that your computer's 32-bit PCMCIA drivers are installed and enabled. Do the following:

From your desktop, right-click on My Computer and select Properties. The System Properties dialog

opens.

Select the Hardware tab and click on the Device Manager button.

PC-CARD-D24/CTR3 User's Guide Installing the PC-CARD-D24/CTR3

Verify that "PCMCIA adapters" is listed in the Device Manager. If you don’t find this entry, or if the

properties for the adapter indicate "this device is not working," you need to install or update your PCMCIA

adapter drivers.

If the PCMCIA adapter is not listed, use the Add New Hardware Wizard to install PCMCIA support.

If the PCMCIA adapter is listed but not working, use the Update Driver option to install the

appropriate drivers.

After performing the update procedure, reboot your PC and insert your card again.

Connecting the board for I/O operations

Connectors, cables – main I/O connector

The table below lists the board connector, applicable cables, and compatible accessory products.

Board connector, cables, and accessory equipment

Connector type 50-pin connector

CPCC-50F-39: 50-pin Micro connector to 50-pin female IDC, one-meter cable (39 inches).

Compatible cables

CPCC-50M-4: 50-pin Micro connector to 50-pin male IDC, 4 inch adapter cable.

and

C50FF-x: 50-

in IDC female to female cable. x = length in feet.

Compatible accessory

products

CIO-MINI50

CIO-SPADE50

CIO-TERM100

SCB-50

SSR-RACK24

CIO-ERB24

CIO-SERB24

Pin out – main I/O connector

Figure 3

Figure 3. 50-pin I/O mini-connector

shows a PC-CARD-D24/CTR3 case looking into the male mini-connector. The connector is

mechanically keyed to insure that the cable is inserted correctly.

Indice

Altri manuali Measurement Computing Sistema I/O

Measurement Computing

Measurement Computing PCI-DAS6013 Manuale utente

Measurement Computing

Measurement Computing USB-1208LS Manuale utente

Measurement Computing

Measurement Computing USB-1208HS-2AO Manuale utente

Measurement Computing

Measurement Computing USB 1024ls Manuale di istruzioni

Measurement Computing

Measurement Computing E-DIO24 Manuale utente

Measurement Computing

Measurement Computing USB-3101 Manuale utente

Measurement Computing

Measurement Computing USB-1616HS Manuale utente

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manuale utente

Measurement Computing

Measurement Computing USB-1208FS-Plus-OEM Manuale utente

Measurement Computing

Measurement Computing us-1208fs Manuale utente

Measurement Computing

Measurement Computing USB-1408FS-Plus-OEM Manuale utente

Measurement Computing

Measurement Computing USB-DIO96H Manuale utente

Measurement Computing

Measurement Computing USB-1608FS Manuale utente

Measurement Computing

Measurement Computing PCIe-DIO24 Manuale utente

Measurement Computing

Measurement Computing PCI-DIO24 Manuale utente

Measurement Computing

Measurement Computing USB-1608FS Manuale utente

Measurement Computing

Measurement Computing USB-DIO96H/50 Manuale utente

Measurement Computing

Measurement Computing USB-231-OEM Manuale utente

Measurement Computing

Measurement Computing E-DIO24-OEM Manuale utente

Measurement Computing

Measurement Computing miniLAB 1008 Manuale utente

Measurement Computing

Measurement Computing USB-3103 Manuale utente

Measurement Computing

Measurement Computing PCI-DUAL-AC5 Manuale utente

Measurement Computing

Measurement Computing USB-1408FS Manuale utente

Measurement Computing

Measurement Computing PCI-DIO48H Manuale utente

Manuali Sistema I/O popolari di altre marche

WAGO

WAGO 750-344 Manuale utente

Teknim

Teknim TWM-1887 Manuale di istruzioni

Intelligent Appliance

Intelligent Appliance IA-2662-E Manuale utente

BERGHOF

BERGHOF ECC DIO 16/16 Manuale di istruzioni

Advantech

Advantech PCM-27J3AU Manuale di installazione e funzionamento

Festo

Festo CP-E08-M12-CL Manuale utente

Hitachi

Hitachi HX-RIO3 Series Manuale utente

NUUO

NUUO SCB-A08 Manuale utente

M-system

M-system R3Y-RS8 Manuale utente

jablotron

jablotron JB-110N Manuale utente

Omron

Omron SYSMAC C200H Manuale utente

DOLD

DOLD SAFEMASTER M Manuale utente

ABB

ABB OPT-MF-001 Manuale utente

Omron

Omron SYSMAC C2000H Manuale utente

Helmholz

Helmholz TB20 Manuale utente

ICP DAS USA

ICP DAS USA tM-AD2 Manuale utente

Automationdirect.com

Automationdirect.com DL305 Manuale utente

WAGO

WAGO I/O-SYSTEM 750 Manuale utente
