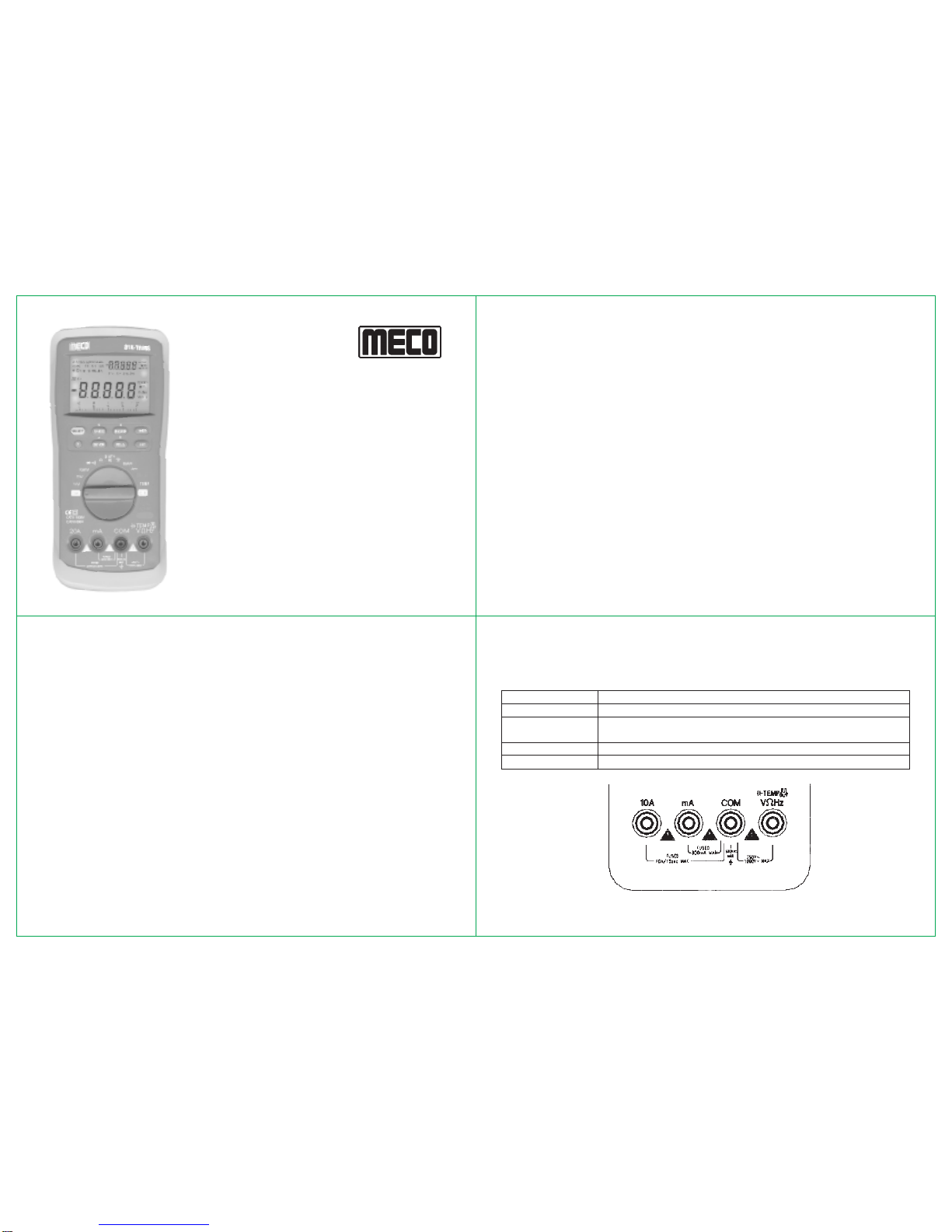

Meco 81K Manuale utente

A unique Multi-functional device

Features :

lMulti-Display : Primary 80000

Secondary 80000

Bargraph 23 segments

lBasic DC Accuracy : 0.05%

lmV Impedance : >1000MV

lMore than 50 measuring functions.

lFrequency measurement : 0.5Hz to 1000.000000 MHz

l16 Freguency points, 1% to 99% duty selectable square wave output.

lAnalyzing component of current or voltage signal.

lResistance : 0.1Vto 80MV,10MVto 8000MV

lCapacitance : 1PF to 100mF

lTemperature : -500C to 13720C, -580F to 25020F

ldBm 20 types of reference impedance.

lAuto data hold/peak hold.

lRelative measurement.

l36-hours dynamic recording : MAX / MIN / AVG / MAX-MIN

lCommunication : isolated optical RS232

lTimer for measurement.

lBacklight display.

lAuto power off

Brief introduction

These series have two models.

The 80000 is autorange and calibrated by 50Hz sine signal.

The 80000R is also antorange and can offer true RMS measurement.

Safety information

Read this operation manual completely before using the meter to ensure that you use the meter safety

follow the safety guidelines as below :

lUse the meter only as specified in this manual; Other wise,the protection provided by the meter

maybe impaired.

lNever measure voltage while the test leads are inserted into the current input terminals.

lDo not use the meter if it looks damaged .

lInspect the leads for damaged insulation or exposed metal, check test lead continuity. Replace

damaged leads.

lDisconnectthepoweranddischarge allhigh-voltagecapacitors beforetestingin resistance,continuity,

and diode function.

lBe Cautions when working above DC 60V or AC 42V,such voltages may cause a shock hazard.

lWhen making measurement, keep your fingers behind the guards plant on the probes.

lSelect the proper function and range for measurement, To avoid damaging the meter, disconnect

the test leads from test points before change function.

Digital Multimeter

Function Generator

10 Digit Counter

MODEL : 81K / 81K-TRMS

80000 Series

Function of meter

Terminal

About terminal function refer to table 1

Table 1. terminal

Terminal Function

COM Common terminal for all measurement

Volts, Ohm, Diode, Freq., Temp. and Cap.

V / V/ Hz measurement and square wave output terminal

mA milliampere current measurement terminal

10A Ampere current measurement terminal

Figure 1. terminal

4.Timer [RS 232]

lPress this button more than 2 seconds the meter enter communication on and "RS232" appear on

display screen .

lAt communication mode auto power off disable.

lPress this button more than 2 seconds again the meter exit this mode and return normal state.

lSetting time for measuring see special functions.

5. H

lPress this button meter enter auto data hold mode and "A-H" appear on display screen .

lThe data hold function allows aperator to hold the dispiayed digital value while analog bar graph

continues showing the present reading.

lAt auto hold mode the meter can refresh hold new stable readings and sound point out.

lPress this button again, the meter enter Peak + hold modc and a "PH+"appear on display screen.

lPress this button again, the meter enter Peak - hold mode and "PH-" appear on display screen.

lPress this button more than 2 seconds the meter exit HOLD mode and return to normal state.

6. 2nd VIEW

1. SELECT

lPress this button you can select your measurement mode.

lWhen meter as square wave output, press this button can select duty of square wave (1% - 99%).

2. RANGE

lWhen power on meter it at auto range mode,press this button can select your measurement range.

lWhile SET button operating the RANGE change asp(moving up) button.Press this button can move

setting digits up.

lPress this push button more than 2 seconds meter return to auto range.

3. MAX / MIN

lPress this button momentary the meter enter dynamic record mode.

lAt dynamic record mode, press this button momentary again to cycle MAX, MIN, AVG, MAX-MIN and

Present Reading on secondary display.

lPress this push button more than 2 seconds meter retum to normal mode .

lAt MAX/MIN state the recording time is 36 hours.

lWhile SET button operating the MAX / MIN change as t(moving left) button. Press this button can

move setting digits left.

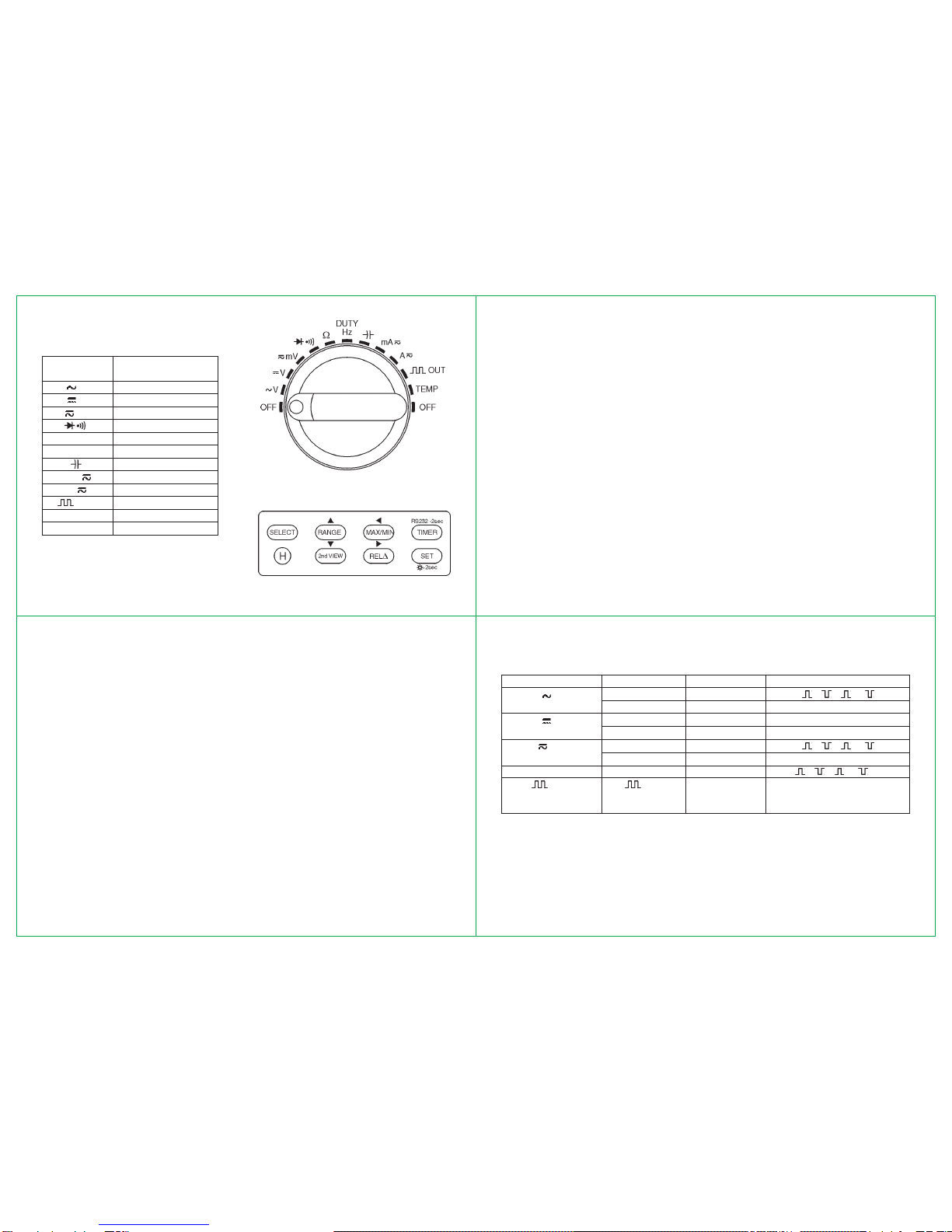

Rotary switch

About rotary switch function refer to table 2

Table 2. functions of rotary switch

position of Function

rotary switch

V AC V

V DC V

mV DC, AC millivoltage

Diode & continuity

VResistance

DUTY/Hz Duty / Frequency

Capacitance

mA -- milliampere current

A ~Ampere current

OUT Squarer wave output

TEMP Temperature

OFF Power off

Push button

Figure 3. Push button

Figure 2. Rotary switch

lUse 2nd VIEW select secondary display functions. table 3 shows press 2nd VIEW button various

measuring states.

Table 3. press 2nd VIEW for secondary display

Rotary Switch position Measure state Primary display Second display

V ACV+Hz ACV Hz/ %/ %/ ms/ ms

AC dBm+Hz AC dBm ACV/Hz

V (ACV+DCV)+Hz ACV+DCV ACV/Hz

dBm+Hz dBm Hz/ACV/DCV/ACV+DCV

mV ACmV+Hz ACmV Hz/ %/ %/ ms/ ms

dBm+Hz dBm Hz/ACmV/DCmV/ACmV+DCmV

Hz / DUTY Hz Hz %/ %/ ms/ ms

OUT OUT Press 2nd VIEW Press SELECT

to change output to change duty value

frequency

lThe meter as square wave output,press this button can selecting frequency :

0.5000Hz/1.0000Hz/2.0000Hz/10.000Hz/50.000Hz/60.240Hz/74.63Hz/100.00Hz/151.50Hzi200.00Hz/

303.00Hz/606.10Hz/1.2500kHz/1.6660kHz/2.5000kHz/5.0000kHz .

lPress this button more than 2 seconds the meter return 606.10 Hz, 50% of duty output state.

lWhile SET button operating the 2nd VIEW change as q(moving down) button. Press this button can

move setting digits down.

7. RELr

lPress this button the meter enter relative measuring state and “RELr”appear on display.In this mode

910

11 12

present readings as Relative reference value and display on secondary.Relative measurement has two

mode.one is RELr= measuring value - Reference value, the other is

REL

%= (RELr/Reference value)

x 100% ( press SELECT to select RELror REL% mode).

lWhile SET button operating RELrbutton change as u(moving right) button.

lSet up reference value for measurement .

1. In every function use RANGE select your range.

2. After press SET once, press SELECT twice the meter enter set up reference value for measurement.

At same time the pqt ubutton are started.

3. Use pqt ubuttons set your reference value.

4. After set up, you can press SET to confirming.

lPress RELrbutton more than 2 seconds the meter return to normal state.

8. SET

lPress this button to starting pRANGE q2nd VIEW tMAX/MIN uRELrbuttons. Use these

buttons set up your digits .At this condition the RANGE, 2nd VIEW, MAX/MIN, RELroriginal functions

are disabled.

lPress this button more than 2 seconds backlight on and press this button again the backlight off.

The light can auto off after it on 30 seconds if does not press this button.

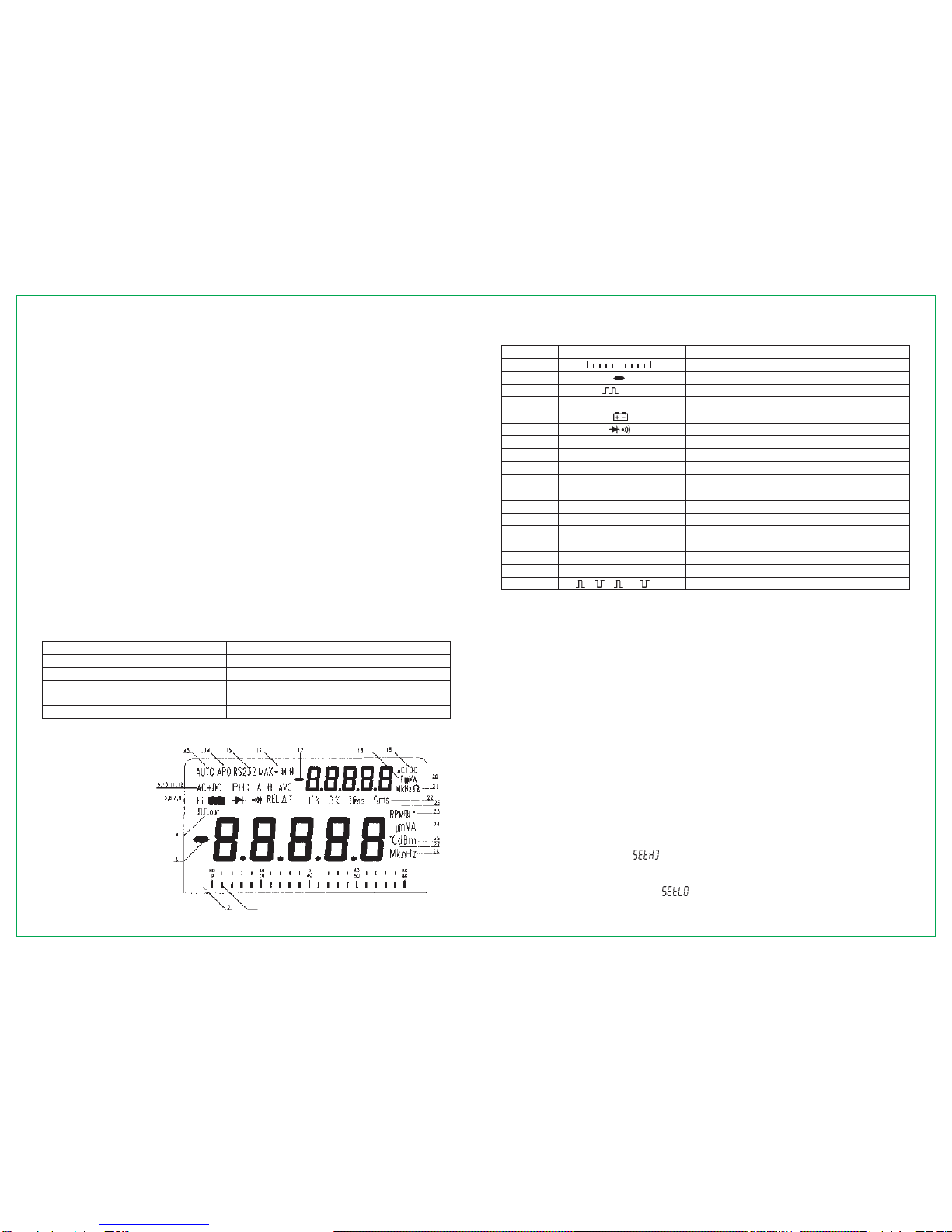

Display

Table 4. symbols of display

Order No. Symbol Description

1 Analog bar graph

2, 3,17 Negative sign

4 OUT Square wave output

5 Hi Hi frequency or themocoupIe indicate

6 Battery power is weakening

7 Diodelaudible continuity function

8 RELr% Relative measurement

9, 19 DC, AC, DC+AC DC,AC, DC+AC voltage or current

10 PH+ PH- + peak hold, - peak Hold

11 A-H Auto Hold

12 AVG Average reading

13 Auto Auto mode

14 APO Auto power off sign

15 RS 232 Communication on annunciation

16 MAX/MIN/MAX-MIN MAX Reading, MlN Reading /MAX-MIN Reading

20 mV/V/mA/A Second display volt and current unit

21 Hz/kHz/MHz/V/kV/MVFrequency and Resistance (ohms) unit [second]

22 % % ms ms Duty cycle unit, pulse width unit

23 nF/ mF Capcitance unit

24 mV/V/mA/A Primary display volt and current unit

25 dBm dBm annunciation

26 Hz/KHz/MHz/V/kV/MVFrequency and Resistance (ohms) unit (primary)

27,18 0C 0F Temperature measurement indicate

28 RPM Round/per minute

Figure 4. Display

Special functions

lAuto power off

The meter has auto power off function, in normal conditions, when the meter is power on, if any push

buttons are not used or rotary switch is not changed, it can auto power off in 30 minutes after power on.

Before power off five minutes, the audible five beepers that points out the meter will power off.In operating

state any push button is used or rotary switch is changed the time of auto power off will recount.

lSet up time for measurement

1. Press TIMER button to set time [ “0.00.00” appear at secondary display].

2. Press SELECT button the last digit of secondary display flash, at the same time, the pqt uare

enable [The first digit of secondary display is hour, the second and third are minutes, tbe forth and fifth

are seconds].

1. Lise pqt ubuttons to select digit of time .

2. Press TIMER button again to confirming Complete this procedure measuring lime is starting .

lSet limited measurement

The meter has set up limited or down limited measurement functions, up limited and down limited setting

as following.

1. Set Up limited : power on the meter gselect range gpress SET gpress SELECT select Up limited

seting state (secondary display “ ”) press moving buttons pqt uto set digits gpress SET to

confirm.

2. Set Down limited : power on the meter gselect range gpress SET gpress SELECT select Down

limited seting state (secondary display “ ”) press moving buttons pqt uto set digits gpress

SET to confirm.

13 14

15 16

lIn the auto range (Auto) mode, the meter selects the best range for the input detected.This allows you

to switch test points without having to reset the range.

lIn the manual range mode you can select the range, this allaws you to override auto range and lock the

meter in a specific range.

lWhen the meter in auto range mode the “AUTO” sign will be appear on display screen.

(3) To enter or exit manual range mode ;

lPress RANGE button momentary the meter enters the manual range mode and “AUTO” turns off.

lEach press of RANGE momentary increments the range. When the highest range is reached, the

meter wraps to the lowest range.

lPress RANGE more than 2 seconds the meter returns to auto range mode and “AUTO” appear on

display screen .

3. After setting proceeding measurement.

a. If measuring above limited the secondary display “ ” and primary display present value .

b.If measuring down limited ihe secondary display “ ” and primary display present value .

c. If mcasuring about high and low, secondary display “ ”

lAnalog bar graph

The Function of bar graph is analog needle of meter but without the overload, and updates 40 times per

second because the graph responds 10 times faster than the digital display it is useful for making peak

andnull adjustments and abserving rapidly changing inputs.Thebar graphhas 23 segments.The number

of lit segments is relative to the full-scale value of the selected range.The unit of the bar graph is 4000

counts/bar except when in the relative mode.The polarity indicated at left of the bar graph.

lSquare wave output

The square wave output is a useful function is Iet user have free space for application. For instance,

PWM (Pulse Width Modulation) out, regulate voltage control, timer to control circuit, synchronous clock,

etc, this is a free-for-all application function.

Measurement ranges

A measurement range determines the highest vatue meter can measure.the meter functions have more

than one range.

(1) Being in the right measurement range is important :

lIf the range is too high, the meter will not display the must accurate measurement; If the range is too

low, the meter will show “OL” on the display.

(2) Auto range and manual range ;

lThe meter bas both auto range and manual range options :

How to operate

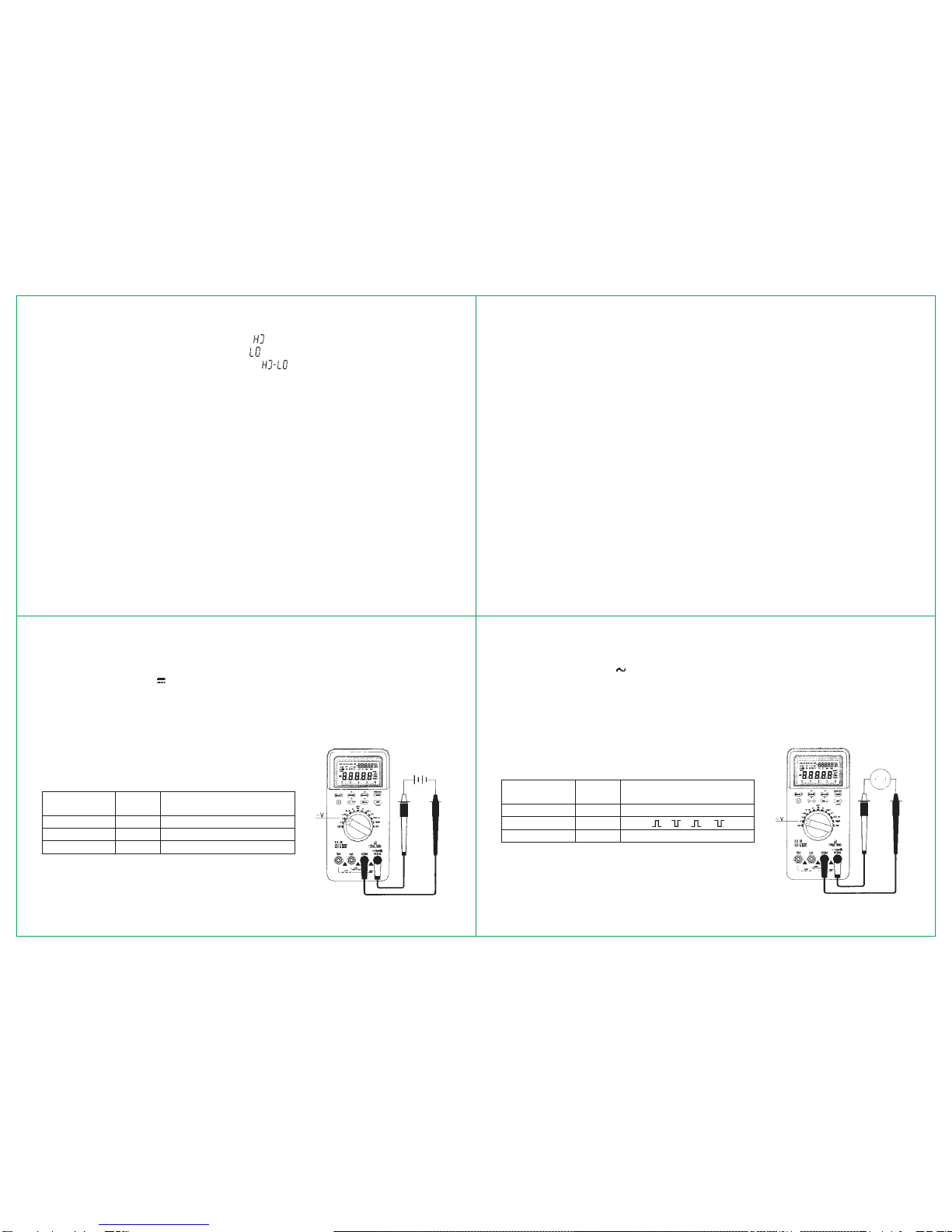

lDC Voltage measurement

The measurement of DCV has three modes : DCV / [DCV+ACV] / dBm.

1. Set the rotary switch to “ V ” position.

2. Press SELECT to select measurement mode.

3. Connect the black test lead to “COM” terminal and the red test lead to “V VHz” terminal.

4. For auto range mode the meter at auto range, if you want some range press RANGE to obtain your

range.

5. According to your need, can press RELrMAX/MIN and 2nd VIEW buttons obtain relevant

measurement .

6. Touch the probes to the test points and reading display.

7. Primary and secondary display as Table 5.

Table 5. primary and secondary display

Press Secondary

SELECT Primary [ press 2nd VIEW ]

DCV DCV

[DCV + ACV ] ACV ACV/Hz

dBm dBm Hz/ACV/DCV/DCV+ACV

Note : When enter to dBm measurement, the impedance is

600 V, if you want change impedance, press RANGE to select

impedance.The impedance selectable is :

4/8/16/32/50/75/93/110/125/135/150/200/250/300/500/600/800/

900/1000/1200 of Ohms. Figure 5. DCV measurement

lAC Voltage measurement

The measurement of AC voltage has three modes : ACV / [ACV+Hz] / dBm.

1. Set the rotary switch to “ V ” position.

2. Press SELECT to select measurement mode.

3. Connect the black test lead to “COM” terminal and the red test lead to “V VHz” terminal.

4. For auto range mode the meter at auto range, if you want some range press RANGE to obtain your

range.

5. According to your need, can press RELrMAX / MIN and 2nd VIEW buttons obtain relevant

measurement.

6. Touch the probes to the test points and reading display.

7. Primary and secondary display as Table 6.

Table 6. primary and secondary display

Press Secondary

SELECT Primary [ press 2nd VIEW ]

ACV ACV

[ACV + Hz ] ACV Hz/ %/ %/ ms/ ms

dBm dBm Hz/ACV

Note : When enter to dBm measurement, the impedance is

600 V, if you want change impedance, press RANGE to select

impedance.The impedance selectable is :

4/8/16/32/50/75/93/110/125/135/150/200/250/300/500/600/800/

900/1000/1200 of Ohms. Figure 6. ACV measurement

17 18

19 20

interference. Some random digits on display but have not effect

on result of measurement.

3. At millivoltage measurement mode in order to obtain DC+AC

function, the input terminal of ADC do not employed coupling

capacitor.There for please never apply more than the double dc

or ac voltage of the rated value of this range.

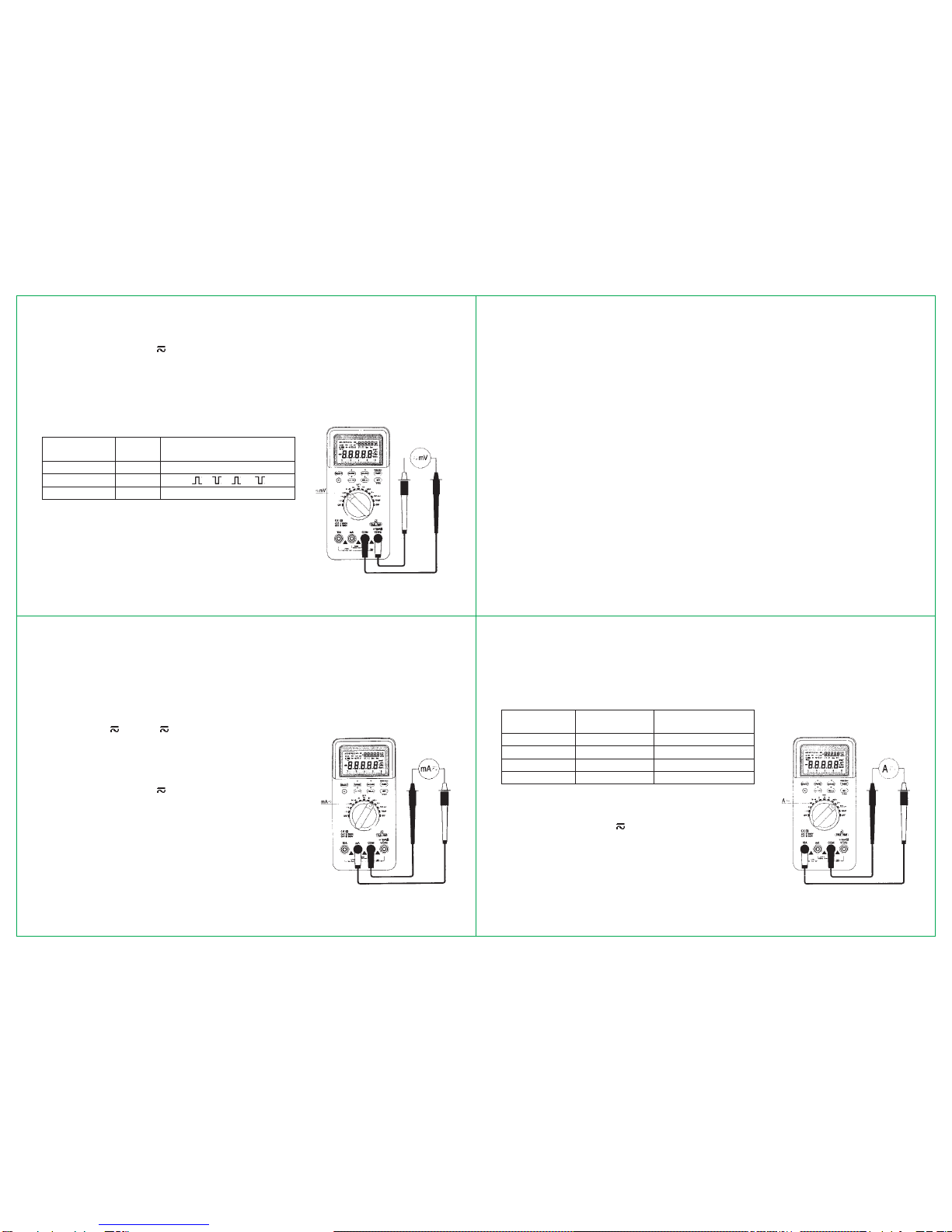

lAC/DC millivoltage measurement

The measurement of millivoltage has three modes : DCmV / [ACmV+Hz] / dBm.

1. Set the rotary switch to “ mV ” position.

2. Press SELECT to select measurement mode.

3. Connect the black test lead to “COM” terminal and the red test lead to “V VHz” terminal.

4. According to your need, can press RELrMAX / MIN and 2nd VIEW buttons obtain relevant

measurement.

5. Touch the probes to the test points and reading display.

6. Primary and secondary display as Table 7.

Table 7. primary and secondary display

Press Secondary

SELECT Primary [ press 2nd VIEW ]

DCmV DCmV

[ACmV + Hz ] ACmV Hz/ %/ %/ ms/ ms

dBm dBm

Hz/ACmV/DCmV/[DCmV+ACmV]

Note :

1.When enter to dBm measurement, the impedance is 600 V,

if you want change impedance, press RANGE to select impedance.

The impedance selectable is :

4/8/16/32/50/75/93/110/125/135/150/200/250/300/500/600/800/

900/1000/1200 of Ohms.

2. At millivoltage mode the input impedance more than 1000

M V, therefore at test leads opening state input easy caused Figure 7. mV measurement

Warning For Current measurement

To avoid damage to meter or injury, if the fuse blows. Never attempt an in-circuit current measurement.

Where the open-circuit potential to earth is greater than 1000V.To avoid damage to the meter, check the

meter’s fuses before proceeding. Use the proper terminals, function and range for your messurement.

Never place the probes in parallel with a circuit or component when the leads are plugged into the current

terminals.Never test voltage when test lead plug in “mA” or “10A” terminal !

Warning to wrong operation when probes are plugged in to the “mA” or “10A” terminal and the rotary

switch is not at “ mA ” or “ A ” position, meter will beeper warning to wrong operation until rotary

switch at right position or probes pull out “mA” or “10A” terminals.

lAC/DC milliampere current measurement

The measurement of milliampere has four modes :DCmA / ACmA /

[DC mA + ACmA] / [ACmA + Hz].

1. Set the rotary switch to “ mA ” position.

2. Press SELECT to select measurement mode.

3. Connect the black test lead to “COM” terminal and the red test

lead to “mA” terminal.

4. According to your need, can press RELrMAX / MIN buttons

obtainrelevantmeasurement.Turnoff powertothe circuit, discharge

all high-voltage capacitors.

5. Break the circuit path to be tested. Touch the black test lead

to more negative side of the break; Touch the red test lead to the

more positive side of the break. Figure 8. mA Current

measurement

6. Turn on power to the circuit, then read the display.

7. Primary and secondary display as Table 8.

8. Turn off power to the circuit and discharge all high-voltage

capacitors. Remove the meter and restore the circuit to normal

operation. Pull out the red test lead from “mA” terminal.

Table 8. primary and secondary display

Press Secondary

SELECT Primary [ press 2nd VIEW ]

DCmA DCmA

ACmA ACmA

DCmA+ACmA DCmA+ACmA ACmA

ACmA+Hz ACmA Hz

lAC/DC Ampere current measurement

The measurement of ampere current has four modes : DCA /

ACA / [DCA+ACA] / ACA+Hz

1. Set the rotary switch to “ A ” position.

2. Press SELECT to select measurement mode.

3. Connect the black test lead to “COM” terminal and the red

test lead to “10A” terminal.

4. According to your need, can press RELrMAX / MIN

buttons obtain relevant measurement. Figure 9. Ampere current

measurement

21 22

23 24

5. Turn off power to the circuit, discharge all high-voltage capacitors.

6. Break the circuit path to be tested.Touch the black test lead to more negative side of the break.Touch

the red test lead to the more positive side of the break.

7. Turn on power to the circuit, then read the display.

8. Primary and secondary display as Table 9.

Table 9. Primary and secondary display.

Press Secondary

SELECT Primary [ press 2nd VIEW ]

DCA DCA

ACA ACA

DCA+ACA DCA+ACA ACA

ACA+Hz ACA Hz

9. Turn off power to the circuit and discharge all high-voltage capacitors.Remove the meter and restore

thc circuit to normal operation. Pull out the red test lead from “10A” terminal.

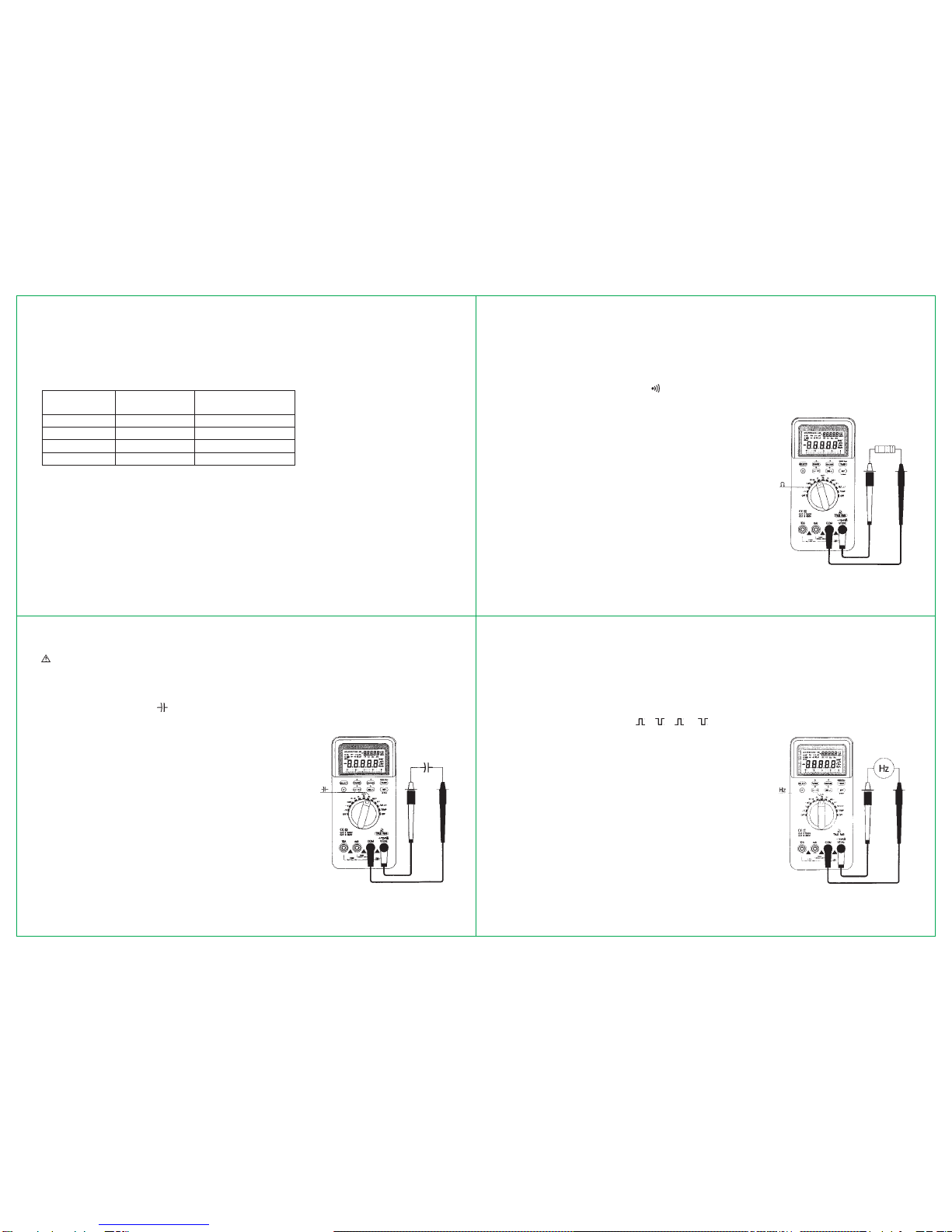

lResistance Measurement

Caution

To avoid damage to meter or to the equipment under test,disconneet circuit power and discharge

all high-voltage capacitors before measuring resistance.

The measurement of resistance has three modes : normal, continuity and Hi resistance. Use SELECT

button to select these mode.

lNormal mode

1, Set the rotary switch to “V” position.

2. Connect the black test lead to “COM” terminal and the red test lead to “V VHz” terminal.

3. Touch the probes to the test points and reading display.

Note :The test leads can add 0.1 V~ 0.5 Vof error to resistance measurement, please short test leads

and press RELr

4. According to your need can press RELrMAX / MIN buttons obtain relevant measurement.

lContinuity mode

At normal mode press SELECT until “ ” sign appear on the display screen.If checking point resistance

fall below 50 Vthe beeper will sound.

lHi resistance mode

At normal mode press SELECT until “Hi” sign appear on display

screen. Using this function can measure above 80M Vresistance.

Figure 10.

resistance measurement

lCapacitance Measurement

Caution

To avoid damage to the meter or to the equipment under test disconnect circuit power and

discharge all high-voltage capacitors before messuring capacitance. Use the DC voltage function

to confirm that the capacitor is discharged.

1. Set the rotary switch to “ ” position.

2. Connect the black test lead to “COM” terminal and the red test lead to “V VHz” terminal.

3. Touch the robes to capacitor’s legs, if the capacitor is a polarity.

The red test lead to the positive leg.

4. Press RANGE option your range, with this method can speedup

measurements of similar values.

5. According to your need can press RELrMAX / MIN buttons

obtain relevant measurement.

Figure 11. capacitance

measurement

lFrequency and rotational speed (RPM) measurement

1. Set the rotary switch to “Hz” position.

2. Press SELECT to select normal, Hi Hz and RPM three Measuring Mode.

3. Connect the probes to signal source and reading display.

4. In normal mode the meter auto ranges to one af six frequencies : 999.99Hz / 9.9999kHz /

99.999kHz / 999.99kHz / 8.0000MHz.

5. Press 2nd VIEW can change %/ %/ ms/ ms.

6. In Hi Hz mode, using Hi frequency accessory to measure

more than10MHz Frequency. The reading is 10-Digit counter

primary display + second display .

7. In RPM mode using rotational speed accessory to measure

rotational speed and reading is RPM.

Figure 12. freq. and rotational

speed measurement

25 26

27 28

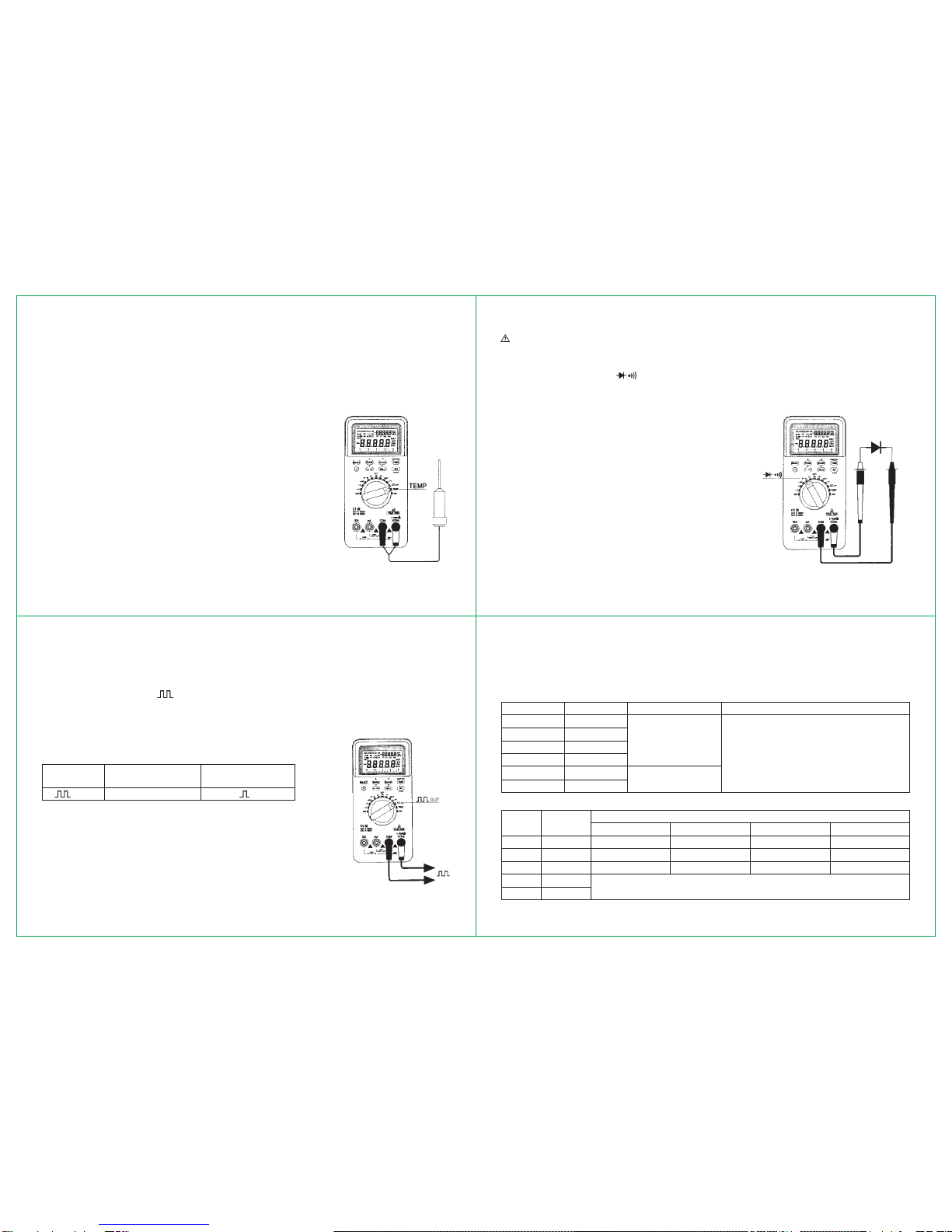

lTemperature measurement

1. Set the rotary switch to “TEMP” position.

2. Press SELECT to select Hi or normal test mode.

3. In Hi mode using type K thermocouple to measure temperature.

4. Plug the red leg ( + ) to “V VHz” terminal and the black leg ( - ) to “COM” terminal and reading

display.

5. Press SELECT to “Hi” off the reading is room temperature.

6. Measurement range : -500C -13000C, -580F-25020F.

7. Display : primary 0C, secondary 0F.

Figure 13.

temp. measurement

lDiode and continuity check

Caution

To avoid possible damage to the meter or to the equipment under test, disconnect circuit power

and discharge all high-voltage capacitors before checking diodes.

1. Set the rotary switch to “ ” position .

2. Connect the black test lead to “ COM” terminal and the red test lead to “V VHz” terminal.

3. For diode checking, touch the red test lead to the positive side of the diode and the black test lead

to the negative side.The meter can display diode voltage drop.

A good product a forward bias reading of 0.5V to 0.8V.

4. Reverse the probes and measure the voltage across the

diode again if the diode good “OL” is displayed.

Note :

(1) Near 0V drop is displayed in both directions the diode

shorted .

(2) “OL” is displayed in both directions the diode opened.

5. For continuity checking, while testing continuity, the

beeper will sound if the resistance falls below 50 V.

Figure 12. freq. and rotational

speed measurement

lSquare Wave Output

This meter can output square wave that frequency is selectable by 2nd VIEW 0.5000Hz / 1.0000Hz /

2.0000Hz / 10.000Hz / 50.000Hz / 60.240Hz / 74.63Hz / 100.00Hz / 151.50Hz / 200.00Hz / 303.00Hz /

606.10Hz / 1.2500kHz / 1.6660kHz / 2.5000kHz / 5.0000kHz.

1. Set the rotary switch to “ OUT ” position.

2. Connect the black test lead to “COM” terminal and the red test lead to “V VHz” terminal.

3. Press SELECT to select the duty of 1% to 99%.The square wave output from “COM” and “V VHz”

terminal or test leads.

4. Primary and secondary display as Table 10.

Table 10. primary and secondary display

Function Primary Secondary

[press 2nd VIEW] [press SELECT]

OUT Hz %

5. Press 2nd VIEW more than 2 seconds the meter return to

606.10Hz / 50% duty output state .

Figure 15.

square wave output

Electrical Specifications

Accuracy is specified for one year after calibration at operating temperatures of 180C to 280C, with

relative humidity at 0% to 75%

Accuracy specifications take the form of : ±(a% of reading + number of least significant digits).

Table 11. DCV

Range Resolution Accuracy Note

80mV 1mV

800mV 10mV

8mV 0.1mV ± (0.05% rdg + 10) Input impedance : 80mV - 800mV>1000MV

80V 1mV 8V - 1000V : 10MV

800V 10mV

1000V 0.1V ± (0.08% rdg + 10)

Table 12. ACV ( True RMS )

Range Resolution Accuracy

50Hz / 60Hz 50Hz - 1kHz 1kHz - 10kHz 10kHz - 20kHz

80mV 1mV ±(0.8% rdg + 10) ±(1.0% rdg + 10) ±(3.0% rdg + 10) ±(8.0% rdg + 10)

800mV 10mV ±(0.8% rdg + 10) ±(1.0% rdg + 10) ±(3.0% rdg + 10) ±(5.0% rdg + 10)

8V 0.1mv ±(0.8% rdg + 10) ±(1.0% rdg + 10) ±(3.0% rdg + 10) ±(5.0% rdg + 10)

80V 1mV

750V 10mV 50Hz - 400Hz : ±(1.0% rdg + 5)

Input impedance : 8mV - 800mV>1000MV, 8V - 1000V, 10MV, Parallel capacitance<100pF

29 30

31 32

Table 13. ACV AVG (60Hz Sine Wave Calibrating)

Range Resolution Accuracy

50Hz / 60Hz 50Hz - 1kHz 1kHz - 10kHz 10kHz - 20kHz

80mV 1mV ±(1.0%0 rdg + 8) ±(1.5% rdg + 8) ±(4.0% rdg + 8) ±(8.0% rdg + 8)

800mV 10mV ±(0.8%0 rdg + 8) ±(1.5% rdg + 8) ±(4.0% rdg + 8) ±(8.0% rdg + 8)

8V 0.1mv ±(0.8%0 rdg + 8) ±(1.0% rdg + 8) ±(3.0% rdg + 8) ±(5.0% rdg + 8)

80V 1mV

750V 10mV 50Hz - 400Hz : ±(1.0% rdg + 5)

Input impedance : 8mV - 800mV>1000MV, 8V - 1000V, 10MV, Parallel capacitance<100pF

Table 14. DCA

Range Resolution Accuracy Note

80mA 1mA

800mA 10mA± (0.5% rdg + 10) Fuses : F 800mA / 250V F 10A / 250V

8A 0.1mA Voltage drop : i800mV

10A 1mA

Table 15. ACA ( True RMS)

Range Resolution Accuracy Note

80mA 1mA

400mA 10mA 50Hz - 2kHz Fuses : F 800mA / 250V F 10A / 250V

8A 0.1mA ± (0.8% rdg + 10) Voltage drop : i800mV

10A 1mA

Table 16. ACA AVG (60Hz Sine Wave Calibrating )

Range Resolution Accuracy Note

80mV 1mA

400mV 10mA 50Hz - 500Hz Fuses : F 800mA / 250V F 10A / 250V

8A 0.1mA ± (0.8% rdg + 10) Voltage drop : i800mV

10A 1mA

Table 17. dBm

Function Range Accuracy Resolution Note

dBm -80.00dBm--- + 80.00dBm ±1.0% rdg 0.01dBm

Table 18. Resistance(V)

Range Resolution Accuracy Note

800V0.01V

8KV0.1VOverload protection

80KV1V±(0.3% rdg+10) 250V RMS

800kV10V

8MV100V

80MV1kV±(2.5% rdg+8) 60MV-80MV : ±(3.5% rdg+10)

Table 23. Square wave output

OUT Description

Voltage amplitude 3V approx.

Frequency 0.5Hz ~ 5000Hz

Duty cycle 1% ~ 99%

Table 24. Temperature

Temp Accuracy Resolution Note

-500C ~ 13720C±(2.5.% rdg+8) 10Ctype K themocouple

-580F ~ 25020F1

Table 22. Capacitance

Range Resolution Accuracy Note

500PF-1nF 1pF ±(5.0% rdg+10)

10nF 10pF

100nF 100pF

1mF 1nF ±(3.0% rdg+10) Overload protection : 250V RMS

10mF 10nF

100mF 100nF ±(3.5% rdg+10)

Table 20. Frequenc (Hz)

Function Range Accuracy Resolution Note

999.99Hz 0.01Hz

9.9999kHz 0.1Hz Overload protection : 250RMS

99.999kHz ±(0.05% rdg+5) 1Hz Sensitivity : 0.7 RMS

Frequency 999.99kHz 10Hz

8.0000MHz 100Hz

10.0MHz 1kHz

100.0MHz ±(0.1% rdg+5) 10kHz Plus adapter

1000.0MHz 100KHz

Table 21. Rotational speed (RPM)

Rotational Range Accuracy Resolution Note

speed 99999 ±(0.1% rdg+5) 1RPM Plus adapter

Table 19. Diode

Function Range Accuracy Resolution Note

Diode 8.0000V ±(0.3% rdg+5) 0.0001V Diode positive Voltage drop

Overload protection: 250V RMS

33 34

35 36

General Specification

Maximum voltage between any terminal and earth ground : 1000V RMS

Cantinuity Beeper: 3kHz Approx.

Display:Double Digital : 80000

Bar graph : 23 segments, update 40 time/sec

Temperature : Operating : 00Cto + 500C Storage : -200Cto + 600C

Altitude : Operating : under 2000m Storage: under 10,000m

Relative Humidity : i75% at 00C to + 400C i45%at + 400C to + 500C

Battery Type : 9V zinc, NEDA 1604 or 6F22 or 006p.

Battery Life : Alkaline : ~500hrs, carbon-zinc: 200hrs typical.

Size : 37 x 90 x 190mm

Weight : 650g

Electromagnetic Compatibility : in a RF field of IV/m on all. ranges and function except Capacitance :

total Accuracy = specified + 5% of range Capacitance not specified in RF fields performance above

1V/m is not specified. Safety / Compliance : IEC 61010 CAT II 1000V CATIII 600V.

Maintenance

This meter is precise device, Do not attempt to repair or service your meter you are qualified to do so

andhavethe relevantcalibration performance test, andserviceinformation.These products are intelligent

meter, use self-calibrating technology. To avoid the specification error. All components not replaced

except that if is specified.

General Maintenance

Periodically wipe case with a damp cloth mild detergent.Do not use abrasives or solvents.Dirt or moisture

in the terminals can affects readings.To clean the terminals.

1. Turn the meter OFF and remove all test leads.

2. Clean out any dirt that may be in the terminal.

3. Soak a new swap with a cleaning and oiling agent.

4. Work the swab around in each terminal the oiling agent insulates the terminals from moisture

Related contamination.

Battery Replacement

Waring

To avoid electrical or are blast, or personal Injury or damage to the meter, use specified fuses

ONLY in accordance with the following procedure

The meter is powered by a 9V battery (NEDA 1604, 6F22, 006P), Replace battery if the low battery sign

“ ” displayed. Use the following procedures to replace the battery.

1. Set the rotary switch to “OFF” position.

2. Pull up test leads from terminals.

3. Loosen the screw on battery case, pull up and moce the case.

4. Replace the defective battery.

5. Reverse the procedure of opening to close the battery case.

Fuse Replacement

Waring

To avoid electrical shock or personal injury, remove the test leads and any input signals before

replacingthe Fuses.To preventdamages or injury,install ONLY replacement fuseswith the ampere,

voltage, and speed ratings specified.

1. Perform steps 1.2.35. of battery replacement procedure

2. Install new fuse of some size and rating.

Accessories

Manual .........................1 Test leads .................... 1

Battery (9V)..................1 Protective holster......... 1

Options

80KP-1 Rotational speed adapter

80KP-2 Hi frequency adapter

RS-232 Package

TP-03 Type K termocouple

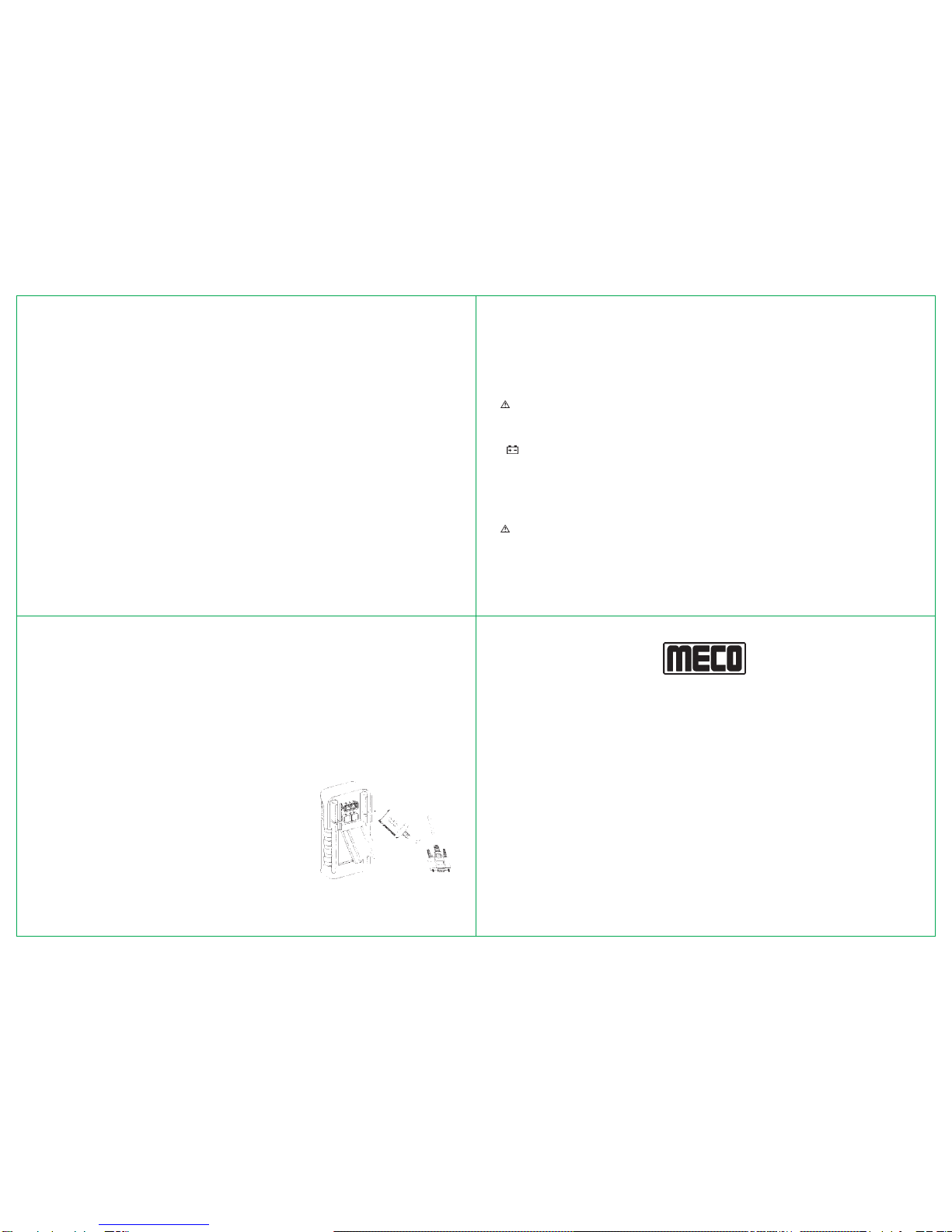

RS232 adapter installation

Thismeter hasa communicationcapability. Thisfunctionwill assist

user to recording and keeping data easy. We have affer RS232

ADAPTER to optional accessories.The RS232 ADAPTER include

a cable with photoelectric receiver and a software disc. We will

continuous release ncw version per year. So you can contact the

place of purchase to update the software.

Please refer following procedures if you want to communicate with

personal computer.

1. Power on the meter and then press the TIMER push button

more than 2 seconds, the symbol “RS232” will appear on

the display.

2. Fixes one side of cable to the hoIster of meter and connect

the 9 pin’s terminal of cable to communication port 1 or 2 of

personal computer. See the follow figure

3. Execute the software to take the date for your necessary. Figure 16. RS232

adapter installation

SR. NO. : .................................

CHECKED BY : .................................

DATE : .................................

MODEL NO. : .................................

MECO METERS PVT. LTD.

Block 9, Plot 270, 2nd Floor, Rup-Udey Niwas, Sion (E), Mumbai - 400 022 (INDIA)

Correspondance Address :

Plot No. EL-1, MIDC Electronic Zone, TTC Industrial Area,

Mahape, Navi Mumbai - 400710 (INDIA)

Tel : 0091-22-27673311-16, 27673300 (Board) Fax : 0091-22-27673310, 27673330

E-mail : [email protected] Web : www.mecoinst.com

Certificate of Calibration

We hereby certify that this product has been calibrated and found to be in accordance

with the applicable SPECIFICATIONS and STANDARDS.

Accuracies of the standard equipment used in this calibration are traceable to the National

Standards.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Meco Multimetro

Meco

Meco 333 Manuale utente

Manuali Multimetro popolari di altre marche

Agilent Technologies

Agilent Technologies 34420A Manuale utente

Fluke

Fluke 83 Manuale utente

Hameg

Hameg HM 8012 Manuale utente

Mastech

Mastech MY70 Manuale utente

Steren

Steren MUL-300 Manuale utente

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuale utente

PeakTech

PeakTech 4000 Manuale per l'uso e la cura

YOKOGAWA

YOKOGAWA 90050B Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuale utente

Fluke

Fluke 8846A Manuale operativo e di manutenzione

Tempo Communications

Tempo Communications MM200 Manuale utente

Elenco Electronics

Elenco Electronics CM-1555 Manuale utente

Mastech

Mastech MS8238C Manuale utente

SDAR

SDAR 830A, 830B, 830D, 830C Manuale utente

RS PRO

RS PRO RS-9519BT Manuale utente

BGS technic

BGS technic 8890 Manuale utente

Amprobe

Amprobe Hexagon 60 Manuale utente
