Medeli Mc 620 Manuale utente

DRIVE

Content

General Guide

1. Front Panel

2. Rear Panel Jack

3. LCD Display

Main features

Introduction

Care of your electronic keyboard

Power supply

Connections

-The headphone jack

- The damper jack

- The Aux. Out jack

- The volume jack

- The MIDI IN/OUT jacks

Play voice

-Select the desired voice numeber

-Play two voices synchronously

-Lower voice

-Split point

-The keyboard function

-Harmony

Auto accompaniment

-Using auto accompaniment(Only drum)

-Using auto accompaniment(All tracks)

-The accompaniment section

-Selecting a style

-Accompaniment operation

Chord recognize

Volume control

-Accomp volume control

-keyboard volume

Adjust the tempo

Metronome

One touch setting

Memory

-Data stored by the memory

-Select a memory

-Store memory

-Recall your memory

Synth

-Select a user voice

-Edit a PCM voice

Demo

Song

ALBUM

Function

-Metro on/off

-Transpose

-Tune

-Octave

-Touch

5-6

6-7

8-10

9-11

12-18

14-18

18-19

19-21

19-20

21-22

27-28

29-35

-Pad assign

-DSP on/off

-Reverb type

-Reverb level

-Chorus type

-Chorus level

-Local on/off

-Receive

-Transmit

-Default parameters

-Using floppy disks

-Disk utility

-Disk save

-Realtime recording

-Step recording

DISK

Recording

Specification

Appendix 1-Voice list

Appendix2-Style list

Appendix3-Demo list

Appendix4-Song list

Appendix5-Chord table

Appendix6-MIDI implementation chart

Appendix7-album list

-Split point

-Pitch bend range

-Key select

-Portamento time

35-37

37-40

41-42

42-44

44-48

35-42

42-48

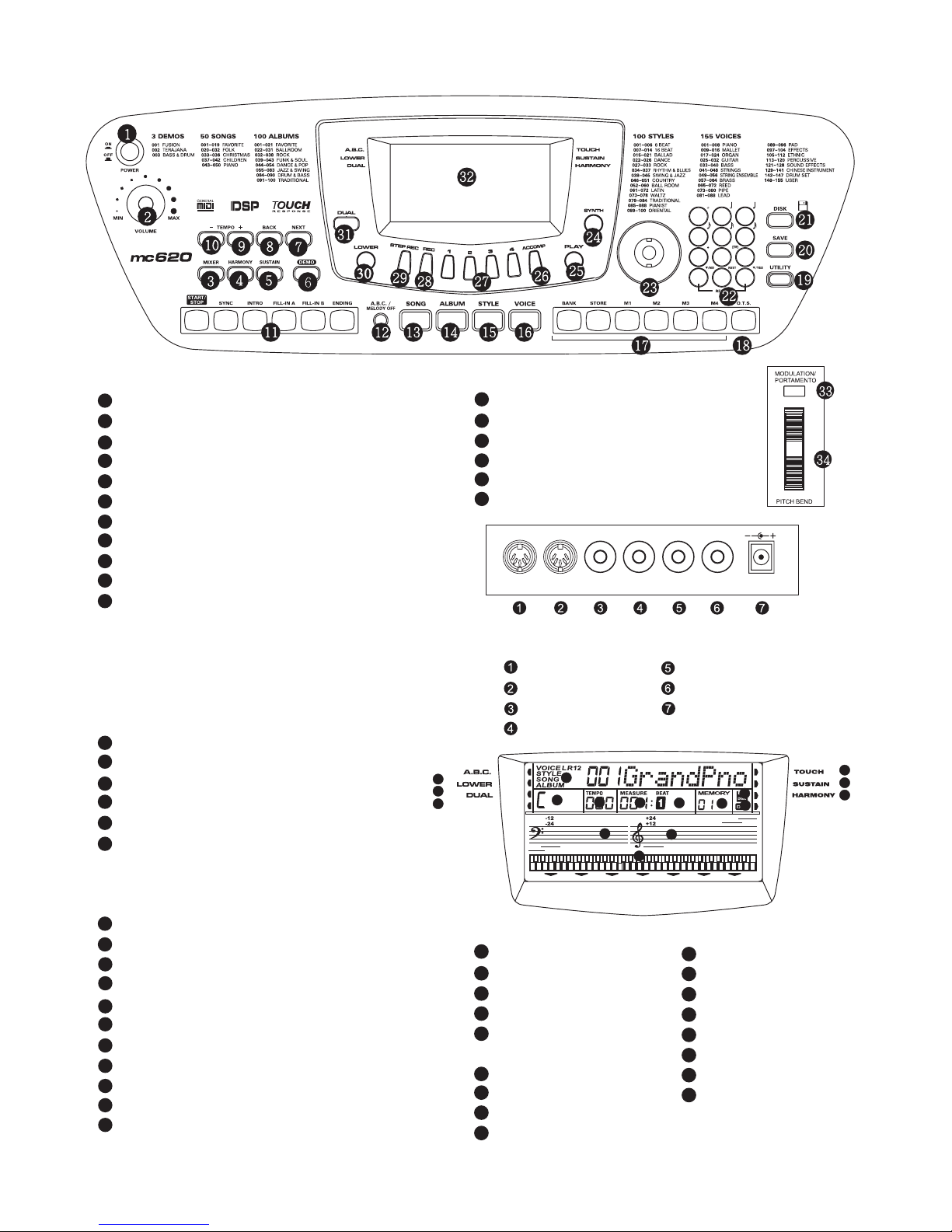

General Guide

1. FRONT PANEL

POWER SWITCH

MASTER VOLUME

MIXER CONTROL

HARMONY

SUSTAIN

DEMO

BACK

TEMPO +

TEMPO -

ACCOMPANIMENT CONTROL

-STARTSTOP

-SYNC

- INTRO

- FILL-IN A

- FILL-IN B

- ENDING

A.B.C/MELODY OFF

SONG

ALBUM

STYLE

VOICE

DATA DIAL

SYNTH

PLAY

ACCOMP TRACK

4 MELODY TRACKS

RECORD

ONE TOUCH SETTING

-BANK

-STORE

- M1-M4

O.T.S.

UTILTY

SAVE

DISK

NUMERIC KEYPAD

DC 12VPHONES

AUX

OUT

DAMPERMIDI OUTMIDI IN VOLUME

2. REAR PANEL JACK

MIDI IN

MIDI OUT

DAMPER

VOLUME

AUX.OUT

PHONES

DC 12V

3. LCD DISPLAY

678910 11

15 16

A.B.C

LOWER

DUAL

KEYBOARD

VOICE LR12/STYLE/

SONG/ALBUM

CHORD

TEMPO

MEASURE

BEAT

MEMORY

DSP

TOUCH

SUSTAIN

HARMONY

BASS CLEF

TREBLE CLEF

DISK

DRIVE

STEP RECORD

LOWER

DUAL

LCD DISPLAY

MODULATION/PORTAMENTO

PITCH BEND

Main Features

61 keys touch keyboard, 3 touch level.

Multi-functional LCD which can display the key board and staff.

Use number function key or wheel to select voice, style and song.

Function feature that includes transpose, tune, octave, split point, pedal select, touch, DSP,

midi etc.

155 high quality voice at all, include 128 GM Voice, 13 Chinese Voice ,6 Percussion Voice

(1 Chinese Percussion) and 8 User Voice.

100 auto accompaniment styles, from 001 to 100.

3 demos of different style.

50 songs that have melody off mode.

100 albums that offer you some good classic music setting.

8 banks with 4 memories in each bank.

Both Single finger detect and fingers detect.

There are 2 record modes: RECORD and STEP RECORD. Each record song has 5 tracks--1

ACCOMP track and 4 melody tracks.

Pitch bend wheel and 12 level pitch bend sensitivity.

Portamento and Modulation,3 level portamento sensitivity.

Expect drum kit voice, you can edit148 voices with Synth function.

Mixer function including the volume adjustment of Voice R1, Voice R2, Voice L1, Drum, Bass,

Chord1,Chord2,Chord3,Accomp.

Padel selection function including sustain, soft, accomp start, tempo tap, and memory select.

3 harmony effect.

DSP function that can set Reverb type and level, Chorus type and level.

MIDI IN and MIDI OUT function, and you can select which channel receive or transmit midi

message.Dual, Lower voice, Sustain, Piano, O.T.S etc.

A floppy disk driver. You can play standard midi music files(format 0,format 1),and save midi

files from recording data with it.

Introduction

Thank you for purchasing the electronic keyboard. This electronic keyboard provides you with the

following features and functions.

155 Voices

100 Styles

100 Albums

50 songs and 3 demo songs with playing along feature

ulti-functional LCD which can display the key board and staff

2 record modes: RECORD and STEP RECORD

loppy disk driver which can play standard midi music files(format 0,format 1),

and saves midi files from recording data with it

Care of your electronic keyboard

Your keyboard will give you much pleasure if you follow the simple rules given below:

Do not expose the electronic keyboard to the high temperature, direct sunlight, and excessive

dust places.

Avoid physical shocks caused by dropping , bumping, or placing heavy objects on the electronic

keyboard.

Never use cleaners such as alcohol or thinner to clean the electronic keyboard.

Always turn power off when making any connections.

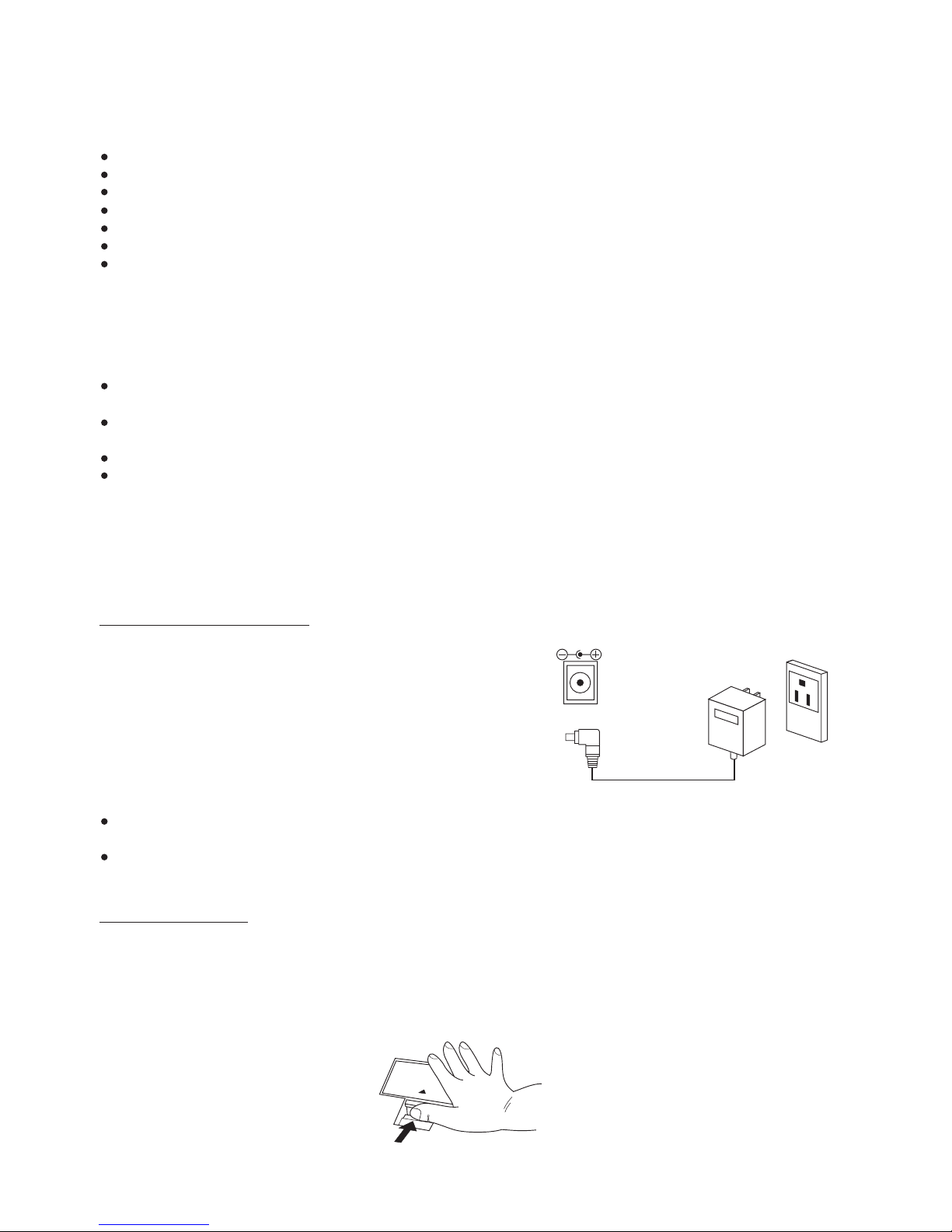

Power supply

This electronic keyboard can be powered by current from a standard household wall outlet

(using the specified AC adaptor) or by batteries.

Using the AC adaptor

Make sure that only the specified AC adaptor for this

electronic keyboard is used. The adaptor shall be

12V DC output, 3000mA, and center positive type.

Make sure to turn off the electronic keyboard before

you connect the adaptor into the AC wall outlet and

the cord into the unit.

Cautions:

Use only the specified AC adaptor. Use of another type of adaptor creates a danger of fire and

electrical shock.

For safety sake, make sure to unplug the AC adaptor from the wall outlet whenever leaving the

electronic keyboard unattended for a long time.

Using batteries

Always make sure to turn the keyboard off before inserting new batteries or replacing old ones.

DC 12V

To insert the batteries

Open the battery compartment underneath the keyboard.1.

OPEN

Insert 8 "D" size batteries into the battery compartment by following the polarity markings on the

cabinet.

Close the battery compartment, make sure the battery compartment cover locks firmly.3.

Cautions:

Improper handling of the batteries can cause them to burst or leak, creating the danger of

personal injury or damage of the keyboard. Make sure to take the following important

precautions when using batteries:

Never use batteries of different types.

Never mix old batteries with new ones.

Always make sure to remove the batteries from the keyboard's battery compartment.

When the keyboard is not expected to be used for a long period of time, remove the batteries

from the keyboard.

Replace the batteries as soon as possible after any sign of discharge.

Low battery indications

Any of the following symptoms indicate low battery power. Replace the batteries as soon as

possible whenever any of the following occurs.

A dim and difficult-to-read LCD display

Abnormally low speaker/headphone volume.

Distortion of the sound output.

Sudden power failure when playing at high volume

Abnormal playing of the rhythms or demo songs.

Dimming of the display when playing at high volume.

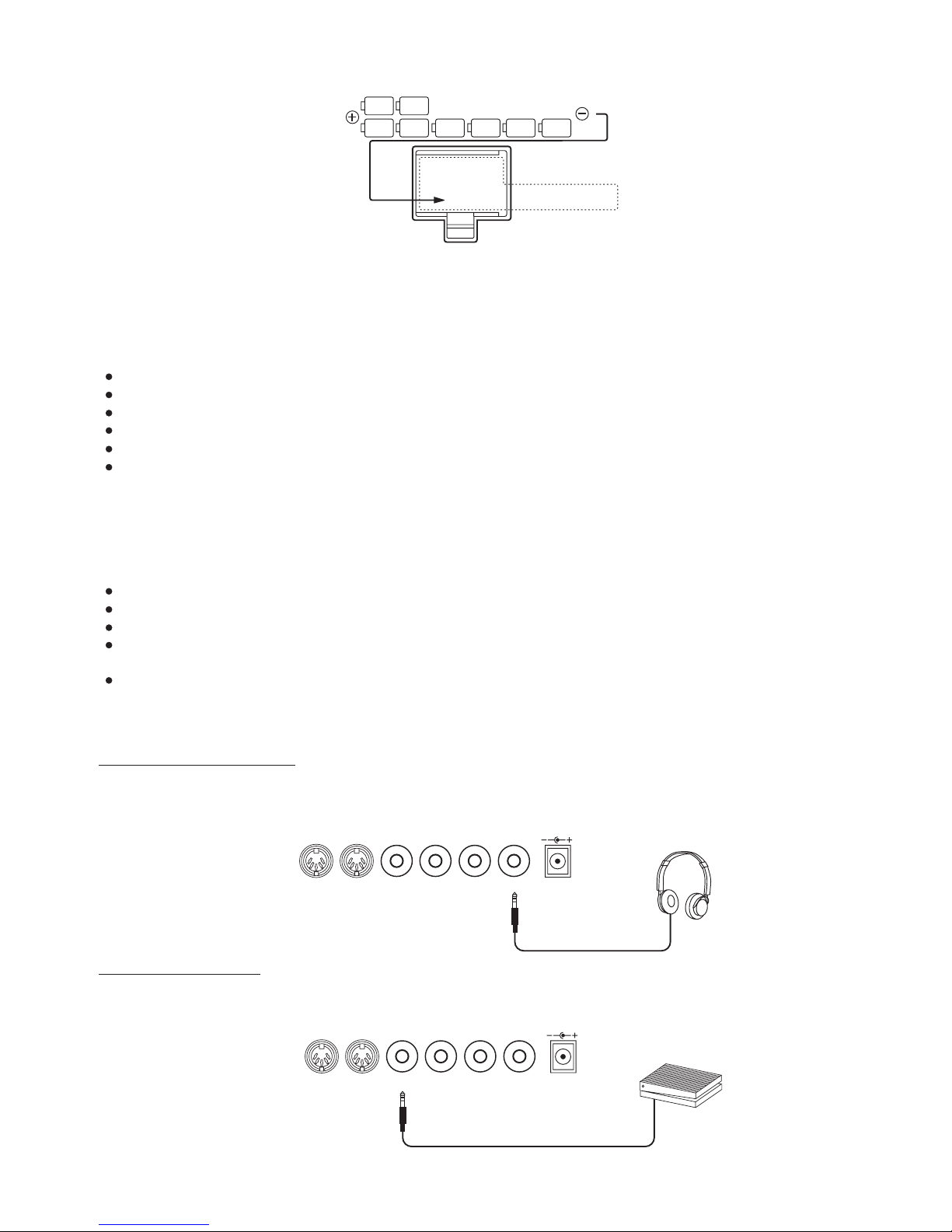

Connections

DC 12V

The headphone jack

A pair of stereo headphones can be plugged into the PHONES jack for private practice or late

night playing. The internal speaker system is automatically turn off when the headphones is

plugged into the PHONES jack.

PHONES

AUX

OUT

DAMPERMIDI OUTMIDI IN

The damper jack

An optional footswitch can be plugged into the DAMPER jack for sustain control. The footswitch

functions like the damper pedal on a piano-press for sustain, release for normal sound.

VOLUME

DC 12VPHONES

AUX

OUT

DAMPERMIDI OUTMIDI IN VOLUME

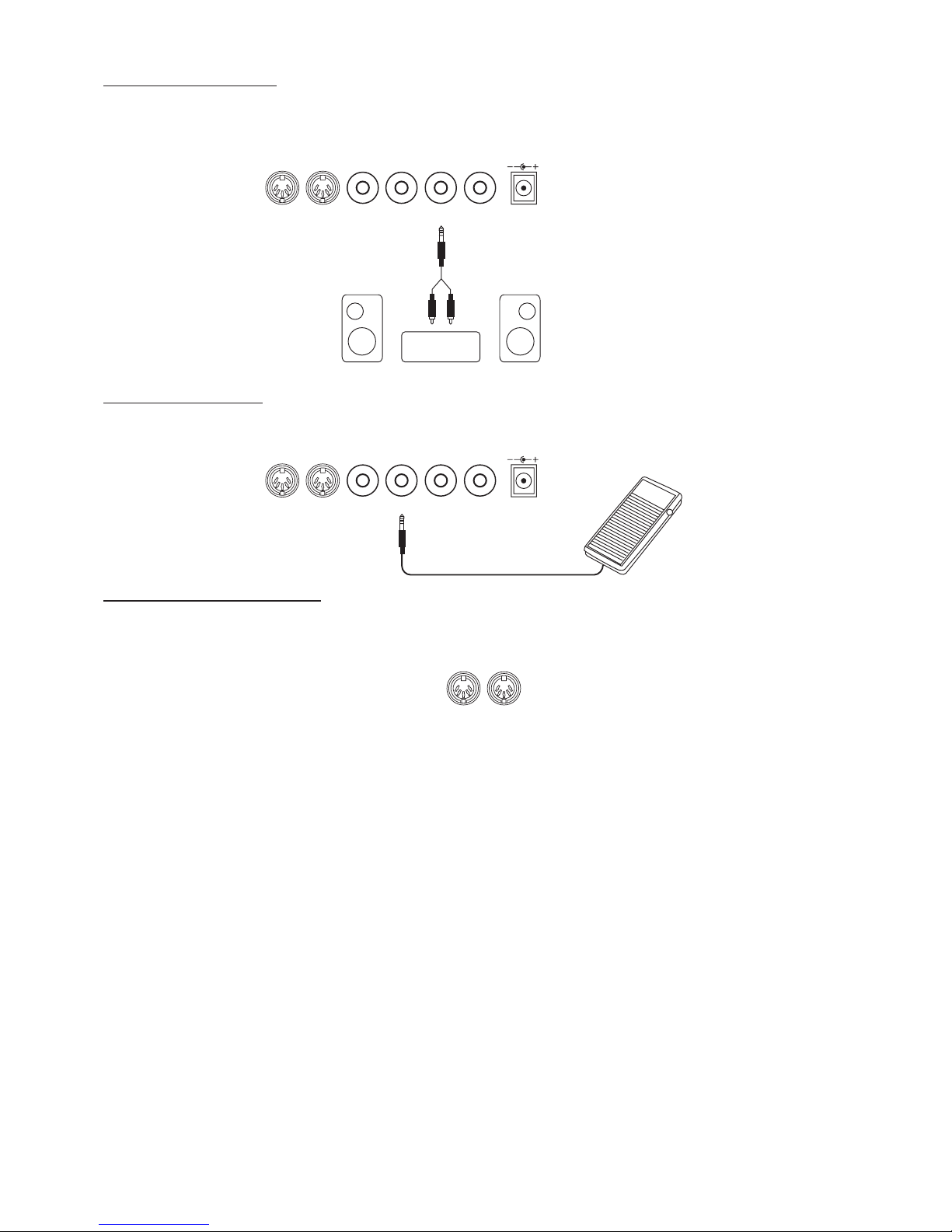

The Aux. Out jack

The AUX. OUT jack delivers the output of the keyboard for connection to an external amplifier.

Using an audio cord, plug into AUX. OUT jack located on the rear panel. Then plug the other

end of the cord into LINE IN or AUX. IN of the amplifier.

Stereo

System

DC 12VPHONES

AUX

OUT

DAMPERMIDI OUTMIDI IN VOLUME

The volume jack

An optional volume control can be plugged into the VOLUME jack for adjusting the volume of sound.

DC 12VPHONES

AUX

OUT

DAMPERMIDI OUTMIDI IN VOLUME

The MIDI IN/OUT jacks

The MIDI IN connector receives MIDI data from an external MIDI device. The MIDI OUT connector

transmit MIDI data generated by the electronic keyboard to an external MIDI device.

MIDI OUTMIDI IN

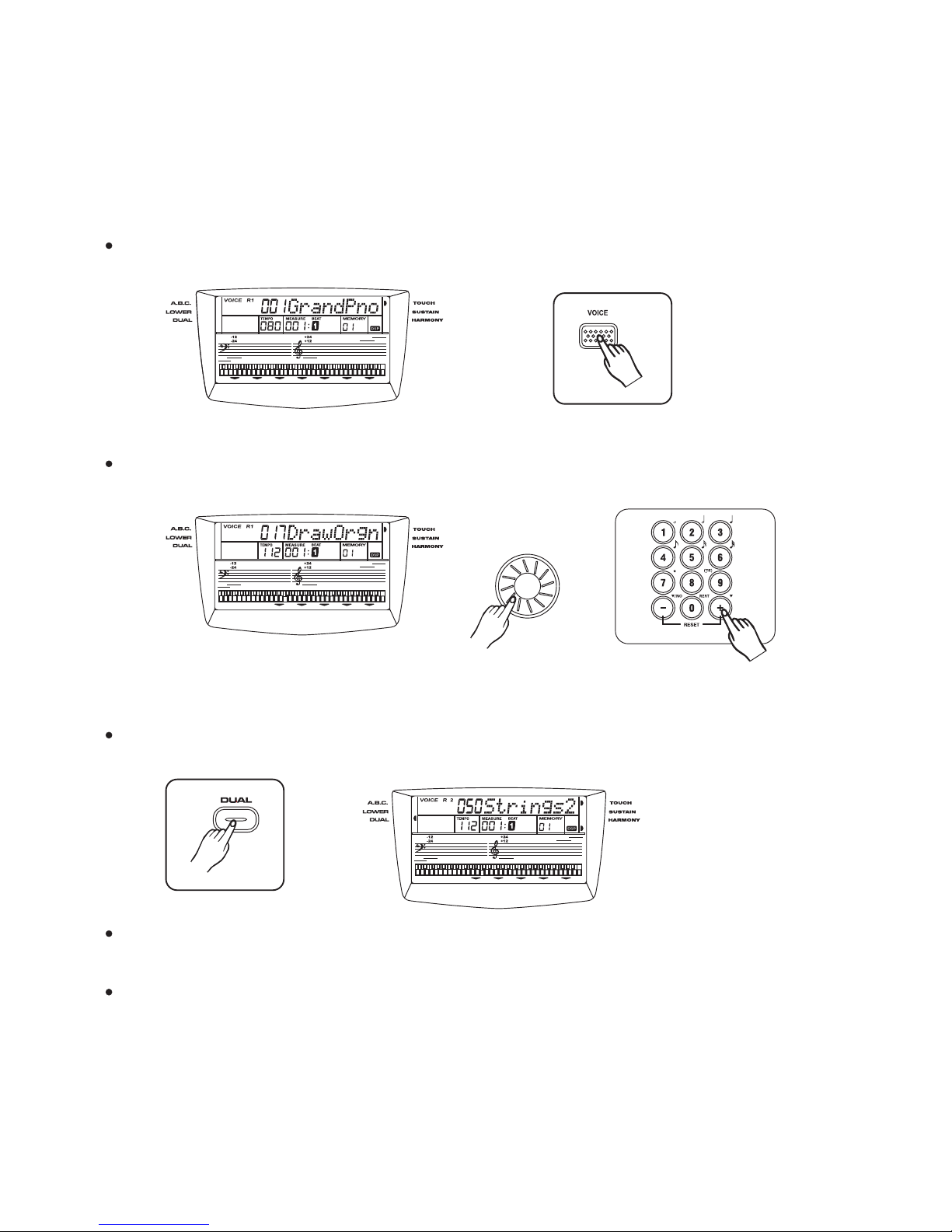

Play voice

[VOICE]

The voice mode features 155 authentic voices(including 128 General MIDI voices, 13 Chinese

Voice ,6 Percussion Voice (1 Chinese Percussion) and 8 User Voice.(See appendix 1VOICE LIST)

Press button,you can switch three separate voice modes: VOICE R1,VOICE R2,

VOICE L.

Select the desired voice number

Select the desired voice number with the , and .dial [+/YES], [-/NO] [0]-[9]

Play two voices synchronously:VOICE1,VOICE2.

Press key to turn on the DUAL VOICE, " VOICE R2" and dual flag are both lighten.

The dual voice name is also displayed on the LCD.

[DUAL]

Press key, the wheel or number key to select the dual voice number. The

default dual voice number is No. 50: Strings2.

Press button again to turn off the DUAL VOICE.

[+/YES]/[-/NO]

[DUAL]

Note:

In DUAL VOICE status,there is dual voice in both right and left area of keybaord.

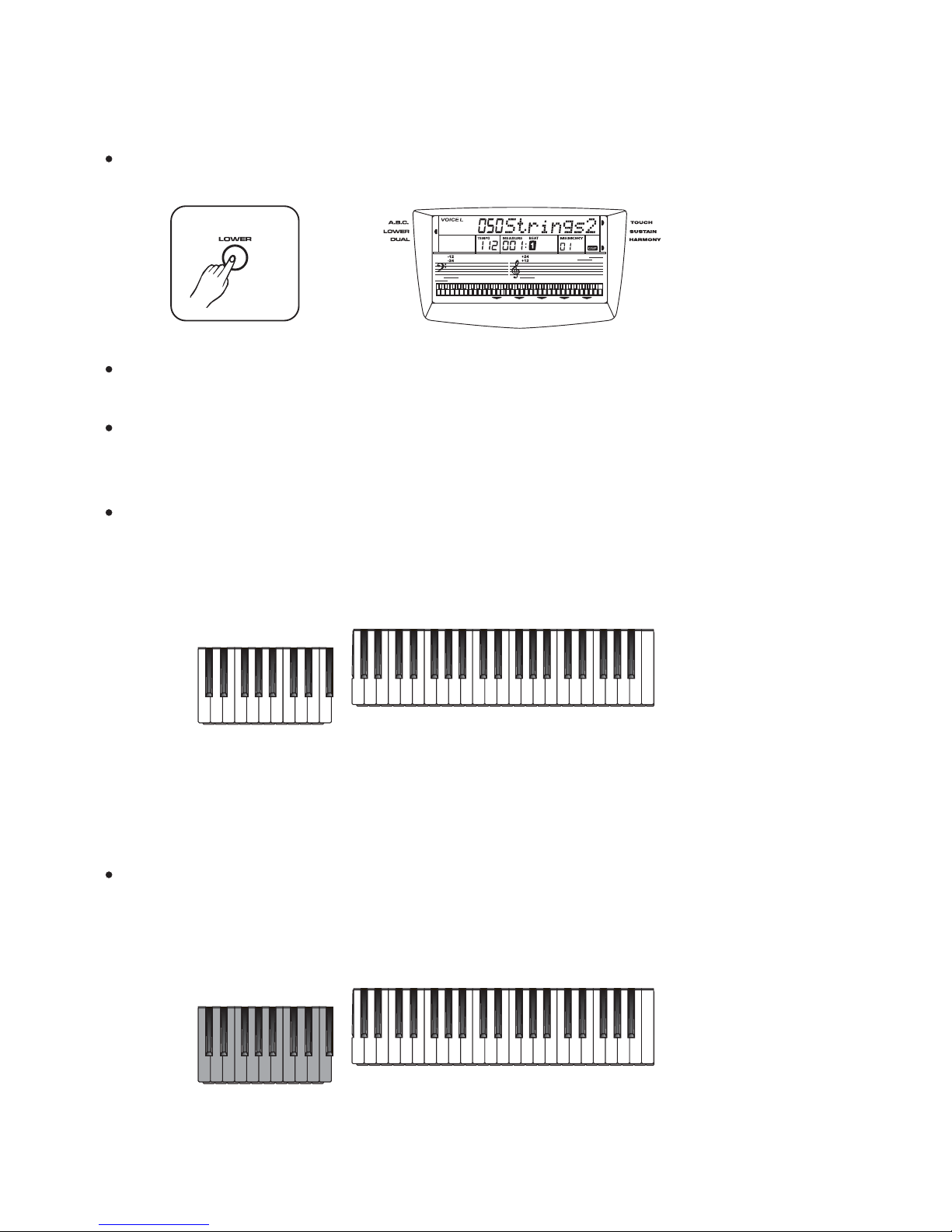

LOWER VOICE

[LOWER]

You can split the keyboard to right and left area in this function.

Press button to turn on the lower voice.LCD lights the lower voice flag and displays

"VOICE L" and the lower voice name.

Split Point

In the Split Voice mode, you can assign two different Voices to opposite sections of the key

board, and play one Voice with your left hand while your right hand plays another.

#F3 is the default split point. Every keys can be set as the split point, and stored in memory.

(See function SPLIT POINT SELECT).

Press button, use the wheel or number key to select the lower voice number. The

default lower voice number is No. 50: Strings2.

Press again to turn off the lower voice.

[+/YES]/[-/NO]

[LOWER VOICE] button

The Keyboard Function

Accomp on

The keyboard not only plays three voices at the same time, but also has other necessary

functions.

The left area below the split point is the chord area by pressing the "A.B.C" button.

The bass and the chord voice phonate when playing the chord.

SPLIT POINT(#F3)

VOICRE R1/R2

VOICE L

ACCOMP
