Prime HDR

Micro Bullet IP Camera

User’s Manual

Ver. 1.6

Table of Contents

1. Overview................................................................................................................................2

1.1 Features......................................................................................................................2

1.2 Package Contents .......................................................................................................3

1.3 Dimensions..................................................................................................................5

1.4 Connectors (Indoor Only).............................................................................................7

1.5 Function Cables (Outdoor Only) ..................................................................................7

1.6 microSD Card Slot / Default Button..............................................................................8

2. Camera Cabling.....................................................................................................................9

2.1 Power Connection .......................................................................................................9

2.2 Ethernet Cable Connection..........................................................................................9

2.3 Connect Alarm I/O (Indoor Only)..................................................................................9

2.4 Waterproof Cable Connectors ...................................................................................10

3. Installation (Outdoor Only).................................................................................................12

3.1 Ceiling / Wall Mounting..............................................................................................12

4. System Requirements ........................................................................................................14

5. Access Camera ...................................................................................................................15

6. Setup Video Resolution......................................................................................................20

7. Configuration Files Export / Import ...................................................................................21

8. Tech Support Information ..................................................................................................22

8.1 Delete the Existing DCViewer....................................................................................22

8.2 Setup Internet Security ..............................................................................................23

Appendix: Technical Specifications

1. Overview

The Prime HDR Micro Bullet IP Camera is a compact camera with easy setup

design. PoE is supported to reduce complicated cabling without sacrificing

performance. 4 Megapixel Resolution is supported to provide superior details; in

the meantime, Quad Streams Compression (H.264 Baseline / Main / High

Profile + MJPEG) is available for efficient bandwidth and storage management.

Moreover, the camera is featured with a bunch of smart functions such as WDR,

3D Noise Reduction, Day / Night ICR, etc. With the compact / elegant design

and powerful function, this camera would be the perfect solution for installation

in retail stores, hotels and small offices.

1.1 Features

Multiple Progressive Scan CMOS Sensor Support up to 4M Resolution

Multi-exposure HDR*

Low Latency Streaming

Low Power Consumption on Encoding

Quad codec support- H.264 Baseline / Main Profile / High Profile / MJPEG

Multi-language Support

Wide Dynamic Range

Smart Event Function-

Motion Detection / Network Failure Detection / Tampering Alarm / Periodical

Event / Manual Trigger / Audio Detection

Privacy Masks

3D Motion Compensated Noise Reduction (MCTF)

Smart IR Mode

Day/Night (ICR)

IR LED Module (Working Distance up to 15 m)*

Weatherproof (IP66 International)*

64GB SDXC microSD Card Support

Integrated Mounting Bracket with Cable Management*

ONVIF Profile S Support

(*) Optional

1.2 Package Contents

Please check the package containing the following items listed below.

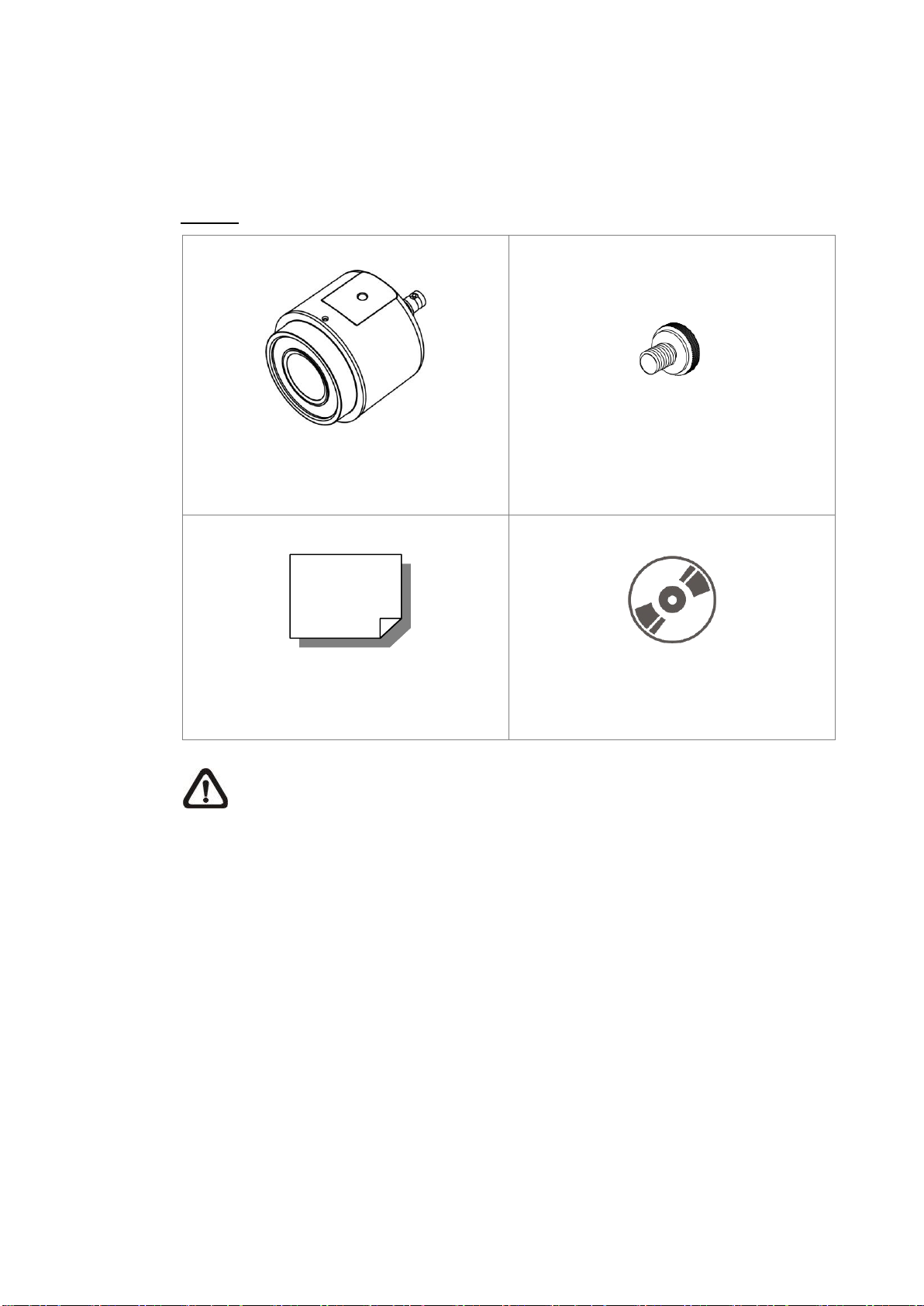

Indoor

Prime HDR Micro Bullet IP Camera

with Fixed Lens

M3 Machine Screw x 1

Quick Guide

(bundled software and documentation)

NOTE: To purchase power adaptor, please contact the camera

manufacturer for further information.

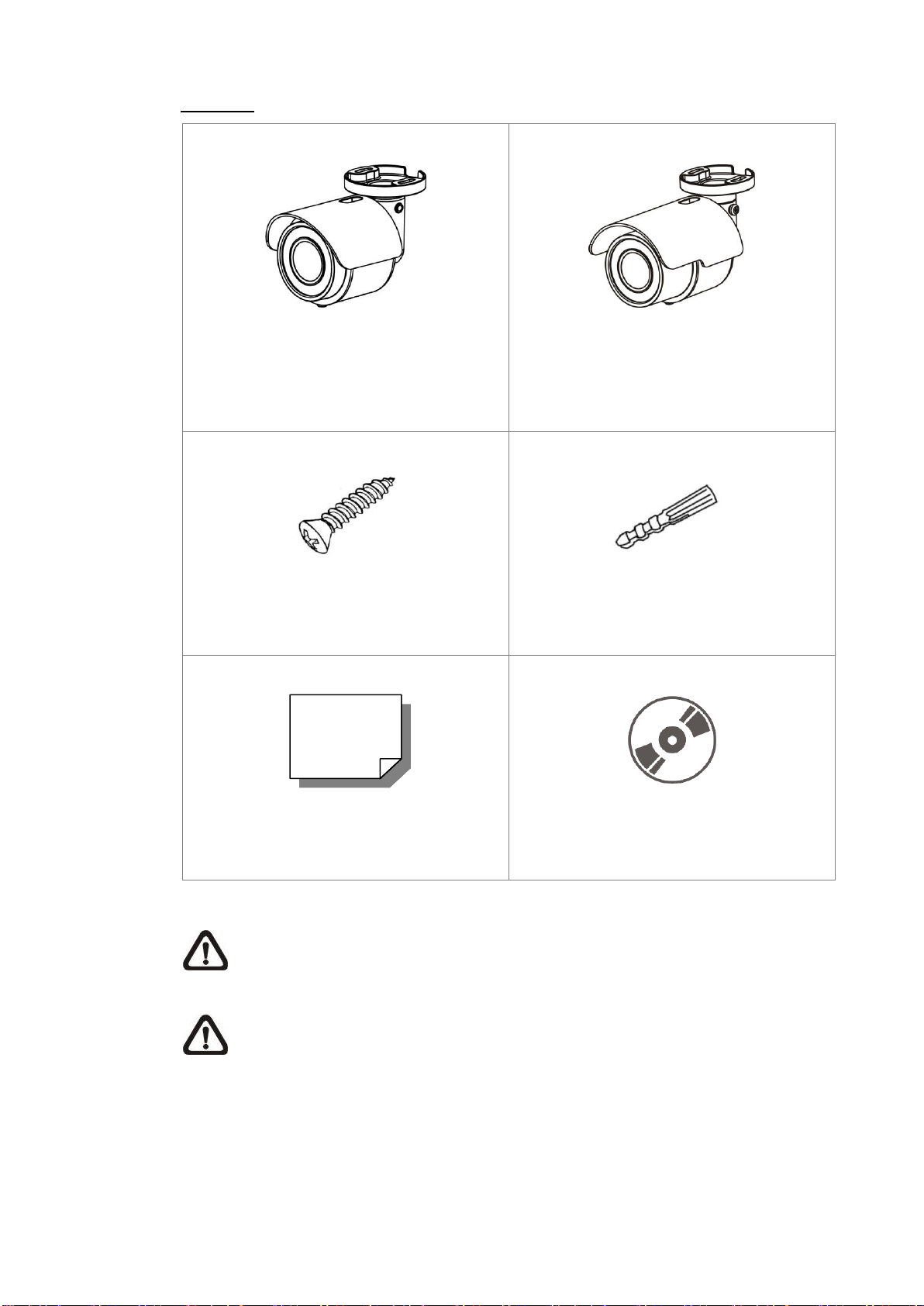

Outdoor

Prime HDR Micro Bullet IP Camera

with Fixed Lens

Prime HDR Micro Bullet IP Camera

with Vari-Focal Lens / Motorized Lens /

Smart Focus Lens*

Self-Tapping Screw

(x5)

Plastic Screw Anchor

(x5)

Quick Guide

(bundled software and documentation)

*Optional

NOTE: To purchase power adaptor, please contact the camera

manufacturer for further information.

NOTE: The supplied self-tapping screws are for soft substances /

materials such as wood. For other installation environments such as

cement wall, users MUST pre-drill and use plastic anchors before

fastening the supplied self-tapping screws on the wall.

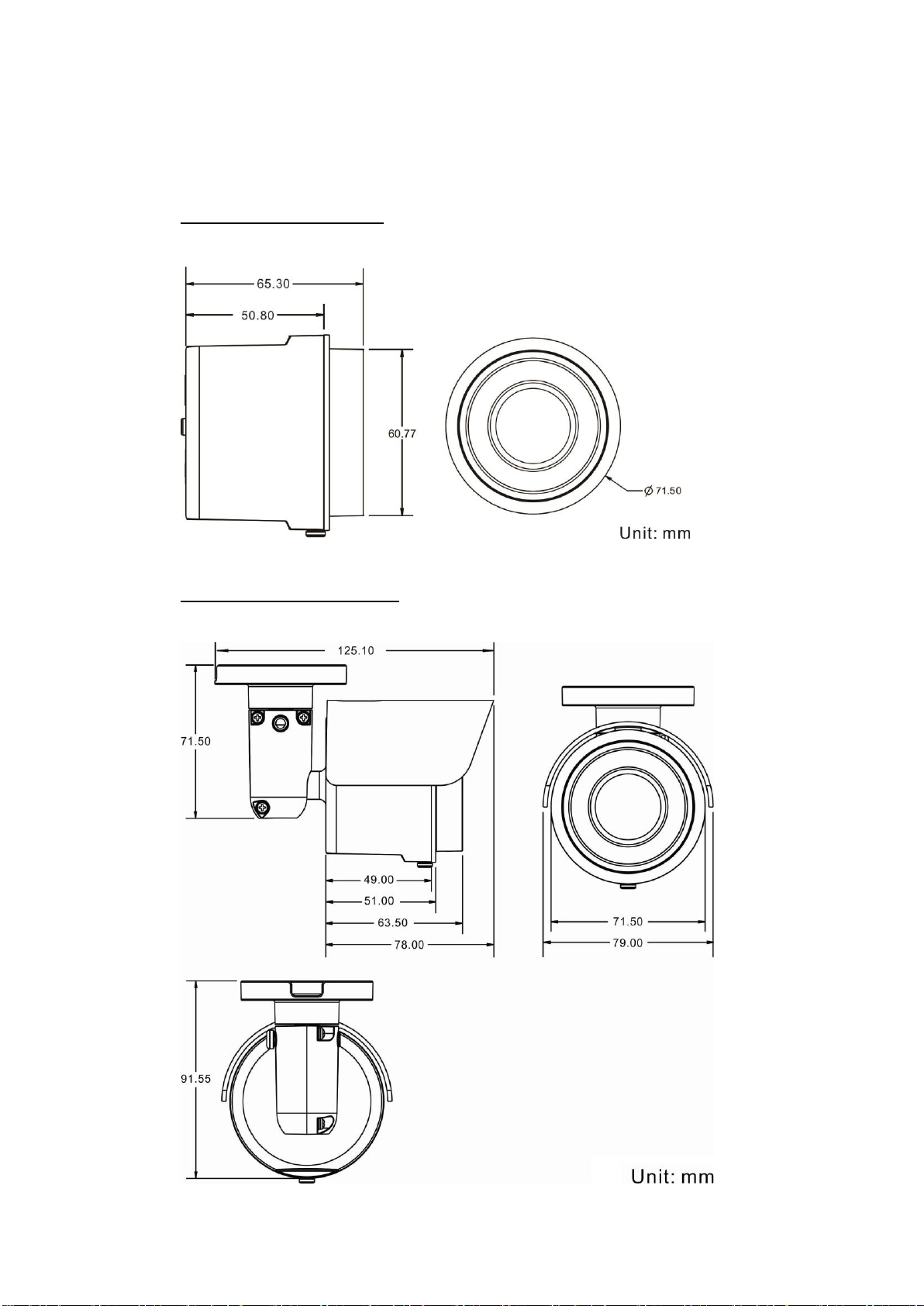

1.3 Dimensions

The dimensions of the camera are shown below.

Indoor with Fixed Lens

Outdoor with Fixed Lens

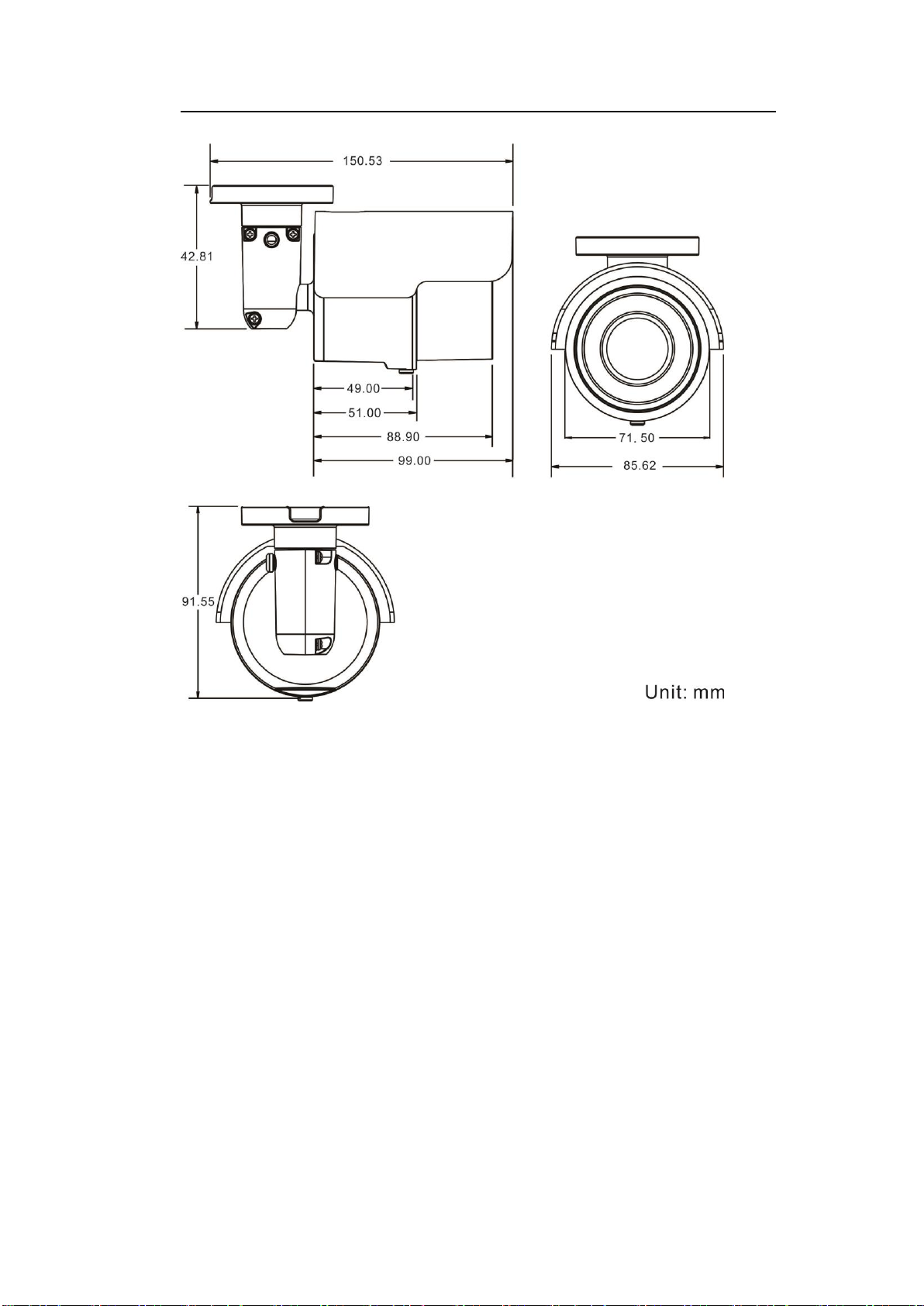

Outdoor with Vari-Focal Lens / Motorized Lens / Smart Focus Lens*

*Optional

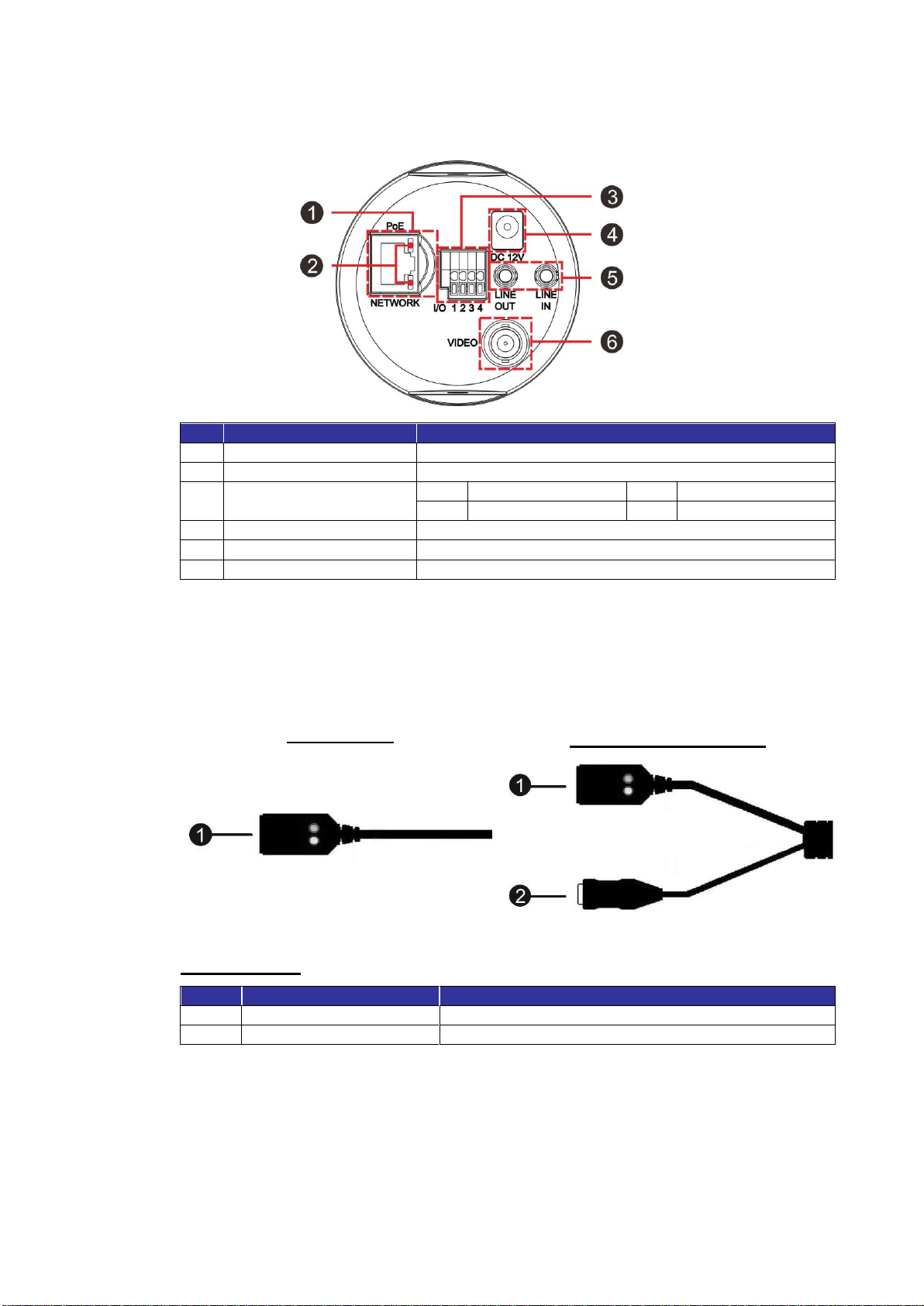

1.4 Connectors (Indoor Only)

No.

Connector

Definition

RJ-45

For network and PoE connections

Network LEDs

For network connection and activity indication.

Alarm I/O *

1 Alarm Out −

Alarm In −

2 Alarm Out +

Alarm In +

Power Jack (DC 12V)

Power connection

Audio I/O

Two-way audio transmission

BNC

For analog videos output

*Do Not connect external power supply to the alarm I/O connector of the camera.

1.5 Function Cables (Outdoor Only)

RJ-45 Cable

RJ-45 & DC 12V Cable

Pin Definition

No.

Connector

Definition

RJ-45

For network and PoE connection

Power Jack (DC 12V)

Power connection

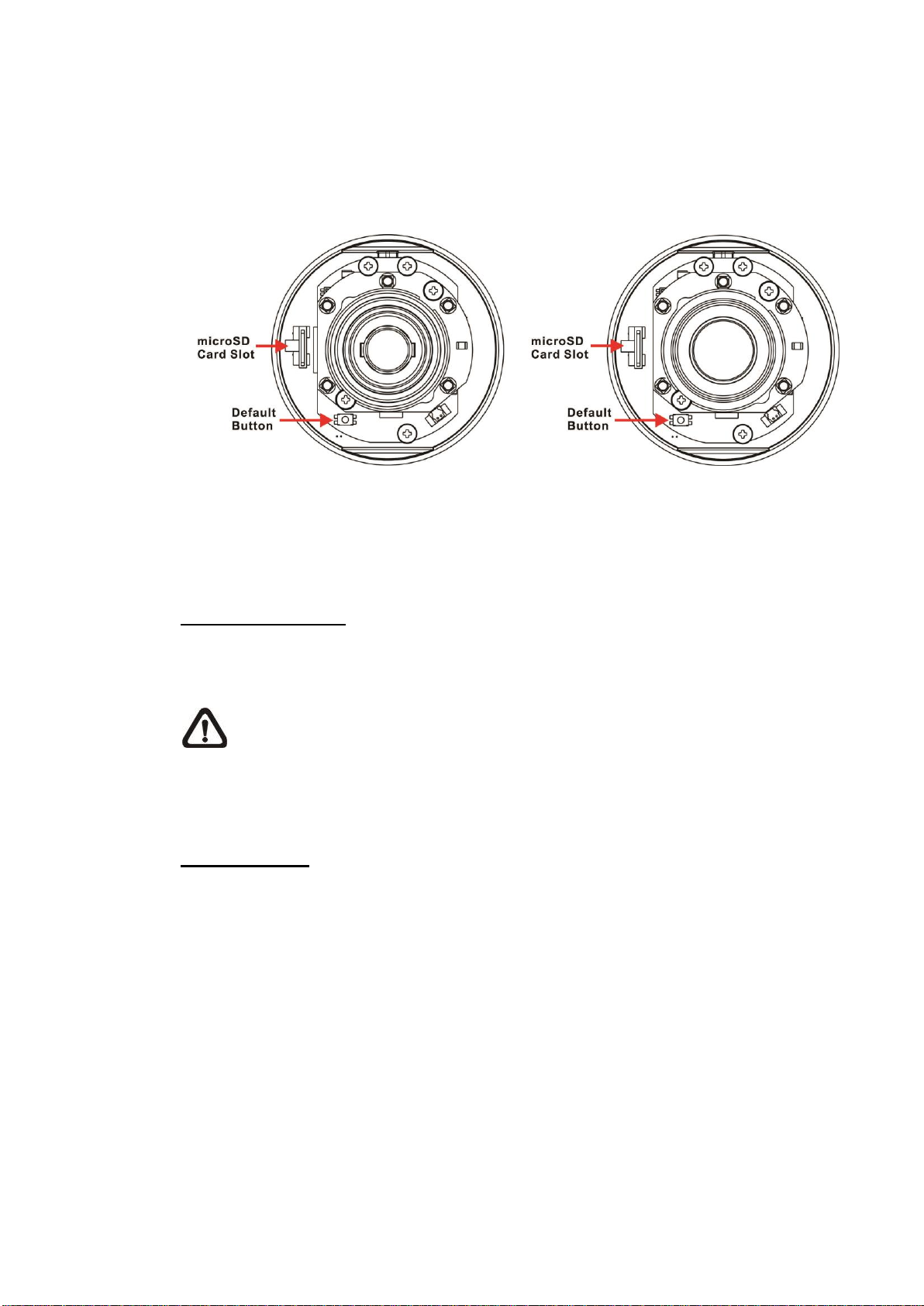

1.6 microSD Card Slot / Default Button

The positions of the microSD card slot and the default button are shown as

below.

Fixed Lens

Vari-Focal Lens / Motorized Lens /

Smart Focus Lens*

*Optional

microSD Card Slot

Insert the microSD card into the card slot to store videos and snapshots. Do not

remove the microSD card when the camera is powered on.

NOTE: It is not recommended to record with the microSD card for 24/7

continuously, as it may not be able to support long term continuous data

read/write. Please contact the manufacturer of the microSD card for

information regarding the reliability and the life expectancy.

Default Button

Press the button with a proper tool for at least 20 seconds to restore the system.

2. Camera Cabling

Before users connect cables, make sure that all cables and the power adaptor

are placed in dry and well-waterproofed environments, e.g. waterproof boxes.

The purpose is to prevent moisture accumulation inside the camera and

moisture penetration into cables, which might lead to camera breakdown.

Please follow the instructions below to complete IP camera connection.

2.1 Power Connection

For power connection, please refer to section Function Cables for further details.

Alternatively, users can power the camera by PoE if a Power Sourcing

Equipment (PSE) switch is available. Refer to the section below for Ethernet

cable connection.

NOTE: If PoE is used, make sure PSE is in use in the network.

2.2 Ethernet Cable Connection

For best transmission quality, cable length shall not exceed 100 meters.

Connect one end of the Ethernet cable to the RJ-45 connector of the camera,

and plug the other end of the cable to the network switch or PC.

NOTE: In some cases, Ethernet crossover cable might be needed when

connecting the IP camera directly to the PC.

Check the status of the link indicator and the activity indicator LEDs. If the LEDs

are unlit, please check the LAN connection.

Green Link Light indicates good network connection.

Orange Activity Light flashes for network activity indication.

2.3 Connect Alarm I/O (Indoor Only)

The indoor camera supports one alarm input and one relay output for alarm

application. Refer to section Connectors (Indoor Only) for pin definitions.

NOTE: Do NOT connect external power supply to the alarm I/O

connector of the IP camera.
