MV800 IO Expansion Option User Manual

Version: V01

1 Product Information

1.1 Designation rule

1.2 Functions and specifications

MV810-IO01 option provides IO expansions for the MV800 drive series. Its

functions and specifications are described below:

1.2.1 Function features

(1) Three DI expansions

(2) Two relay output expansions

(3) Provides external 24VDC power supply

(4) Eurostyle pluggable terminal blocks

1.2.2 Technical specifications

Product

Terminal

Specifications

Simple IO

expansion

option

DI9–DI11

Multi-function input terminals set by P41.00–P41.02;

Support NPN/PNP input, selected by P41.03, active

level: 9 to 30 V;

Power supplied by the option’s terminal (24VDC) or

external 24 V DC (see wiring details in 4.2.2.4 of the

full edition of the drive’s user manual);

Support filtering and switch-on/off delay.

1.3 Terminal description

1.3.1 Layout

The following figure shows the front and back views of MV810-IO01.

Fig. 1

1.3.2 LED indicator description

MV810-IO01 has an LED indicator inside (see Fig. 1). See the LED description

below:

LED

Status

Description

Action

LED1

(red)

Steady on

Normal power

supply for the IO

option

No need for actions

Off

No power supply for

the IO option

Check whether the IO option is

connected to the drive properly

RO2–RO3

Multi-function output terminals set by P41.13–P41.14;

RO2 contains one TA2/TB2 (normally closed), one

TA2/TC2 (normally open); contact capacity: 250 V

AC/3 A，30 V DC/1 A;

RO3 contains one TA3/TC3 (normally open); contact

capacity: 250 V AC/2 A，30 V DC/1 A;

Support output polarity and switch-on/off delay

(see wiring details in 4.2.2.6 of the full edition of the

drive’s user manual).

24 V, GND

Power output: +24 V DC, ±5%, <200 mA

1.3.3 Function codes

Table field

Description

Default value

It is the factory setting value of the function code.

Property

○: indicates the function code can be modified in the running

status.

×: indicates the function code can be modified in the stop

status.

*: indicates the function code is read-only and cannot be

modified.

Function

code

Name

Description

Default

value

Property

P40.00

Option type

0: No communication option

1: PROFINET

2: EtherCAT

3: IO option

P40.01

Detection

time for

options

0.0 to 10.0 s

No timeout detection when set

to 0

0.0 s

○

P41.00

DI9 function

selection

0: No function

1: Forward RUN

2: Reverse RUN

3: Forward jog

4: Reverse jog

5: Three-wire control

6: Multi-reference terminal 1

7: Multi-reference terminal 2

8: Multi-reference terminal 3

9: Multi-reference terminal 4

10: Acceleration/Deceleration

time terminal 1

11: Acceleration/Deceleration

time terminal 2

12: Reserved

13: Frequency up/down setting

clear

14: Frequency increase

○

P41.01

DI10 function

selection

○

P41.02

DI11 function

selection

○

Function

code

Name

Description

Default

value

Property

command (UP)

15: Frequency decrease

command (DN)

16: External fault NO input

17: External fault NC input

18–72: Refer to the full edition

of the drive’s user manual

P41.03

Terminal

open-circuit

voltage

0: Digital terminal open-circuit

voltage 0 V

1: Digital terminal open-circuit

voltage 24 V

○

P41.04

DI9 to DI11

active mode

Ones:

0: DI9 positive logic active

1: DI9 negative logic active

Tens:

0: DI10 positive logic active

1: DI10 negative logic active

Hundreds:

0: DI11 positive logic active

1: DI11 negative logic active

Thousands: Reserved

○

P41.06

DI filter time

Used to set the filter time for DI

terminal sampling. It is

recommended to increase the

parameter when there is strong

interference to avoid

misoperation.

Range: 0.000 to 1.000 s

0.10 s

○

P41.07

DI9 switch-on

delay time

Used to set the delay time for

level jump upon switch-on/off

of digital input terminals.

Range: 0.0 to 600.0 s

0.0 s

○

P41.08

DI9

switch-off

delay time

0.0 s

○

Function

code

Name

Description

Default

value

Property

P41.09

DI10

switch-on

delay time

0.0 s

○

P41.10

DI10

switch-off

delay time

0.0 s

○

P41.11

DI11

switch-on

delay time

0.0 s

○

P41.12

DI11

switch-off

delay time

0.0 s

○

P41.13

RO2 output

selection

0: Disabled

1: AC drive in running

2: Forward running

3: Reverse running

4: Frequency reach signal (FAR)

5: Frequency-level detection

signal (FDT1)

6: Frequency-level detection

signal (FDT2)

7: Overload detection signal

(OL)

8: Lockout for undervoltage

(LU)

9: External fault stop (EXT)

10: Frequency upper limit (FHL)

11: Frequency lower limit (FLL)

12: Zero-speed running

13: Simple PLC stage completion

14: PLC cycle completion

15: Current running duration

reach

16: Accumulated running

duration reach

○

P41.14

RO3 output

selection

○

Function

code

Name

Description

Default

value

Property

17: AC drive ready to run (RDY)

18: AC drive fault

19–47: Refer to the full edition

of the drive’s user manual

P41.15

Output

terminal

polarity

selection

Ones:

0: RO2 positive logic active

1: RO2 negative logic active

Tens:

0: RO3 positive logic active

1: RO3 negative logic active

Hundreds: Reserved

Thousands: Reserved

○

P41.16

RO2

switch-on

delay time

Used to set the delay time for

level jump upon switch-on/off

of output terminals.

Range: 0.0 to 600.0 s

0.0 s

○

P41.17

RO2

switch-off

delay time

0.0 s

○

P41.18

RO3

switch-on

delay time

0.0 s

○

P41.19

RO3

switch-off

delay time

0.0 s

○

P50.00

Option type

status view

0: No communication option

1: PROFINET

2: EtherCAT

3: IO option

P50.03

DI status of

the IO option

0 to 0x111

0: Disabled 1: Enabled

P50.04

DO status of

the IO option

0 to 0x11

0: Disabled 1: Enabled

2 Installation

The installation position, interface and steps of MV810-IO01 are described below:

2.1 Installation position

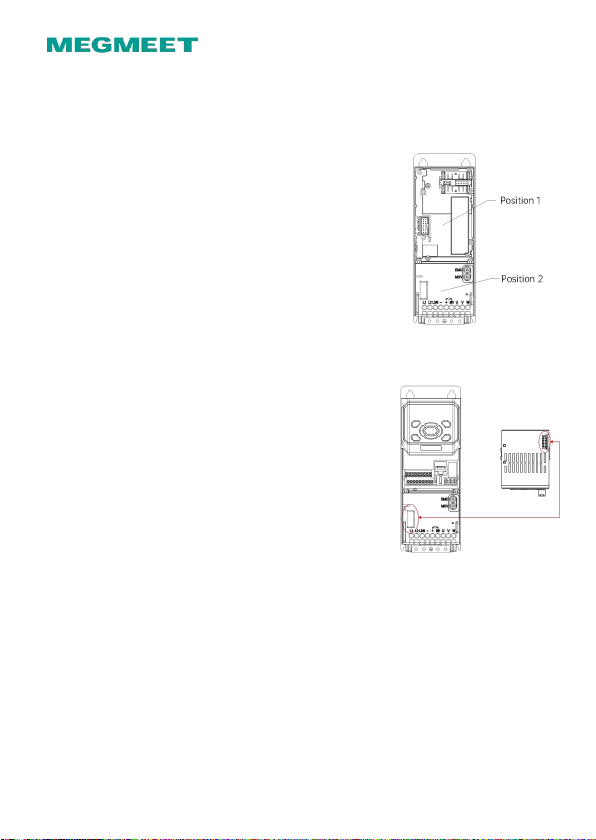

MV800 drive series provides two positions for

installation of accessory cards and options: position 1

and position 2 in the right figure (taking enclosure B as

an example, similar for other enclosures), where

position 1 is used to install various PG cards and position

2 is used to install PN options, ECAT options, IO options

and so on.

2.2 Installation interface

The electrical interface of the MV810 IO

option is connected to the drive as

shown in the right figure.

2.3 Installation steps

Installation method: front side mounting of IO option

(1) When the drive is powered off, press the granulated part on the middle-upper

of the lower cover, slide it down firmly to take down the cover, as shown in Fig.

2-a.

(2) Use a straight screwdriver to pry open the dustproof cap, as shown in Fig. 2-b.

(3) Install the IO option: hold the expansion box (a bus card inside) upwards

(indicators up), then align the expansion box with the electrical bus interface

of the installation position 2, and press down horizontally to buckle the spring

snap of the expansion box into the groove at the lower part of the drive, as

shown in Fig. 2-c and Fig. 2-d.

(4) The bus card is successfully installed, as shown in Fig. 2-e.

cde

Groove

Snap

Fig. 2 IO option installation steps
