MEITRACK® Handset

Applicable Model：MVT600/T1/T3

User Guide

File Name：MEITRACK Handset User Guide Crea tor Evan Lee

Project:: MVT600/T1 Creation Date:

Update Date：

2012-07-06

2013-06-26

Sub Project:：Accessories User Manual Page：2 of 8

Revision: V1.2 Confidential: External Documentation

Content

1. Copyright and Disclaimer........................................................................................................................................... 3

2. Applications ................................................................................................................................................................ 3

3. Product Function and Specification .......................................................................................................................... 3

3.1 Product Function ................................................................................................................................................... 3

3.2 Specification........................................................................................................................................................... 3

4. Main Device and Accessories.................................................................................................................................. 4

5. Outward Appearance............................................................................................................................................... 4

6. First Use ............................................................................................................................................................................ 5

6.1 Fixed Installation.................................................................................................................................................... 5

6.2 Connection Terminal ............................................................................................................................................. 5

7. Feature.............................................................................................................................................................................. 6

7.1 Call Records............................................................................................................................................................ 7

7.1.1 Missed Calls ................................................................................................................................................ 7

7.1.2 Received calls.............................................................................................................................................. 7

7.2.3 Dialed calls.................................................................................................................................................. 7

7.2 SMS......................................................................................................................................................................... 7

7.2.1 Inbox.................................................................................................................................................................... 7

7.2.2 New SMS ............................................................................................................................................................. 8

File Name：MEITRACK Handset User Guide Crea tor Evan Lee

Project:: MVT600/T1 Creation Date:

Update Date：

2012-07-06

2013-06-26

Sub Project:：Accessories User Manual Page：3 of 8

Revision: V1.2 Confidential: External Documentation

1. Copyright and Disclaimer

MEITRACK and are trademarks that belong to Meitrack Group

The user manual may be changed without prior notification.

This user manual, or any part thereof, may not be reproduced for any purpose whatsoever without the written

authorization of Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including

photocopying and recording.

In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages

(including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or

inability or illegality to use the product or documentation.

2. Applications

The supporting with Meiligao’s RS232 interface terminal

For two-way audio and send & receive text massages

3. Product Function and Specification

3.1 Product Function

The main interface shows: local time, latitude and longitude data, speed, GPS positioning status

Two-way audio and listening function

English SMS

RS232 interface

3.2 Specification

Item Description

Dimension 120 x 55 x 22mm

Weight 200g

Normal Standby power consumption 25mA

Operating Temperature -20℃~55℃

File Name：MEITRACK Handset User Guide Crea tor Evan Lee

Project:: MVT600/T1 Creation Date:

Update Date：

2012-07-06

2013-06-26

Sub Project:：Accessories User Manual Page：4 of 8

Revision: V1.2 Confidential: External Documentation

Operating Humidity 5%~95%

Operating Voltage 5V

Baud Rate 115200bps

Screen Dot-Matrix 128X64

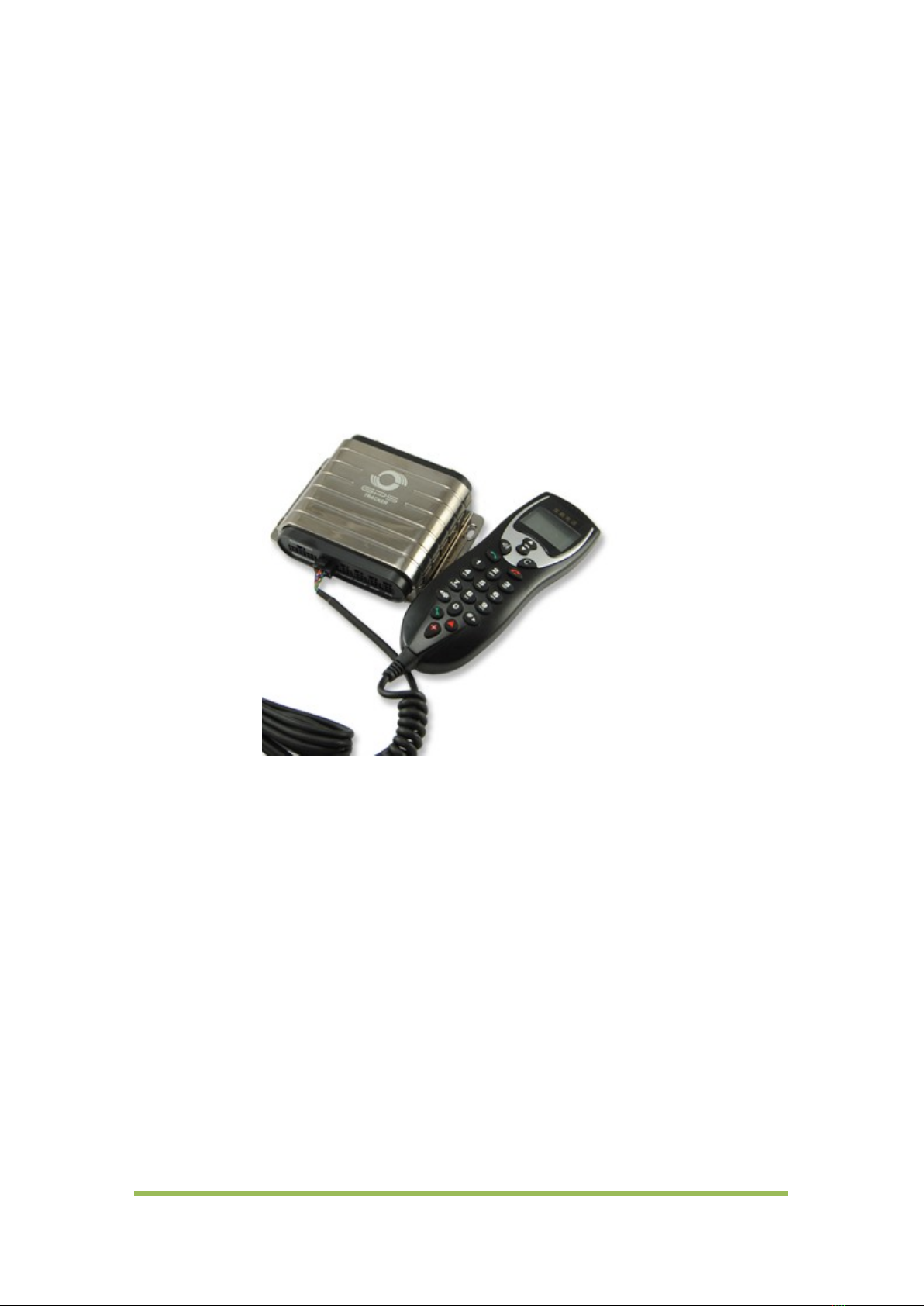

4. Main Device and Accessories

Handset

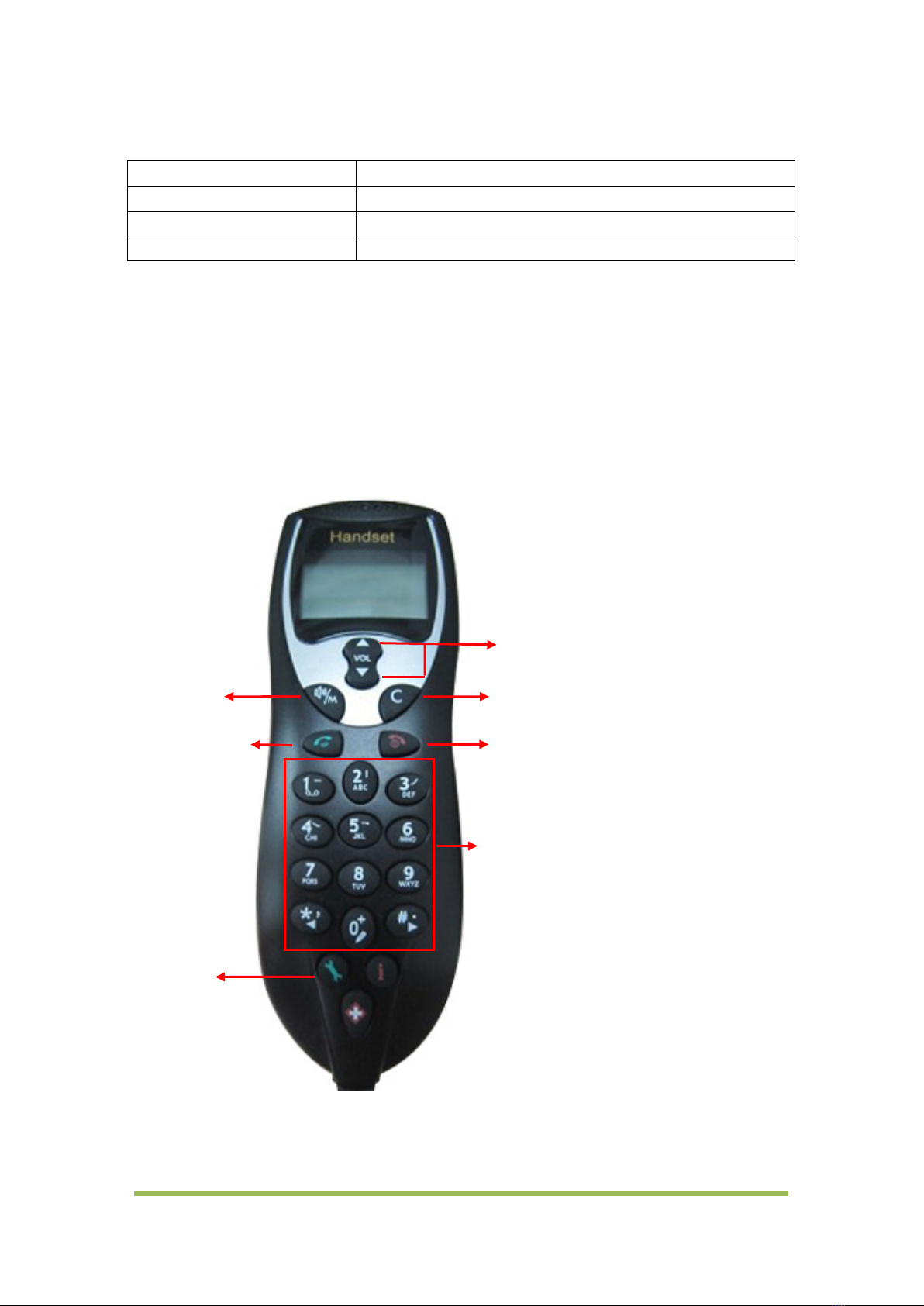

5. Outward Appearance

Up/Down Scroll Key

Menu/Enter Key

Rollback/Delete Key

Dial/Answer Key Hang up/Return Key

Number Buttons

Setting Key

File Name：MEITRACK Handset User Guide Crea tor Evan Lee

Project:: MVT600/T1 Creation Date:

Update Date：

2012-07-06

2013-06-26

Sub Project:：Accessories User Manual Page：5 of 8

Revision: V1.2 Confidential: External Documentation

Key Description:

Name Function

Dial/Answer Key Used to answer an incoming call when an incoming call

Editing the information for sending

Idle time for the start dialing

Hang up/Return

Key

Used to hang up call when calling

Return to the main interface for operating the menu

Used to illuminate the screen backlight when idle

Menu/Enter Key

(OK Key)

Used to bring up the main menu when idle

Used to confirm the current menu when select menu

Up/Down Scroll

Key

Used to scroll up or down the menu and content, also known as the “Up

key”,“Down Key”

The UP KEY used to increase the volume or microphone sensitivity when

calling

The DOWN KEY

used to decrease the volume or microphone sensitivity

when calling

Rollback/Delete

Key

Used to delete input characters when editing SMS；

Operating menu is used to return to the previous menu

Number Buttons 0-9：Numbers Key

*Key：Left back to select the character when selecting the character

#Key：Right back to select the character when selecting the character

Setting Key Switching setting volume and microphone sensitivity when calling

6. First Use

6.1 Fixed Installation

Camera and vehicle：According to customers’ needs

6.2 Connection Terminal

Inset the locator interface of handset to terminal dedicated interface

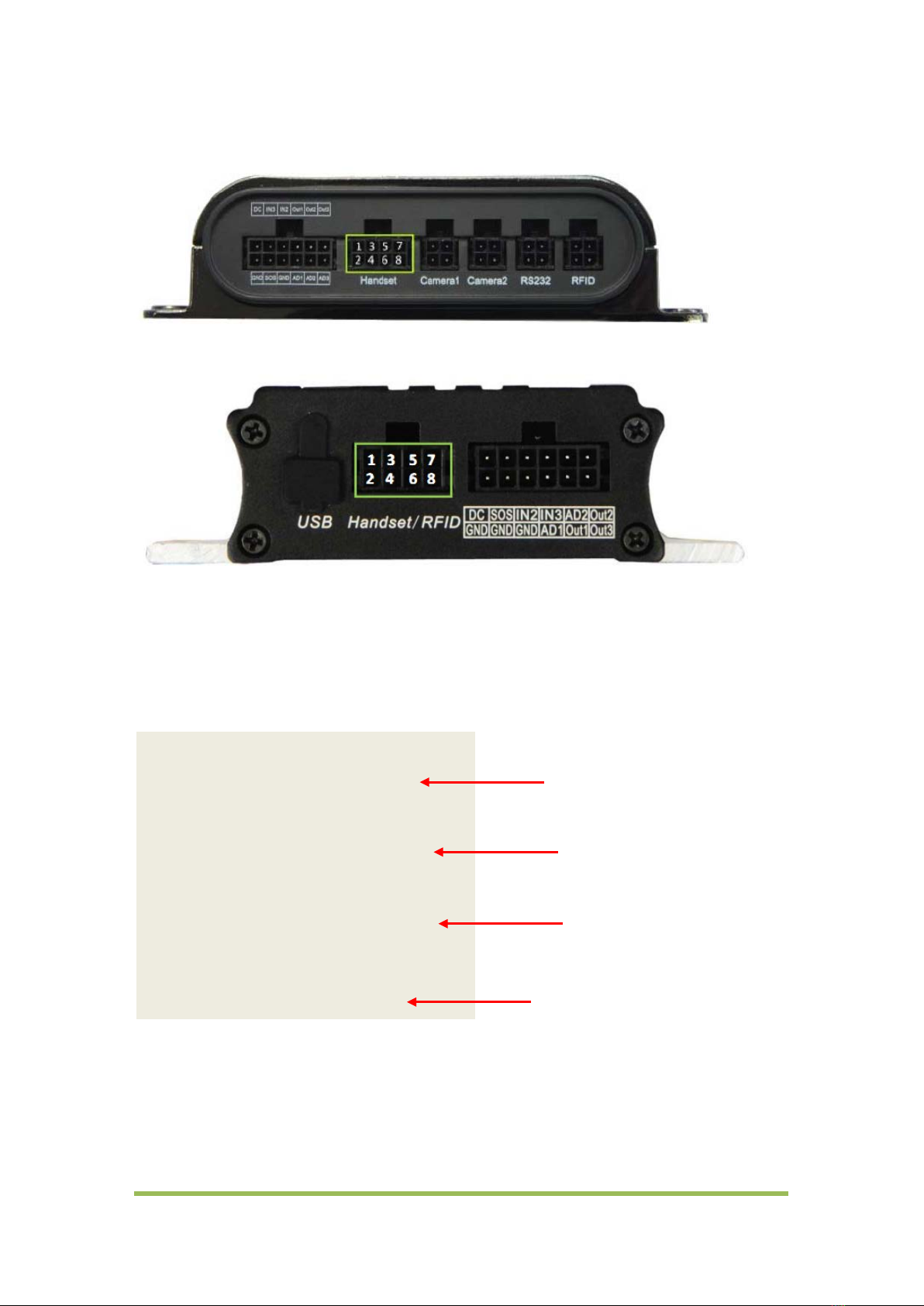

MVT600 dedicated interface as follows (when connect MVT600, must be connected to an external power supply)

File Name：MEITRACK Handset User Guide Crea tor Evan Lee

Project:: MVT600/T1 Creation Date:

Update Date：

2012-07-06

2013-06-26

Sub Project:：Accessories User Manual Page：6 of 8

Revision: V1.2 Confidential: External Documentation

T1 dedicated interface is as follows:

7. Feature

Main Platform

12/05/28 06:49

Lat :N22.513320

Lon:E114.056946

Spd:000 GPS:Y

GPS Time and Date

Speed and GPS Status

Latitude

Longitude

File Name：MEITRACK Handset User Guide Crea tor Evan Lee

Project:: MVT600/T1 Creation Date:

Update Date：

2012-07-06

2013-06-26

Sub Project:：Accessories User Manual Page：7 of 8

Revision: V1.2 Confidential: External Documentation

System Menu

First Grade Menu Second Grade Menu

Call Records

（CALL）

Outgoing Calls （Dialed）

Received Calls （Received）

Missed Calls （Missed）

SMS

（message）

Inbox （Received）

New creative Information

（Edit）

7.1 Call Records

7.1.1 Missed Calls

Show all missed calls

7.1.2 Received calls

Show successfully answered number when the call is coming in.

When a call is coming, use the call handle panel “Dial Key”to answer; Reject a call/end a call press the “Hang-up

key ”.

7.2.3 Dialed calls

Display using the digital keypad or speed dialing number

There are two ways to dial up:

Ordinary dial-up：Use the digital keypad for entering numbers, press “Dial key” to dial; End the call press

“Hang-up Key”. Use the “Setting Key” to select the speaker volume and microphone sensitivity, use the arrow

keys for adjustment.

Select dial-up：Press the arrow keys to select the number to recall in the call log, press dial keys for calling.

7.2 SMS

7.2.1 Inbox

It is able to view the SMS number and content of the SMS (Only in English).

File Name：MEITRACK Handset User Guide Crea tor Evan Lee

Project:: MVT600/T1 Creation Date:

Update Date：

2012-07-06

2013-06-26

Sub Project:：Accessories User Manual Page：8 of 8

Revision: V1.2 Confidential: External Documentation

7.2.2 New SMS

The goal of SMS sent by the call handle is the server (KC-SMM) supports only English characters.

When editing the message, press the number keys show characters, using “*/#Key” character selection, input “C

key” to delete characters, only supports English input.

Finished editing, use the “Dial Key” or “OK Key” to finish editing and remind to enter the received number, after

enter and then press “Dial Key” or “OK Key”, the screen indicates “SMS has been delivered”.

Please do not hesitate to email us at info@meitrack.com if you have any questions.
