Memjet AFINIA LABEL L701 Series Manuale utente

User’s Guide v1.3

L701 Printer Series

No part of this document may be photocopied, reproduced, or translated to another language without the

prior written permission of Afinia Label.

Trademarks

Firefox is a trademark of the Mozilla Foundation.

Intel and Intel Core are trademarks of Intel Corporation in the U.S. and/or other countries.

Java and Oracle are registered trademarks of Oracle and/or its affiliates.

Microsoft, Windows, Windows Vista, and Windows Server are registered trademarks of Microsoft

Corporation in the U.S.A. and/or other countries.

Memjet is a trademark of Memjet Ltd.

Edition

Edition 1, March 2018.

FCC

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Safety Precautions

Electrical Shock Hazard

Do not disassemble any part of your printer. There are no user-repairable parts

inside the printer. Disassembly of any part of the printer will void all warranties.

Fire Hazard

Keep the printer well away from all heat sources and flammable substances.

Switch your printer off immediately and unplug the power cord from the wall socket

if you notice any of the following:

• Smoke rising from the printer.

• An acrid smell coming from the printer.

• Sparks being emitted from printer.

Contact your supplier as soon as possible.

WARNING: Hazardous Moving Parts

Keep fingers and other body parts away from the printer.

Installation

• Install the printer on a flat, level surface.

The printer must remain level at all times. Tilting the printer may cause undue

leakage of ink and affect performance and print quality.

• Avoid wide temperature variations.

Install the printer in a protected location away from direct sunlight, open

windows or any other places subject to temperature extremes.

Power Supply

• Always use the Power button on the control panel to turn the printer off.

Removing power to the printer in any other manner may damage the printer.

• Use only the supplied power cord.

Use of any other power supplies or cords may damage the printer and void your

warranty.

Input Rating 100–240 VAC, 50/60 Hz, 3.6 A

Operating Temperature 15°C to 35°C (60°F to 95°F)

Printer Usage

• Ensure adequate ventilation to the printer.

Blocking ventilation openings around the printer may cause it to overheat and

become damaged.

• Keep liquids and heavy objects away from the printer.

Heavy objects may warp the outer shell, damaging the printer. Liquids may

discolor or damage the skin and, if they penetrate it, may damage the printer

beyond repair.

• Use only authorized consumables.

Use of any printhead other than authorized Memjet technology printheads will

damage the printer and void your warranty. Use of unauthorized inks or ink

cartridges may damage the printer and will void your warranty.

• Clear media jams promptly.

To avoid further problems, promptly attend to all media jams, as well as any

other cause of printer failure.

• If you are moving the printer, allow sufficient time after installation for the

temperature and humidity of the internals of the printer to arrive at equilibrium

with the surroundings.

Contents

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Using the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Parts of the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Installing the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Connect by USB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Using the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Selecting the Security Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Choosing Label Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Loading Label Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Loading Fanfold Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Printing Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Change Default Settings in Printer Driver . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Select the Media Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Adjust Alignment for Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Printing Borderless (Full-Bleed) Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Saving Custom Media Size Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Turning Off the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Managing Printer Security (Administrator). . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Embedded Web Server (EWS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Other Support Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Printer Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Guidelines for Preventive Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Replacing an Ink Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Cleaning the Printhead. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Replacing the Printhead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Opening/Closing the Clamshell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Cleaning Debris from the Cutting Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Cleaning the Sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Replacing the Output Module/Cutter Assembly. . . . . . . . . . . . . . . . . . . . . . . . 49

Replacing the Service Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Replacing the Transfer Wiper Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Replacing the Aerosol Fan Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Replacing the Waste Ink Absorber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

If Error Messages Appear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Poor Print Quality or Incorrect Printout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Other Printing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Clearing a Media Jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Clearing Clogged Ink Nozzles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Adjusting Sensor Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Additional Networking Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

If the Printer Has a Static IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

If the Connection to the Printer Has Changed. . . . . . . . . . . . . . . . . . . . . . . 76

Config Options on the Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Printer Interface (GPIO) Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Full Bleed Label Spec Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Circle Label Spec Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Memjet Printhead Best Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Worldwide Afinia Label Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Using the Printer 7

Chapter 1

Using the Printer

Parts of the Printer 8

Installing the Printer 9

Choosing Label Media 13

Loading Label Media 17

Loading Fanfold Media 19

Printing Labels 20

Printing Borderless (Full-Bleed) Labels 24

Saving Custom Media Size Settings 25

Turning Off the Printer 26

Managing Printer Security (Administrator) 27

Embedded Web Server (EWS) 29

Other Support Tools 37

NOTE: Once the printer has been set up, be sure to change the security passwords

using the Embedded Web Server (EWS). See Change Passwords on page 27.

8Using the Printer

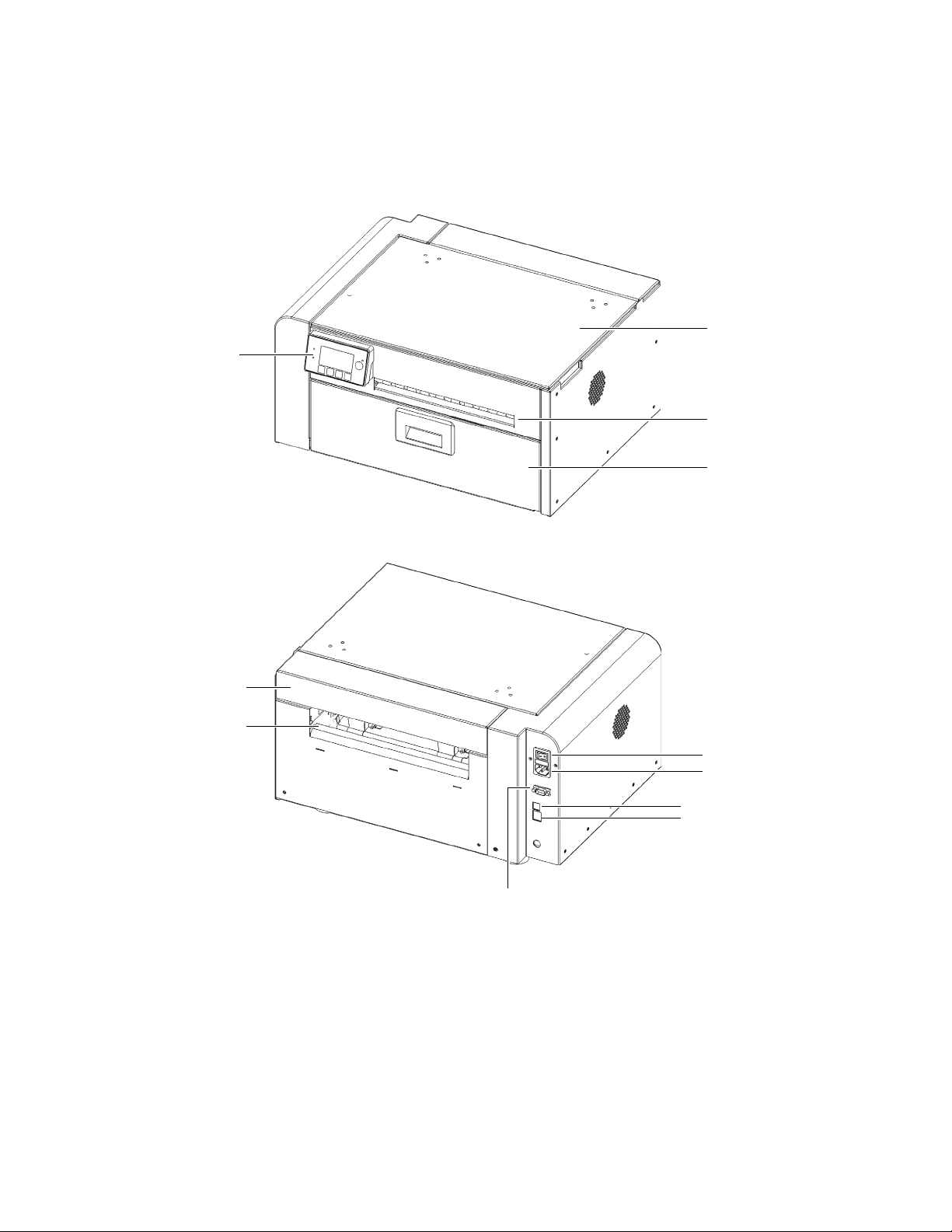

Parts of the Printer

Control Panel

Top Cove r

Front Cover

Output Slot

GPIO Port

USB Port

Ethernet Port

Power Socket

Power Switch

Media Feed Slot

Media Feed Cover

Using the Printer 9

Installing the Printer

The printer can be connected to your computer either by direct USB connection or

by an Ethernet connection.

Both connection methods require that the printer be installed with administrative

privileges.

The printer must be turned on to install.

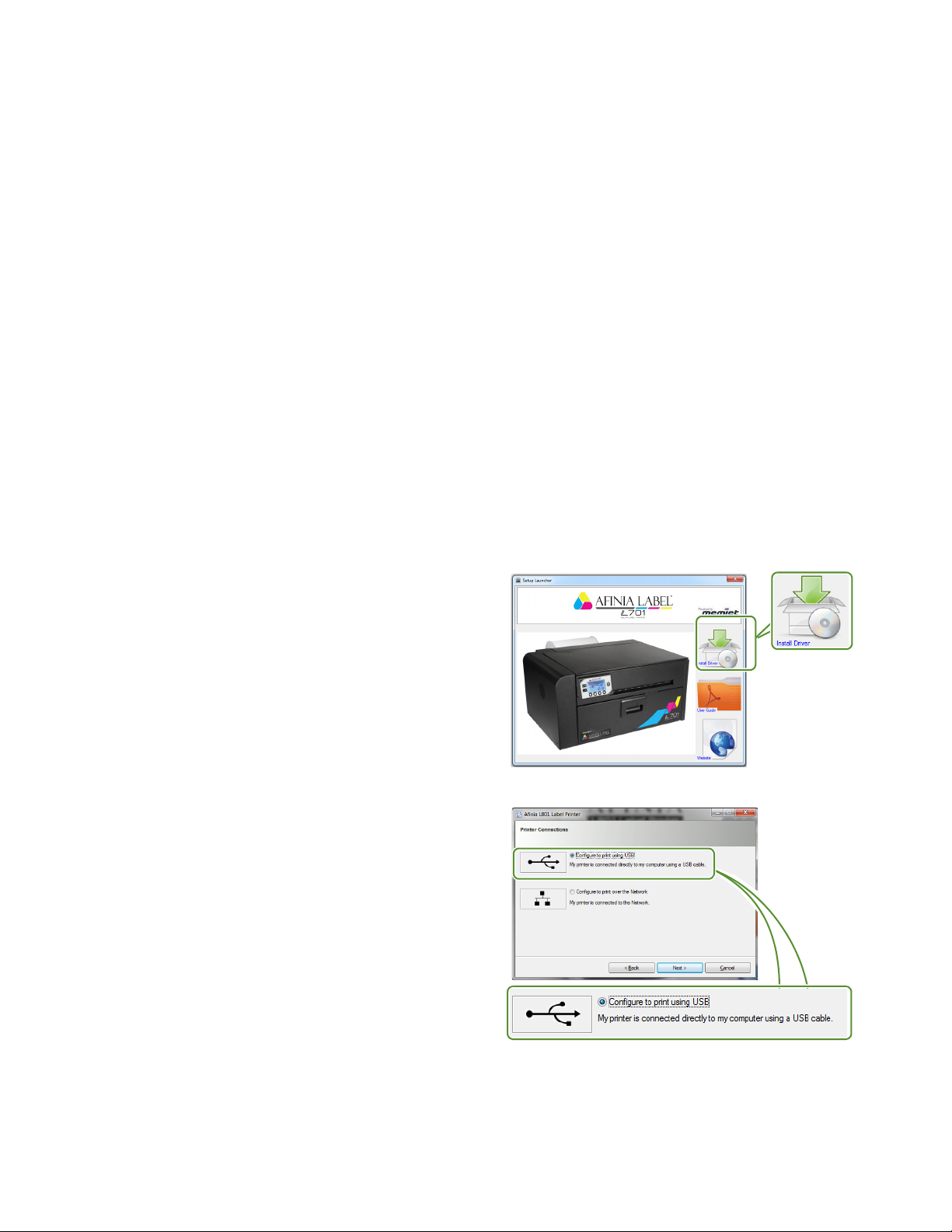

Connect by USB

Do not connect the printer to the computer until you are prompted.

1. Download the latest driver via

https://afinialabel.com/product-support/l701-support/

2. If the installer doesn’t open automatically, open the disk in Windows Explorer

and run Check.exe

3. Click InstallDriver and

follow all steps

4. When asked the Printer

Connection, select Configure

toprintusingUSB and click

5. When asked if drivers should

be installed, click Install

6. Connect the USB cable when

prompted

10 Using the Printer

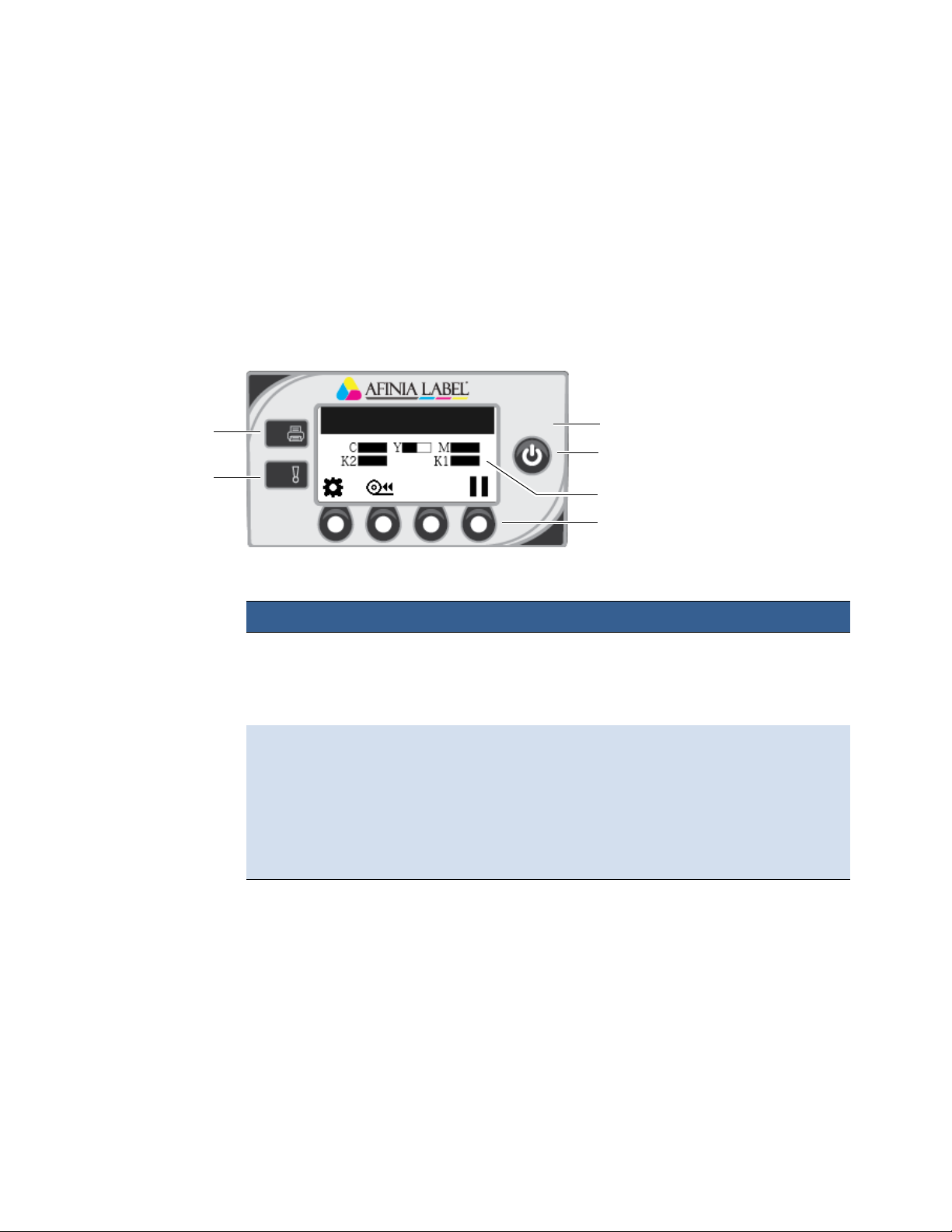

Using the Control Panel

The printer is ready to print when the control panel displays

Printer Online

. The Data

and Status LEDs together with messages indicate the printer status and any

potential problems (Table 1).

The control panel also shows the estimated levels of the ink cartridges. In the

example below, the yellow ink cartridge level is between 25 to 50%.

The icons above the printer buttons indicate their functions, which change

depending on the current operation (see Table 2).

Printer Online

Power LED

Power Button

Printer Buttons

Data LED

Status LED

Ink Status

Table 1 Printer LEDs

LED Description

Data LED

Blinking Printer is receiving data from the computer.

On There are print jobs in the printer memory.

Status LED

Blinking • Printhead is being serviced, or

• Attention needed; a message will be displayed. (See If Error

Messages Appear on page 62.)

On • An error has occurred; a message will be displayed. (See If

Error Messages Appear on page 62.)
