Mendota ECHO Series Guida alla pianificazione

FULLVIEW DIRECT VENT GAS FIREPLACE INSERT HEATER

Model E-FV-33i ECHO SERIES

HOME OWNER’S MANUAL

DOCUMENT NO. E-FV33i-OM-1011

In the Commonwealth of Massachusetts:

•Installation must be performed by a licensed plumber or

gas fitter;

•A CO detector shall be installed in the room where the

appliance is installed.

WARNING: Improper installation, adjustment, altera-

tion, service or maintenance can cause injury or prop-

erty damage. Refer to this manual. For assistance or

additional information consult a qualified installer, ser-

vice agency or the gas supplier.

CAUTION

THESE INSTRUCTIONS ARE TO REMAIN WITH

THE HOMEOWNER.

WARNING

If the information in this manual is not followed exactly, a

fire or explosion may result causing property damage,

personal injury or loss of life.

Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

WHAT TO DO IF YOU SMELL GAS

•Open windows.

•Do not touch electrical switches.

•Do not try to light any appliance.

•Extinguish any open flame.

•Do not use the phone in your building.

•Immediately call your gas supplier from a neighbor's

phone. Follow the gas supplier’s instructions.

•If you cannot reach your gas supplier, call the fire

department.

•

FOR YOUR SAFETY

A qualified installer, service agency, or the gas suppli-

er must perform installation and service.

Do not store or use gasoline or other flammable va-

pors and liquids in the vicinity of this or any other ap-

pliance. WARNING

Do not operate this appliance with the glass removed,

cracked or broken. A licensed or qualified person

should do replacement of glass.

WARNING

Mendota gas fireplaces are heat producing appliances.

Do not burn wood, paper or other materials in this fire-

place. This fireplace is designed as a supplement

heat source. It is advisable to have an alternative pri-

mary heat supply.

WARNING

Do NOT use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the

appliance and to replace any part of the control system and

any gas control, which has been under water.

The installation must conform with local codes or, in

the absence of local codes, with the current National

Fuel Gas Code, ANSI Z223.1, or the current Natural

Gas and Propane Installation Code, CSA B149.1

fire-parts.com

85-03-00857

Table of Contents

SAFETY AND WARNING INFORMATION ..........................................................................................3

SPECIFICATIONS................................................................................................................................4

CONGRATULATIONS .........................................................................................................................5

BUILDING PERMIT AND INSTALLATION INSPECTION APPROVAL REQUIREMENTS.................5

BEFORE YOU BEGIN..........................................................................................................................6

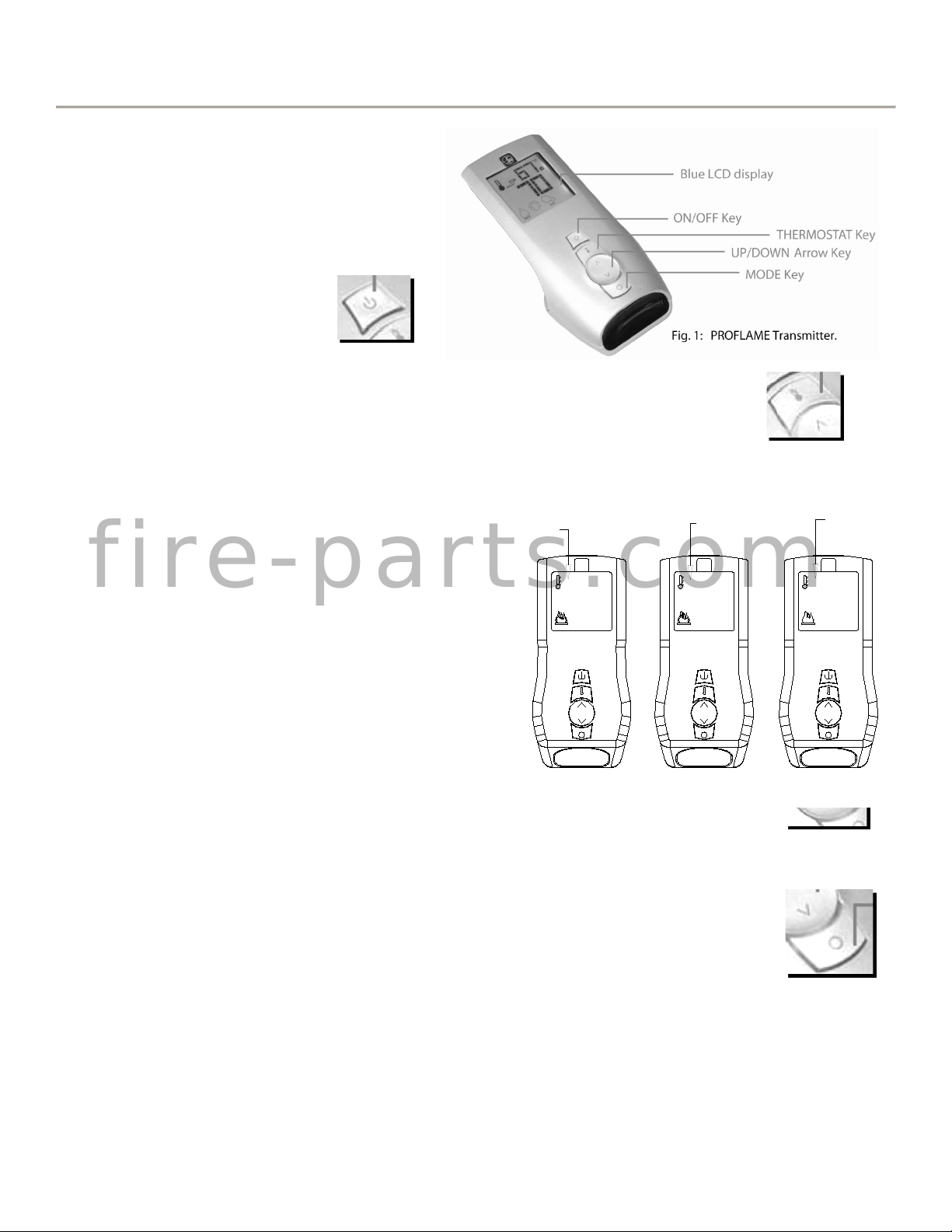

REMOTE CONTROL TRANSMITTER FUNCTIONS.............................................................................................................6

REMOTE TRANSMITTER OPERATING INSTRUCTIONS..................................................................7

TO TURN ON THE APPLIANCE:.............................................................................................................................................7

TO TURN OFF THE APPLIANCE, PRESS THE ON/OFF BUTTON..................................................................................7

MODE KEY................................................................................................................................................................................7

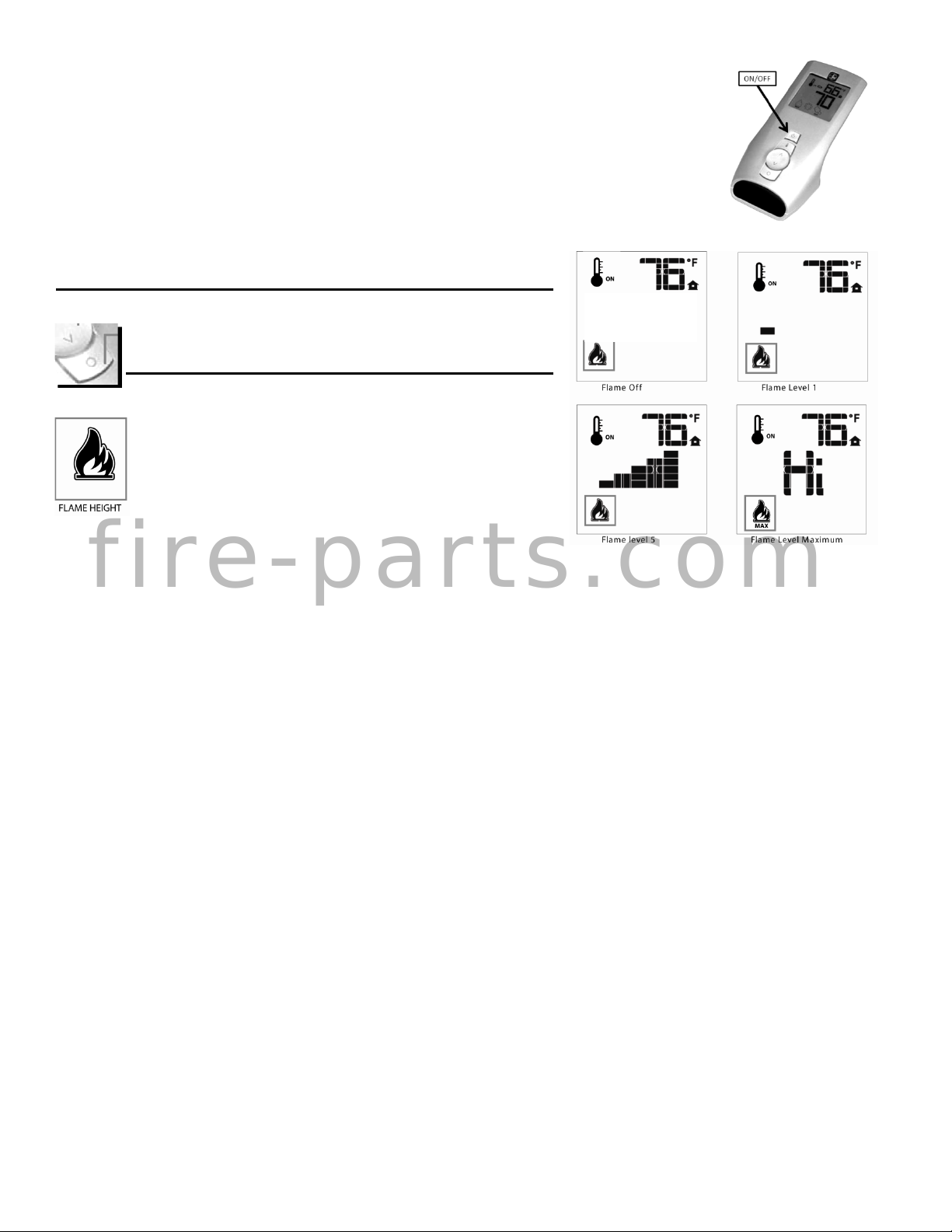

FLAME HEIGHT........................................................................................................................................................................7

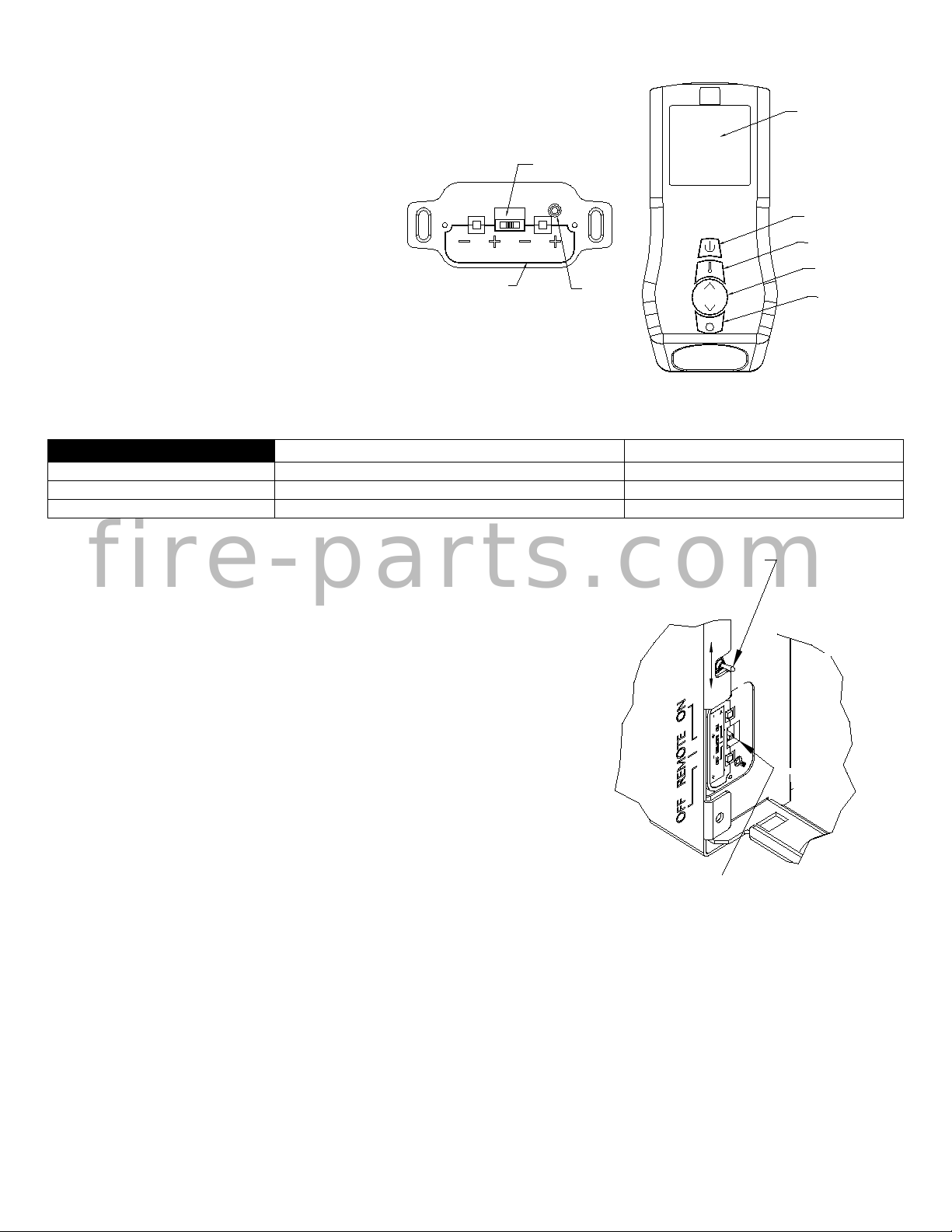

MANUAL BYPASS OF THE REMOTE SYSTEM.................................................................................8

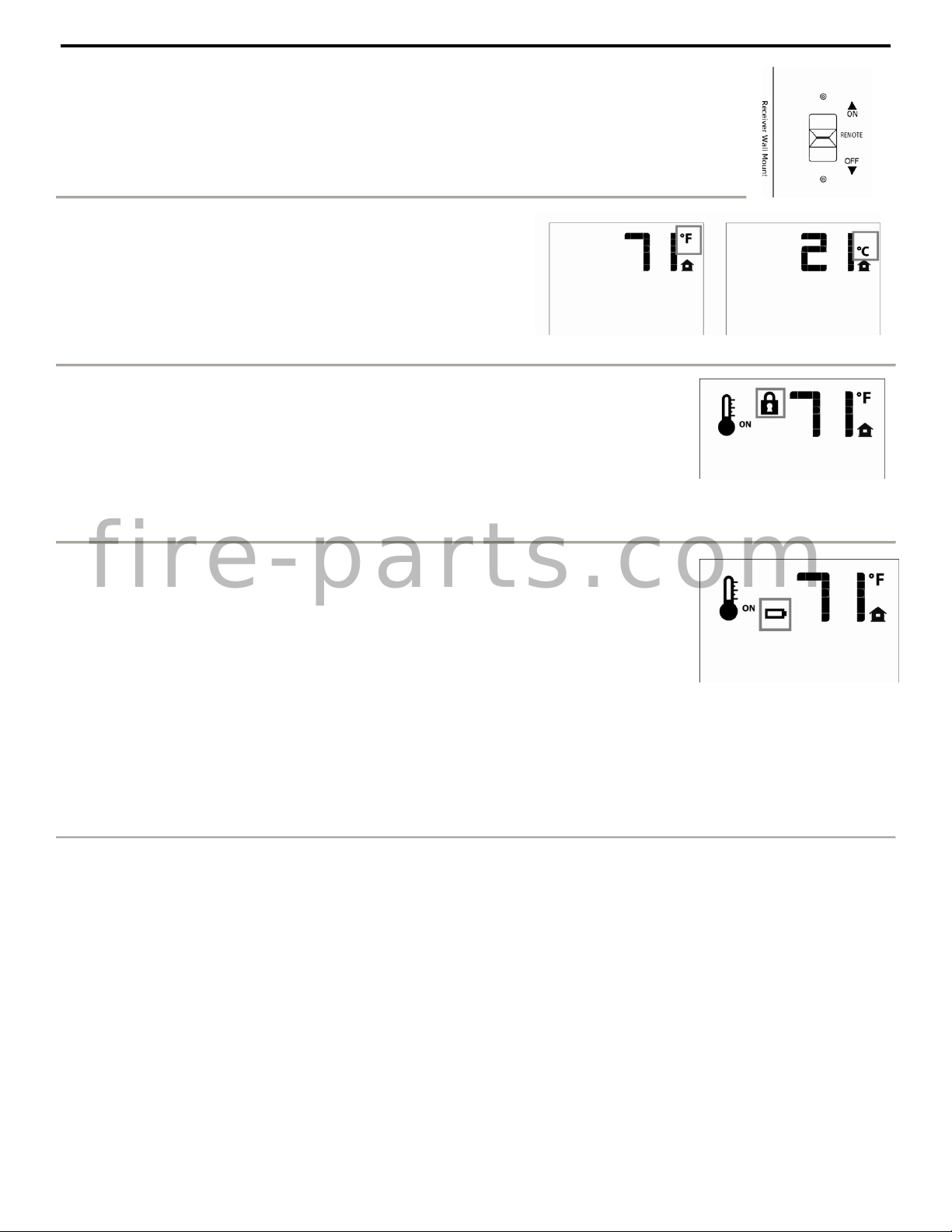

TEMPERATURE INDICATOR (OF OR OC)...........................................................................................8

KEY LOCK FUNCTION........................................................................................................................8

LOW BATTERY POWER DETECTION ...............................................................................................8

OPERATING DURING POWER OUTAGES ........................................................................................8

“FIRST TIME” PILOT LIGHTING INSTRUCTIONS.............................................................................9

INITIALIZING THE REMOTE CONTROL SYSTEM...........................................................................................................10

SYNCHRONIZING RECEIVER AND TRANSMITTER........................................................................................................10

IPI/STANDING PILOT SYSTEM INFORMATION ..............................................................................10

IPI MODE. ................................................................................................................................................................................10

STANDING PILOT MODE......................................................................................................................................................10

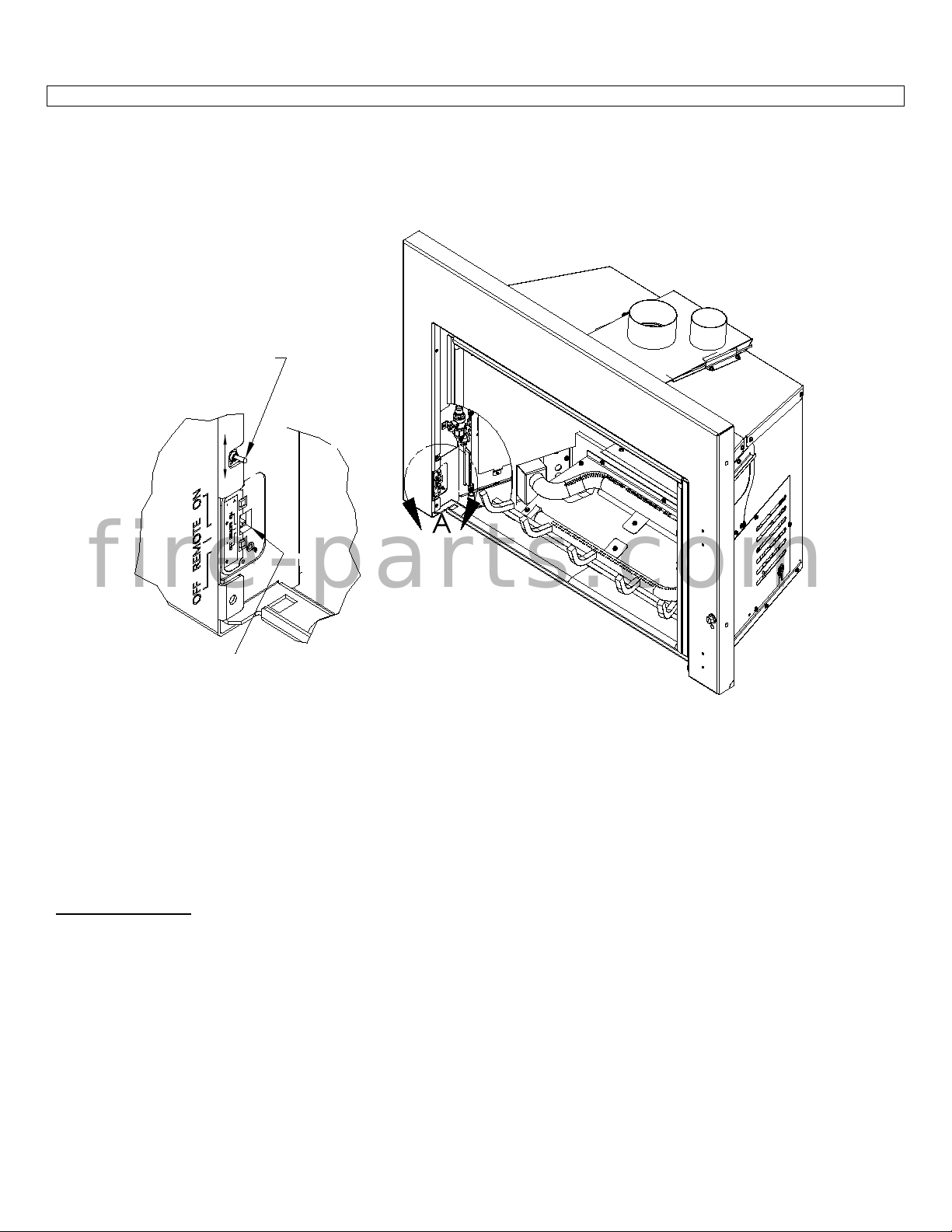

E-FV33I DOOR REMOVAL AND INSTALLATION ..............................................................................9

BLOWER SYSTEM INFORMATION..................................................................................................12

BLOWER OPERATION...........................................................................................................................................................12

MENDOTA WARRANTY QUALIFICATION & SERVICE REFERENCE FORM................................13

MENDOTA EXTENDED LIFETIME PROTECTION AND LIMITED WARRANTY..............................16

fire-parts.com

85-03-00857

SAFETY AND WARNING INFORMATION

READ and UNDERSTAND all instructions carefully before starting the appliance. FAILURE TO FOLLOW these instruc-

tions may result in a possible fire hazard and will void the warranty.

Any safety screen or guard removed for servicing must be replaced before operating this appliance.

DO NOT USE this appliance if any part has been under water. Immediately CALL a qualified service technician to inspect

the appliance and to replace any part of the control system and any gas control, which has been underwater.

THIS UNIT IS NOT FOR USE WITH SOLID FUEL.

Installation and repair should be PERFORMED by a qualified service person. The appliance and venting system should

be INSPECTED before initial use and at least annually by a professional service person. More frequent cleaning may be

required due to excessive lint from carpeting, bedding, material, etc. It is IMPERATIVE that the unit’s control compart-

ment, burners, and circulating air passageways ARE KEPT CLEAN to provide for adequate combustion and ventilation

air.

Always KEEP the appliance clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

NEVER OBSTRUCT the flow of combustion and ventilation air. Keep the front of the appliance CLEAR of all obstacles

and materials for servicing and proper operation.

Due to high temperature, the appliance should be LOCATED out of traffic areas and away from furniture and draperies.

Clothing or flammable material SHOULD NOT BE PLACED on or near the appliance.

Children and adults should be ALERTED to the hazards of high surface temperature and should STAY AWAY to avoid

burns or clothing ignition. Young children should be CAREFULLY SUPERVISED when they are in the same room as the

appliance.

These units MUST use one of the vent systems described in the Installing Your Fireplace section of the Installers Guide.

NO OTHER vent systems or components MAY BE USED.

This gas fireplace and vent assembly MUST be vented directly to the outside and MUST NEVER be attached to a chim-

ney serving a separate solid fuel-burning appliance. Each gas appliance MUST USE a separate vent system. Common

vent systems are PROHIBITED.

If the vent-air intake system is disassembled for any reason, reinstall per the instructions provided for the initial installa-

tion.

The vent system assembly for this fireplace must be periodically examined by a qualified service agency.

INSPECT the external vent cap on regular basis to make sure that no debris is interfering with the airflow. The flow of

combustion and ventilation air not to be obstructed

DO NOT abuse the glass door by striking the glass, slamming the door shut, etc.

Use only authorized parts and materials obtained from Johnson Gas Appliance Company when replacing defective or

damaged glass.

DO NOT USE abrasive cleaners on the glass door assembly. DO NOT ATTEMPT to clean the glass door when it is hot.

Turn off the gas before servicing this appliance. It is recommended that a qualified service technician perform an ap-

pliance check-up at the beginning of each heating season.

DO NOT place furniture or any other combustible household objects within 36 inches of the fireplace front.

fire-parts.com

85-03-00857

SPECIFICATIONS MODEL E-FV-33i

Natural Gas

Propane Gas

Input rating (Btu/hr) 0-610 m

31,000

Minimum input (Btu/hr) 0-610 m

21,000

25,000

Orifice size (DMS) 0-610 m (front/rear)

49/45

3/64”/ 3/64”

Manifold pressure (in. w.c./kPa) > High Fire

3.5/0.87

10.0/2.49

Manifold pressure (in. w.c./kPa) >Low Fire

1.7/0.42

6.3/1.57

Minimum inlet pressure (in. w.c./kPa)

5.0/1.24

11.0/2.74

Air shutter settings (in)

1/16”

¼”

EFFICIENCIES..................................EXCEEDS D.O.E. EFFICIENCY REQUIREMENTS (A.F.U.E.)

FLUE VENT LINER............................CO-LINEAR - 4” DIAMETER EXHAUST & 3” DIAMETER INLET

...................................................... Minimum Vent Length is 10 feet. Maximum Vent Length is 70 feet.

NET WEIGHT...................................165 lbs.

SAFETY ...........................................AGA CERTIFIED, ELECTRONIC IGNITION IPI SYSTEM

ACTIVATED WITH THERMOSTATIC REMOTE CONTROL.

GAS REQUIREMENTS .......................SUPPLY PRESSURE: GAS INLET: 3/8" N.P.T.

NAT. GAS: 7" W.C. [5.0" W.C. MIN., 11" W.C. MAX.]

L.P. GAS: 11" W.C. [11" W.C. MIN., 13" W.C. MAX.]

ELECTRICAL REQUIREMENTS ...... 120 Volts AC, 1 Amps

LISTINGS - INTERTEK TESTING SERVICES TESTED TO: ANSI Z21.88-2005 – CSA2.33-2005 – CAN/CGA 2.17-M91

Gas appliances must be tested and certified by a nationally recognized testing and certification agency to American Na-

tional Standards Institute - ANSI Gas Appliance Safety Standards. . The Mendota Gas Fireplace Insert has been tested

and certified by Intertek Testing Services. 8431 Murphy Drive, Middleton, WI 53562.

INSERT INCLUDES CERAMIC COMBUSTION SYSTEM, DUAL HOT AIR BLOWERS, PREMIUM 8-PIECE FIBER LOG SET & COALS, NEO-CERAM

GLASS,THERMOSTATIC REMOTE ELECTRONIC IGNITION, AGA CERTIFIED SAFETY SYSTEM.

NOTE: LPG CONVERSION KIT, # HA-82-00411, MUST BE PURCHASED SEPARATELY TO CONVERT TO BURN LPG

IN THIS FIREPLACE INSERT.

APPLIANCE CERTIFICATION AND TESTING AGENCY

INTERTEK TESTING SERVICES, ICBO#AA647-4

Certified under ANSI Z21.88 (2005) •CSA 2-33 (2005) “Vented Gas Fireplace Heaters" not for use with solid fuel. Approved for bed-

room installations and mobile homes. UL307B approved for "mobile homes, after first sale of home, not for recreational vehicles."

CAUTION

THESE INSTRUCTIONS ARE TO

REMAIN WITH THE HOMEOWNER.

NOTE: This installation must conform to local codes. In the absence

of local codes, you must comply with the National Fuel Gas Code,

ANSI Z223.1-latest edition in the U.S.A. and the Natural Gas and

Propane Installation Code, CSA B149 Installation Codes in Cana-

da.

This appliance may be installed in an

aftermarket, permanently located,

manufactured home (USA only) or

mobile home, where not prohibited

by local codes.

This appliance is only for use with

the type(s) of gas indicated on the

rating plate.

WARNING: Do not operate this appliance with the glass removed,

cracked or broken. A licensed or qualified person should do re-

placement of glass.

HIGH ALTITUDE INSTALLATION INFORMATION: Prior to installing at altitudes higher than 7500 feet, please

contact the Mendota technical service department for specific venting requirements and venting restrictions.

fire-parts.com

85-03-00857

CONGRATULATIONS

You are the owner of a world-class heat producing gas direct vent sealed combustion fireplace insert.

This elegant, highly efficient Fireplace will be a constant source of comfort and fascination. It will be the focal point of

beauty and interest in your home.

The Mendota Gas Fireplace insert is a true heating appliance incorporating the traditional aesthetics of fireplace fire view-

ing with the controllability and fuel efficiency of a home gas furnace. Of particular interest is the low fuel consumption and

brilliant fire viewing afforded by the realistic Premium Fiber wood fire-like combustion system.

Carefully read the following instructions prior to actual installation. Proper Mendota Gas Fireplace insert installation and

operation will give you years of safe, trouble free comfort and enjoyment.

If you have any questions regarding installation or operation of your Mendota Fireplace insert please contact your local

dealer.

...CAUTION...

Due to high temperatures, the Fireplace insert should be located away from furniture and draperies. Children and adults

should be alerted to the hazards of high surface temperature and should stay away to avoid burns or clothing ignition.

Young children should be carefully supervised when they are in the same room as the Mendota Gas Fireplace insert.

Clothing or other flammable material should not be placed on or near the Fireplace insert.

Any safety screen or guard removed for servicing an appliance must be replaced prior to operating this appliance.

This Mendota Gas Fireplace Insert is a powerful and efficient heating unit. It has been designed as a major source of

supplemental heat. As with any mechanical appliance there can be component shut downs. It is advisable to have an

alternate heat supply.

Installation, repair and any adjustments to logs or burner must be done by a qualified service person. The appliance

should be inspected before use and at least annually by a professional service person. More frequent cleaning may be

required due to excessive lint from carpeting, bedding material, carbon build-up, etc. It is imperative that control com-

partments, burners and circulating air passageways of the appliance be kept clean. The burner and pilot flames and logs

should be visually checked periodically.

DO NOT use this appliance if any part has been under water or exposed to moisture corrosion. Immediately call a quali-

fied service technician to inspect the Fireplace and replace any part of the control system and any gas control, which has

been under water. DO NOT use this fireplace if the burner does not light immediately. Turn unit off and call Mendota ap-

proved service person if there is any delay in burner light off.

It is Johnson Gas Appliance Company's policy that no responsibility is assumed by the Company or by any of its em-

ployees or representatives for any damages caused by an inoperable, inadequate, or unsafe condition which is the result,

either directly or indirectly, of any improper operation, installation or servicing procedures.

Building Permit and Installation Inspection Approval Requirements

All installations of Mendota Fireplaces and Inserts must comply with all the requirements stated in this Installation and

Operating Instructions Manual. The Dealer and/or installer must also obtain all required Building Permits and Inspection

Approval from the local building inspection department or the local body having jurisdiction. In order to validate warranty

coverage, Mendota may require facsimile copies of the Building Permit and Inspection Approval forms. Failure to provide

adequate proof that the installation conforms to all local requirements and the requirements stated in the Installation and

Operating Instructions Manual will void all applicable warranty.

INSTALLER: THESE INSTRUCTIONS ARE TO REMAIN WITH HOMEOWNER.

HIGH ALTITUDE INSTALLATION INFORMATION: Prior to installing at altitudes higher than 7500, please con-

tact the Mendota technical service department for specific venting requirements and venting restrictions.

fire-parts.com

85-03-00857

BEFORE YOU BEGIN

Read this entire manual before you use your new fireplace (especially the section “Safety Precautions” on page 2). Failure to follow

the instructions may result in property damage, bodily injury, or even death.

Remote Control Transmitter Functions

NOTE: The Receiver will “beep” once every time a

Remote Transmitter Key is pressed, signaling that the

command has been received.

Identify the four function buttons on the Remote

Transmitter:

1. ON/OFF KEY: This button

turns the system ON or OFF.

When this button is pressed

and the system is OFF, the pi-

lot light will stay ON if the “Standing Pilot

Switch” is in the ON position.

2. THERMOSTAT KEY: This button, when pressed after the ON/OFF KEY is pressed and the sys-

tem is ON, will allow the selection of three modes: Manual Operation, Normal Thermostat and Smart

Thermostat.

a. Manual Mode: In this mode, the room temperature is ignored and the fireplace can be turned ON indefinitely.

The room temperature rise has no effect on this mode. All other functions such as flame height control will be

manually controllable.

b. Normal Thermostat: In this mode, the fireplace

will stay functioning until the room temperature in-

creases 1oF above the Set Point Temperature. To

increase the Set Point Temperature, Press the UP

button until the desired temperature is displayed in

the SET POINT TEMPERATURE window. The

flame height can be adjusted while the fireplace is

functioning.

c. Smart Thermostat: In this mode, all other func-

tions except the flame height adjustment are al-

lowed. Manual flame height adjustment is not al-

lowed in this mode. The Smart Thermostat func-

tion adjusts the flame height in accordance to the

difference between the set point temperature and

the actual room temperature. As the room temper-

ature gets closer to the set point temperature, the

Smart Function automatically modulates the flame down.

3. UP/DOWN KEY: This key is used to increase or decrease the Set Point Temperatures and Flame Height.

4. MODE SELECTION KEY: This key is used to toggle between the various function icons : Thermostat

Temperature Selection and Flame Height.

SMART

OFF

SMART

MODE

NORMAL

THERMOSTAT

MANUAL

MODE

MAXMAX

OFF

76°

F F

76°

ON SMART

76°

fire-parts.com

85-03-00857

REMOTE TRANSMITTER OPERATING INSTRUCTIONS

TO TURN ON THE APPLIANCE:

1. Press the ON/OFF button. The transmitter display will show all active icons on the screen.

2. Select the Thermostat Mode by pressing the Thermostat Key: OFF (meaning Manual

Mode), ON (meaning normal Thermostat) or Smart (meaning Smart Mode).

a. In OFF (Manual Mode), the appliance will ignite and start on HI.

b. In ON (Normal Thermostat Mode), the appliance will only ignite if the Set Temperature

is greater than the Room Temperature.

c. In SMART (Smart Mode), the appliance will only ignite if the Set Temperature is greater

than the Room Temperature.

TO TURN OFF THE APPLIANCE, press the ON/OFF button.

MODE KEY

Pressing the MODE KEY toggles between thermostat tem-

perature set mode and Flame Height adjustment mode.

Flame Height: 6 flame height Levels are available. While the Flame

Height Icon is displayed, pressing the Up or Down button

once will increase or decrease the flame height by 1 of 6 in-

crements. If the flame height is at Level 1 and the Down but-

ton is pressed, all burners will turn OFF. If in IPI mode, the

pilot light will also extinguish. If in Standing Pilot Mode, the

pilot light will remain ON. Note: If in SMART model, the flame

height function is not available for manual adjustment. In SMART mode,

the flame height regulates automatically.

fire-parts.com

85-03-00857

MANUAL BYPASS OF THE REMOTE SYSTEM

If the remote transmitter is misplaced or lost, the appliance can be turned on manually by sliding the

three position slider switch on the receiver to the ON position. This will bypass the remote control

feature of the system and the appliance’s main burner will turn on.

To turn off the appliance, if the remote control is misplaced or lost, slide the three position slider

switch on the receiver to the OFF Position.

TEMPERATURE INDICATOR (oF or oC)

1.Press the ON/OFF Key and Turn Off the Fireplace.

2.Simultaneously, Press both the MODE Key and the Thermostat

Key.

3.Look at the LCD display to verify that your desired indicator (oF or

oC) is being displayed. If not, repeat step 2.

KEY LOCK FUNCTION

To prevent unsupervised children from operating the fireplace, a KEY LOCK function is provided

with this remote control system. To activate the KEY LOCK function, simultaneously press the

“MODE KEY” and the “UP KEY”. To deactivate the KEY LOCK function, simultaneously press

the “MODE KEY” and the “UP KEY”.

During KEY LOCK mode, none of the Keys will function. You must DEACTIVATE the system

before you can use the Remote Transmitter.

LOW BATTERY POWER DETECTION

1. Transmitter Batteries: The life span of the remote control transmitter batteries depends

on various factors: quality of the batteries used, the number of ignitions of the appliance,

the number of changes to the room thermostat set point, etc. When the Transmitter bat-

teries are low, a Battery Icon will appear on the LCD display of the Transmitter before all

battery power is lost. When the batteries are replaced, this icon will disappear.

2. Receiver Batteries: The life span of the receiver batteries depend on the quality of the batteries used and how long

the batteries have been installed in the receiver. These batteries are only utilized during power outages. Replace

these batteries every heating season even if you have not experienced any power outages. Batteries drain slowly

even when not in use. This is a normal characteristic of all batteries.

The batteries are to be installed in the receiver which is located on the left side under the Pilot Light Switch.

To replace or add batteries, remove the Glass Frame first then remove the battery compartment cover. Insert batte-

ries in correct polarity positions and close the battery compartment cover.

OPERATING DURING POWER OUTAGES

This electronic ignition system utilizes the supplied 110VAC power when it is available for all functions of this system. If

the AC power is interrupted during a power outage, this system utilizes the batteries (installed in the Receiver) as back-up

batteries. During the power outage, the appliance’s burners will function. In addition the Flame Height adjustment function

will be available.

This appliance is designed and tested to be operated during power outages. The overall efficiency of this appliance will be

reduced by approximately 5% when the blower function is disabled during the power outage period.

fire-parts.com

85-03-00857

“FIRST TIME” PILOT LIGHTING INSTRUCTIONS

IMPORTANT: Be sure all items on "INSTALLATION CHECK OFF LIST" in the Installation Manual have been completed!

CAUTION: If the pilot goes out, be sure to wait a minimum of five minutes before attempting to relight the pilot.

1. Make certain that any manual gas supply shut-off valves located upstream of fireplace are open and the receiver and the remote

control transmitter are in the "OFF" position. Make certain that the receiver harness is connected to the receiver properly.

2. Make certain that 120VAC power cord is connected to an electrical outlet.

3. Insert Batteries in the Receiver and the Remote Transmitter. Note the polarity of batteries and insert as indicated on the battery

compartment cover.

4. For the “First Time Lighting”, Remove the Glass Door. This is required to purge the gas line of air and to inspect the pilot light-

ing spark.

5. Slide the receiver switch to “REMOTE”. Locate the “Standing Pilot ON/OFF Switch”. See Figure, above. Toggle “Standing Pilot

ON/OFF Switch” to “ON”. You will hear a series of clicks and after a few seconds, you will hear sparking at the pilot spark elec-

trode.

6. Allow adequate time for the air in the gas-line to purge. The control system will stop sparking after 30 seconds if the pilot light

does not light. After a 30 second delay the control system will start sparking again for 30 seconds more. If the pilot light does not

light after the third 30 second spark event, the system will enter “Lock-out” mode. To unlock from “Lock-out” mode, slide Re-

ceiver Switch to “OFF”, wait 30 seconds and slide back to “Remote”. Repeat this sequence until the pilot flame lights and the pi-

lot is burning steadily.

LOCK OUT MODE: If the pilot light does not light after the third 30 second spark event, the system will enter “Lock-out” mode. To

unlock from “Lock-out” mode, slide Receiver Switch to “OFF”, wait 30 seconds and slide back to “Remote”.

7. Once the pilot flame is lit and well-established, close glass door. WARNING: NEVER IGNITE MAIN BURNERS WITH

GLASS DOOR REMOVED OR OPEN. Doing so will lead to damage to pilot flame sensor and spark electrode wire leads.

8. Slide switch on Receiver to “ON”. All burners should ignite and run at “high-fire”. Slide Receiver switch to REMOTE after 15

seconds. Burner Flames will extinguish.

9. Perform gas inlet and outlet pressure tests and leak tests on field installed gas fittings and factory installed fittings in the gas valve

compartment, at this time. Note: Burners must be ON to check outlet pressures and to leak test gas train fittings upstream of main

gas valve.

OFF

REMOTE CONTROL

RECEIVER MODULE

STANDING PILOT

LIGHT ON/OFF SWITCH

fire-parts.com

85-03-00857

INITIALIZING THE REMOTE CONTROL SYSTEM

(Synchronizing Receiver and Transmitter)

1. Place 3-position slider switch in Receiver in

the “Remote” position.

2. Locate “PRG” key on Receiver Face. Use

the tip of a pen/pencil or a wire clip to push

the PRG button. The receiver will beep 3

times indicating that it is ready to synchron-

ize with a Remote Transmitter.

3. Push the “ON” key on the Remote Trans-

mitter. The receiver will beep 4 times to in-

dicate that the Transmitter’s command is

accepted and sets to the particular code of

that Transmitter. The system is now initia-

lized.

NOTE: Use this Synchronizing procedure every

time the batteries are replaced in the Receiver

or the Transmitter.

IPI/STANDING PILOT SYSTEM INFORMATION

Intermittent Pilot Light and Standing Pilot Light Features

This gas fireplace is equipped with an electronic ignition System that first

lights a pilot light then uses the pilot light to ignite the main burners. The

pilot light can be set in the “Standing Pilot” mode to allow the pilot light to

remain on indefinitely by toggling the “Standing Pilot Switch” to the ON posi-

tion. If the “Standing Pilot Switch” is toggled to the OFF position, the pilot

light will only light and remain ON while the main fireplace burners are oper-

ating.

IPI Mode: This mode turns the pilot light “OFF” when the fireplace is not

functioning and only lights the pilot light automatically when a

call for heat is made by the remote control.

Standing Pilot Mode:If the “Standing Pilot Switch” is toggled to ON,

the pilot light will ignite and remain ON as long as the “Stand-

ing Pilot Light Switch” is in the ON position.

NOTE: Mendota Fireplaces recommends that the Standing Pilot Mode

be used during the winter months when external temperatures fall be-

low 50oF. This will keep the fireplace chimney heated for proper updraft dur-

ing burner ignition and it will also eliminate excessive condensation of

exhaust vapors on the door glass. Further, leaving the fireplace in the

Standing Pilot Mode will keep the fireplace body warm and eliminate cold drafts and heat loss to the cold air that is

trapped inside the firebox.

REMOTE CONTROL

RECEIVER

Supply voltage

4.5V (three 1.5V AAA batteries)

6.0V (four 1.5V AA batteries)

Ambient temperature ratings

32 – 122 oF (0 – 50 oC)

32 – 140 oF (0 – 60 oC)

Radio Frequency

315 MHz

BATTERY

COMPARTMENT

LID

3-POSITION

SLIDER SWITCH

PRG KEY

PRG

WALL RECEIVER

REMOTE TRANSMITTER

BLUE LCD

DISPLAY

MODE

SELECTION KEY

UP/DOWN

SELECTION KEY

THERMOSTAT

SELECTION KEY

ON/OFF KEY

OFF

REMOTE CONTROL

RECEIVER MODULE

STANDING PILOT

LIGHT ON/OFF SWITCH

fire-parts.com

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Mendota Camino da interno

Mendota

Mendota X-62 Manuale utente

Mendota

Mendota FV46 Manuale utente

Mendota

Mendota ML39-PF2 Supplemento

Mendota

Mendota FV-41 Manuale utente

Mendota

Mendota FV33i-PF2-0113 Manuale

Mendota

Mendota SEABROOK D-40 Manuale

Mendota

Mendota FV-33i Manuale utente

Mendota

Mendota AA-11-03054 Manuale utente

Mendota

Mendota FV46 Manuale utente

Mendota

Mendota AA-11-05391 Manuale utente

Mendota

Mendota m91 Manuale

Mendota

Mendota DXV-35 DT4 Manuale

Mendota

Mendota AA-11-03585 Manuale utente

Mendota

Mendota FV44i-PF2 Manuale

Mendota

Mendota ML-47 Manuale utente

Mendota

Mendota ML60 Manuale utente

Mendota

Mendota E-FV44I ECHO SERIES Manuale

Mendota

Mendota FV33-M-1111 Manuale

Mendota

Mendota DXV35 TIMBERFIRE Manuale utente

Mendota

Mendota E-FV-33i Manuale

Mendota

Mendota FV42 Manuale utente

Mendota

Mendota DXV-35 DT3 - LX Manuale

Mendota

Mendota AA-11-04058 Manuale utente

Mendota

Mendota AA-11-02470 Manuale utente

Manuali Camino da interno popolari di altre marche

Brigantia

Brigantia 35-DVRS31N-2 Manuale del proprietario

Nordpeis

Nordpeis Bergen Manuale utente

Superior

Superior BCT2536TMN Manuale utente

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuale utente

Renaissance

Renaissance RUMFORD 1000 Manuale utente

Lacunza

Lacunza IV-800 Manuale utente

Baxi

Baxi 940 Istruzioni per l’uso

Dru

Dru Maestro 60/2 Tall RCH Manuale utente

Diamond Fireglass

Diamond Fireglass SS-O22 Manuale utente

HearthStone

HearthStone Windsor Bay 8830 Manuale di programmazione

Napoleon

Napoleon ASCENT B42 Manuale utente

Enviro

Enviro E33GI Manuale utente

Smeg

Smeg L30 FABE Istruzioni di montaggio

KEDDY

KEDDY K700 Manuale utente

Godin

Godin 3451 Manuale utente

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuale utente

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuale utente

Desa

Desa CCFPDFT Manuale operativo
