Mercusys MW300RE Manuale utente

1910080032

REV 1.0.0

Easy Wi-

Fi Extension

Flexible Placement

MW300RE

300 Mbps Wi-Fi Range Extender

1910080032 REV1.0.0

Specifications are subject to change without notice.

is a registered trademark of MERCUSYS TECHNOLOGIES CO., LTD.

Other brands and product names are trademarks or registered trademarks

of their respective holders.

No part of the specifications may be reproduced in any form or by any

means or used to make any derivative such as translation, transformation,

or adaptation without permission from MERCUSYS TECHNOLOGIES CO.,

http://www.mercusys.com

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause

radio interference, in which case the user may be required to take adequate

measures.

RF Exposure Information

This device meets the EU requirements (1999/5/EC Article 3.1a) on the

limitation of exposure of the general public to electromagnetic fields by way

of health protection.

The device complies with RF specifications when the device used at 20 cm

from your body.

Продукт сертифіковано згідно с правилами системи УкрСЕПРО на

відповідність вимогам нормативних документів та вимогам, що

передбачені чинними законодавчими актами України.

Safety Information

●When product has power button, the power button is one of the way to

shut off the product; when there is no power button, the only way to

completely shut off power is to disconnect the product or the power

adapter from the power source.

●Don’t disassemble the product, or make repairs yourself. You run the

risk of electric shock and voiding the limited warranty. If you need

service, please contact us.

●Avoid water and wet locations.

Explanation of the symbols on the product label

Symbol Explanation

Class IIequipment

AC voltage

Indoor use only

RECYCLING

This product bears the selective sorting symbol for Waste

electrical and electronicequipment (WEEE). This means that this

product must be handled pursuant to European directive

2012/19/EU in order to be recycled or dismantled to minimize its

impacton the environment.

User has the choice to give his product to a competent recycling

organization or to the retailer when he buys a new electrical or

electronic equipment.

MERCUSYS TECHNOLOGIES CO., LTD.

3rd Floor, Building R1-B, No. 23, Gaoxin 4th Road, South Hi-Tech Park, Nanshan, Shenzhen, P.R.China

DECLARATION OF CONFORMITY

For the following equipment:

Product Description: 300Mbps Wi-Fi Range Extender

Model No.: MW300RE

Trademark: MERCUSYS

We declare under our own responsibility that the above products satisfy all

the technical regulations applicable to the product within the scope of

Council Directives:

Directive 1999/5/EC, Directive 2014/30/EU, Directive 2014/35/EU, Directive

2011/65/EU, Directive 2009/125/EC

The above product is in conformity with the following standards or other

normative documents

EN 300328 V1.9.1

EN 301489-1 V1.9.2 & EN 301489-17 V2.2.1

EN 55022: 2010+AC: 2011

EN 55024: 2010

EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 +A2: 2013

EN 50385: 2002

EN 50581: 2012

(EC) No 278/2009

(EC) No 1275/2008

(EU) No 801/2013

The product carries the CE Mark:

Person responsible for marking this declaration:

Huang Jing

Regulatory Compliance Manager

Date of issue: 2016-08-12

Introduction ................................................................................1

Appearance........................................................................... 1

LED Explanation................................................................. 1

Button Explanation ............................................................. 2

Position the Extender............................................................. 2

Connect the Extender to the Internet.....................................3

Before You Begin................................................................... 3

Basic Requirements............................................................... 4

Quick Setup........................................................................... 4

Using Your Web Browser (Mobile UI) ................................. 4

Using Your Web Browser (PC UI)....................................... 6

Using WPS (Wi-Fi Protected Setup)................................... 8

Manage the Extended Network and Security Settings .......9

Wireless MAC Filtering........................................................... 9

Wireless Advanced.............................................................. 10

Profile .................................................................................. 11

To add a new profile......................................................... 11

To connect to a host network ........................................... 11

To manage an existing profile .......................................... 11

Change the Extender’s IP Address ...................................... 12

DHCP Server....................................................................... 12

DHCP Settings................................................................. 12

DHCP Client List .............................................................. 13

Manage the Extender.............................................................14

Firmware Upgrade............................................................... 14

Factory Defaults .................................................................. 15

Backup & Restore................................................................ 15

Reboot................................................................................. 16

System Log ......................................................................... 16

Appendix..................................................................................19

Factory Defaults .................................................................. 19

FAQ (Frequently Asked Questions) ..................................... 20

Contents

Introduction 1

Introduction

This chapter covers the following topics:

Appearance

Position the Extender

Appearance

LED Explanation

Name Status Indication

Signal

Blinking red

The extender is connecting to the router.

Solid red The extender is not connected to the router.

Solid green

The extender is connected to the router, and is in

a good location.

Solid orange

The extender is connected to the router, but is too

close to or far away from the router.

Introduction 2

Button Explanation

The buttons are located on the bottom panel.

WPS Button: If your wireless router supports WPS or QSS function, you can

press the WPS or QSS button on your router and then pressthe WPS button

on your extender to establish a secure connection between the wireless

router and the extender.

Reset Button: This button is used to restore the extender to its factory

default settings.

To reset the extender:

With the extender powered on, use a pin to press and hold the Reset button

for more than 5 seconds until the Signal LED starts blinking quickly, then

release the button and wait the extender to reboot to its factory default

settings.

Position the Extender

For safety and best performance, we suggest that you position the extender

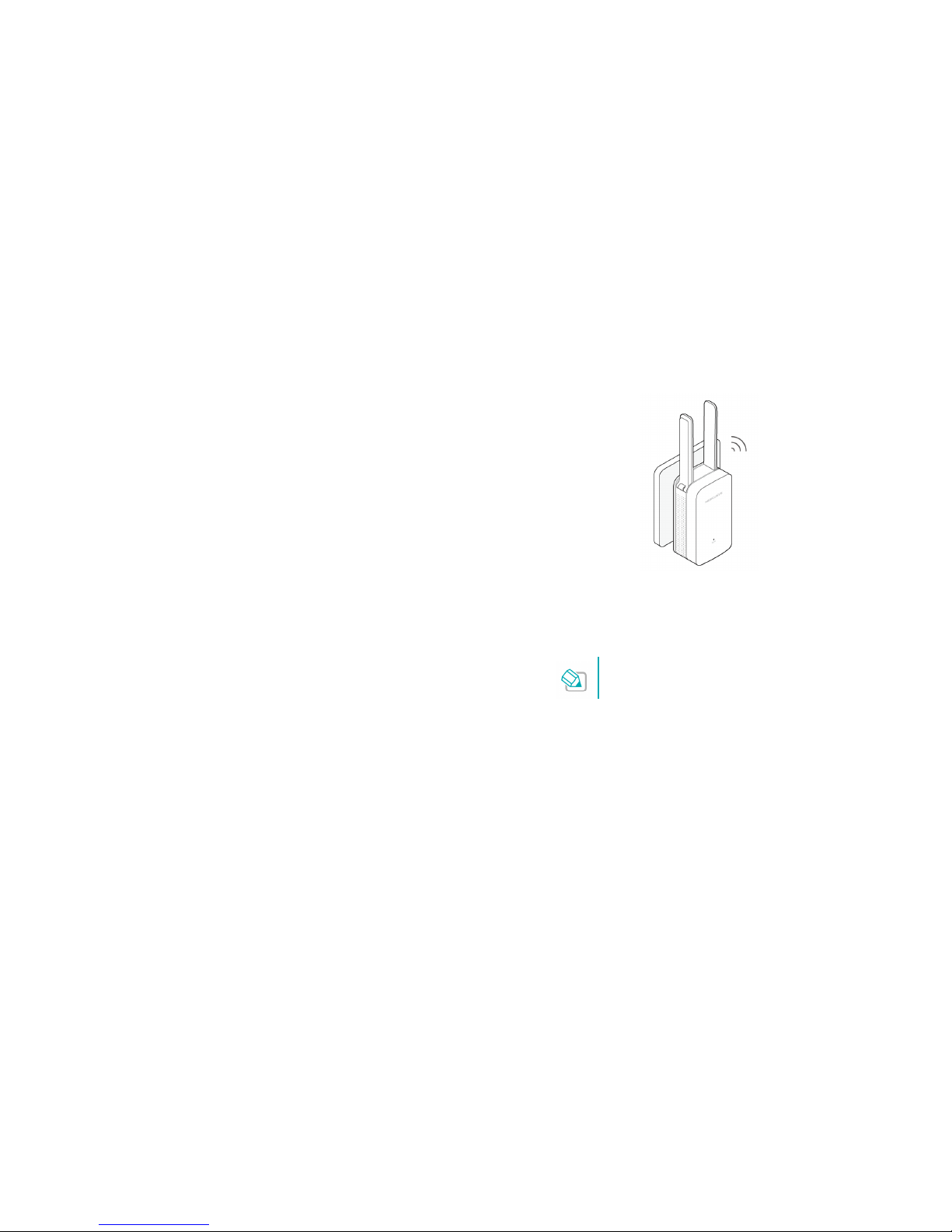

vertically as shown below.

Connect the Extender to the Internet 3

Connect the Extender

to the Internet

This chapter covers the following topics:

Before You Begin

Basic Requirements

Quick Setup

Before You Begin

Please read this guide carefully before installing and using the range extender.

The operating range of your wireless network may vary significantly depending

on the physical position of the wireless devices. Obstructions, such as metal

appliances and walls, may weaken signals by getting in the way of your

network’s radio waves.

In order to optimize the performance of the extender, please follow the

instructions below (please make sure the extender is always within the wireless

coverage of the wireless router).

●Half-wayBetween- Generally, the ideal location for the range extender is

half-way between the wireless router and the wireless client. If the

wireless signal is not satisfactory, you may place the extender closer to

the wireless router.

●Less Obstructions - Limitobstructions between the extender and wireless

router. It’s better to locate the extender in a spacious place, such as near

the corridors.

●No Interference - Choose a location away from Bluetooth devices and

other household electronics, such as cordless phone, microwave, and baby

monitor, etc., to minimize signal interference.

Connect the Extender to the Internet 4

Basic Requirements

Place your extender in a well-ventilated place far from direct sunlight,

any heater or heating vent.

Leave at least 2 inches (5cm) space around the device for heat

dissipation.

Turn off your extender and unplug the power adapter in a lighting storm

to avoid damage.

Operating temperature of the extender should be 0℃~40 ℃(32℉

~104℉).

Operating humidity of the extender should be 10%~90%RH (Non-

condensing).

Quick Setup

Using Your Web Browser (Mobile UI)

1Power On

Plug the extender into a power outlet near your router, and the Signal LED

turns solid red.

2Configure

1) Connect your smart device to the extender’s wireless network

MERCUSYS_RE_XXXX.

The default SSID (network name) can be found on the

product label at the back of the extender.

2) Launch a web browser and type mwlogin.net in the address bar.

Create a login password, then tap Log in.
