(IR) Bullet LPR/ANPR Network
Camera
P32-615020-000A
Quick Start Guide
Quick Start Guide 1
English
Safety Instructions
Make sure the supplied voltage meets the power consumption requirements
of the camera before powering the camera on. Incorrect voltage may cause
damage to the camera.
The camera should be protected from water and moisture, excessive heat,
direct sunlight, and cold.
This installation should be made by a qualied service person and should
conform to all local codes.
Unplug the camera during lightning storms or when unused for long periods
of time.
Copyright
No part of this document may be reproduced or transmitted in any form or by
any means, electronic or mechanical, for any purpose, without the express written
permission of MESSOA.
© 2012 All rights reserved.
Disclaimer
Specications and information contained in this document are presented as
accurately as possible as of the time of release, but are not guaranteed to be
entirely free of error. MESSOA assumes no responsibility for errors or omissions
that may appear in this document and reserves the right to change this
publication at any time without obligation to notify anyone of such revisions or
changes.
2 Quick Start Guide
Compliance
This equipment complies with the requirements as listed below:
FCC Part 15 Class A
CE: 2004/108/EC-Electromagnetic Compatibility (EMC) directive based on
EN55022: 2010 Class A, EN61000 and EN55024 standard.
WEEE
Waste Electrical and Electronic Equipment
Correct disposal of this product (applicable in the European Union
and other European countries with separate collection systems). This
product should be disposed of, at the end of its useful life, as per
applicable local lows, regulations and procedures.
Quick Start Guide 3
English
1. Introduction
This quick start guide is intended to provide installers with basic instructions
for installing and conguring the Network Trafc Camera. For more detailed
information of using and conguring the product, please refer to the User Manual
available on the provided CD-ROM.
1.1 Package Contents
Check the items supplied with your network trafc camera against the following
list. If any of the following items is missing, please contact your dealer.
Printed Quick Start Guide x1
Camera power adaptor x1
Hexagonal wrench x1
Bracket pack (with 4 screws) x1
4 Quick Start Guide
1.2 Hardware Overview
Part Names
Tempered
Glass
Top Cover
Bottom
Cover
Bracket
Pan Adjustment
Screw
Tilt Adjustment
Screw
The gure above is the illustration of the housing, which may be used
with most of ICR real Day and Night cameras.
Dimensions
Unit: mm
175 460
147
286
Quick Start Guide 5
English
2. Installation
Installation of the Camera and Bracket
Wiring Cables

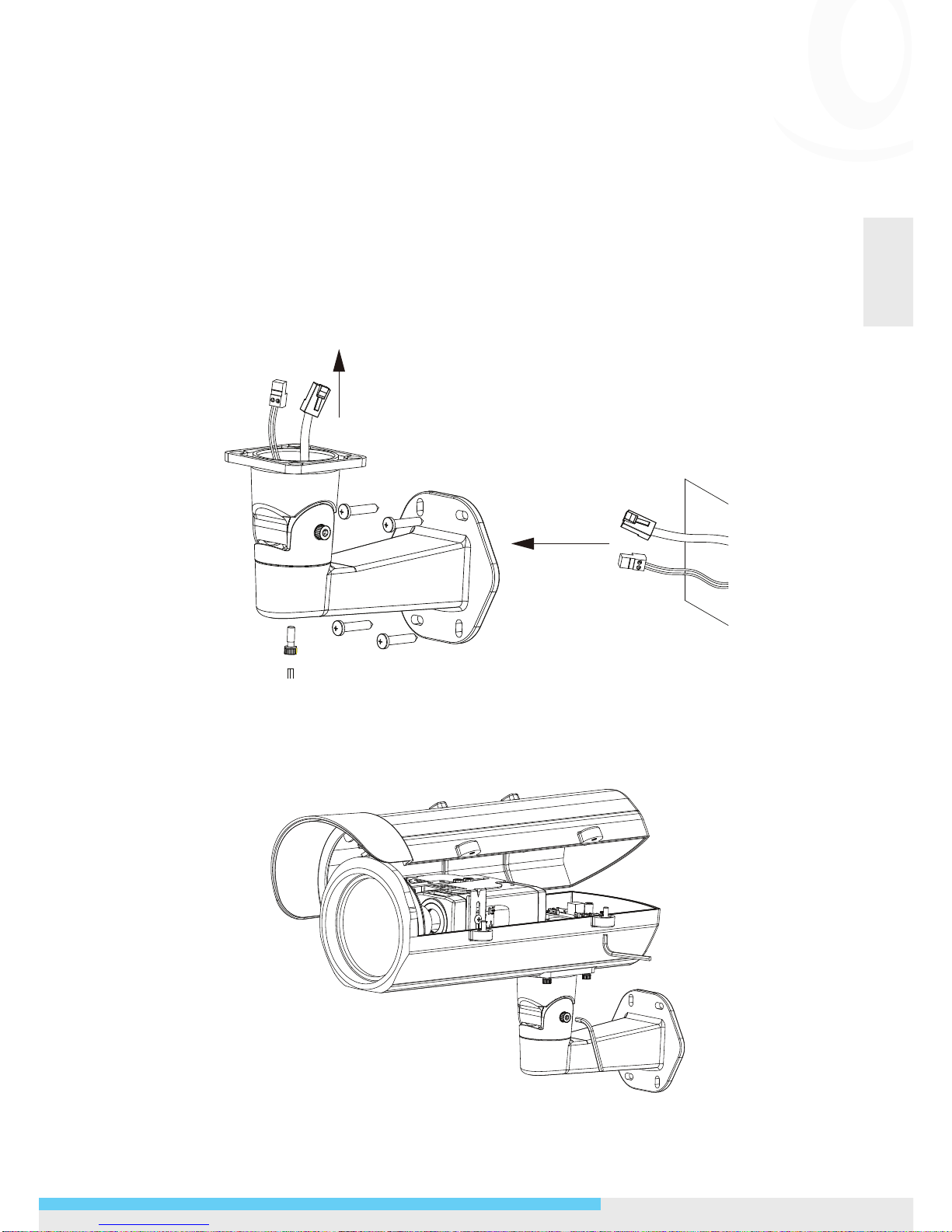

1. Take the bracket from the box and put the power cable and Ethernet cable
through the bracket and then x the bracket to the wall (Loose the screws of
the bracket for easy assembly if necessary).
2. Take out the housing and open the side cover with the hexagonal wrench.
6 Quick Start Guide
3. Put the Ethernet cable through the bottom of the housing and let it pass
from the hole. Make connection of power by plugging the terminal block into
the power socket.
TipCautionWarning
Note
For waterproof installation, use the provided spacer and stick it right by the outlet.
Then install the three glands to get the power cable and Ethernet cable pass
through the hole of the gland covers.
Quick Start Guide 7
English
4. Open the side cover and you can see the housing inner part as the gure
shown below.

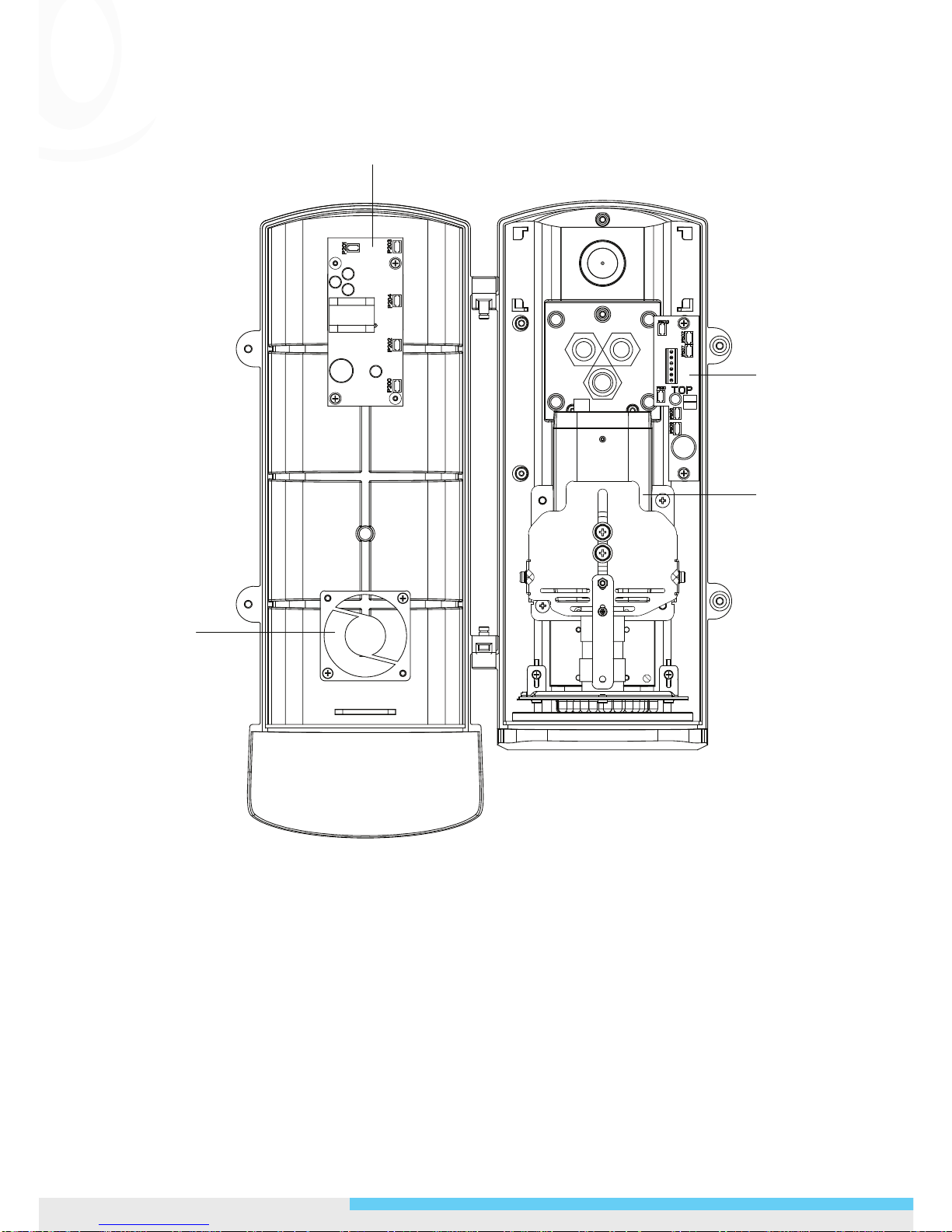

LPR615 Inner Part Denition
Fan
Camera
I/O board
8 Quick Start Guide
LPR610 Inner Part Denition
Fan
Camera
IR LED driver board
I/O board
