INSTALLATION INSTRUCTIONS

108-FD7B

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

Patent Pending

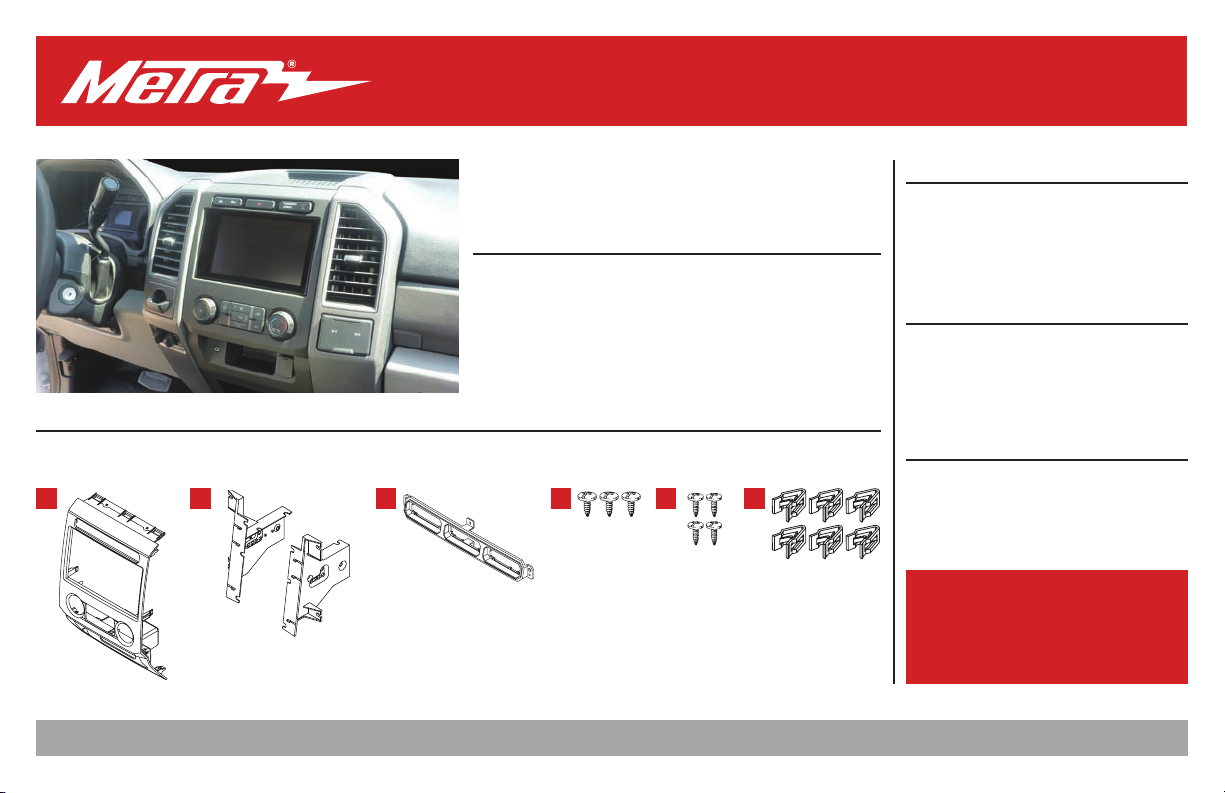

KIT FEATURES

• Designed speciﬁcally for the Pioneer DMH-C5500NEX 8-inch radio

• Painted scratch-resistant matte black to match the

factory color and ﬁnish

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Switch housing • D) #8 x 3/8” Phillips screws (3) • E) #6 x 3/8” Phillips screws (4) • F) Panel clips (6)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench • Torx screwdriver

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: XSVI-5524-NAV

Antenna Adapter: 40-EU10

Steering wheel control interface: ASWC-1

A B C D E E

*Visit MetraOnline.com for up-to-date vehicle speciﬁc applications.

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................2

Kit Assembly ..........................................................3

Ford F-250/350/450/550 XL

(w/o color screen)

2017-up*

1.800.221.0932

MetraOnline.com

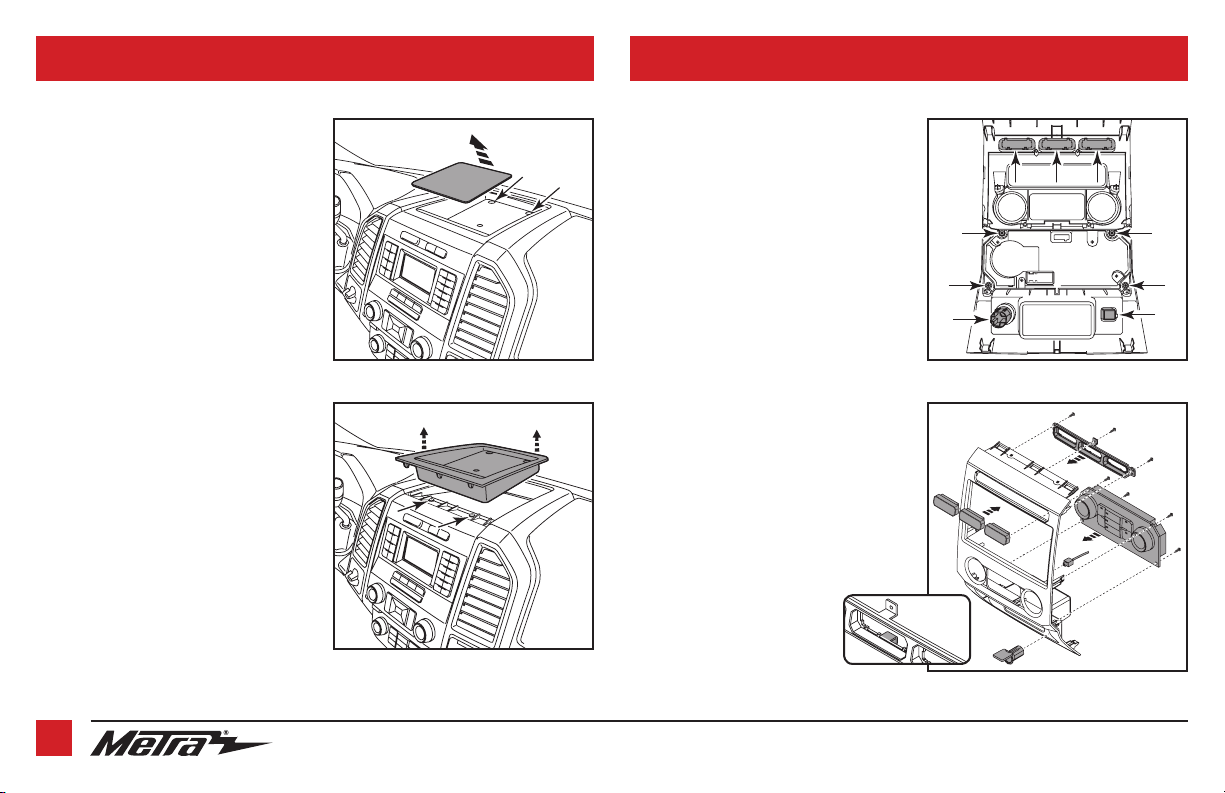

DASH DISASSEMBLY KIT PREPARATION

1. Remove the storage mat in the pocket

above the climate-control/radio trim

panel, then remove (2) 9/32” screws

exposed. (Figure A)

2. Unclip and remove the pocket, then

remove (2) 9/32” screws exposed.

(Figure B)

3. Unclip, unplug, and remove the climate-

control/radio trim panel.

Continue to Kit Preparation

From the factory climate-control/radio

trim panel:

Remove (4) Torx screws securing the climate

control panel, then remove.

(Figure A)

Unclip and remove the switches.

(Figure A)

Unclip and remove the LINE IN jack.

(Figure A)

Unclip and remove the power port assembly.

(Figure A)

To the 108-FD7B climate-control/radio trim panel:

Secure the climate control panel to the panel using

(4) #6 x 3/8” Phillips screws provided.

(Figure B)

Trim the bottom tab from the switch housing

(see inset). Secure the switch housing to the

panel using (3) #8 x 3/8” Phillips pan-head

screws

provided.

(Figure B)

Snap the factory switches into the switch housing.

(Figure B)

Snap the LINE IN jack to the panel.

(Figure B)

Snap the power port assembly to

the panel.

(Figure B)

10.

Attach (6) panel clips to the panel.

Continue to Kit Assembly

(Figure A) (Figure A)

(Figure B)

Remove

shaded area

REV. 11/1/2019 INST108-FD7B

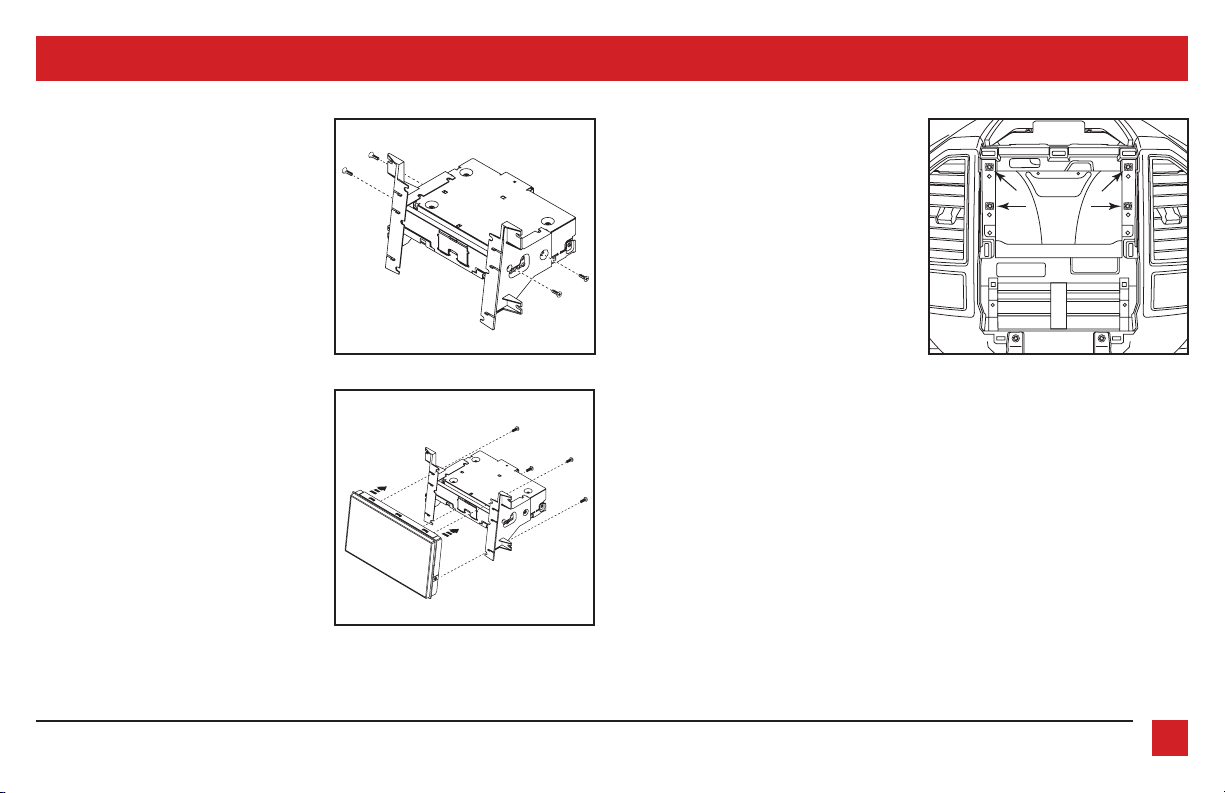

KIT ASSEMBLY

Note: For steps 1 and 2, reference the

installation manual provided with the radio

for which hardware to use. The display

screen and radio chassis use two different

types of screws.

1. Secure the radio brackets to the radio

chassis using (4) screws supplied with

the radio. (Figure A)

2. Secure the radio display to the radio

brackets using (4) screws supplied with

the radio. (Figure B)

3. Locate the factory wiring harness and

antenna connector in the dash, and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra and/

or AXXESS. Test the radio for proper

operation.

(Figure B)

(Figure A) (Figure C)

4. Slightly unclip the middle ac vent panels

in preparation for the next step.

5. Remove (4) screws in the dash cavity,

then secure the completed assembly

into the dash using those screws.

(Figure C)

6. Clip the ac vent panels back in.

7. Snap the

radio trim panel

over the

completed assembly, then reassemble

the dash in reverse order of disassembly

to complete the installation.

INSTALLATION INSTRUCTIONS

108-FD7B

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

If you are having difﬁculties with the installation

of this product, contact our Tech Support line

either by phone at 386-257-1187, or email at

techsupport@metra-autosound.com. Before

doing so, look over the instruction booklet a

second time and ensure that the installation was

performed exactly as the instruction booklet

is stated. Have the vehicle apart and ready to

perform troubleshooting steps before contacting

Metra/Axxess Tech Support.
