Metra Electronics 108-TO4 Manuale utente
Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 11/22/19 INST108-TO4
INSTALLATION INSTRUCTIONS
108-TO4
Patent Pending
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Built and painted in multiple colors to match the factory
color and appearance
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................4
Kit Assembly ..........................................................5
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wire Harness: 70-1761 • TYTO-02 (amplified models)
Antenna Adapter: 40-LX11
Steering Wheel Control Interface: ASWC-1
A B
Toyota Camry 2015-2017
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
1. Unclip and remove the console storage
tray. (Figure A)
2. Push down on the collar below the shift
knob, then unscrew the shift knob.
(Figure B)
3. Remove (2) Phillips screws from the
shifter trim, then unclip and remove the
trim. (Figure C)
Continued on next page
(Figure A) (Figure B) (Figure C)
REV. 11/22/2019 INST108-TO4 3
DASH DISASSEMBLY (CONT)
4. Remove (2) Phillips screws securing the
factory pocket, then unclip and remove
the pocket. (Figure D)
5. Unclip and remove the vent panel above
the radio. (Figure E)
6. Remove (4) 10mm screws securing the
radio/climate control panel (2 above and
2 below). (Figure F)
7. Slide the radio and climate control
assembly out, then unplug and remove.
Continue to Kit Preparation
(Figure D) (Figure E) (Figure F)
1.800.221.0932
|
MetraOnline.com
4

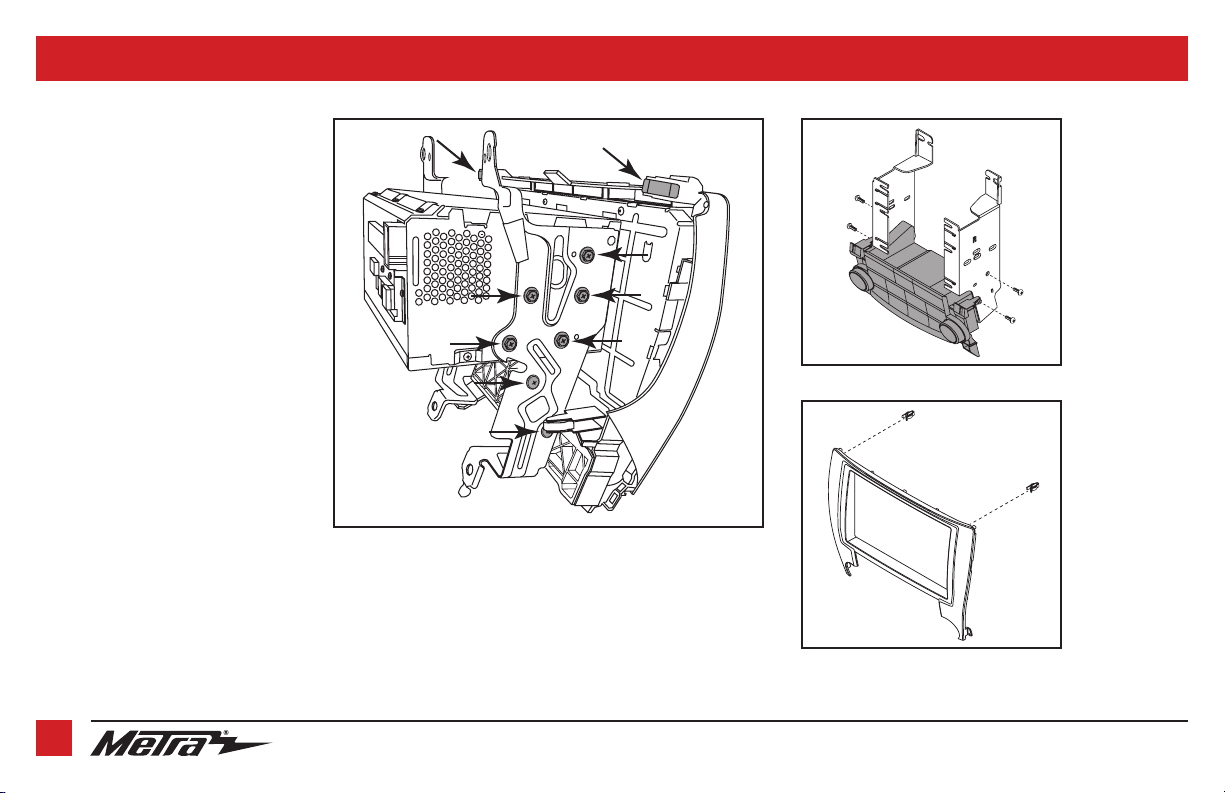

KIT PREPARATION
From the factory radio/climate control panel:
1. Slightly loosen (10) Phillips screws
securing the radio brackets to the radio.
(Figure A)
2. Remove (4) Phillips screws securing the
climate controls, then unclip and remove
the controls. (Figure A)
3. Remove (2) panel clips from the radio.
(Figure A)
To the 108-TO4 radio brackets:
4. Secure the climate controls to the
brackets using the factory screws.
(Figure B)
To the 108-TO4 radio trim panel:
5. Attach the factory panel clips to the
panel. (Figure C)
Continue to Kit Assembly
(Figure A)
(Figure C)
(Figure B)
REV. 11/22/2019 INST108-TO4 5
KIT ASSEMBLY
Note: For steps 1 and 2, reference the
installation manual provided with the radio
for which hardware to use. The display
screen and radio chassis use two different
types of screws.
1. Secure the radio brackets to the radio
chassis using (4) screws supplied with
the radio. (Figure A)
2. Secure the radio display to the radio
brackets using (4) screws supplied with
the radio. (Figure B)
3. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or AXXESS. Test the radio for proper
operation.
4.
Slide the completed assembly into the
dash, then secure using the factory screws.
5. Snap the radio trim panel over the
completed assembly, then reassemble
the dash in reverse order of disassembly
to complete the installation.
(Figure A) (Figure B)
(Figure B)
REV. 11/22/2019 INST108-TO4 7
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
®
Metra recommends MECP
certified technicians
Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 11/22/19 INST108-TO4
INSTALLATION INSTRUCTIONS
108-TO4
If you are having difficulties with the installation
of this product, contact our Tech Support line
either by phone at 386-257-1187, or email at
techsupport@metra-autosound.com. Before
doing so, look over the instruction booklet a
second time and ensure that the installation was
performed exactly as the instruction booklet
is stated. Have the vehicle apart and ready to
perform troubleshooting steps before contacting
Metra/Axxess Tech Support.
The World’s best kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 11/22/19 INST108-TO4
INSTRUCCIONES DE INSTALACIÓN
108-TO4
¡PRECAUCIÓN! Todos los accesorios, interruptores,
paneles de controles de clima y especialmente las
luces del indicador de las bolsas de aire deben estar
conectados antes ciclar la ignición. Además, no
quite el radio de fábrica con la llave en la posición o
de encendido ni con el vehículo funcionando.
CARACTERÍSTICAS DEL KIT
• Diseñado específicamente para la radio de 8 pulgadas DMH-C5500NEX
de Pioneer
• Hecho y pintado en múltiples colores para igualar el color
y la apariencia de fábrica
COMPONENTES DEL KIT
• A) Panel de la moldura del radio • B) Soportes del radio
HERRAMIENTAS REQUERIDAS
• Herramienta para quitar paneles
• Destornillador Phillips
• Llave de tubo 10mm
INDICE
Desmontaje del tablero .....................................2-3
Preparación del kit .................................................4
Ensamble del kit ....................................................5
CABLEADO Y CONEXIONES DE ANTENA
(se venden por separado)
Arnés de cables: • 70-1761
• TYTO-02 (modelos
amplificados)
Adaptador de antena: 40-LX11
Interfase de control en volante: ASWC-1
Toyota Camry 2015-2017
A B
1.800.221.0932
|
MetraOnline.com
2
DESMONTAJE DEL TABLERO
1. Desenganche y quite la charola de
almacenamiento de la consola. (Figura A)
2. Empuje el collar debajo de la perilla de
la palanca de velocidades y después
desatornille la perilla. (Figura B)
3. Quite los (2) tornillos Phillips de la
moldura de la palanca de velocidades,
desenganche y quite la moldura.
(Figura C)
Continúa en la siguiente página (Figura A) (Figura B) (Figura C)
