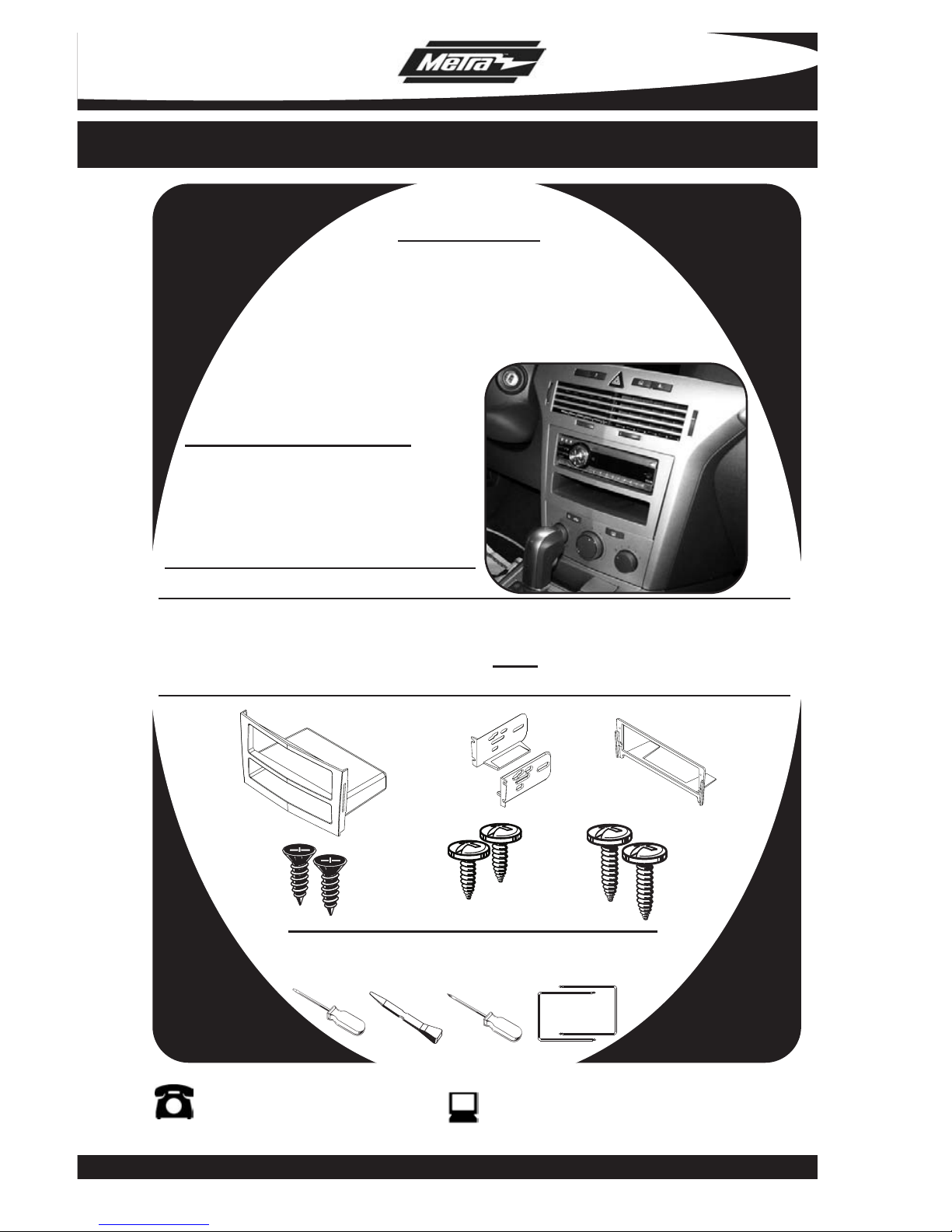

INSTALLATION INSTRUCTIONS FOR PART 99-3107

KIT FEATURES

•DIN Radio Provision With Pocket

•ISO Mount Radio Provision With Pocket

•Painted To Match Factory Dash

99-3107S = SILVER

99-3107G = GRAY

•A) Trim Plate/Pocket • B) ISO Brackets • C) Radio Housing

•D) (2) Black Oval Head Phillips Screws • E) (2) Silver Pan Head Phillips Screws (Small)

•F) (2) Silver Pan Head Phillips Screws (Large) • NOTE: Parts “A” and “C” May Be Snapped

Together In Package

KIT COMPONENTS

Small Flat Blade Screwdriver • Panel Removal Tool

•Phillips Screwdriver • 86-3528 Radio Removal Keys

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

APPLICATIONS

SATURN

Astra 2008

99-3107S

99-3107G

Dash Disassembly

-SATURNAstra2008 ..............................................1

Kit and Final Assembly

-DINRadioProvisionWithPocket..................................2,3

-ISO Mount Radio Provision With Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . .4,5

TABLE OF CONTENTS

99-3107

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

99-3107 DASH DISASSEMBLY

SATURN ASTRA 2008

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Pull down on the "cage" from the

opening inside on the top and

remove. Note: The cage only has 2

sides and a top.

(Figure B)

Using the radio removal keys, pull the

factory head unit from the dash and

disconnect the wiring. Unplug and

remove the radio.

(Figure A)

Continued to kit assembly.

AUTO

SETTINGS

TUNER

SOUND

INFO

CDC

CDC 40 OPERA

123

456

789

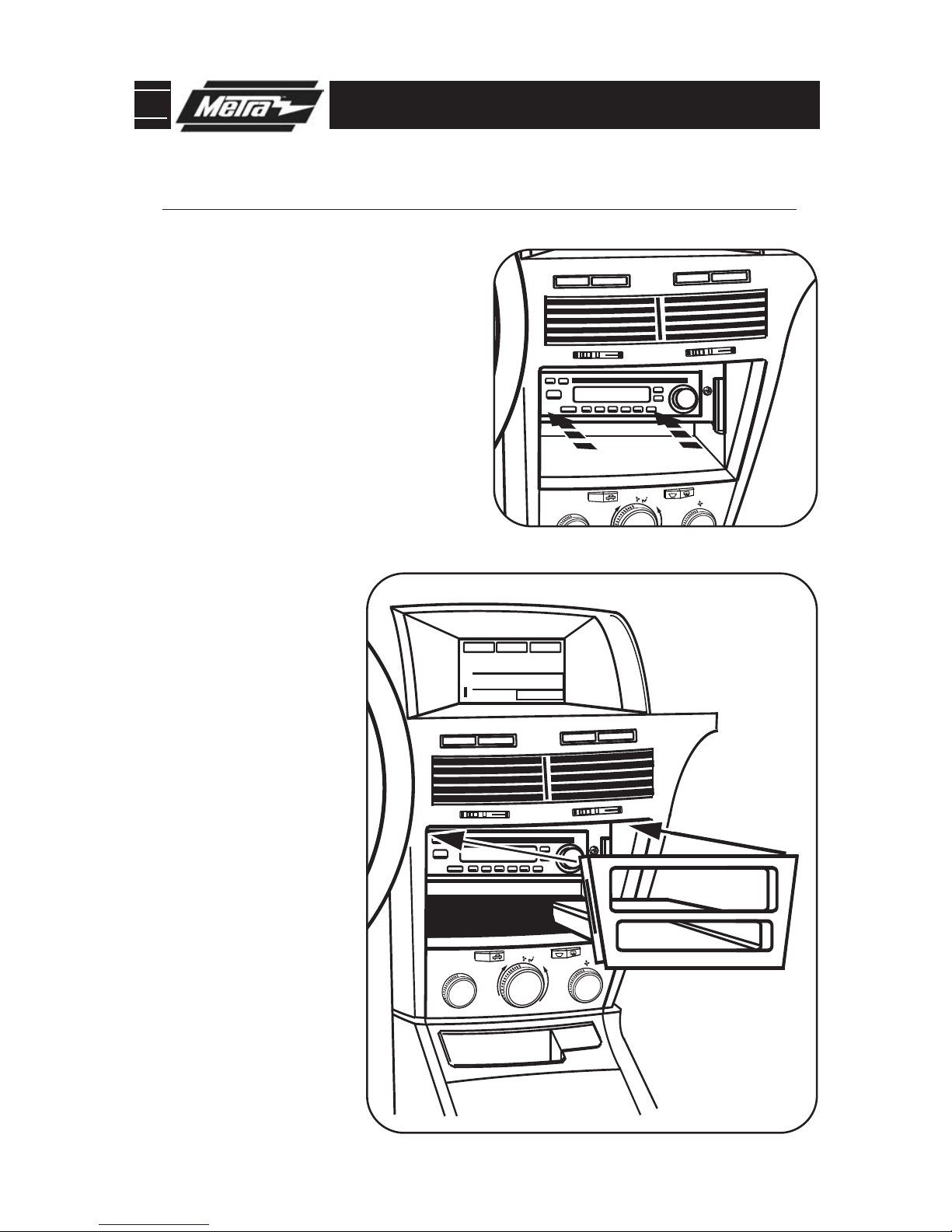

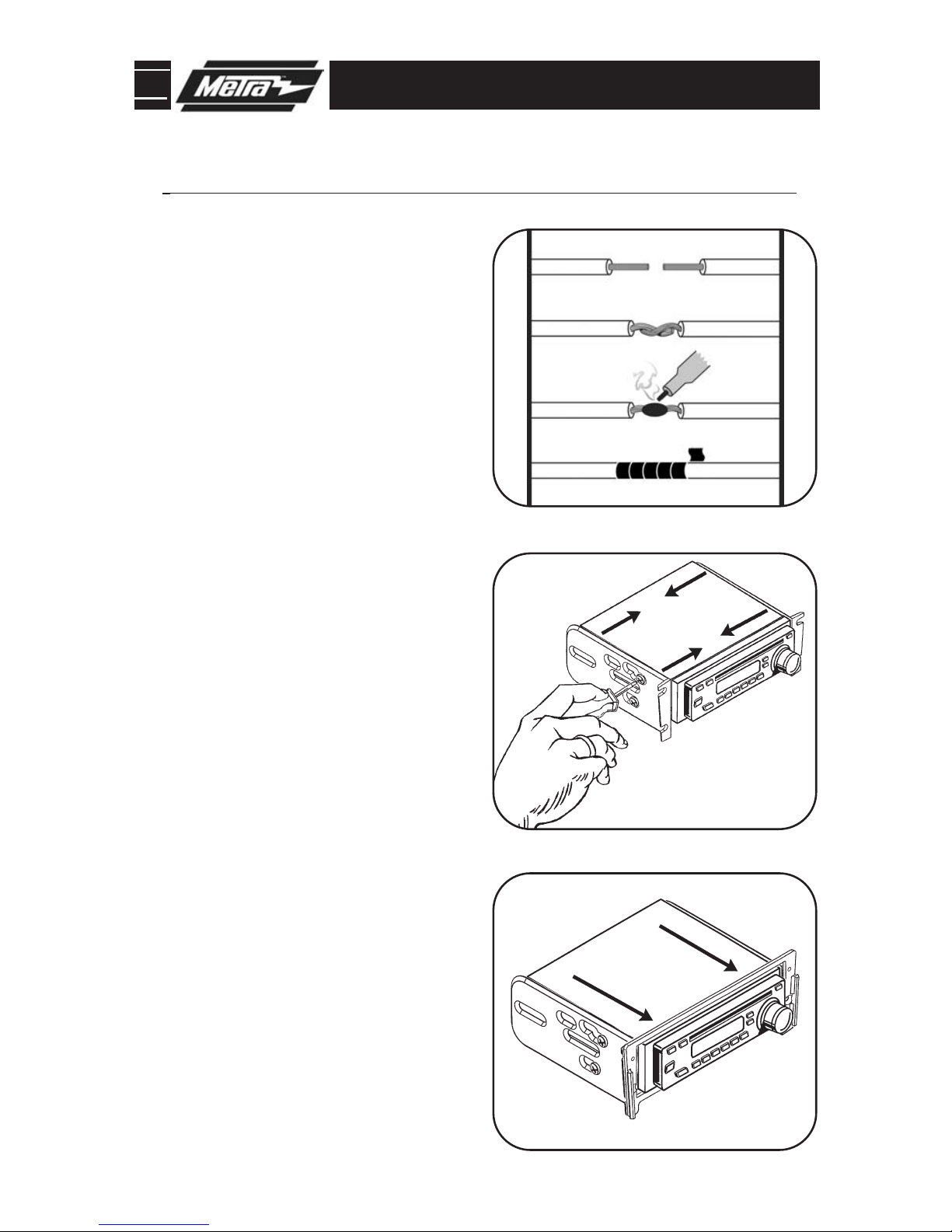

99-3107 KIT AND FINAL ASSEMBLY

AUTO

DIN RADIO PROVISION WITH POCKET

Re-connect the negative battery ter-

minal and test the unit for proper

operation.

Mount the radio housing into the

radio opening in the sub dash using

the (2) black oval head Phillips

screws provided.

(Figure B)

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs outward.

(Figure C)

*Note: Refer also to the instructions included with the aftermarket radio.

Locate the factory wiring harness in

the dash. Use the supplied wire har-

nesses and make the connections as

shown. (Isolate and individually tape

off the ends of any unused wires to

prevent electrical short circuit)

(Figure A)

Continued on page 3.

99-3107 KIT AND FINAL ASSEMBLY

AUTO

DIN RADIO PROVISION WITH POCKET

*Note: Refer also to the instructions included with the aftermarket radio.

Slide the aftermarket radio into the

cage until it snaps into place.

(Figure D)

Snap the trim plate/pocket onto the

radio housing.

(Figure E)

99-3107 KIT AND FINAL ASSEMBLY

ISO MOUNT RADIO PROVISION WITH POCKET

Re-connect the negative battery ter-

minal and test the unit for proper

operation.

Mount the ISO Brackets to the after-

market radio using the screws sup-

plied with the radio.

(Figure B)

Slide the the radio into the radio

opening of the radio housing.

(Figure C)

*Note: Refer also to the instructions included with the aftermarket radio.

Locate the factory wiring harness in

the dash. Use the supplied wire har-

nesses and make the connections as

shown. (Isolate and individually tape

off the ends of any unused wires to

prevent electrical short circuit)

(Figure A)

Continued on page 5.

99-3107 KIT AND FINAL ASSEMBLY

ISO MOUNT RADIO PROVISION WITH POCKET

Slide the the assembly into the sub

dash and secure with the supplied

(4) Silver Pan Head Phillips screws

(Small on top and Large on Bottom).

(Figure D)

Snap the trim plate/pocket onto the

radio housing.

(Figure E)

*Note: Refer also to the instructions included with the aftermarket radio.

AUTO

99-3107 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
