Metra Electronics 99-3400 Manuale utente

KIT COMPONENTS

Radio Housing

Spacer

Bracket

Set #1

Bracket

Set #2

(6) #6 Phillips Screws

(4) #8 Phillips Screws

(4) Speed Clips

(2) Phillips

Screws

Equalizer

Dummy Plate

5 6

Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adaptor and making

connections as shown. (Isolate and

individually tape off the ends of any

unused wires to prevent electrical short

circuit).

Re-connect the battery terminal and test the unit

for proper operation. Mount the radio/kit

assembly to the sub-dash with those screws

previously removed in step #1.

A) Strip wire ends back ½"

B) Twist ends together

C) Solder

D) Tape

ALL VEHICLES

2-SHAFT HEAD UNITS: Attach the Spacer* to the Radio Housing. Slide the aftermarket

head unit into the kit and secure with shaft nuts. (see Fig. A)

DIN HEAD UNITS: Cut and remove the shaft supports from the Spacer* and Radio Housing.

Slide the DIN cage into the kit and secure by bending the metal locking tabs down. Slide the

aftermarket head unit into the cage until secure. (see Fig. B)

(If an equalizer will be included, slide the unit into the back of the Radio Housing andsecure.

If an equalizer will NOT be included, snap the Equalizer Dummy Plate into the opening).

Fig. A

Fig. B

99-3400

AW-407GO

DW-3400

INSTALLATION

INSTRUCTIONS

TOOLS REQUIRED

Cutting tool

Phillips screwdriver

APPLICATIONS

CAR PAGE

CHEVROLET

Spectrum 1985-89.........................................................................1

GEO

Prizm 1989-92..............................................................................2

Spectrum 1989..............................................................................1

Storm 1990-93 (NOT keeping the factory pocket)...........................3

Storm 1990-93 (keeping the factory pocket)..................................4

HONDA

Passport 1994-95..........................................................................5

ISUZU

Amigo 1991-94.............................................................................5

I-Mark 1985-91............................................................................ 6

Impulse 1990-93 (NOT keeping the factory pocket)........................3

Impulse 1990-93 (keeping the factory pocket)............................... 4

Pickup 1988-95.............................................................................5

Rodeo 1992-95............................................................................. 5

Stylus 1990-91 (NOT keeping the factory pocket)...........................3

Stylus 1990-91 (keeping the factory pocket).................................. 4

Trooper 1988-91...........................................................................5

*OPTIONAL *OPTIONAL

1-800-221-0932 www.metraonline.com

rev. 271202

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(2) Phillips screws securing the radio trim

bezel to the bottom of the dash and remove

the bezel. Remove (2) screws securing the

factory head unit to the sub-dash and

disconnect the wiring.

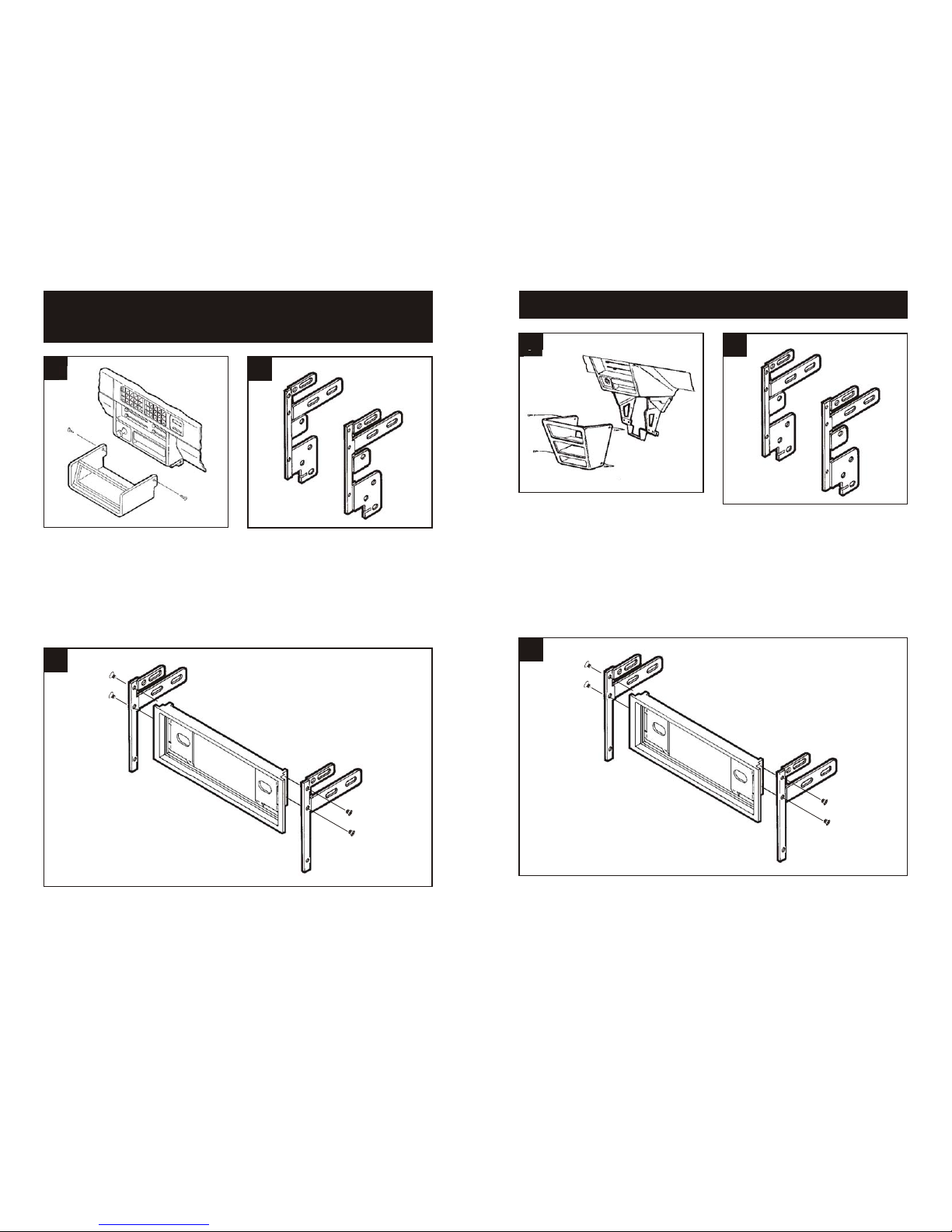

CHEVROLET Spectrum 1985-89

GEO Spectrum 1989

Using the v-cut as a guide, cut and remove the bottom portion of the Radio Housing. Mount

the converted Brackets to the Housing with (4) #6 Phillips Screws supplied. Skip to the

Installation Instructions for ALL VEHICLES on Page #7.

Using the v-cut as a guide, cut and remove the bottom portion of the Radio Housing. Mount

the converted Brackets to the Housing with (4) #6 Phillips Screws supplied. Skip to the

Installation Instructions for ALL VEHICLES on Page #7.

Cut and remove all mounting tabs on

Brackets Set #2 EXCEPT tabs "A". The

mounting tabs can be identified by the

stamped letter on the back of each tab.

2"A"

"A"

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(2) Phillips screws from each side of the

dash trim bezel and remove the bezel.

Remove (4) Phillips screws securing the

bracket assembly. Remove the factory

head unit and disconnect the wiring.

ISUZU I-Mark 1985-91

Cut and remove all mounting tabs on

Brackets Set #2 EXCEPT tabs "A". The

mounting tabs can be identified by the

stamped letter on the back of each tab.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(1) screw from each side of the steering

column. Unclip the dash trim bezel and

disconnect the cigarette lighter and

illumination wiring. Remove (4) screws

securing the factory head unit and

disconnect the wiring.

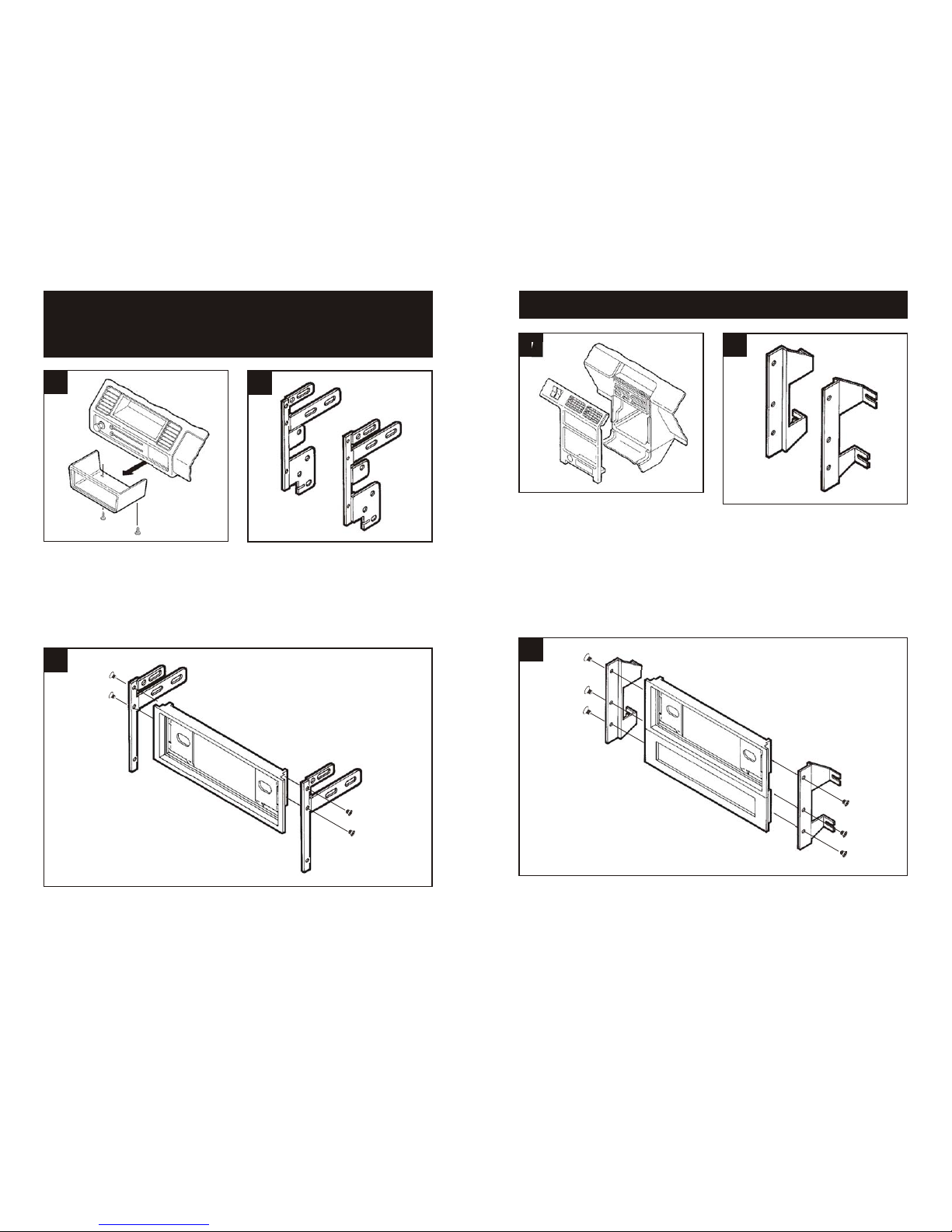

GEO Prizm 1989-92

Locate Bracket Set #1 and refer to step #3.

Mount the Brackets to the Radio Housing with (6) #6 Phillips Screws supplied. Skip to the

Installation Instructions for ALL VEHICLES on Page #7.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(2) Phillips screws from the base of the radio

trim bezel and remove the bezel. Remove

(3) hex-head bolts securing the factory head

unit and disconnect the wiring.

HONDA Passport 1994-95

ISUZU Amigo 1991-94 / Pickup 1988-95

Rodeo 1992-95 / Trooper 1988-91

Cut and remove all mounting tabs on

Brackets Set #2 EXCEPT tabs "B". The

mounting tabs can be identified by the

stamped letter on the back of each tab.

2"B"

"B"

Using the v-cut as a guide, cut and remove the bottom portion of the Radio Housing. Mount

the converted Brackets to the Housing with (4) #6 Phillips Screws supplied. Skip to the

Installation Instructions for ALL VEHICLES on Page #7.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

the ashtray and the (2) outermost screws

exposed in the ashtray cavity. Remove (2)

screws from each side of the dash console.

Remove the climate control knobs. Unclip

the radio trim bezel. Remove (4) screws

from the metal console support. Remove

the factory head unit assembly and

disconnect the wiring. Remove (4) screws

securing the factory spacer plate to the radio

brackets and remove the plate.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

the ashtray and the (2) outermost screws

exposed in the ashtray cavity. Remove (2)

screws from each side of the dash console.

Remove the climate control knobs. Unclip

the radio trim bezel. Remove (4) screws

from the metal console support. Remove

the factory head unit assembly and

disconnect the wiring. Remove (4) screws

securing the factory spacer plate to the radio

brackets and remove the plate.

1 1

GEO Storm 1990-93

ISUZU Impulse 1990-93 / Stylus 1991-93

(if keeping the factory pocket is NOT desired)

GEO Storm 1990-93

ISUZU Impulse 1990-92 / Stylus 1991-93

(if keeping the factory pocket is desired)

Using the v-cut as a guide, cut and remove the bottom portion of the Radio Housing. Mount

the Brackets to the Housing with (4) #6 Phillips Screws supplied. Mount the factory pocket to

the Brackets through holes "A" with (4) #8 Phillips Screws supplied. (It may be necessary to

trim the top and bottom edges of the pocket for a proper fit). Slide the factory spacer plate onto

the Brackets and mount through holes "B" with (2) Phillips screws and (2) Speed Clips

supplied. Skip to the Installation Instructions for ALL VEHICLES on Page #7.

Cut and remove all mounting tabs on

Brackets Set #2 EXCEPT tabs "C". The

mounting tabs can be identified by the

stamped letter on the back of each tab.

Cut and remove all mounting tabs on

Brackets Set #2 EXCEPT tabs "C". The

mounting tabs can be identified by the

stamped letter on the back of each tab.

2 2

Mount the converted Brackets to the Radio Housing with (6) #6 Phillips Screws supplied.

Slide the factory spacer plate onto the Brackets and mount through holes "A" with (2) Phillips

Screws supplied. Skip to the Installation Instructions for ALL VEHICLES on Page #7.

"A"

"C" "C"

"A"

"B"
