INSTALLATION INSTRUCTIONS FOR PART 99-6510
APPLICATIONS
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• Double DIN radio provision
• Stacked ISO unit provision
• Designed for vehicles with factory navigation radios

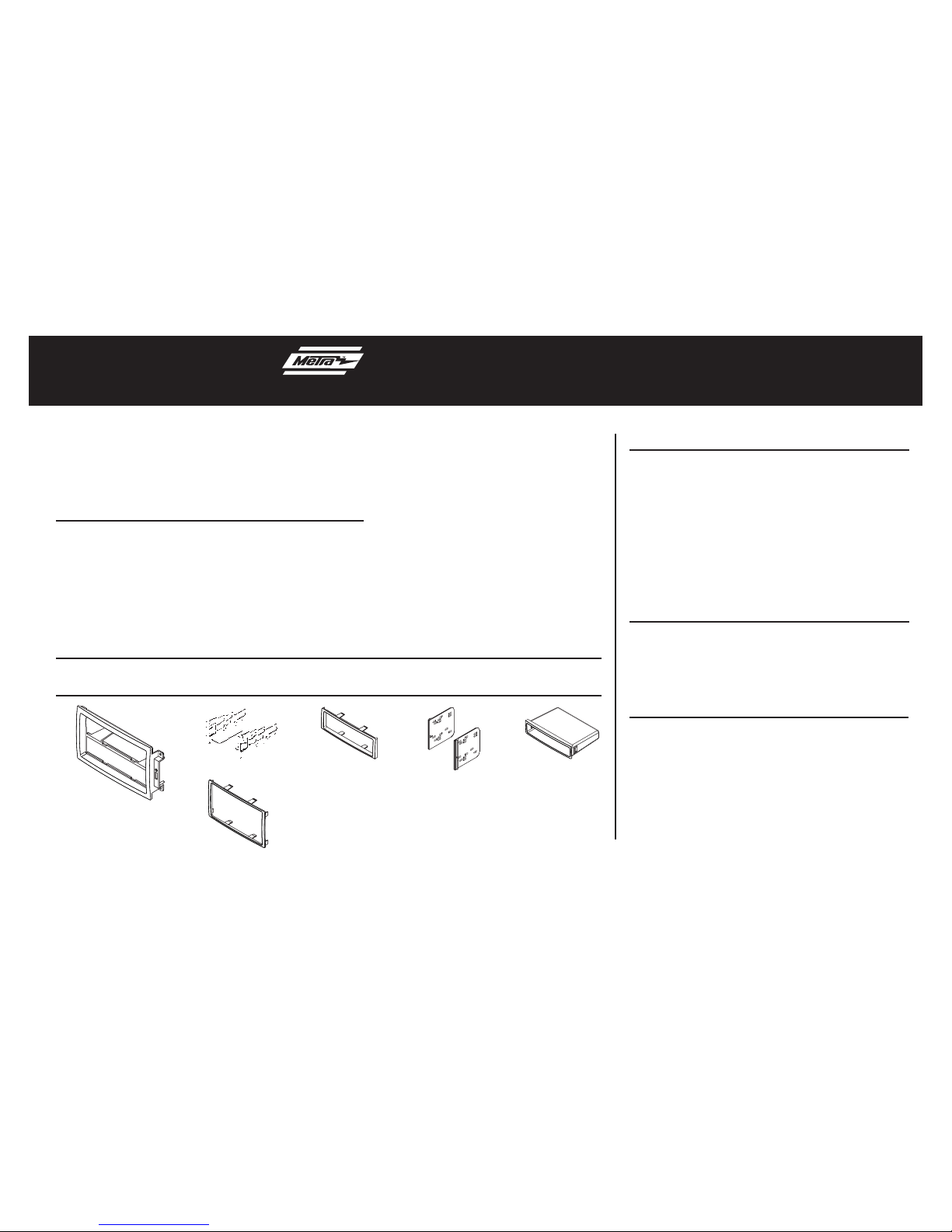

• A) Radio housing • B) ISO brackets • C) ISO trim plate • D) Double DIN brackets • E) Pocket
• F) Double DIN trim plate
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• XSVI-6502-NAV - Chrysler CAN R.A.P.
interface 2004-up
• CHTO-01 - Chrysler CAN amp interface 2004-up
Antenna Adapter:
• 40-CR10 - Chrysler antenna adapter 2004-up
• Flat blade screwdriver • Panel Removal Tool
• Phillips Screwdriver • Socket Wrench • Cutting tool
TOOLS REQUIRED
Chrysler/Dodge/Jeep 2005-2008
99-6510
See application list inside
BCA
F
D E
99-6510
Applications Table of Contents
Dash Disassembly
– Chrysler 300 2005-2007 ....................................................4
– Chrysler Aspen 2007 ..........................................................3
– Dodge Caliber 2007-2008 ..................................................7
– Dodge Charger 2005-2007 .................................................3
– Dodge Durango 2005-2007 ................................................3
– Dodge Magnum 2005-2007 ...............................................3
– Dodge Ram 1500 (without center console)/2500/3500
2006-2008 ........................................................................4
– Dodge Ram 1500 (mini center console)/2500/3500
2006-2008..................................................................................5
– Dodge Ram 1500 (full center console)/2500/3500
2006-2008 ........................................................................6
– Jeep Commander 2007 ......................................................7
– Jeep Compass 2007-2008 .................................................7
– Jeep Grand Cherokee 2005-2007 .......................................6
– Jeep Patriot 2007-2008 ......................................................7
Kit Assembly
– DIN radio provision with pocket ..........................................8
– ISO radio provision with pocket ...........................................8
– Double DIN radio provision ..................................................9
– Stacked ISO unit provision ..................................................9
Chrysler
300.................................... 2005-2007
Aspen ..........................................2007
Dodge
Caliber ............................... 2007-2008
Charger .............................2005-2007
Durango............................. 2005-2007
Magnum ............................ 2005-2007
Ram 1500 (without center console)/
2500/3500 ..................... 2006-2008
Ram 1500 (mini center console)/
2500/3500 ..................... 2006-2008
Ram 1500 (full center console)/
2500/3500 ..................... 2006-2008
Jeep
Commander .................................2007
Compass ...........................2007-2008
Grand Cherokee ................. 2005-2007
Patriot ................................ 2007-2008
Designed for vehicles with factory navigation radios
Using this kit in vehicles without factory navigation requires the purchase of a factory navigation radio trim panel from
your local Chrysler, Dodge or Jeep parts department.
(Figure A) (Figure C)
(Figure B)
1. Remove (2) 7 mm screws from the
inside of the pocket facing upward.
(Figure A)
2. Unclip and remove the entire trim
panel surrounding the radio and
climate controls. (Figure B)
3. Remove (4) 7 mm screws securing
radio to dash and remove radio.
(Figure C)
Continue to kit assembly

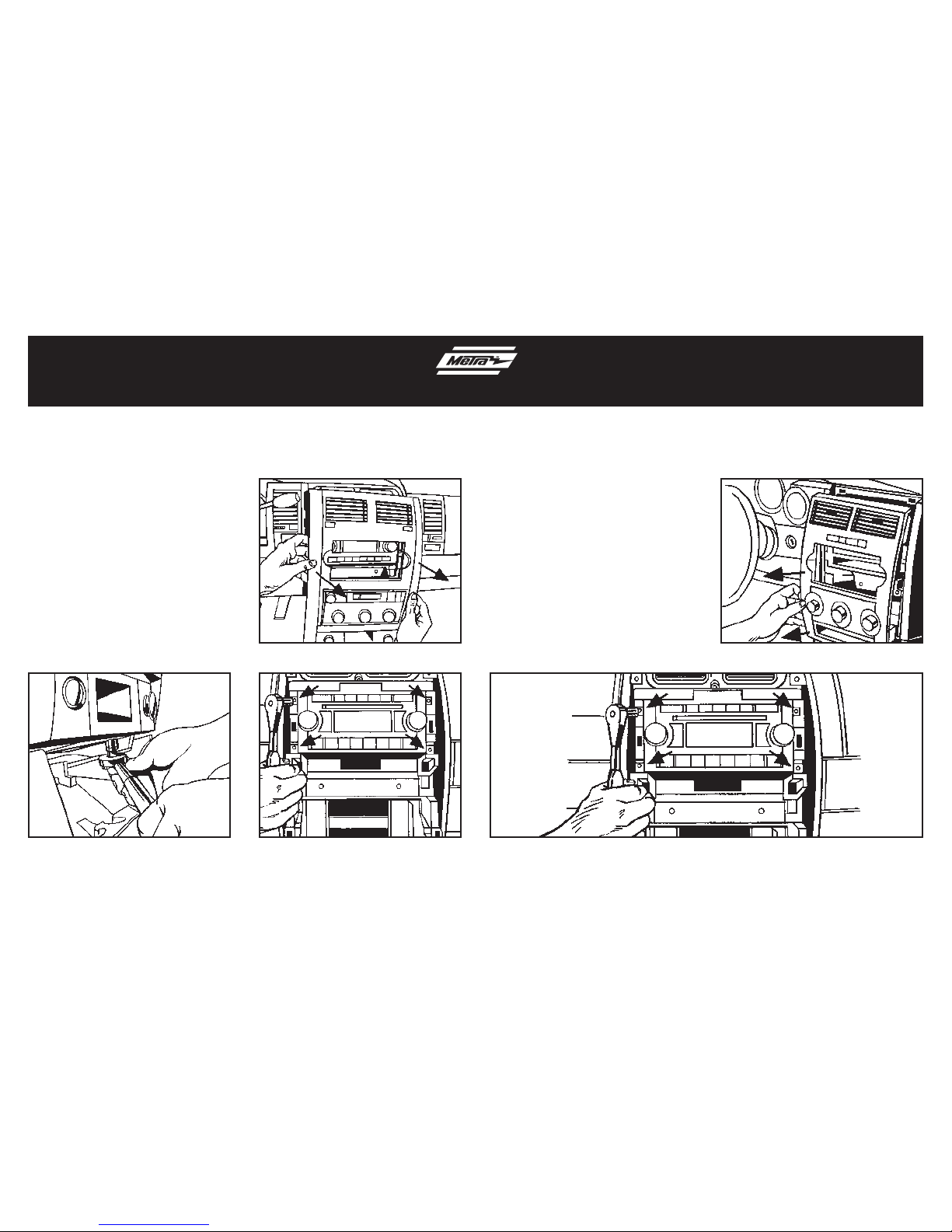

Chrysler Aspen 2007
Dodge Durango 2005-2007
1. Unclip and remove entire panel
surrounding radio and climate
controls, including A/C vents.
(Figure A)
2. Remove (4) 7 mm screws securing
radio to dash and remove radio.
(Figure B)
Continue to kit assembly
Dodge Charger/Magnum
2005-2007
(Figure A)
(Figure B)
Dash Disassembly 99-6510
1. Unclip and remove entire panel
surrounding radio and climate
controls, including A/C vents and
clock. (Figure A)
2. Remove (4) 7 mm screws securing
radio to dash and remove radio.
(Figure B)
Continue to kit assembly
1. Open cup holder and remove (2)
Phillips screws facing up on front
edge of radio/climate control panel.
(Figure A)
2. Unclip and remove entire panel
surrounding radio and climate
controls, including A/C vents.
(Figure B)
3. Remove (4) 7 mm screws securing
radio to dash and remove radio.
Continue to kit assembly
Chrysler 300
2005-2007
Dodge Ram 1500 (without center console)/
Ram 2500/3500 2006-2008
(Figure A)
(Figure B)
(Figure A)
(Figure B)
Dash Disassembly 99-6510
1. If vehicle has floor shifter, remove
shifter knob.
2. Remove center console inserts, if
present. (Figure A)
3. Remove screws securing the rear
center console to the floor panel.
Lift up on the rear center console
to clear the gearshift lever, if
present. (Figure B)
4. Remove screws securing the front
center console to the floor panel.
Unclip and remove the front center
console. (Figure C)
5. Loosen two 8 mm screws at
bottom of dash. Unsnap lower
panel.
6. Remove (2) Phillips screws facing
up on front edge of radio/climate
control panel. (Figure D)
7. Unclip and remove entire panel
surrounding radio and climate
controls, including A/C vents.
(Figure E)
8. Remove (4) 7 mm screws securing
radio to dash and remove radio.
Continue to kit assembly

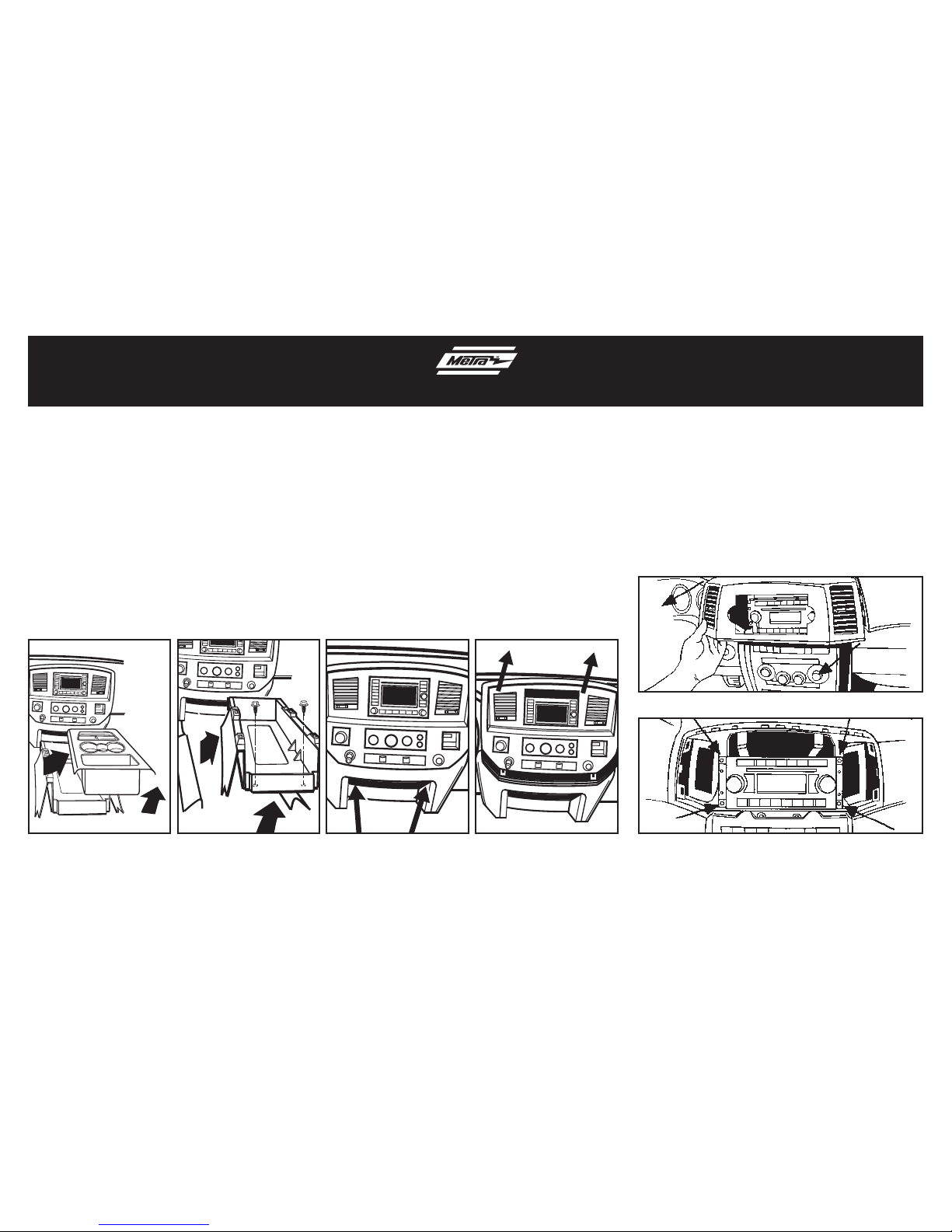

Dodge Ram 1500 (with mini center console)/
Ram 2500/3500 2006-2008
(Figure A) (Figure C)
(Figure B) (Figure D)
(Figure E)
Dash Disassembly 99-6510
1. If vehicle has floor shifter, remove shifter knob.
2. Unsnap and remove console front top cover (closest
to the dash). (Figure A)
3. Remove two 8 mm screws from under console
cover (previously removed). Remove front section of
console. (Figure B)
4. Loosen two 8 mm screws at bottom of dash.
Unsnap lower panel.
5. Remove (2) Phillips screws facing up on front edge
of radio/climate control panel. (Figure C)
6. Unclip and remove entire panel surrounding radio
and climate controls, including A/C vents. (Figure D)
7. Remove (4) 7 mm screws securing radio to dash
and remove radio.
Continue to kit assembly
Dodge Ram 1500 (with full center console)/
Ram 2500/3500 2006-2008
(Figure A)
1. Unsnap and remove panel from around radio
including the vent on each side. (Figure A)
2. Remove (4) 7 mm screws securing radio to dash
and remove radio. (Figure B)
Continue to kit assembly
Jeep Grand Cherokee
2005-2007
(Figure B)(Figure D)(Figure B) (Figure C)
(Figure A)

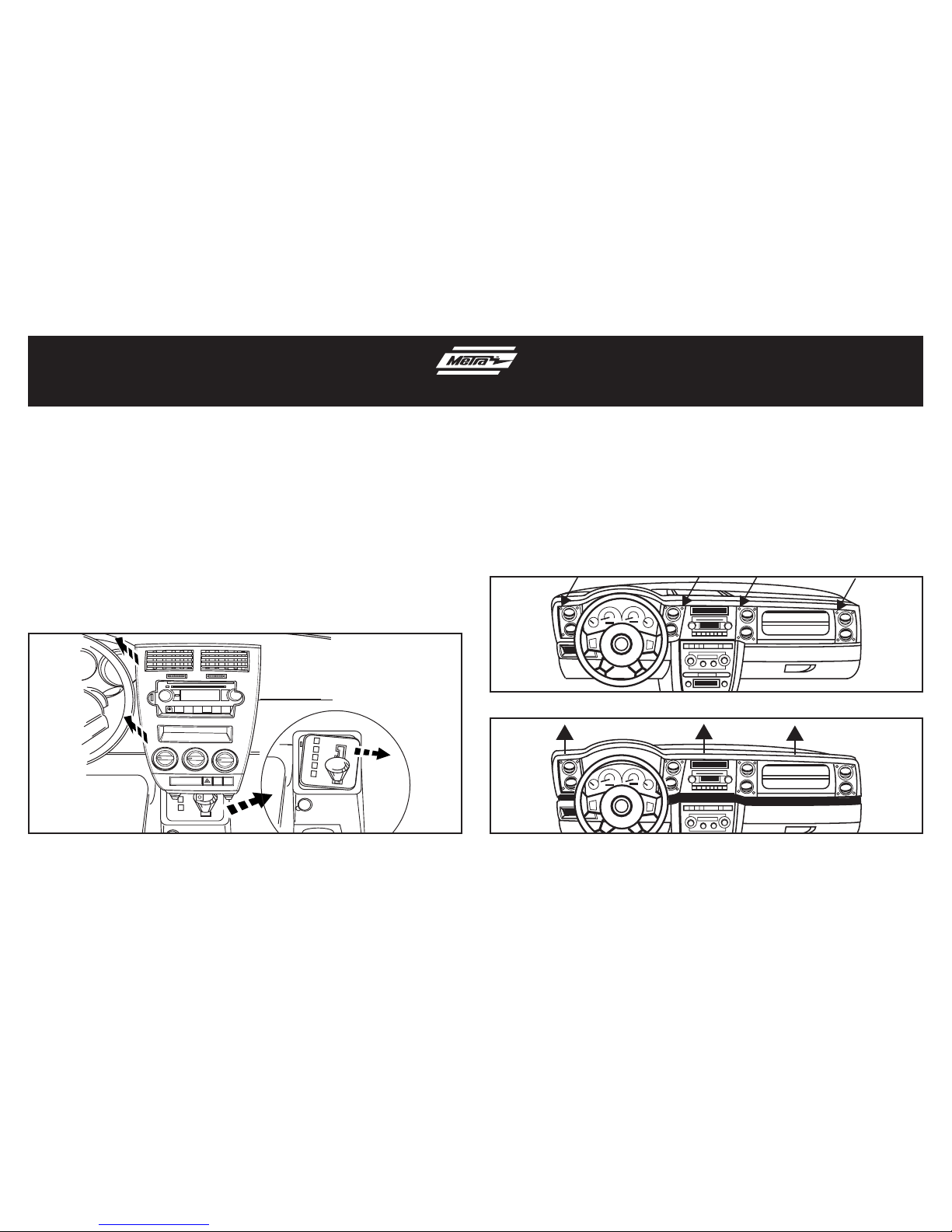

Dash Disassembly 99-6510
1. Unsnap and move shifter trim to the
side. (Figure A)
2. Unsnap and remove top center dash
panel above A/C vents (Compass and
Patriot only).
3. Unsnap center dash trim panel (do
not remove until climate controls are
removed). (Figure A)
4. Remove (4) Phillips screws holding
climate control panel to backside of
the center dash panel.
5. Remove (4) 7 mm screws securing
radio. Unplug and remove radio.
Continue to kit assembly
1. Remove the (16) screws securing the radio trim panel. (Figure A)
2. Unclip and remove the entire radio trim panel. (Figure B)
3. Remove (4) 7 mm screws securing radio to dash and remove radio.
Continue to kit assembly
Dodge Caliber/Jeep Compass/
Patriot 2007-2008
Jeep Commander
2006-2007
1234 56
L
D
L
D
N
R
P
(Figure A)
(Figure A)
(Figure B)
4 screws 4 screws 4 screws 4 screws
Dash Disassembly 99-6510
Kit Assembly 99-6510
1. Slide the DIN cage into the radio
housing and secure by bending
the metal locking tabs down.
(Figure A)
2. Slide the aftermarket radio into the
cage until secure. (Figure B)
3. Snap the pocket into the radio
housing. (Figure C)
4. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect
the negative battery terminal and
test the unit for proper operation.
5. Reassemble dash in reverse order
of disassembly.
1. Mount the ISO Brackets to the
radio with the screws supplied
with the unit. (Figure A)
2. Slide the radio into the radio
opening until the side clips engage.
(Figure B)
3. Snap the ISO Trim Plate into the
radio housing. (Figure C)
4. Snap the pocket into the radio
housing. (Figure C)
5. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect
the negative battery terminal and
test the unit for proper operation.
6. Reassemble dash in reverse order
of disassembly.
DIN radio provision with pocket ISO radio provision with pocket
(Figure A)
(Figure C)
(Figure B)
(Figure A)
(Figure C)
(Figure B)
right side clip
Kit Assembly 99-6510
1. Cut and remove center divider in
radio housing. (Figure A)
2. Snap the DDIN brackets to the
inside edge of the radio housing.
(Figure B)
3. Slide the DDIN radio unit into
the DDIN bracket/radio housing
assembly and secure the radio
unit to the kit using the screws
supplied with the radio unit.
(Figure C)
4. Snap the DDIN trim-plate onto the
housing/radio assembly. (Figure D)
5. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect
the negative battery terminal and
test the unit for proper operation.
6. Reassemble dash in reverse order
of disassembly.
(Figure A)
1. Cut and remove center divider in
radio housing. (Figure A)
2. Snap the DDIN brackets to the
inside edge of the radio housing.
(Figure B)
3. Slide the stacked ISO DIN radio
units into the DDIN bracket/radio
housing assembly and secure the
unit to the kit using the screws
supplied with the units. (Figure C)
4. Snap the DDIN trim-plate onto the
housing/radio assembly. (Figure D)
5. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect
the negative battery terminal and
test the unit for proper operation.
6. Reassemble dash in reverse order
of disassembly.
Double DIN radio provision Stacked ISO unit provision
(Figure B)
(Figure C)
(Figure D)
(Figure A)
(Figure B)
(Figure C)
(Figure D)
INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-6510
APLICACIONES
PRECAUCIÓN: Metra recomienda desconectar el terminal
negativo de la batería antes de comenzar cualquier
instalación. Todos los accesorios, interruptores y,
especialmente, las luces indicadoras de airbag deben
estar enchufados antes de volver a conectar la batería o
comenzar el ciclo de ignición.
NOTA: Remítase a las instrucciones incluidas con el
radio de postventa.
• Provisión de radio DIN con bolsillo
• Provisión de radio ISO DIN con bolsillo
• Provisión de radio doble DIN
• Provisión de radio ISO vertical
• Diseñado para vehículos con radios de navegación de fábrica
• A) Carcasa del radio • B) Soportes ISO • C) Placa de moldura ISO • D) Soportes doble DIN • E) Bolsillo
• F) Placa de moldura doble DIN
CArACtEríStICAS dEL kIt
COmPONENtES dEL kIt
• Destornillador de hoja plana pequeño
• Herramienta de remoción de panel • Destornillador
Phillips • Llave de tubo • Herramientas de corte
HErrAmIENtAS rEquErIdAS
Chrysler/Dodge/Jeep 2005-2008
99-6510
Lista de aplicaciones dentro CABLEAdO Y CONEXIONES dE ANtENA
Arnés de cableado:
• XSVI-6502-NAV - Interfase para Chrysler
CAN RAP 2004 y mas
• CHTO-01 - Interfase para Chrysler CAN
con amplificador 2004 y mas
Adaptador de antena:
• 40-CR10 - Adaptador de antena Chrysler 2004 y
más recientes
(se venden por separado)
B CA
F
D E
Altri manuali per 99-6510
1
Indice
Lingue:
Altri manuali Metra Electronics Accessori per automobili
Metra Electronics
Metra Electronics 99-8154 Manuale utente
Metra Electronics
Metra Electronics 99-7860 Manuale utente
Metra Electronics
Metra Electronics 95-3305 Manuale utente
Metra Electronics
Metra Electronics 99-8218 Manuale utente
Metra Electronics
Metra Electronics 99-7517S Manuale utente
Metra Electronics
Metra Electronics 99-5824CH Manuale utente
Metra Electronics
Metra Electronics 70-6506 Manuale utente
Metra Electronics
Metra Electronics 99-7503 Manuale utente
Metra Electronics
Metra Electronics 98-8999 Manuale utente
Metra Electronics
Metra Electronics 99-5717 Manuale utente
Metra Electronics
Metra Electronics 99-9109B Manuale utente
Metra Electronics
Metra Electronics 99-7352B Manuale utente
Metra Electronics
Metra Electronics 107-HY1 Manuale utente
Metra Electronics
Metra Electronics 99-3412 Manuale utente
Metra Electronics
Metra Electronics GMOS-06 Manuale utente
Metra Electronics
Metra Electronics 88-00-3302 Manuale utente
Metra Electronics
Metra Electronics 99-4700 Manuale utente
Metra Electronics
Metra Electronics 99-6520B Manuale utente
Metra Electronics
Metra Electronics 99-5823CH Manuale utente
Metra Electronics
Metra Electronics 99-6540 Manuale utente
