INSTALLATION INSTRUCTIONS FOR PART 99-8154

APPLICATIONS

LEXUS GS SERIES

1993-1997

KIT FEATURES

•DIN Mount Radio Provision with Pocket

•ISO Mount Radio Provision with Pocket

A) Radio Housing • B) Radio Housing Brackets • C) ISO Brackets • D) Trim Plate

KIT COMPONENTS

TOOLS REQUIRED:

Small Flat Blade Screwdriver/ Panel Removal Tool

•Phillips Screwdriver • Socket Set

1-800-221-0932

www.metraonline.com

99-8154

Dash Disassembly

Lexus GS Series 1993-1997 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Kit Preparation ...........................................2

Kit Assembly

- DIN Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . 3

-ISO Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . 4

Final Assembly ...........................................5

TABLE OF CONTENTS

99-8154

*Note:

Refer also to the instructions included with the aftermarket radio.

99-8154 DASH DISASSEMBLY

LEXUS GS SERIES 1993-1997

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Using a panel removal tool gently pry

out on the top of the a/c vent assem-

bly (including clock) and remove.

(

Figure A)

Unclip and remove ashtray assembly.

Tip: Open ashtray door and pull from

inside.

(Figure B)

Remove (4) screws securing factory

radio/climate control assembly.

Unplug and remove the assembly.

(Figure C)

Remove (4) screws securing factory

climate controls to the assembly.

Remove the climate controls and

retain them and the screws for re-

installation during kit assembly

(

Figure D)

Continue to kit assembly.

99-8154 KIT PREPARATION

Slide the corresponding bracket onto

the 99-8154 until side clips engage.

(Figure A)

Slide the factory A/C controls into the

99-8154 aligning holes in top of kit

with alignment pins in bottom of A/C

control and securewith factory hard-

ware.

(Figure B)

Continue to final assembly.

LEXUS GS SERIES 1993-1997

DIN MOUNT RADIO PROVISION WITH POCKET

ISO MOUNT RADIO PROVISON WITH POCKET

Note: Refer also to the instructions included with the aftermarket radio.

99-8154 KIT ASSEMBLY

Slide the DIN cage into the radio

housing/bracket/A/C control assembly

and secure by bending the metal

locking tabs outward.

(Figure A)

Slide the aftermarket radio into the

cage until it snaps into place.

(Figure B)

Continue to final assembly.

LEXUS GS SERIES 1993-1997

DIN MOUNT RADIO PROVISION WITH POCKET

Note: Refer also to the instructions included with the aftermarket radio.

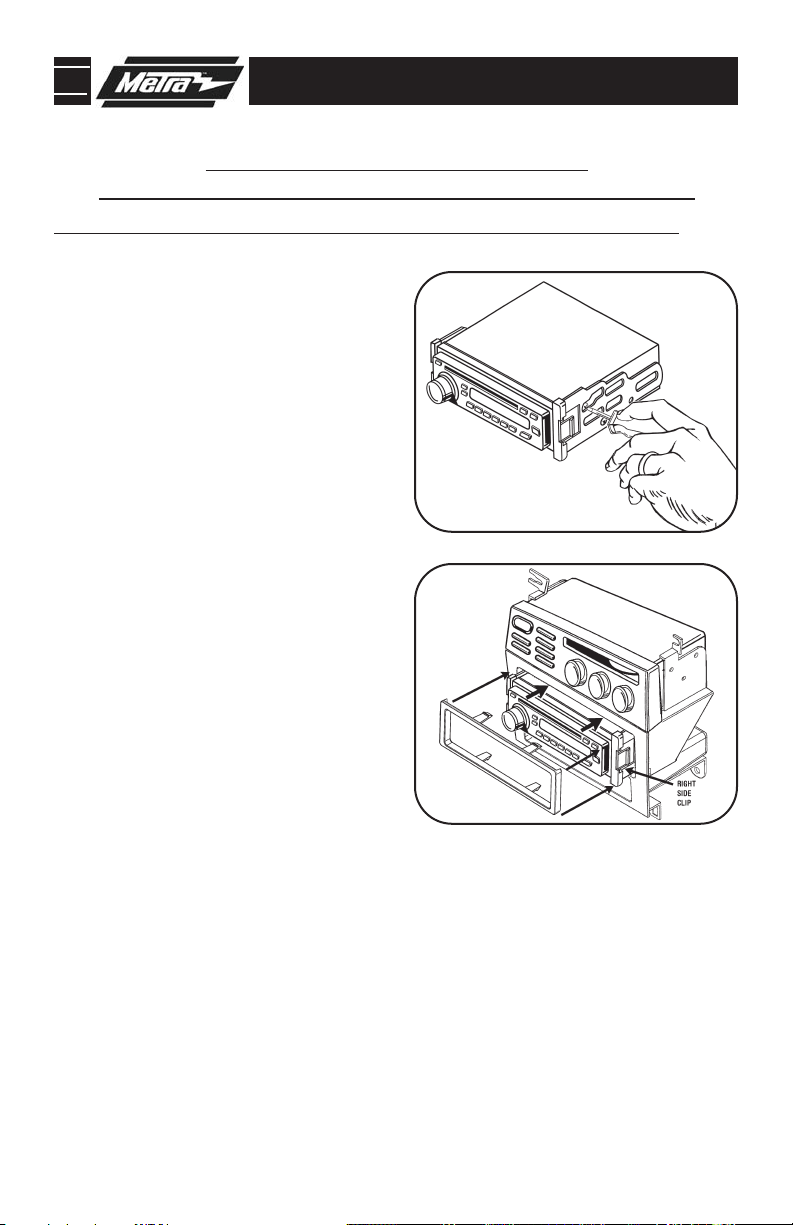

99-8154 KIT ASSEMBLY

Mount the ISO Brackets to the radio

using the screws supplied with the

radio.

(Figure A)

Slide the aftermarket radio into the

radio housing/bracket/A/C control

assembly until it snaps into place.

(Figure B)

Snap the trim plate onto the front of

the radio housing.

(Figure B)

Continue to final assembly.

LEXUS GS SERIES 1993-1997

ISO MOUNT RADIO PROVISION WITH POCKET

Note: Refer also to the instructions included with the aftermarket radio.

99-8154 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown belowand the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

99-8154 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
