INSTALLATION INSTRUCTIONS FOR PART 99-8205

1-800-221-0932 www.metraonline.com

KIT FEATURES

•DIN head unit provision

•ISO DIN head unit provision

•DDIN head unit provision

-Excluding 2005-2008 Matrix

•Stacked ISO DIN head unit provision

-Excluding 2005-2008 Matrix

A) DDIN Faceplate (excluding 2005-2008 matrix) • B) ISO DIN Faceplate (excluding 2005-2008 matrix)

•C) ISO DIN Faceplate 2005-2008 Matrix D) Pocket • E) Mounting Brackets • F) ISO Trim Plate • G) ISO Brackets

KIT COMPONENTS

TOOLS REQUIRED:

99-8205

APPLICATIONS

Toyota Matrix 2003-2008

Pontiac Vibe 2003-2008

Cutting Tool • Phillips Screwdriver • Socket Wrench

BCDE

FGHIJK

•H) ISO Spacers • I) Rear Support • J) (4) #6x1/4” Phillip Screws • K) (4) #8x3/8” Phillip Screws

TABLE OF CONTENTS

99-8205

Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1,2

Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3, 4, 5, 6, 7,8

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

99-8205

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip the bottom edge of the radio

trim panel then lift up and out to

remove.

(Figure A)

TOYOTAMATRIX 2003-2008

PONTIAC VIBE 2003-2008

Remove (4) 10 MM bolts securing

the factory radio.

(Figure B)

DASH DISASSEMBLY

SCAN

SEEK

TRACK

TUNE

AM FM1 FM2 DISK

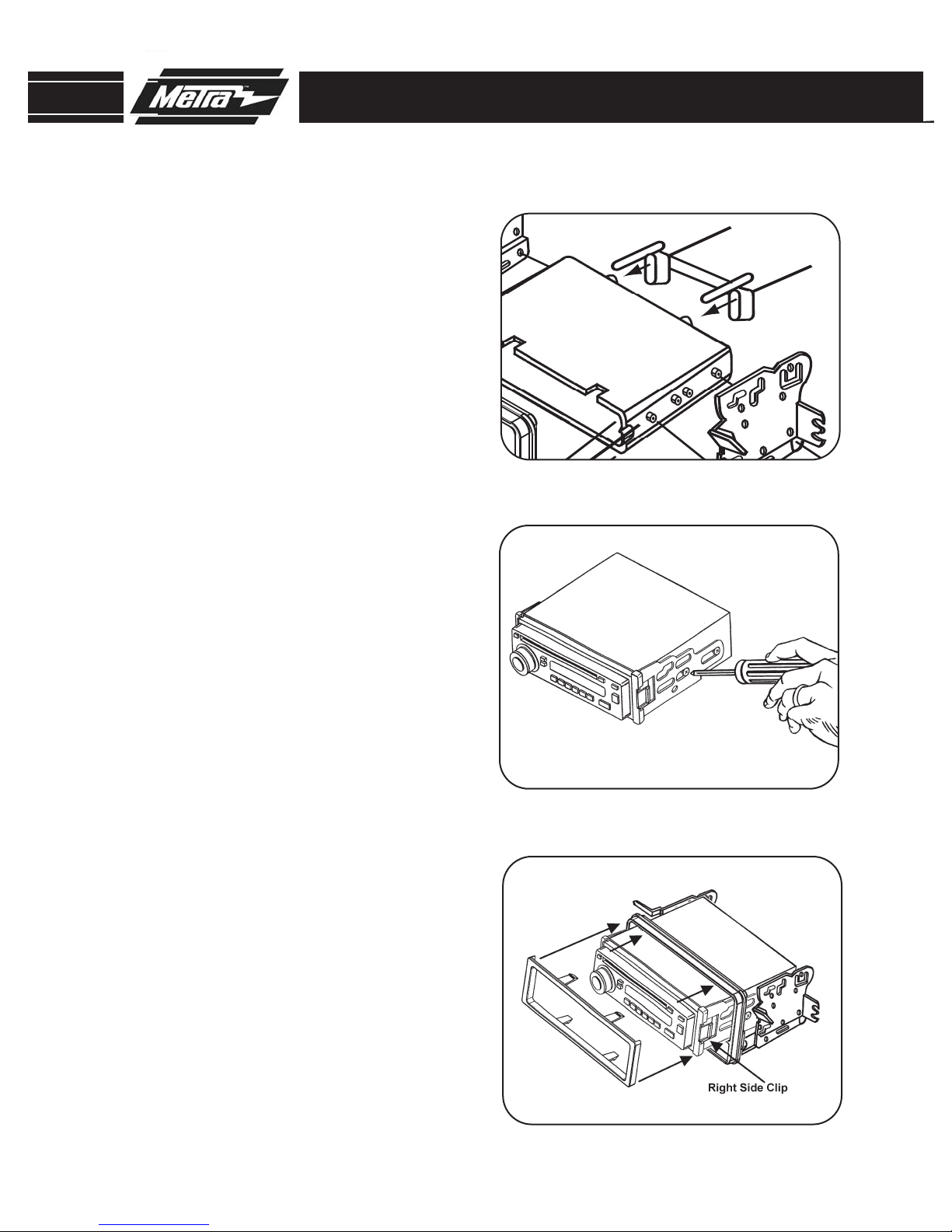

99-8205

KIT ASSEMBLY

Attach the pocket to the back of the

ISO/DIN Faceplate (by holding the

faceplate upside down and inserting

the right edge of the pocket into

place then pushing the rest of the

pocket onto the lip) and mount with

(2) #8X3/8” Phillips screws.

(Figure A)

Secure the mounting brackets to the

pocket with (4) #6X1/4” Phillips

screws. (

Figure C)

Choose the correct faceplate for your

application. The 2005-2008 Matrix

faceplate is smaller than the other

supplied faceplate.

#8x3/8” Screw

#6x1/4” Screws

#6x1/4” Screws Two

#8x3/8” Screws

DIN HEAD UNIT PROVISION

NOTE: For the 2005-2008 Matrix,

break away the shaded clips along

the scored lines. (

Figure B)

99-8205

KIT ASSEMBLY

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs down. (

Figure E)

Slide the aftermarket head unit into

the cage and secure. (

Figure F)

DIN HEAD UNIT PROVISION

#6x1/4” Screws

#6x1/4” Screws Two

#8x3/8” Screws

Mount the rear support to the back

of the pocket with (2) #8X3/8”

Phillips screws. (

Figure D)

ISO DIN HEAD UNIT PROVISION

99-8205

KIT ASSEMBLY

Attach the

the pocket to the back of the

ISO/DIN Faceplate (by holding the face-

plate upside down and inserting the right

edge of the pocket into place then push-

ing the rest of the pocket onto the lip)

and mount with (2) #8X3/8” Phillips

screws. (Figure A)

Secure the mounting brackets to the

pocket with (4) #6X1/4” Phillips

screws. (

Figure C)

#8x3/8” Screw

#6x1/4” Screws

#6x1/4” Screws Two

#8x3/8” Screws

NOTE: For the 2005-2008 Matrix,

break away the shaded clips along

the scored lines. (

Figure B)

Choose the correct faceplate for your

application. The 2005-2008 Matrix

faceplate is smaller than the other

supplied faceplate.

ISO DIN HEAD UNIT PROVISION

99-8205

KIT ASSEMBLY

Mount the ISO Brackets to the head

unit with the screws supplied with

the unit. (

Figure E)

Mount the rear support to the back

of the pocket with (2) #8x3/8”

Phillips screws. (

Figure D)

Slide the the head unit into the radio

opening until the side clips engage.

(

FigureF)

Snap the Trim plate into the Radio

Housing. (

Figure F)

#6x1/4” Screws

#6x1/4” Screws Two

#8x3/8” Screws

DOUBLE DIN HEAD UNIT PROVISION

99-8205

KIT ASSEMBLY

Cut and remove the bottom portion

(Displayed) of the mounting brack-

ets. (

Figure A)

NOTE: 2005-2008 Matrix not

applicable.

Cut and remove the center bar from

the DDIN faceplate. (

Figure B)

Attachthe ISO spacers to the

mounting brackets by inserting the

(4) bosses on each spacer into the

(4) holes in each bracket. (

Figure C)

Attachthe mounting brackets to the

DDIN head unit with the screws sup-

plied with the unit. (

Figure D)

Attach the DDIN faceplate over the

head unit bysnapping the bracket

clips into the faceplate slots.

(

Figure E)

STACKED ISO DIN HEAD UNIT PROVISION

Cut and remove the bottom portion

(Displayed) of the mounting brack-

ets. (

Figure A)

Attach the ISO spacers to the mount-

ing brackets by inserting the (4)

bosses on each spacer into the (4)

holes in each bracket. (

Figure B)

Attach the mounting brackets to the

DDIN head unit with the screws sup-

plied with the unit. (

Figure C)

Attach the DDIN faceplate over the

head unit bysnapping the bracket

clips into the faceplate slots.

(

Figure D)

99-8205

KIT ASSEMBLY

NOTE: 2005-2008 Matrix not

applicable.

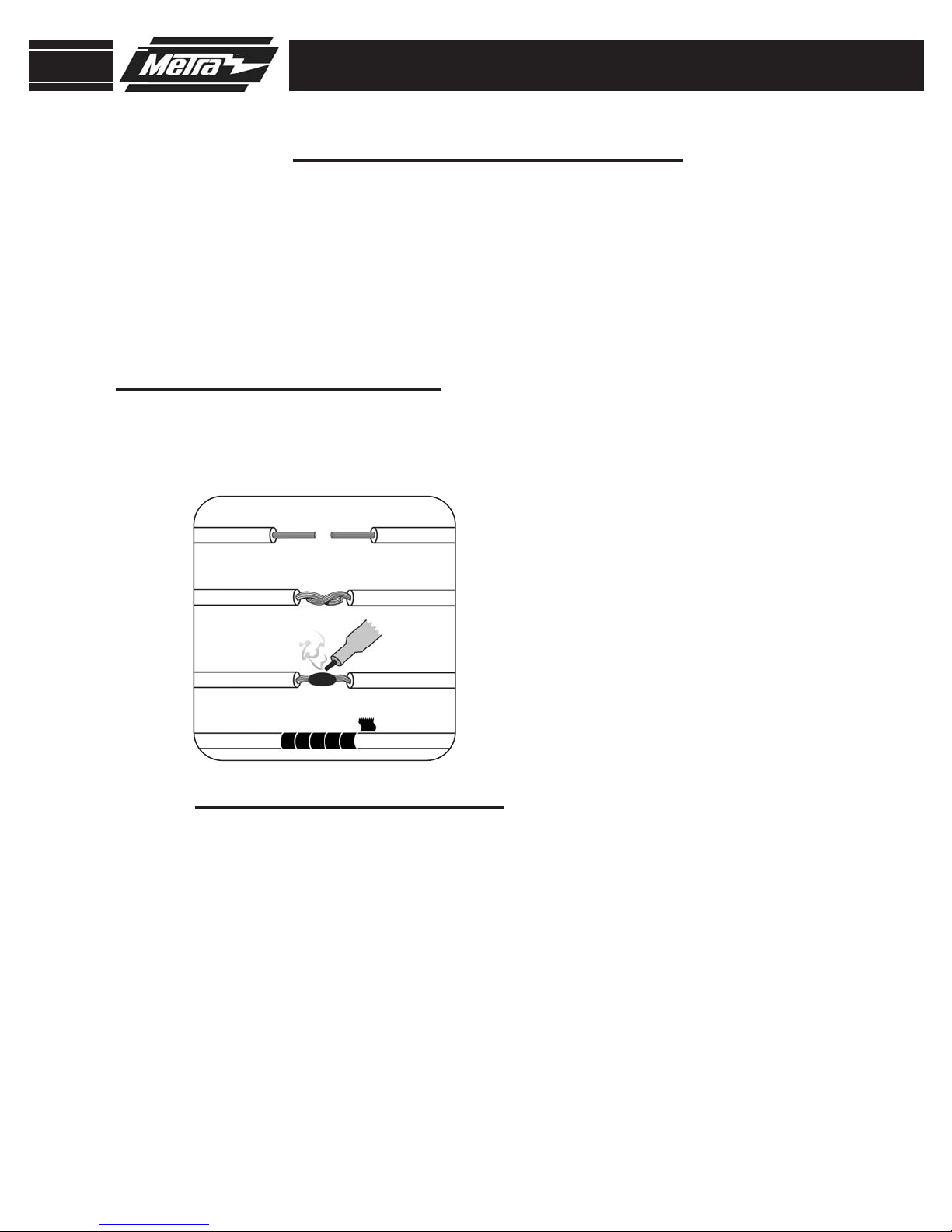

FINAL ASSEMBLY

Locate the factory wiring harness in the dash and make the connection as shown.

Metra recomends using the proper mating adapter and making the connections as

shown. (Isolate and individually tape off the ends of any unused wires to prevent

electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Make wiring connections using the EIA color code chart shown below and the instructions included with the head

unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually

tape off ends of anyunused wires to prevent electrical short circuit.

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . Gray

Right Front (-). . . . . . Gray / Black

Left Front (+) . . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

METRA / EIA WIRING CODE

FINAL WIRING CONNECTIONS

99-8205

KIT ASSEMBLY
