Installation instructions for part 99-6505

CAUTION!

Metra recommends disconnecting the negative bat

tery terminal before beginning any installation, unless the vehicle

manufacturer recommends against so. Please check with your local

Dealership for more information. All accessories, switches, climate

controls panels, and especially air bag indicator lights must be con

nected before reconnecting the battery or cycling the ignition. Also,

do not remove the factory radio with the key in the on position, or the

vehicle running. It would be best to remove the key from the ignition

and then wait a few seconds before removing the factory radio.

• DIN radio provision with pocket

• ISO DIN radio provision with pocket

• A) Radio housing • B) ISO trim plate • C) ISO snap-in brackets

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • Please visit metraonline.com for options

Antenna Adapter: • Please visit metraonline.com for options

• Torx T-20 driver • Phillips screwdriver • Socket wrench

TOOLS REQUIRED

Chrysler multi-kit 1998-2010

99-6505

A B C

See Table of Contents list inside cover

Table of Contents

APPLICATIONS

See application list inside cover

99-6505

Applications Table of Contents

CHRYSLER

300M 1999-2004

Concorde 1998-2004

LHS 1999-2001

PT Cruiser 2001-2005

Sebring 2001-2006

Town & Country 2000-2007

Voyager 2001-2003

DODGE

Caravan 2001-2007

Dakota 2001-2004

Durango 2001-2003

Intrepid 1998-2004

DODGE (cont’d)

Neon 2000-2006

Ram 2002-2005

Stratus 2001-2006

Viper 2003-2010

JEEP

Grand Cherokee 1999-2004

Liberty 2002-2007

Wrangler 2003-2006

PLYMOUTH

Neon 2000-2001

Dash Disassembly

– Chrysler 300M 1999-2004/Concorde 1998-2004 ......................................... 3

– Chrysler LHS 1999-2001........................................................................... 3

– Chrysler PT Cruiser 2001-2005 .................................................................. 3

– Chrysler Sebring 2001-2006...................................................................... 3

– Chrysler Town & Country 2000-2007 .......................................................... 4

– Chrysler Voyager 2001-2003 ..................................................................... 4

– Dodge Caravan 2001-2007 ....................................................................... 4

– Dodge Dakota 2001-2004/Durango 2001-2003............................................ 5

– Dodge Intrepid 1998-2004 ........................................................................ 3

– Dodge Neon 2000-2006............................................................................ 4

– Dodge Ram 2002-2005 ............................................................................ 4

– Dodge Stratus 2001-2006......................................................................... 3

– Dodge Viper 2003-2010 ............................................................................ 6

– Jeep Grand Cherokee 1999-2004............................................................... 4

– Jeep Liberty 2002-2007............................................................................ 5

– Jeep Wrangler 2003-2006......................................................................... 5

– Plymouth Neon 2000-2001........................................................................ 4

Kit Assembly

–DIN radio provision with pocket.......................................................................... 7

– ISO DIN radio provision with pocket.................................................................... 7

99-6505

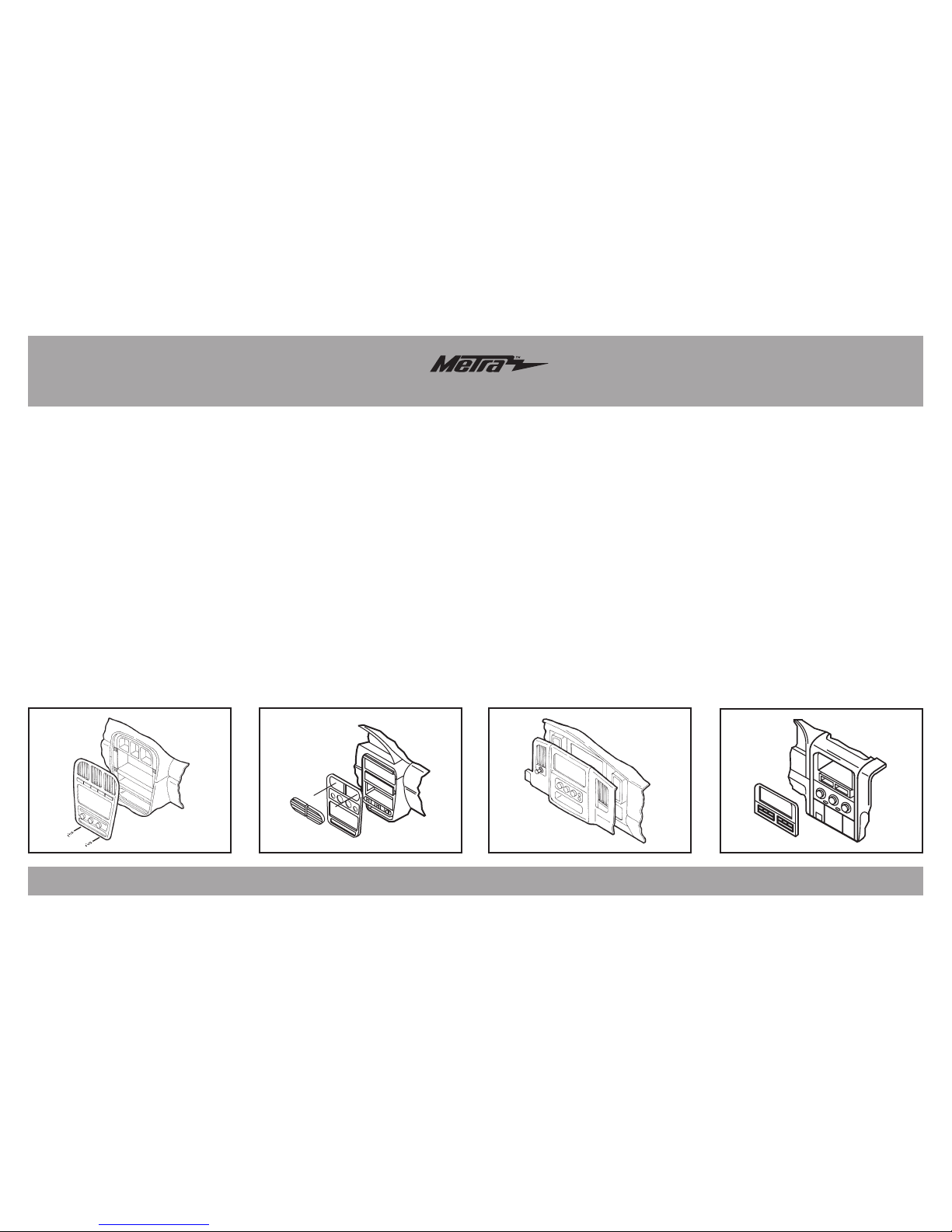

Chrysler 300M 1999-2004

Concorde 1998-2004 / LHS 1999-2001

Dodge Intrepid 1998-2004

1. Remove the ashtray by pressing

down on the inner spring clip.

(Concorde only)

2. Unclip the gear shifter trim panel

and slide the trim panel toward the

rear of the vehicle.

3. Unclip the dash trim panel and

disconnect the wire to the trim

panel.

4. Remove (4) Phillips screws

securing the radio. Disconnect and

remove the radio.

Continue to kit assembly

Dash Disassembly

Chrysler PT Cruiser 2001-2005

1. Unclip the power window control

panel. Disconnect and remove the

panel.

2. Pull off the climate control knobs.

3. Unclip and remove the dash trim

panel.

4. Remove (4) Phillips screws

securing the radio. Disconnect and

remove the radio.

Continue to kit assembly

Chrysler Sebring 2001-2006

Dodge Stratus 2001-2006

1. Remove (2) Phillips screws from

under the climate controls.

(Coupe only)

2. Unclip and remove the radio trim

panel.

3. Remove (4) Phillips screws

securing the radio. Disconnect and

remove the radio.

Continue to kit assembly

99-6505

Dash Disassembly

Dodge Ram 2002-2005

1. Unclip the top edge of the trim

panel below the steering column.

(It is not necessary to completely

remove this panel).

Remove (1) Phillips screw from

below the right ac/heater vent

Unclip and remove the dash trim panel

4. Remove (4) Phillips screws

securing the radio. Disconnect and

remove the radio.

Continue to kit assembly

Jeep Grand Cherokee 1999-2004

1. Unclip and remove the radio trim

panel.

2. Remove (4) Phillips screws

securing the radio. Disconnect and

remove the radio.

Continue to kit assembly

Chrysler Town & Country 2000-2007/

Voyager 2001-2003

Dodge Caravan 2001-2007

Open the cup holder. Unclip and

remove the trim above the cup holder

2. Remove (2) Phillips screws from

above the cup holder.

Unclip and remove the dash trim panel

4. Remove (4) Phillips screws

securing the radio. Disconnect and

remove the radio.

Continue to kit assembly

Dodge Neon 2000-2006

Plymouth Neon 2000-2001

1. Pull off the climate control knobs.

2. Unclip and remove the ac / heater

vents.

3. Remove (1) Phillips screw from

each vent cavity.

Unclip and remove the dash trim panel

5. Remove (4) Phillips screws

securing the radio. Disconnect and

remove the radio.

Continue to kit assembly

99-6505

3 Screws

2 Screws

Dodge Dakota 2001-2004

Durango 2001-2003

Remove (3) T-20 Torx screws from

the bottom edge of the panel below

the steering column and unsnap to

remove the panel.

Remove (2) Phillips screws from the

instrument cluster panel above the

gauges.

Remove (3) T-20 Torx screws from

the bottom of the steering column

shroud. Unsnap and remove the top

half of the shroud.

Unsnap and remove the entire

panel surrounding the radio, a/c

controls, and instrument cluster.

Remove (4) Phillips screws securing

the radio. Disconnect and remove

the radio.

Continue to kit assembly

Jeep Liberty 2002-2007

1. Remove the ashtray and remove

(1) Phillips screw exposed.

2. Unclip and remove the radio /

climate control panel.

3. Remove (4) Phillips screws

securing the radio. Disconnect and

remove the radio.

Continue to kit assembly

Dash Disassembly

Jeep Wrangler 2003-2006

1. Unsnap and remove the defroster

grille panel near the windshield.

Remove (2) Phillips screws exposed

at the top of the center of the dash

panel. Unsnap and remove the panel

3. Remove the glove box door to

access (1) 10mm nut on the back

of the radio.

4. Remove (4) Phillips screws

securing the radio. Disconnect and

remove the radio.

Continue to kit assembly

POWER

OUTLET

99-6505

Dodge Viper 2003-2010

1. Using a panel removal tool, pry up

on the center console trim panel.

Be careful not to scratch the trim

panel. (Figure A)

2. Loosen the shifter lock nut below

the center console trim panel

(Figure A), and unscrew the shifter

knob. (Figure B)

3. Unplug the electrical connectors

and remove the center console

trim panel. (Figure C)

4. Remove (6) Allen screws from

the radio / climate control trim

panel, and (1) Phillips screw at the

bottom of the panel.

5. Unplug the electrical connectors

and remove the panel. (Figure D)

Remove (4) screws securing the radio.

Disconnect and remove the radio

Continue to kit assembly

(Figure A) (Figure C)

(Figure B) (Figure D)

Dash Disassembly

99-6505

Kit Assembly

(Figure A) (Figure A)

(Figure B) (Figure B)

DIN radio provision with pocket

1. Remove the metal DIN sleeve from

the aftermarket radio.

2. Slide the sleeve into the assembly

and secure by bending the metal

locking tabs down. (Figure A)

3. Slide the radio into the sleeve until

secure. (Figure B)

4. Locate the factory wiring harness

and antenna connector in the

dash and make all necessary

connections to the radio. Metra

recommends using the proper

mating adapters from Metra and/

or AXXESS. Reconnect the negative

battery terminal and test the radio

for proper operation.

5. Reassemble the dash in reverse

order of disassembly.

ISO DIN radio provision with pocket

1. Remove the metal DIN sleeve and

trim ring from the aftermarket radio

2. Align the holes in the ISO snap-in

brackets with the holes in the

radio and mount the brackets to

the radio with the screws supplied

with the radio. (Figure A)

3. Slide the radio/bracket assembly

into the radio opening until the side

clips engage. (Figure B)

4. Locate the factory wiring harness

and antenna connector in the

dash and make all necessary

connections to the radio. Metra

recommends using the proper

mating adapters from Metra and/

or AXXESS. Reconnect the negative

battery terminal and test the radio

for proper operation.

5. Reassemble the dash in reverse

order of disassembly.

REV. 12/28/2015 INST99-6505

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

Installation instructions for part 99-6505

IMPORTANT

If you are having difficulties with the

installation of this product, please call our

Tech Support line at 1-800-253-TECH.

Before doing so, look over the instructions a

second time, and make sure the installation

was performed exactly as the instructions

are stated. Please have the vehicle apart

and ready to perform troubleshooting steps

before calling.

REV. 12/28/2015 INST99-6505

Instrucciones de instalación para la pieza 99-6505

¡PRECAUCIÓN!

Meta recomienda desconectar la terminal negativa

de la batería antes de iniciar cualquier instalación, a menos que el

fabricante del vehículo recomiende lo contrario. Verifique con su

concesionario local si existe más información. Todos los accesorios,

interruptores, paneles de controles de clima y especialmente las lu-

ces del indicador de las bolsas de aire deben estar conectados antes

de reconectar la batería o ciclar la ignición. Además, no quite el radio

de fábrica con la llave en la posición de encendido ni con el vehículo

funcionando. Sería mejor retirar la llave de la ignición y esperar unos

cuantos segundos antes de quitar el radio de fábrica.

• Provisión de radio DIN con cavidad

• Provisión de radio ISO DIN con cavidad

• A) Carcasa del radio • B) Placa de moldura ISO

• C) Soportes a presión ISO

CARACTERÍSTICAS DEL KIT

COMPONENTES DEL KIT

CABLEADO Y CONEXIONES DE ANTENA (se venden por separado)

Arnés de cableado: • Visite metraonline.com para opciones

Adaptador de antena: • Visite metraonline.com para opciones

• Destornillador Torx T-20 • Destornillador Phillips

• llave de tubo

HERRAMIENTAS REQUERIDAS

Chrysler multi-kit 1998-2010

99-6505

A B C

Ver interior de la portada para indice

Indice

APLICACIONES

Ver interior de la portada

99-6505

Aplicaciones Indice

CHRYSLER

300M 1999-2004

Concorde 1998-2004

LHS 1999-2001

PT Cruiser 2001-2005

Sebring 2001-2006

Town & Country 2000-2007

Voyager 2001-2003

DODGE

Caravan 2001-2007

Dakota 2001-2004

Durango 2001-2003

Intrepid 1998-2004

DODGE (continuación)

Neon 2000-2006

Ram 2002-2005

Stratus 2001-2006

Viper 2003-2010

JEEP

Grand Cherokee 1999-2004

Liberty 2002-2007

Wrangler 2003-2006

PLYMOUTH

Neon 2000-2001

Desmontaje del tablero
