Metra Electronics 95-1005 Manuale utente

INSTALLATION INSTRUCTIONS FOR PART 95-1005

1-800-221-0932 www.metraonline.com

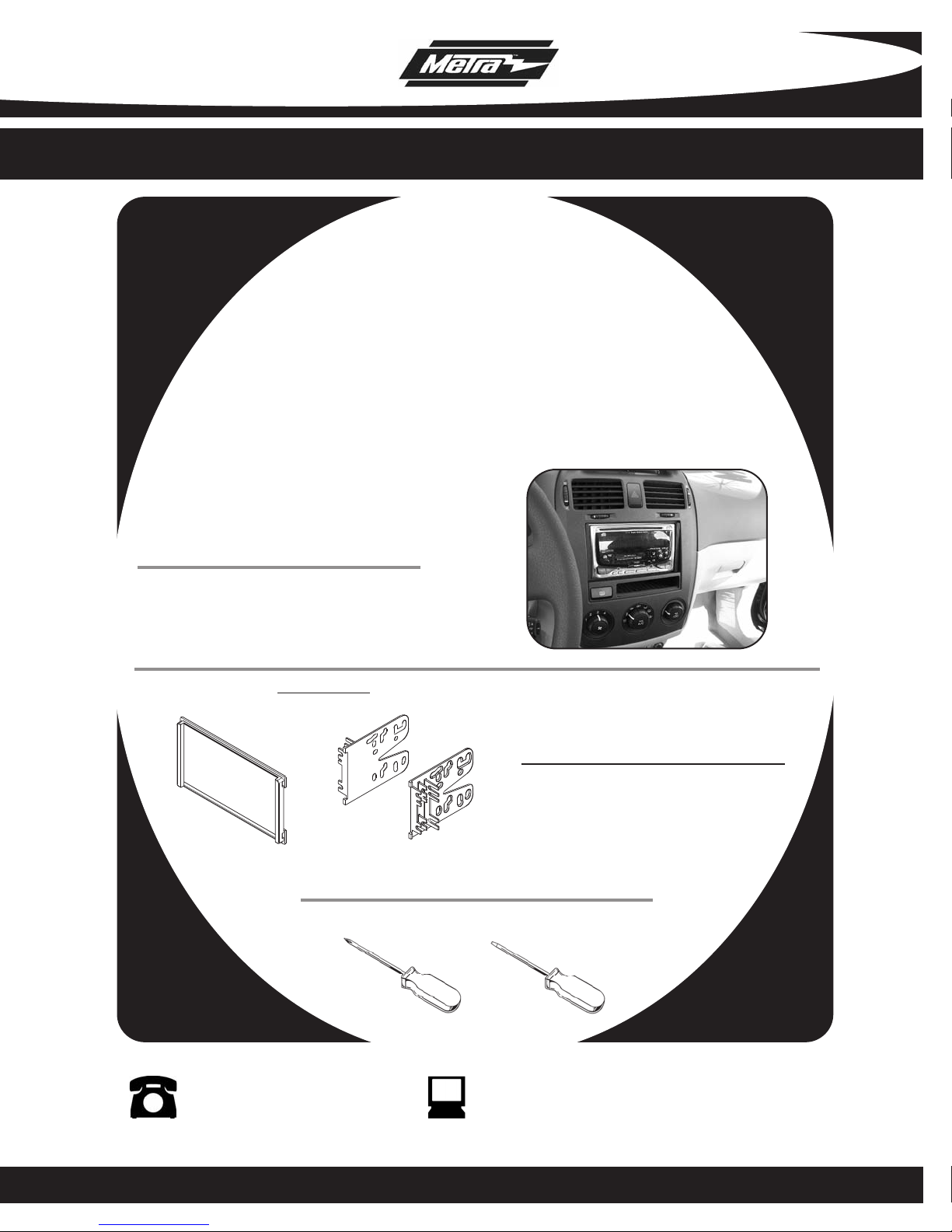

KIT FEATURES

• Double DIN head unit provision

• Stacked ISO DIN head unit provision

A) DDIN Trim Plate | B) DDIN BRACKETS

KIT COMPONENTS

TOOLS REQUIRED:

95-1005

A B

APPLICATIONS

2003-2006 Kia Sorrento LX

(excluding sport models)

2002-2005 Kia Sedona

2002-2005 Kia Rio

2002-2006 Kia Spectra

Phillips Screwdriver I Small Flat Blade Screwdriver

Wiring Harness (Sold Separately)

• 70-1003 Kia harness 1995-2002

• 70-7301 Hyundai Kia harness 1999-2008

TABLE OF CONTENTS

95-1005

Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-10

95-1005

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Open ashtray and unclip and remove

side panels.

(Figure A)

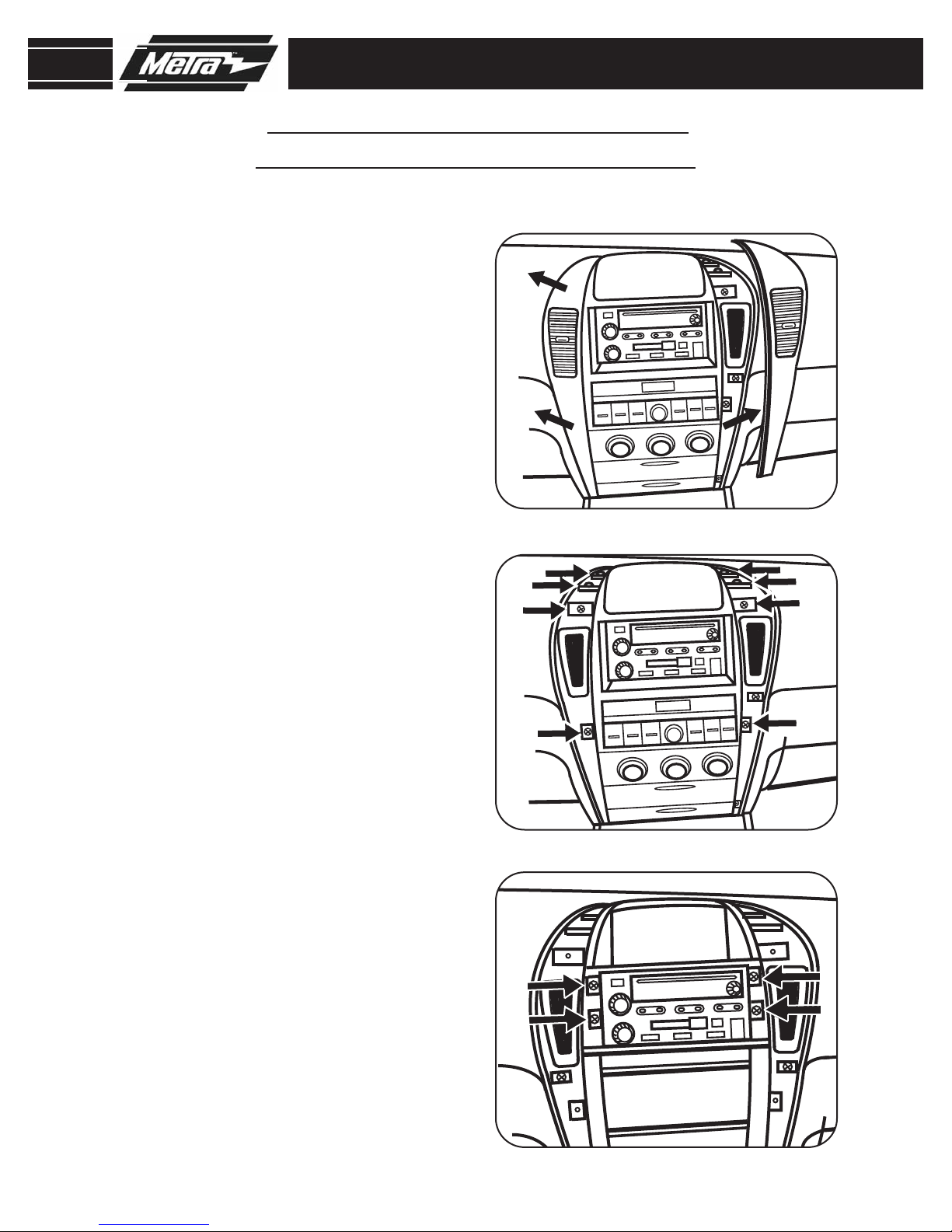

2003-2006 KIA SORRENTO

(EXCLUDING SPORT MODELS)

Remove (8) Phillips screws from the

radio trim panel the remove the

panel.

(Figure B)

Remove (4) Phillips screws securing

radio.

(Figure C)

DASH DISASSEMBLY

95-1005

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Remove the ashtray and (1) Phillips

screw exposed in the ashtray cavity.

(Figure A)

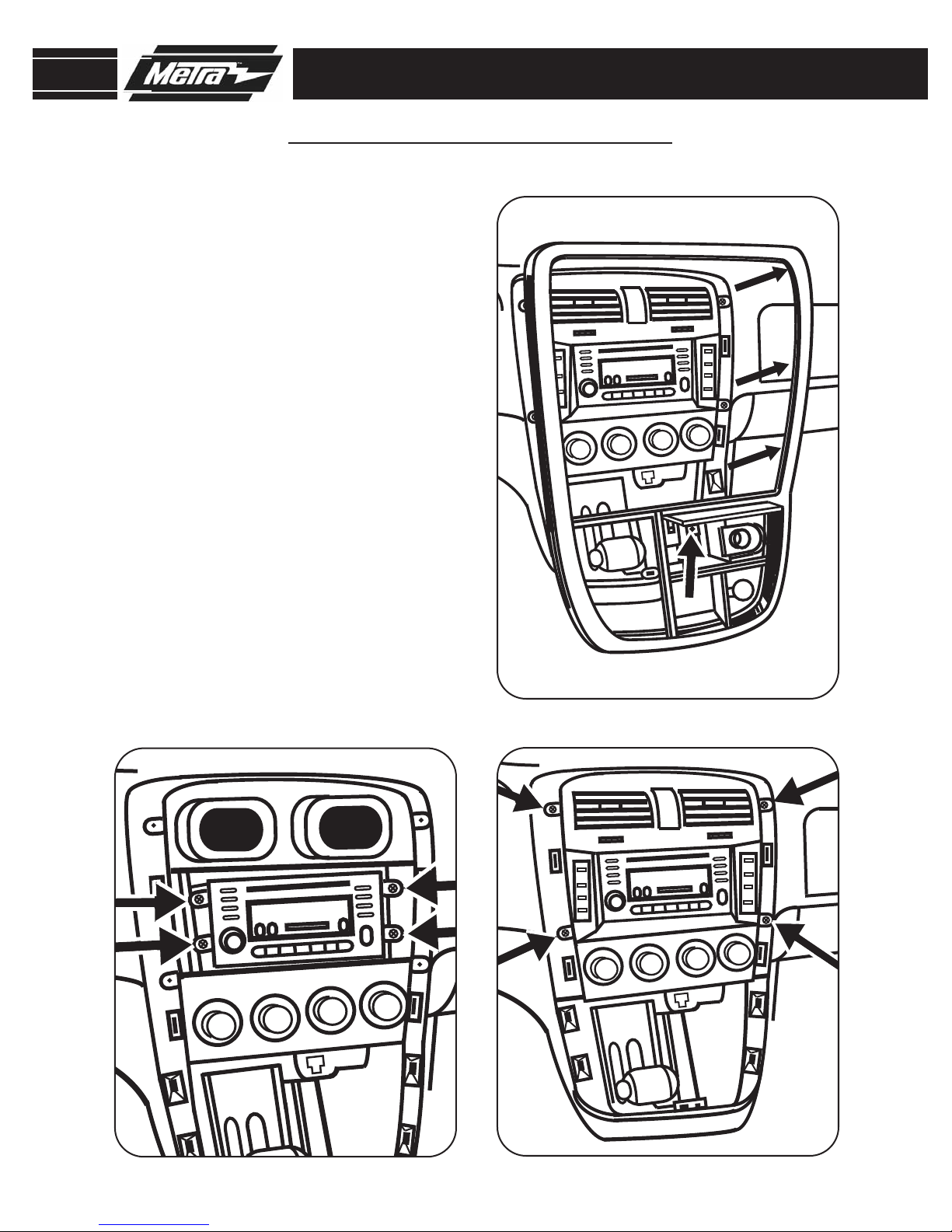

2002-2005 KIA SEDONA

Unclip and remove the small trim

panel from around radio, climate

controls and shifter.

(Figure A)

Remove (4) Phillips screws from the

radio trim panel then unclip and

remove the panel.

(Figure B)

Remove (4) Phillips screws securing

radio.

(Figure C)

DASH DISASSEMBLY

95-1005

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Remove the ashtray and (1) Phillips

screw exposed in the ashtray cavity.

(1 Phillips screw exists in 2002 model

only).

(Figure A)

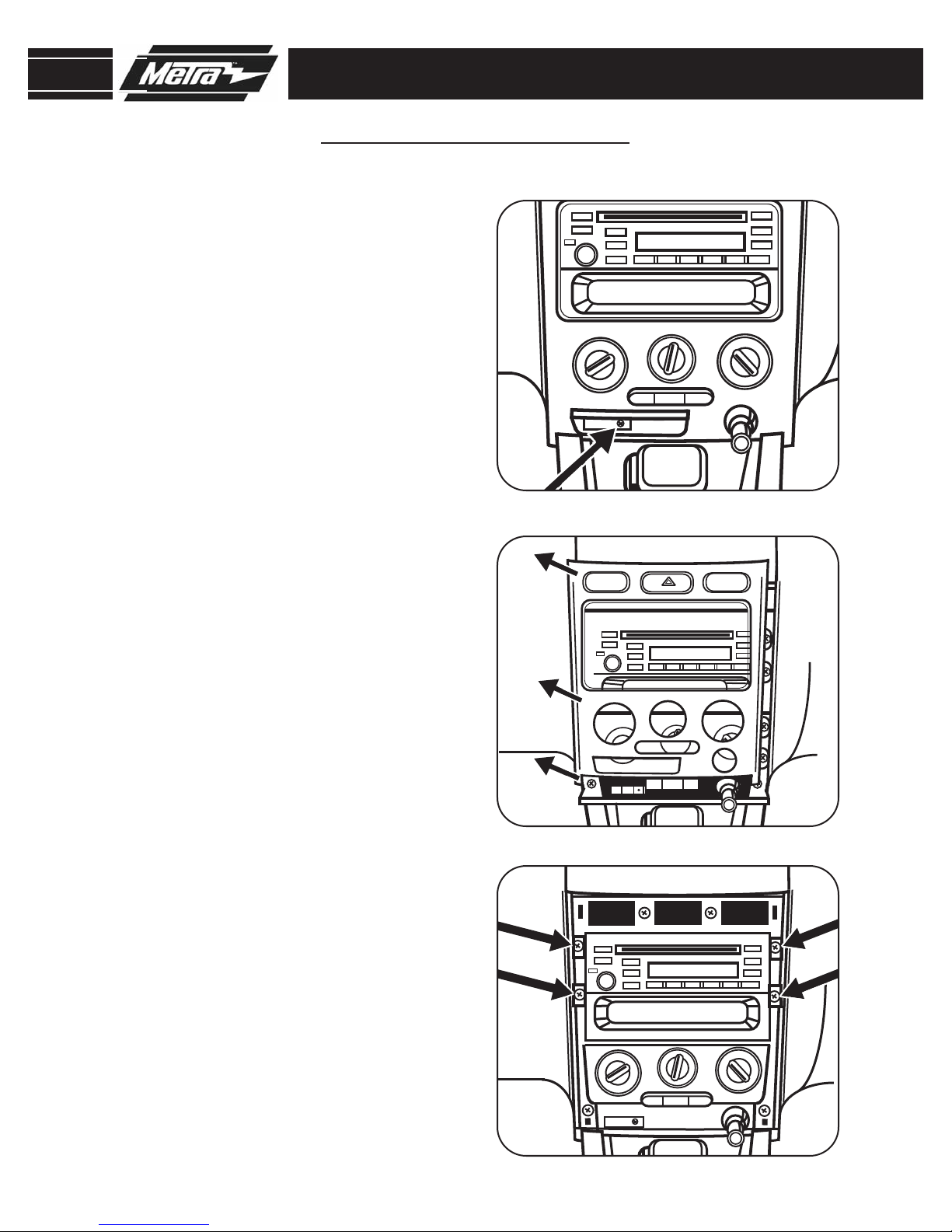

2002-2005 KIA RIO

Unclip and remove entire panel sur-

rounding radio and climate controls.

(On 2002 models remove knob from

fresh air/recirculate control).

(Figure B)

Remove (4) Phillips screws securing

radio.

(Figure C)

DASH DISASSEMBLY

95-1005

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Remove (2) Phillips facing up above

gauge cluster.

(Figure A)

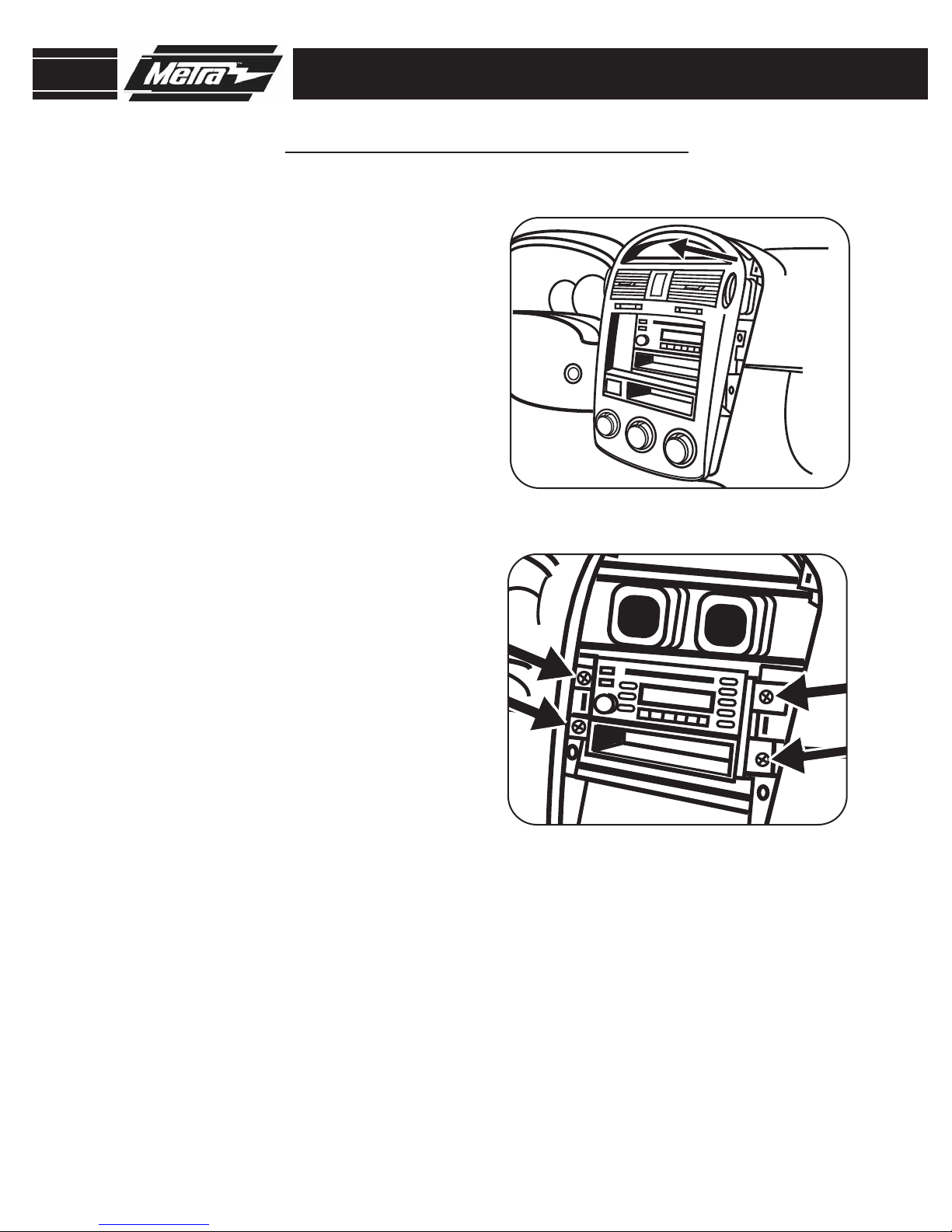

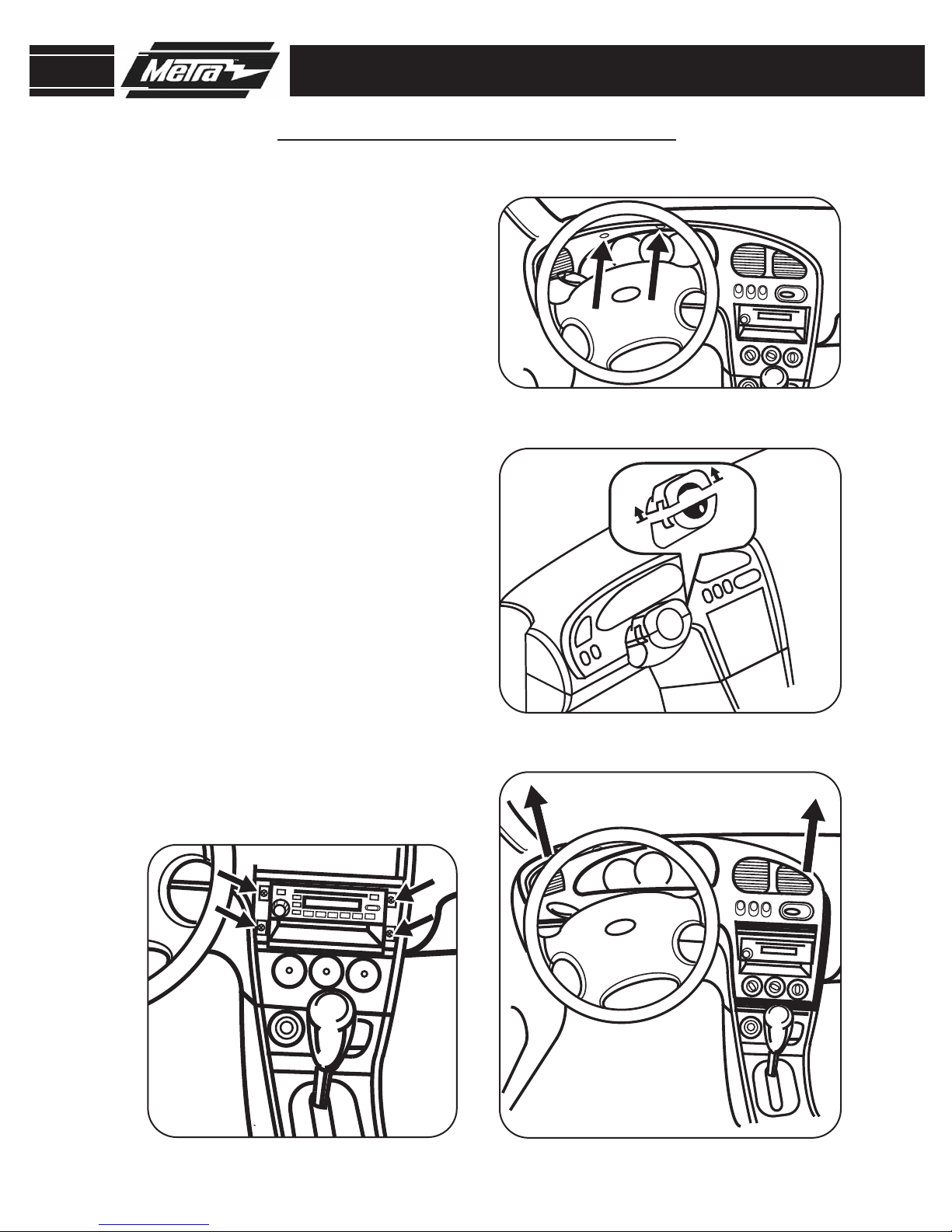

2002-2003 KIA SPECTRA

Unsnap and remove top portion of

steering wheel column cover.

(Figure B)

Unsnap and remove entire panel

from left side of steering wheel to

right side surrounding radio.

(Figure C)

Remove (4) Phillips screws securing

radio.

(Figure D)

DASH DISASSEMBLY

95-1005 DASH DISASSEMBLY

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove entire panel sur-

rounding radio and climate controls.

(Figure A)

2004-2006 KIA SPECTRA

Remove (4) Phillips screws securing

radio.

(Figure B)

95-1005

KIT ASSEMBLY

You will need to cut and remove the tabs according to the chart and refer-

ring to the diagram below:

The 2002-2005 Kia Sedona and the 2001-2003 Kia Spectra will use the tabs

marked by the number 2 on the brackets. Note: For the 2001-2003 Kia

Spectra proceed to page 9 for Final Assembly.

The 2002-2005 Kia Rio will use the tabs marked by the number 3 on the

brackets.

The 2003-2006 Sorrento LX and the 2004-2006 Kia Spectra will use the tabs

marked by the number 1 on the brackets.

1231

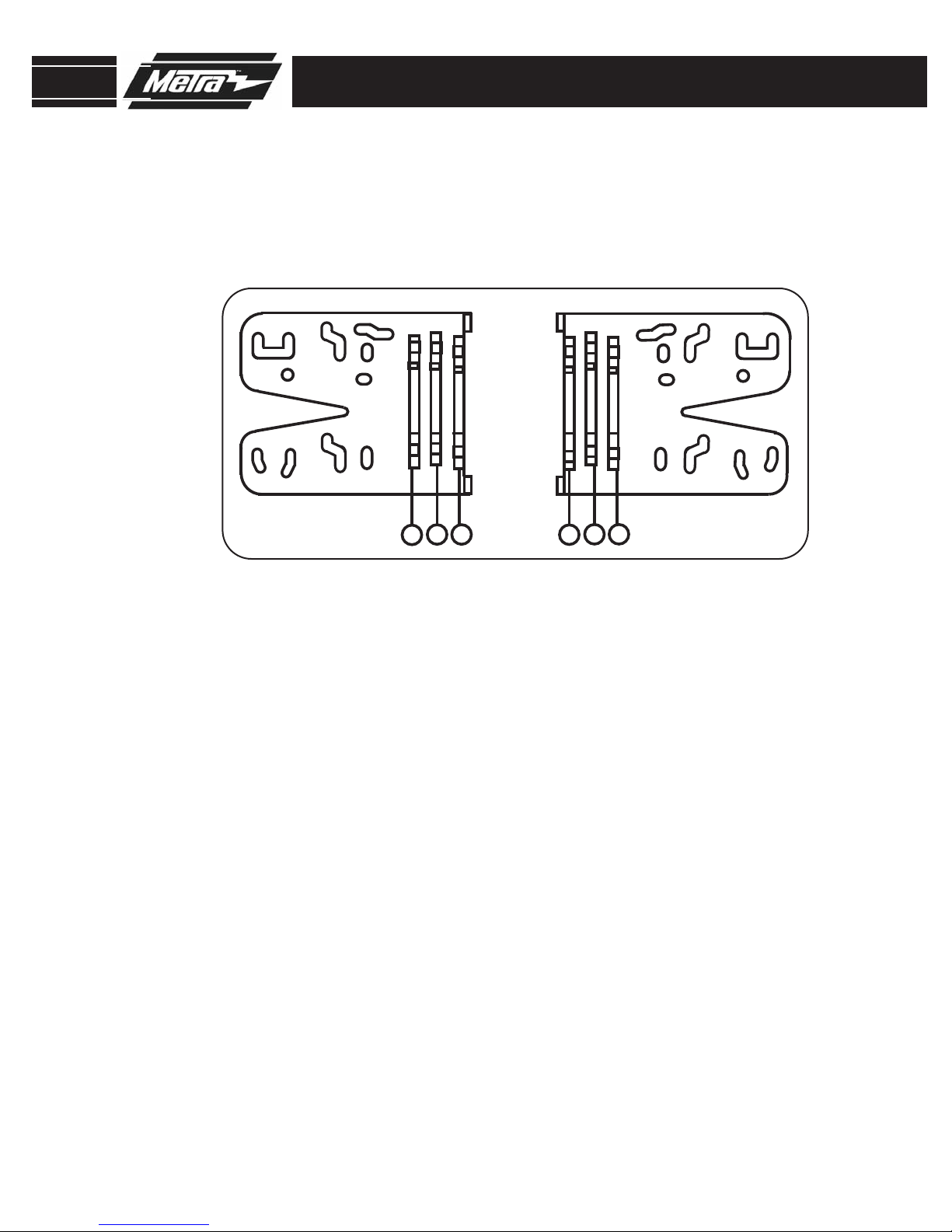

TAB REMOVAL INSTRUCTIONS

95-1005

KIT ASSEMBLY

Slide the DDIN radio unit into the

trim plate bracket assembly and

secure the unit to the kit using the

screws supplied with the head unit.

(

Figure B)

Slide the appropriate bracket into

the trim plate aligning the holes in

the trim plate to the clips on the

bracket. (

Figure A)

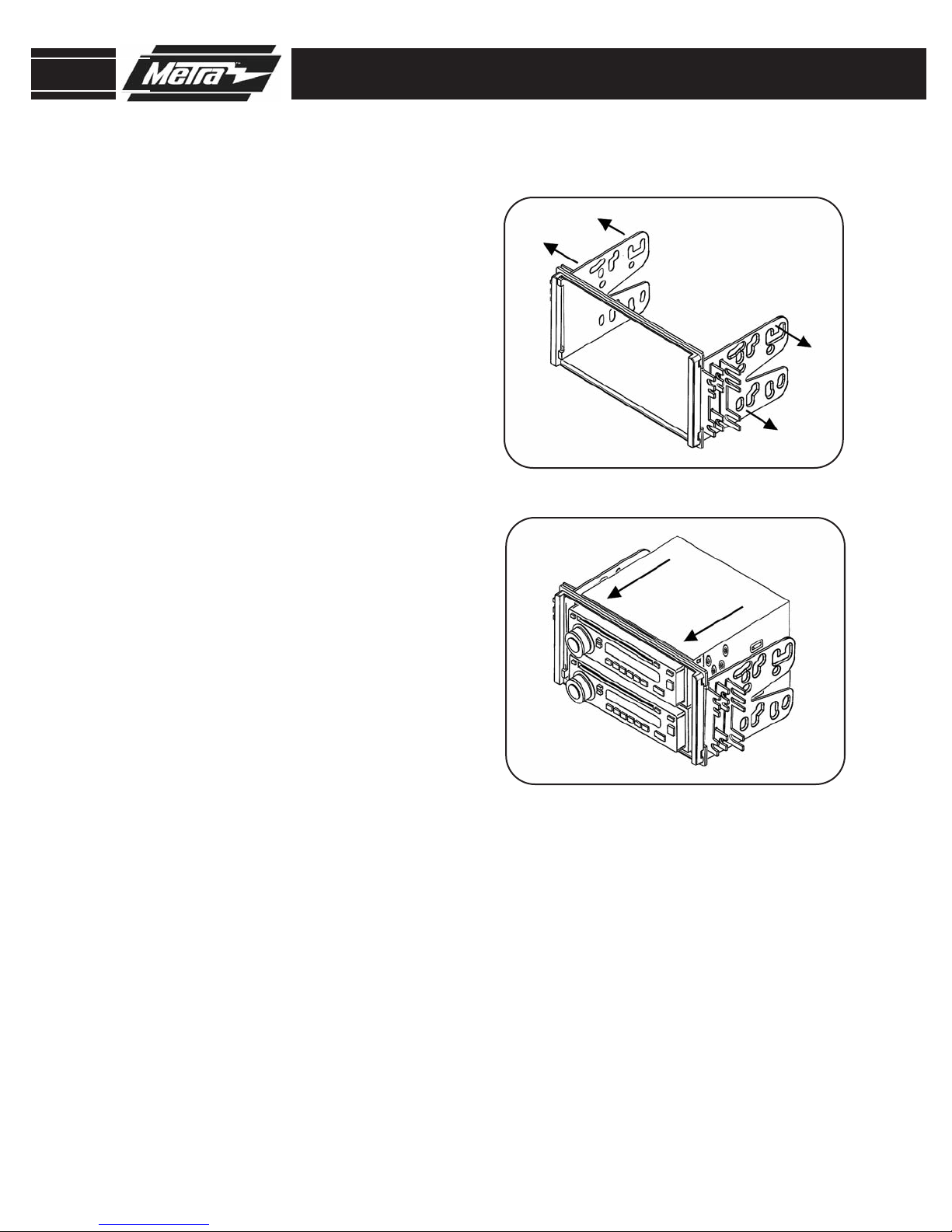

DOUBLE DIN HEAD UNIT PROVISION

95-1005

KIT ASSEMBLY

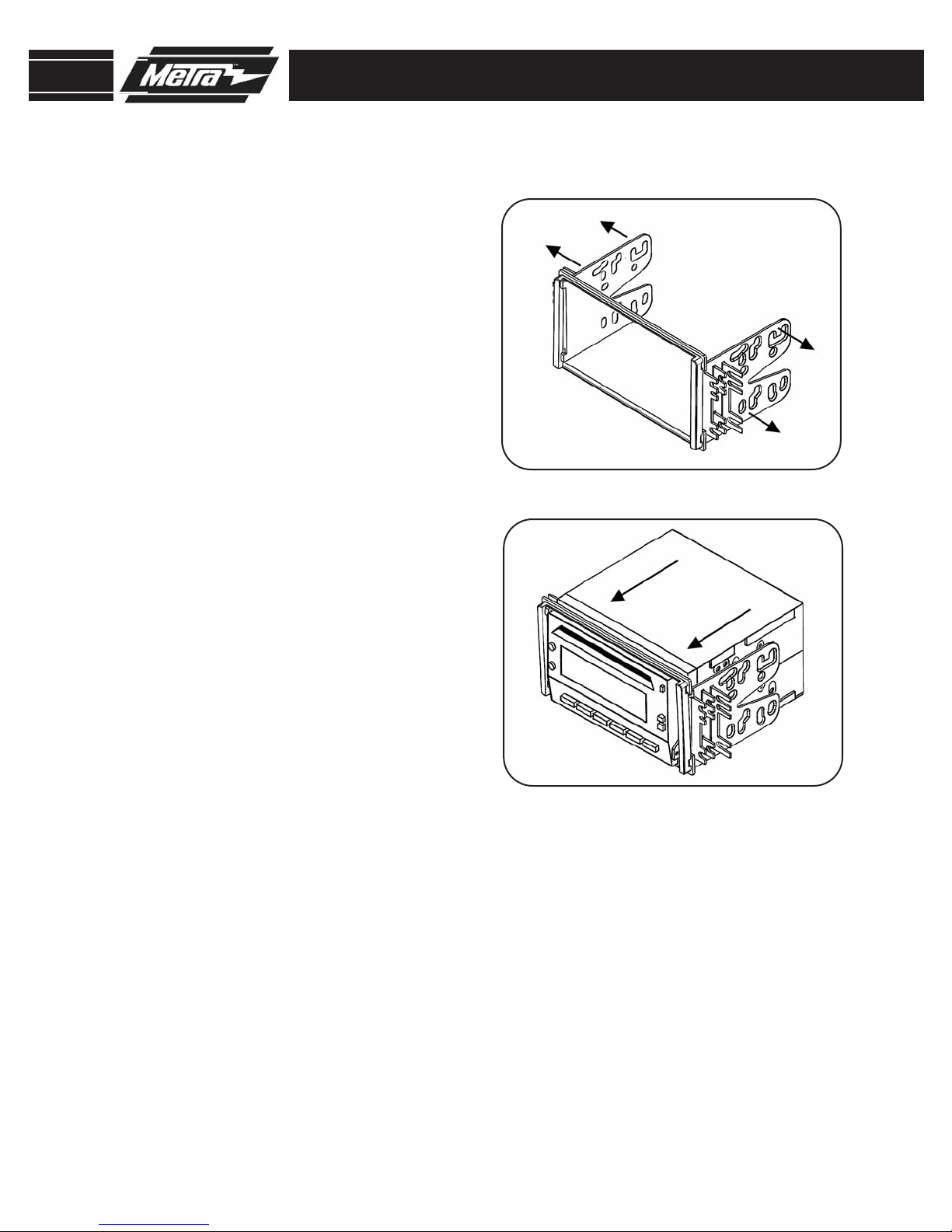

Slide the stacked ISO DIN units into

the trim plate bracket assembly and

secure the units to the kit using the

screws supplied with the head units.

(

Figure B)

Slide the appropriate bracket into

the trim plate aligning the holes in

the trim plate to the clips on the

bracket. (

Figure A)

STACKED ISO DIN HEAD UNIT PROVISION
