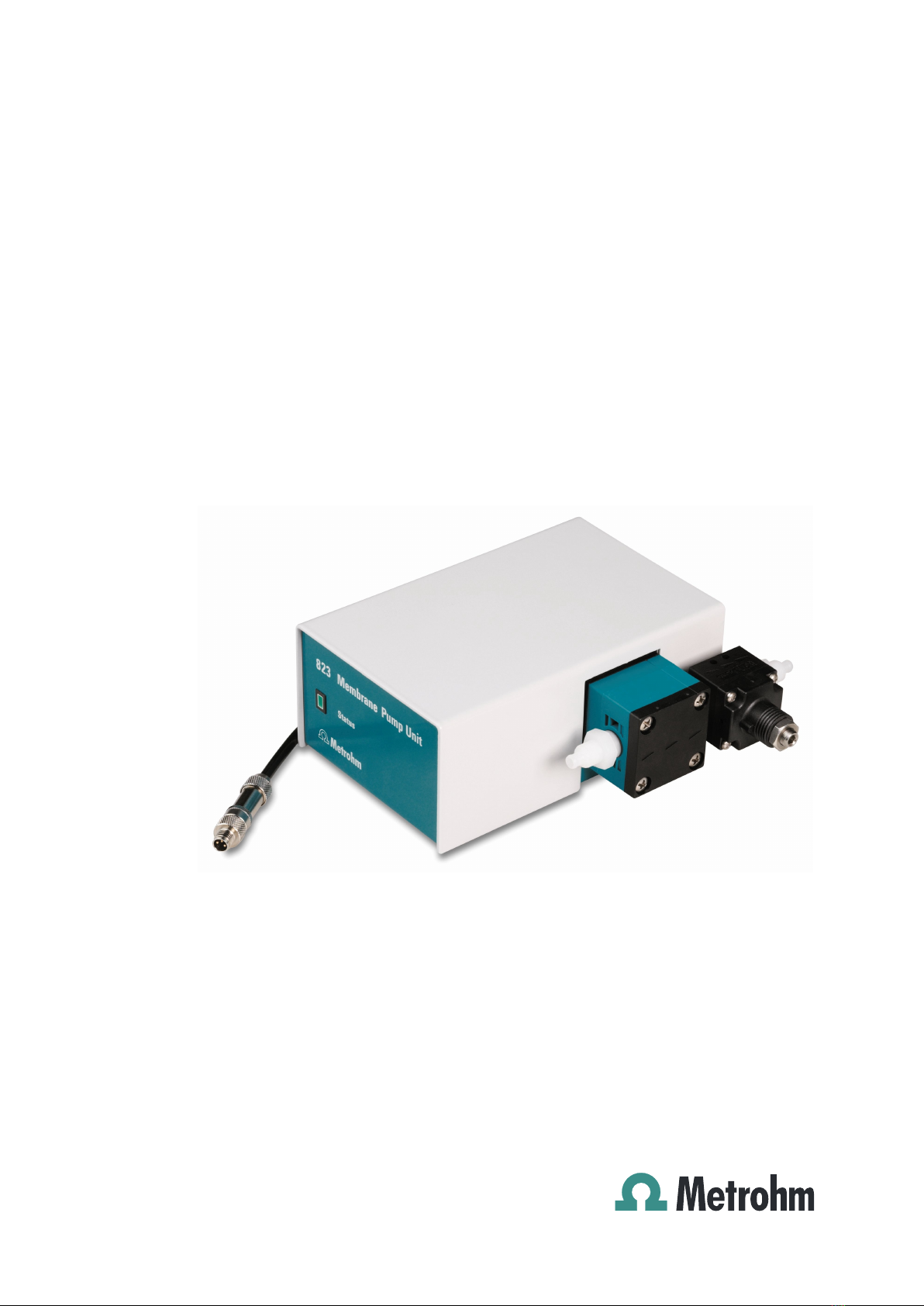

Metrohm 823 Membrane Pump Unit Manuale utente
823 Membrane Pump Unit
Manual
8.823.8001EN / 2019-11-29
Metrohm AG
CH-9100 Herisau
Switzerland
Phone +41 71 353 85 85
Fax +41 71 353 89 01
www.metrohm.com
823 Membrane Pump Unit
Manual
8.823.8001EN / 2019-11-29
Technical Communication
Metrohm AG
CH-9100 Herisau
This documentation is protected by copyright. All rights reserved.
This documentation has been prepared with great care. However, errors
can never be entirely ruled out. Please send comments regarding possible
errors to the address above.
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents
￭￭￭￭￭￭￭￭ III
Table of contents
1 Introduction 1
1.1 Instrument description ......................................................... 1
1.1.1 Model versions ........................................................................ 1
1.1.2 Connectors .............................................................................. 2
1.1.3 Intended use ........................................................................... 2
1.2 About the documentation ................................................... 2
1.2.1 Symbols and conventions ........................................................ 2
1.3 Safety instructions ................................................................ 3
1.3.1 General notes on safety ........................................................... 3
1.3.2 Electrical safety ........................................................................ 3
1.3.3 Tubing and capillary connections ............................................. 4
1.3.4 Flammable solvents and chemicals ........................................... 5
1.3.5 Recycling and disposal ............................................................. 5
2 Overview of the instrument 6
2.1 Mode of operation of the membrane pump ...................... 6
3 Installation 8
3.1 Setting up the instrument .................................................... 8
3.1.1 Packaging ................................................................................ 8
3.1.2 Checks .................................................................................... 8
3.1.3 Location .................................................................................. 8
3.2 Installing the inlet tubing and outlet tubing ...................... 8
3.3 Connecting the membrane pump ..................................... 10
3.3.1 Connection to a Sample Processor ......................................... 10
3.3.2 Connection to the 731 Relay Box .......................................... 11
4 Operation 13
5 Operation and maintenance 14
5.1 General notes ...................................................................... 14
5.1.1 Care ...................................................................................... 14
5.1.2 Maintenance by Metrohm Service .......................................... 14
5.2 Tubings ................................................................................ 15
6 Troubleshooting 16
6.1 Problems .............................................................................. 16
7 Technical specifications 17
7.1 Membrane pump ................................................................ 17
Table of contents ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
IV ￭￭￭￭￭￭￭￭
7.2 Power supply ...................................................................... 17
7.3 Interfaces and connectors ................................................. 17
7.4 Safety specifications ........................................................... 17
7.5 Electromagnetic compatibility (EMC) ................................ 18
7.6 Ambient temperature ......................................................... 18
7.7 Reference conditions .......................................................... 18
7.8 Dimensions/material ........................................................... 19
8 Accessories 20
Index 21
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of figures
￭￭￭￭￭￭￭￭ V
Table of figures
Figure 1 Front 823 Membrane Pump Unit ....................................................... 6
Figure 2 Mode of operation of the membrane pump ...................................... 6
Figure 3 Connecting the tubings ..................................................................... 9
Figure 4 Screwing the union nuts tightly ......................................................... 9
Figure 5 823 Membrane Pump Unit connected directly to the Sample Pro-
cessor ............................................................................................. 10
Figure 6 823 Membrane Pump Unit via the Remote Box and 731 Relay Box .. 11
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction
￭￭￭￭￭￭￭￭ 1
1 Introduction
1.1 Instrument description
The 823 Membrane Pump Unit is a versatile membrane pump. It was
designed specifically for the production operation and laboratory environ-
ment and enables a wide range of applications. Particularly when used in
a Metrohm automation system with Sample Processor and various analysis
instruments, it is of indisputable service in processing large sample series
in the complete titration area and in various measuring applications or
other analytical tasks.
The 823 Membrane Pump Unit uses the membrane pump principle (see
chapter 2.1, page 6) and is suitable for pumping all types of liquid
media.
NOTICE
The 823 Membrane Pump Unit is not suitable for pumping liquids with
solids content.
The flow rate of at least 450 mL/min opens up a wide range of applica-
tions.
1.1.1 Model versions
The 823 Membrane Pump Unit is available in the following three versions:
2.823.0010 823 Membrane Pump
Unit
2.823.0020 823 Membrane Pump
Unit
with aspiration equip-
ment
2.823.0030 823 Membrane Pump
Unit
with rinsing equipment
Each version includes different accessories according to its use (see chap-
ter 8, page 20).
1.2 About the documentation ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2￭￭￭￭￭￭￭￭
1.1.2 Connectors
The 823 Membrane Pump Unit needs 16 - 24 V DC voltage.
Power is supplied to the pump via the direct connection to a Sample Pro-
cessor (e.g. 814 or 815) or to the 731 Relay Box (connection via adapter
cable 6.2160.010).
1.1.3 Intended use
The 823 Membrane Pump Unit is designed for usage in automated sys-
tems in analytical laboratories.
This instrument is suitable for pumping chemicals and flammable samples.
Use of the 823 Membrane Pump Unit therefore requires the user to have
basic knowledge and experience in handling toxic and caustic substances.
Knowledge with respect to the application of the fire prevention measures
prescribed for laboratories is also mandatory.
1.2 About the documentation
CAUTION
Please read through this documentation carefully before putting the
instrument into operation. The documentation contains information
and warnings which the user must follow in order to ensure safe opera-
tion of the instrument.
1.2.1 Symbols and conventions
The following symbols and formatting may appear in this documentation:
Cross-reference to figure legend
The first number refers to the figure number, the sec-
ond to the instrument part in the figure.
Instruction step
Carry out these steps in the sequence shown.
Method Dialog text, parameter in the software
File ▶ New Menu or menu item
[Next] Button or key
WARNING
This symbol draws attention to a possible life-threat-
ening hazard or risk of injury.
