MFJ 264 Manuale utente
MFJ-264 Dr
y
Dumm
y
MFJ
-
264 DUMMY LOAD INSTRUCTIONS
The MFJ-264 is a dry air-cooled resistive dummy load. This resistor load is capable of handling
high short-term RF loads. A reasonable cool down period is needed to keep the resistor from
becoming permanently damaged. The cool down period needs to be about 10 to 20 tines the load
usage. The load can be temporarily immersed in clean water to speed up cool down tine.
Thoroughly dry the load by blowing forced air through it before using it again. Never operate
this load while it is immersed in any liquid.
OPERATION

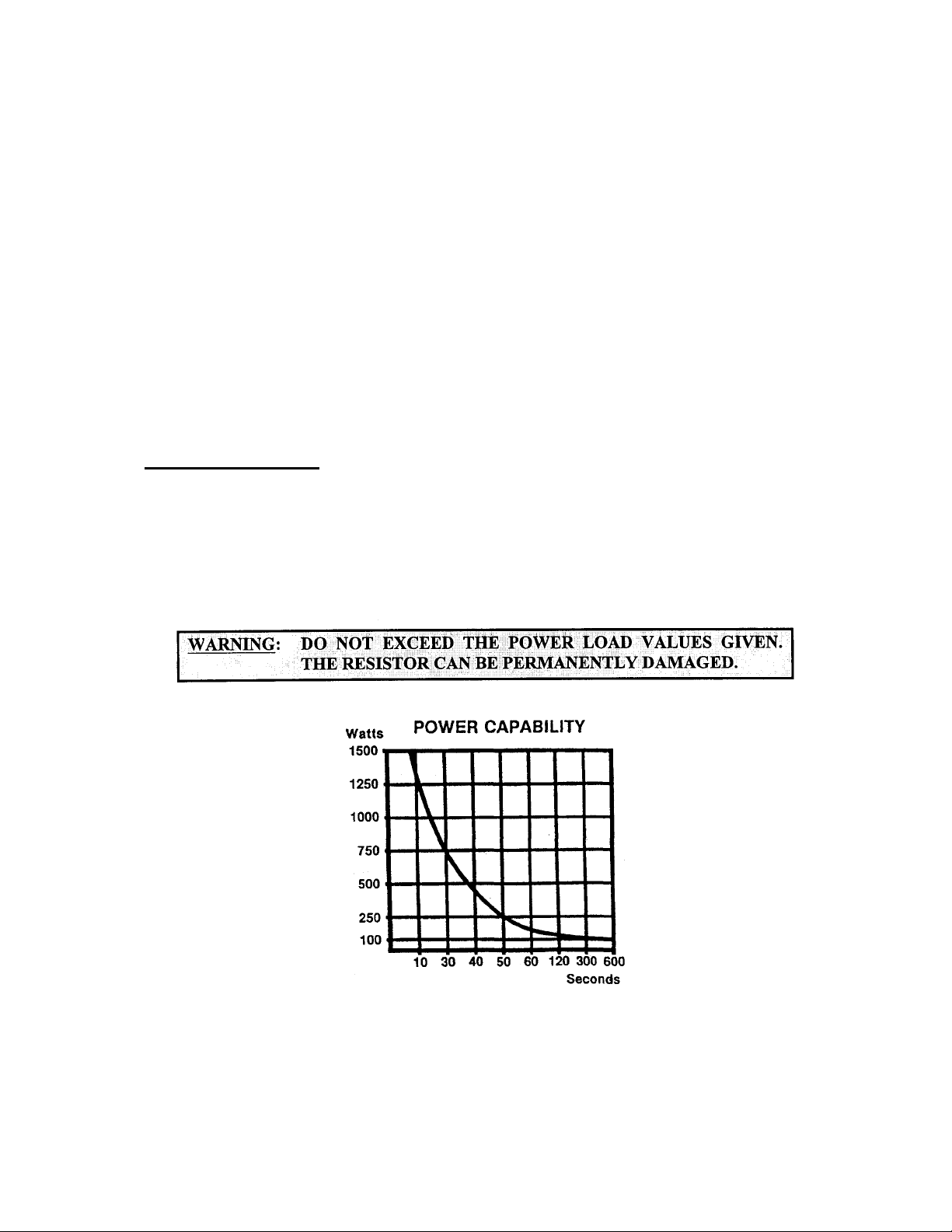

1. Become familiar with the POWER CAPABAILITY curve so that overheating of the
resistor can be avoided.
2. Connect the transmitter to the input of the dummy load. Use a PL-259 connector.
NOTE: Do not let the dummy load resistor get hot enough to glow red. If the dummy
load resistor starts to glow red, turn the transmitter off immediately and allow
SPECIFICATIONS IMPEDANCE: 50 OHMS VSWR: Less than 1.3:1 at less than
650 MHz
POWER DISSIPATION: 1500 Watts for less than 10 seconds. 100 Watts for 10 minutes
VOLTAGE GRADIENT: 10 kV / inch
OPERATING TEMPERATURE: Up to 350'C
FREQUENCY RANGE: 1-650 MHz; usable to 750 MHz
LIMITED 12 MONTH WARRANTY
MFJ Enterprises, Inc. warrants to the original owner of this product, if manufactured by MFJ
Enterprises, Inc. and purchased from an authorized dealer or directly from MFJ Enterprises, Inc. to be
free from defects in material and workmanship for a period of 12 months from date of purchase provided
the following terms of this warranty are satisfied.
l. The purchaser must retain the dated proof-of-purchase (bill of sale, canceled check, credit card
or money order receipt, etc.) describing the product to establish the validity of the warranty claim and
submit the original or machine reproduction of such proof of purchase to MFJ Enterprises, Inc. at the
time of warranty service. MFJ Enterprises, Inc. shall have the discretion to deny warranty without
dated proof-of-purchase. Any evidence of alteration, erasure, or forgery shall be cause to void any and
all warranty terms immediately.
2. MFJ Enterprises, Inc. agrees to repair or replace at MFJ's option without charge to the original
owner any defective product under warrantee provided the product is returned postage prepaid to MFJ
Enterprises, Inc. with a personal check, cashiers check, or money order for $7.00 covering postage and
handling.
3. This warranty is NOT void for owners who attempt to repair defective units. Technical
consultation is available by calling the Service Department at 662-323-0549 or the MFJ Factory at 662-
3
2
3
-
5869.
4. This warrant
y
does not a
pp
l
y
to kits sold b
y
or manufactured b
y
MFJ Enter
p
rises
,
5. Wired and tested PC board products are covered by this warranty provided only the wired and
tested PC board product is returned. Wired and tested PC boards installed in the owner's cabinet or
connected to switches, jacks, or cables, etc. sent to MFJ Enterprises, Inc. will be returned at the
owner's expense unrepaired.
6. Under no circumstances is MFJ Enterprises, Inc. liable for consequential damages to person or
p
ro
p
ert
y
b
y
the use of an
y
MFJ
p
roducts.
7. Out-of-Warranty Service: MFJ Enterprises, Inc. will repair any out-of-warranty product provided
the unit is shipped prepaid. All repaired units will be shipped COD to the owner. Repair charges will be
added to the COD fee unless other arran
g
ements are made.
8. This warrant
y
is
g
iven in lieu of an
y
other warrant
y
ex
p
ressed or
9. MFJ Enterprises, Inc. reserves the right to make changes or improvements in design or
manufacture without incurring any obligation to install such changes upon any of the products previously
manufactured.
10. All MFJ
p
roducts to be serviced in-warrant
y
or out-of-warrant
y
should be addressed
MFJ Enterprises, Inc., 300
Industrial Park Road Starkville,
Mississi
pp
i 39759 USA
and must be accompanied by a letter describing the problem in detail along with a copy of your
dated
p
roof-of-
p
urchase.
11. This warranty gives you specific rights, and you may also have other rights which vary from
state
to
state.
