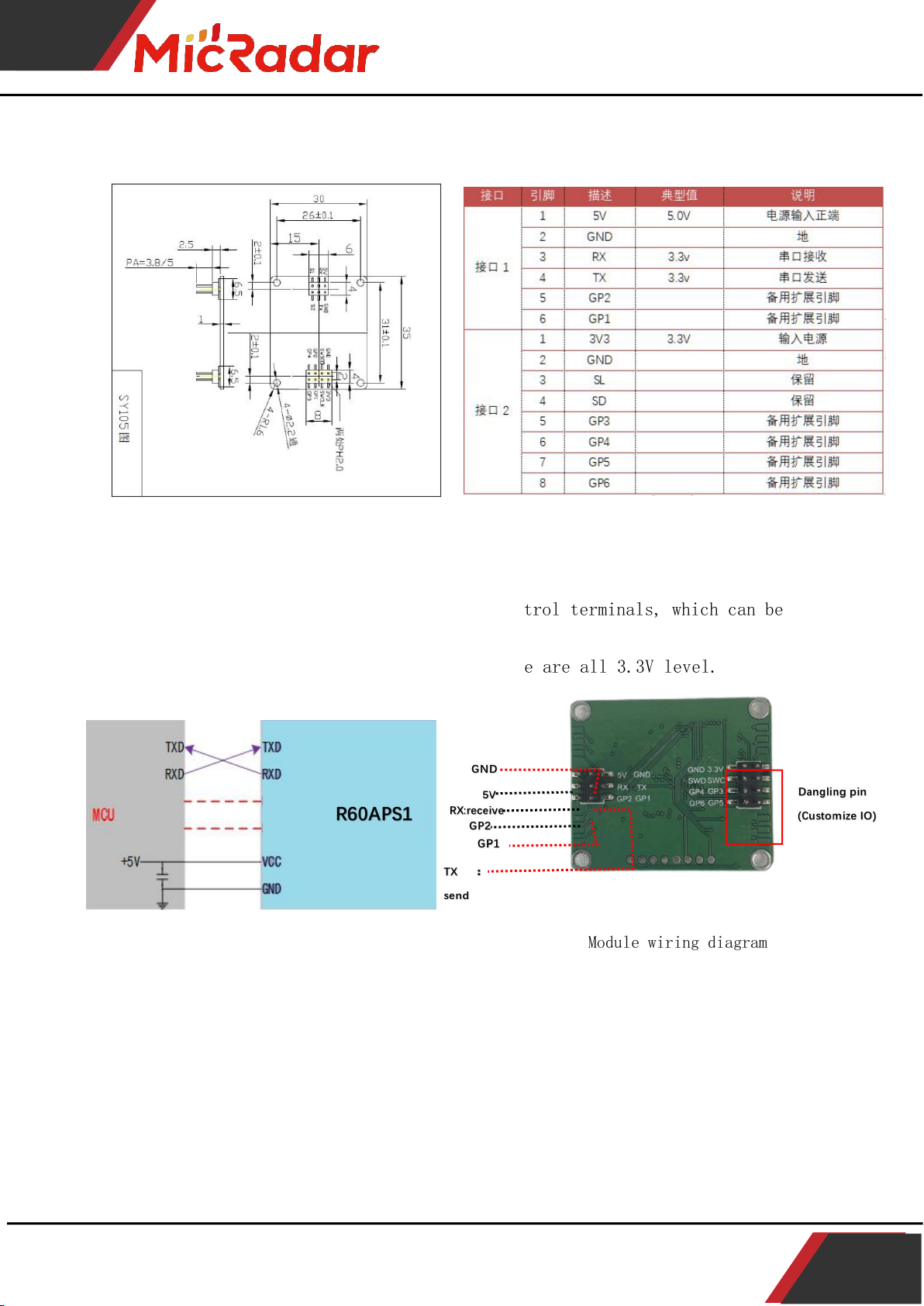

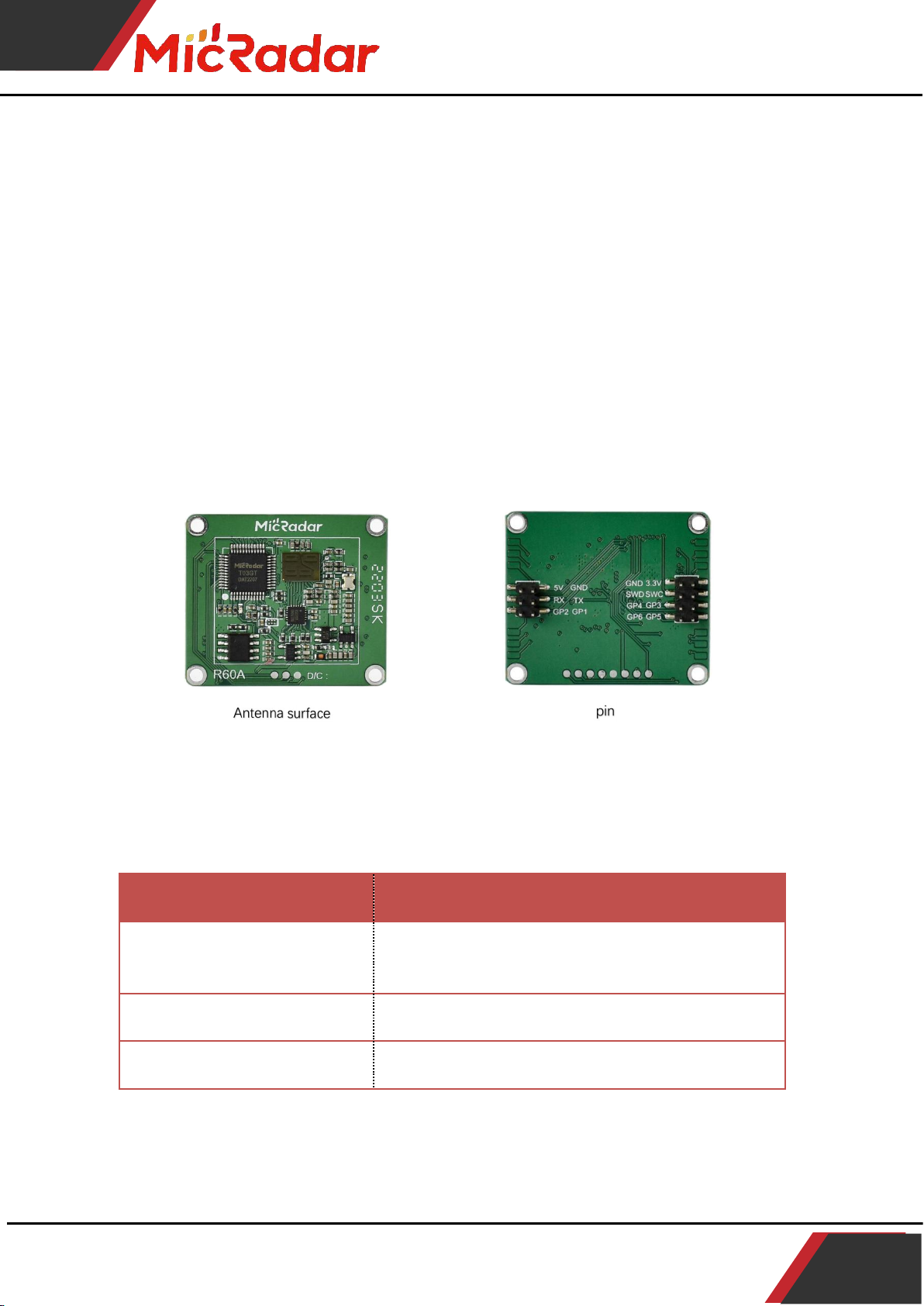

R60APS1-People counting module using guide
501, West Block, Phase II, Tian 'an Innovation Technology Plaza, Futian District, Shenzhen
Whether it is within
the accuracy
requirements
9. Guide to the actual installation steps of the radar
Step 1: Confirm the main activity and stay area of the person, which is
the coverage area of the radar
Step 2: Confirm the actual horizontal installation height of the radar is
1.2m-1.5m
Step 3: Confirm whether there is an interference source within the radar
detection range , and remove the interference source as much as possible
Step 4: Follow the steps to confirm the final installation location for
normal use
10.Layout Requirements for Antenna and Housing
PCBA: Need to keep the height of the radar patch ≥ 1mm than other devices
Shell structure: It is necessary to maintain a distance of 3mm between the
radar antenna surface and the shell surface
Shell detection surface: non-metallic shell, need to be straight, avoid
curved surface, affect the performance of the entire scanning area.
11.Common problem
Interference factors: Radar is an electromagnetic wave detection sensor,
and active non-living will cause false alarms. The movement of metals,
liquids, can lead to false positives. Usually, electric fans, pets close
to the radar, and the shaking of metal curtains can cause false positives.
