1. Warnings
Do not look directly into the light source of the sensor.
> Risk of injury, damage to the eyes and skin
Connect the power supply and the display/output device according to the safety regula-
tions for electrical equipment.
> Risk of injury
> Damage to or destruction of the sensor
Avoid shocks and impacts to the sensor and the controller. The supply voltage must not
exceed the specified limits. Avoid constant exposure of the sensor to dust or splashes of
water by taking suitable measures such as blowing off or using a protective housing. The
sensor housing may only be opened by authorized persons.
> Damage to or destruction of the sensor and/or the controller
Do not touch the protective windows. Remove any fingerprints immediately using pure
alcohol and a clean cotton cloth without leaving any streaks. Protect the cables against
damage.
> Failure of the measuring device
Only plug in or disconnect devices when disconnected from the power supply.
2. Notes on CE Marking
The following apply to the surfaceCONTROL 3D 25x0 measuring system:
- EU Directive 2014/30/EU
- EU Directive 2011/65/EU
Products which carry the CE mark satisfy the requirements of the EU directives cited and
the relevant applicable harmonized European standards (EN). The measuring system is
designed for use in industrial environments.
The EU Declaration of Conformity and the technical documentation are available to the
responsible authorities according to the EU Directives.
Assembly Instructions
surfaceCONTROL 3D SC2500 / SC2510
Page 2surfaceCONTROL 3D SC2500 / SC2510
3. Proper Environment
- Protection class
Sensor, controller: IP40 (only applies in the case of connected output connectors
and/or installed protective caps)
Optical paths during operation are excluded from the protection class. Contamination of
the paths causes impairment or failure of the function.
The IP40 protection class is a specification that is limited to protection from dust and wa-
ter. Oil, steam and emulsion effects are not included in this protection class and must be
evaluated separately.
- Temperature range
Operation
• Sensor: 5 ... +40 °C
• Controller: -10 ... +60 °C 1
Storage
• Sensor: -10 ... +50 °C
• Controller: -40 ... +85 °C
- Humidity: 20 ... 80 % (non-condensing)
- Ambient pressure: Atmospheric pressure
1) Max. permissible operating temperature with 0.7 m/s air blow
4. Unpacking, Included in Delivery
- 1 Sensor surfaceCONTROL 3D 25x0
- 1 Controller SC2500
- 1 Cable harness/5 m/standard for surfaceCONTROL
- 1 Assembly Instructions
- 1 Calibration protocol
- 1 Table power pack for sensor
- 1 Ethernet patch cable (Cat6A, gray, 5 m)
- 1 DIN-rail mounting kit for controller
- 1 Power supply cable (4-pin terminal strip to open ends)
Carefully remove the components of the measuring system from the packaging and
ensure that the goods are forwarded in such a way that no damage can occur.
Check the delivery for completeness and shipping damage immediately after un-
packing.
If there is damage or parts are missing, immediately contact the manufacturer or
supplier.
Page 3surfaceCONTROL 3D SC2500 / SC2510
5. Light Source
The surfaceCONTROL 3D 25x0 sensor works with an LED lighting unit. Measurement is
performed using blue light at the dominant 462 nm wavelength. The sensor is included in
risk group 2 according to EN 62471: 2008.
Do not look into the lens. Consciously close your eyes or im-
mediately turn away if the optical radiation enters the eye.
The warning sign below is attached to the front side:
Fig. 1 LED warning sign
iIf the information sign is covered over when the unit is installed, the user must en-
sure that a supplementary information sign is attached at the installation location.
Page 4surfaceCONTROL 3D SC2500 / SC2510
6. Electrical Connections
Connection Diagram
PC
3DInspect
DefMap3D
Table power 19V
Controller sC2500
Sensor SC2500-x
Cable harness / 5 m / standard
for surfaceCONTROL
LAN-cable
with 2x RJ45
male connector
surfaceCONTROL 3D 2500 Sensor
All connectors of the sensor are located in the connector panel on the rear side.
123 4
1Ethernet port Camera 1
2Ethernet port Camera 2
3Sensor control
4Power supply
Fig. 2 Rear view of sensor with connectors
Supply Voltage (Power)
Pin Signal Comment
1
2
1V+ 18 VDC ±33 %
max. current consumption 12.5 A
2 GND 0 V
Fig. 3 Pin assignment connector power port
The cable shield is connected to the connector housing.
A 2-pin LEMO PushPull connector is used on sensor side.
iOnly use the included table power pack for the power supply of the surfaceCON-
TROL 2500 sensor.
Page 5surfaceCONTROL 3D SC2500 / SC2510
Sensor Control (USB)
Pin Signal Pin Signal
1 USB D+ 3 USB VCC
2 USB D- 4 GND
Fig. 4 Pin assignment connector USB port
The cable shield is connected to the connector housing.
The sensor is configured and controlled via the available USB 2.0 interface. Use only the
supplied USB cable.
A 4-pin LEMO PushPull connector is used on sensor side.
The USB-A connector on controller side can be connected to a USB 2.0 or USB 3.0 port.
Image Data Transmission (Gigabit Ethernet)
Pin Signal Pin Signal
1 Data1+ 5 Data3-
2 Data1- 6 Data2-
3 Data2+ 7 Data4+
4 Data3+ 8 Data4-
Fig. 5 Pin assignment connector “Ethernet port”
For the image data output of the cameras via Gigabit Ethernet, the sensor has two Gigabit
Ethernet interfaces. The sensor supports only the transmission with 1 Gbit. 8-pin, X-coded,
M12 round connectors with screwed connections are used on sensor side. The connec-
tion and tightening of the Ethernet cable to the sensor can be done by hand and does not
require any tools. Proceed as follows for this:
Carefully insert the cable connector into the port on the sensor.
Turn the cable connector until you feel the latching of the inner groove into the corre-
sponding guide of the port.
RJ45 connectors are used on the PC side.
iUse only the Ethernet cable sup-
plied in the scope of delivery.
Fig. 6 Connecting Ethernet connector to port
Tighten the cable connector.
Page 6surfaceCONTROL 3D SC2500 / SC2510
surfaceCONTROL 3D 2500 Controller
General
All connections for the controller are located on the front.
3
12 4
3
1Ethernet port, PC connection
2Sensor control
3Ethernet port Camera 1 and 2
4Power supply
Fig. 7 Controller front view with connectors
Supply voltage (Power)
The power supply connection is a 4-pin plug connector.
Pin/Designation Comment
-
+
+
-
+
9 V ... 36 V DC
(nominal value 24 V, max. power
consumption 112 W)
-0 V
Fig. 8 Pin assignment of the power supply connection, view: plug on housing side
The operating voltage is protected against polarity reversal. Use only shielded lines or
original cables from the accessories program for the power supply connection or the
outputs.
Page 7surfaceCONTROL 3D SC2500 / SC2510
7. Mounting of the Sensor
The sensor can be mounted either on a lightweight tripod, on a robust column stand from
the optional accessories or on a robot.
Mount the tripod according to its assembly instructions.
When using the tripod, ensure that the tripod with the sensor has a stable position to avoid
any tipping over of the system.
iEnsure that you can hold the sensor securely during assembly. If necessary, have a
second person assist.
Ensure careful handling during installation and operation.
Damage to or destruction of the sensor.
iUse the built-in spirit level for the tripod for adjustment of the tripod.
8. Dismantling
Proceed as follows if you would like to detach the sensor from the tripod again:
Only for column stand option with boom:
Secure the boom of the tripod with the help of the clamping lever or
retract the boom all the way and secure it with the clamping lever,
see also assembly instructions for the tripod.
Risk of injury. Boom without sensor makes jerky upward movement
due to the counterweight in the tripod. Secure the boom using the
clamping lever.
Undo the upper knurled screw on the tilt head of the tripod.
Press the red locking pin on the tilt head of the tripod and pull the sensor with the
tripod out in the longitudinal direction.
iEnsure that you can hold the sensor securely while pulling out. If necessary, have a
second person assist.
Ensure careful handling during installation and operation.
Damage to or destruction of the sensor.
Page 8surfaceCONTROL 3D SC2500 / SC2510
9. Operation
Initial Operation
The sensor and the controller may only be connected to peripherals
when they do not carry power, that is, only when the supply voltage
has been switched off.
Mount the sensor according to the assembly instructions.
Mount the controller as per the assembly instructions.
Connect the sensor and the controller to the cable harness included in the delivery.
Connect the controller to the PC. To do so, use a common Ethernet cable of category
CAT5e or higher.
Connect the sensor to the power supply.
Connect the controller to the power supply
Turning On
Switch on the power supply (24 VDC) on the controller.
Press the Power button on the controller.
TX1
Power
2 1
RX1
TX2
RX2
The Power LED on the controller is illuminated red if the power supply is sufficient, and
green after pressing the Power button.
It starts when the supply voltage is applied.
iThe surfaceCONTROL 3D 25x0 sensor requires a warm-up time of typically 60 min-
utes for precise measurements.
Page 9surfaceCONTROL 3D SC2500 / SC2510
10. Operating Programs
Various programs are provided for operation of the sensor.
- 3DInspect solves industrial 3D measurement tasks.
- You can use surfaceCONTROL DefMap3D, including the dongle which is subject to a
charge, for the analysis of individual surfaces with surfaceCONTROL 3D 25x0.
11. Installation
Requirements
The following minimum system specifications are necessary for the use of the operating
programs:
- Windows 10 (64 bit)
- ≥ 2 GHz processor (64 Bit) or higher
- 4 GB RAM
- Screen resolution: 1280 x 1024
- Graphics card/GPU with OpenGL 3.1 or higher
The following procedure is necessary in order to install the software:
1. Install the hardware of the Ethernet interface(s) if not present.
2. Install the software.
3. With DefMap3D: use the USB dongle required for this.
4. Connect the controller of the surfaceCONTROL 3D 25x0 measuring system to the PC
via Ethernet. Do not use hubs.
iIf your network card supports the VLAN option, this option must be disabled.
Connecting surfaceCONTROL 3D 25x0 to the PC
To connect surfaceCONTROL 3D 25x0 via Ethernet to the PC, proceed as follows:
1. Complete the installation of the software.
2. Connect surfaceCONTROL 3D 25x0 to the PC using the Ethernet interface.
3. Turn on the power supply.
3. Wait until the surfaceCONTROL 3D 25x0 measuring system is recognized by the PC.
This takes about 1 minute.
iTo be able to operate the measuring system, the controller and the PC must be
located in the same subnet.
The sensor starts in DHCP mode. If there is no DHCP server in the network or if no ad-
dress has been assigned manually, the sensor and network adapter assign themselves an
address (Link Local Address).
You can now operate the surfaceCONTROL 3D 25x0 measuring system using the operat-
ing programs listed above.
Page 10surfaceCONTROL 3D SC2500 / SC2510
12. Positioning of Sensor and Test Object
General
iNote the following instructions for optimum positioning of the sensor and test object.
- Observe an optimum distance between the sensor and the surface of the test object.
- Align the sensor with predominantly diffusely reflecting surfaces almost perpendicular
to the surface. To avoid direct reflection, we recommend that you tilt the sensor by a
few degrees.
- In the case of partially glossy surfaces, reflections from the test object can be reduced
by inclining the sensor by up to 30° with respect to the surface of the test object.
Alignment with Crosshair
You will achieve the best results in the mid of the measurement area (focal range of cam-
eras)
In the main view, switch from the 3D View to the Image data.
Switch to the Data acquisition tab.
Select Sensor settings > Pattern projection > Positioning.
The positioning pattern is displayed in the image data.
Use the positioning pattern to easily and optimally align the sensor in the mid of the
measurement area. Align the pattern of the projection with the superimposed pattern.
Fig. 9 Result of camera images when aligned with crosshair
For further details, please refer to
- the respective operating instructions of the software provided by Micro-Epsilon,
- or the operating instructions of this sensor in GenICam parameter description section.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali MICRO-EPSILON Attrezzature industriali
MICRO-EPSILON
MICRO-EPSILON optoNCDT 1900 Series Manuale utente
MICRO-EPSILON
MICRO-EPSILON optoNCDT 1220 Manuale utente
MICRO-EPSILON
MICRO-EPSILON thicknessSENSOR 10/200 Manuale utente
MICRO-EPSILON
MICRO-EPSILON thermoMETER CT CT-SF Manuale utente
MICRO-EPSILON
MICRO-EPSILON ELTROTEC Endolight FOT Halogen 150 Manuale utente
MICRO-EPSILON
MICRO-EPSILON scanCONTROL 25 Series Manuale utente
MICRO-EPSILON

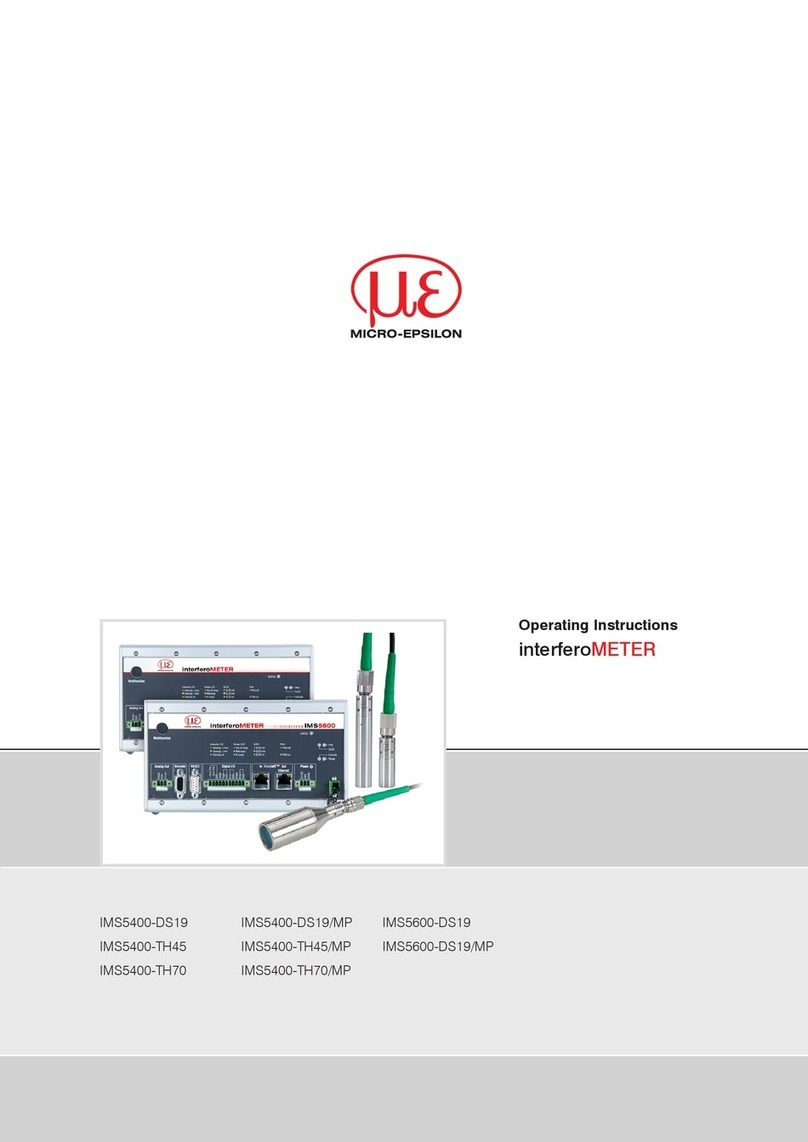

MICRO-EPSILON interferoMETER Manuale utente
MICRO-EPSILON
MICRO-EPSILON colorCONTROL MFA Manuale utente
MICRO-EPSILON
MICRO-EPSILON wireSENSOR WDS P60 Manuale utente
MICRO-EPSILON
MICRO-EPSILON optoNCDT 1900-IE Manuale utente
