MICROCOM CORPORATION

LABEL DESIGN SOFTWARE

FOR MODELS

1100, 1400, 2000

2150, M450, M460

M650

LDS100/140/200/250/450/460/650

REV 2.2

NOVEMBER 11, 1988

1. INTRODUCTION

The Label Design Software (LDS) is a powerful and easy to use package

that allows the user to create his own label formats. LDS supports

printing multiple copies, serial numbering, and logos. It can be

driven from a dumb terminal, PC, or mainframe computer.

A large number of predefined label formats can be stored in EPROM

memory. The maximum amount limited only by the amount of available

memory. The same is true for user defined label formats.

A large variety of character generators are supported which are used

to create the size and style of text desired.

All the popular barcodes are supported. Special or proprietary codes

can be accommodated.

2. CONTROLLING THE PRINTER

2.1 CONTROL CHARACTERS TO THE PRINTER

The following characters control special functions. All other control

characters are ignored.

SOH ^A Enter accumulator mode.

STX ^B Begin text string entry mode.

ETX ^C Start print cycle mode.

EOT ^D Enter command mode.

ENQ ^E Enquiry mode.

ESC ^[ Instructs the printer to leave its current mode

of operation. Only used in special cases.

Also used to implement Epson printer graphic

commands.

CR ^M Terminates a text or data string.

DEL Deletes the last printable character entered.

Cannot delete the effect of a control code.

CAN ^X Deletes all printable characters previously

entered up to the last control code.

Cannot delete the effect of a control code.

BS ^H Same as DEL but has another special function.

LF ^J No effect.

VT ^K Print a test label.

FF ^L Print a blank label.

DC3 ^S Instructs the printer to stop sending data.

DC1 ^Q Instructs the printer to continue sending data.

2.2 ^A ACCUMULATOR MODE

The accumulator mode is used in conjunction with the command mode to

load data or control numbers into the printer. See the section on

command mode.

2.3 ^B TEXT ENTRY MODE

The text entry mode is used to load the information to be printed on

the label. Data is sent in strings of printable ASCII characters

separated by carriage returns. The first string entered is text

string one the next is two and so on. Each label format field

specifies a text string number to retrieve the data from.

2.31 PROTECTED TEXT

A text entry starting position can be specified with the ^An^D61

control sequence (Where n is the text string number). This allows

text entry mode to start at a specific text string number. This

feature is useful in protecting fixed text on a label.

2.32 PRE-PADDED TEXT

Text can also be fixed at the beginning of each text string. The text

that is to be fixed is loaded into the text strings by entering text

mode. Then the ^D62 control sequence will start at the current

starting text position and fix the data at the beginning of the text

strings. If no data is entered in a text string before the ^D62

control sequence is executed then no data will be fixed in that

string.

2.4 ^C PRINT MODE

The print mode instructs the print to start the print cycle.

If the printer has not been instructed to print multiple copies then

only one label will be printed.

2.5 ^D COMMAND MODE

The command mode is used for sending the printer set-up and control

information. Command mode is begun by entering a control-D code

(^D). Then a command number is entered followed by a carriage return

or another control code. Some commands load data or control numbers

into the machine. The accumulator mode is used to send the data,

then a control-D command can use the data in the accumulator.

Example: ^A3^D75^C This sequence will print three labels.

The following is a list of command codes:

1 Enter accumulator mode (Same as ^A)

2 Begin text string entry mode (Same as ^B)

3 Start print cycle (Same as ^C)

5 Send printer status (Same as ^E)

11 Print a test label (Same as ^K)

12 Print a blank label (Same as ^L)

32 Clear machine state (same as power up)

40 Clear 41-53

41 Load number of fields in layout

42 Load label width (X direction)

43 Load label height (Y direction)

44 Load web size (X direction)

45 Load gap size (Y direction)

46 Load stepper speed

47 Load label control byte

48 Load number of steps to activate gap detector

49 Load number of steps past gap

50 Load X direction offset

51 Load Y direction offset

52 Load vertical step count

53 Load print head width

55 Load EPROM layout

56 Load RAM layout

57 Enter label format mode

58 Execute EEPROM commands

59 Load EEPROM

60 Clear 61-62

61 Load text starting position

62 Generate text offsets

63 Load text mode control byte

0 Disable auto text mode entry and clear text control

1 Enable auto text mode entry (^B is optional)

2 Enable clear all text on entry to text mode

3 Enable both

64 Load auto-print string count

65 Load Label Centering and Low Density control byte

0 Disable Label Centering and Low Density Compatible Mode

1 Enable Label Centering

2 Enable Low Density Compatible Mode

3 Enable Both

Note: Low Density Compatible Mode is for the M450 only

66 Load Clear EEPROM function

66 Clear EEPROM formats

69 Load Skip Speed

70 Clear 71-76

71 Disable repeat/copies function

72 Enable repeat/copies function

73 Load copies count

75 Load label count

76 Load inner label delay

(The next commands will only function with a single field)

80 Clear 86, 88, 89

81 Disable serial number function

84 Load text string number

85 Load step value

86 Load inc or dec status

0 Disable increment and decrement

1 Enable increment

2 Enable decrement

(The next commands will function on more than one field)

87 Load field number to clear increment or decrement

88 Load field number to increment

89 Load field number to decrement

93 Load control codes recognition status

0 Enable control code recognition

1 Disable control code recognition

96 Load keypad queuing number

0 Disable keypad queuing

1 Print first label then queue for remainder

3 Disable keypad pause

4 Queue for first label only

5 Queue for all labels

7 Queue for first label and disable keypad pause

98 Load labels taken sensor and external print switch control

LTS = Labels Taken Sensor

EPS = External Print Switch

0 Disable LTS Disable EPS

1 Enable LTS Disable EPS

2 Disable LTS Enable EPS

3 Enable LTS Enable EPS

2.6 ^E ENQUIRY MODE

The printer can be polled to acquire the state of the machine. When

an enquiry character (^E) is sent to the printer it will respond with

one of the following control characters:

SUB ^Z >RESTARTED<

Response to the first ENQ after power-up. This informs

the controlling unit that the printer has just powered

up and any previous set-ups are lost.

NAK ^U >DATA ERROR<

A data error has occurred (e.g. parity or barcode

error). This error condition is cleared when a print

cycle is started or when STX is received.

EM ^Y >LOW STOCK<

End of label stock. This error blocks the printing,

but a blank label may be feed out with the FF control

character. The error flag is cleared when a label has

been successfully fed out.

SYN ^V >TAKE LABEL<

Previous label not taken. This can only occur on

printers equipped with the label sensor option.

ACK ^F >READY<

Ready or no errors.

These control codes are listed in order of priority. The SUB

character can only happen on the first poll after power up. Also the

SUB character can be suppressed by a dip switch setting. See the

section on dip switches.

3. LABEL FORMATTING

A label format consists of a header record and field records. These

records describe how the label is to be printed. The starting record

(record zero) is the header. The header contains information about

the label height, width, print speed, etc. The records following the

header are the field records. A field record contains information on

where the field starts on the label, type of characters or barcode to

use, etc.

EXAMPLE FORMAT:

^A1^D57

1,100, 40,10, ,4

2,100, 38,10, ,4,1

3,100,100, 6, ,4,2

4, 98,100, 6, ,4,3

^A1^D56

^D2

NORMAL

UPSIDEDOWN

RIGHT

LEFT

The character sequence `^A1^D57' puts the printer into format mode

with ram layout `1' selected.

The next line is the header information for ram format `1'. It

specifies that four fields are defined.

The next four lines is layout information for each field in the

format.

The character sequence `^A1^D56' selects ram format `1'.

The character sequence `^D2' puts the printer into text string entry

mode.

The next four lines are data for each text string.

The character sequence control-C (^C) starts the print cycle.

3.1 HEADER DESCRIPTION

A header is broken down into thirteen different elements. These

elements contain information about the label. It is not necessary to

enter data for all of the header elements. If an element is left

blank, then a default value will be used.

The following is a list of the header element mnemonics and their

default values:

Mnemonic HFM,LSX,LSY,WEB,GAP,DPS,LCB,AGD,SPG,OFX,OFY,VSC,PHX

Default value

MODEL

1100 0,231,154, 5, 10, 31, 0, 1,154, 0, 0, 2,300

1400 0,231,154, 5, 10, 31, 0, 1,154, 0, 0, 2,300

2000 0,432,308, 5, 10, 31, 0, 1,154, 0, 0, 2,600

2150 0,462,308, 5, 10, --, 0, 10,160, 0, 0, 2,448

M450 0,231,155, 5, 10, 31, 0, 1, 70, 0, 0, 2,300

M460 0,462,310, 10, 20, 31, 0, 2,140, 0, 0, 2,640

M650 0,231,155, 5, 10, 31, 0, 1, 70, 0, 0, 2,448

The header elements are:

HFM NUMBER OF FIELDS IN LAYOUT

This element is used to specify how many fields are in the

layout. The printer will then reserve RAM memory space for the

layout. If more fields than what are specifed for HFM are sent

to the printer, they will be ignored.

LSX LABEL SIZE X DIRECTION

This element specifies the width of the label.

LSY LABEL SIZE Y DIRECTION

This element specifies the height of the label.

WEB WEB SIZE X DIRECTION

This element specifies the size of the web on the edges of the

label.

GAP GAP SIZE Y DIRECTION

This element specifies the size of the gap between labels.

DPS DEFAULT PRINT SPEED

This element selects the speed of the labels through the

printer. If too fast of a speed is selected, then the fields on

the label will become garbled.

LCB LABEL CONTROL BYTE

This element has several purposes. If it is set to a value of

one, then the gap detector is sensed on the trailing edge of the

label instead of the leading edge. If it is set to a value of

two, then the printer will not wait on the gap detector. Instead,

it prints all fields and then moves the extra distance as

specified in the SPG header element.

AGD NUMBER OF STEPS TO ACTIVATE GAP DETECTOR

This element determines how many slices (steps) before the gap

detector circuit is activated. This will aid in printing on

multiple labels with one label layout.

SPG NUMBER OF STEPS PAST GAP DETECTOR

This element determines how many slices (steps) to move the

label after detection of a label gap. This facilitates using

very small labels.

OFX X DIRECTION OFFSET

This element allows the user to move all the fields in the X

direction. If the printer contains a print head with a

multi-plate design, then you must be considerate of any

barcodes that might cross the gap between plates.

OFY Y DIRECTION OFFSET

This element allows the user to move all the fields in the Y

direction.

VSC VERTICAL STEP COUNT

This element allows the user to change the vertical ratio of

all the fields on the label.

PHX PRINT HEAD WIDTH

This element specifies the width of the print head in dots.

This allows the label layout to be used on all printers with

LDS software.

3.2 FIELD DESCRIPTION

A field is broken down into forteen different elements. These

elements contain the information nessessary to produce a field on a

label. It is not nessessary to enter data for all of the field

elements. If an element is left blank, then a default value will be

used.

The following is a list of the field element mnemonics and their

default values:

Mnemonic TSN,XB, YB, CC,TCI,CGN,FO,FJ,CMX,CMY, CS,TSP,CLX,CLY

Default value 0, 0, 0, *1, 1, *2, 0, 0, 1, 1, *1, 1, *1, *1

*1 The default for these elements depends on the character

generator used (CGN).

*2 The default for this element depends on the text conversion

identifier used (TCI).

The field elements are:

TSN TEXT STRING NUMBER

This element determines which text string to get the data from.

This allows more than one field to use the same text string.

XB X BEGINNING COORDINATE

The X coordinate of the field is measured in dots. The X

coordinate is specified from the right edge of the field as

viewed from the front of the printer. The X coordinate

increases in size from left to right as viewed from the front

of the printer.

YB Y BEGINNING COORDINATE

The Y coordinate of the field is measured in dots. The Y

coordinate is specified from the leading edge of the field as

viewed from the front of the printer. The Y coordinate

increases in size as the label feeds from the printer.

CC CHARACTER COUNT

This element determines how many characters will be used in the

field. If the number of characters in the selected text string

is less than the amount used by CC then the remainder of the

field is padded with blanks.

TCI TEXT CONVERSION IDENTIFIER

This element determines how the selected text string number

(TSN) will be printed on the label.

1 Text

2 Text with asteriks

3 Text with checksum

7 Logo

12 UPCA barcode

13 UPCE barcode

15 Interleaved two of five barcode

16 Code three of nine barcode

17 Code 39 left

18 Code 39 middle

19 Code 39 right

20 EAN13 barcode

21 EAN8 barcode

24 MSI 1 (Plessey)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Microcom Stampante

Microcom

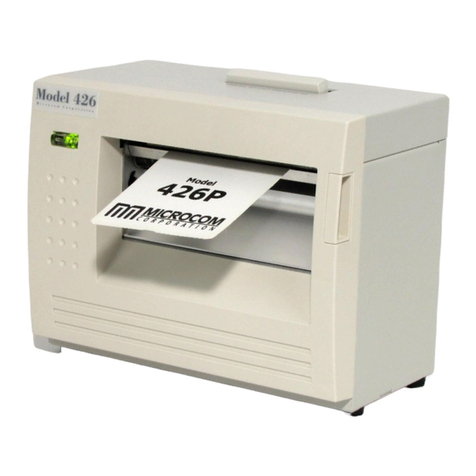

Microcom 426P Manuale utente

Microcom

Microcom 424 Manuale utente

Microcom

Microcom 324M Manuale utente

Microcom

Microcom 428T Manuale utente

Microcom

Microcom 226 Manuale utente

Microcom

Microcom 428LT Manuale utente

Microcom

Microcom 470 Manuale utente

Microcom

Microcom 360C Manuale utente

Microcom

Microcom 485TC Manuale utente

Microcom

Microcom 428TM Manuale utente

Microcom

Microcom 485 Manuale utente

Microcom

Microcom 334M Manuale utente

Microcom

Microcom 424M Manuale utente

Microcom

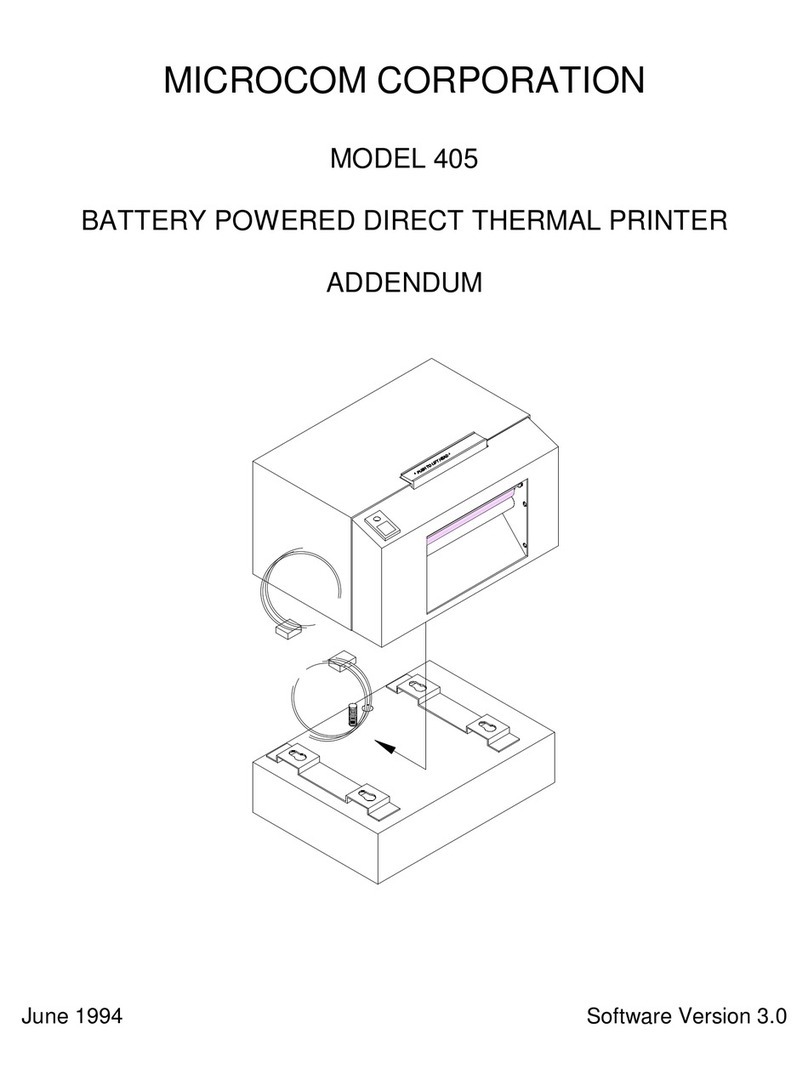

Microcom 405 Istruzioni per l'installazione e il funzionamento

Microcom

Microcom 412 Manuale utente

Microcom

Microcom 224 Manuale utente

Microcom

Microcom LDS2 Manuale del proprietario

Microcom

Microcom 814M Manuale utente

Microcom

Microcom 224 Manuale utente

Microcom

Microcom 438TM Manuale utente

Microcom

Microcom 410 ECA Manuale utente

Microcom

Microcom 465 Manuale utente

Microcom

Microcom 326M Manuale utente

Microcom

Microcom 400 Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente
