Microelectronic NH MicroM30/12 HDMI USB Manuale utente

Digital Satellite Receiver

MicroM30/12 HDMI USB

Operating manual

Modifications and errors reserved.

We do not assume any liability for printing errors.

Version 1.0 GB, 20.08.2009

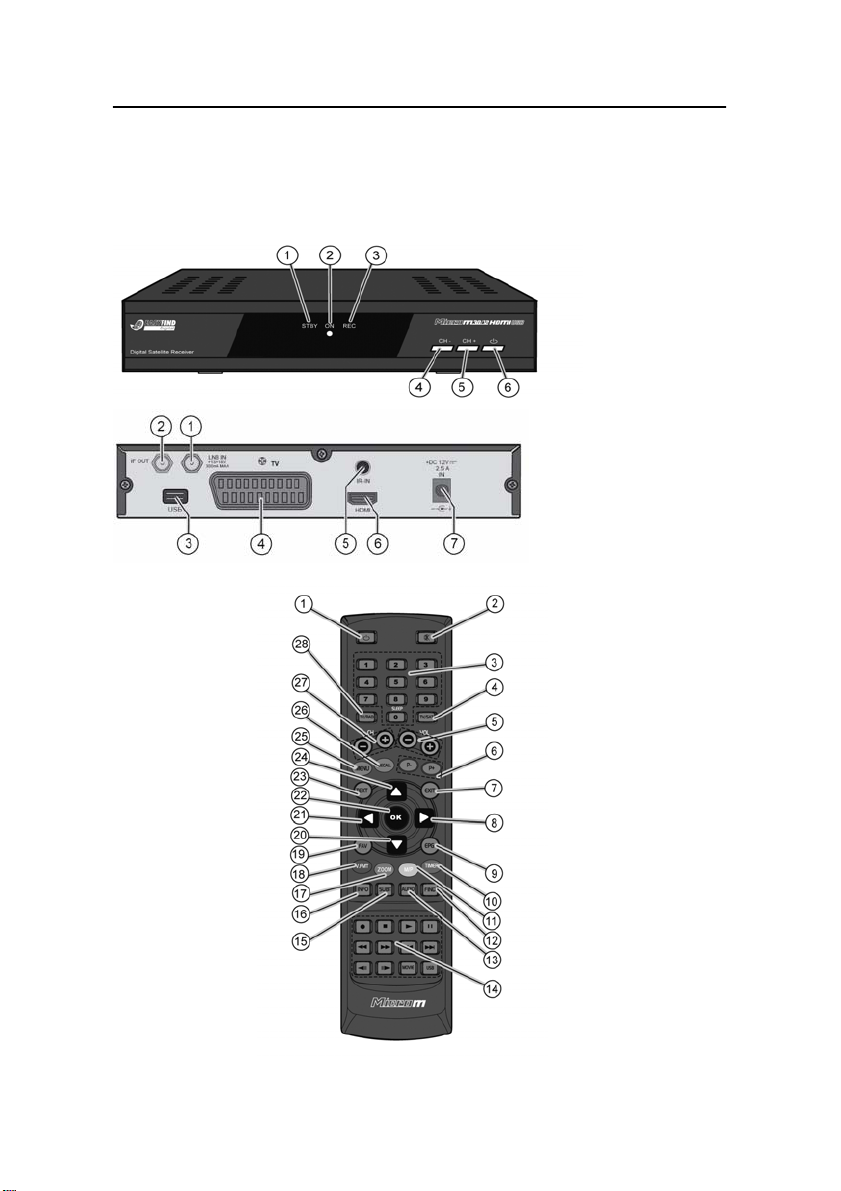

Overview of equipment MicroM30/12 HDMI

USB

Front side of the receiver

Rear side of the receiver

Remote control

Overview of equipment

Front side of the receiver

Rear side of the receiver

1 LNB-IN LNB connection for the antenna cable

2 IF-OUT LNB connection for a second satellite

receiver

3 USB interface For connecting an external storage

medium

4 TV (output) SCART connection for the TV set

5 IR-IN Connection for the infrared receiver for

receiving the signals of the remote control

unit

6 HDMI Connection for digital transmission of

audio and video signals

7 +12V DC For connecting the external power pack or

12V cable

1 LED Standby Red LED is only lit in standby mode.

2 LED ON Green LED is only lit in normal mode.

3 LED Rec

Is lit if the receiver is in record mode

4 CH-

Switches to the next lower channel location

Cursor moves downwards

5 CH+ Switches to the next higher channel

location

Cursor moves upwards

6 Standby key Switches on and to the standby mode

The default settings will be restored if you

keep this key pressed for more than 10

seconds.

Caution! By doing this, your personal

settings will be deleted.

Remote control

No. Key Description

1 Switches on / Standby

2 Volume / Mute

3 0-9 Numerical input (A-Z); 0: Sleep timer

4 TV/SAT Switches between TV and satellite mode

5 VOL-/+ Decreases/increases volume

6 P- / P+ With active channel list: switches between the channel lists.

7 EXIT Exits menu / removes display messages

8 Cursor key, increases volume in normal mode

9 EPG Electronic Programme Guide

10 TIMER Invokes timer menu, blue function key

11 M/P Multi-picture, yellow function key

12 FIND Searches channel by name

13 AUDIO Audio track

14 PVR PVR functions

15 SUBT Enables/disables subtitles (if offered)

16 INFO Invokes channel parameters

17 ZOOM Zooming image, green function key

18 V-FMT Aspect ration selection, red function key

19 FAV Shows favourites lists

20 Cursor key, switches channel in normal mode

21 Cursor key, decreases volume in normal mode

22 OK Confirms your inputs (menu, etc.), invokes channel list

23 TEXT Shows video text (makes it transparent)

24  Cursor key, switches channel in normal mode

25 MENU Invokes menu / returns to the previous menu level

26 RECALL Switches to the previously watched channel

27 CH-/+ Switches to the last / next channel

28 TV/ RAD Switches between TV and radio mode

Preface

This operating manual will help you in the

•appropriate

•safe and

•favourable

usage of the digital satellite receiver, in short, the

“receiver”. We assume that the user of the receiver has

overall knowledge regarding the handling of audio and

video equipment.

Each person who

•installs,

•connects,

•operates,

•cleans

•disposes of

this receiver must be familiar with the entire content of this

operating manual. Always keep this operating manual in

the proximity of the receiver.

Style features

Specific style features have been given in different

sections of the operating manual. Thus, you can easily

differentiate whether it concerns

normal text,

•enumerations,

action sequences.

Contents

Overview of equipment ....................................................................... 3

Remote control ................................................................................... 5

Preface............................................................................................... 6

Style features .................................................................................... 6

Contents ............................................................................................ 7

Safety instructions ........................................................................... 9

Basic safety instructions ..................................................................... 9

Explanation of safety instructions ..................................................... 13

Appropriate use ................................................................................ 13

Scope of supply .............................................................................. 14

Description ...................................................................................... 15

Connecting the receiver................................................................. 19

LNB cable installation ....................................................................... 21

Connection with the SCART cable ................................................... 24

Connection with the HDMI cable ...................................................... 26

Connection diagram.......................................................................... 27

Connection with the IR-Receiver……………………………………….29

Connection diagram……………………………………………………..30

Connection and rough direction of the antenna ............................... 28

Getting started ................................................................................ 35

remote control................................................................................... 35

The receiver...................................................................................... 37

Operation......................................................................................... 39

Screen display messages when switching channels........................ 39

User interface on the TV screen....................................................... 40

Menu structure.................................................................................. 41

Menu structure……………………………………………………………37

Menu navigation ............................................................................... 43

Editing channel list (symbol: TV) ...................................................... 44

Installation (symbol: satellite antenna) ............................................. 49

System setup (symbol: gearwheel) ..................................................57

Settings (symbol: tools) .................................................................... 62

Games (symbol: game pieces)......................................................... 69

External memory (symbol: film reel) ................................................. 70

Keys with special functions .......................................................... 74

Switching between TV and radio ...................................................... 74

0 - Sleep timer .................................................................................. 74

Switch between TV and SAT............................................................ 74

CH- / CH+ .........................................................................................75

VOL+ / VOL- ..................................................................................... 75

MENU ............................................................................................... 75

RECALL ............................................................................................ 75

P+ / P-............................................................................................... 75

TEXT................................................................................................. 75

EXIT .................................................................................................. 76

OK..................................................................................................... 76

◄/ ►................................................................................................ 76

▲/ ▼................................................................................................ 76

FAV ................................................................................................... 76

EPG .................................................................................................. 77

V-FMT ............................................................................................... 78

ZOOM ............................................................................................... 79

M/P - Multi-picture............................................................................. 79

TIMER............................................................................................... 79

INFO - acoustic signal for directing the satellite antenna ................. 79

SUBT ................................................................................................ 80

AUDIO .............................................................................................. 80

FIND.................................................................................................. 80

Keys with PVR functions (optional).............................................. 81

Editing of recorded programmes (optional) ................................ 83

Cleaning........................................................................................... 84

Tips & tricks/trouble shooting....................................................... 85

Disposal ........................................................................................... 89

Specifications ................................................................................. 90

Manufacturer ................................................................................... 92

Declaration of conformity .............................................................. 93

Glossary .......................................................................................... 94

Attachment………………………………………………………………101

Safety instructions

Please read the safety instructions carefully before

operating the receiver.

Please follow all warnings and instructions on the

equipment and in the operating manual.

Basic safety instructions

Electrical connection

•Separate the receiver from the power source in case of

operational disruptions. Please note: The receiver will

remain live, even if it is turned off with the mains switch

on the rear side.

•Do not expose the receiver to rain or any kind of

humidity to avoid risk of fire and electric shock.

•Never open the casing. Otherwise, there is a risk of

electric shock.

•Connect the receiver only to a professionally installed

mains socket. This is either:

- for external power pack:

oan approved mains socket 100-240 V~, 50-

60 Hz or

- for 12V cable

oan approved d.c. source of 11V - max. 14V

•The total current at the antenna connection of the

receiver ‘LNB IN’ must not exceed 300 mA.

•Pull out the mains plug or the 12 V cable from the

socket if the equipment is not in use for a longer period

of time. Only pull at the plug, not at the cable.

•Use for the operation of the receiver only the included

external power adapter or 12-volt cable for the

cigarette lighter.

•In case of storms pull out the mains plug of the

receiver from the socket.

•In case of a storm, loosen the LNB cable from the

receiver.

•If foreign bodies or fluids enter the receiver,

immediately pull out the mains plug from the socket.

Ask a qualified person to check the equipment before

operating it once again. Otherwise, there is a risk of

electric shock.

•Ensure that the power source (socket) is easily

accessible.

•Do not bend or crimp the mains cable.

•If the mains cable is damaged, the

receiver must be repaired by an expert before reusing

it. Otherwise, there is a risk of electric shock.

•Never allow children to operate the receiver or to play

with the antenna unit unless supervised.

•Always ask qualified personnel to carry out

maintenance jobs. Otherwise, you are putting yourself

and others at risk.

•Disconnect the receiver from the power source in case

of operational disruptions.

•Spare parts must be ordered directly from the

manufacturer

•Modifications of the device lead to an extinction of the

manufacturer’s liability.

•Remove the protection films.
