MicroNet SP908GK Manuale utente
User’s Manual
Wireless LAN CardBus Adapter
Model No.: SP908GK
http://www.micronet.info
CONTENTS
1INTRODUCTION........................................................................................0
1.1 FEATURES.............................................................................................1
1.2 PACKAGE CONTENTS...........................................................................1
2 INSTALLATION...........................................................................................2
3 CONFIGURATION AND MANAGEMENT......................................................7
3.1 AD-HOC MODE ......................................................................................7
To use this adapter in Ad-Hoc Mode................................................................ 7
3.2 INFRASTRUCTURE MODE.....................................................................8
To use this adapter in Infrastructure Mode....................................................... 9
4INTRODUCTION TO THE WIRELESS LAN UTILITY...................................10
4.1 STARTING THE WIRELESS LAN UTILITY.............................................10
4.1.1 GENERAL .......................................................................................10
4.1.2 PROFILE.........................................................................................11
4.1.3 CONFIGURE THE PROFILE ............................................................12
4.1.3.1 BASE CONFIGURATION ............................................................12
4.1.3.2 WIRELESS NETWORK SECURITY.............................................13
4.1.3.3 802.1X SETTING-CERTIFICATION.............................................15
4.1.3.4 802.1X SETTING-CA SERVER ...................................................17
4.1.4 AVAILABLE NETWORK ...................................................................18
4.1.5 ADVANCED.....................................................................................18
4.1.6 STATUS..........................................................................................20
4.1.7 STATISTICS....................................................................................20
4.2 AP MODE MANAGEMENT GUIDE.........................................................21
4.2.1 GENERAL .......................................................................................21
4.2.2 ADVANCED.....................................................................................21
4.2.3 STATISTICS....................................................................................22
4.2.4 SOFTAP..........................................................................................23
5TROUBLESHOOTING................................................................................24
- 0 -
1 Introduction
Thank you for purchasing the Micronet SP908GK Wireless LAN CardBus Adapter. It
supports the latest IEEE 802.11g wireless network at 54 Mbps in the 2.4GHz
frequency and is also compatible with IEEE 802.11b wireless devices at 11Mbps.
When the adapter is connected to 11b devices, the link speed will be up to 11Mbps.
You can configure this adapter in ad-hoc mode to connect to other 2.4GHz wireless
computers or in Infrastructure mode to connect to a wireless AP or router for
accessing to Internet, making the wireless network will be even more efficient.
For WLAN security issues, SP908GK supports 64/128-bit WEP data encryption that
protects your wireless network from eavesdropping. It also supports WPA (Wi-Fi
Protected Access) feature that combines IEEE 802.1x and TKIP (Temporal Key
Integrity Protocol) technologies. On the security side, client user authorization is
required before accessing to APs or AP Routers, and the data transmitted in the
network is encrypted / decrypted by a dynamically changed secret key. Furthermore,
SP908GK supports AES function, offering a stronger encryption mechanism, which is
often required by corporate and government users.
With its various features and ability to support advanced technology, SP908GK is the
most cost-effective solution to build your wireless network.
- 1 -
1.1 Features
Complies with IEEE 802.11b/g wireless standard.
Complies with 32-bit CardBus type II
High-speed transfer- Data rate up to 54 Mbps
Support turbo mode for 72 Mbps data rate
Support wireless data encryption with 64/128-bit WEP, WPA(TKIP with IEEE
802.1x) and AES functions.
Support driver for Windows 98se, ME, 2000 and XP.
Supports auto-installation and diagnostic utilities.
1.2 Package Contents
Before you begin the installation, please check if the following items are in your package.
The package should include the following items:
Micronet SP908GK Wireless LAN CardBus Adapter
Driver and Manual CD
Quick Installation Guide
If any of the above items is missing, contact your supplier as soon as possible.
- 2 -
2 Installation
Before you proceed with the installation, please read the following notes carefully.
Note1: Please do not install Wireless LAN CardBus Adapter into your laptop computer
before installing the software program from the CD.
Note2: The following installation was performed under Windows XP. (Procedures are
similar for Windows 98SE/Me/2000.)
Note3: If you have installed the Micronet Wireless LAN CardBus Adapter driver & utility
before, please uninstall the old version first.
Step1. Insert the Installation CD to your CD-ROM Drive. Execute the “setup” program.
(../Utility and Driver/setup.exe)
Step2. The language-selection window pops up. Please select the language you use
and click Next.
- 3 -

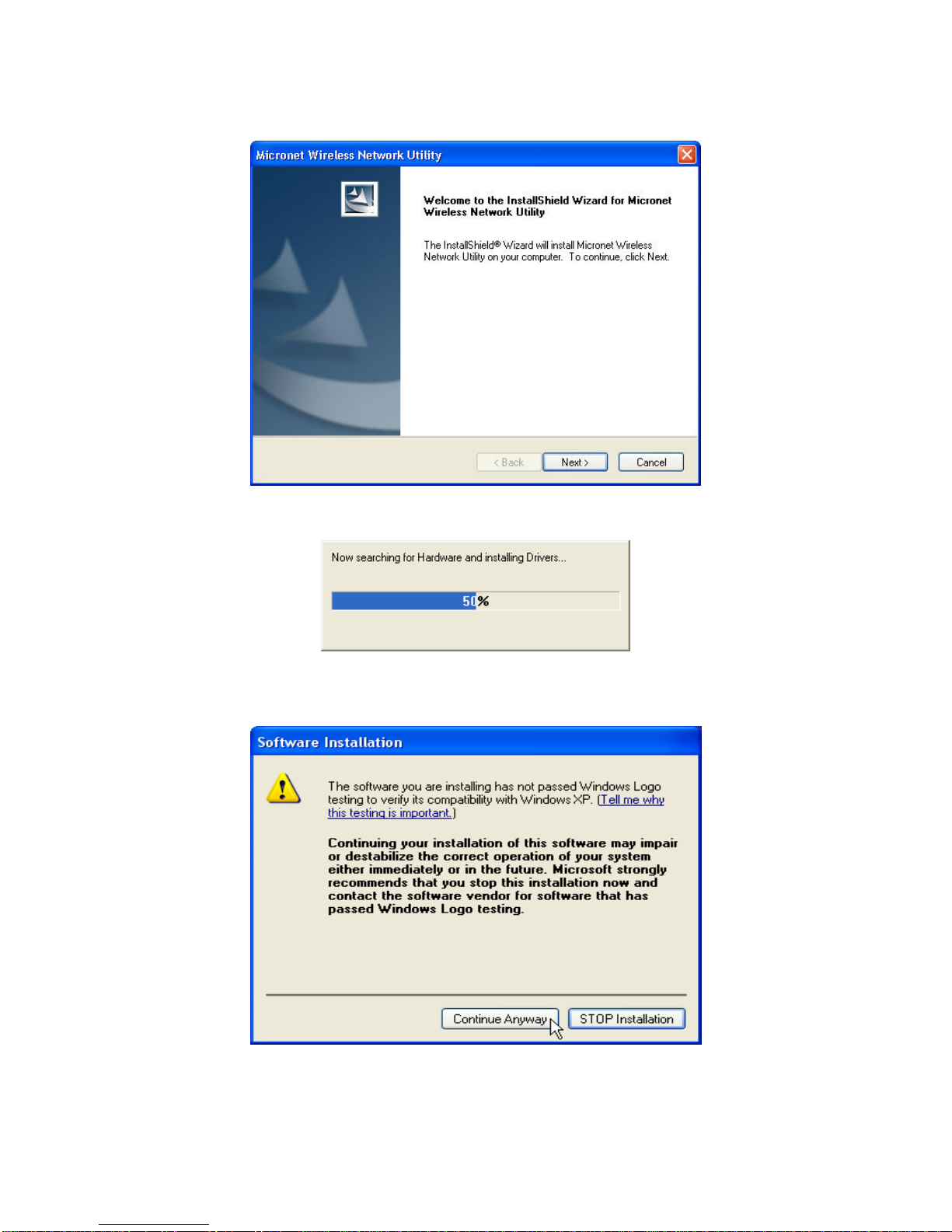

Step3. The welcome window pops up. Click the “Next” button to proceed.
Step4. Please wait while installation.
Step5. This Windows Logo testing warning window may pop up upon installation. Please
click the “Contiune Anyway” to continue.
Step6. If you are using Windows 98se or ME, the system may ask for the driver CD.
Please click the Browse button. Select your CD-ROM Drive then select
CardBusÆDriverÆWIN98 (or WINME) to browse the driver. If not, please skip
this step.
- 4 -
Step7. Click the “Finish” button to complete driver and utility installation
Step8. For Windows XP and 2000 users, insert this wireless adapter to your computer. If
you are using Windows 98se or ME, please restart the system first before
connect this wireless adapter to your computer.
Step9. The “Found New Hardware Wizard“will then pop up. (Note: This wizard won’t
pop up in Windows 98 and ME. The system finds the new hardware and installs
the hardware automatically. Please skip the following steps)
Step10. Select “No, not this time” and click the “Next” button.
- 5 -

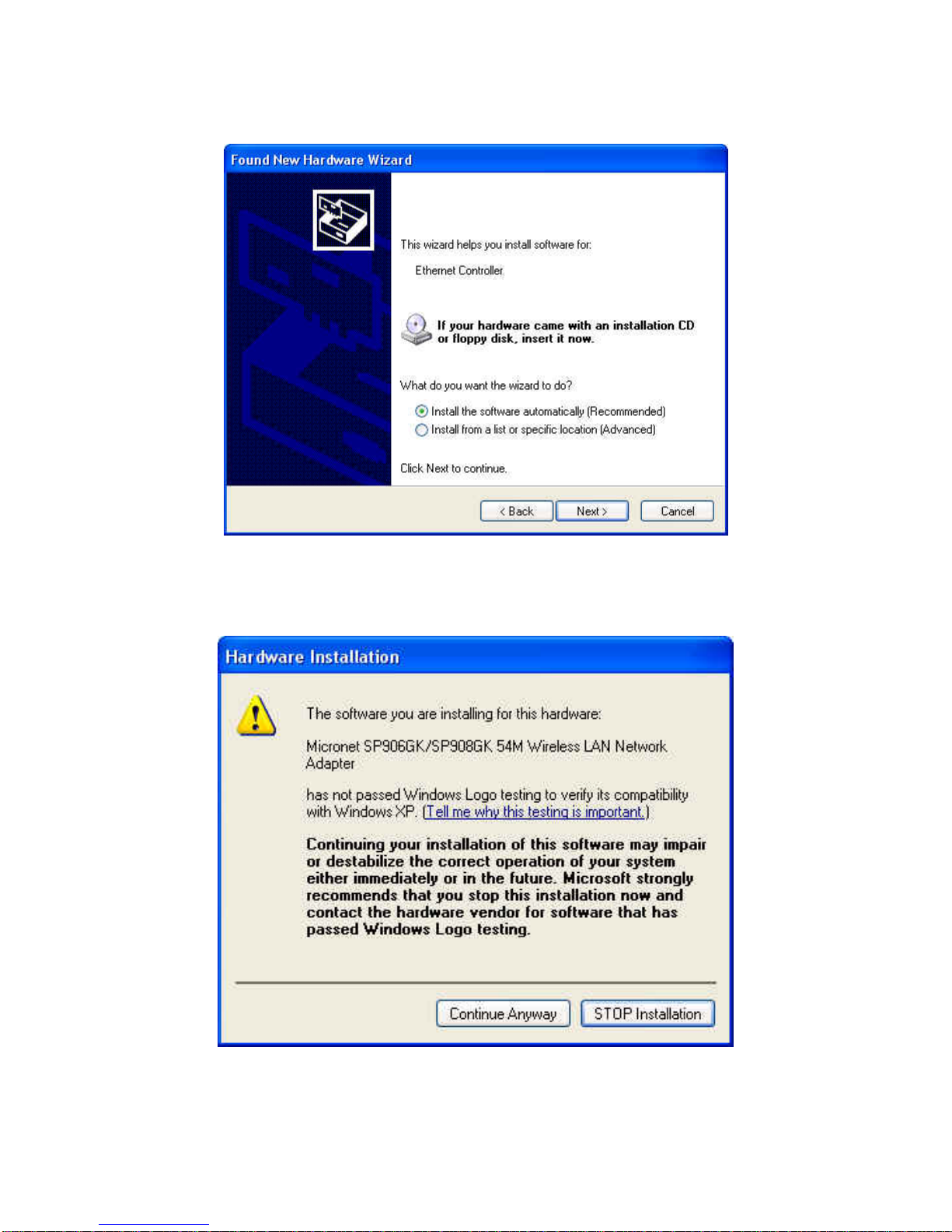

Step11. Select “Install the software automatically” and click the “Next” button.
Step12. Please wait while the driver is being installed. The Windows logo testing warning
window may pop up again. Please click the “Continue Anyway” button to
continue.
- 6 -

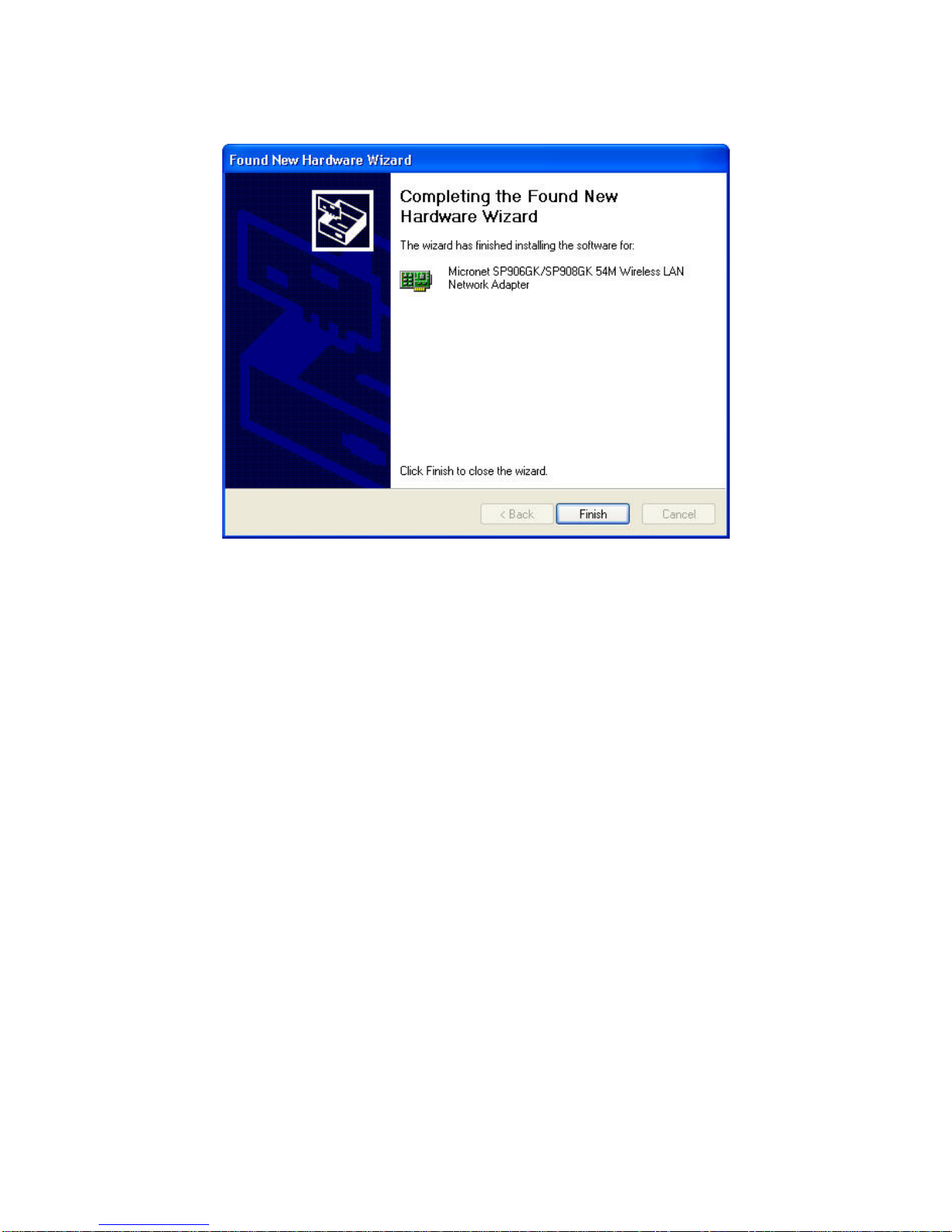

Step13. Click the “Finish” button after driver installation
- 7 -
3 Configuration and Management
Read this chapter to understand the management interface of the device and how to
manage the device.
In the following instruction for making a network connection, we use the utility we
provided to configure the wireless network settings.
Note: For Windows XP users that want to configure the wireless network using this Utility,
please perform the following procedures to disable the native Windows XP wireless
support (Wireless Zero Configuration Service)
1. Double click the icon on your desktop to start the utility.
2. Make sure that the “Windows Zero Config” checkbox is unchecked.
3.1 Ad-Hoc Mode
An Ad-Hoc mode wireless network connects two computers directly without the use of
a router or AP. It is also know as a peer-to-peer network. For example, we can install
this wireless adapter to two computers respectively. The communication between the
two computers is an Ad-Hoc mode network.
To use this adapter in Ad-Hoc Mode
1. Double click the icon on your desktop.
2. Click the “Available Network” button to scan available wireless network adapters.
Double click on the network adapter that you are going to connect to.
