Microtek LightLid 35 Manuale utente

I49-003702 A, March 2004

The LightLid 35 Plus is a bonus accessory included with your Microtek scanner,

providing you with the versatility to scan 35mm slides and filmstrips on your flatbed

scanner.

Microtek recommends the use of this accessory to scan slides for on-screen display

purposes or where high resolution is not critical. For high-quality print reproduction, we

recommend purchasing a dedicated slide scanner or a Microtek scanner with built-in

film-scanning features.

Please note: Scanning of color transparencies may vary, depending on the quality of

your film original.

A. Installing the LightLid 35 Plus

1. Unpack the LightLid 35 Plus.

2. Remove the scanner lid.

3. Plug the connector (9-pin or 15-pin) of

the LightLid 35 Plus into the accessory

port at the back panel of your scanner.

Note: Make sure the scanner is powered

off before making the LightLid 35 Plus

connection.

9-pin connector

15-pin connector

Installing and Getting Started

2 LightLid 35 Plus Installing and Getting Started

B. Positioning the LightLid 35 Plus

The lower slots are for

loading 35mm slides

The upper slots are for

loading 35mm filmstrips

1. Load the transparent film.

A. Loading 35mm slides:

Turn the LightLid 35 Plus over. Load

the 35mm slide face up along the slots

of the LightLid.

The slides should be inserted inside the

slots specifically allotted for slides, as

shown in the illustration.

A maximum of four slides can be

loaded at a time into the LightLid 35

Plus.

B. Loading 35mm filmstrips:

Turn the LightLid 35 Plus over. Load

the 35mm filmstrip face up inside the

slots of the LightLid.

The filmstrip should be inserted inside

the slots specifically allotted for film,

as shown in the illustration.

A maximum of five frames in a

filmstrip can be scanned at a time.

2. Place the LightLid 35 Plus vertically on the glass surface of the scanner, and center

it along the top ruler of the scanner.

Important: Place lengthwise on

center of scan bed and align notch

flush with the top edge of the glass.

Ensure that the calibration window

is kept clear and free from any

obstruction for successful calibration

and best image results.

C. Scanning your transparent film

Launch the ScanWizard 5 scanning software in stand-alone mode or from your image-

editing software, then select your scan material and start scanning. ScanWizard 5 has

two modes — Standard and Advanced — and each mode has its own way of selecting

the scan material and scanning. Each mode of operation is shown below.

A. Standard Control Panel:

1. Double-click the ScanWizard 5 icon ( ) on your desktop to launch the ScanWizard

5 Standard Control Panel.

When ScanWizard 5 launches, it automatically performs a fast preview of the

material on your scanner glass surface and displays it in the preview area.

2. Click the Original button, and choose Positive Film or Negative Film, depending on

the film you wish to scan.

When selected, the light source of the LightLid 35 Plus lights up.

3. Click the Preview button to perform a preliminary view of the entire image.

4. In the preview window, you can resize the scan frame (floating dotted lines) around

the image by dragging on the edge or corner of the scan frame to determine the

final size of the actual scan.

5. Click the Scan to button to scan the image.

After the scan, the scanned and processed image can be saved as a file, opened in an

image-editing program, sent to a printer, attached in an e-mail, or uploaded to a

website.

LightLid 35 Plus Installing and Getting Started 3

To obtain best

results when

scanning with the

LightLid 35 Plus,

set the scan

Resolution to a

minimum 600 dpi

and the Scaling to

100%.

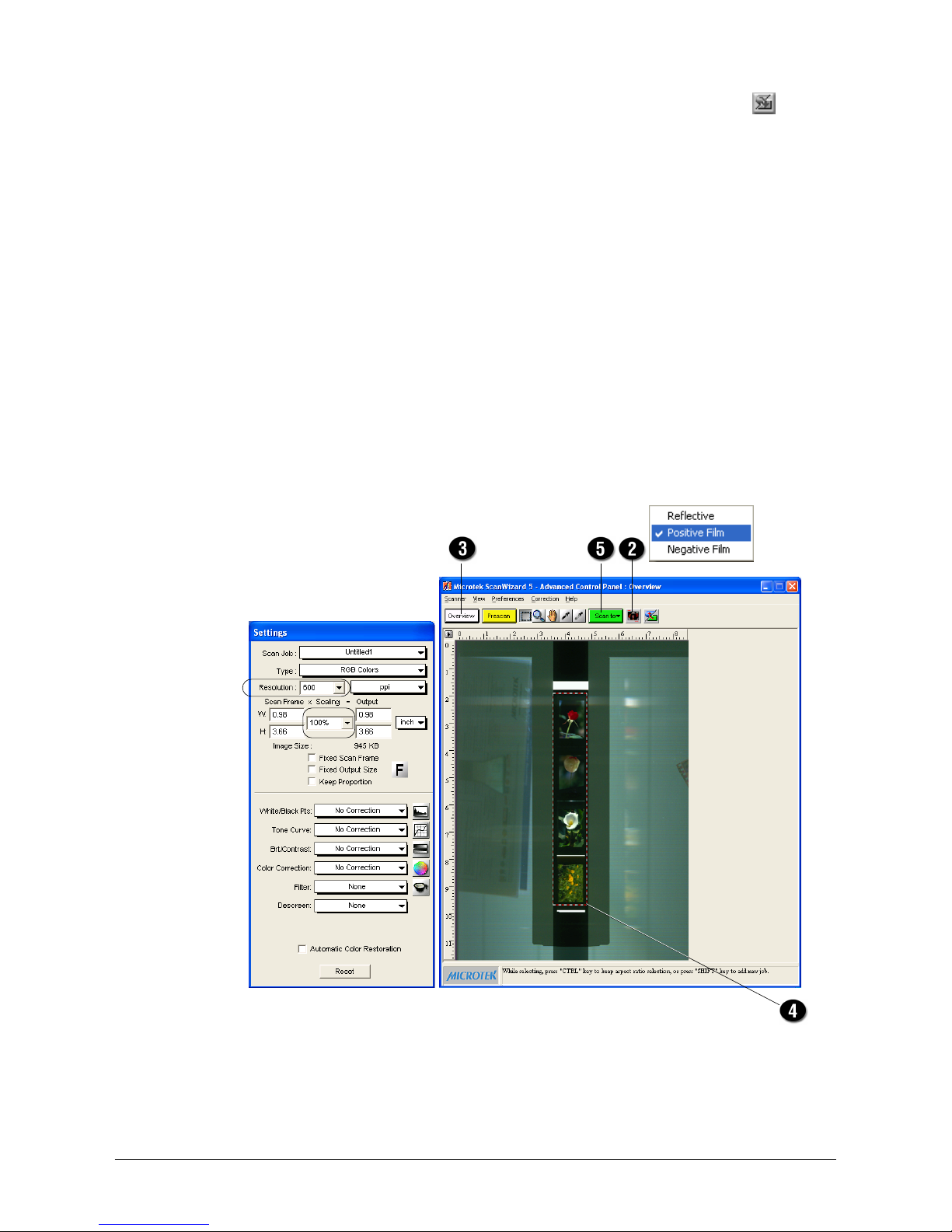

B. Advanced Control Panel:

1. Launch the ScanWizard 5 scanning software, then click the Switch icon ( ) on the

right corner of the Standard Control Panel to switch to Advanced Control Panel.

2. Click the Scan Material button, and choose Positive Film or Negative Film,

depending on the material you wish to scan. Note: For Mac OS X, select Positive or

Negative from the Scan Material pull-down menu.

When selected, the light source of the LightLid 35 Plus lights up.

3. Click the Overview button to perform a preliminary view of the entire image.

4. In the preview window, you can resize the scan frame (floating dotted lines) around

the image by dragging on the edge or corner of the scan frame to determine the

final size of the actual scan.

5. Click the Scan to button to scan the image.

After the scan, the scanned and processed image can be saved as a file, opened in an

image-editing program, sent to a printer, attached in an e-mail, or uploaded to a

website.

4 LightLid 35 Plus Installing and Getting Started

To obtain best results when

scanning with the LightLid

35 Plus, set the scan

Resolution to a minimum

600 dpi and the Scaling to

100%.
