OWNER’S MANUAL
Washing Machine
MODEL:
MA100W75
MA100W75/WK/E
MA100W85
MA100W85/WK/E
MA100W95
MA100W95/WK/E
Washing Machine
FULLY AUTOMATIC
1
CONTENTS
SAFETY INSTRUCTIONS
Safety instructions .................................. ............ ... ..... . .
INSTALLATION
Product description .............................................. .....
Installation area ......................................... ........ ........... ..
Unpacking the washing machine ...................
Levelling the washing machine ..........................
Selection of tap ................................................... . .......... .
Connection of inlet hose, tap and washing machine...
Preparation before washing...................................
Washing .......................................................... . .......... ............
After washing................................................. ....................
Washing matters needing attention .............
The usage of detergent and washing powder.............
Control panel ................................................... ..................
Option...................................................... ...... ........................ ...
Personalized setting of washing program.........
Operations of washing process..........................
Washing program table .............................. ..............
MAINTENANCE
Cleaning and care ....................................... ....... .......... .
Cleaning the cabinet............................................ ........
Cleaning drain pump filter .....................................
Troubleshooting.......................................... ........... ....... ..
Technical information ...................................... ...........
Energy efficiency test program.........................
2
8
9
9
10
1 1
1 1
12
12
12
13
13
14
15
16
16
17
18
18
19
20
2 1
22
OPERATIONS
SAFETY INSTRUCTIONS
For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
2
SAFETY INSTRUCTIONS
• This appliance is not intended for use by persons(including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•
•
•
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- areas for communal use in blocks of flats or in launderettes.
Children should be supervised to ensure that they do not
play with the appliance.
The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
SAFETY INSTRUCTIONS
3
Model Washing Capacity
Standard Water Pressure
Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Explanation of the symbols:
Caution!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
0.03MPa~0.8MPa
0.03MPa~0.8MPa
8.5kg
7.5kg
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
MA100W75
MA100W75/WK/E
MA100W85
MA100W85/WK/E
0.03MPa~0.8MPa
9.5kg
MA100W95
MA100W95/WK/E
4
SAFETY INSTRUCTIONS
The electric shock!
Warning!
•
•
• Hands shall not be inserted into running spin-dry tub .
• If the spin-dry tub does not stop within 15 seconds after
opening the cover , please stop using the machine and
have it repaired.
• Before any maintenance the device, unplug the appliance
from the mains.
• Always unplug the machine and turn off the water supply
after use. The max. inlet water pressure, in pascals. The
min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make sure
that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be
connected by a qualified technician in accordance with the
manufacturer's instructions and local safety regulations.
Do not put washing machine at humid place.
This appliance is for indoor use only.
• EN countries: the appliance can be used by children aged
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Young children should be supervised that they do not play
with the appliance.
• Machine may be very hot during the operation. Keep kids
and pets far away from the machine during the operation
• Plug must be accessible after installation.
very wet rooms as well as in the rooms with explosive or
caustic gas.
•
• The washing machine with single inlet valve only can
be
connected to the cold water supply. The product
inlet valves should be correctly connected to the hot water
and cold water supply.
with double
Remove all packages before using the appliance. Otherwise,
serious damage may result.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
5
SAFETY INSTRUCTIONS
Risk to children!
• This washing machine is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with
double inlet valves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Risk of damaging appliance!
6
SAFETY INSTRUCTIONS
Caution
Installing the product!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin, brooch, nail, screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
This marking indicates that this product should not be disposed
with other household wastes throughout the EU.To prevent
possible harm to the environment or human health from
uncontrolled waste disposal,recycle it responsibly to promote
the sustainable reuse of material resources.To return your used
device,please use the collection systems or contact the retailer
where the product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
7
SAFETY INSTRUCTIONS
• Please do not close the door with excessive forces.
• It is forbidden to wash carpets.
INSTALLATION
Product description
• The product line chart is for reference only, please refer to real product as
standard.
Note!
8
Accessories
spring clamper
drain loose ass
Inlet hose ass
manual screw
cabinet baseboard
• Note: if the drain hose is already installed on the machine, then there is no
spring clamper and drain hose in the accessories.
Note!
Or
Frame
Top lid
Drain hose
Handle
Power case and plug
Control panel
Cabinet
Adjustable foot knob
Water inlet valve
Or
Installation area
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from the heat resources such as coal or gas.
as

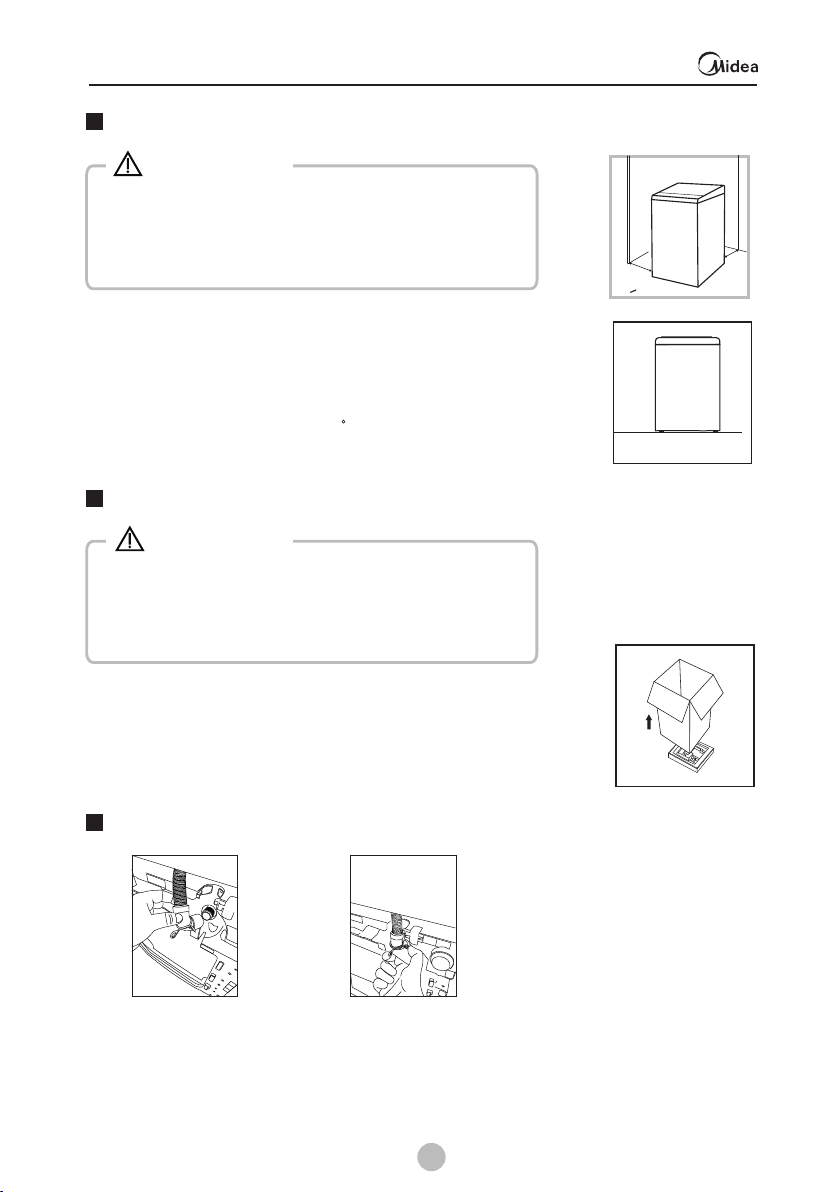

Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and
drain hose.
4. Remove the inlet hose from the drum.
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
9
INSTALLATION
w
w
W> 20mm
The installation of drain hose
Clamping spring
Drain inserted
into the drain
hose
Questo manuale è adatto per i seguenti modelli
5
Indice
Altri manuali Midea Rondella
Midea
Midea LUNAR 01 Manuale utente
Midea
Midea MLV47R5BWW Manuale
Midea
Midea MFES06W50/W-ES Manuale utente
Midea
Midea MFL70S12 Manuale utente
Midea
Midea MFL80-ES1200 Manuale utente
Midea
Midea MTWM60 Manuale utente
Midea
Midea MF710W Manuale utente
Midea
Midea FP-90LTL065GETM-N2 Manuale utente
Midea
Midea MTWR45 Manuale utente
Midea
Midea MAD160-A2801GPS Manuale utente
Midea
Midea MLV45N1BWW Manuale
Midea
Midea MAH180-A2801PS/01FM-US Manuale utente
Midea
Midea MWMTL075ZOF Manuale utente
Midea
Midea A1 4.5kg Manuale utente
Midea
Midea Sicily Glory G01 Manuale utente
Midea
Midea MFW-801S Manuale utente
Midea
Midea MAE180-2404TPS/01FM Manuale utente
Midea
Midea MLV47C3AWW Manuale
Midea
Midea MFN75-S1403/C31E-AU(25) Manuale utente
Midea
Midea MSW-7118P Manuale utente
