NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 010106

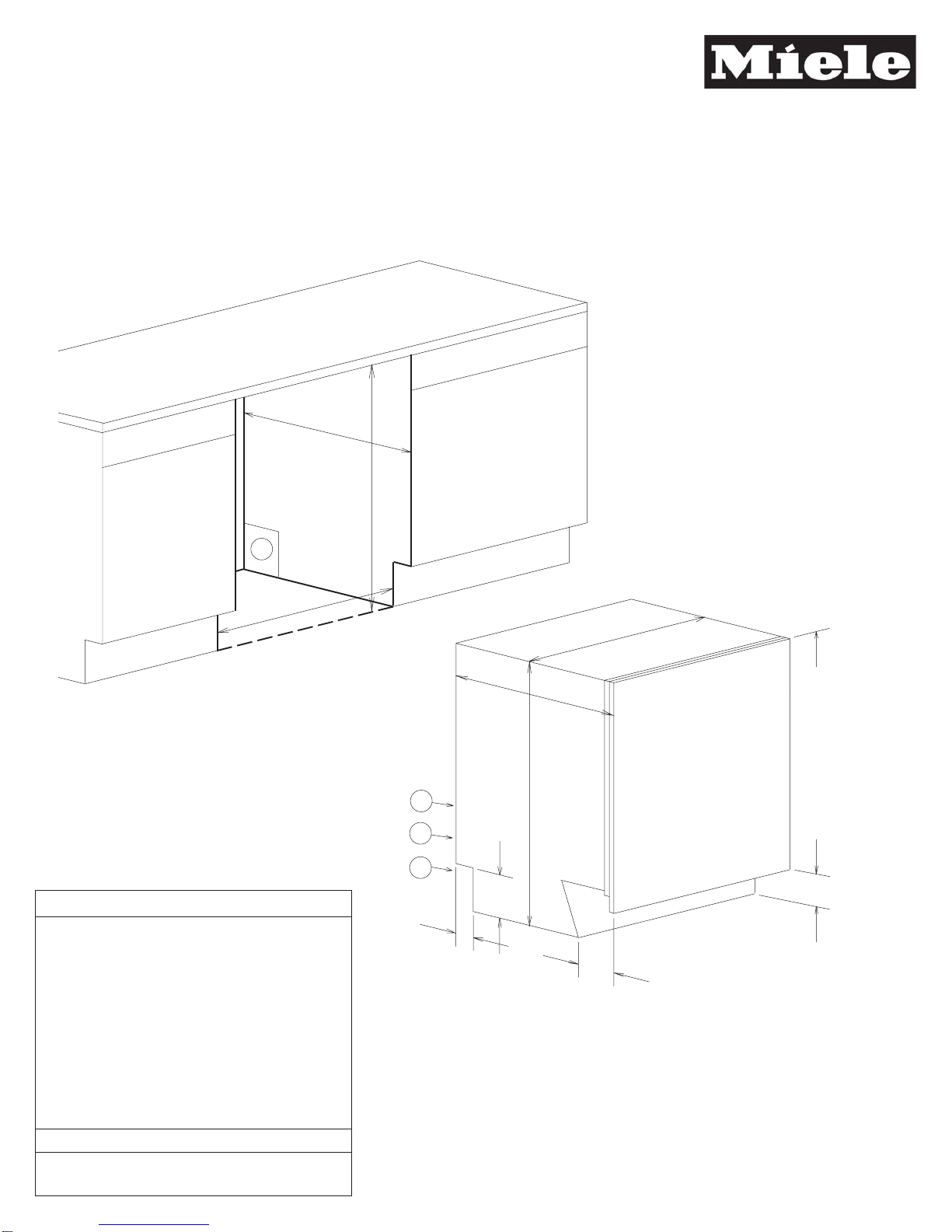

Product and Cut-out Dimensions

G2000 Series Dishwashers

Fully Integrated Models

23 5/8"

22 7/16" min.

Water & Electrical

Connection

Location

23 9/16"

33 1/4" - 35 3/4"

5 1/8"

22 7/16"

1 3/8" - 8 5/8"

4 1/2"

33 1/4" - 35 3/4"

1 3/8"

Notes

Cutout (2 1/4" x 4") for water, drain

and electric pass-through.Adjust

according to water and drain location.

5 foot flexible drain hose connects

lower center rear.

5 foot - 120 Volt - 15Amp 3-wire

molded plug power supply connects

lower left rear.

5 foot "Double Waterproof" flexible

water intake hose connects lower

center rear.

C -

D -

E -

W -

• All installations must be done in

accordance with local codes

Location Codes

27 1/8" - 31 7/8"

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 010106

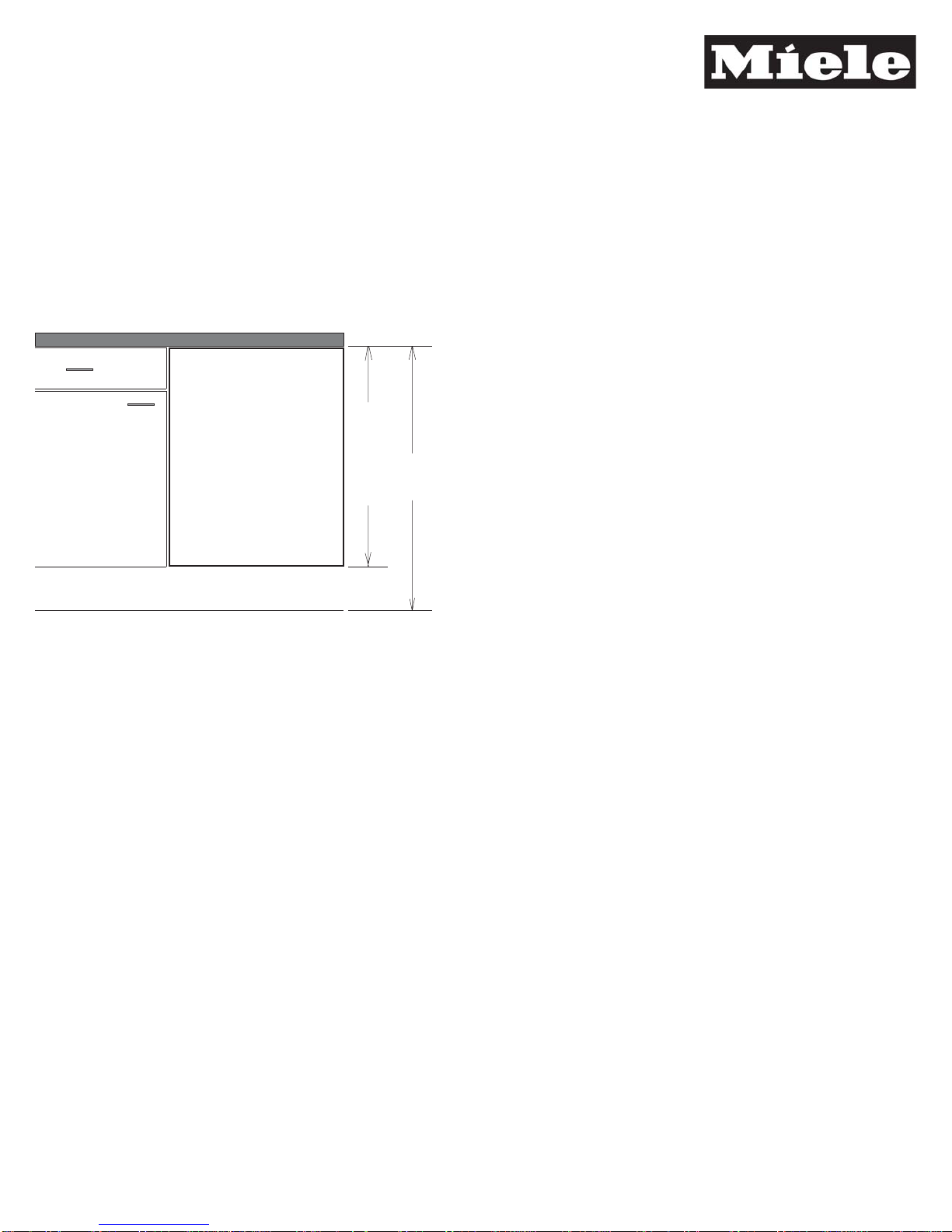

Front Panel Information

G2000 Fully Integrated Models

Width: 23 7/16" in all cases

Thickness: 3/4" in all cases

Height:Determined using the following calculation:

Panel Height = HTC - TKH

HTC = Height to the underside of countertop

TKH = Toe-kick height

Note: Control panel is along the top edge of the unit. It

is not visible when the unit is closed.

A handle MUST be located on the front panel in

order to open the unit

Maximum panel height: 31 7/8"

Minimum panel height: 27 3/16"

Maximum panel weight: 21 Pounds

Miele

Fully

Integrated

Dishwasher

TKH

HTC

Panel Height

Custom Panel Installations

Some Miele dishwashers do not come equipped with a front panel. These dishwashers are designed to accept a

custom door panel supplied by the cabinet maker. Miele has a unique panel integration system which allows the

dishwasher to align with the surrounding cabinets.

Panel size is determined in the following manner:

GFVi Installations

Miele offers pre-fabricated stainless steel panels for all fully integrated units. These panels are designed for various

toe-kick heights and offer a choice of handle options.

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 010106

Installation Information

G2000 Dishwashers

1 1/2

2 1/2

3 1/2

4 1/2

5 1/2

6 1/2

7 1/2

8 1/2

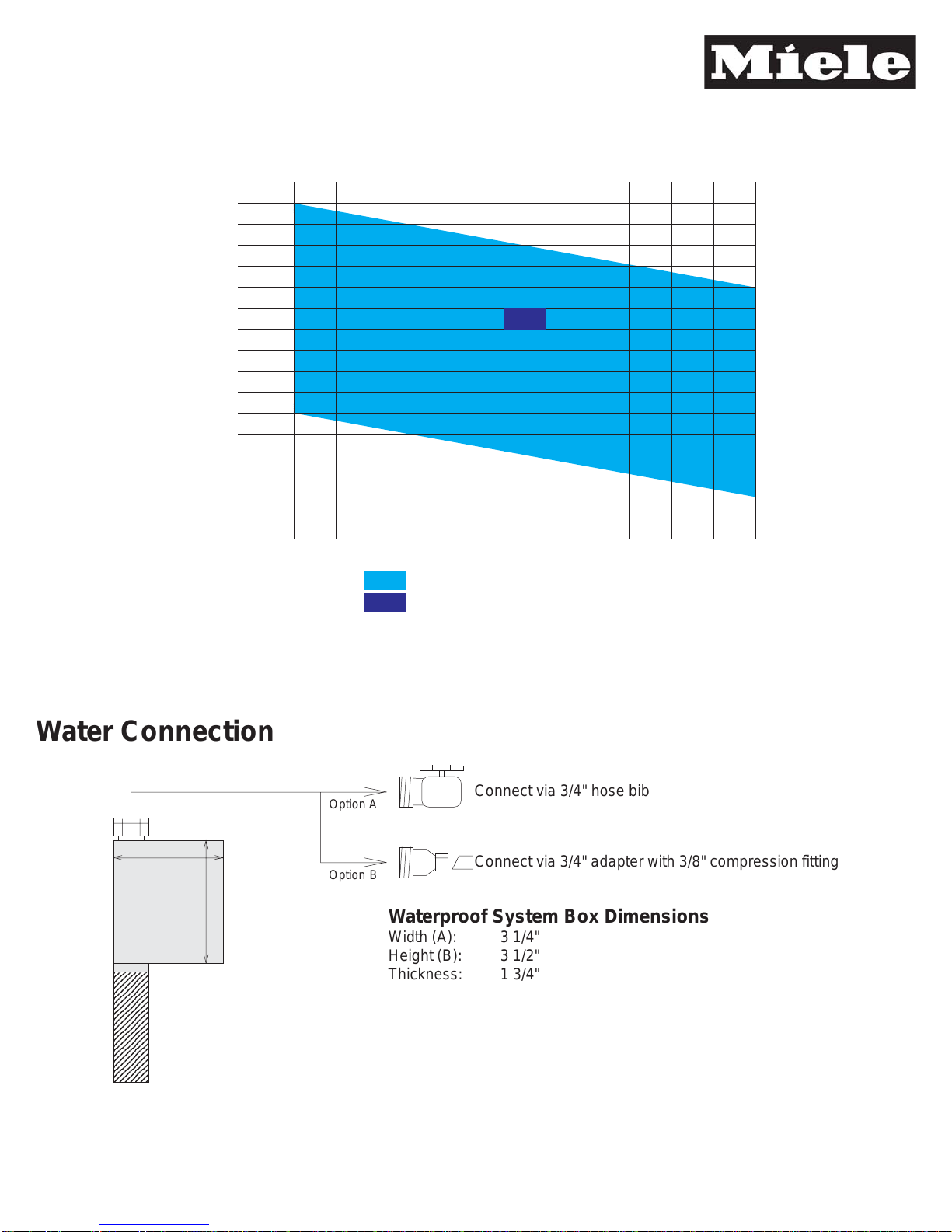

Height to underside of countertop

33 1/433 3/434 34 1/434 1/233 1/234 3/435

Toekick height

Acceptablecombinations

TypicalAmerican installation

12345678

234567

12345678

Option A

Option B

Connect via 3/4" hose bib

Connect via 3/4" adapter with 3/8" compression fitting

Water Connection

Waterproof System Box Dimensions

Width (A): 3 1/4"

Height (B): 3 1/2"

Thickness: 1 3/4"

Cutout: 2 1/4" x 4"

Dimension (B)

Temperature: 110° - 130° F

Pressure: 4.5 - 145 PSI

Drain hose: 7/8" ID - 5 feet long

Waterproof System

Dimension (A)

NOTE: Waterproof system box should ONLY be

installed in a vertical manner to prevent build-up of

water within box and possible leakage.

35 1/435 1/235 3/4
