Miele PT 7135 C Manuale utente

Installation plan

Tumble dryer

PT 5135 C

PT 7135 C

To avoid the risk of accidents or damage to the machine, it is essential to read

operating and installation instructions before installation and commissioning

This prevents both personal injury and damage to the machine.

en - GB

10 145 320 / 01

2 10 145 320 / 01

Legend:

Connection required

Connection optional or required,

depending on model

Vented

KLZ

Cooling air

ASK

Condensate drain hose

Equipotential bonding

Machine anchors

SLA

Peak-load connection

Electrical connection

Box plinth

Machine feet, adjustable

Open plinth

Payment system

WTV

Washer-dryer stacking kit

KGA

Payment system connection

XKM

Communication module

KLA

Cooling air

Air intake

PT 5135/7135 en - GB

10 145 320 / 01 3

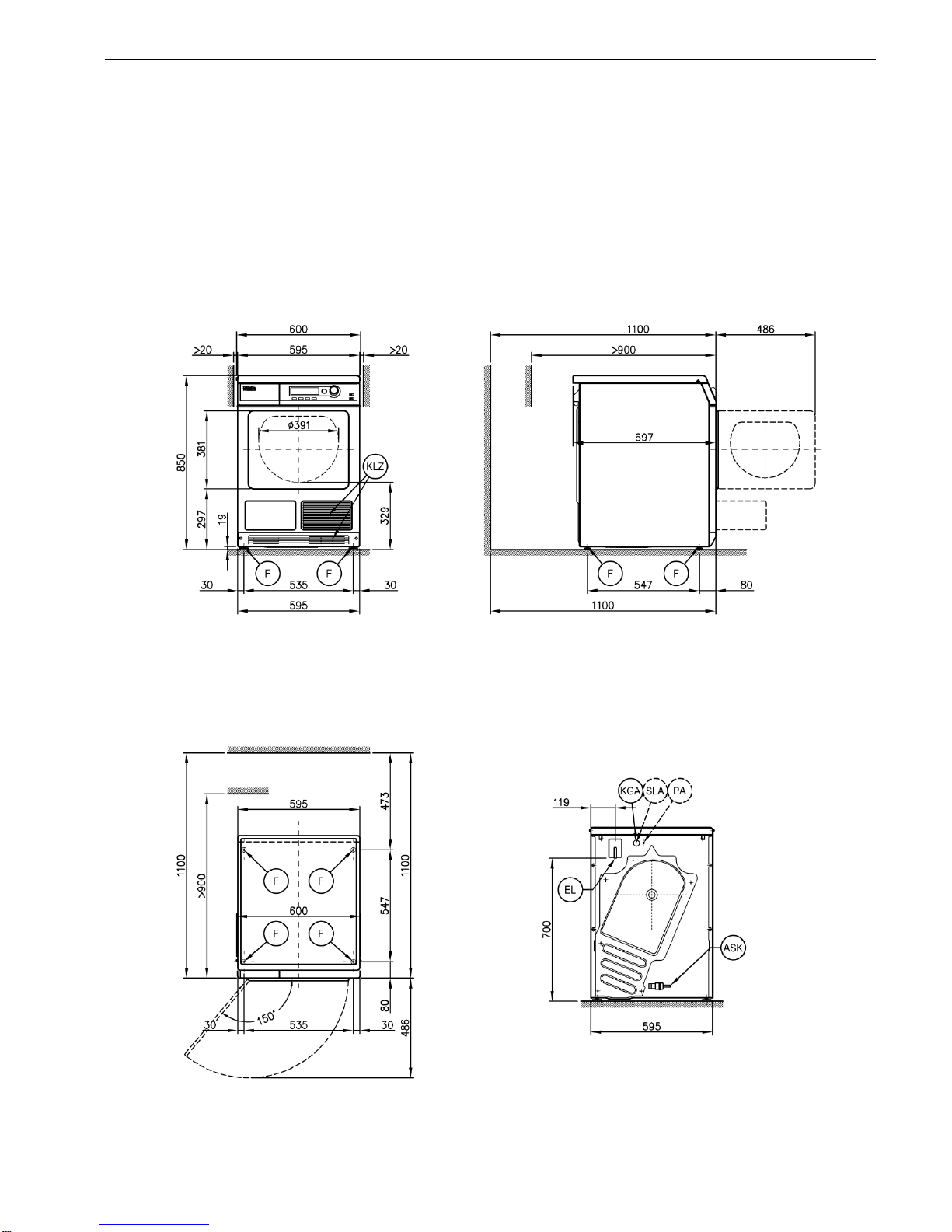

Machine dimensions

en - GB PT 5135/7135

4 10 145 320 / 01

Installation

PT 5135/7135 en - GB

10 145 320 / 01 5

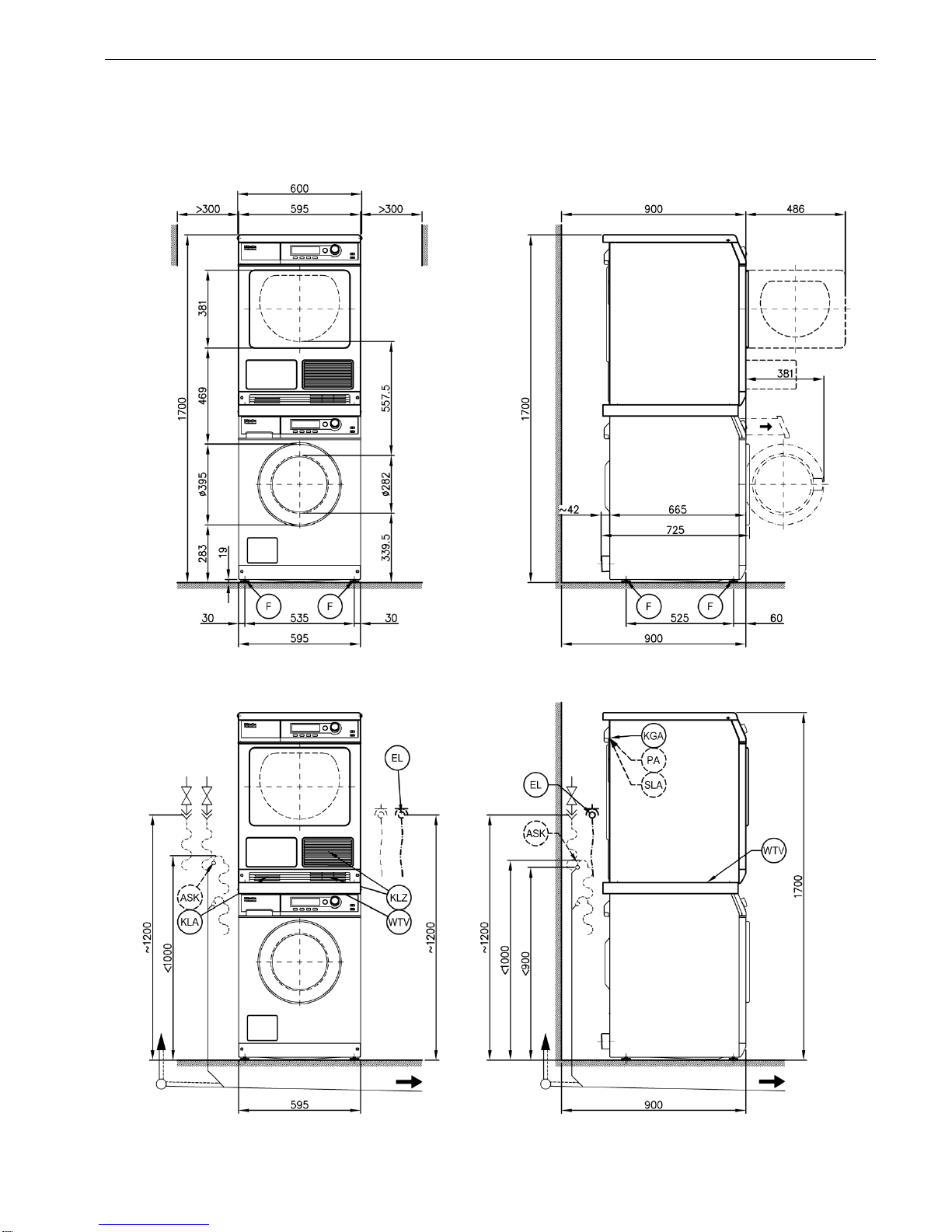

Washer-dryer stack

en - GB PT 5135/7135

6 10 145 320 / 01

Installation

PT 5135/7135 en - GB

10 145 320 / 01 7

Installation

en - GB PT 5135/7135

= standard, = optional, + = only on request, - not available

8 10 145 320 / 01

Technical data

PT 5135 C

PT 7135 C

Drying system

Condensation

Drum volume

130

Load capacity

6.5

Door opening diameter

391

Electrical connection (EL)

Standard voltage

2N AC 400V

Frequency

Total rated load

3.68

Fuse rating (B trip rating according to EN 60898)

2 x 10

Supply lead min. cross-section

mm²

4 x 1.5

Supply lead (H05RN-F) without plug for hard-wired connection



Length of supply lead

2000

Alternative voltage (convertible by Service)

1N AC 230V

Frequency

Total rated load

2.17

Fuse rating (B trip rating according to EN 60898)

1 x 10

Supply lead min. cross-section

mm²

3 x 1.5

Non-standard voltage OS 230 (Offshore)

2 AC 230 V

3 AC 230 V

Frequency

Total rated load

3.68

Fuse rating (B trip rating according to EN 60898)

2 x 16

3 x 16

Supply lead min. cross-section

mm²

3 x 1.5

Supply lead without plug for hard-wired connection



Length of supply lead

2000

Variations in the following countries:

Standard voltage 13A (GB only)

1N AC 220-230 V

Frequency

Total rated load

2.76 - 2.99

Fuse rating (B trip rating according to EN 60898)

1 x 13

Supply lead min. cross-section

mm²

3 x 1.5

Supply lead with plug



Length of supply lead

2000

Standard voltage (DK only)

2N AC 400 V

Frequency

Total rated load

3.68

Fuse rating (B trip rating according to EN 60898)

2 x 10

Supply lead min. cross-section

mm²

4 x 1.5

Supply lead without plug for hard-wired connection



Length of supply lead

2000

Standard voltage (N only)

1N AC 230 V

Frequency

Total rated load

3.68

Fuse rating (B trip rating according to EN 60898)

1 x 16

Supply lead min. cross-section

mm²

3 x 1.5

Supply lead with plug



Length of supply lead

2000

Alternative voltage (convertible)

3 AC 230 V

Frequency

Total rated load

3.68

Fuse rating (B trip rating according to EN 60898)

3 x 16

Supply lead min. cross-section

mm²

4 x 1.5

PT 5135/7135 en - GB

= standard, = optional, + = only on request, - not available

10 145 320 / 01 9

Technical data

PT 5135 C

PT 7135 C

Standard voltage (FIN only)

2N AC 400 V

Frequency

Total rated load

3.68

Fuse rating (B trip rating according to EN 60898)

2 x 10

Supply lead min. cross-section

mm²

4 x 1.5

Supply lead without plug for hard-wired connection



Length of supply lead

2000

Alternative voltage (convertible)

1N AC 230 V

Frequency

Total rated load

3.68

Fuse rating (B trip rating according to EN 60898)

1 x 16

Supply lead min. cross-section

mm²

3 x 1.5

Alternative voltage (convertible)

1N AC 230 V

Frequency

Total rated load

2.17

Fuse rating (B trip rating according to EN 60898)

1 x 10

Supply lead min. cross-section

mm²

3 x 1.5

Standard voltage (AUS only)

1N AC 230-240 V

Frequency

Total rated load

2.17 –2.34

Fuse rating

1 x 10

Supply lead min. cross-section

mm²

3 x 1.0

Supply lead with plug



Length of supply lead

2000

Standard voltage (J only)

1N AC 200 V

Frequency

50 –60

Total rated load

3.7

Fuse rating

1 x 20

Supply lead min. cross-section

mm²

3 x 2.75

Supply lead with plug



Length of supply lead

2000

Condensate drain hose (ASK)

Drainage temperature, max.

°C

Max. transient flow rate

l/min

3.6

On-site hose sleeve for drain hose (outer dia. x length)

10 x 30

Drain hose (internal diameter)

10 (DN10)

Drain hose length

1800

Drain pump head height from bottom edge of machine, max.

1000

Cooling air intake (KLZ)

Air flow must remain unobstructed at all times

Cooling air discharge vent (KLA)

Air flow must remain unobstructed at all times

Equipotential bonding (PA)

Machine connection (separate kit required)



Peak load/energy management (SLA)

Machine connection (separate kit required)



Control signal voltage

230 V

Payment system connection (KGA)

Connection of payment systems



Communication module (XKM)

RS 232 serial interface (XKM module retrofitting kit)



en - GB PT 5135/7135

= standard, = optional, + = only on request, - not available

10 10 145 320 / 01

Technical data

PT 5135 C

PT 7135 C

Installation on machine feet (F)

No. of machine feet

No.

Machine foot, height-adjustable with thread

+14.5 / -7

Machine foot diameter

Anchoring (B)

Standard anchoring

Floor anchor kit (for 2 machine feet)



Wood screws according to DIN 571

6 x 50

Rawl plugs (diameter x length)

8 x 40

Anchoring of Miele plinths

Miele plinth installation (fasteners included)



Required anchor points

No.

Wood screws according to DIN 571

8 x 65

Rawl plugs (diameter x length)

12 x 60

Plinth floor anchoring (to be provided on site)

Machine installation on permanent plinth (concrete or masonry)



Plinth installation footprint (W/D)

600/650

Wood screws according to DIN 571

6 x 50

Rawl plugs (diameter x length)

8 x 40

Machine data

Overall machine dimensions (H/W/D):

850/600/709

Casing dimensions (H/W/D)

850/595/697

Site-access dimensions (H/W)

Min. site-access (excl. packaging)

900/600

Installation dimensions

Min. side gap

Recommended side gap - washer-dryer stack

300

Recommended min. distance to opposite wall from machine front

900

Recommended distance to opposite wall from front of machine

1100

Weights and floor loads

Machine weight (net weight)

Max. floor load in operation

720

Emissions

Sound pressure level in accordance with EN ISO 11204/11203

dB(A)

< 70

Heat dissipation rate to installation site

2500
