Miele KM 371 G Manuale utente

Installation instructions

Gas hobs

KM370G/KM370-1 G

KM 371 G

KM390G/KM391G

To avoid the risk of accidents or

damage to the appliance, it is

essential to read these

instructions before it is installed

and used for the first time. M.-Nr. 05 827 720

en-GB

GThis appliance can be used in countries other than those specified on the

appliance. It is, however, set up for connection to the gas and electricity

supplies in the countries specified. For use in other countries please contact

the Miele spare parts or customer service department in your country.

DDas Gerät ist auch für den Gebrauch in anderen als auf dem Gerät

angegebenen Bestimmungsländer zugelassen. Die landesspezifische

Ausführung und die Anschlussart des Gerätes haben wesentlichen Einfluss auf

den einwandfreien und sicheren Betrieb. Für den Betrieb in einem anderen als

auf dem Gerät angegebenen Bestimmungsland wenden Sie sich bitte an den

für das Land zuständigen Kundendienst.

EEl aparato está autorizado para el uso en países diferentes a los países de

destino indicados. La ejecución específica para cada país y el tipo de

conexión del aparato influyen de forma decisiva en el funcionamiento correcto

y seguro. Para el funcionamiento en un país diferente al país de destino

indicado en el aparato, consulte al Servicio Post-venta autorizado para el país.

FCet appareil est également homologué dans des pays différents de ceux

mentionnés sur l'appareil. Pour que l'appareil fonctionne parfaitement et en

toute sécurité, il est important de disposer de l'exécution spécifique au pays et

du type de raccordement approprié. Pour le fonctionnement dans un pays

autre que celui spécifié sur l'appareil, veuillez vous adresser au service

après-vente du pays où sera installé l'appareil.

IL'apparecchio può essere usato anche in paesi diversi da quello indicato

sull'apparecchio stesso. Tuttavia, le varianti specifiche di un determinato paese

e il tipo di allacciamento alla rete hanno un'importanza fondamentale per il suo

sicuro e corretto funzionamento. Per questo se si vuole usare l'apparecchio in

un paese diverso rivolgersi al servizio di assistenza tecnica Miele del paese in

cui si intende usarlo.

MHet apparaat is ook toegelaten voor gebruik in andere landen dan de landen

die op het apparaat vermeld staan. De specifieke uitvoering en de aansluitwijze

zijn van groot belang voor het goed en veilig functioneren. Neem daarom

contact op met de Technische Dienst van de fabrikant in uw land als u het

apparaat in een land wilt gebruiken dat niet op het apparaat vermeld staat.

Gas-heated appliances

Safety precautions to take if you smell gas

ßTurn off the gas emergency control valve immediately.

This is usually located near the gas meter.

ßEliminate all sources of ignition in a safe manner.

Do not smoke, light cigarette lighters or matches.

ßDo not operate electrical lights or switches, i.e. do not switch them "On" or "Off".

ßOpen all doors and windows to ventilate the area.

ßIf the smell of gas persists, evacuate the building.

In the U.K you must now:

ßCall TRANSCO (Tel: 0 800 111 999)

ßArrange for an appointment of a Corgi registered gas installer to visit the site

(Tel: Talking pages 0 800 600 900)

In other countries please follow relevant country specific procedures on gas.

Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Appliance dimensions and worktop cut-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

KM370...........................................................7

KM 370-1 G .......................................................8

KM371...........................................................9

KM390..........................................................10

KM391..........................................................11

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Building in the appliance ............................................13

Securing the appliance .............................................13

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Natural gas / liquid gas .............................................18

Burner ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Conversion to another type of gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

KM 370 G / KM 370-1 G /

KM371G........................................................20

Changing the main jets...........................................21

Changing the small jets ..........................................23

After changing the jets ...........................................24

KM390G/KM391G..............................................25

Changing the main jets...........................................26

Changing the small jets ..........................................28

After changing the jets ...........................................30

Contents

Building in

Fit wall units and extractor hood

before fitting the hob, to avoid

damaging the appliance.

~The veneer or laminate coating of

worktops (or adjacent kitchen units)

must be treated with 100 °C

heat-resistant adhesive which will not

dissolve or distort.

Any backmoulds must be of

heat-resistant material.

~Ideally the gas hob should be

installed with plenty of space on either

side. There may be a wall at the rear

and a tall unit or wall at one side. On

the other side, however, no unit or

divider should stand higher than the

hob (see illustrations).

~This equipment is not designed for

maritime use or for use in mobile

installations such as caravans, aircraft

etc. However it may be suitable for

such usage, subject to a risk

assessment of the installation being

carried out by a suitably qualified

engineer.

Due to the heat radiated by the hob

and to allow cooking fumes to

dissipate, it is essential that a

minimum safety distance aof

150 mm is maintained between the

worktop cut-out and adjacent

furniture, e.g. a tall unit.

recommended

not recommended

not allowed

Safety instructions

~The room in which the gas hob is

installed must be at least 20 m3in size

with a door or window in it which can

be opened to the outside air.

~Using the gas hob will cause a

build-up of heat and moisture in the

room in which it is installed. Ensure that

the room has sufficient natural or

mechanical means of ventilation, e.g.

an extractor.

~If the hob is used for very long

periods of time additional ventilation of

the room may be necessary, e.g. by

opening windows or doors, or running

the extractor on the highest setting.

~The hob may be installed above a

Miele oven, if the work-top is at least

40 mm thick.

~An electric fryer must not be

installed next to a gas hob, as the gas

flames could ignite the fat in the fryer. It

is essential to maintain a distance of at

least 300 mm between these two

appliances.

~This gas hob must not be installed

over a dishwasher, washing machine,

tumble dryer, refrigerator or freezer.

The high temperatures radiated by the

hob could damage the appliance

below.

Safety distance above the appliance

bA minimum safety distance must be

maintained between the appliance

and a cooker hood above it. See the

cooker hood manufacturer's

operating and installation instructions

for details.

If the manufacturer's instructions are

not available for the cooker hood, a

minimum safety distance of at least

760 mm must be maintained. For any

flammable objects, e.g. utensil rails,

wall units etc. a minimum distance of

at least 760 mm must be maintained

between them and the hob below.

All dimensions in this instruction booklet

are given in mm.

Keep these instructions in a safe place

and pass them on to any future

user/owner of the appliance.

Safety instructions

KM 370

aBuilding-in depth

bMains connection box

cGas connection R 1/2- ISO 7-1 (DIN2999)

Appliance dimensions and worktop cut-out

KM 370-1 G

aBuilding-in depth

bMains connection box

cGas connection R 1/2- ISO 7-1 (DIN2999)

Appliance dimensions and worktop cut-out

KM 371

aBuilding-in depth

bMains connection box

cGas connection R 1/2- ISO 7-1 (DIN2999)

Appliance dimensions and worktop cut-out

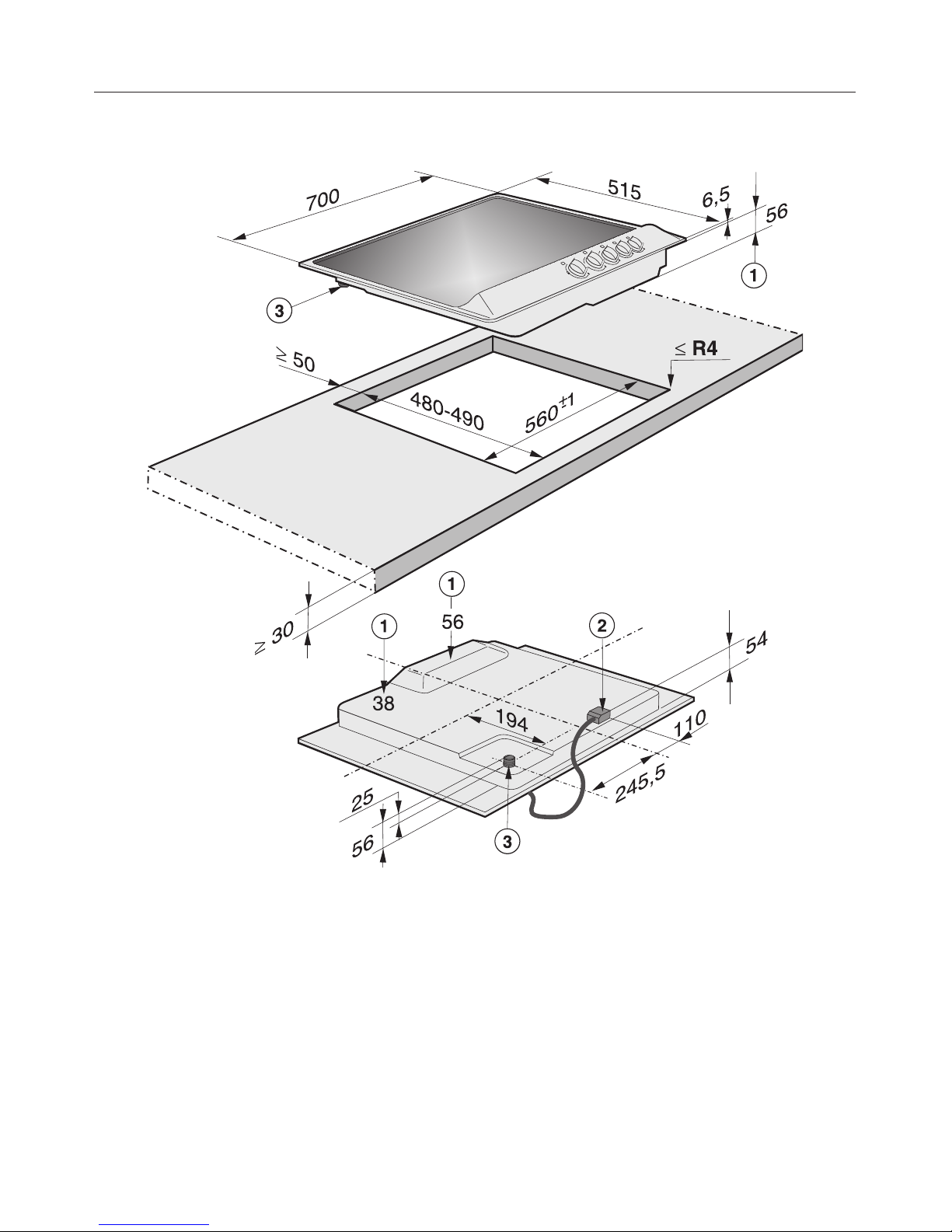

KM 390

aBuilding-in depth

bMains connection box

cGas connection R 1/2- ISO 7-1 (DIN2999)

Appliance dimensions and worktop cut-out
